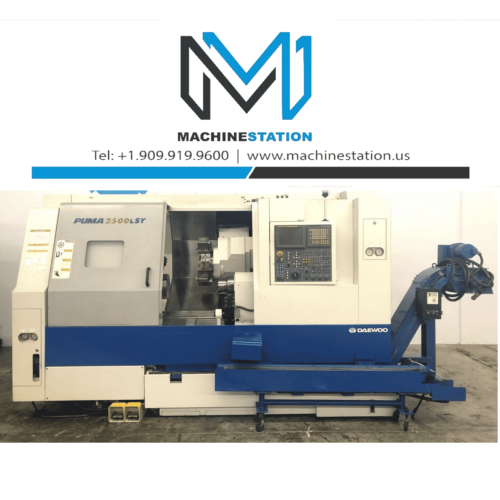

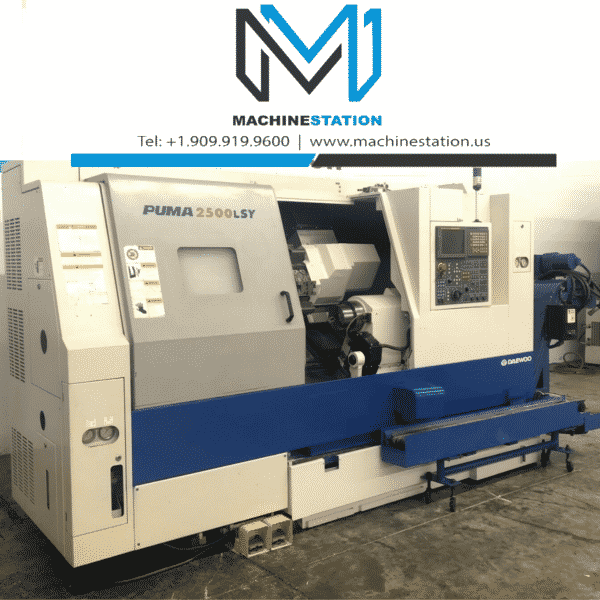

Daewoo Puma 2500LSY CNC Turning

One Our Floor, Fully powered / tested & in Good working condition. Equipped with 2 Chucks, Full C Axis, Milling, Sub Spindle and Y Axis. Comes with Parts & chip conveyor, live tool holders.”

Share

Description

DAEWOO PUMA 2500LSY CNC SUB SPINDLE LIVE TOOL C Y AXIS TURNING
Make Daewoo
Model No. Puma 2500LSY

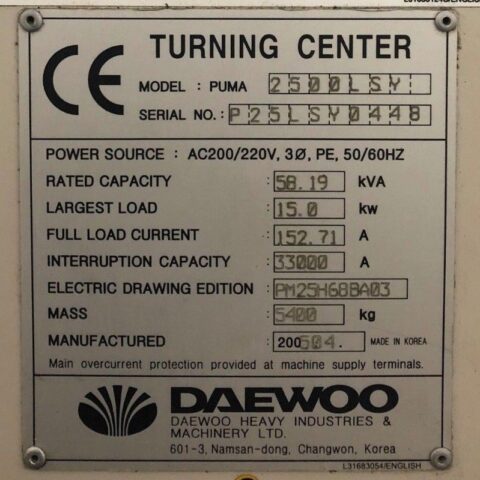

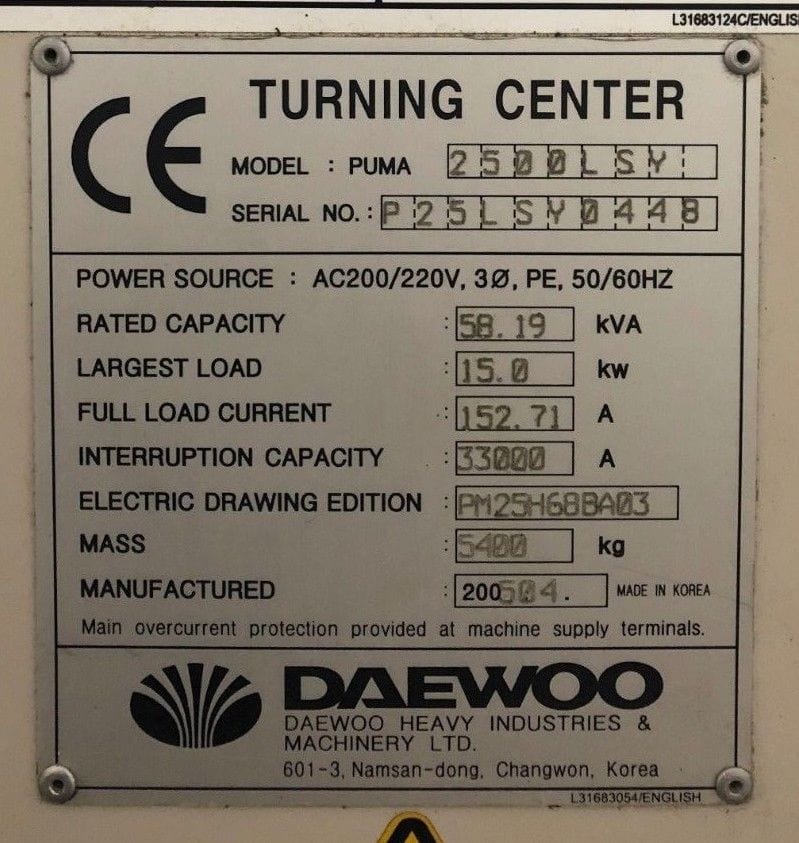

Serial # P25LSY0448
Condition Very Good
Comes with 10″ & 8″ Chuck, Tool Holders, parts & Chip Conveyor

“One Our Floor, Fully powered / tested & in Good working condition. Equipped with 2 Chucks, Full C Axis, Milling, Sub Spindle and Y Axis. Comes with Parts & chip conveyor, live tool holders.”

  • Daewoo Puma 2500LSY Equipped With:
  • 12-Station Turret –  Live / Rotary Tools
  • Servo Controlled Full C-Axis on Both Spindles

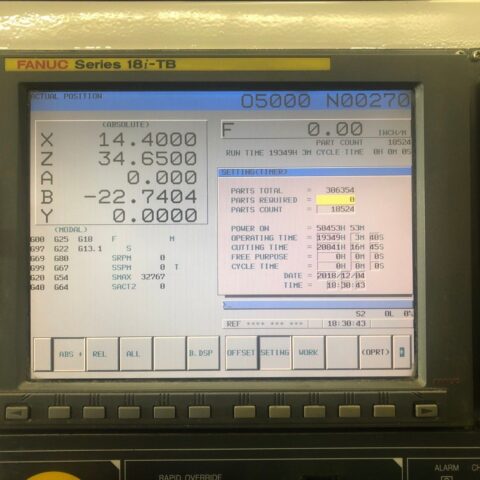

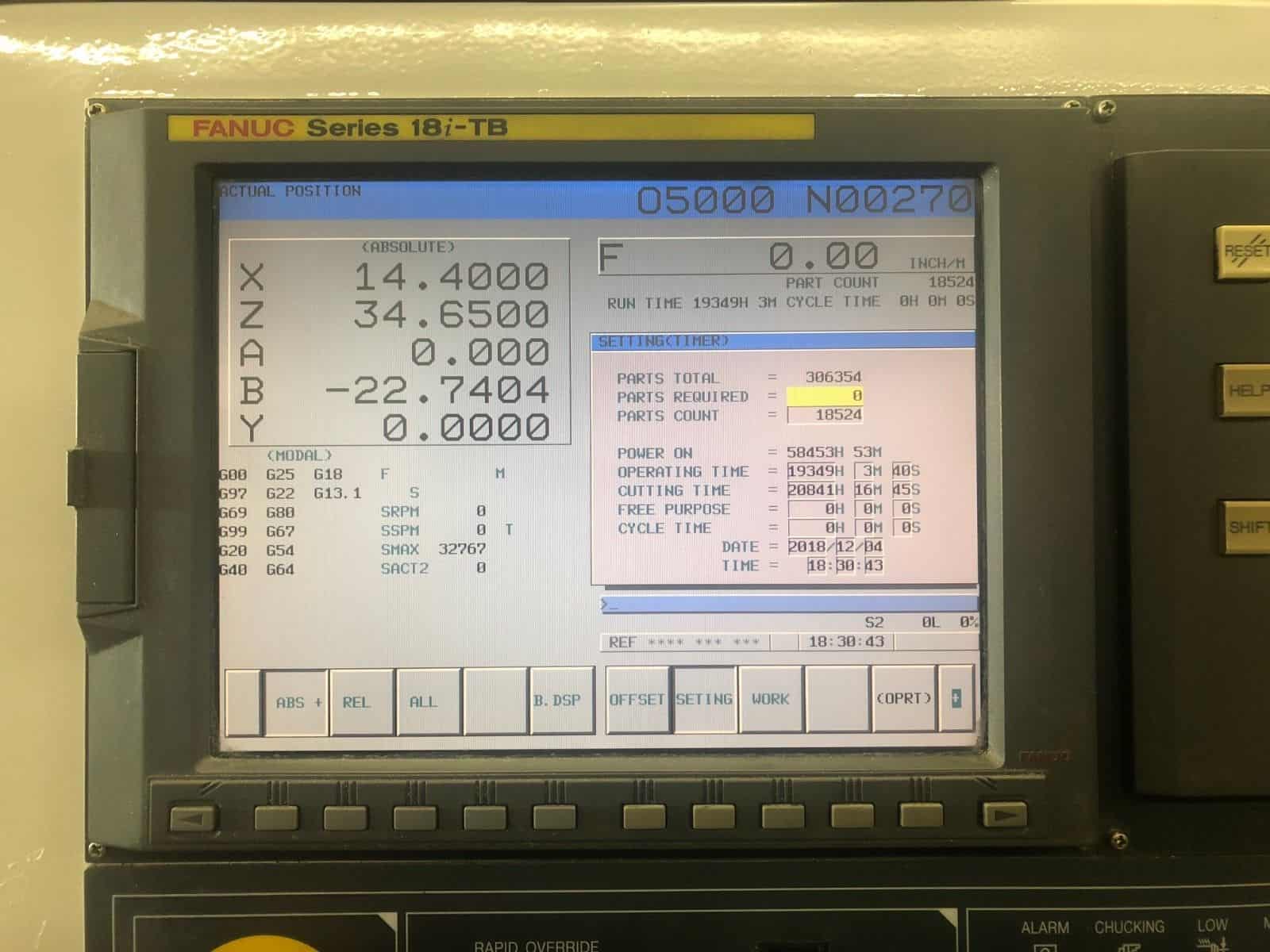

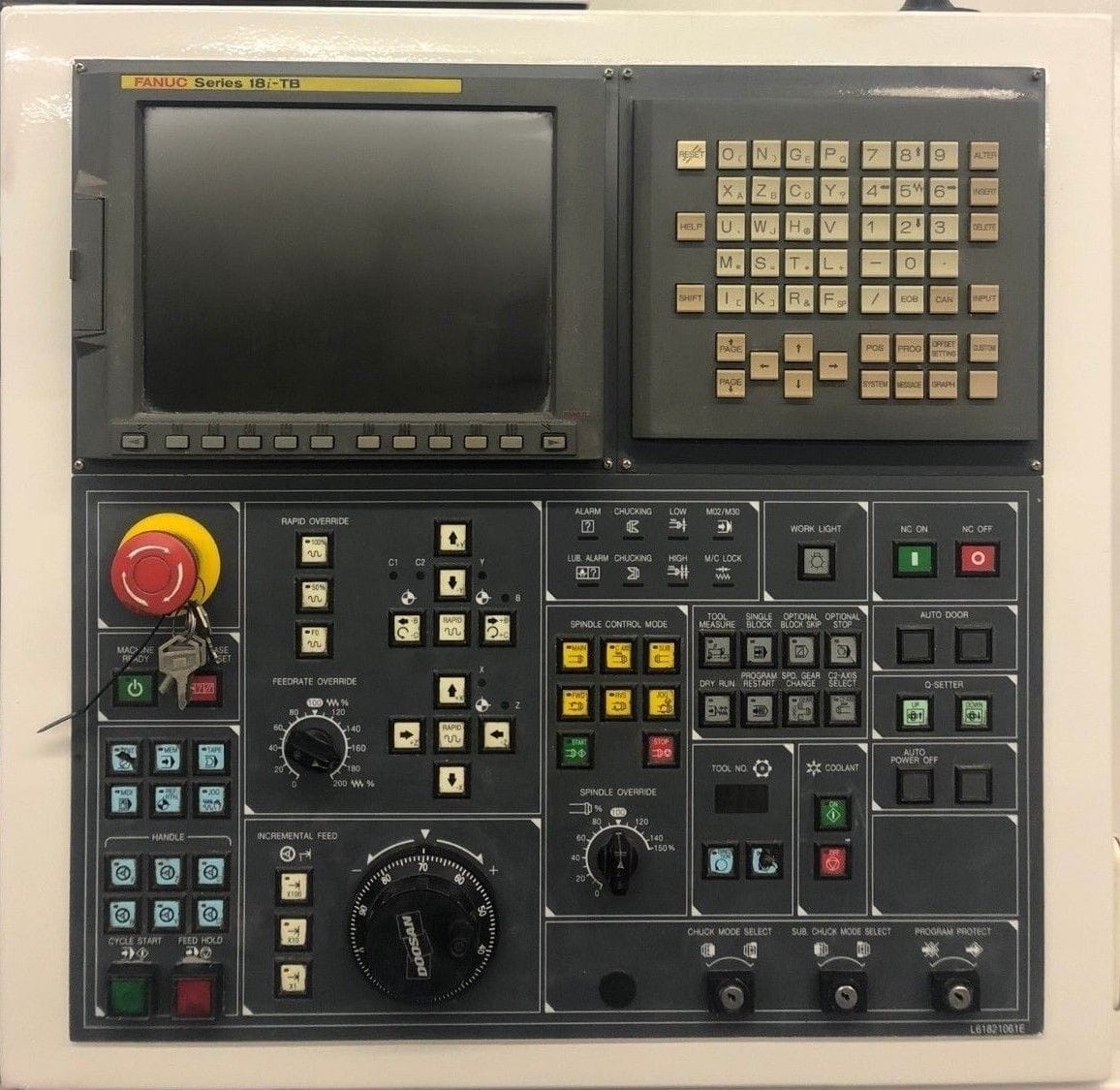

  • Fanuc 18iT CNC Control
  • PCMCIA Card Slot
  • Tool Presetter
  • Parts Catcher
  • Parts Conveyor
  • 10″ Chuck on Main Spindle
  • 8″ Chuck on Sub Spindle
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck
  • Turbo Systems Chip Conveyor
  • Comes with Live Tools & some Static Tool Holders
  • Daewoo Puma 2500LSY Specifications:
  • Capacity:
  • Max Turning Diameter: 12.99″
  • Max Turning Length: 29.53″
  • Max Bar Capacity: 2.99″
  • Swing Over Bed: 23.62″
  • Swing over the Saddle: 21.65″
  • Travels:
  • X Axis Travel: 9.84″
  • Z Axis Travel: 32.68″
  • Y Axis Travel: 4″
  • B Axis Travel: 32.68″ ( Sub Spindle )
  • C Axis: 360° (0.001°) Both Spindle
  • Feedrate:
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Rapid Traverse Y Axis: 295 IPM
  • Rapid Traverse B Axis: 787 IPM
  • Spindle:
  • Main Spindle Bore: 3.54″
  • Sub Spindle Bore: 1.77″
  • Main Spindle Nose: A2-8
  • Sub Spindle Nose: A2-6
  • Main Spindle Speed: 35-3500 RPM
  • Sub Spindle Speed: 60-6,000 RPM
  • Main Spindle Power: 22 kw
  • Sub Spindle Power: 7.5 kw
  • Live Tool Spindle Motor: 3.7 kw
  • Turret:
  • Capacity: 12 Live Stations
  • Turret Index Time: 0.1 Second
  • Live Tool Speed: 60-6,000 RPM
  • General:
  • Power: 53 kva, 220v / 3-Phase
  • Overall Dimensions: 130″ x 67″ x 72″ High
  • Overall Dimensions: 146″ x 67″ x 72″ High with Chip Conveyor
  • Weight: 12,500 lbs

Daewoo Puma 2500LSY Comes as shown in pictures..
