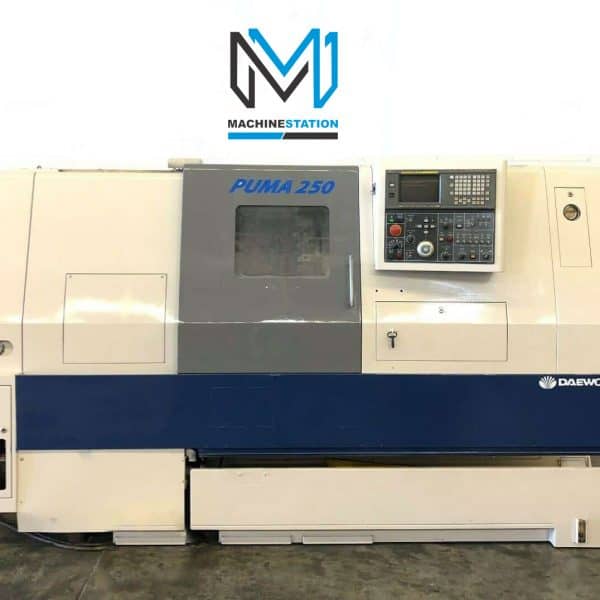

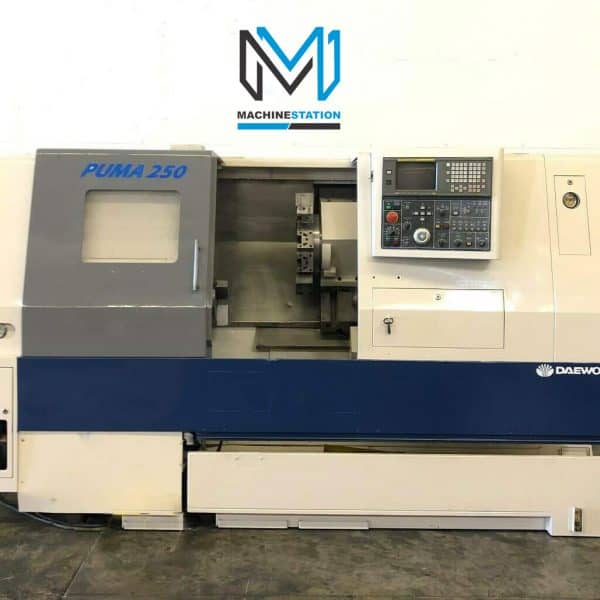

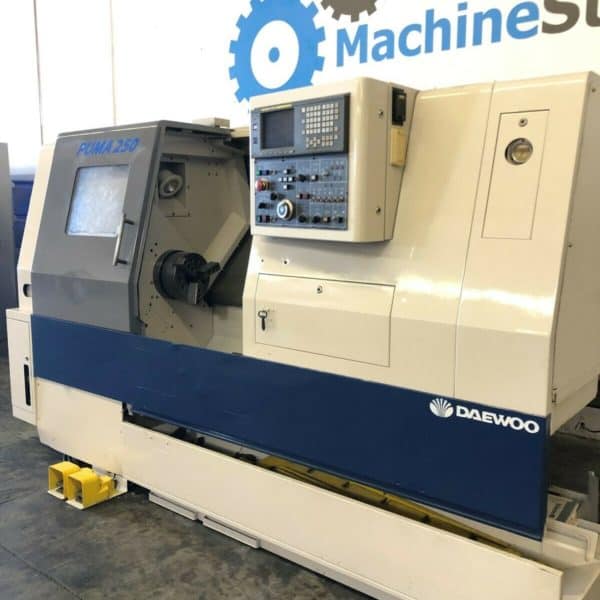

| DAEWOO PUMA 250B CNC TURNING CENTER | |
|---|---|
| Make | Daewoo |
| Model No. | Puma 250B |
| Year | 1997 |

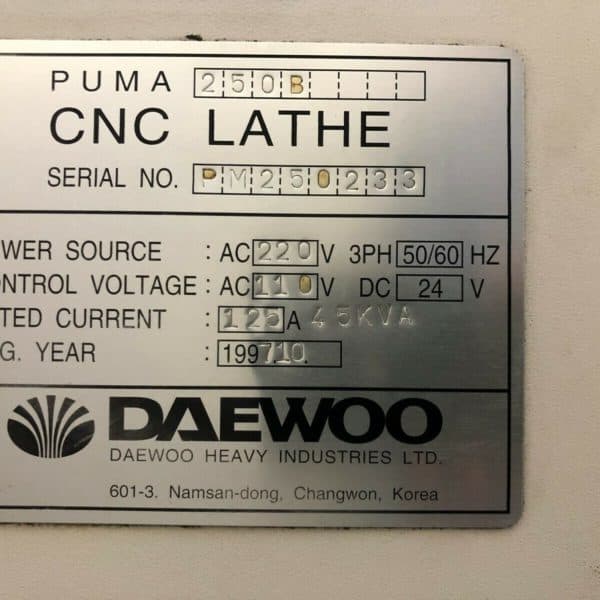

| Serial # | PM250233 |
| Condition | Very Good |
- Daewoo Puma 250B Equipped With:

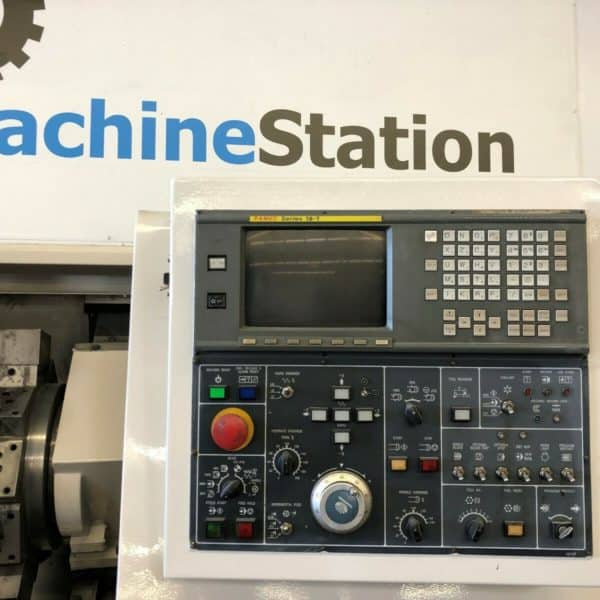

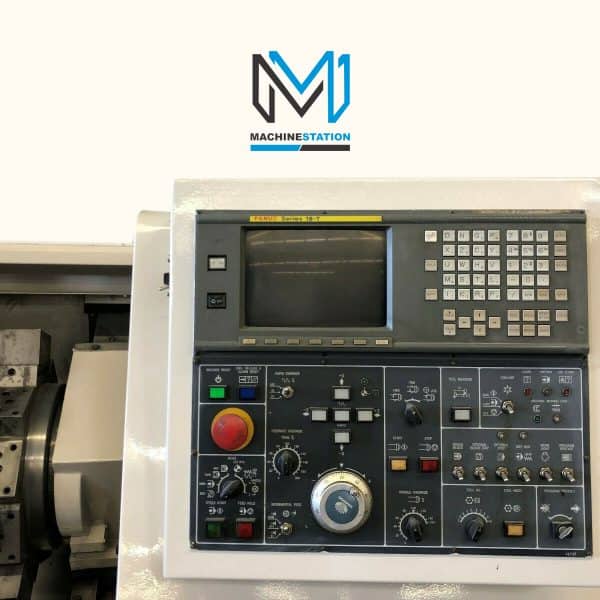

- Fanuc 18T CNC Control
- Box way construction
- Rigid Tapping

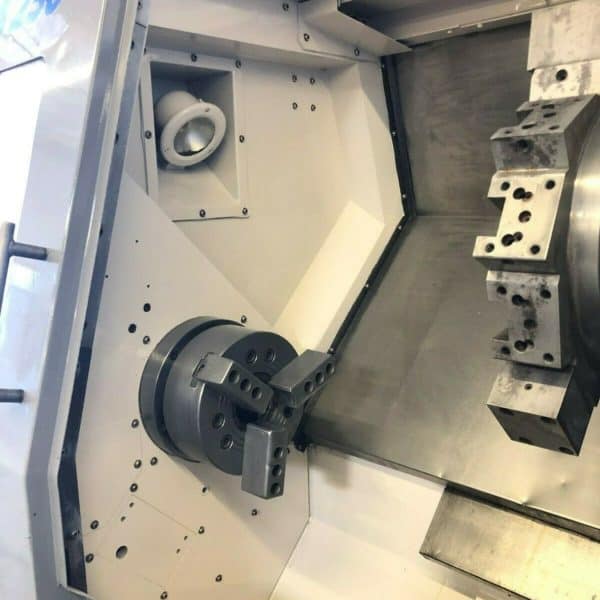

- 10″ 3 Jaw Hydraulic Chuck
- A2-8 Gear Head Spindle
- Hydraulic Programmable Tailstock and Quill
- RS-232 connectivity
- Coolant System
- Barfeed Interface

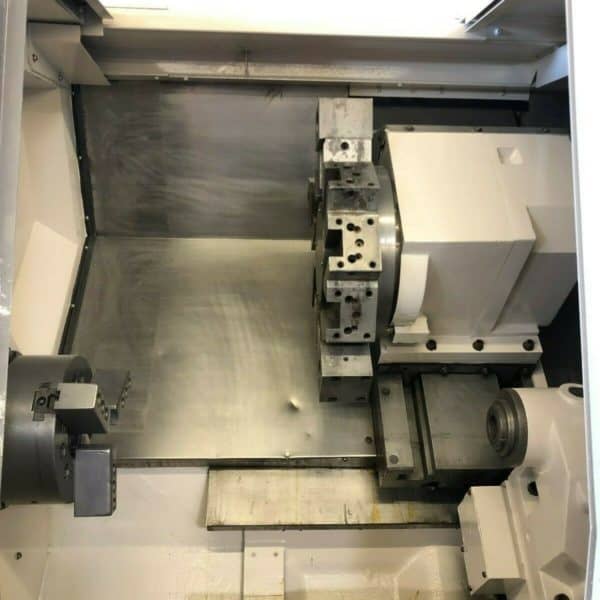

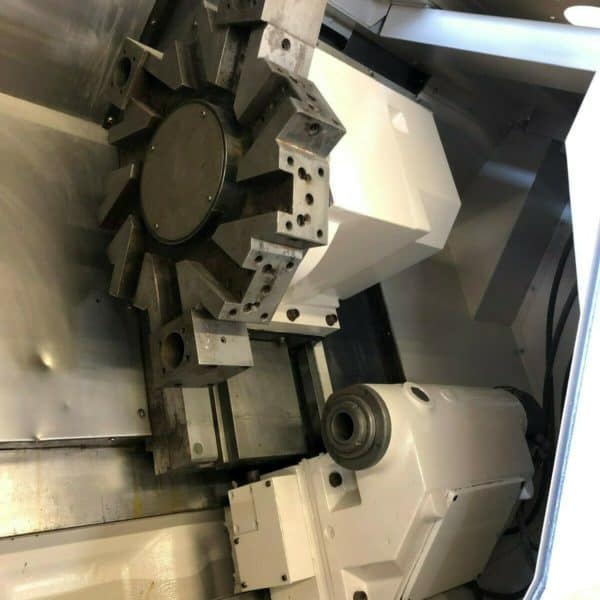

- 10 Station Automatic Turret

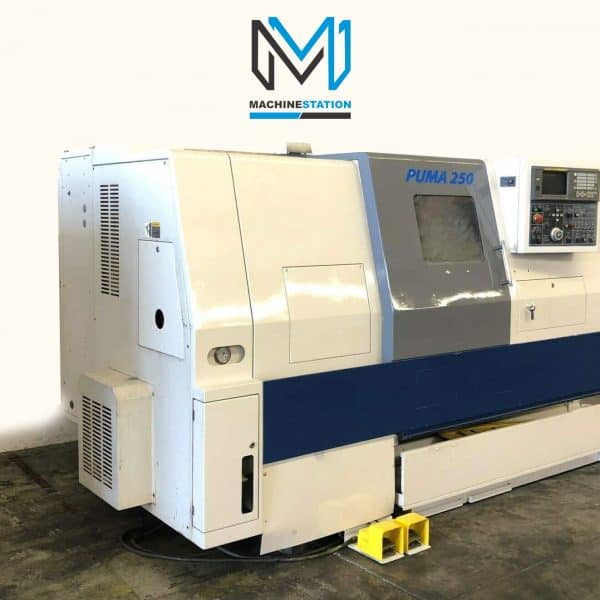

- Foot Switch
- General:
- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 130″ x 77″ x 80″ High
- Weight: 10600 lbs
- Daewoo Puma 250B Specifications:
- Capacity:
- Max Turning Diameter: 15.75″
- Max Turning Length: 25.6″
- Max Bar Capacity: 3.34″
- Swing Over Bed: 24.44″
- Swing Over Carriage: 17.7″
- Distance Between Centers: 27.8″
- X Axis Travel: 11.10″
- Z Axis Travel: 26.77″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.54″
- Spindle Speed: 35 – 3500 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 10 Stations
- Turret Index Time: 0.2 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.97″
- Tailstock Quill Travel: 3.94″

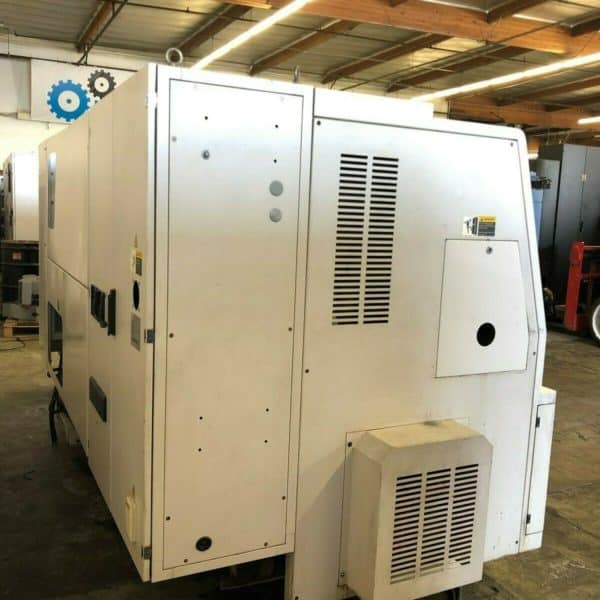

Daewoo Puma 250B Comes as shown in pictures..
