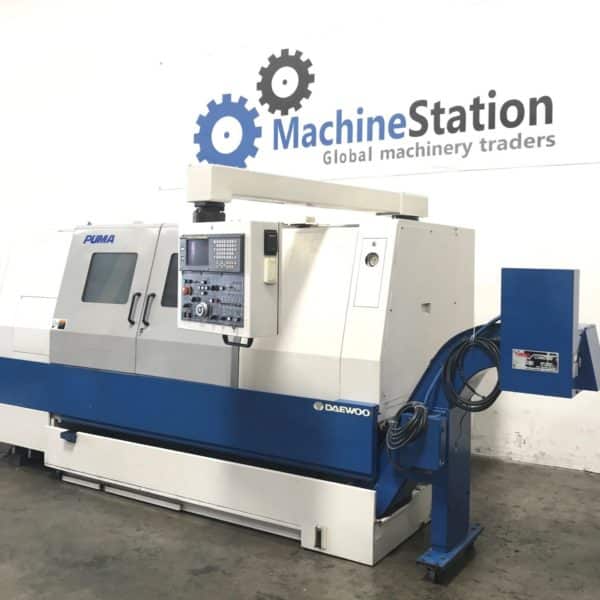

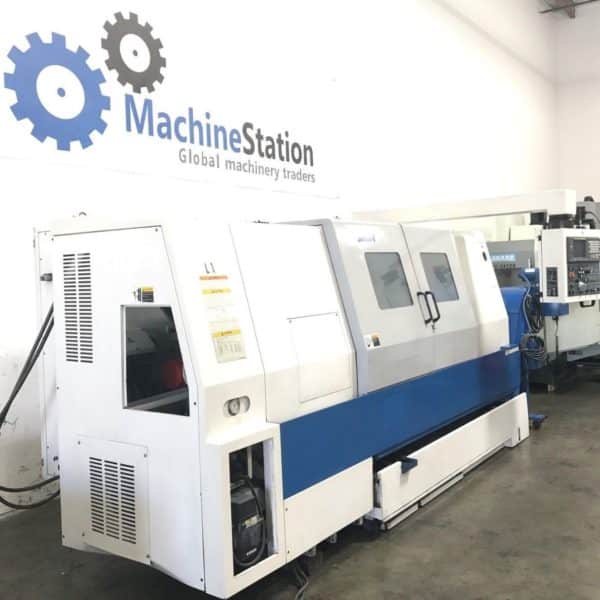

Daewoo Puma 250L CNC Turning Center

This One Owner machine is in good running condition. It is equipped with 10″ Chuck, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

Share

Description

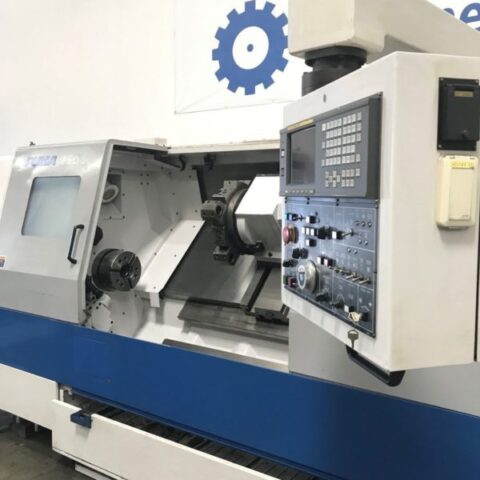

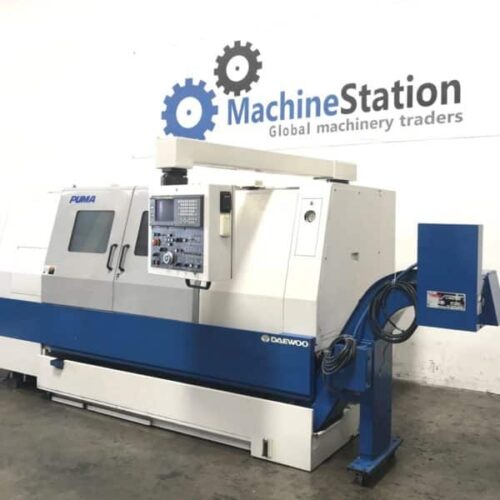

DAEWOO PUMA 250L CNC TURNING CENTER
Make Daewoo

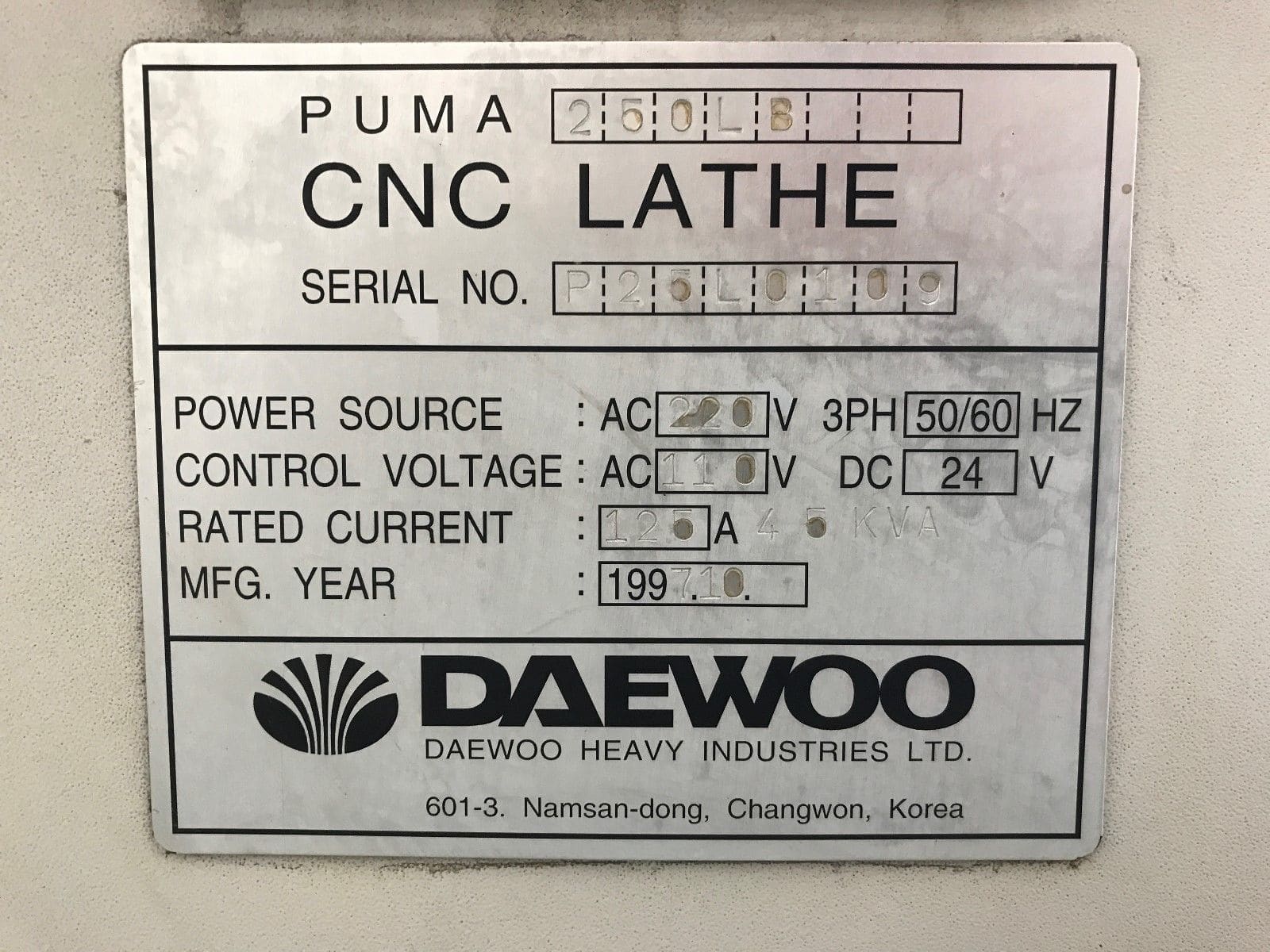

Model No. Puma 250LB

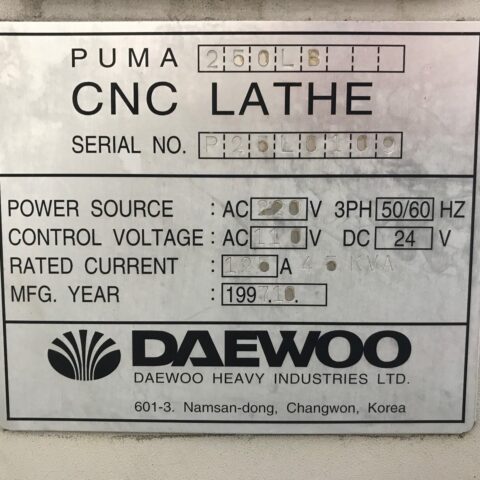

Serial # P25L0109
Condition Very Good

Comes with 10″ Chuck, Tailstock & Chip Conveyor

“This One Owner machine is in good running condition. It is equipped with 10″ Chuck, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

  • DAEWOO PUMA 250L Equipped With:

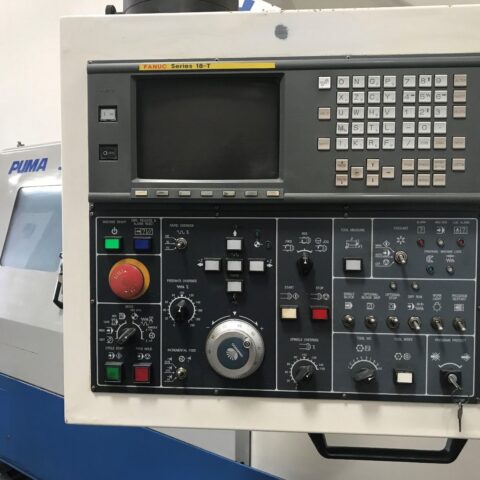

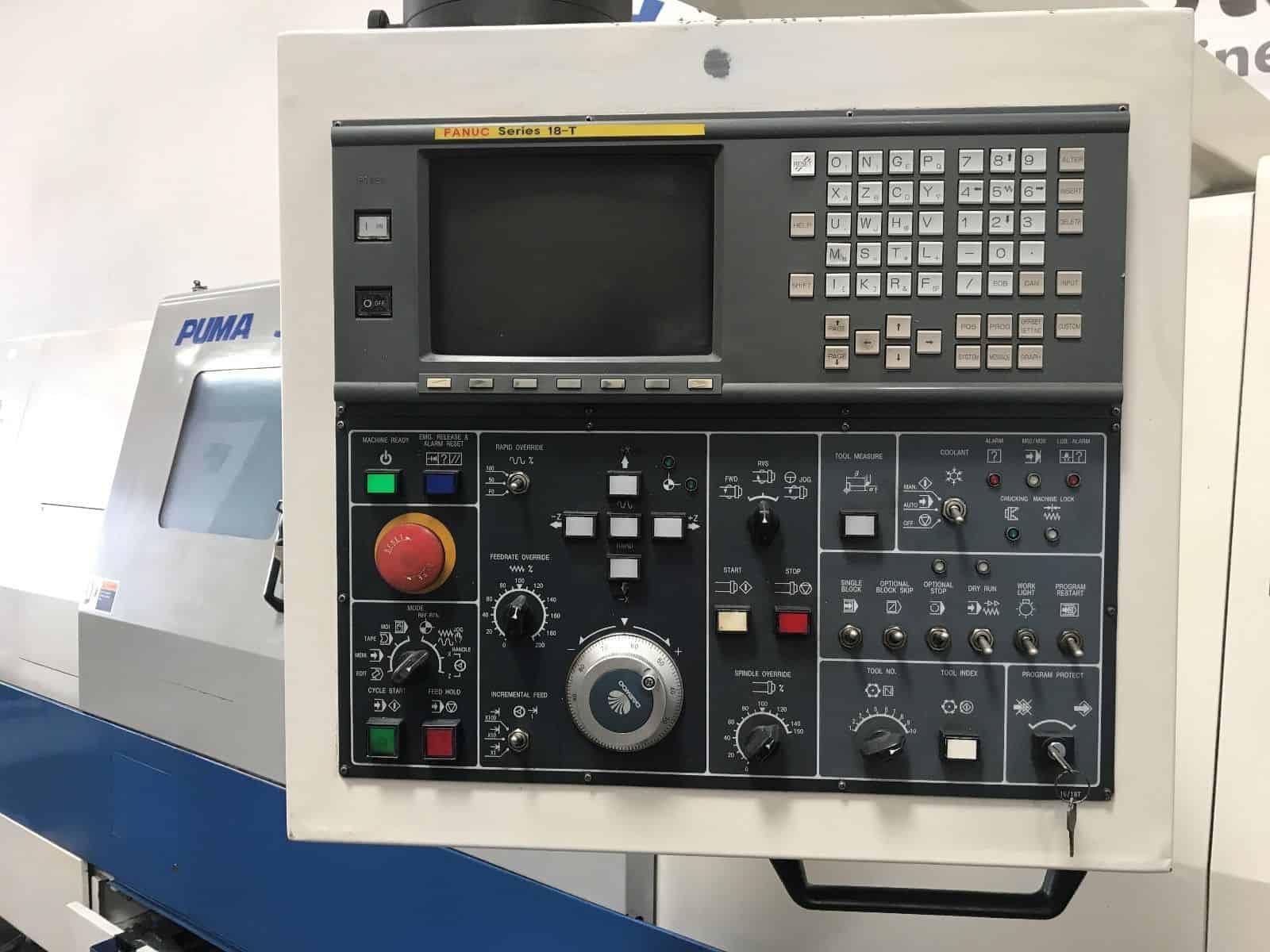

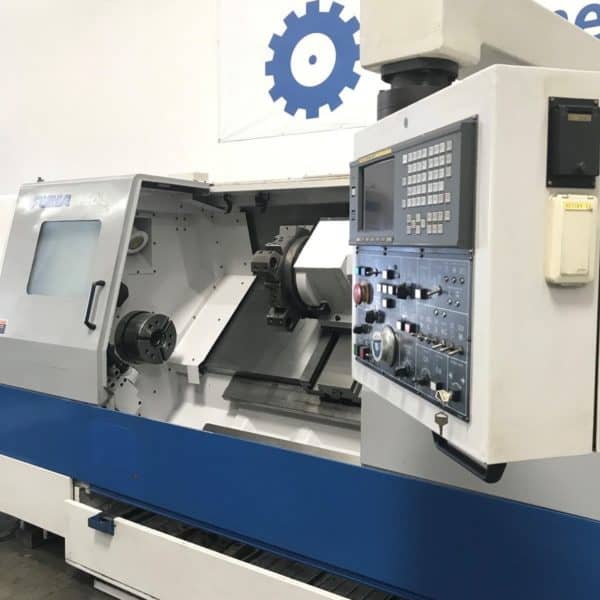

  • Fanuc 18T CNC Control

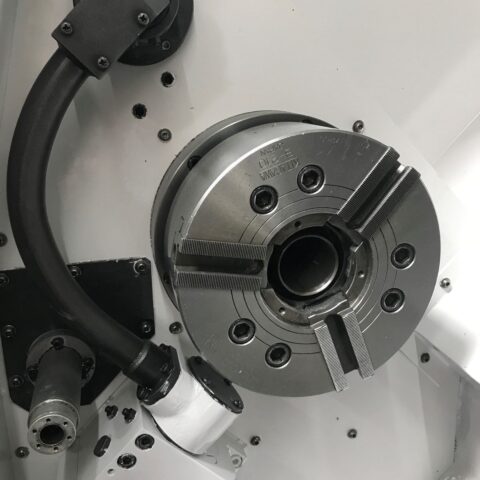

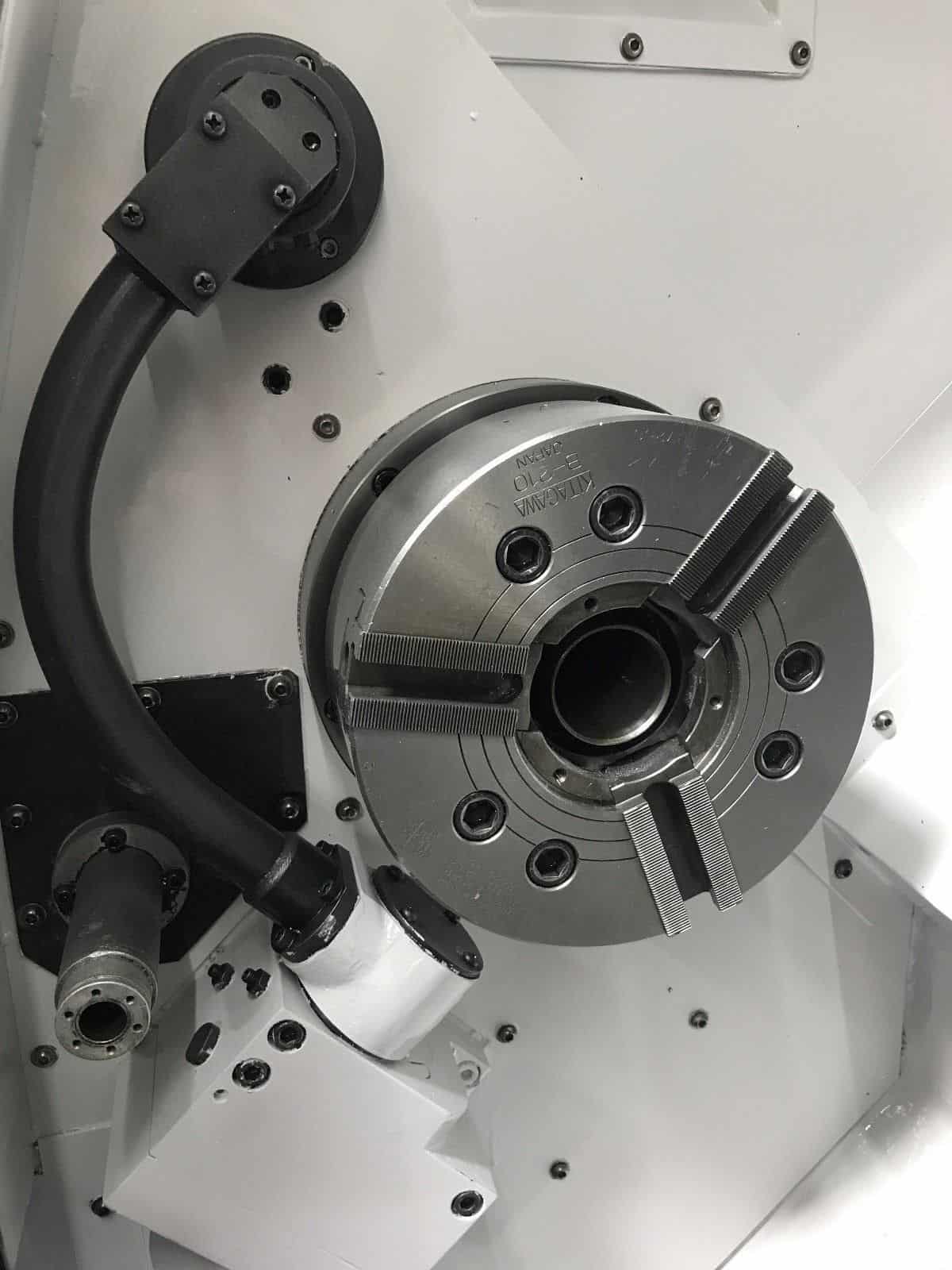

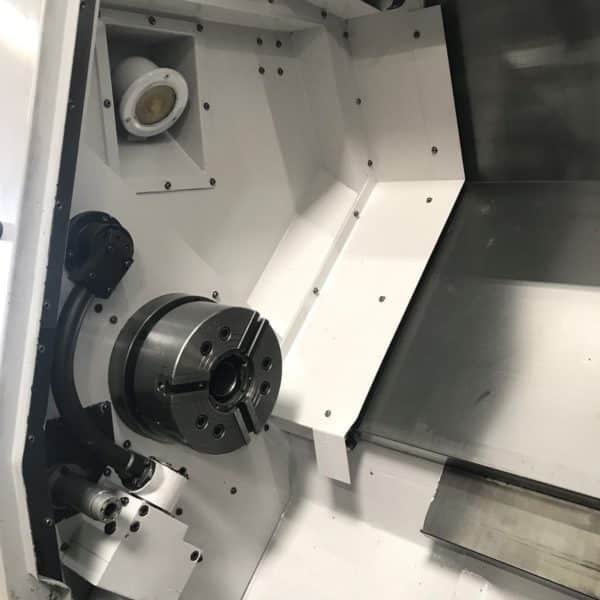

  • 10″ Kitagawa 3 Jaw Hydraulic Chuck ( 12″ Capable )
  • A2-8 Spindle
  • Auto Tool Presetter

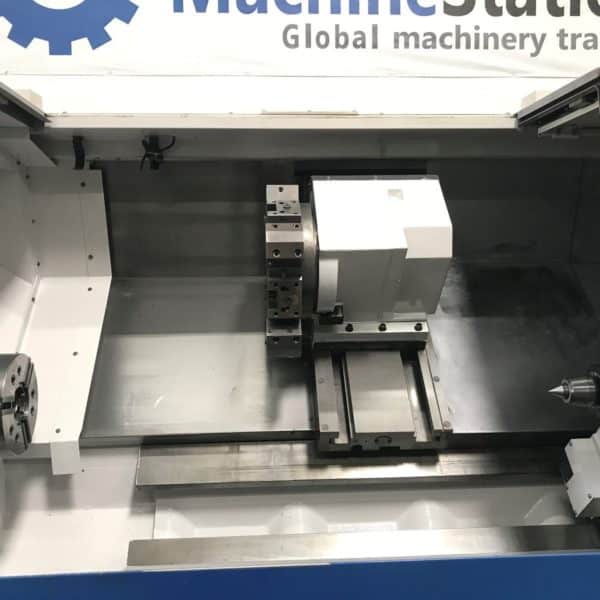

  • Hydraulic Programmable Tailstock
  • Coolant System
  • Barfeed Interface
  • RS-232 ports

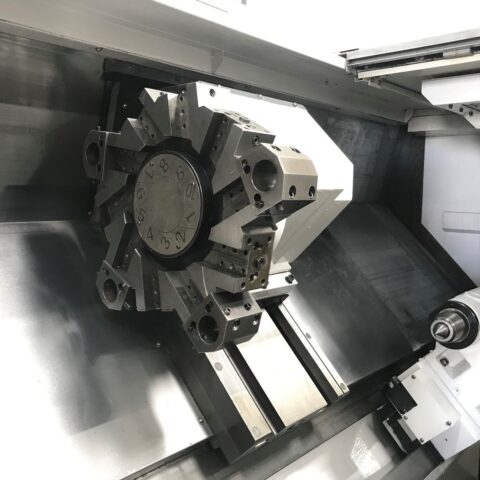

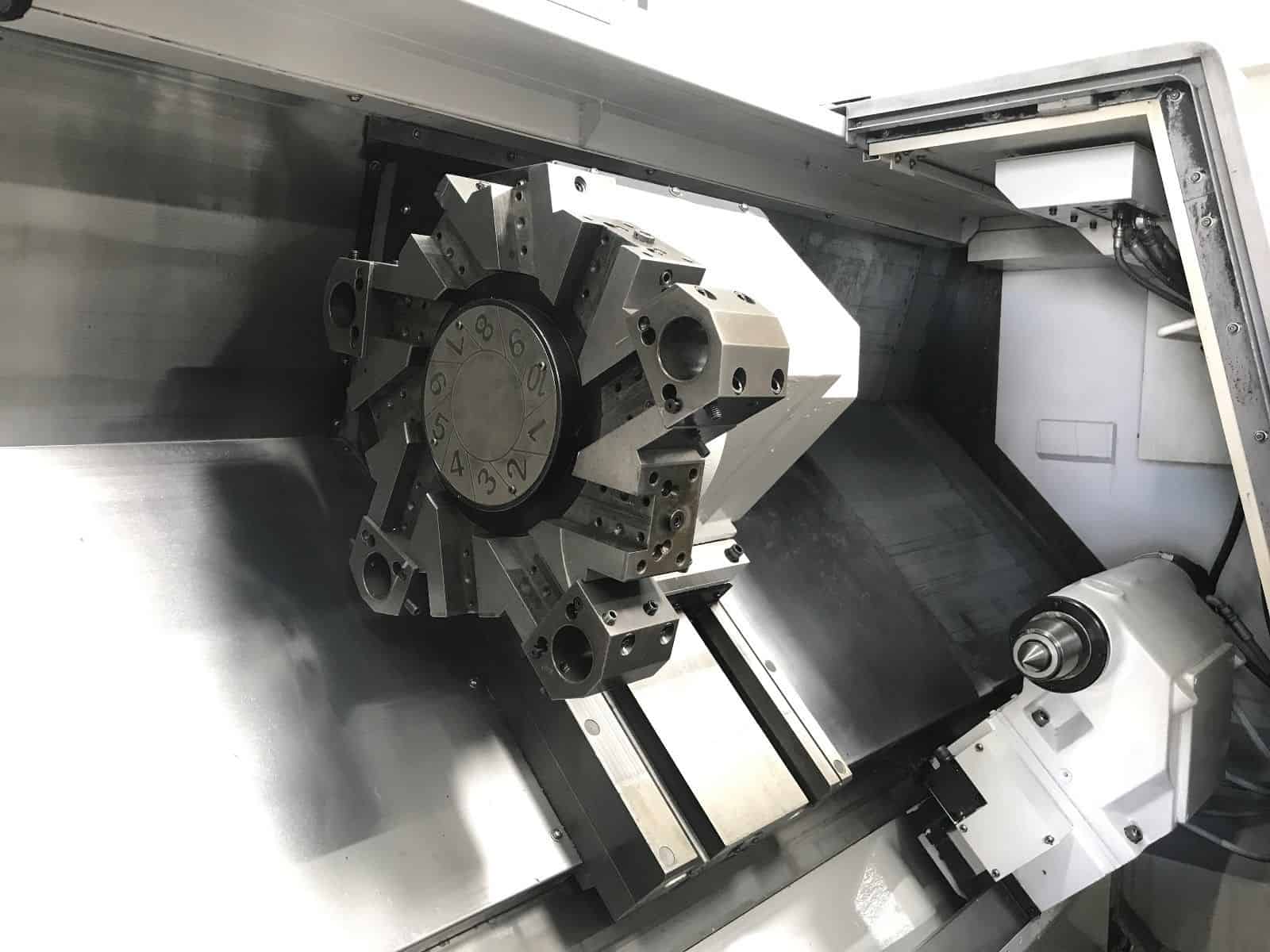

  • 10 Station Automatic Turret
  • Foot Switch
  • Turbo Chip Conveyor
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: 150″ x 77″ x 80″ High
  • Overall Dimensions: 168″ x 77″ x 80″ High with Chip Conveyor
  • Weight: 13500 lbs
  • DAEWOO PUMA 250L Specifications:
  • Capacity:
  • Max Turning Diameter: 15.57″
  • Max Turning Length: 51.8″
  • Max Bar Capacity: 3.0″
  • Swing Over Bed: 22.4″
  • Distance Between Centers: 54″
  • X Axis Travel: 11.1″
  • Z Axis Travel: 52.36″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.53″
  • Spindle Speed: 0 – 3500 RPM
  • Spindle Motor: 30 HP
  • Turret Capacity: 10 Stations
  • Turret Index Time: 1 Second
  • Tailstock Taper: MT-5
  • Tailstock  Quill Dia.: 3.9″
  • Tailstock Quill Travel: 4.0″

DAEWOO PUMA 250L Comes as shown in pictures..
