Daewoo Puma 250MB CNC Turn Mill

Share

Description

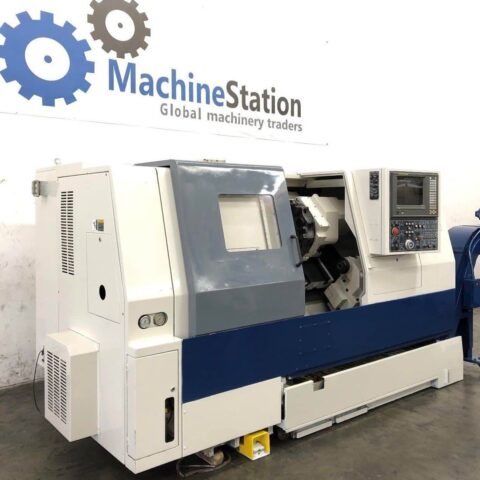

DAEWOO PUMA 250MB CNC TURN MILL
Make Daewoo
Model No. Puma 250MB
Serial # P25M0118
Condition Very Good

Comes with 12″ Chuck, Tailstock & Chip Conveyor

  • DAEWOO PUMA 250MB Equipped With:

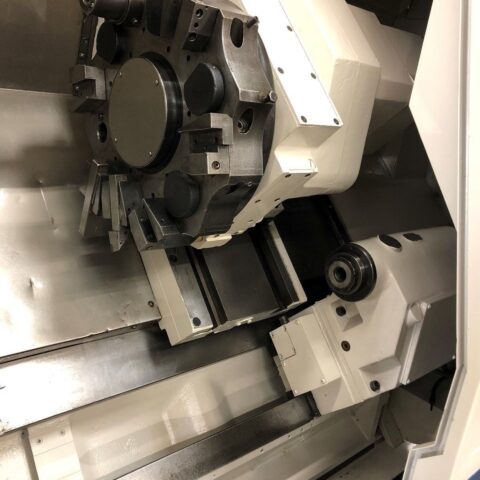

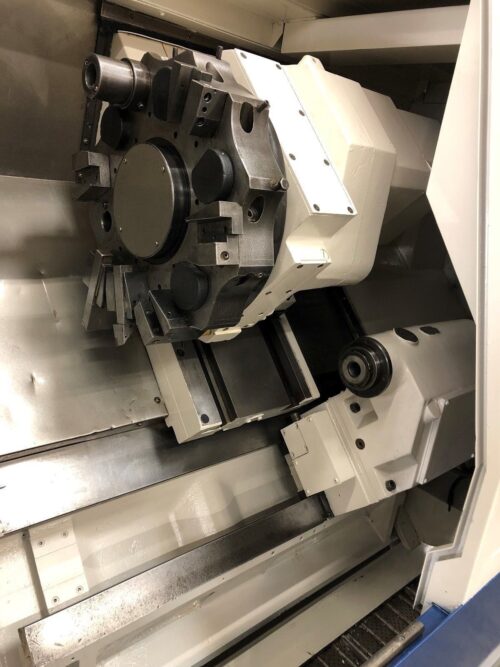

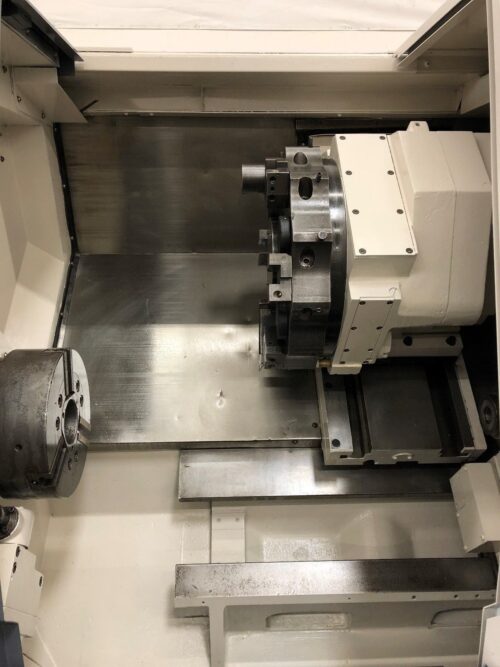

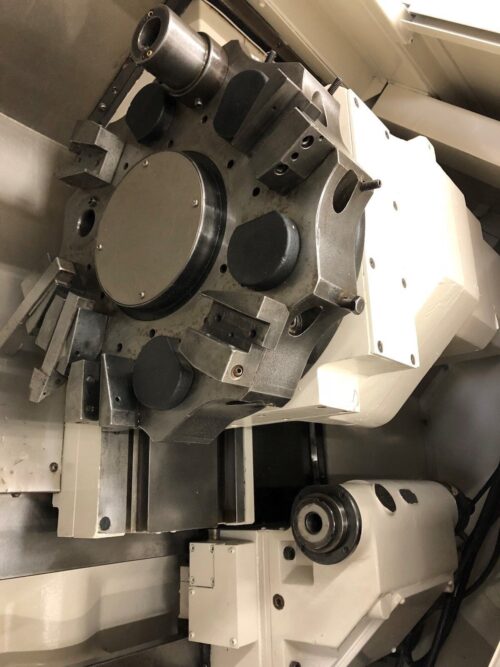

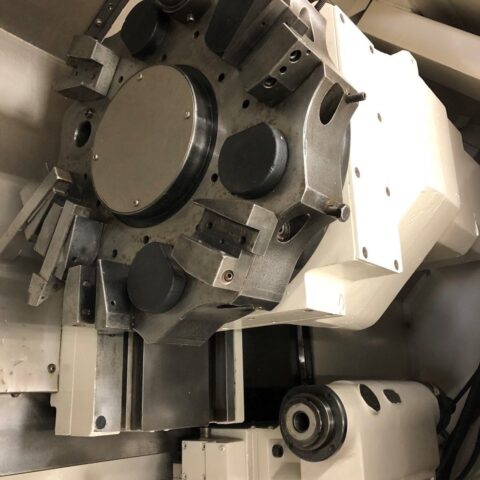

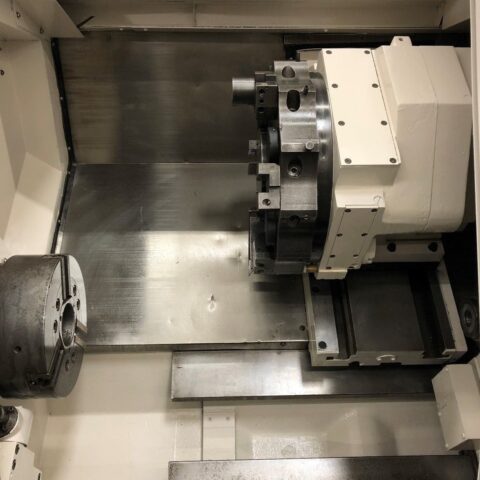

  • 12 Station Live Tool Turret
  • Full C Axis
  • Box way construction

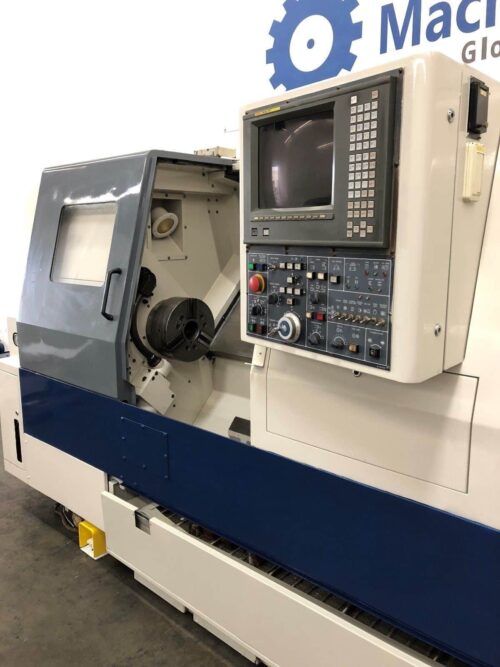

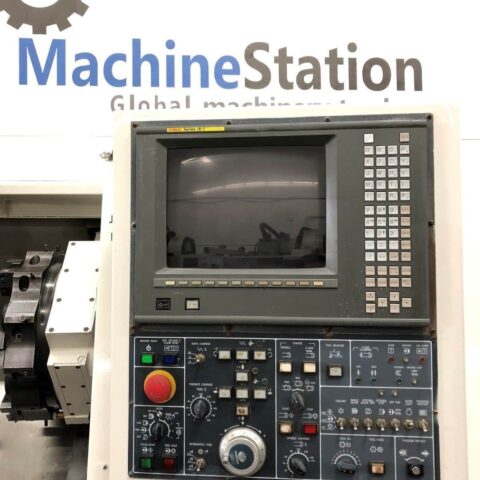

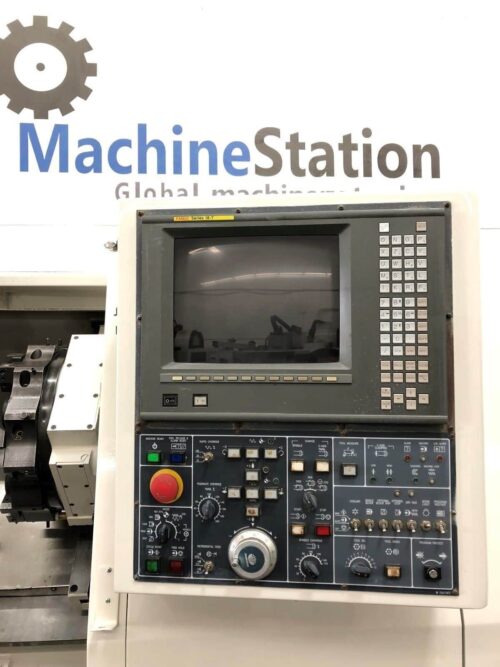

  • Fanuc 18T Control

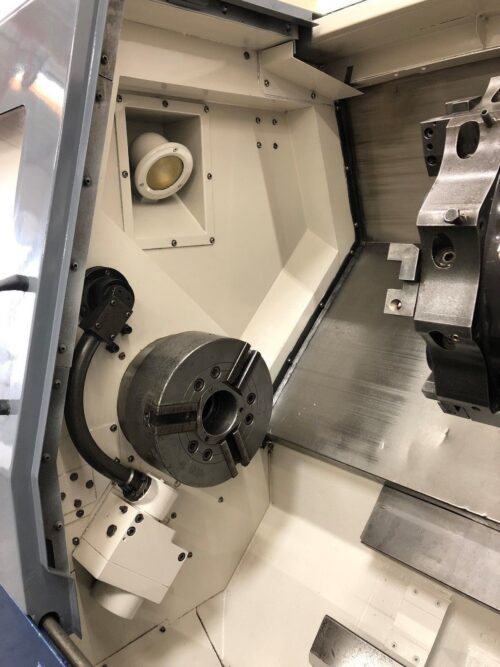

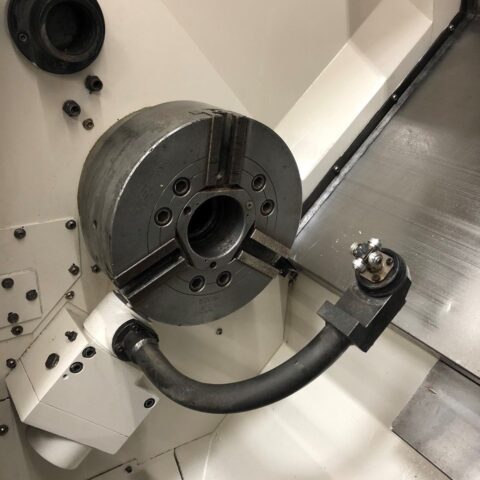

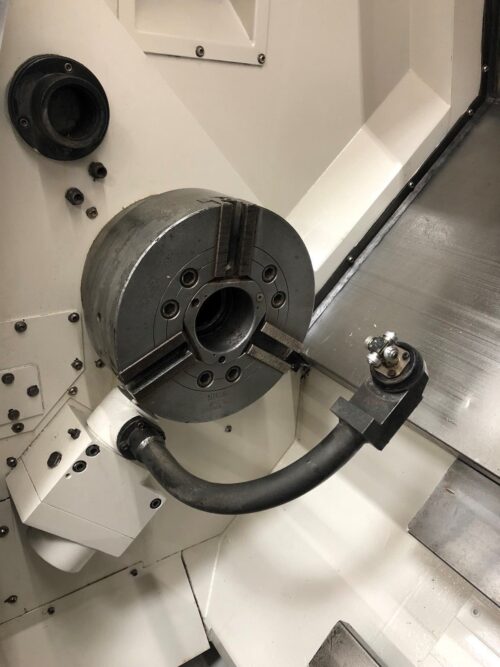

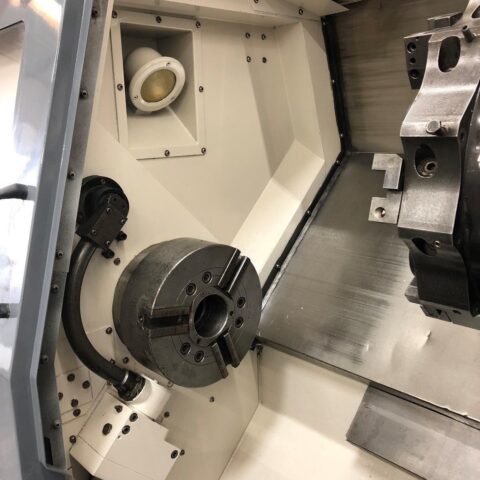

  • 12″ 3 Jaw Hydraulic Chuck
  • A2-8 Spindle
  • Auto Tool Presetter
  • Hydraulic Programmable Tailstock and Quill
  • Coolant System
  • Barfeed Interface
  • Foot Switch

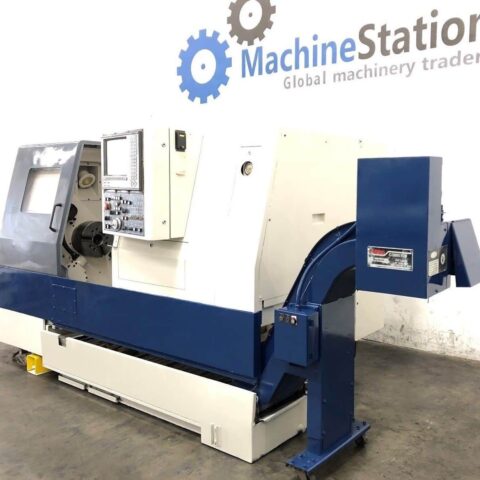

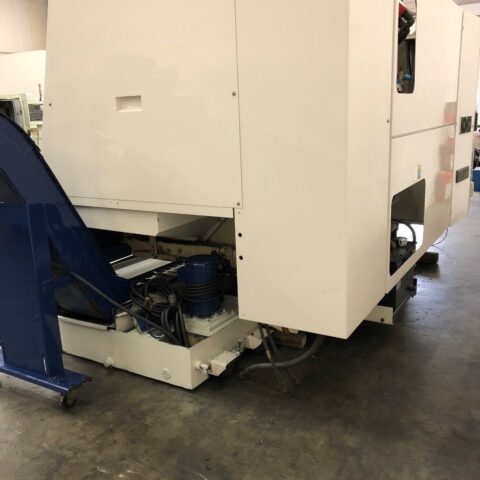

  • Chip Conveyor
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: 130″ x 70″ x 80″ High
  • Overall Dimensions: 158″ x 70″ x 80″ High with Chip Conveyor
  • Weight: 12500 lbs
  • DAEWOO PUMA 250MB Specifications:
  • Capacity:
  • Max Turning Diameter: 15.75″
  • Max Turning Length: 25.6″
  • Max Bar Capacity: 3.05″
  • Swing Over Bed: 22.4″
  • Distance Between Centers: ”
  • X Axis Travel: 11.1″
  • Z Axis Travel: 26.8″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.54″
  • Spindle Speed: 35 – 3500 RPM
  • Spindle Motor: 30 HP
  • Turret Capacity: 12 Live Stations
  • Turret Index Time: 0.15 Second
  • Tailstock Taper: MT-5
  • Tailstock  Quill Dia.: 3.97″
  • Tailstock Quill Travel: 3.94″

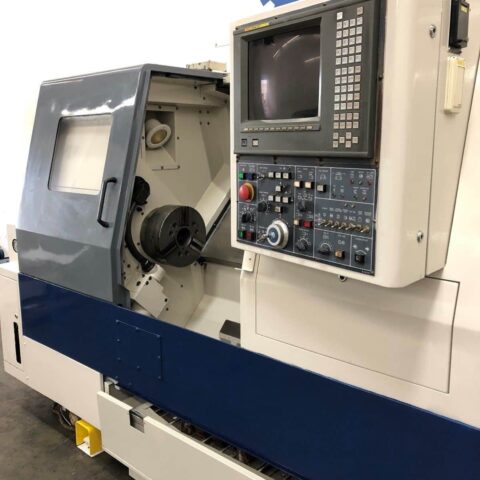

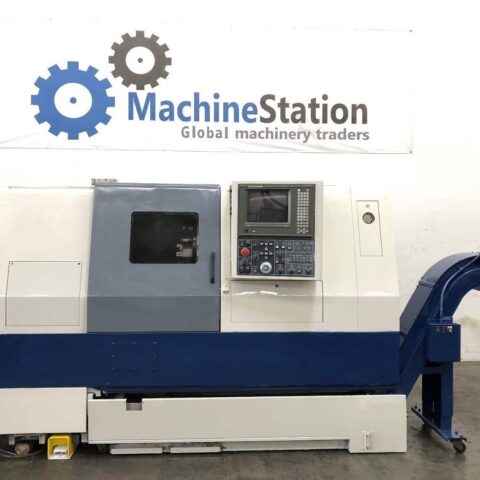

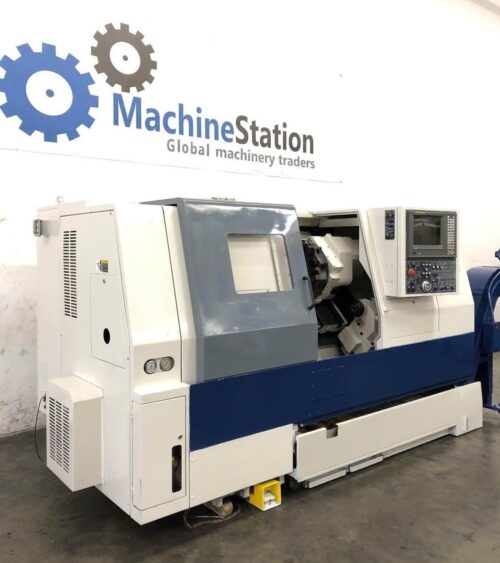

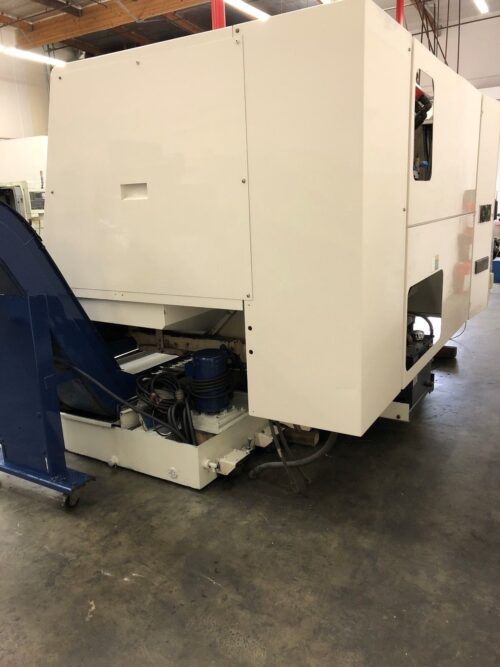

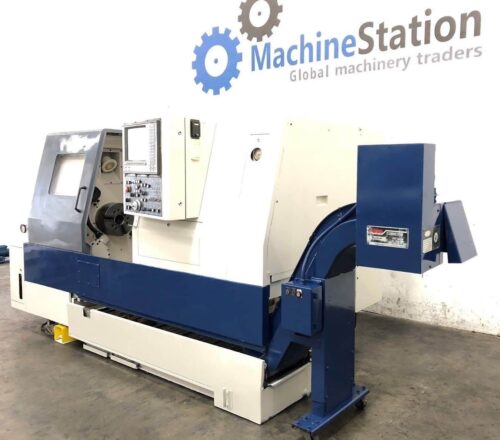

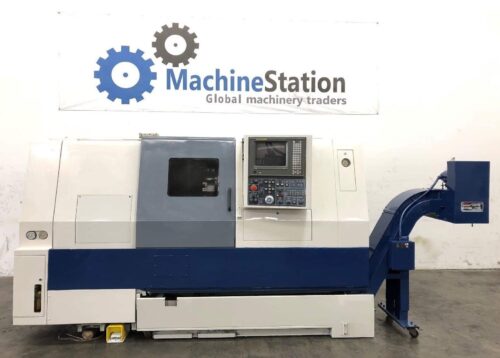

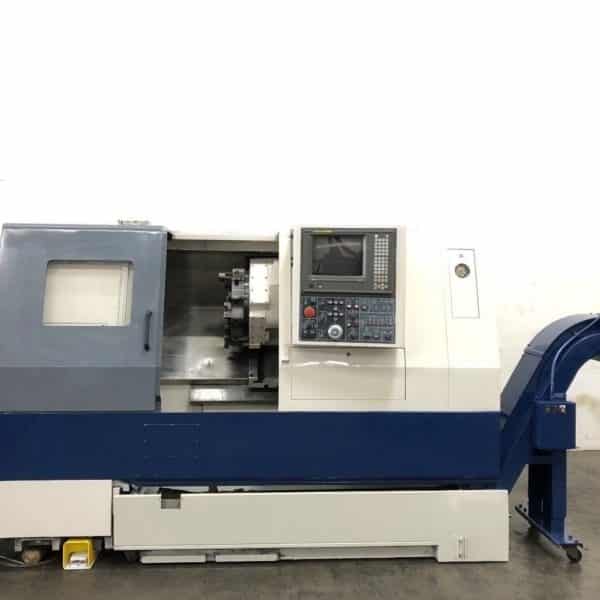

DAEWOO PUMA 250MB Comes as shown in pictures..
