OUT OF STOCK

Daewoo Puma 300 LC CNC Turning Long Bed Lathe

This machine is in very Good running condition. It is equipped with 12″ Chuck, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.

Share

Description

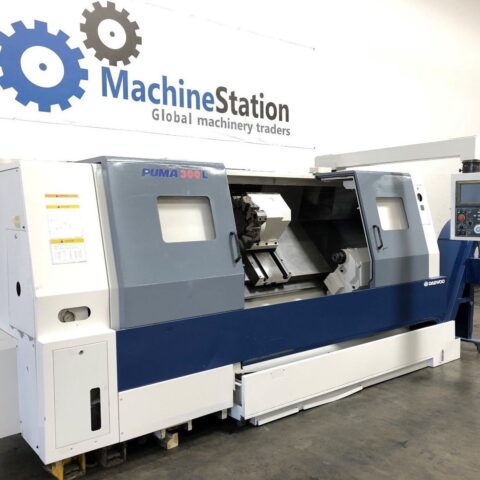

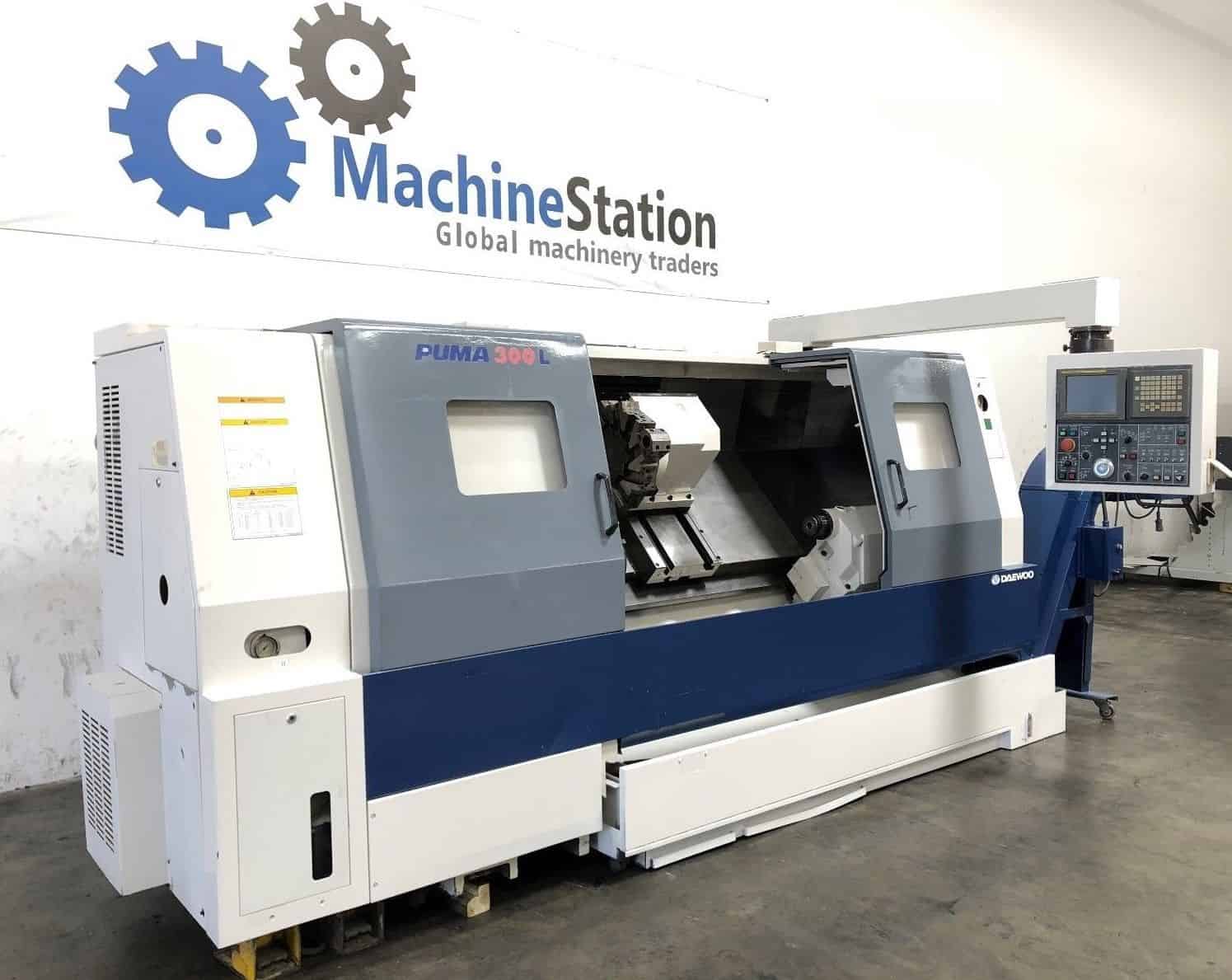

DAEWOO PUMA 300 LC CNC TURNING LONG BED LATHE
Make Daewoo
Model No. Puma 300LC
Year 01.04

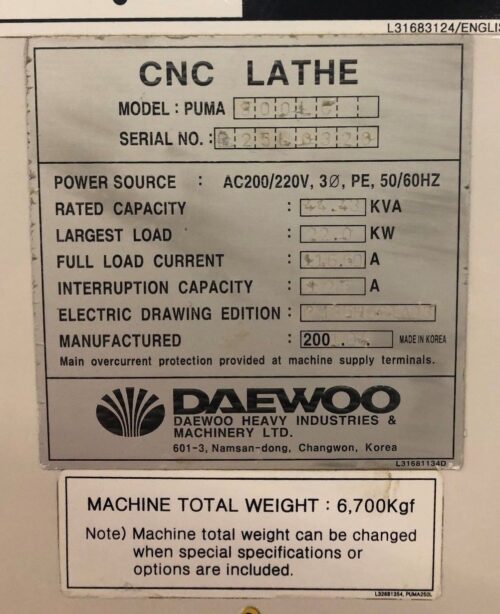

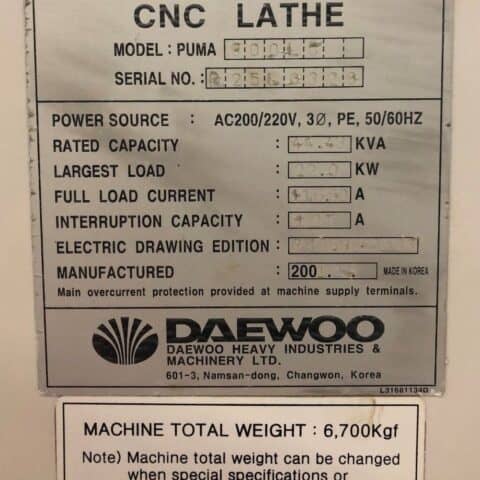

Serial # P25L0320
Condition Very Good

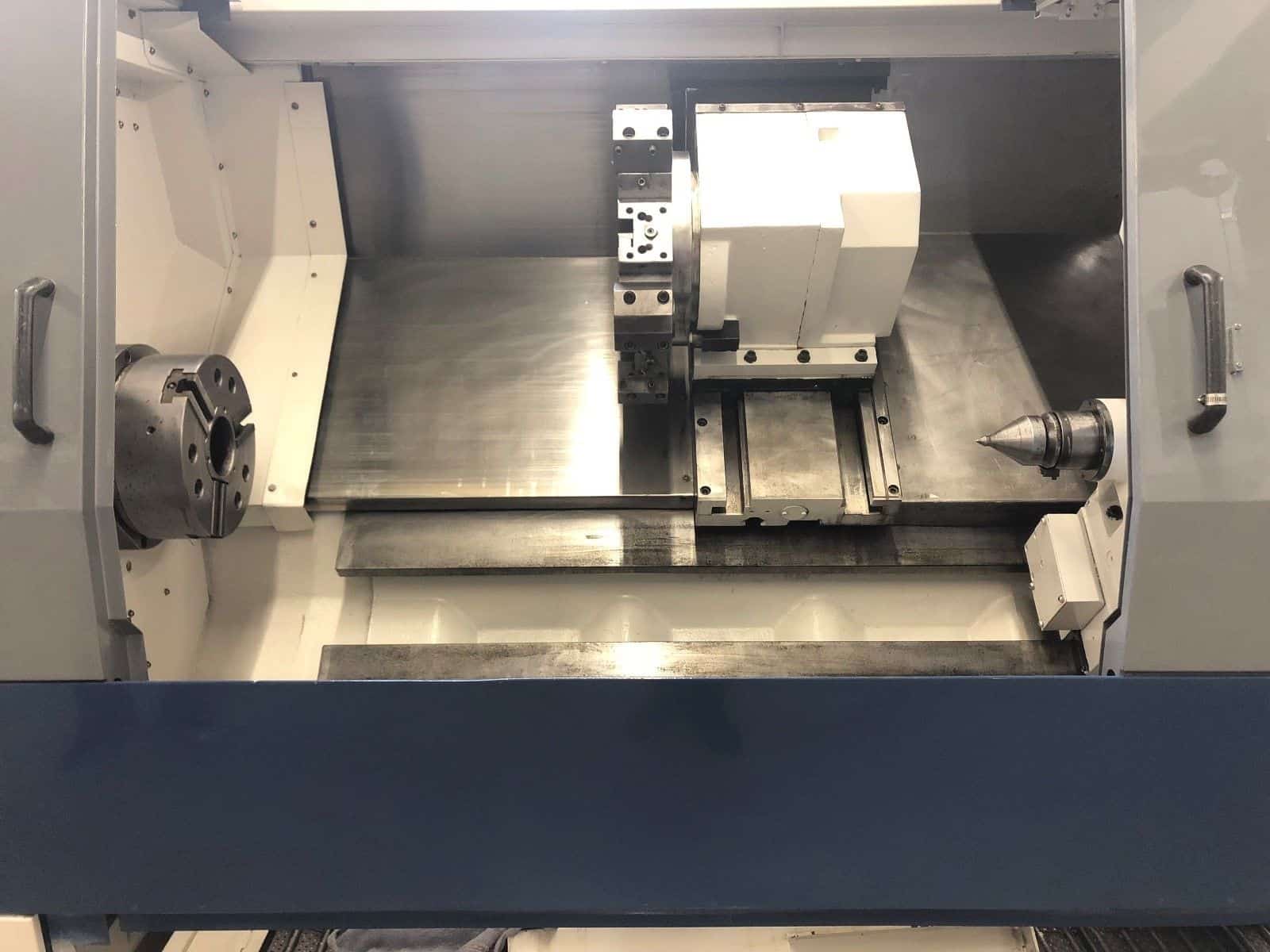

Comes with 12″ Chuck, Tailstock & Chip Conveyor

Replacement Cost is approx. $165,000.00 with similar options.

“This machine is in very Good running condition. It is equipped with 12″ Chuck, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.”

  • Daewoo Puma 300 LC Equipped With:
  • Fanuc 21i-T series CNC Control
  • Box way construction
  • Rigid Tapping
  • 12″ 3 Jaw Hydraulic Chuck
  • A2-11 Spindle

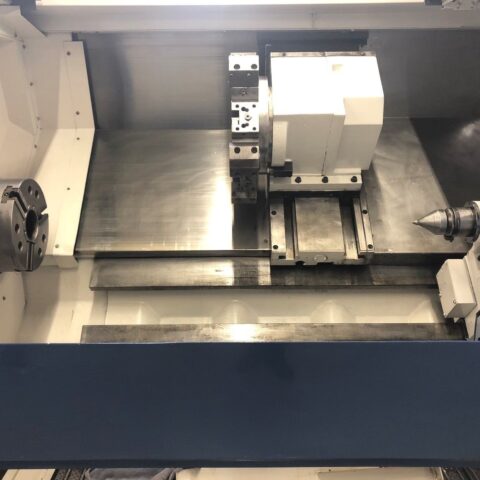

  • Hydraulic Programmable Tailstock and Quill
  • PCMCIA Card Slot
  • Coolant System
  • Barfeed Interface
  • 12 Station Automatic Turret
  • Foot Switch

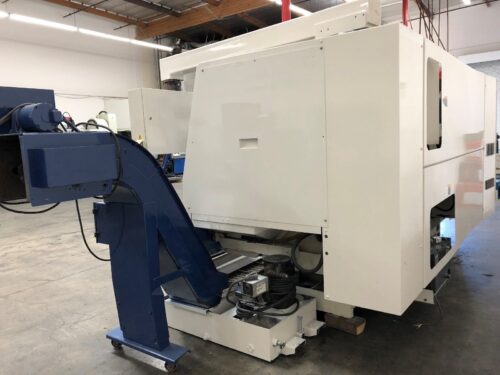

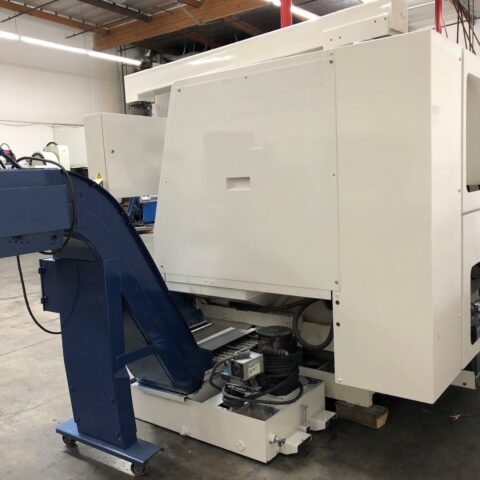

  • Turbo Chip Conveyor
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: 150″ x 77″ x 80″ High
  • Overall Dimensions: 168″ x 77″ x 80″ High with Chip Conveyor
  • Weight: 15000 lbs
  • Daewoo Puma 300 LC Specifications:
  • Capacity:
  • Max Turning Diameter: 15.7″
  • Max Turning Length: 50.4″
  • Max Bar Capacity: 4.05″
  • Swing Over Bed: 22.4″
  • Distance Between Centers: 52.8″
  • X Axis Travel: 11.1″
  • Z Axis Travel: 52.4″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-11
  • Spindle Bore: 4.5″
  • Spindle Speed: 0 – 2800 RPM
  • Spindle Motor: 35 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.15 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 3.97″
  • Tailstock Quill Travel: 4.7″

Daewoo Puma 300 LC Comes as shown in pictures..
