Daewoo Puma 300LC CNC Turning Long Bed Lathe

Daewoo Puma 300LC CNC Turning Long Bed Lathe

Out of stock

This machine is in very Good running condition. It is equipped with 12″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

SKU: 1625
Make/Model: Daewoo Puma 300LC
Video:



SKU: 1625 Category:

Description

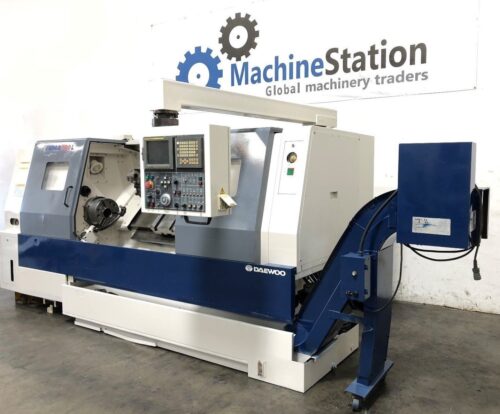

DAEWOO PUMA 300LC CNC TURNING LONG BED LATHE

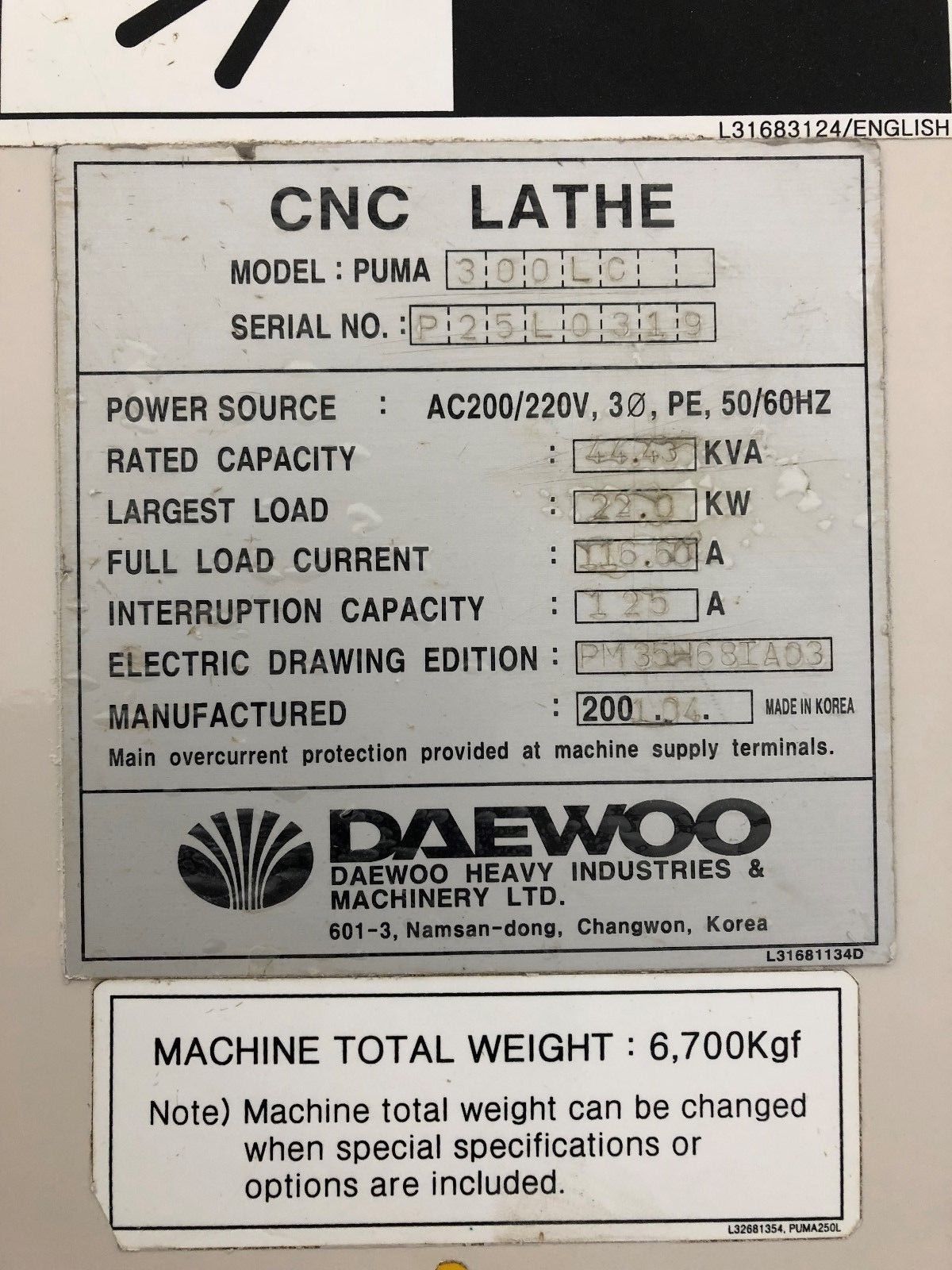

MakeDaewoo
Model No.Puma 300LC
Year01.04

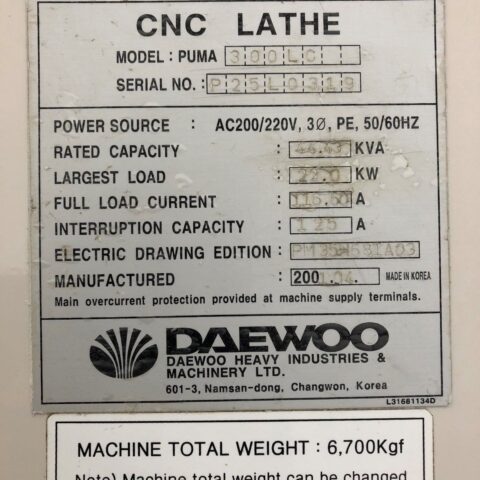

Serial #P25L0319
ConditionVery Good

Comes with 12″ Chuck, Tailstock & Chip Conveyor
Replacement Cost is approx. $165,000.00 with similar options.

“This machine is in very Good running condition. It is equipped with 12″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

  • DAEWOO PUMA 300LC Equipped With:

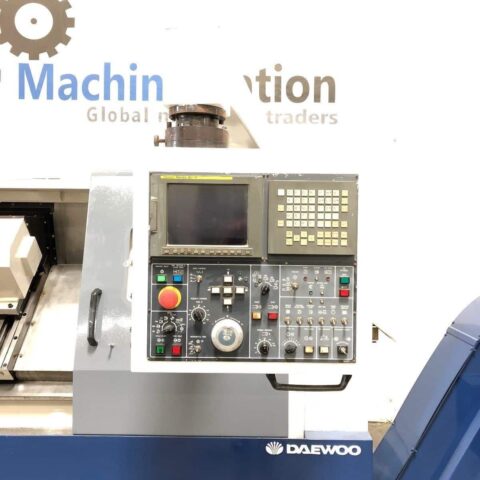

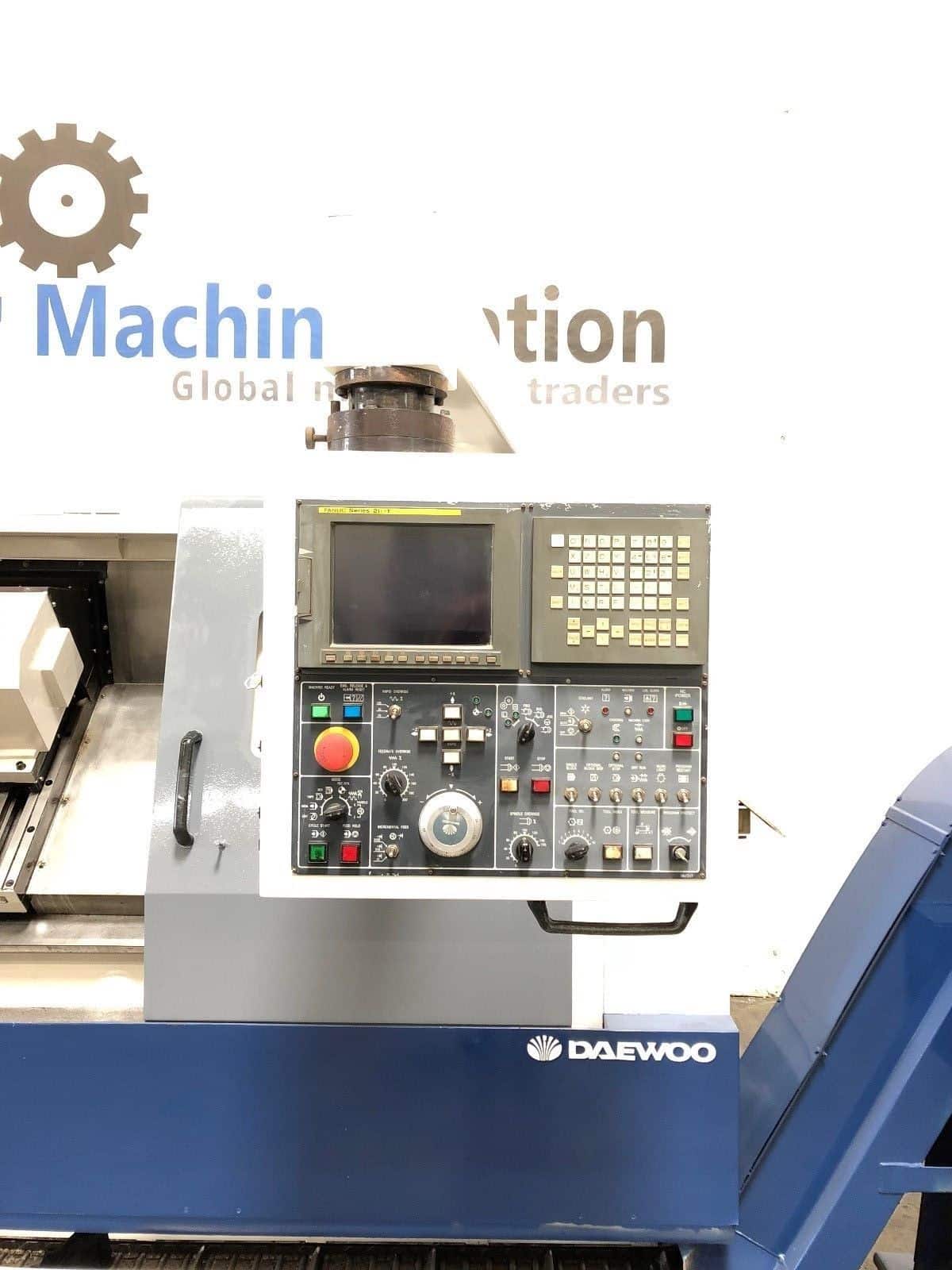

  • Fanuc 21i-T series CNC Control
  • Box way construction
  • Rigid Tapping

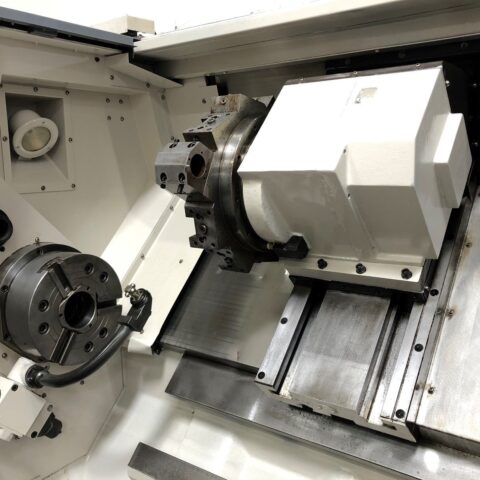

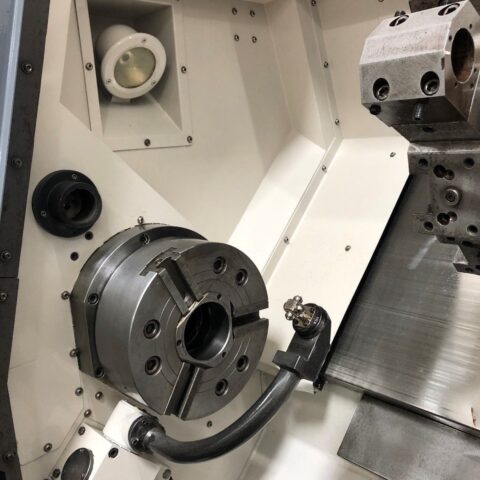

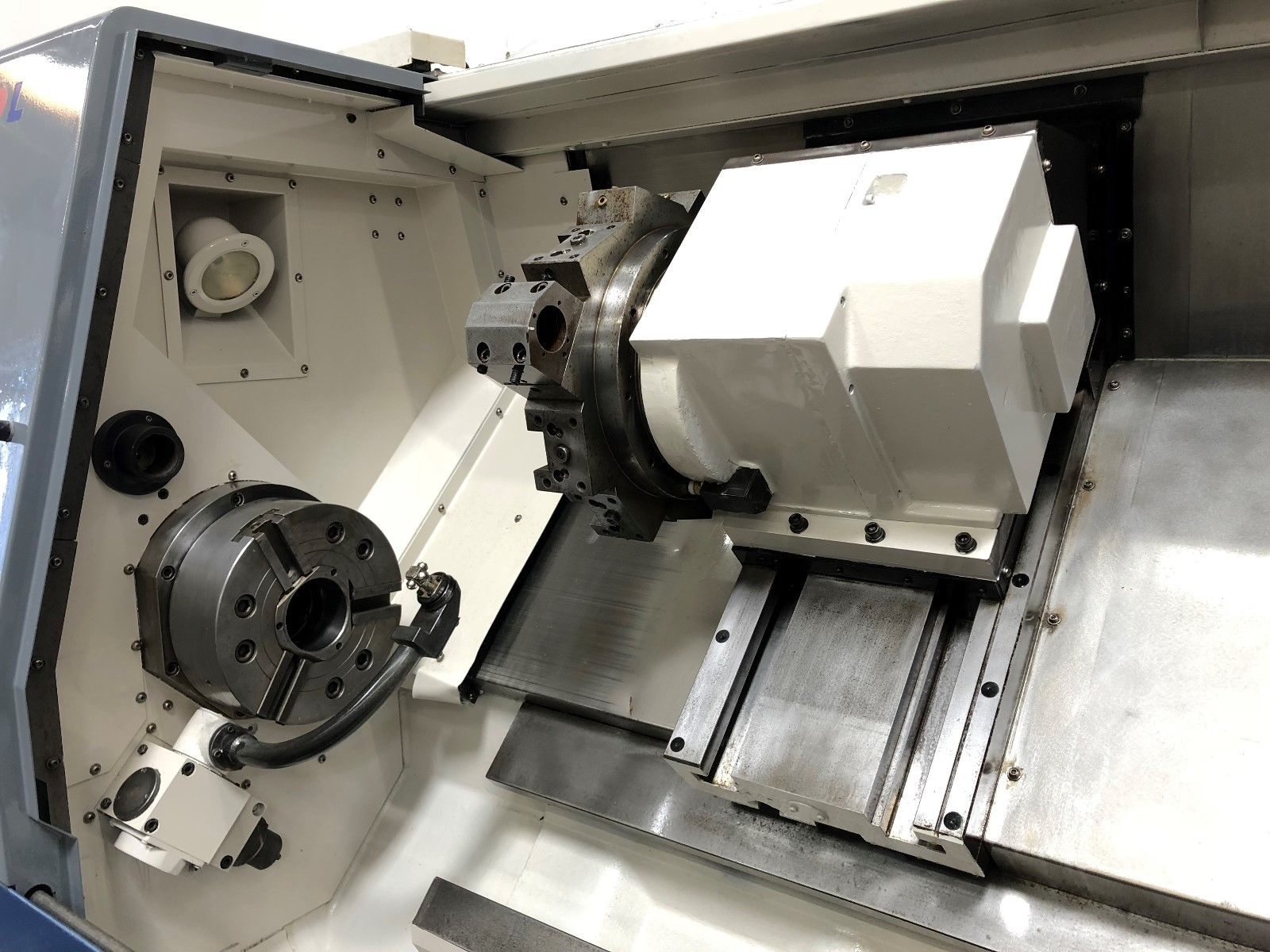

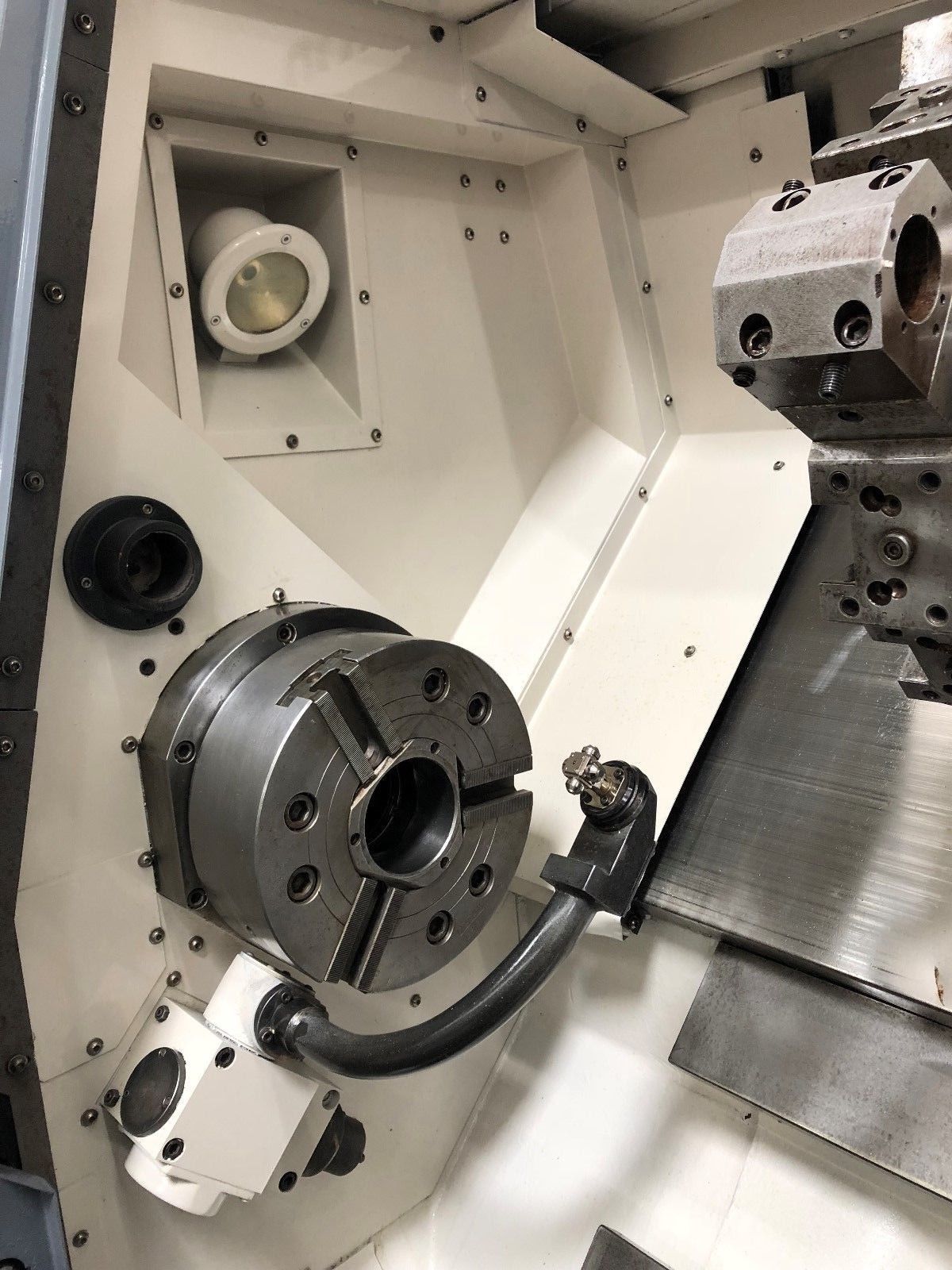

  • 12″ 3 Jaw Hydraulic Chuck
  • A2-11 Spindle
  • Auto Tool Presetter
  • Hydraulic Programmable Tailstock and Quill
  • PCMCIA Card Slot
  • Coolant System
  • Barfeed Interface

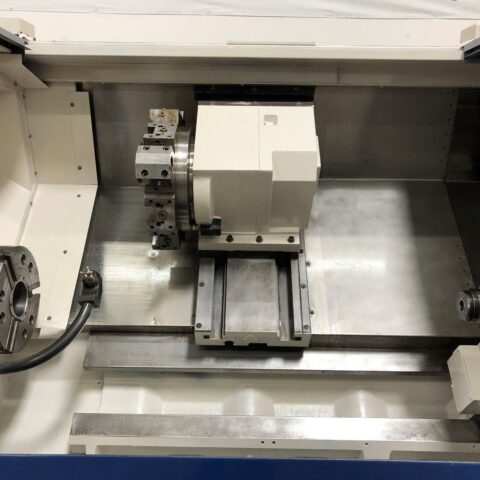

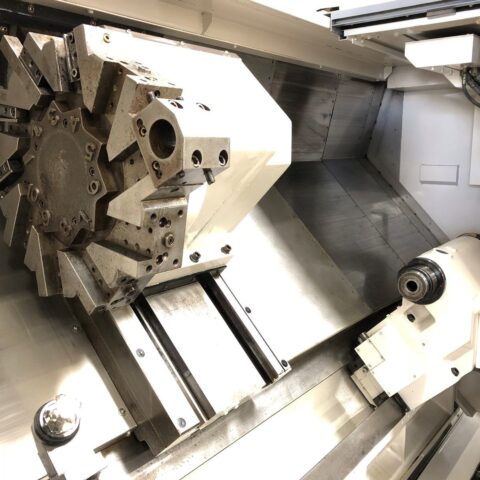

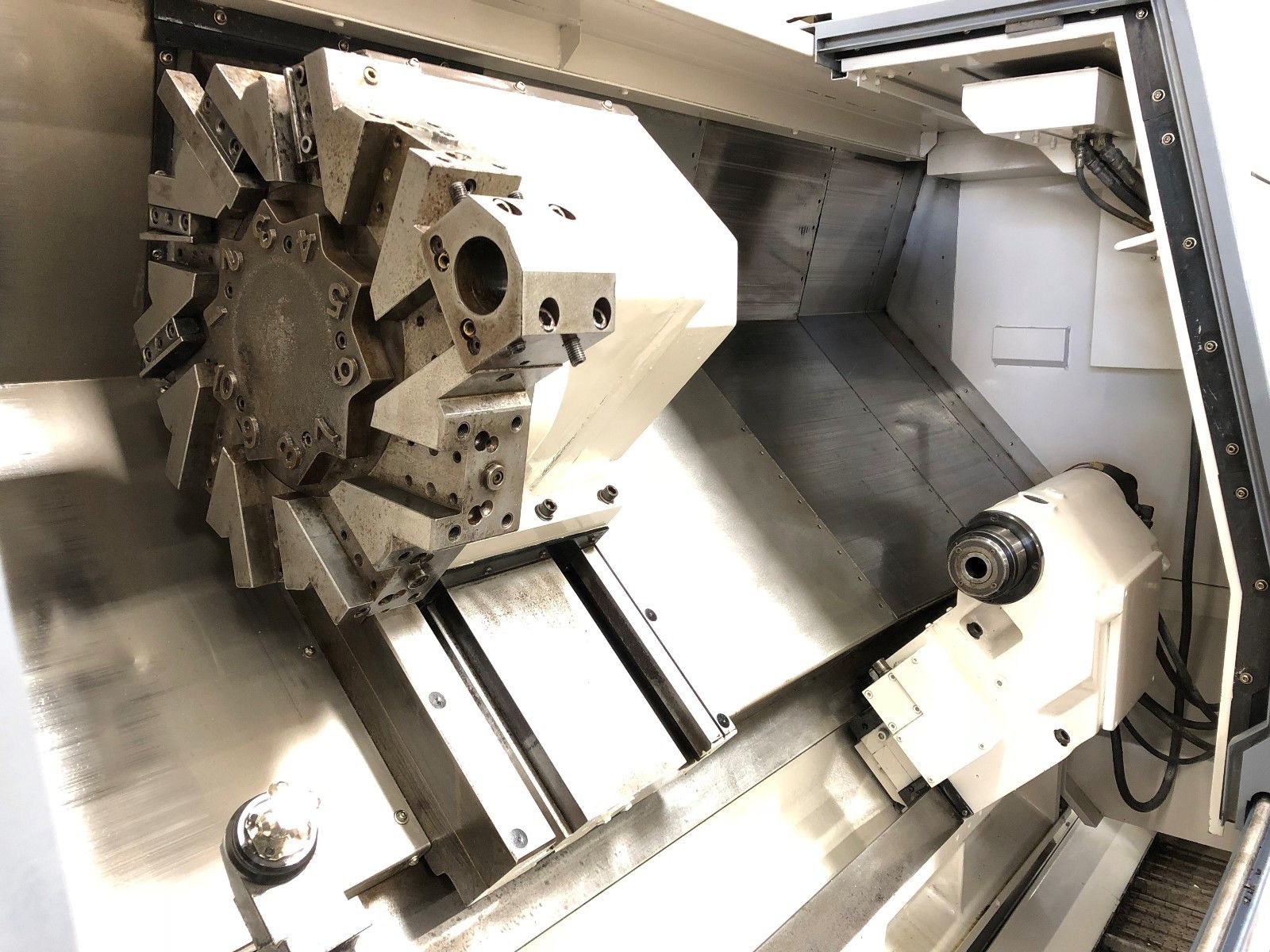

  • 12 Station Automatic Turret
  • Foot Switch
  • Turbo Chip Conveyor
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: 150″ x 77″ x 80″ High
  • Overall Dimensions: 168″ x 77″ x 80″ High with Chip Conveyor
  • Weight: 15000 lbs
  • DAEWOO PUMA 300LC Specifications:
  • Capacity:
  • Max Turning Diameter: 15.7″
  • Max Turning Length: 50.4″
  • Max Bar Capacity: 4.05″
  • Swing Over Bed: 22.4″
  • Distance Between Centers: 52.8″
  • X Axis Travel: 11.1″
  • Z Axis Travel: 52.4″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-11
  • Spindle Bore: 4.5″
  • Spindle Speed: 0 – 2800 RPM
  • Spindle Motor: 35 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.15 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 3.97″
  • Tailstock Quill Travel: 4.7″

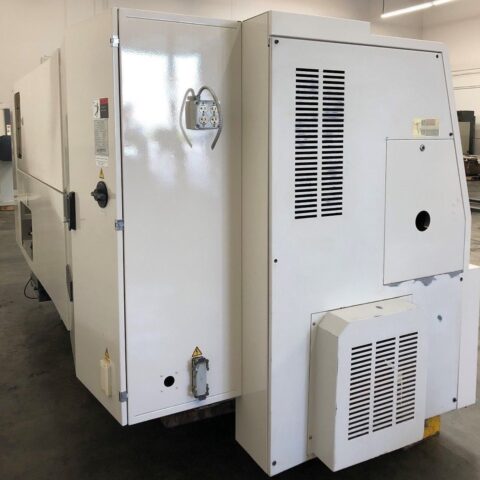

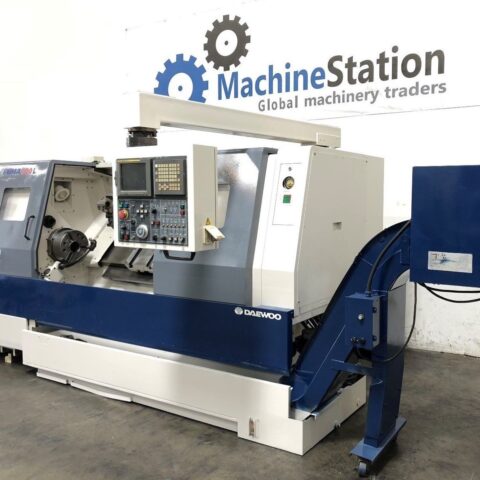

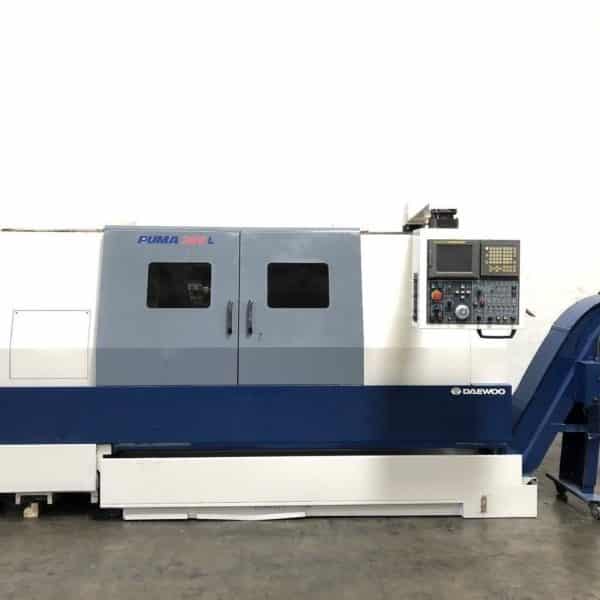

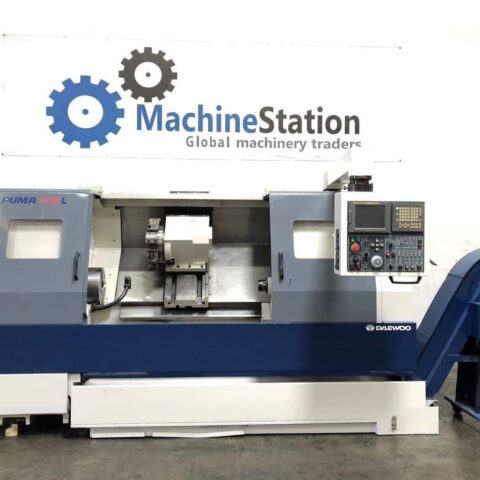

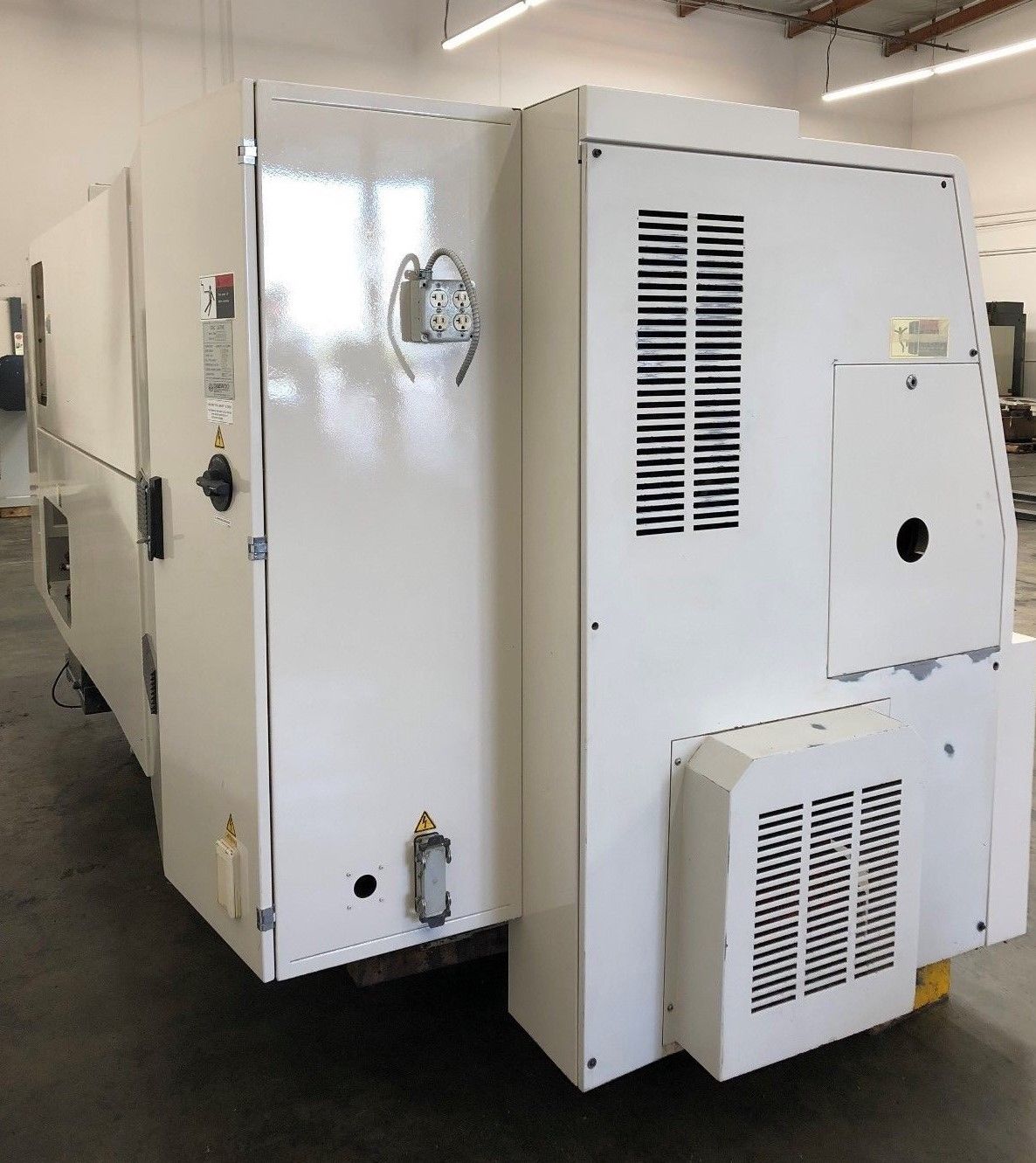

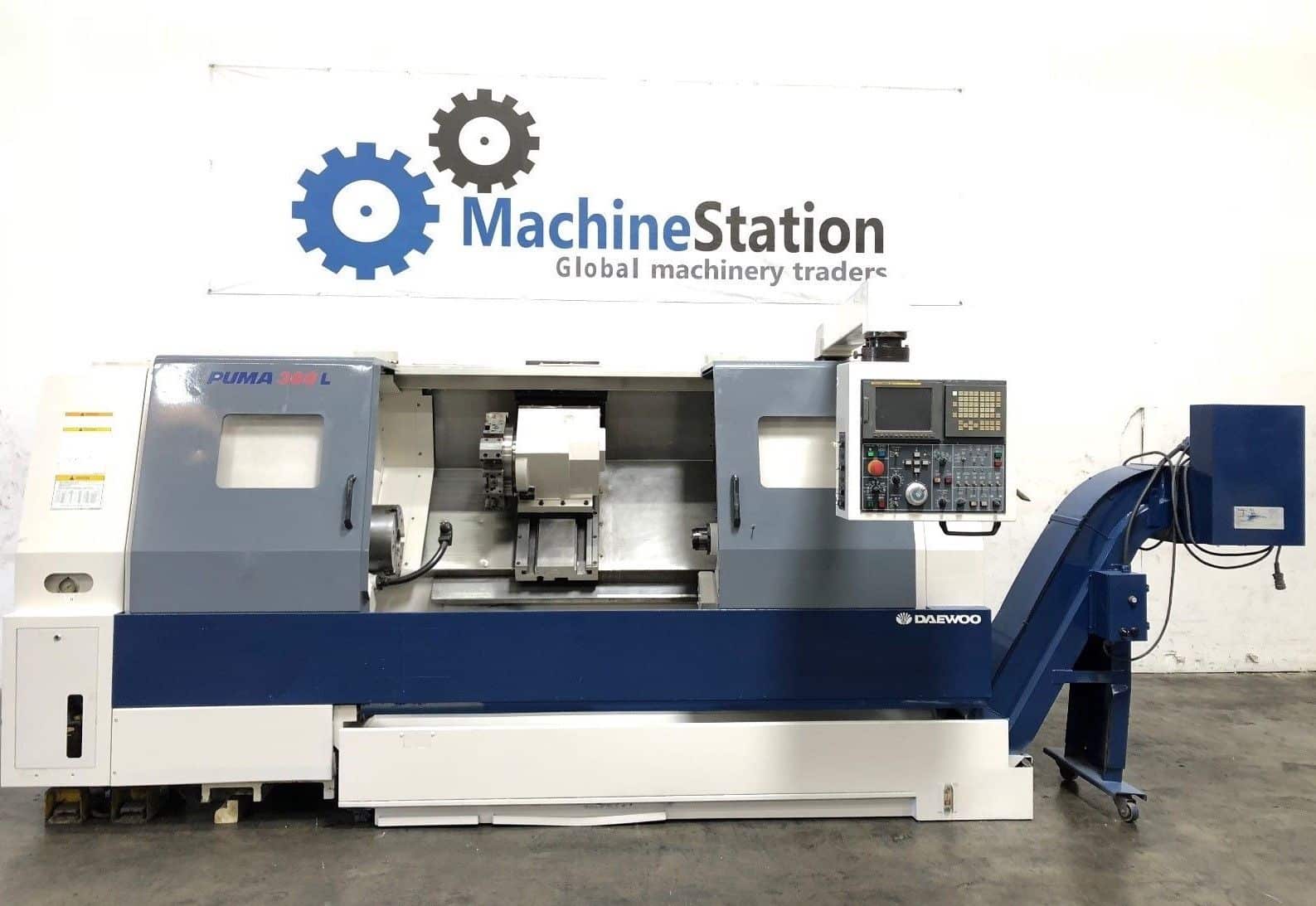

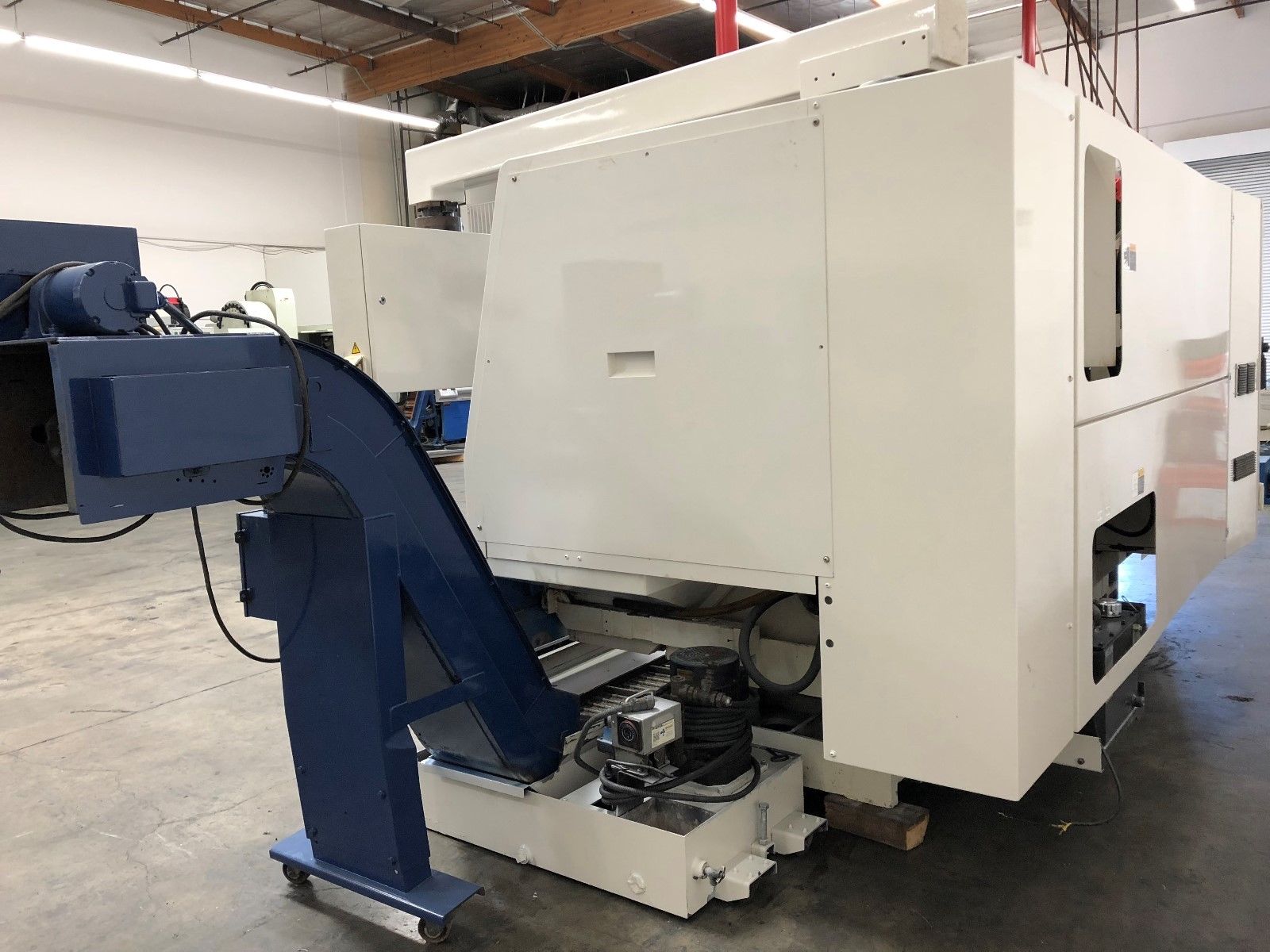

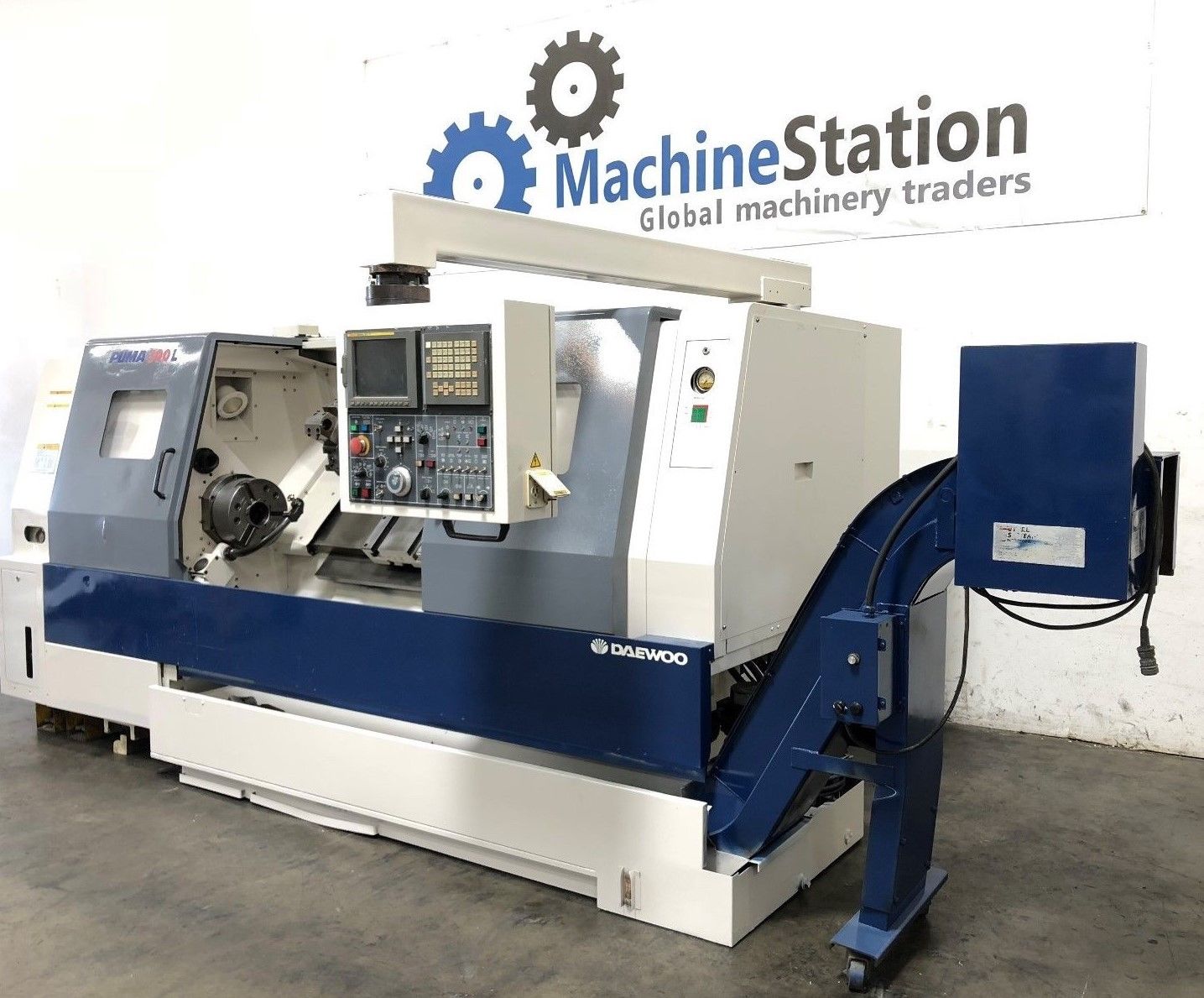

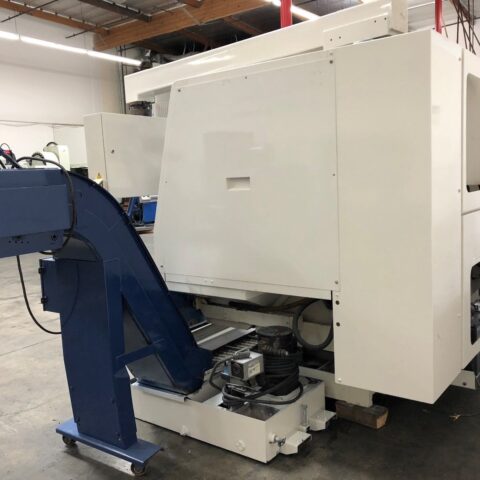

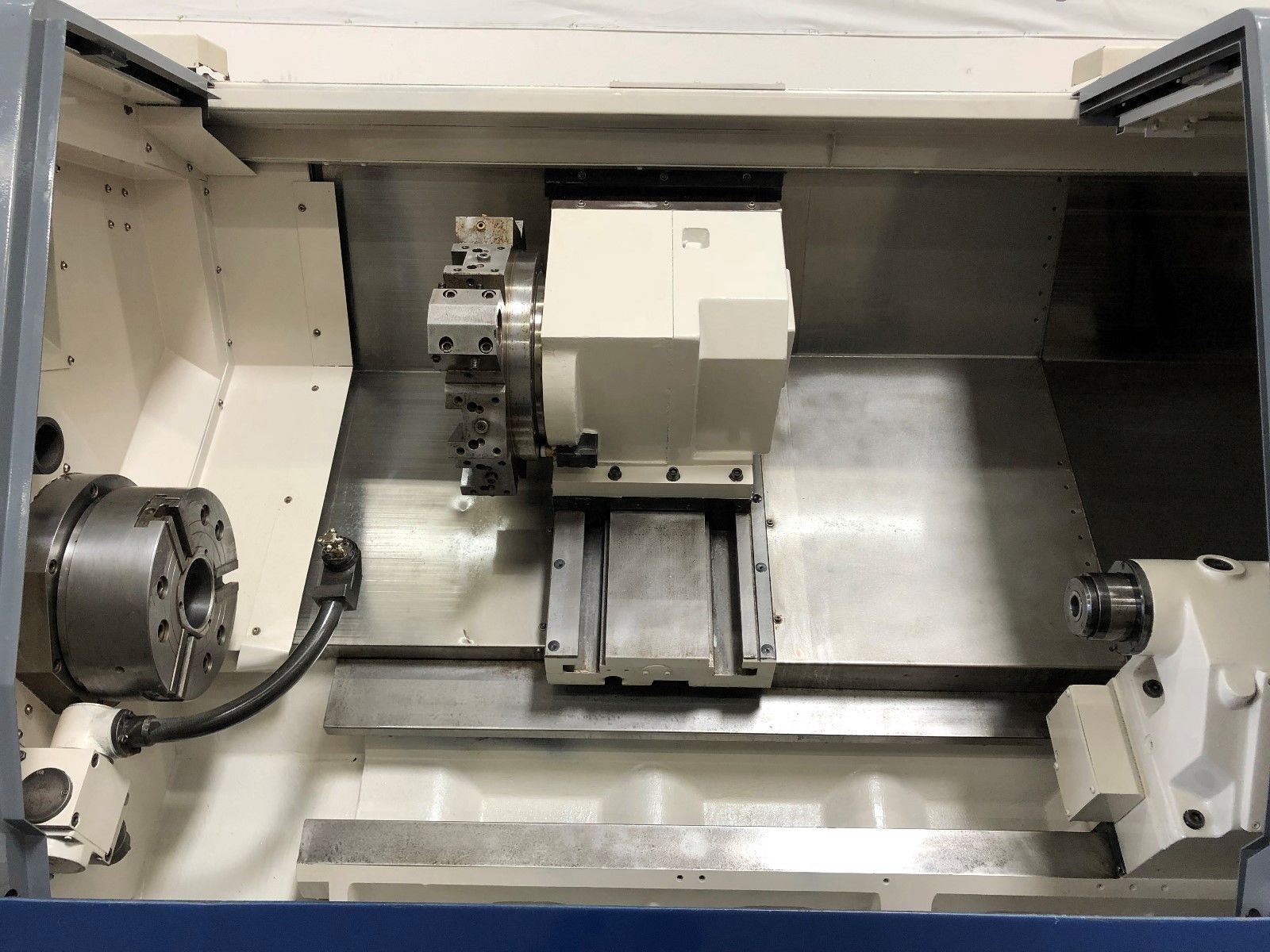

DAEWOO PUMA 300LC Comes as shown in pictures..
