DAEWOO PUMA 400LB CNC Turning Center Lathe

Out of stock

SKU:	2020
Make/Model:	Daewoo/PUMA 400LB
Video:	[fusion_button link=”https://www.youtube.com/watch?v=AaHndriiMyM” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 2020

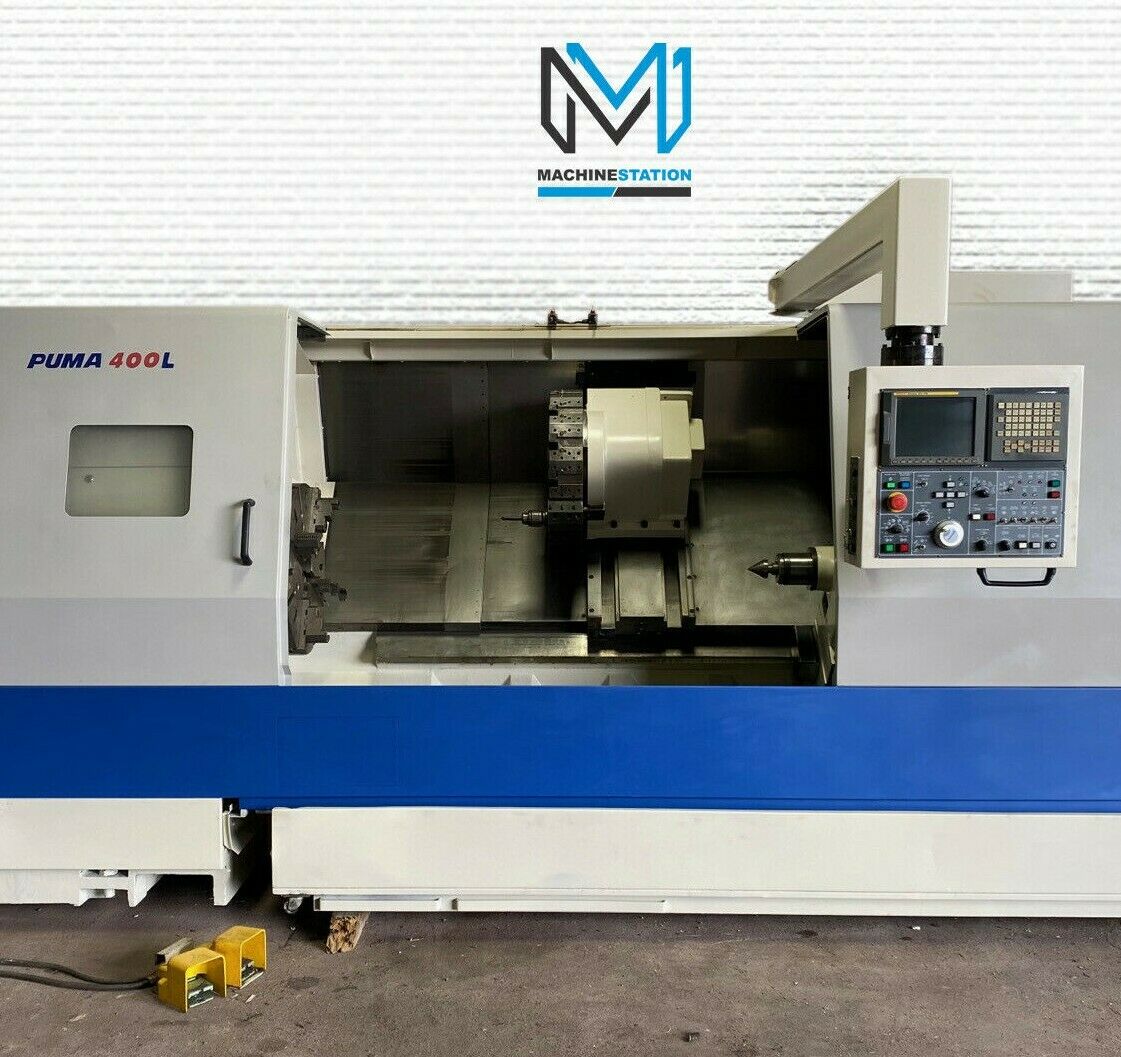

DAEWOO PUMA 400LB CNC TURNING CENTER LATHE
SKU	2020
Make	Daewoo
Model No.	PUMA 400LB
Year	2001/10

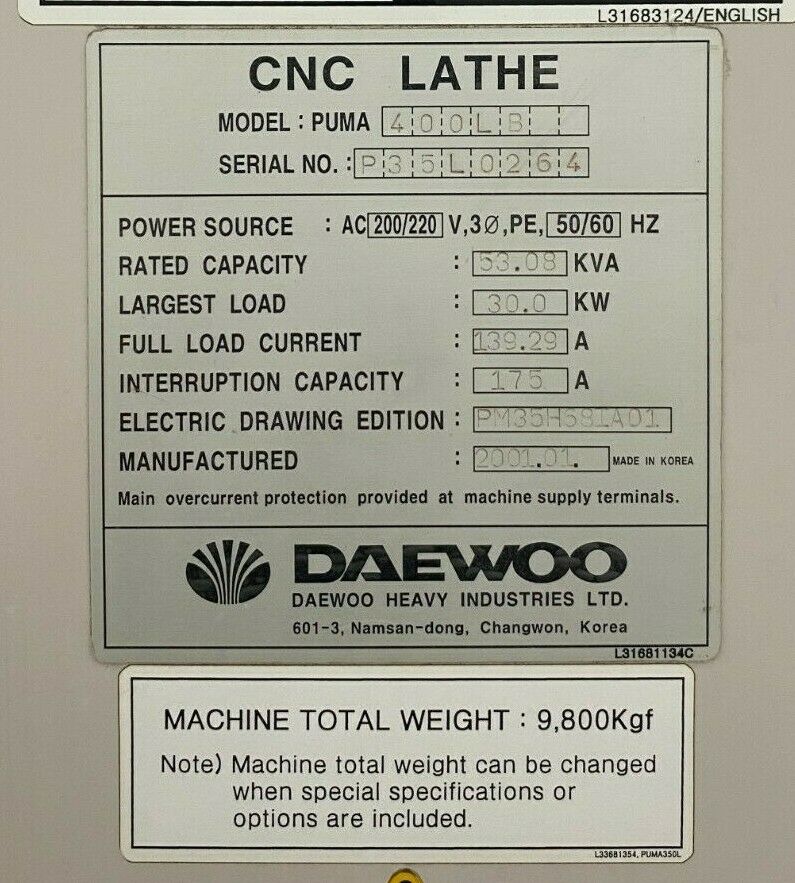

Serial #	P35L0264
Condition	Very Good
Cutting Time:	12725 Hours

All specifications are approximations and are subject to verification.

Equipped With:

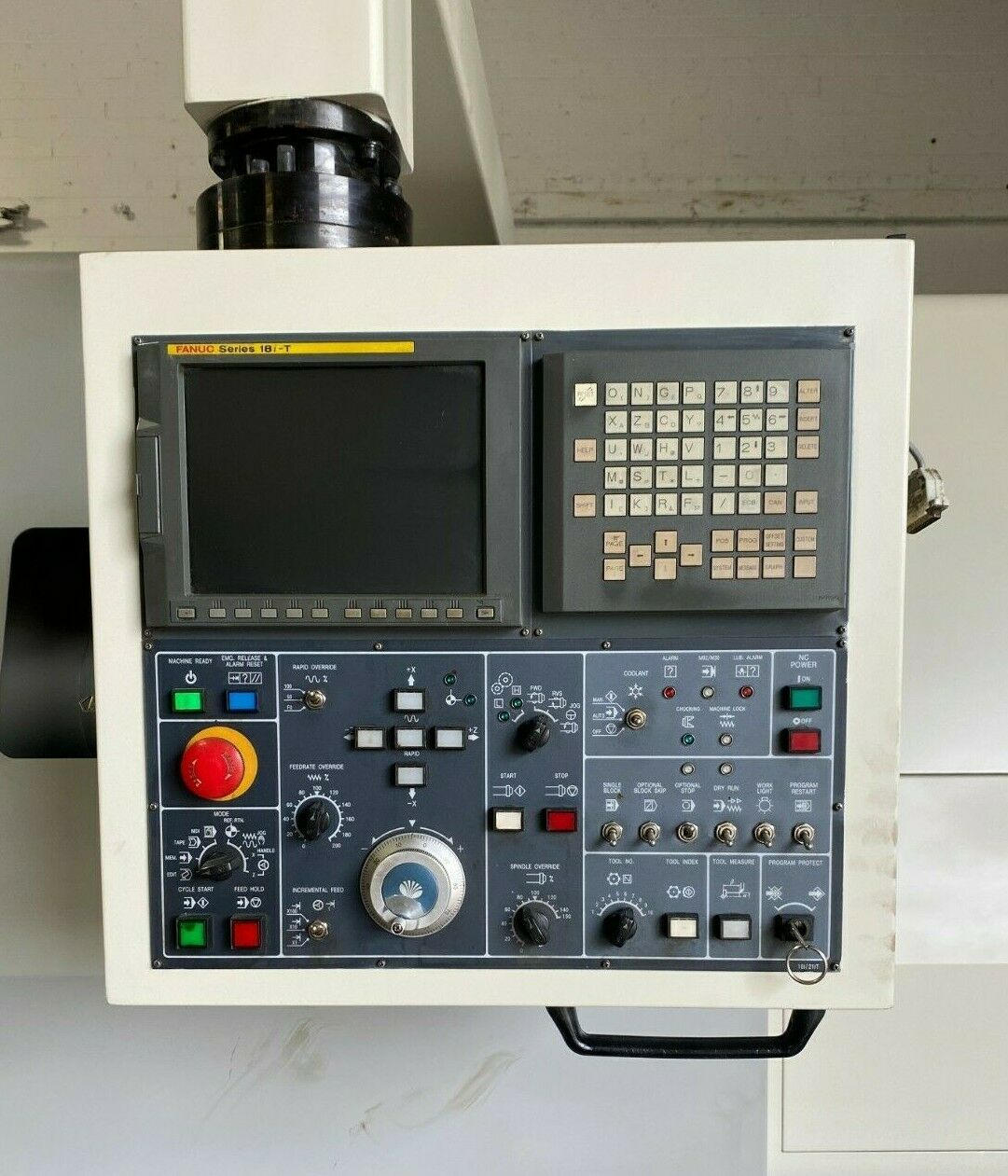

Fanuc 18i-T CNC Control

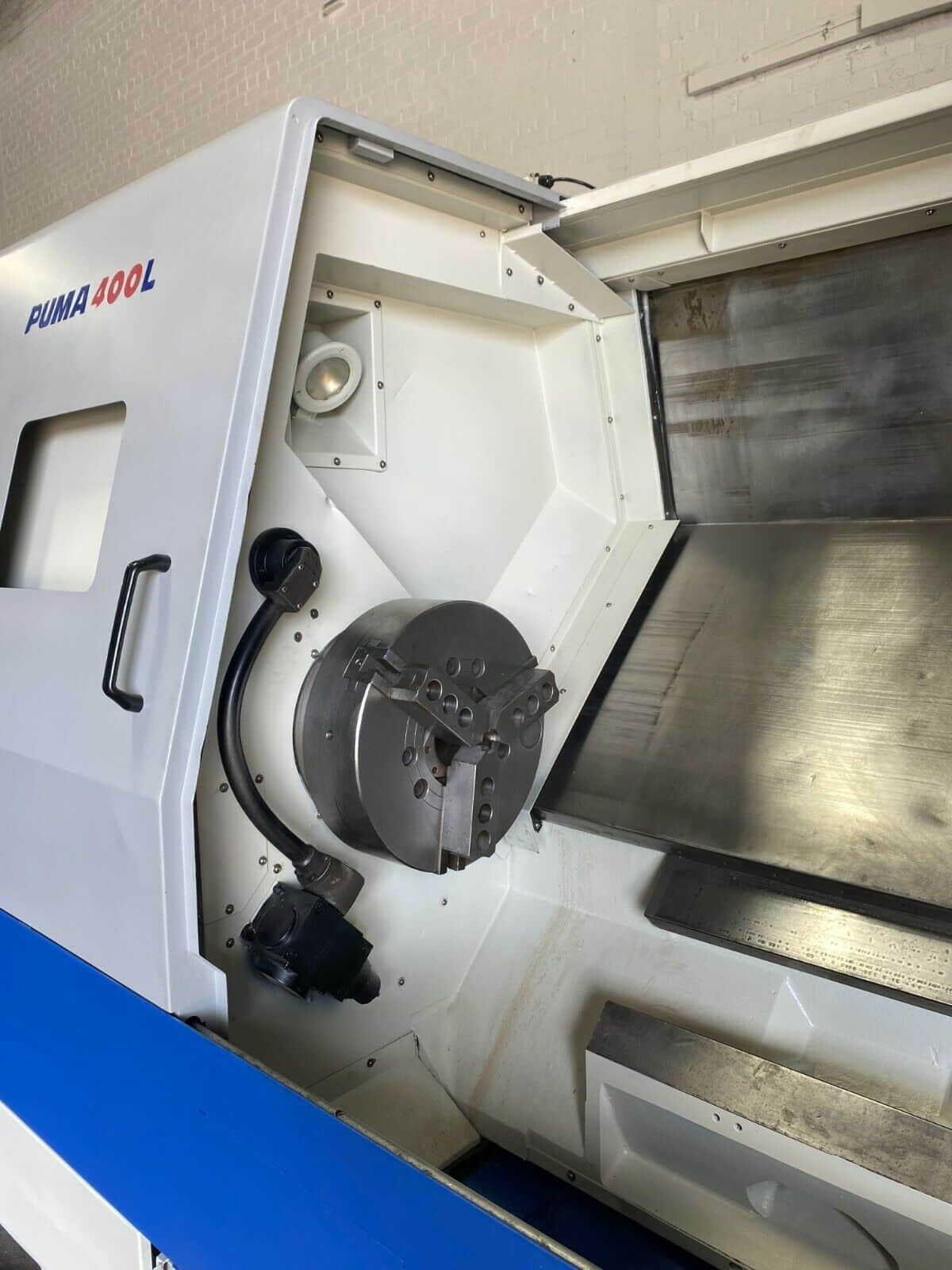

18″ Kitagawa B-18 Big Bore Chuck
5.2″ Bore A2-11 Spindle
Tool Presetter
Hydraulic Tailstock and Quill
PCMCIA Card Interface

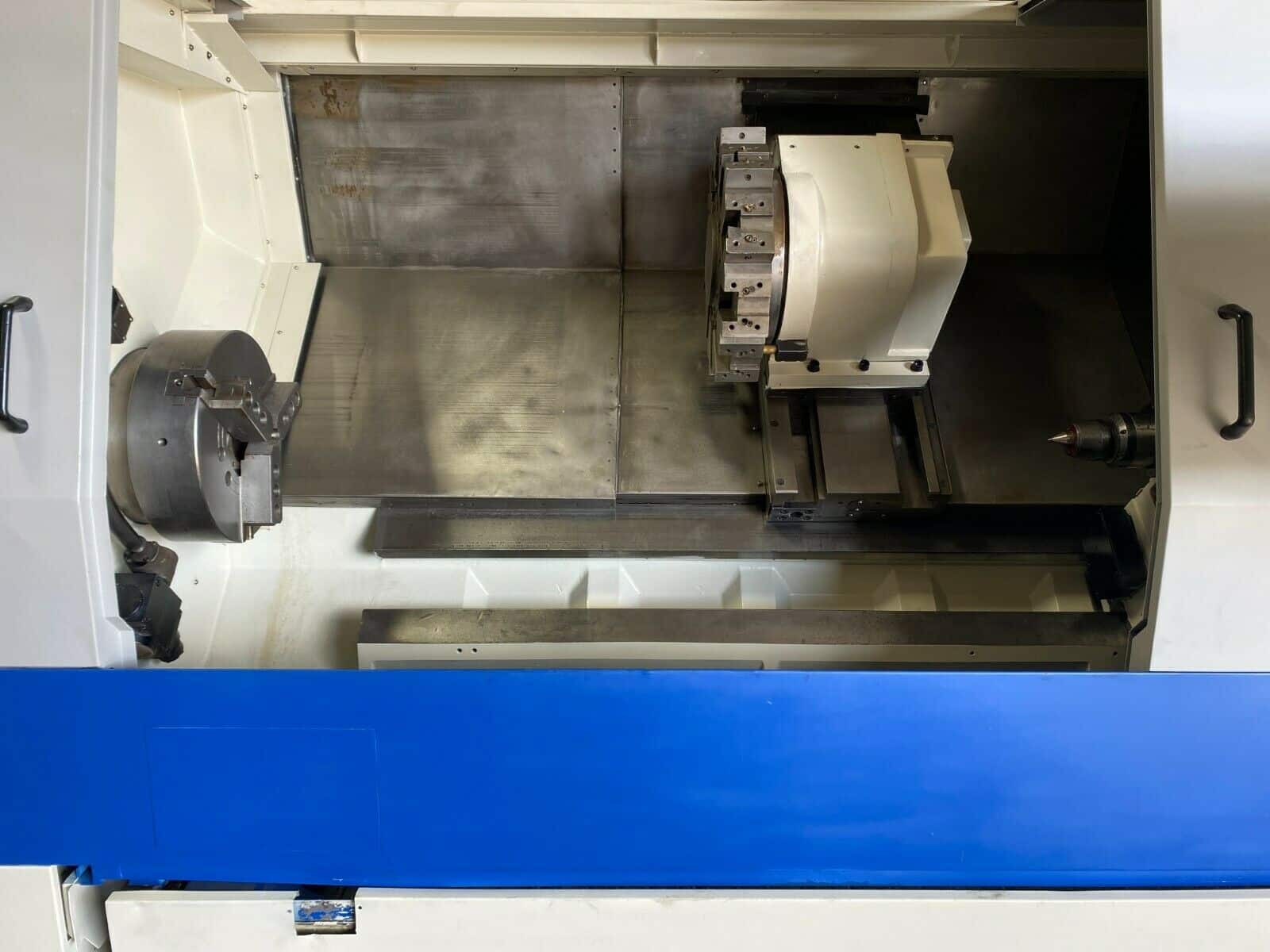

10 Station Automatic Turret
Foot Switches
Coolant System

Capacity:
Max Turning Diameter: 21.7″
Max Turning Length: 81.7″
Max Bar Capacity: 4.62″
Swing Over Bed: 30.3″
Swing Over Carriage: 23.3″
Distance Between Centers: 86.0”

Travel:
X Axis Travel: 14.2″
Z Axis Travel: 84.8″
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 790 IPM

Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.2″
Spindle Speed: 20 – 2000 RPM
Spindle Motor: 50hp

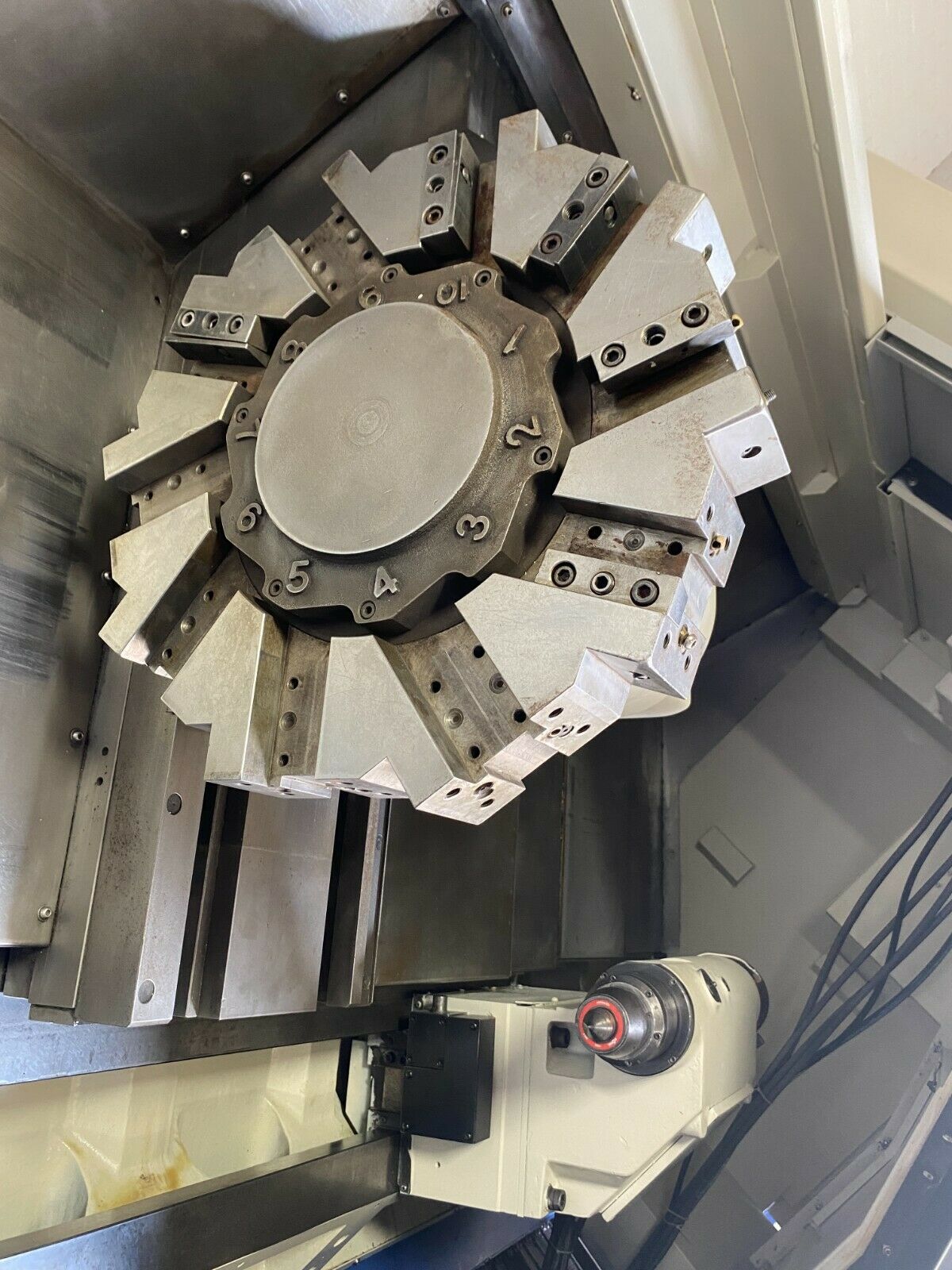

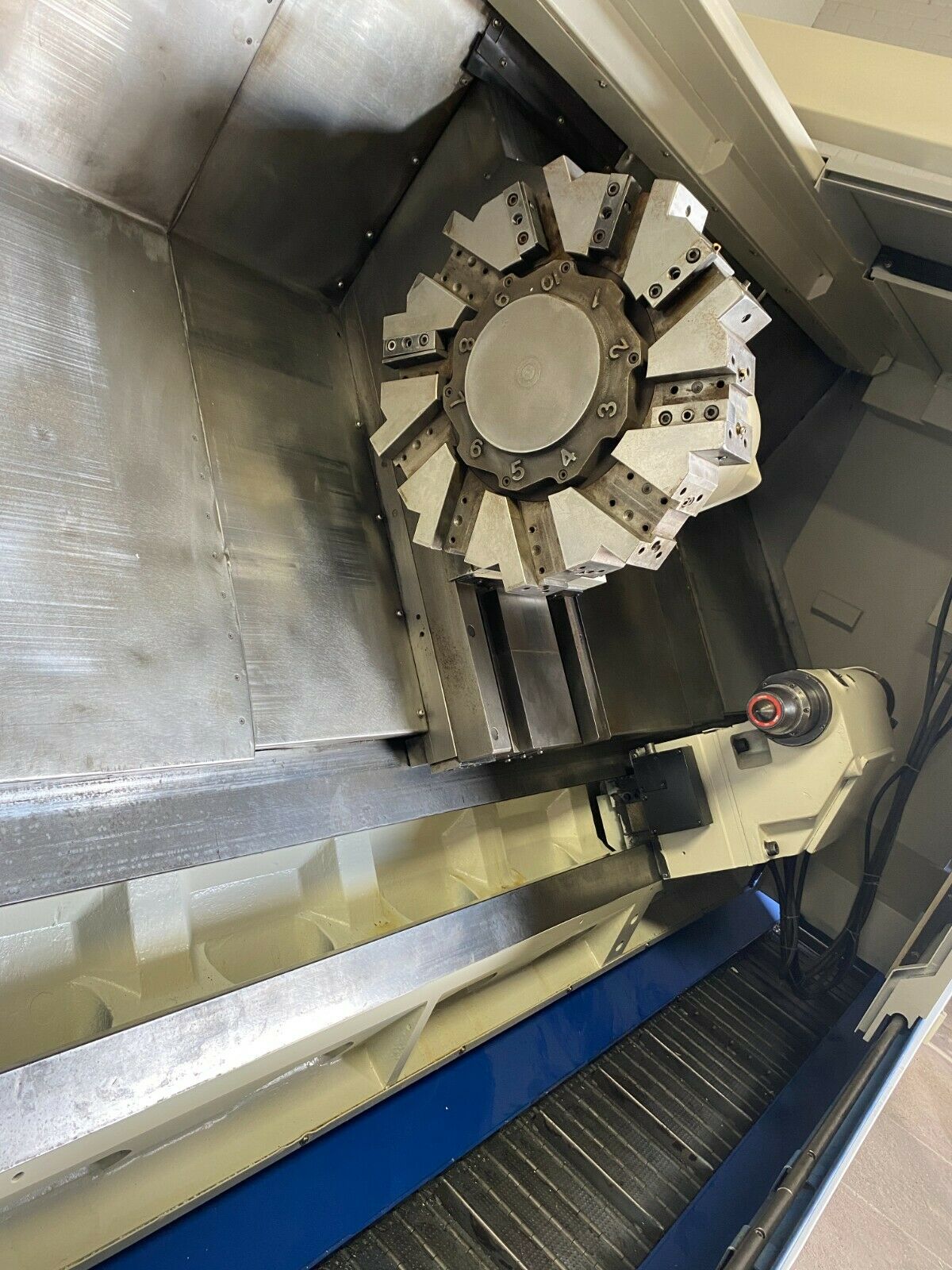

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tool Size: 2.4″

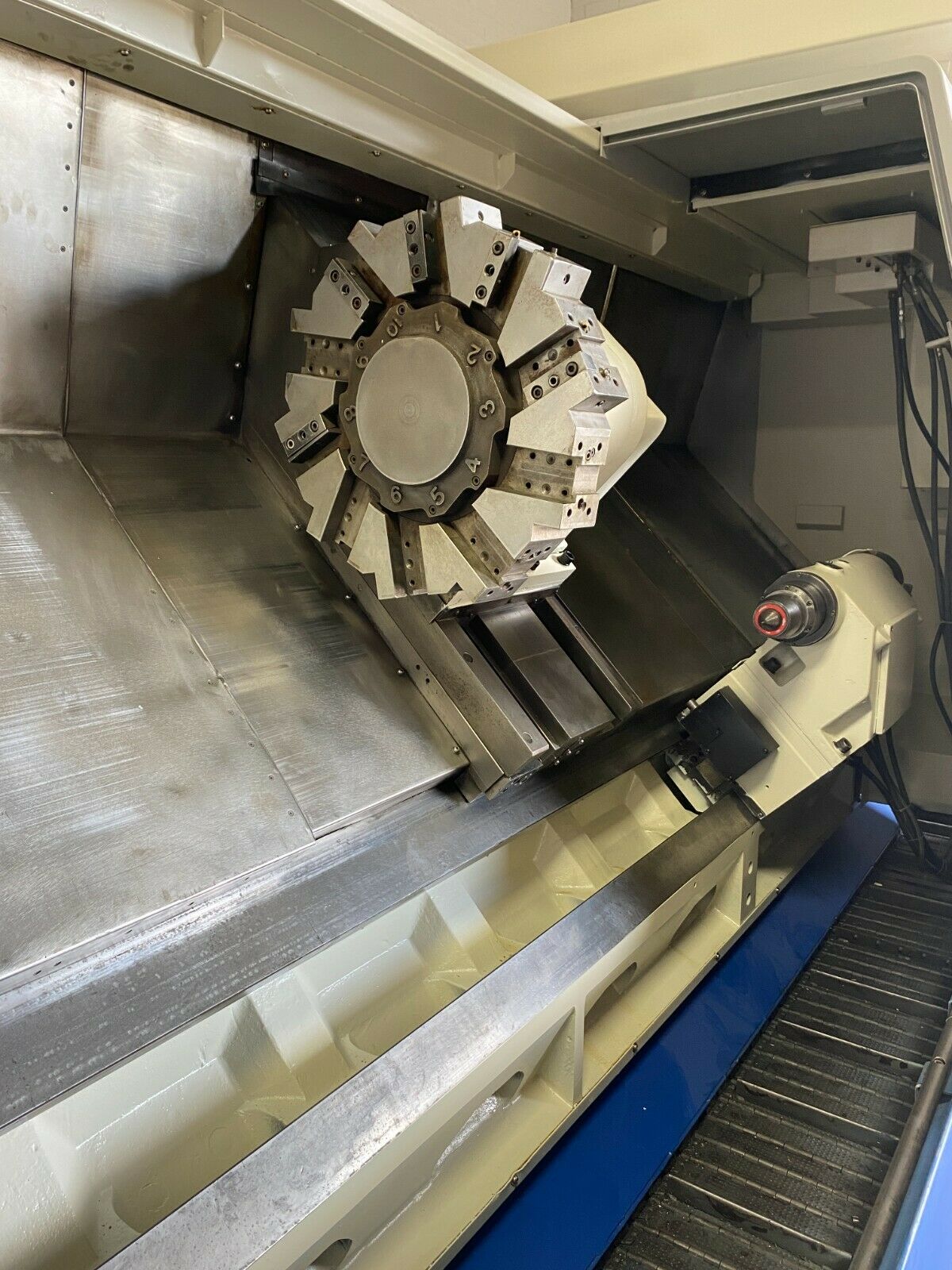

Tailstock:
Tailstock Taper: MT-5
Tailstock Body Travel: 60.5″ ?
Tailstock Quill Dia.: 4.7″
Tailstock Quill Travel: 4.7″

General:
Power: 55 kva, 220v / 3-Phase
Overall Dimensions: 200 ″ x 87″ x 90″ High
Weight: 22000 lbs

“No Charges for loading at list Price”

Comes as shown in pictures….
