DAEWOO PUMA 500L CNC Turning Center Lathe

Share

Description

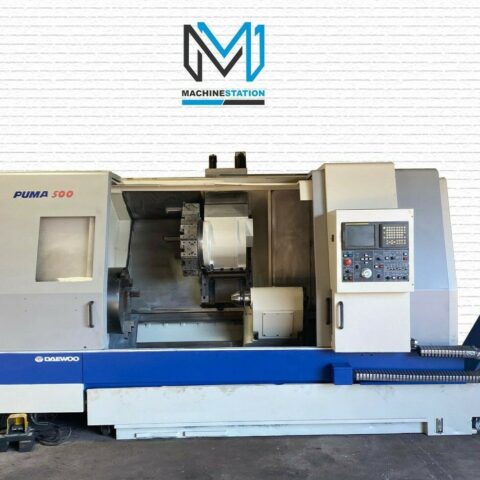

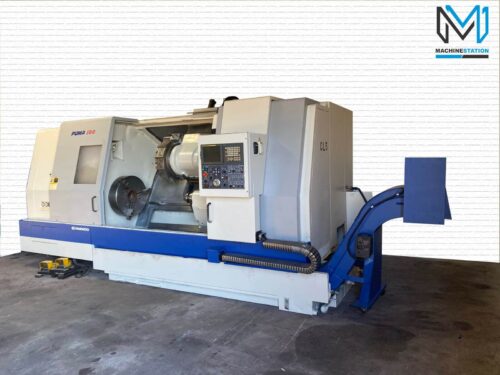

DAEWOO PUMA 500L CNC TURNING CENTER LATHE
SKU 2018
Make Daewoo
Model No. PUMA 500L
Year 2000/2001

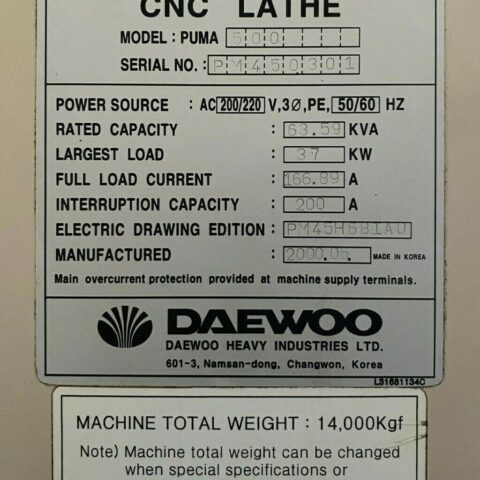

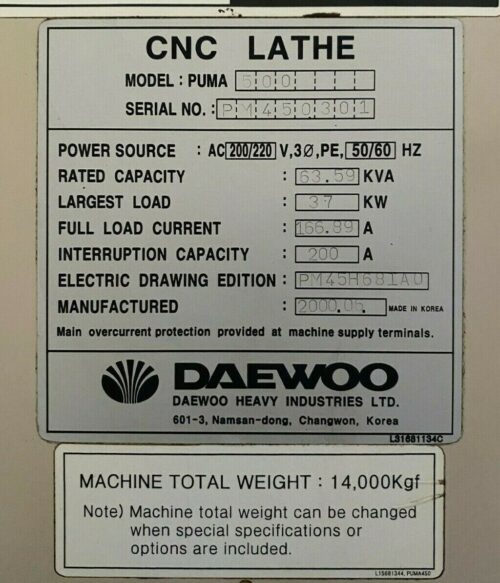

Serial # PM450301
Condition Very Good
Cutting Time:  Hours
  • DAEWOO PUMA 500L CNC Equipped With:

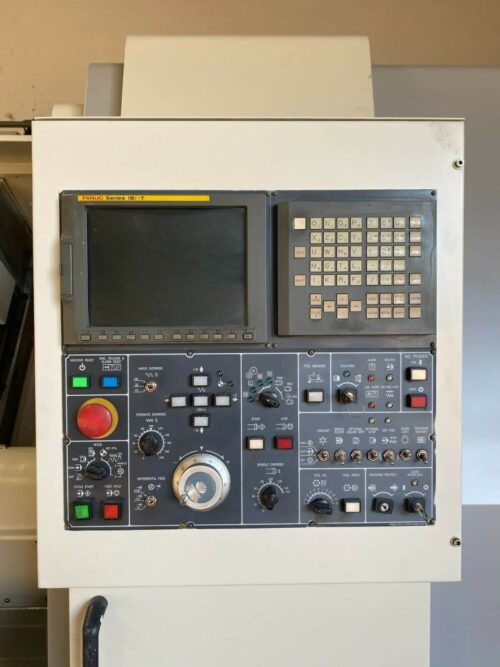

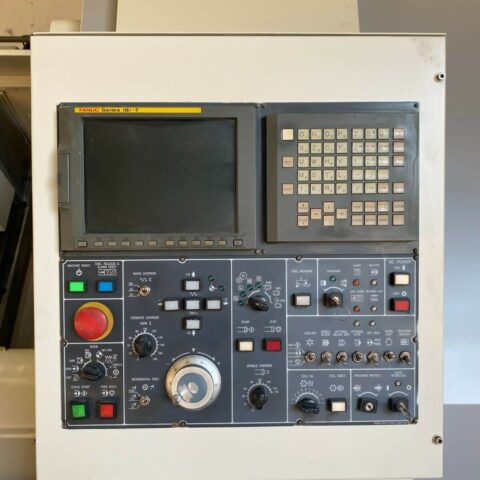

  • Fanuc 18i-T CNC Control

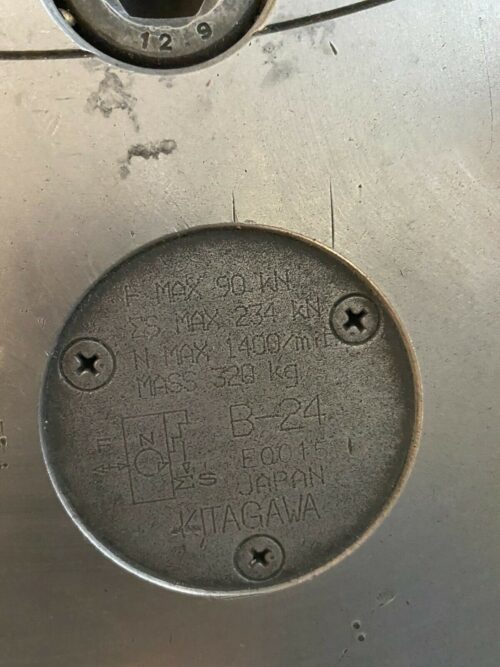

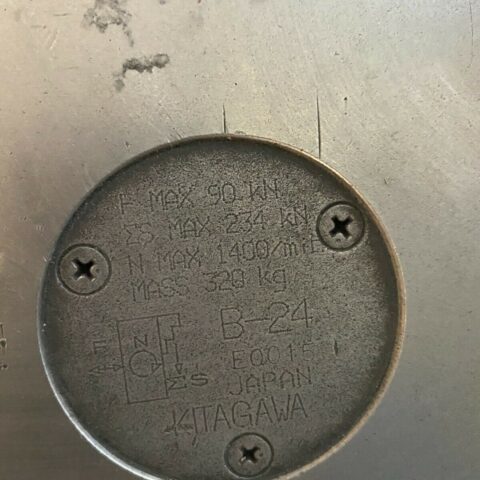

  • 24″ Kitagawa B-24 Big Bore Chuck
  • 6.2″ Bore A2-15 Spindle

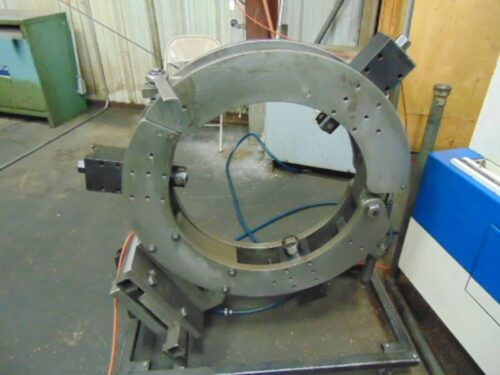

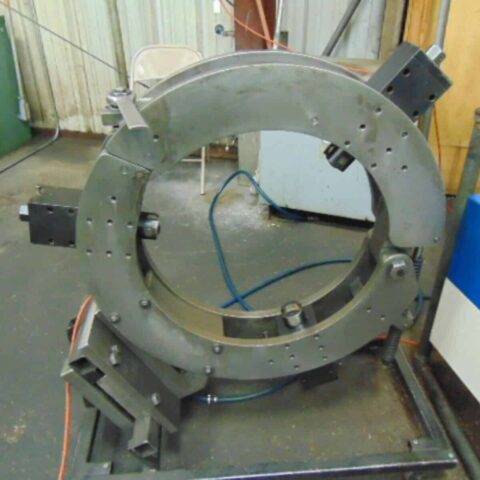

  • 3 Point Steady Rest
  • Hydraulic Tailstock and Quill
  • PCMCIA Card Interface

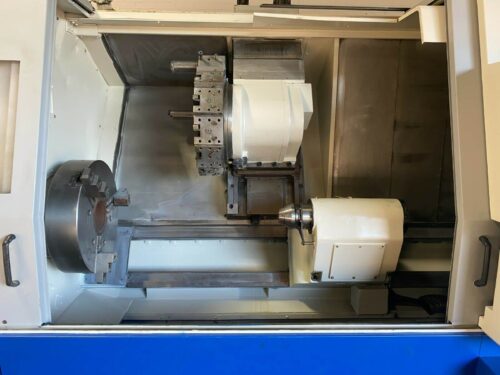

  • 12 Station Automatic Turret
  • Foot Switches
  • Coolant System
  • Chip conveyor
  • Capacity:
  • Max Turning Diameter: 27.55″
  • Max Turning Length: 62.7″
  • Max Bar Capacity: 6.0″
  • Swing Over Bed: 35.43″
  • Swing Over Carriage: 24.8″
  • Distance Between Centers: 77.9”
  • Travel:
  • X Axis Travel: 14.56″
  • Z Axis Travel: 62.7″
  • Rapid Traverse X Axis: 630 IPM
  • Rapid Traverse Z Axis: 790 IPM
  • Spindle:
  • Spindle Nose: A2-15
  • Spindle Bore: 6.2″
  • Spindle Speed: 15 – 1500 RPM
  • Spindle Motor: 60hp
  • Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.5 Second
  • Tool Size: 2.4″
  • Tailstock:
  • Tailstock Taper: MT-5
  • Tailstock Body Travel: 60.5″ ?
  • Tailstock  Quill Dia.: 4.7″
  • Tailstock Quill Travel: 4.7″
  • General:
  • Power: 55 kva, 220v / 3-Phase
  • Overall Dimensions: 200 ″ x 87″ x 90″ High
  • Weight: 30800 lbs

“No Charges for loading at list Price”

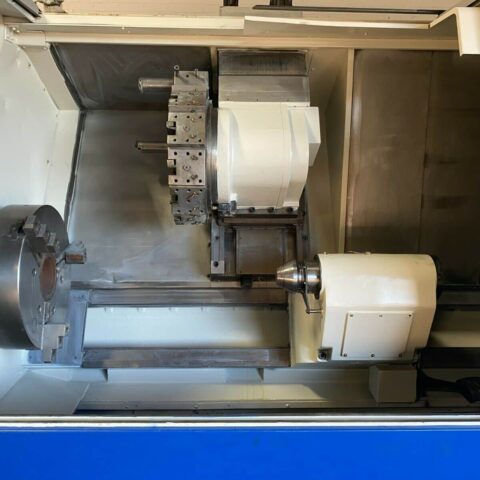

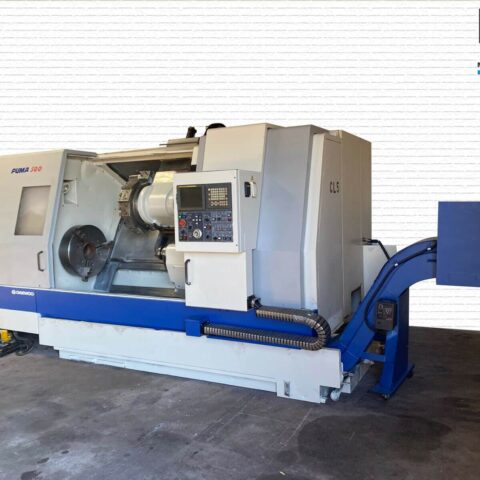

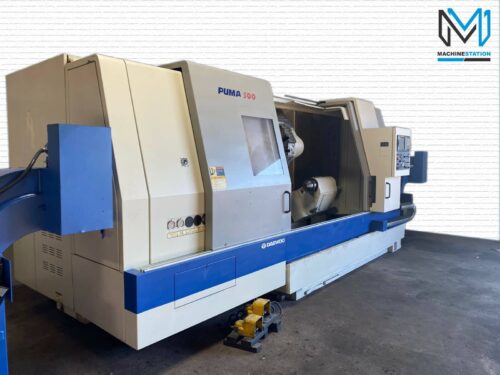

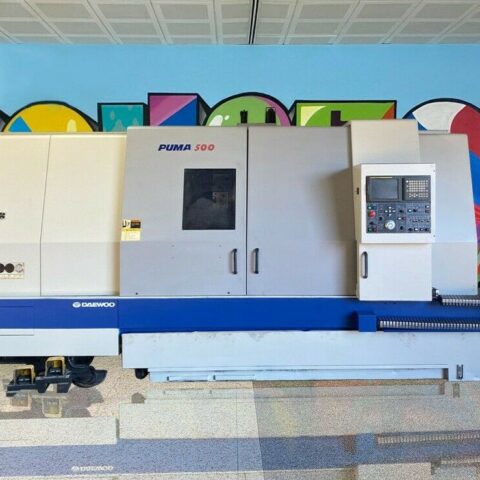

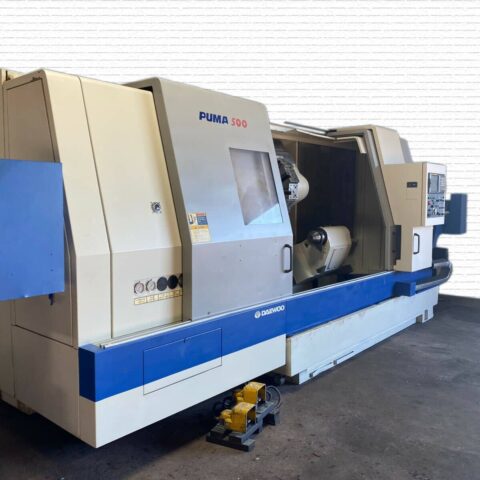

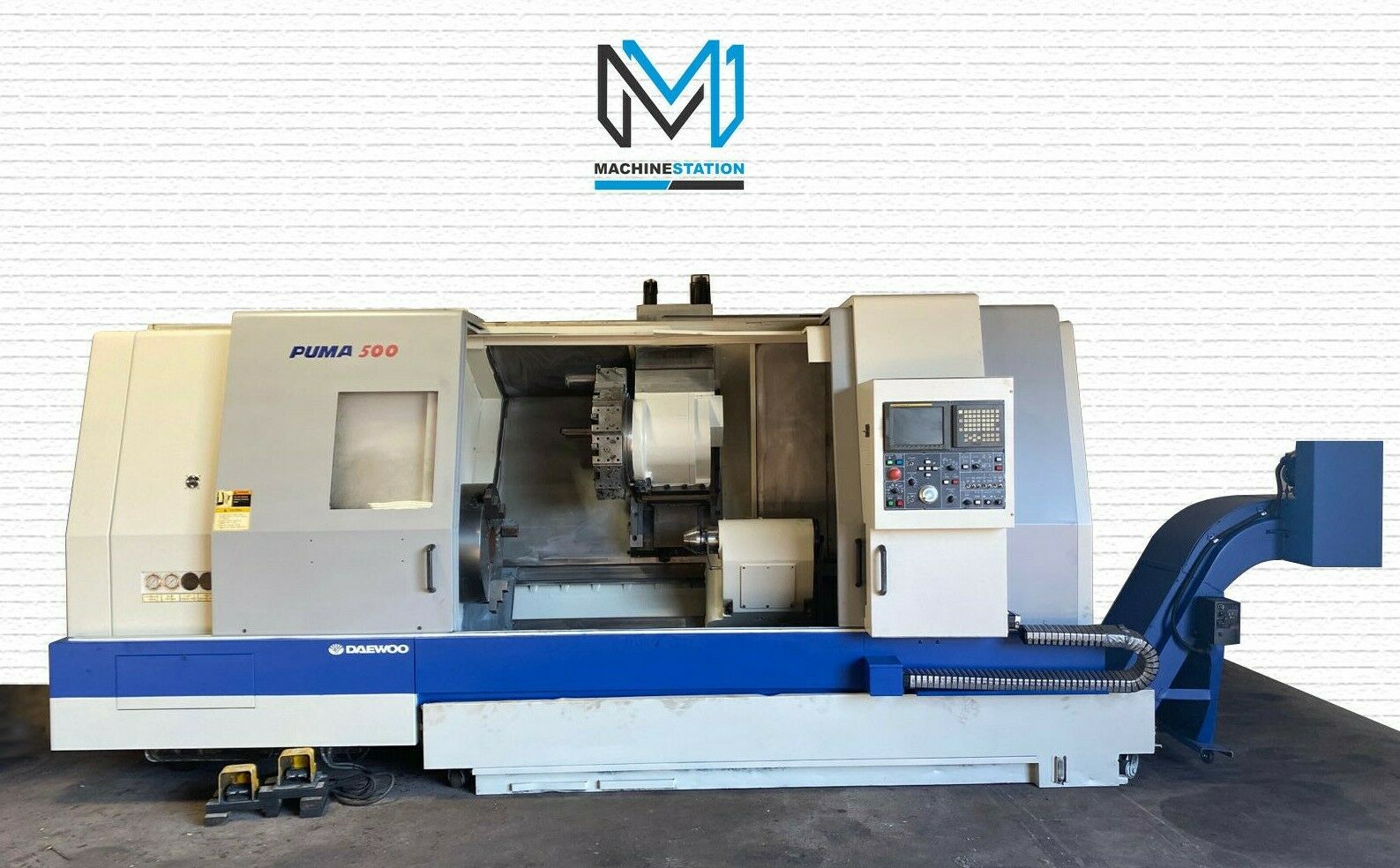

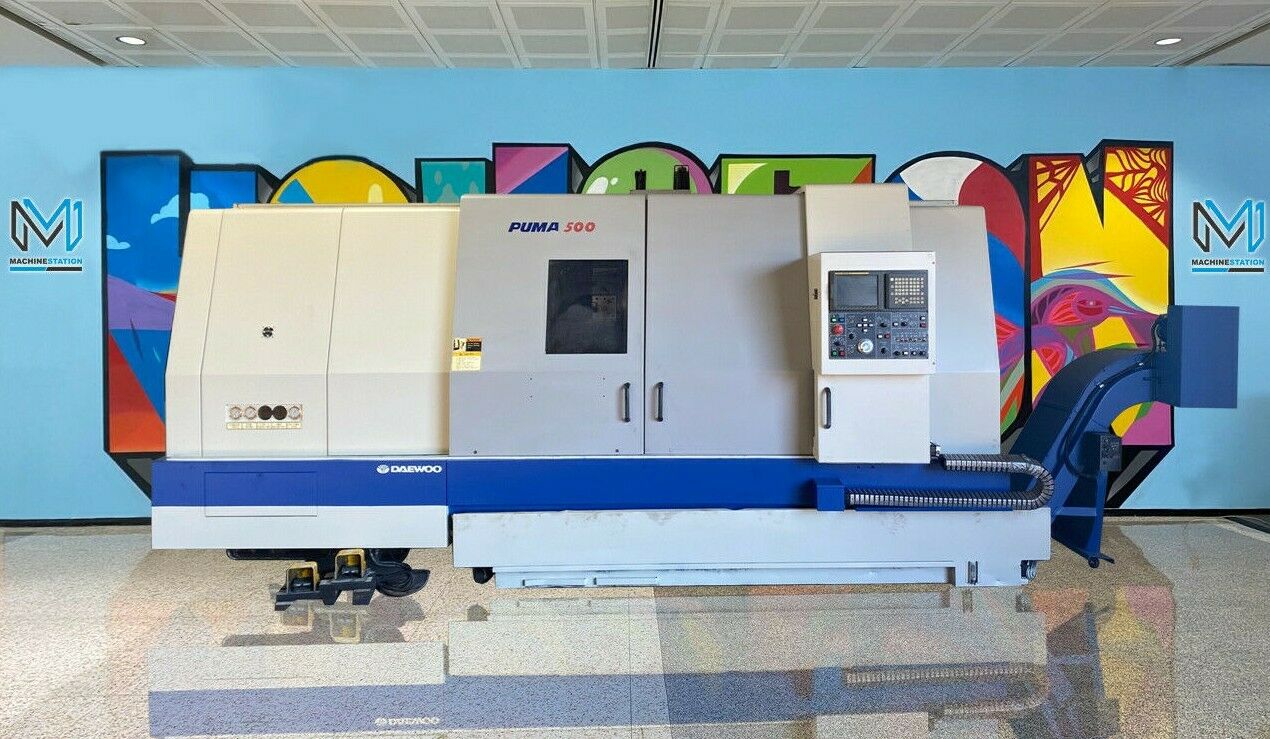

DAEWOO PUMA 500L CNC Comes as shown in pictures..
