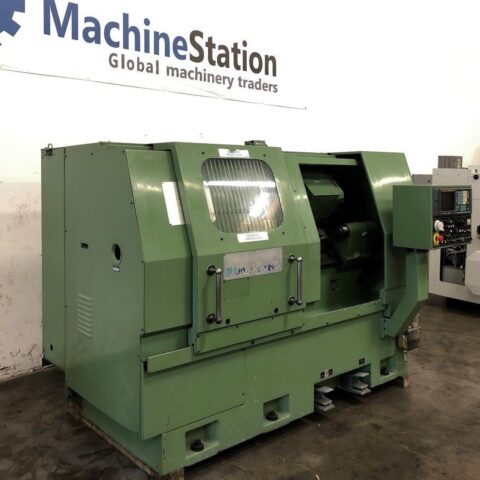

DAEWOO PUMA 6-HS CNC TURNING CENTER | |
---|---|
Make | Daewoo |
Model No. | Puma 6-HS |
Serial # | 310599 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This machine is in good running condition. It is equipped with 8″ Chuck & Hydraulic Tailstock. On Our Floor fully powered / tested & is in Great working condition.”
Watch *VIDEO* in Spanish
- Daewoo Puma 6-HS Equipped With:
- Fanuc OT CNC Control

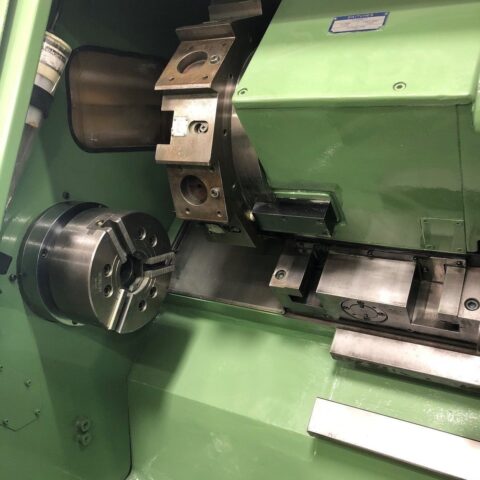

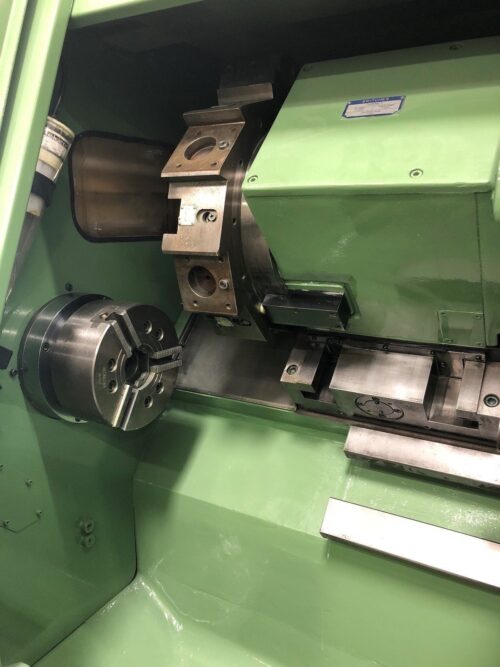

- 8″ 3 Jaw Kitagawa Hydraulic Chuck
- A2-6 Spindle
- Hydraulic Programmable Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports
- 102Station Automatic Turret
- Foot Switch
- General:

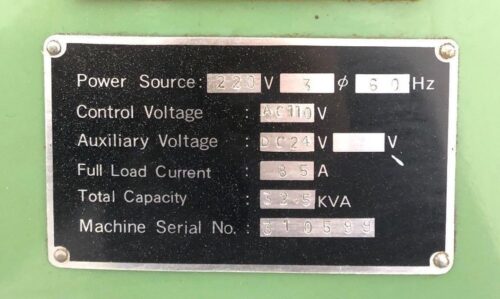

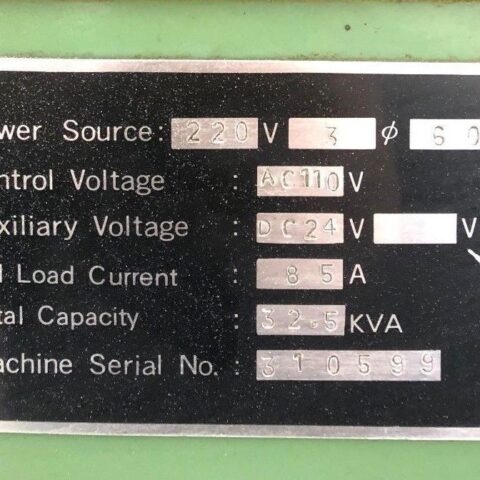

- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 92″ x 66″ x 70″ High
- Weight: 8500 lbs
- Daewoo Puma 6-HS Specifications:
- Capacity:
- Max Turning Diameter: 14.6″
- Max Turning Length: 14.6″
- Max Bar Capacity: 1.6″
- Swing Over Bed: 19.7″
- Distance Between Centers: 18.9″
- X Axis Travel: 7.9″
- Z Axis Travel: 15″
- Rapid Traverse X Axis: 630 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-5
- Spindle Bore: 1.8″
- Spindle Speed: 0 – 6000 RPM
- Spindle Motor: 15 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-3
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 4.0″

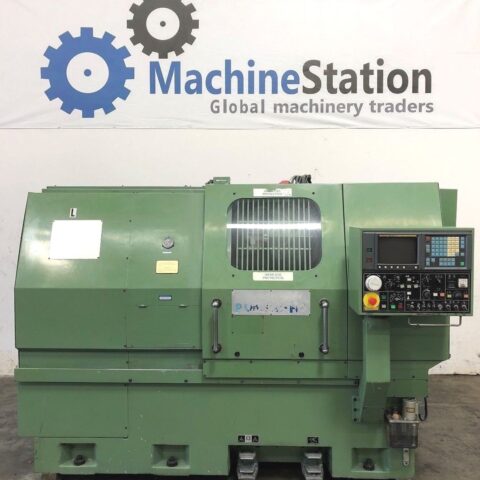

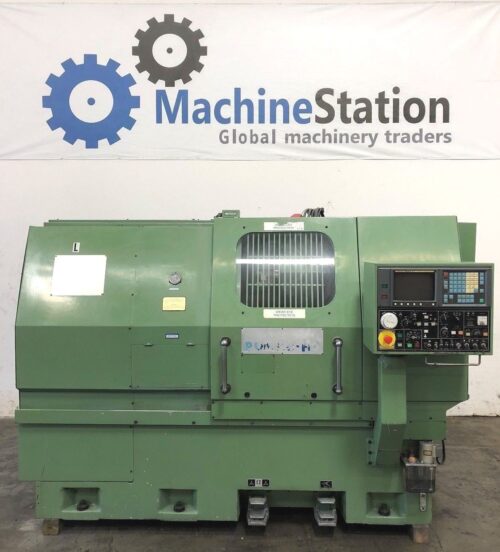

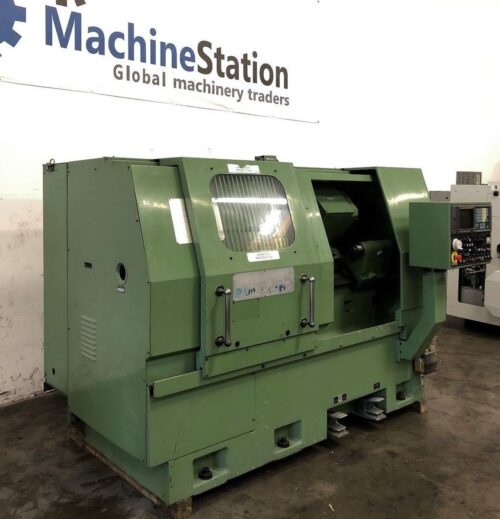

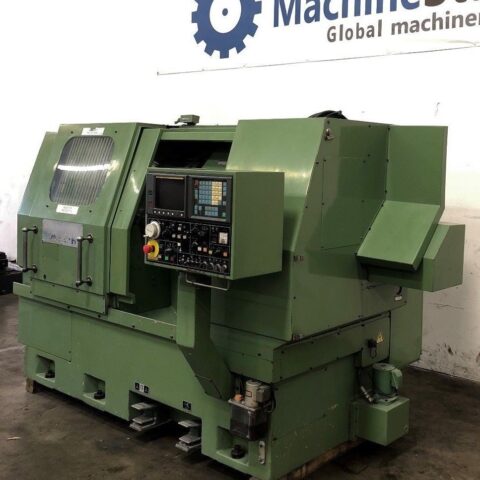

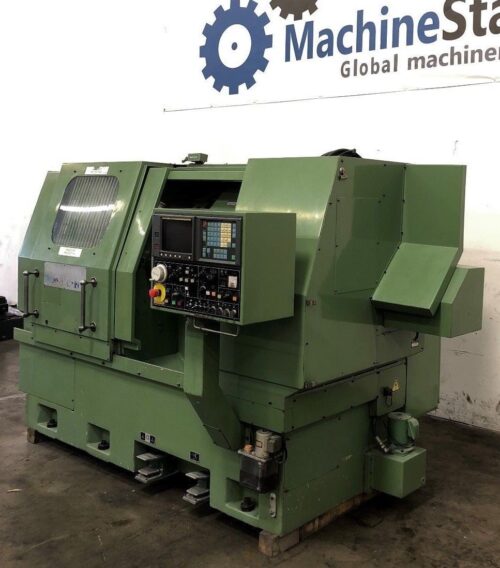

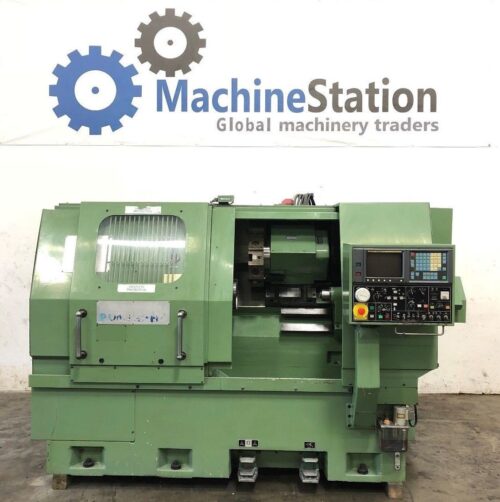

Daewoo Puma 6-HS Comes as shown in pictures..
