Daewoo Puma 8 CNC Turning Center

Out of stock
SKU: 1335
Make/Model: DAEWOO PUMA 8HC
Video: [fusion_button link=”https://www.youtube.com/watch?v=7zans-K4IPE” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1335

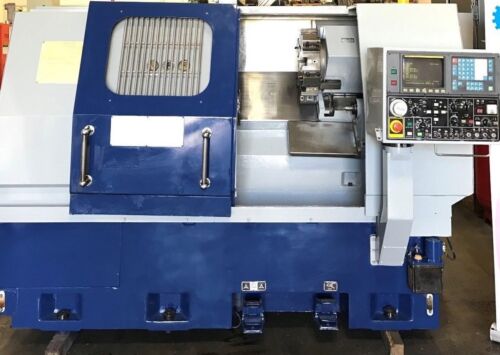

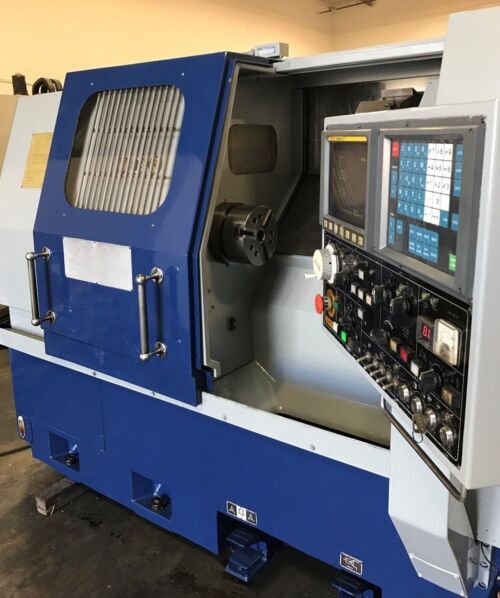

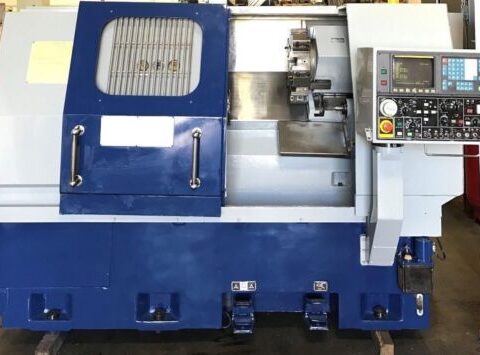

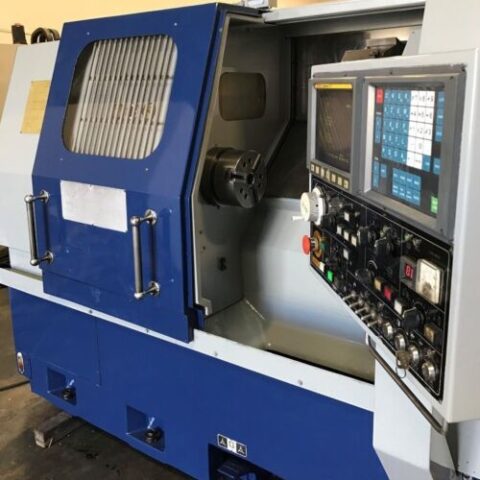

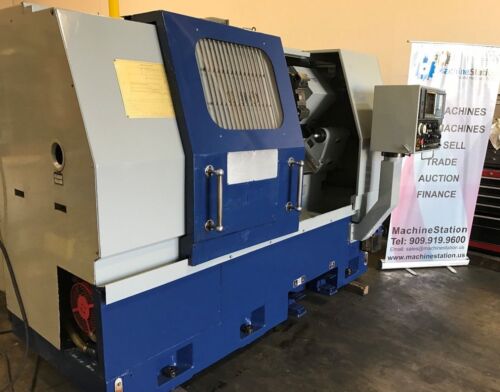

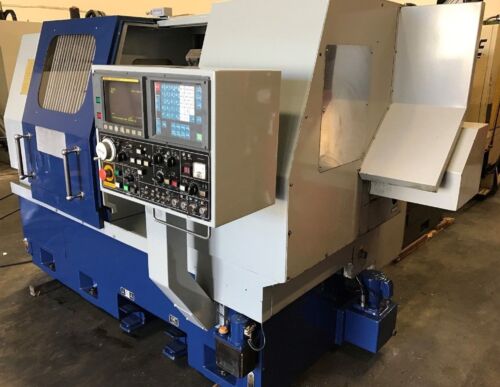

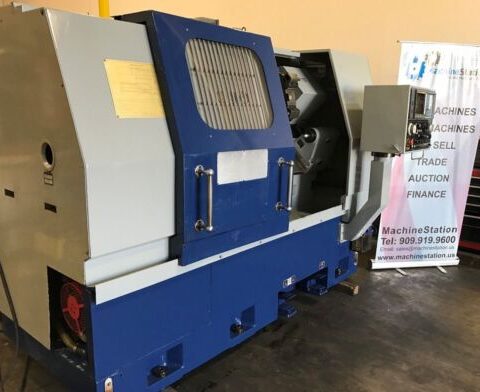

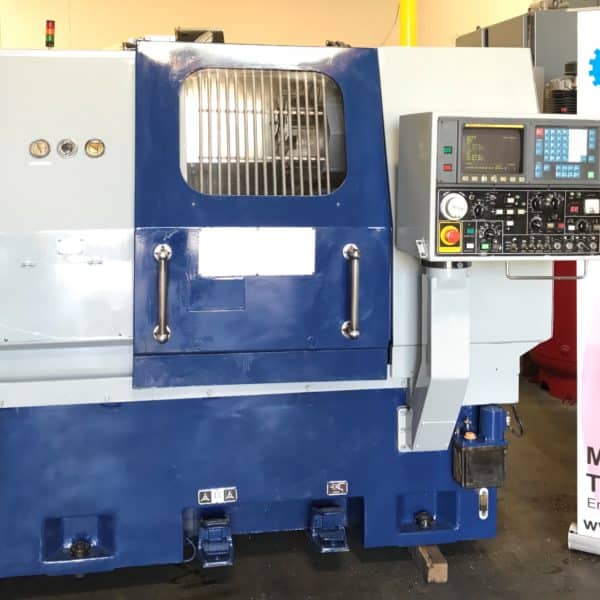

DAEWOO PUMA 8 CNC TURNING CENTER
Make DAEWOO
Model No. PUMA 8HC
Serial # 370606
Condition Very Good
  • DAEWOO PUMA 8 CNC TURNING CENTER Equipped With:

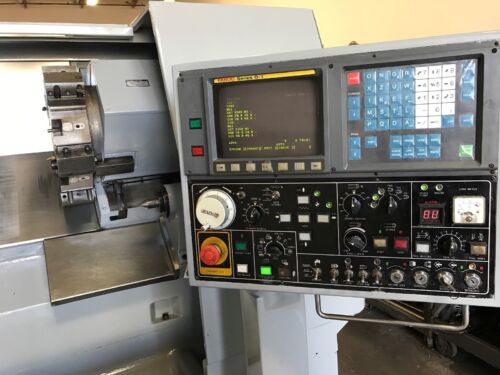

  • Fanuc 0T-C CNC Control
  • Kitagawa 8″ 3 Jaw Hydraulic Chuck
  • Coolant System
  • Barfeed Interface
  • RS-232 ports

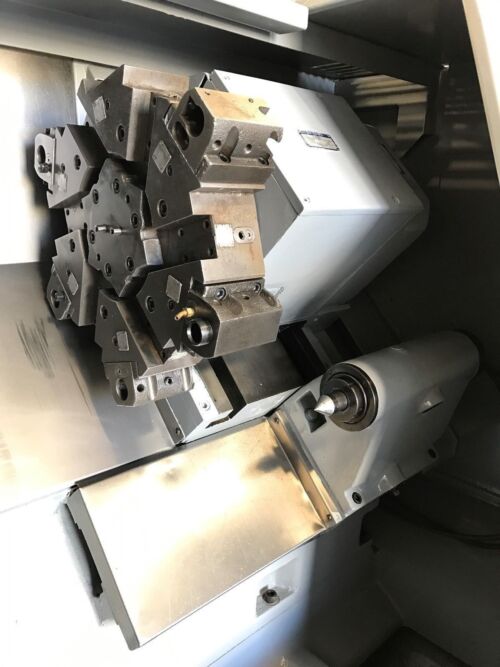

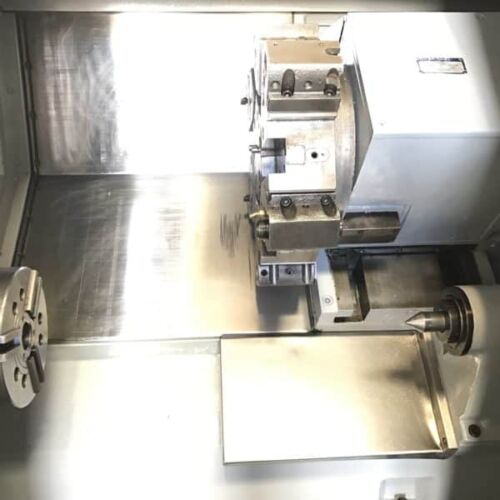

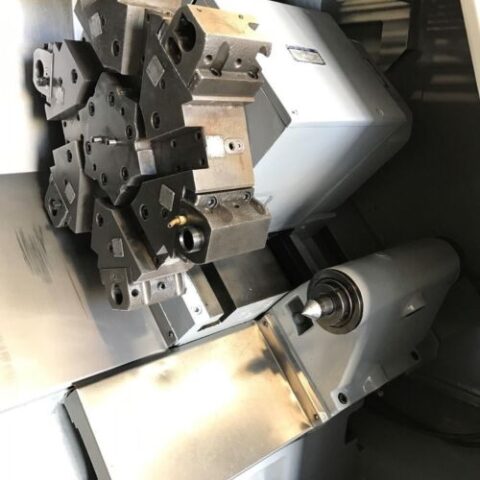

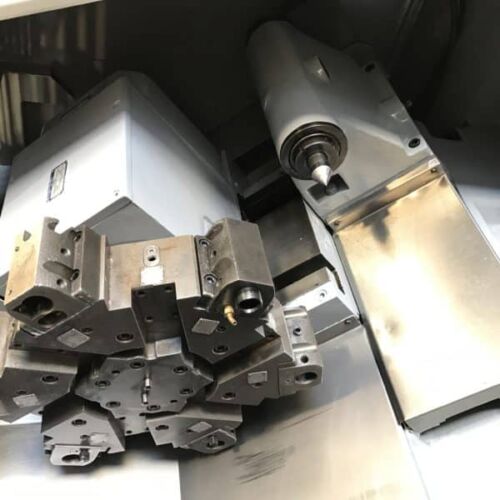

  • 12 Station Automatic Turret
  • General:
  • Power: 220v / 3-Phase
  • Overall Dimensions: 112″ x 74″ x 80″ High
  • Weight: 11000 lbs
  • DAEWOO PUMA 8 CNC TURNING CENTER Specifications:
  • Capacity:
  • Max Turning Diameter: 14.6″
  • Max Turning Length: 20.7″
  • Max Bar Capacity: 2.05″
  • Swing Over Bed: 19.7″
  • X Axis Travel: 8.3″
  • Z Axis Travel: 21.7″
  • Rapid Traverse X Axis:630 IPM
  • Rapid Traverse Z Axis: 787 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.4″
  • Spindle Speed: 40 – 4000 RPM
  • Spindle Motor: 25 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 1.5 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 3.1″
  • Tailstock Quill Travel: 4.0″
