OUT OF STOCK

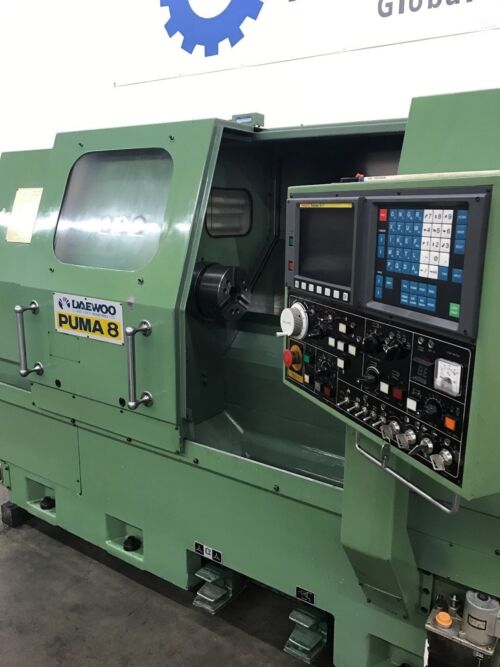

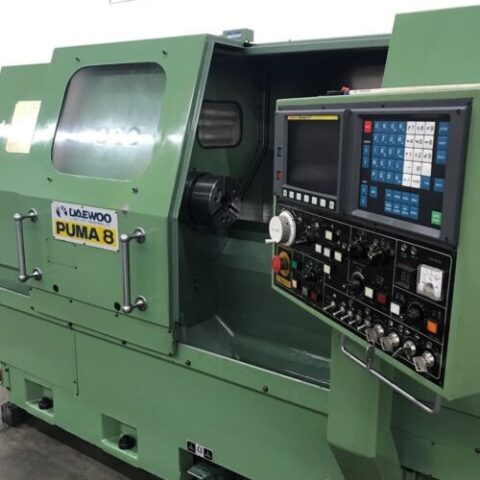

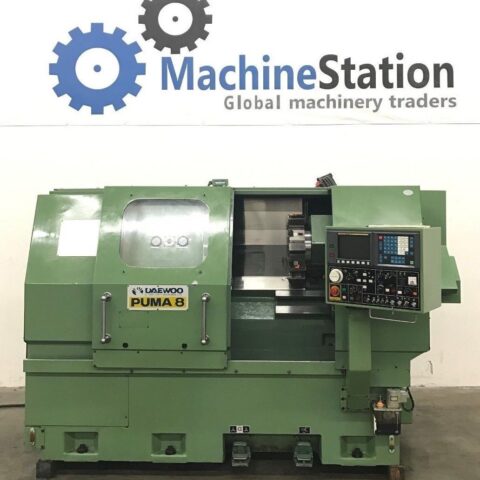

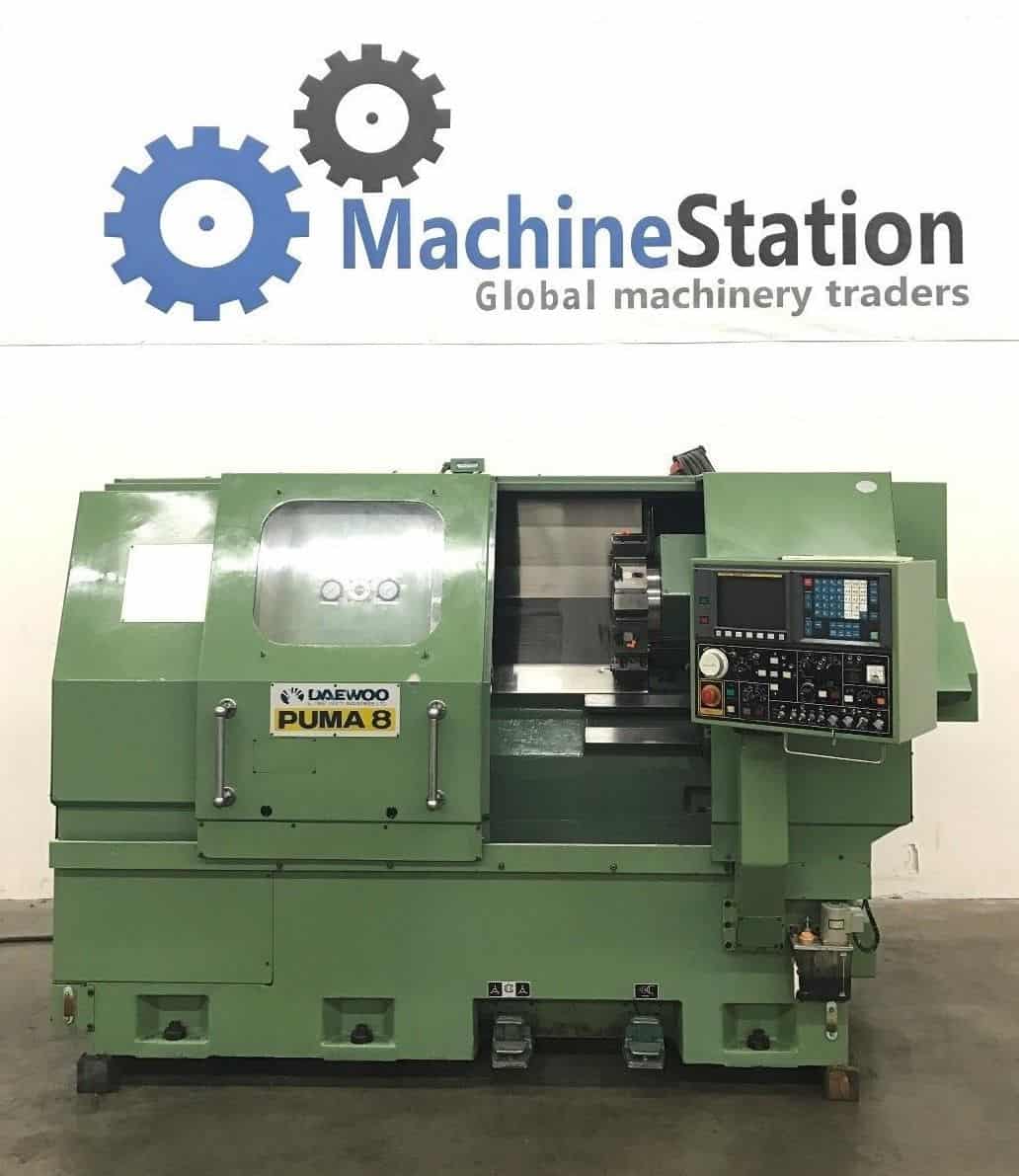

Daewoo Puma 8 CNC Turning Center

One Owner Heavy Duty machine was cutting Brass only. Equipped with 8″ Chuck, Hydraulic Tailstock & Fanuc control. On Our Floor now, Fully powered / tested & is in Great working condition.

Share

Description

DAEWOO PUMA 8 CNC TURNING CENTER
Make DAEWOO
Model No. PUMA 8
Serial # 370557
Condition Very Good

MachineStation| 4590 Eucalyptus Ave. Chino, CA 91710
Comes with Kitagawa 8″ Chuck, Tool Holders.

“One Owner Heavy Duty machine was cutting Brass only. Equipped with 8″ Chuck, Hydraulic Tailstock & Fanuc control. On Our Floor now, Fully powered / tested & is in Great working condition.”

  • DAEWOO PUMA 8 CNC TURNING CENTER Equipped With:
  • Fanuc 0T CNC Control
  • Kitagawa 8″ 3 Jaw Hydraulic Chuck
  • Hydraulic Tail Stock
  • Coolant System
  • Barfeed Interface
  • 10 Station Automatic Turret
  • General:
  • Power: 220v / 3-Phase
  • Overall Dimensions: 112″ x 74″ x 80″High
  • Weight: 11000 lbs
  • DAEWOO PUMA 8 CNC TURNING CENTER Specifications:
  • Capacity:
  • Max Turning Diameter: 14.6″
  • Max Turning Length: 20.7″
  • Max Bar Capacity: 2.05″
  • Swing Over Bed: 19.7″
  • X Axis Travel: 8.3″
  • Z Axis Travel: 21.7″
  • Rapid Traverse X Axis: 630 IPM
  • Rapid Traverse Z Axis: 787 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.4″
  • Spindle Speed: 40 – 4000 RPM
  • Spindle Motor: 25 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 1.5 Second
  • Tailstock Taper: MT-4
  • Tailstock Quill Dia.: 3.1″
  • Tailstock Quill Travel: 4.0″

DAEWOO PUMA 8 CNC TURNING CENTER Comes as shown in pictures.
