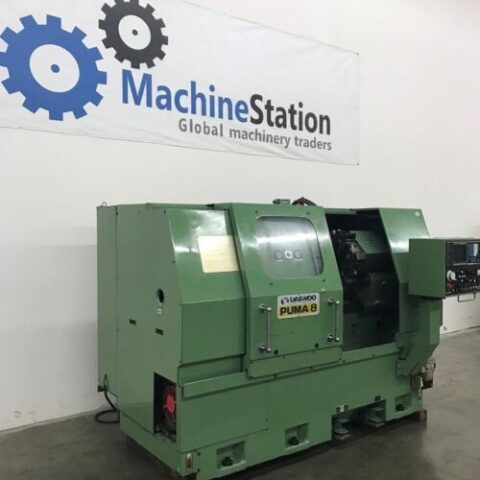

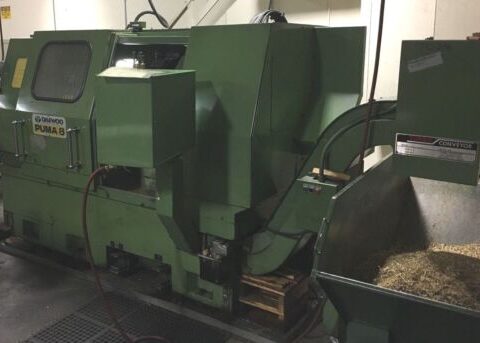

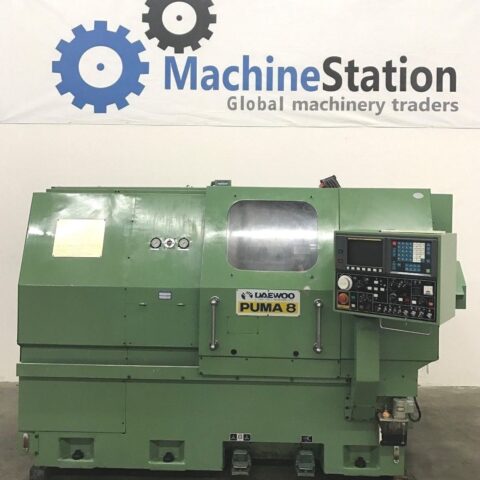

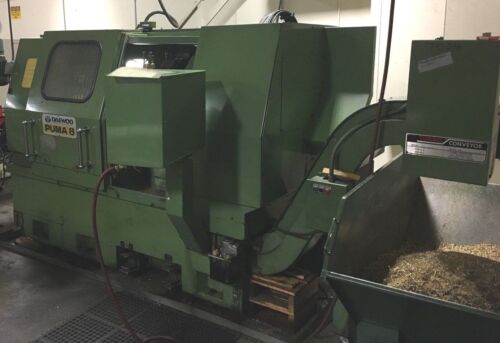

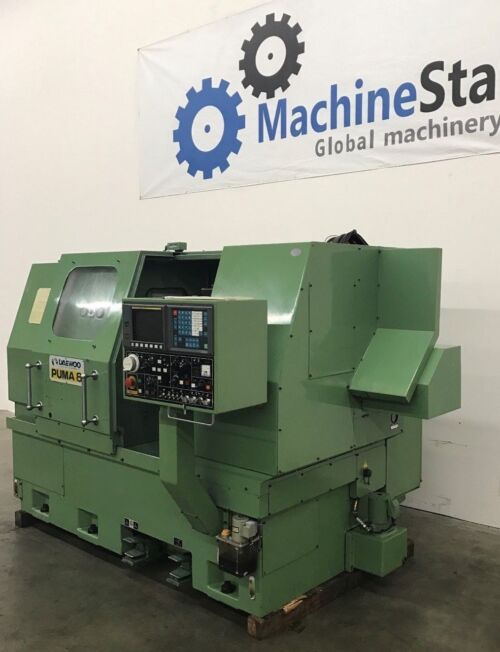

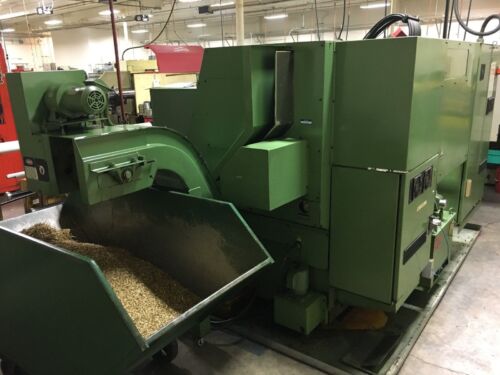

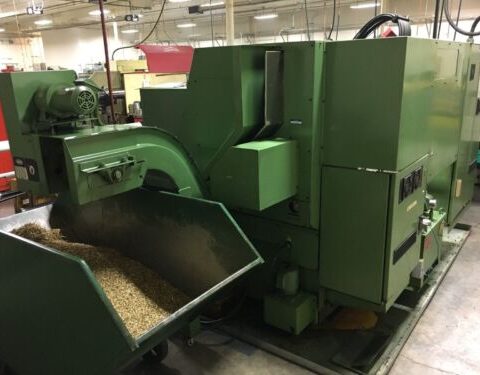

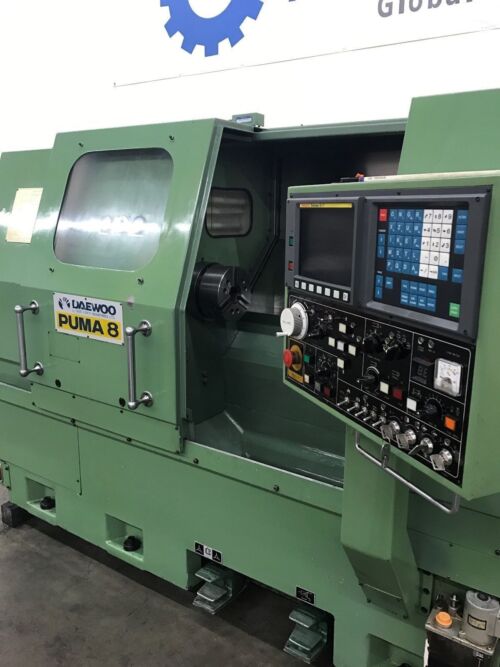

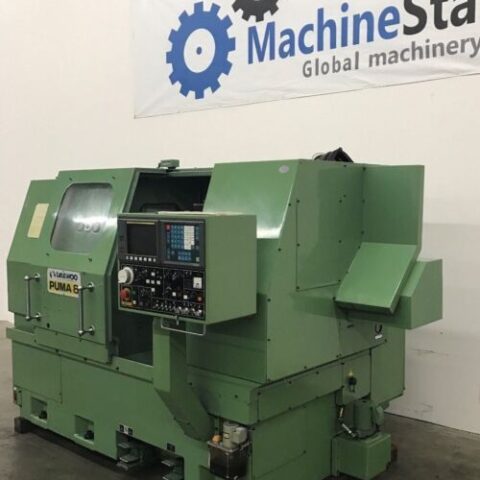

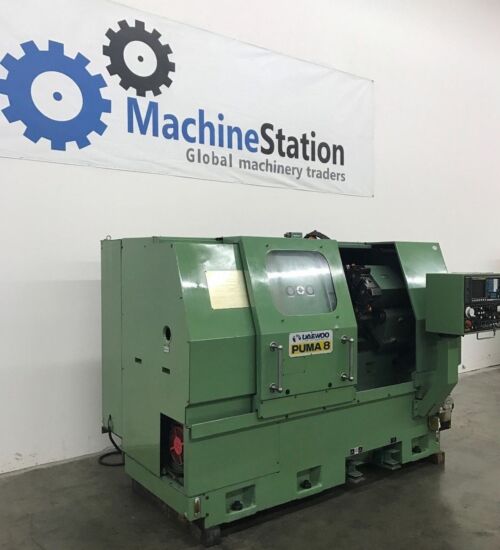

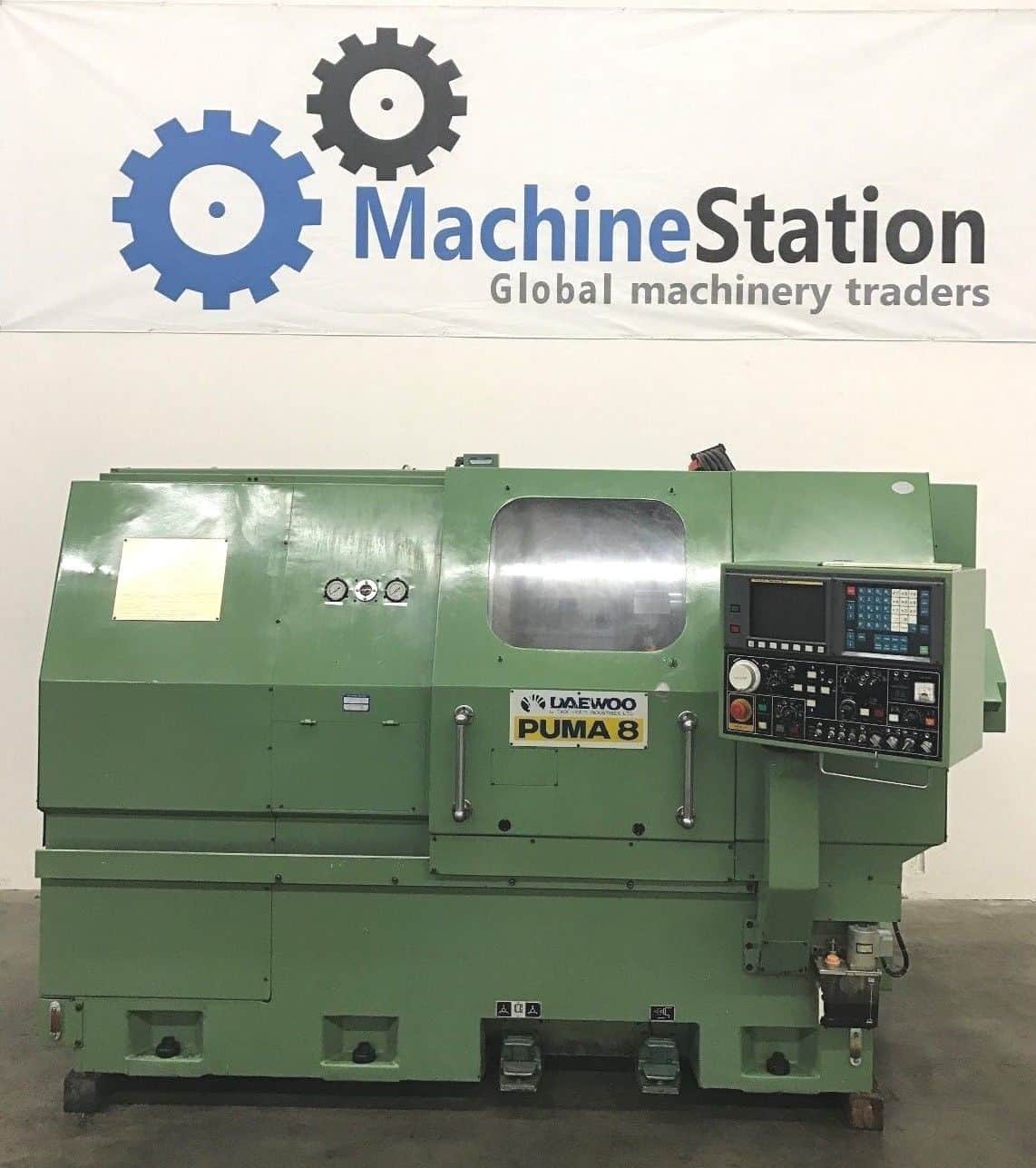

Daewoo Puma 8 CNC Turning Center
Out of stock
| DAEWOO PUMA 8 CNC TURNING CENTER |
| Make |
DAEWOO |
| Model No. |
PUMA 8 |
| Serial # |
370557 |
| Condition |
Very Good |
- DAEWOO PUMA 8 CNC TURNING CENTER Equipped With:

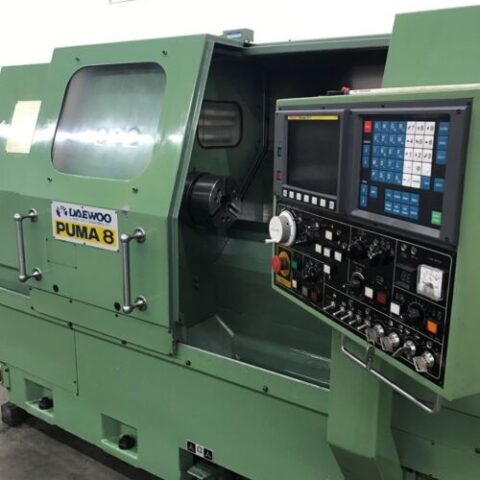

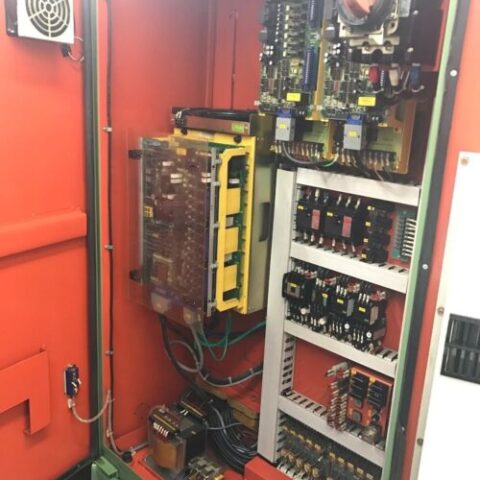

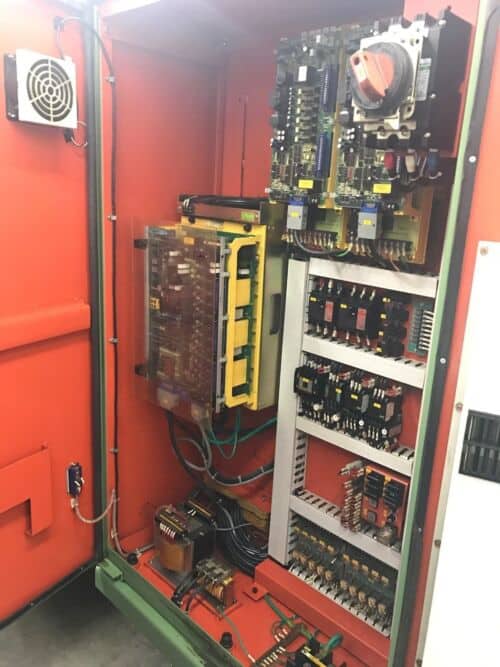

- Fanuc 0T CNC Control
- Kitagawa 8″ 3 Jaw Hydraulic Chuck
- Hydraulic Tail Stock
- Coolant System
- Barfeed Interface
- 10 Station Automatic Turret
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 112″ x 74″ x 80″High
- Weight: 11000 lbs
- DAEWOO PUMA 8 CNC TURNING CENTER Specifications:
- Capacity:
- Max Turning Diameter: 14.6″
- Max Turning Length: 20.7″
- Max Bar Capacity: 2.05″
- Swing Over Bed: 19.7″
- X Axis Travel: 8.3″
- Z Axis Travel: 21.7″
- Rapid Traverse X Axis: 630 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.4″
- Spindle Speed: 40 – 4000 RPM
- Spindle Motor: 25 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1.5 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 4.0″
