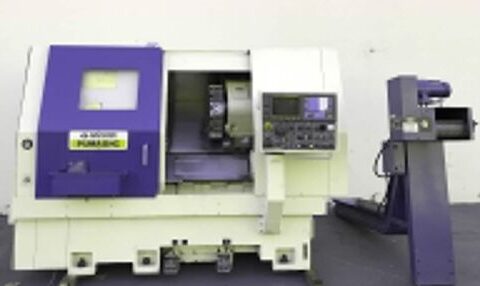

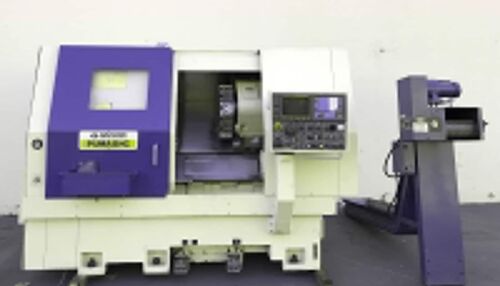

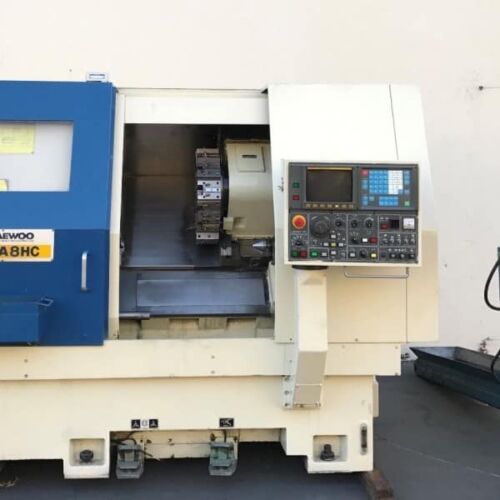

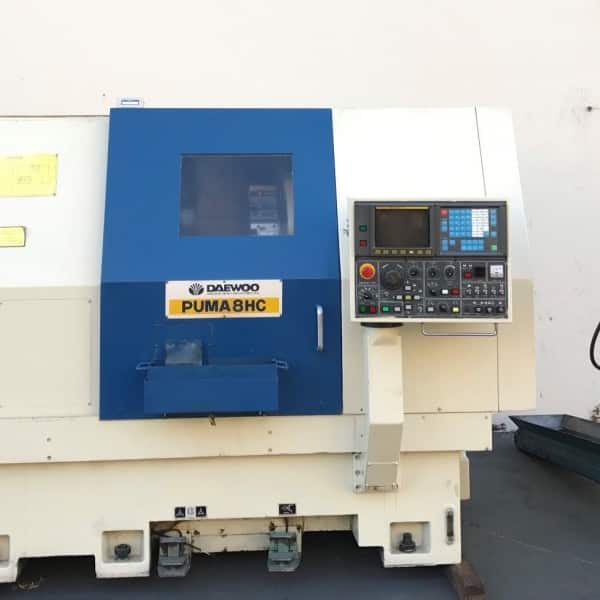

DAEWOO PUMA 8HC CNC TURNING CENTER | |
---|---|
Make | DAEWOO |
Model No. | PUMA 8HC |
Serial # | 560093 |
Condition | Very Good |
Comes with 8″ Chuck, Chip Conveyor, Tool Holders.
All specifications are approximations and are subject to verification.
“This Machine has low cutting hours. Its a Heavy Duty machine with 2.” Spindle Bore, Programmable Tailstock & Fanuc OT-C control. On Our Floor now, Fully powered / tested & is in Great working condition. “
- DAEWOO PUMA 8HC CNC TURNING CENTER Equipped With:

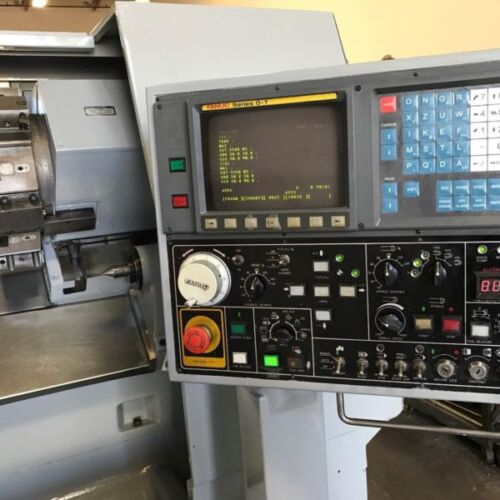

- Fanuc 0T-C CNC Control

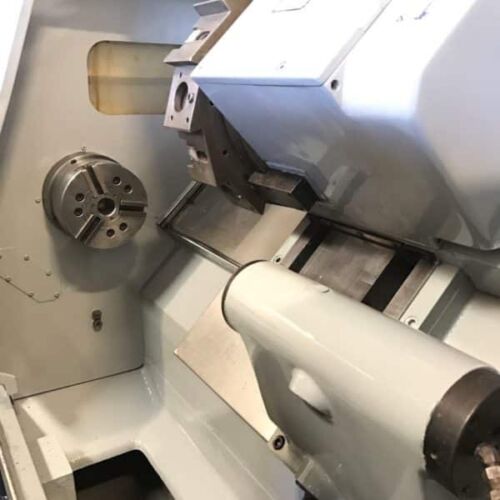

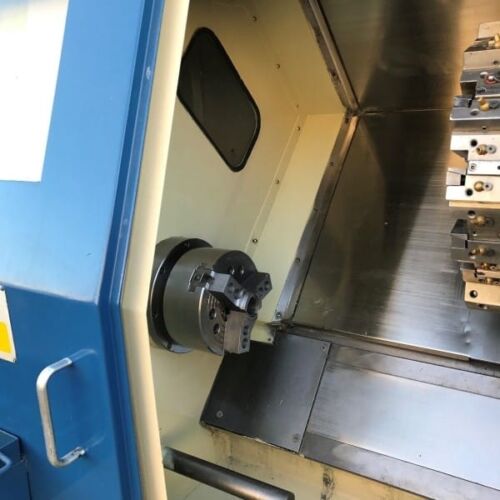

- 8″ 3 Jaw AutoStrong Hydraulic Chuck

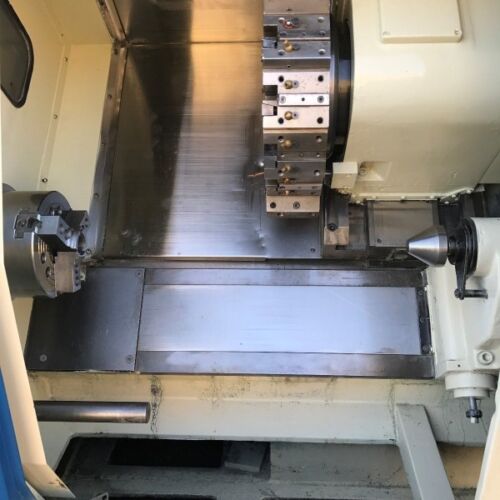

- Programmable Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports

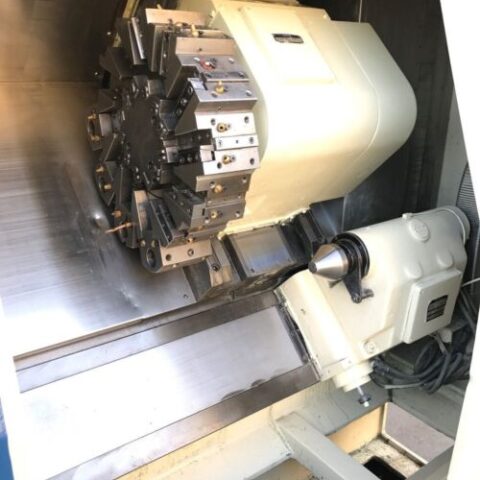

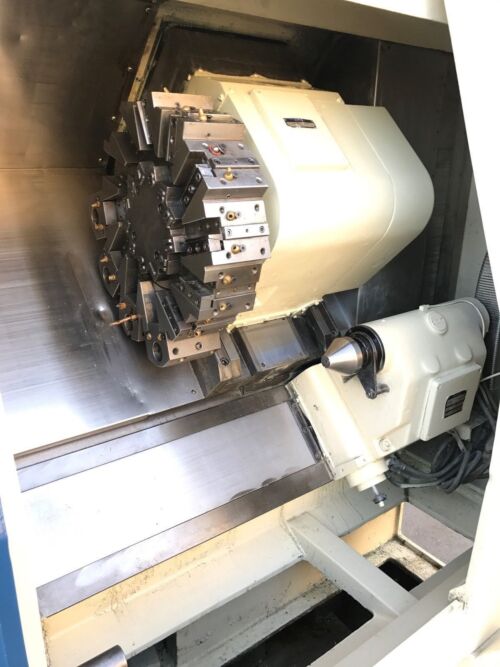

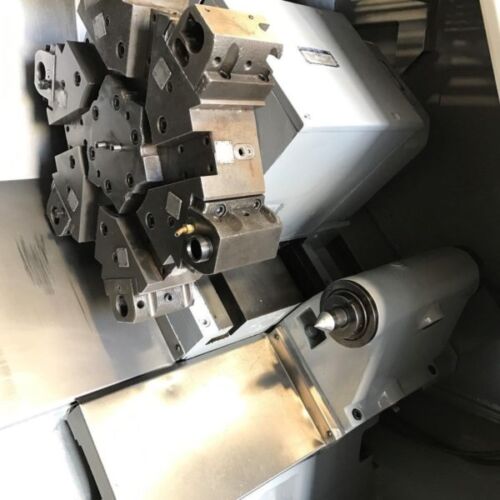

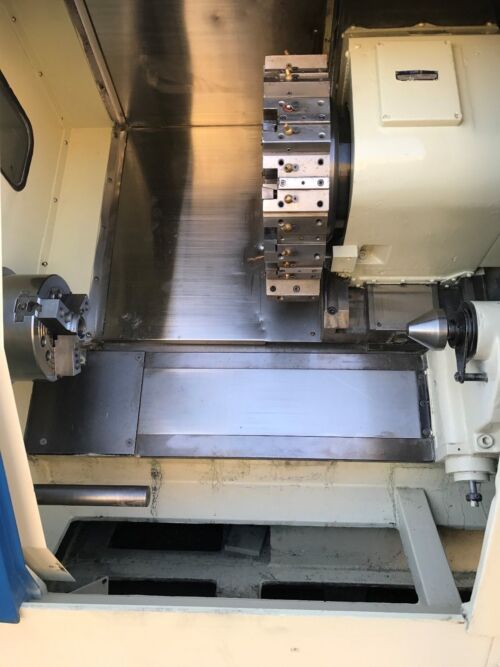

- 12 Station Automatic Turret
- Chip Conveyor
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 112″ x 74″ x 80″ High
- Overall Dimensions: 140″ x 74″ x 80″ High (With Chip Conveyor)
- Weight: 11000 lbs
- Specifications:
- Capacity:
- Max Turning Diameter: 14.6″
- Max Turning Length: 20.7″
- Max Bar Capacity: 2.05″
- Swing Over Bed: 19.7″
- X Axis Travel: 8.3″
- Z Axis Travel: 21.7″
- Rapid Traverse X Axis: 630 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.4″
- Spindle Speed: 40 – 4000 RPM
- Spindle Motor: 25 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1.5 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 4.0″
DAEWOO PUMA 8HC CNC TURNING CENTER Comes as shown in pictures.
