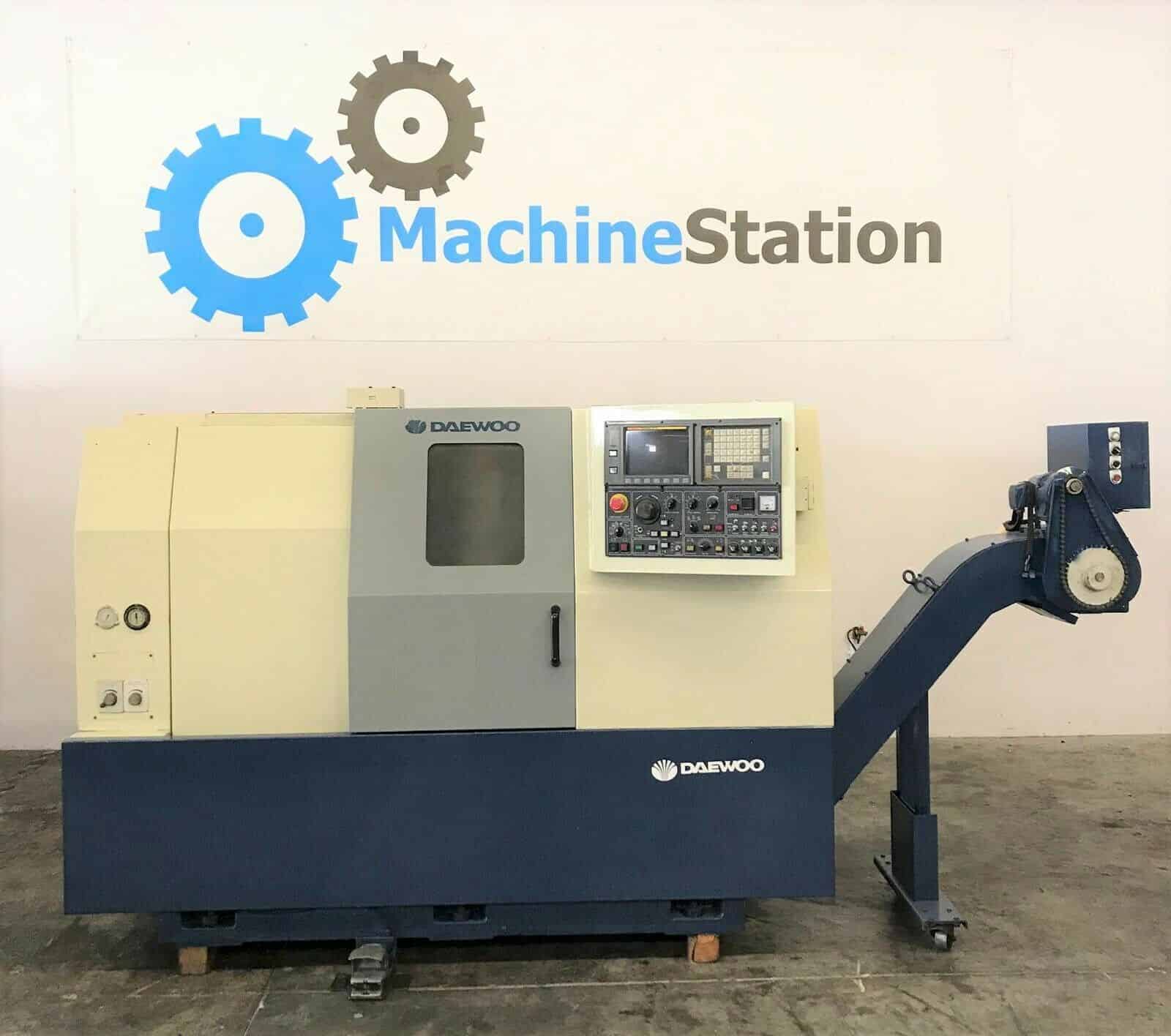

Daewoo Puma 8S CNC Turning Center
Out of stock
SKU: |
1618 |
Make/Model: |
Daewoo Puma 8S |
Video: |
[fusion_button link=”https://www.youtube.com/watch?v=9Enjjrx9yzw” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button] |
DAEWOO PUMA 8S CNC TURNING CENTER |
Make |
Daewoo |
Model No. |
Puma 8S |
Serial # |
PM8S 0226 |
Condition |
Very Good |
- Daewoo Puma 8S Equipped With:
- Fanuc OT-C CNC Control
- 8″ Kitagawa 3 Jaw Hydraulic Chuck
- A2-6 Spindle
- Hydraulic Programmable Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports
- 12 Station Automatic Turret
- Foot Switch
- Comes with Tool Holders, Chip Conveyor and Live Center.
- General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 114″ x 76″ x 77″ High
- Weight: 11000 lbs
- Daewoo Puma 8S Specifications:
- Capacity:
- Max Turning Diameter: 14.6″
- Max Turning Length: 20.7″
- Max Bar Capacity: 2.05″
- Swing Over Bed: 19.7″
- Distance Between Centers: 21.9″
- X Axis Travel: 8.3″
- Z Axis Travel: 21.7″
- Rapid Traverse X Axis: 630 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.4″
- Spindle Speed: 0 – 4000 RPM
- Spindle Motor: 25 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 4.0″
