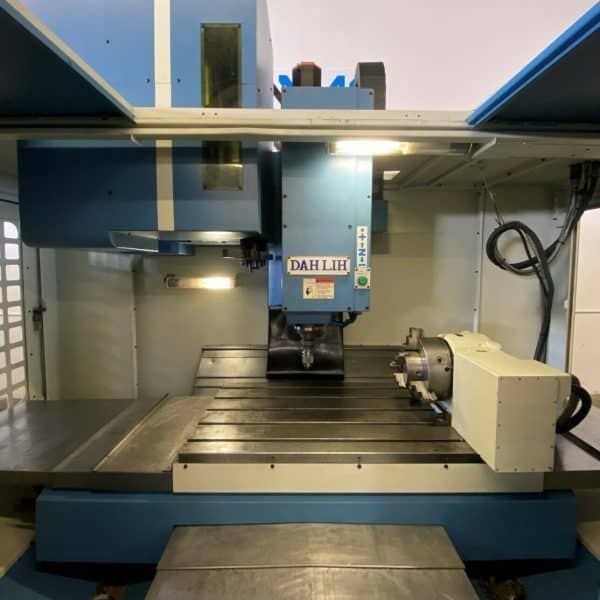

DAHLIH MCV-1020A VERTICAL MACHINING CENTER | |
---|---|
Make | Dahlih |
Model No. | MCV-1020A |
Year | 2012 |
Serial # | 3001040493 |
Condition | Very Good |
Cutting Hours: | 8510 |
All specifications are approximations and are subject to verification.
- Dahlih MCV-1020A Features:
- Fanuc Oi-MD CNC Control
- 50 Taper Gear Head Spindle
- 8,000 RPM Precision Spindle

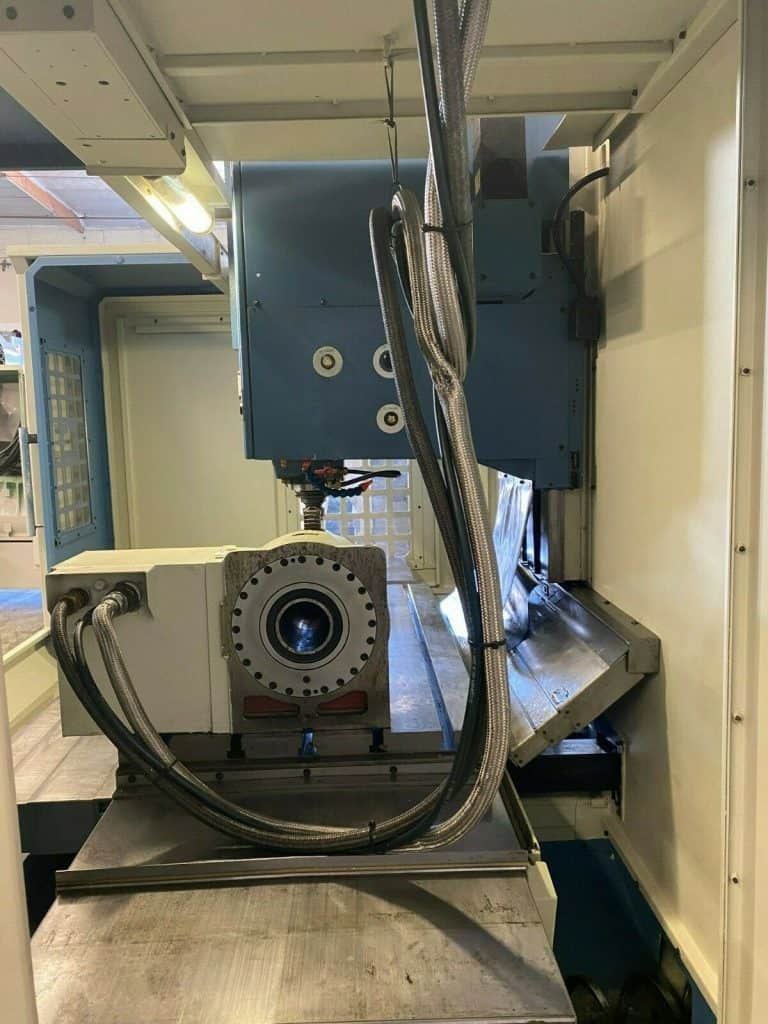

- 4th Axis Table Installed
- PCMCIA Card Slot
- MPG Control
- Rigid Tapping
- Spindle Orientation
- Brushless servo drive motors on all axis
- 24 Automatic high speed tool changer
- High Pressure Flood Coolant
- Telescopic way covers
- Flood Coolant system
- Chip conveyor
- Dahlih MCV-1020A Specifications:
- Travels:
- X-Axis: 40.15″
- Y-Axis: 21.65″
- Z-Axis: 22.04″
- Rapid Traverse Rates: 1181″ Per Minute
- Cutting Feed Rates: 393″ Per Minute
- Spindle Nose to Table (Min.- Max.): 5.9″ – 27.9″
- Table:
- Length: 51.18″
- Width: 25.98″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 2200 lbs
- Spindle:
- Spindle: Taper Size: 50
- Speed Range: 0 – 5,000 RPM
- Spindle Type: Gear Head
- Spindle Power: 15 HP
- Automatic Tool Changer:
- Capacity: 24
- Tool Weight: 17.6 lbs
- Max Tool Dia: 3.54″
- Max Tool Length: 11.8″
- Tool Changing Time: 3 Seconds
- General:
- Air Required: 80 psi, 4 scfm
- Power: 220v / 35 kva / 3-Phase
- Overall Dimensions: 140″ x 100″ x 110″ High
- Weight: 14500 lbs
“No Charges for loading at list Price”
DAHLIH MCV-1020A Comes as shown in pictures..
