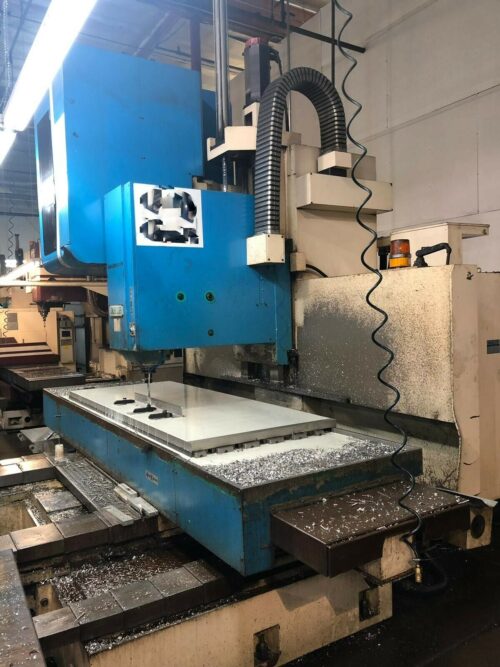

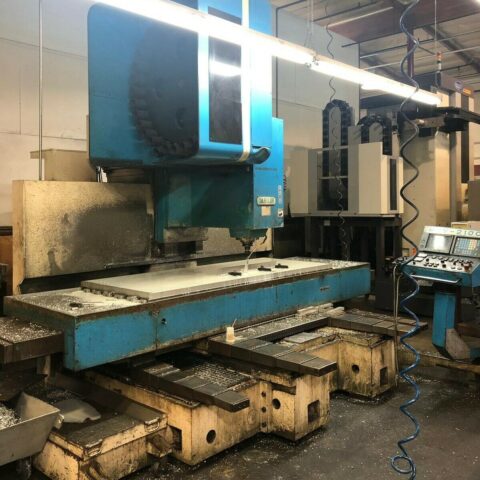

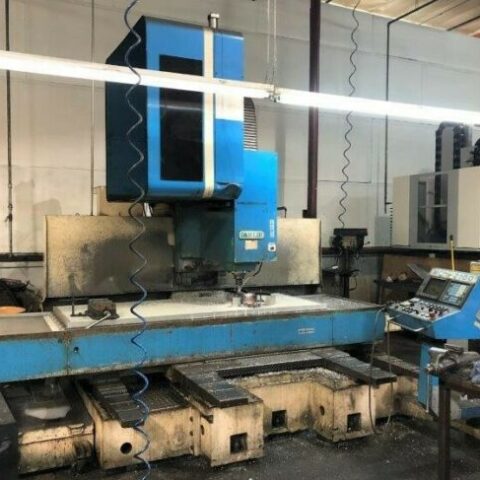

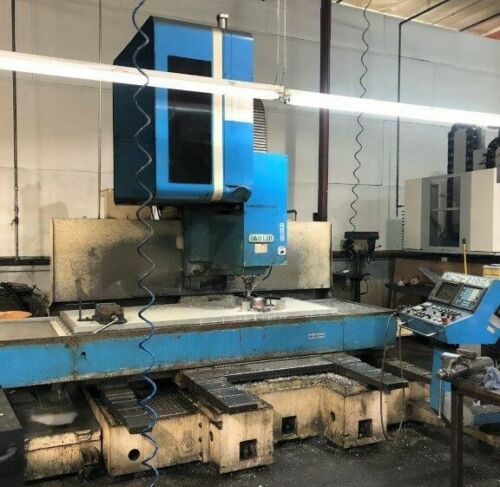

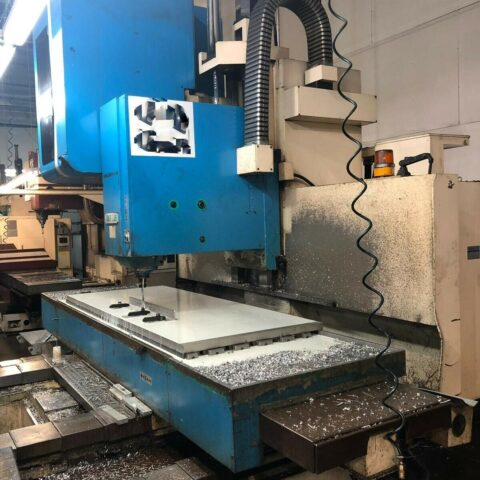

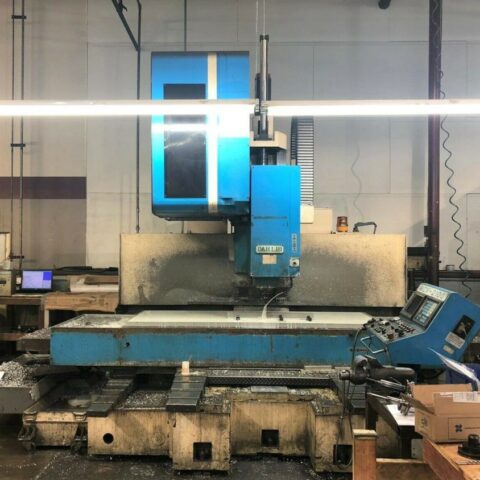

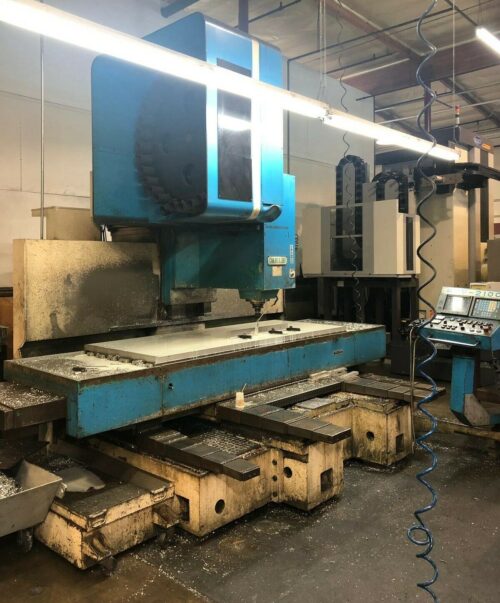

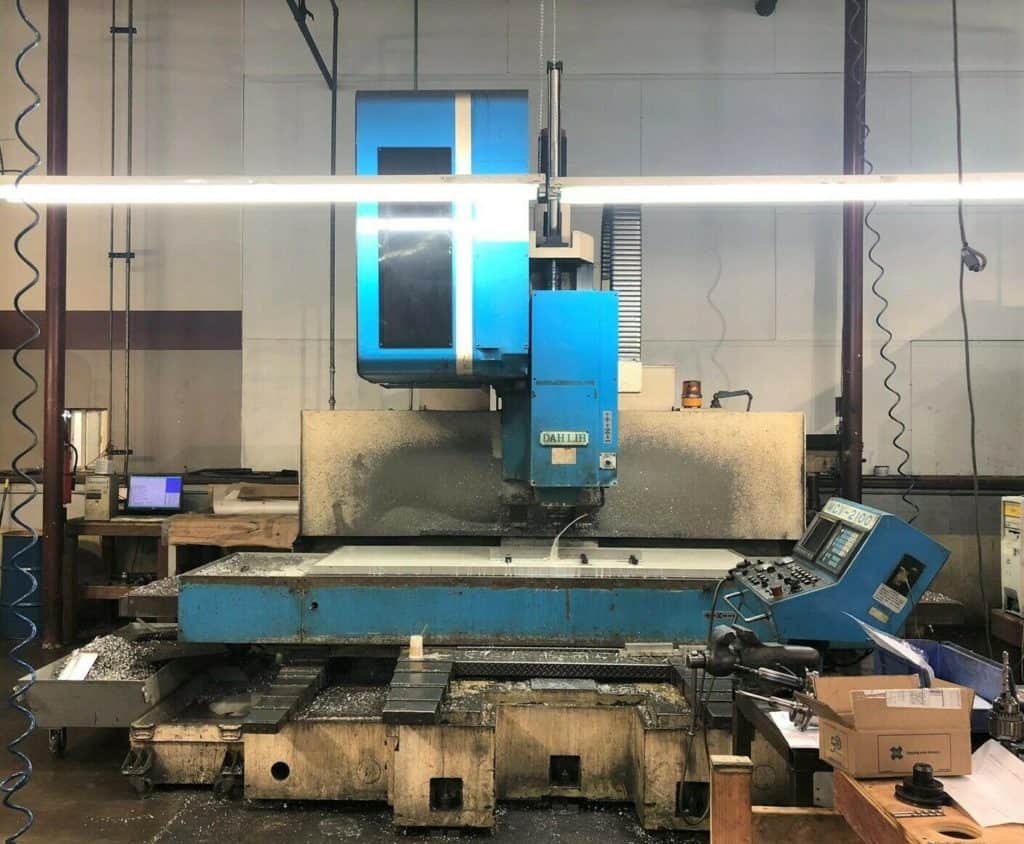

All specifications are approximations and are subject to verification.“Solid Box way Machine equipped with Gearhead 50 Taper 6000 RPM Spindle, 32 tool Side Mount Tool changer, Fanuc Control, Low Cutting hours for the age, mostly on Aluminium. feel free to contact us for more information.”
-
Dahlih MCV-2100 Features:
- Heavy Box 4 Way Construction

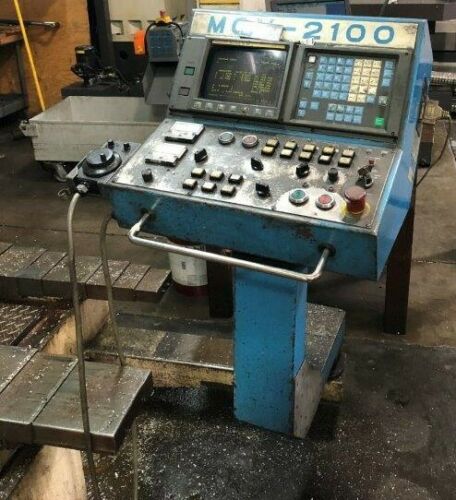

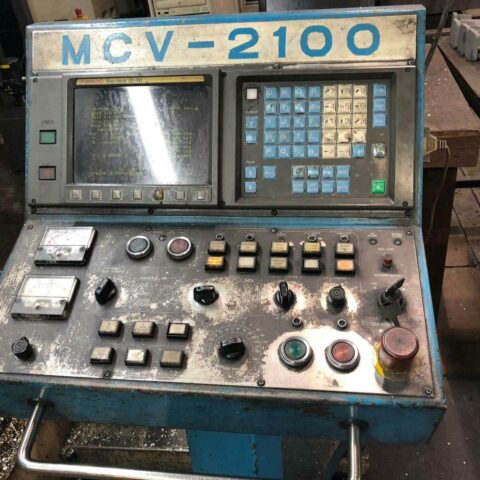

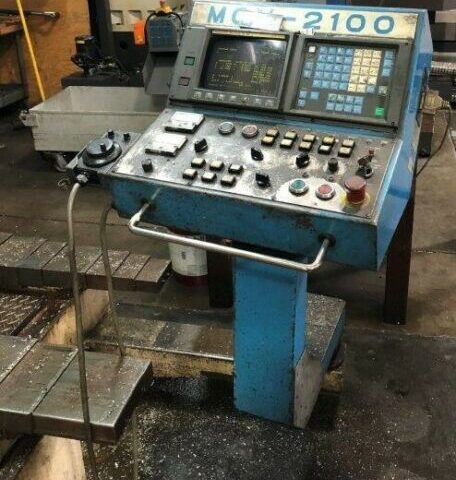

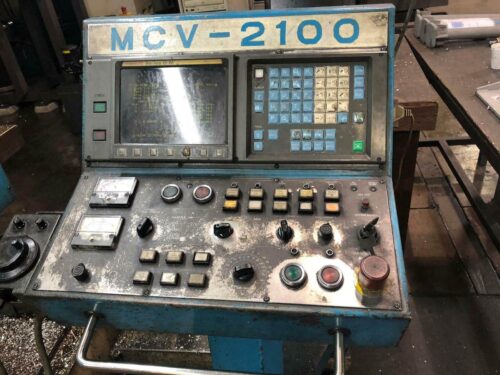

- Fanuc OM CNC Control
- High Precision 6,000 RPM Spindle
- 50 Taper Geared Head Spindle
- 32 Tools Side Mount Bidirectional Tool Changer
- Powerful 30 hp high torque spindle motor
- Spindle Orientation
- Fast Rapid Traverse Rate
- Coolant with large separate coolant tank
-
Dahlih MCV-2100 Specifications:
- Travels:
- X-Axis: 82.68″
- Y-Axis: 34.25″
- Z-Axis: 29.92″
-
Table:
- Length: 90.55″
- Width: 38.19″
- Max Weight on Table: 6600 lbs
- T-Slot no. & Width: 5 X 0.87″
-
Gear Head Spindle:
- Taper Size: CAT-50
- Speed Range: 60 – 6,000 RPM
- Spindle Power: 30 HP
-
Feed rates:
- Rapid X,Y & Z: 630 inch/Per Minute
- Cutting Feedrate: 450″ inch/ Per Minute
-
Automatic Tool Changer:
- 50 Taper
- Capacity: 32
- Max Tool Weight: 33.6 lbs
- Max Tool Length: 13.8″
- Max Tool Dia.: 4.9″
-
General:
- Air Required: 90 psi, 4 scfm
- Power: 205-220v / 50kva / 3-Phase
- Overall Dimensions: 250″ x 145″ x 118″ High
- Weight: 39600 lbs
