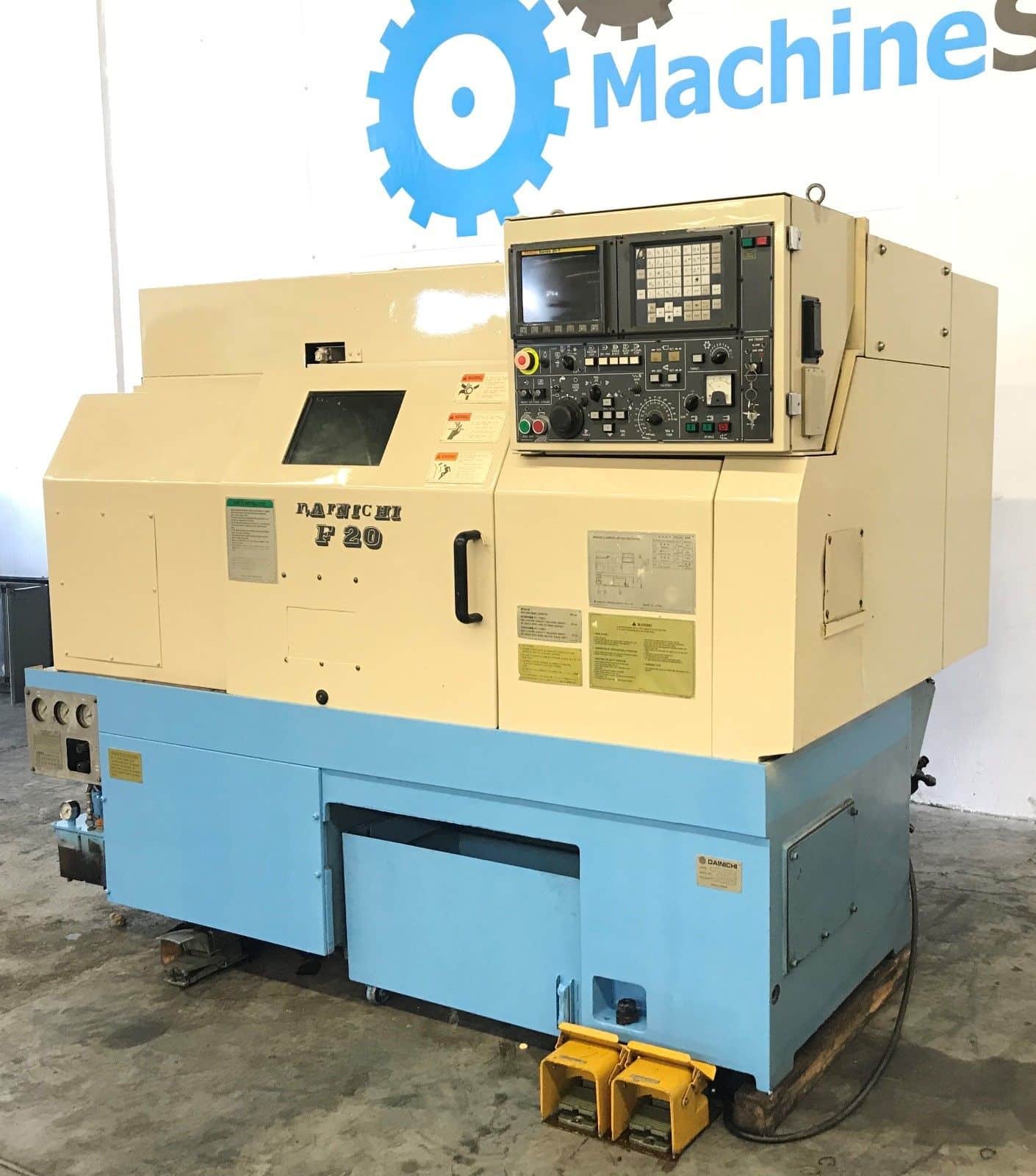

DAINICHI F-20 CNC Turning Center

Out of stock

“This machine is in very Good running condition. It is equipped with 8″ Chuck, Tailstock & Tool Pre-setter. On Our Floor fully powered / tested & is in Great working condition.”

SKU: 1703
Make/Model: Dainichi F-20
Video: [fusion_button link=”https://www.youtube.com/watch?v=wycfhG8Nd7w” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1703

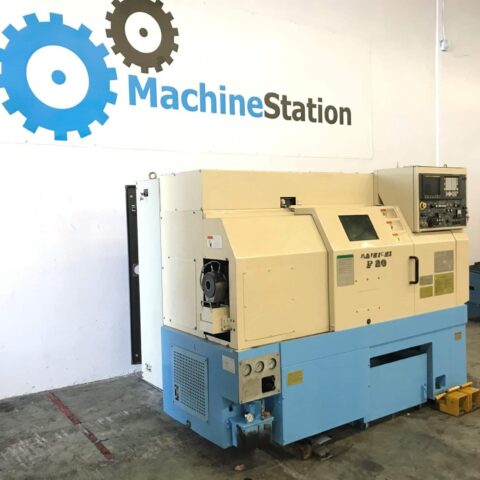

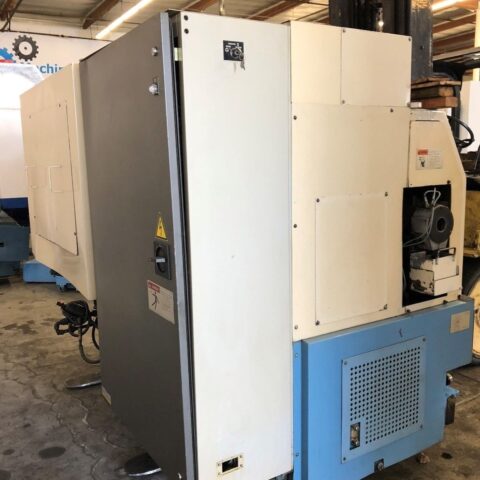

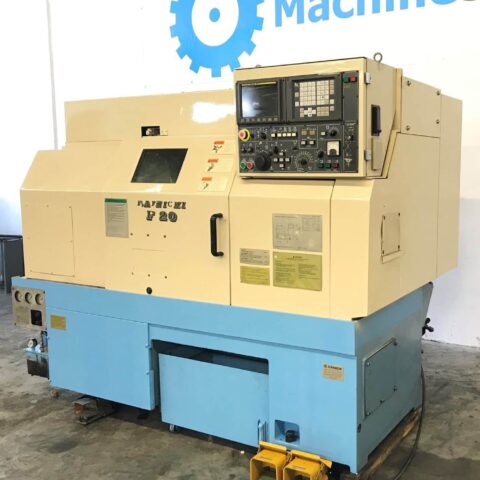

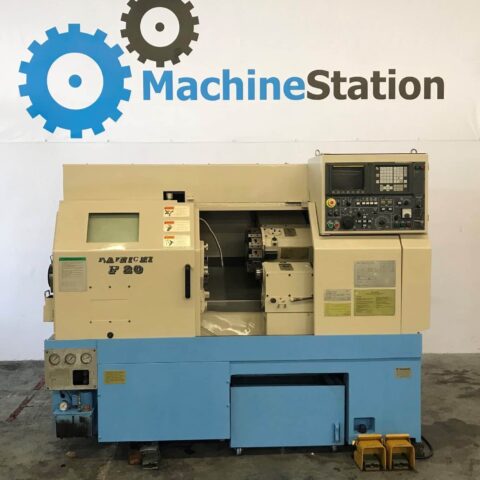

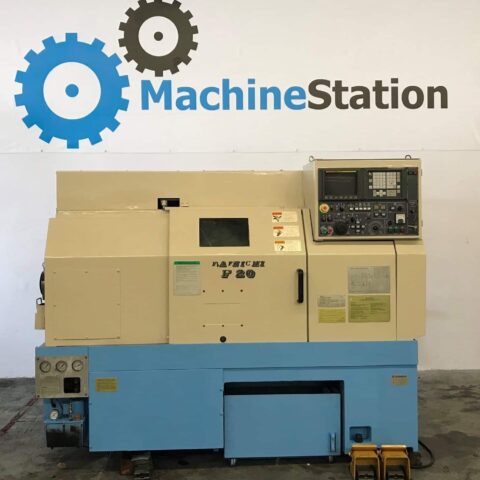

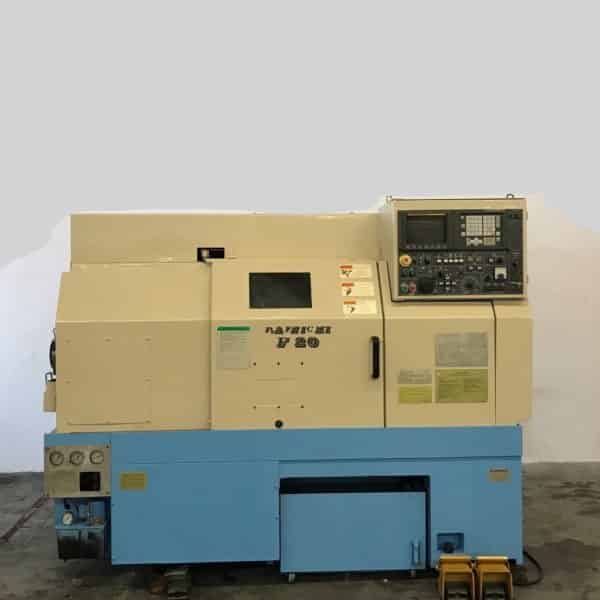

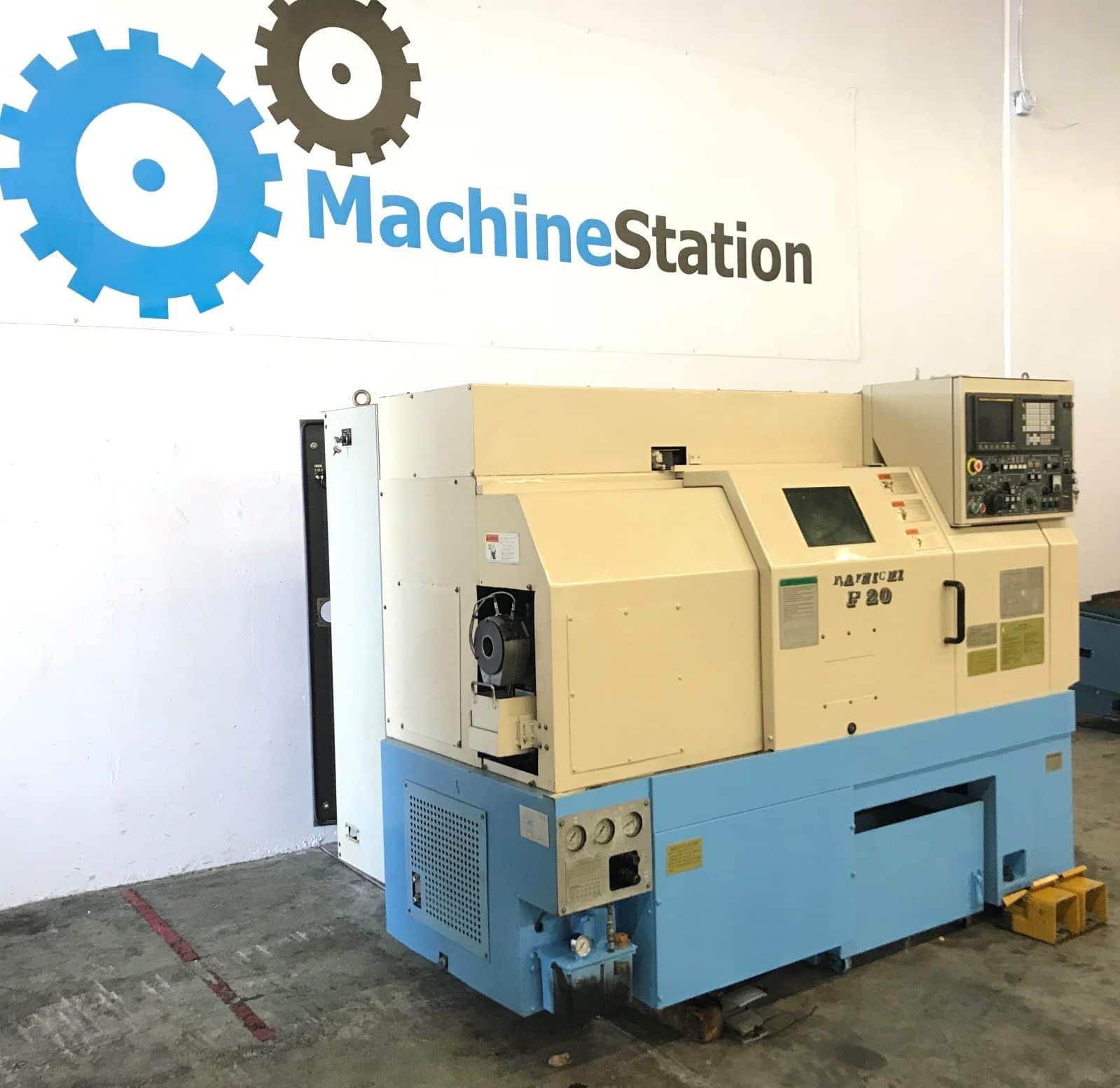

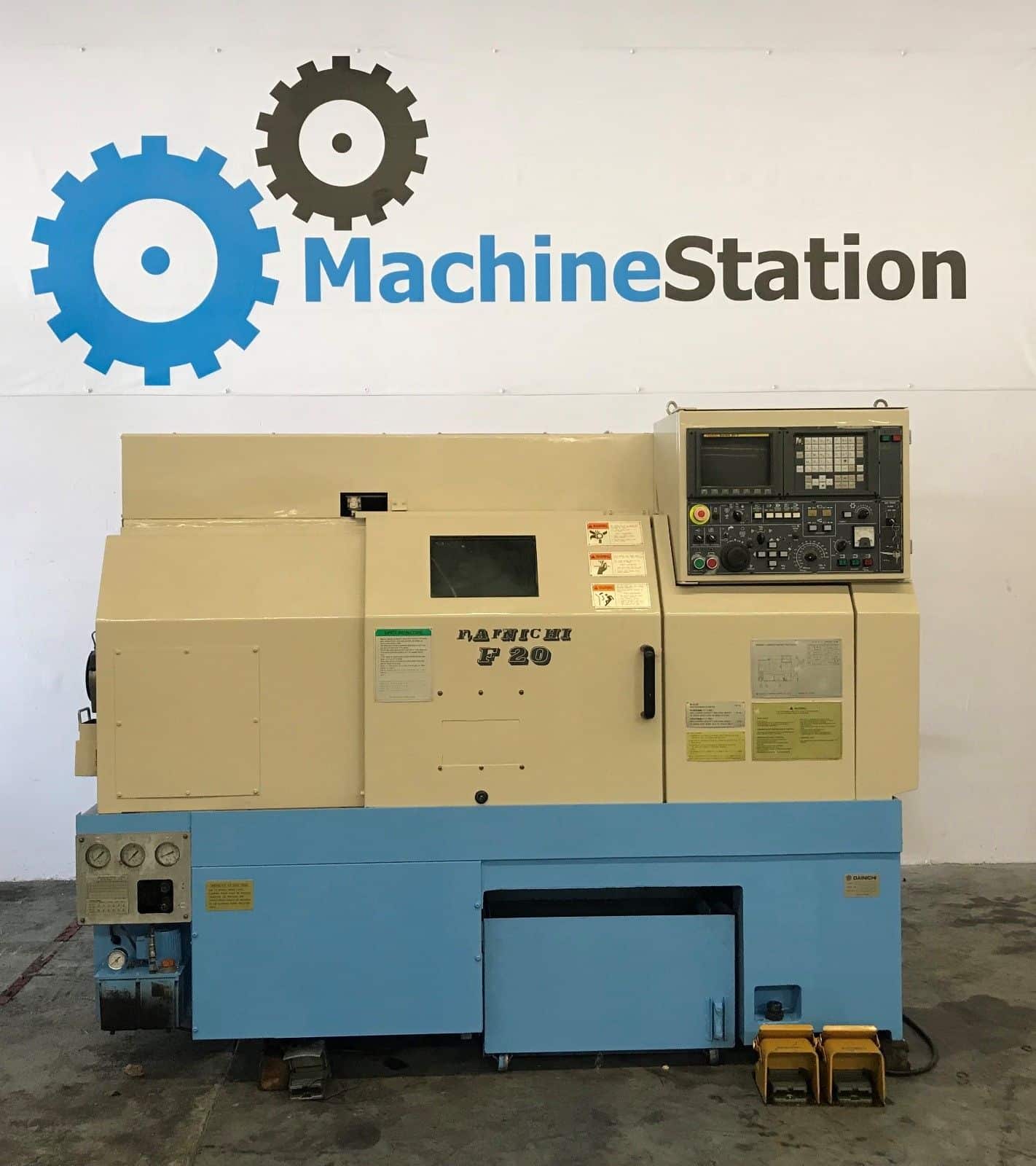

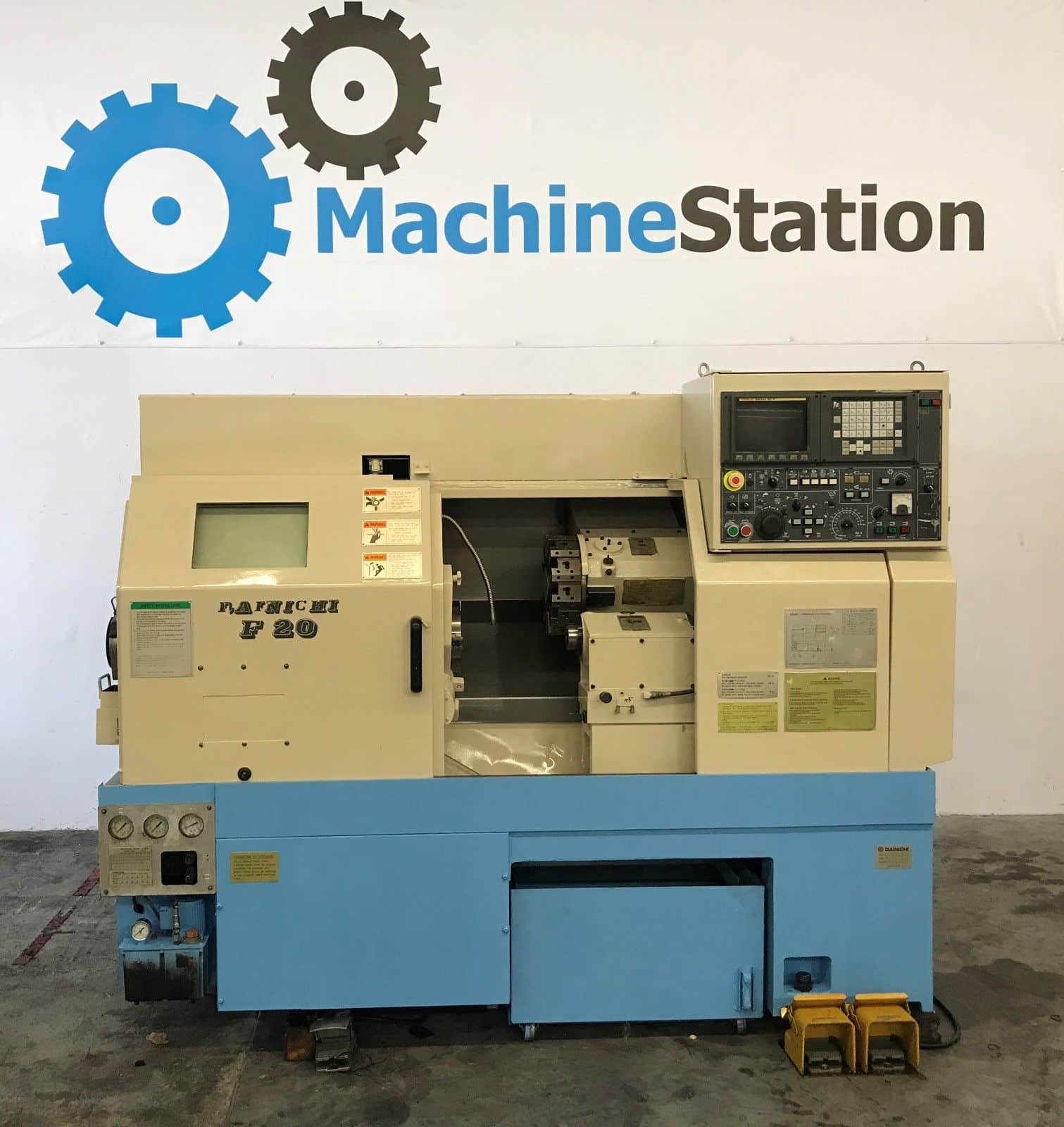

DAINICHI F-20 CNC TURNING CENTER LATHE

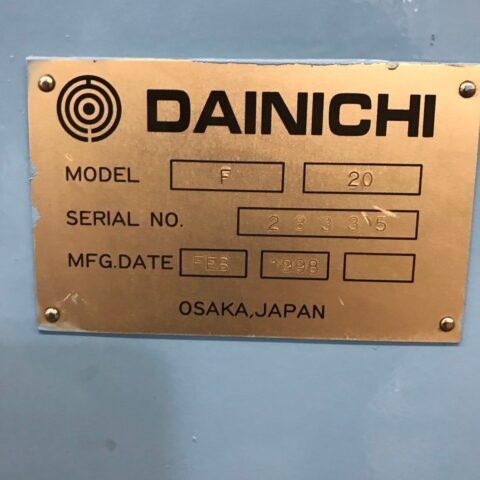

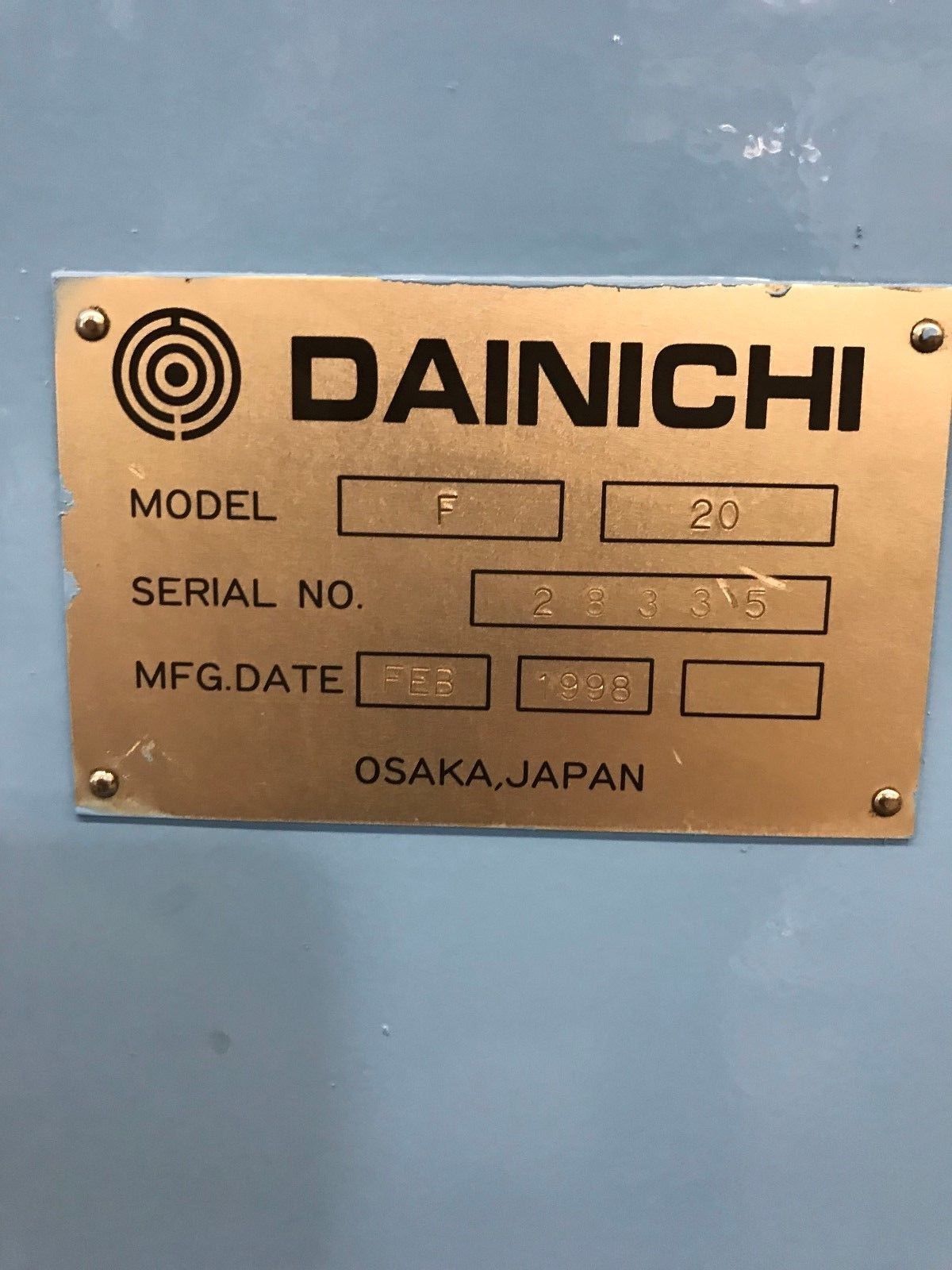

Make Dainichi
Model No.  F-20
Year 02/1998
Serial # 28335
Condition Very Good

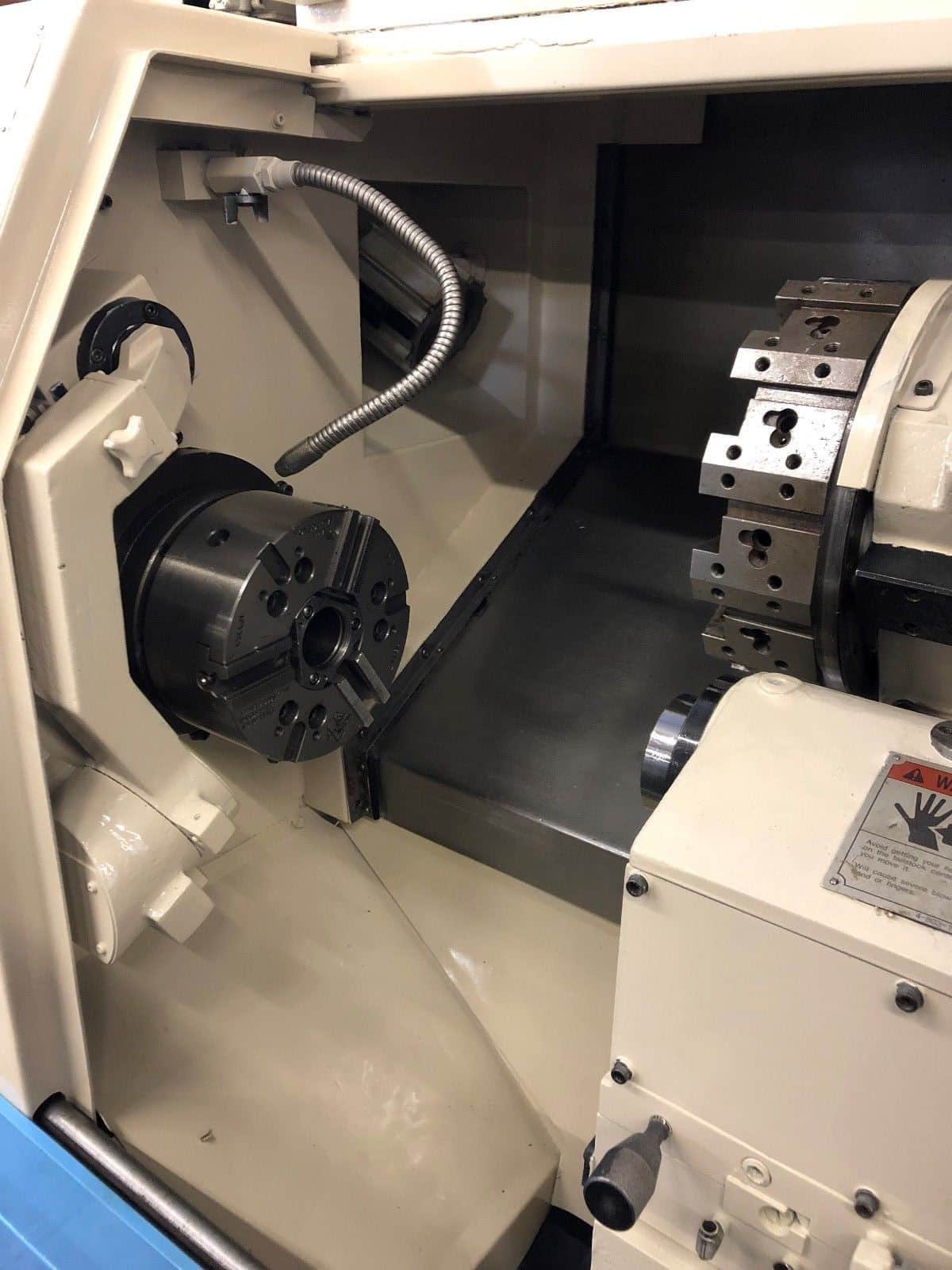

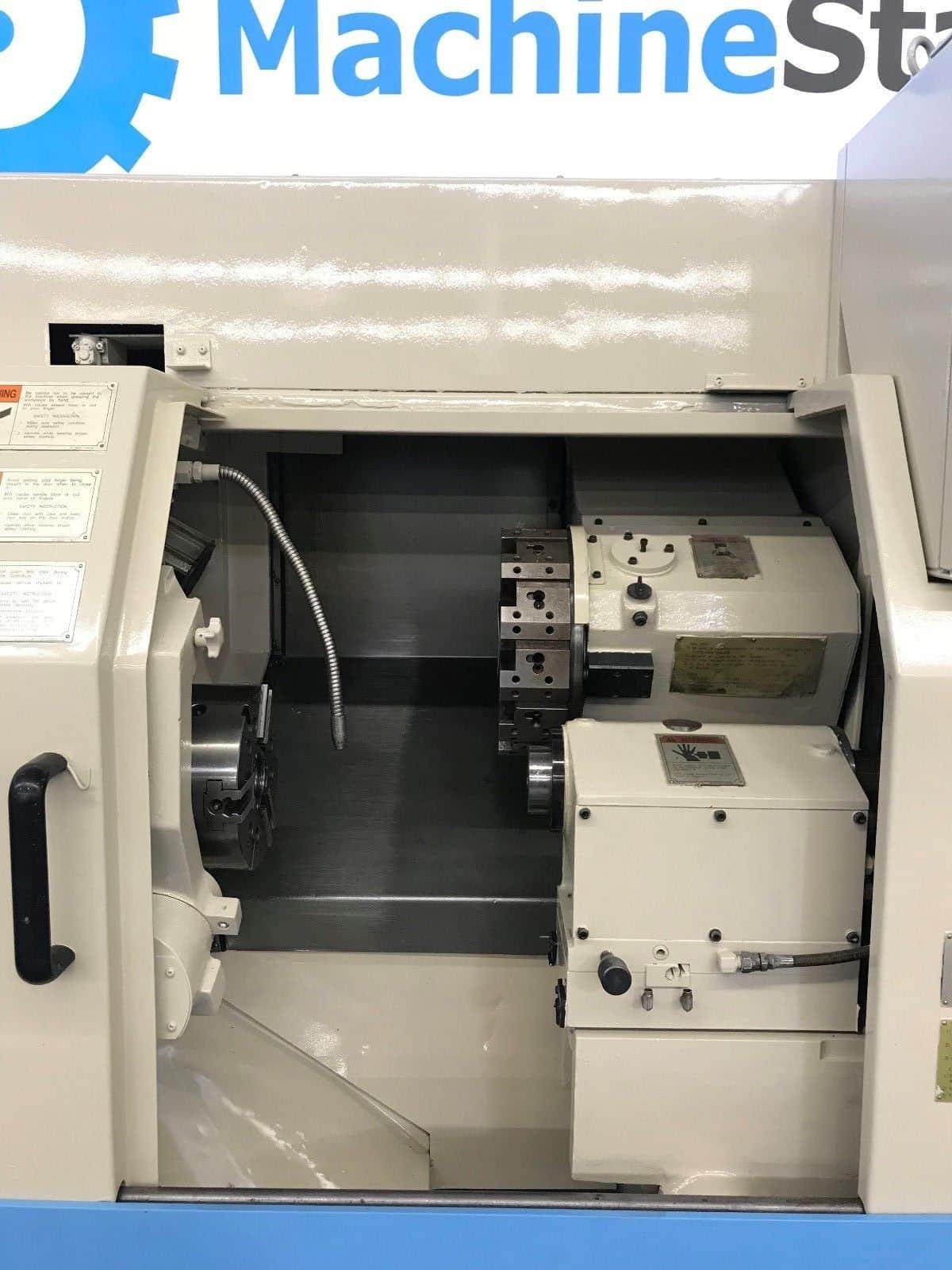

Comes with 8″3 Jaw Chuck, Tailstock , Tool Pre-setter & Foot Switch.

“This machine is in very Good running condition. It is equipped with 8″ Chuck, Tailstock & Tool Pre-setter. On Our Floor fully powered / tested & is in Great working condition.”

  • DAINICHI F-20 Equipped With:

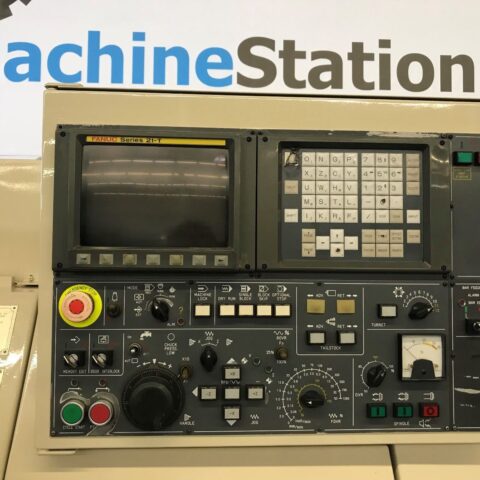

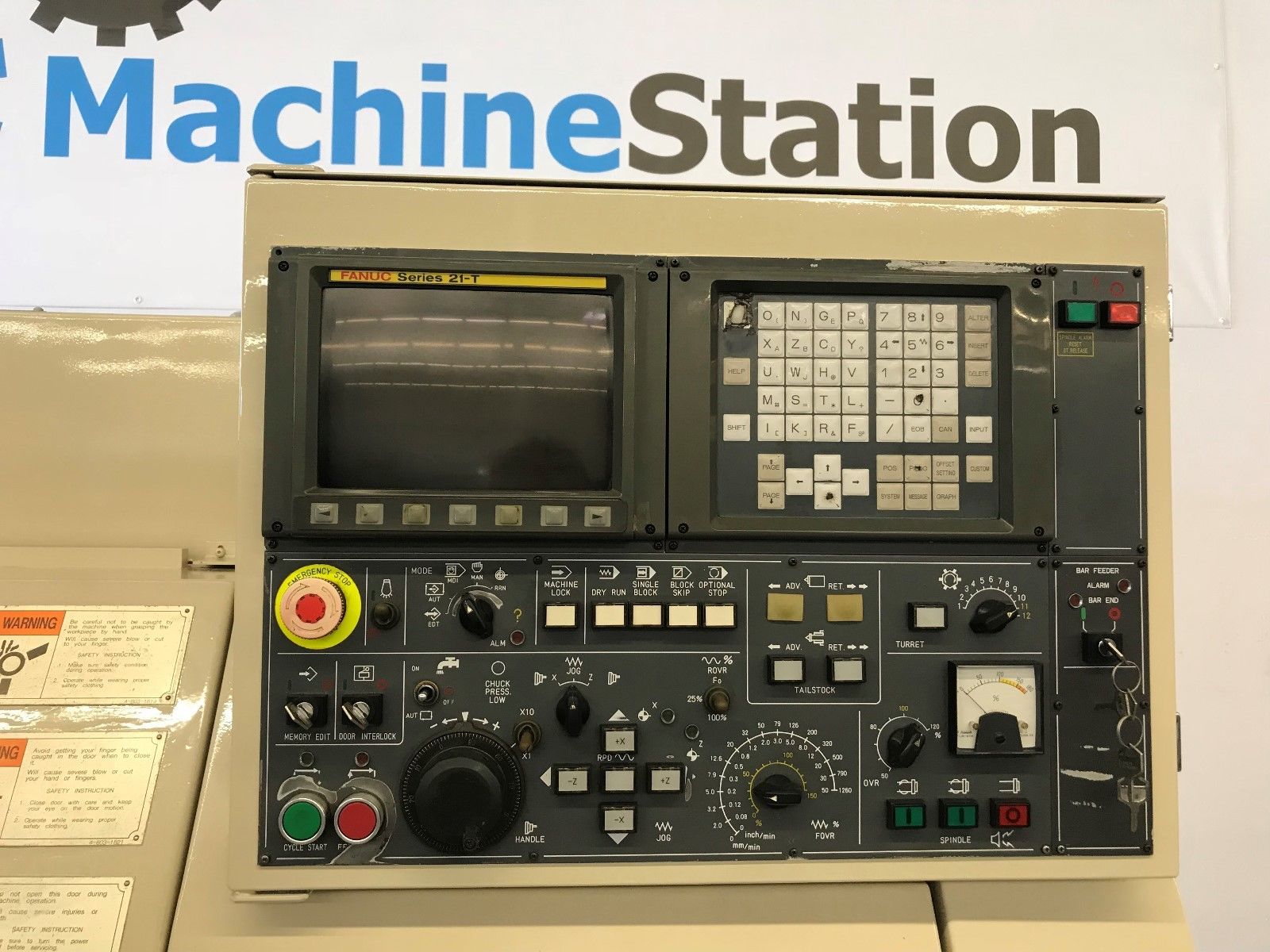

  • Fanuc 21T CNC Control
  • Box way construction
  • Tool Pre-setter
  • 4500 RPM Spindle

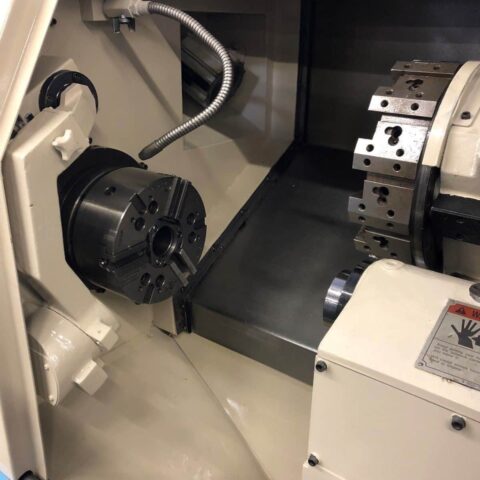

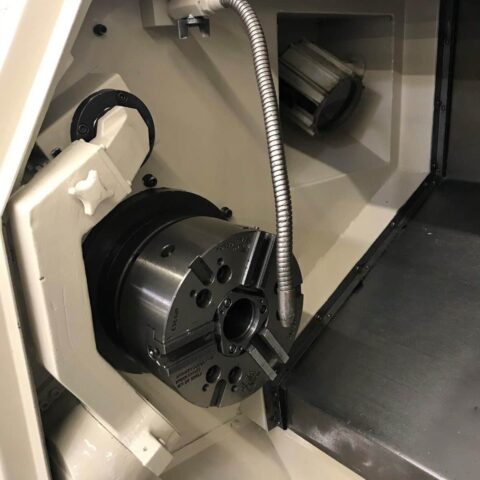

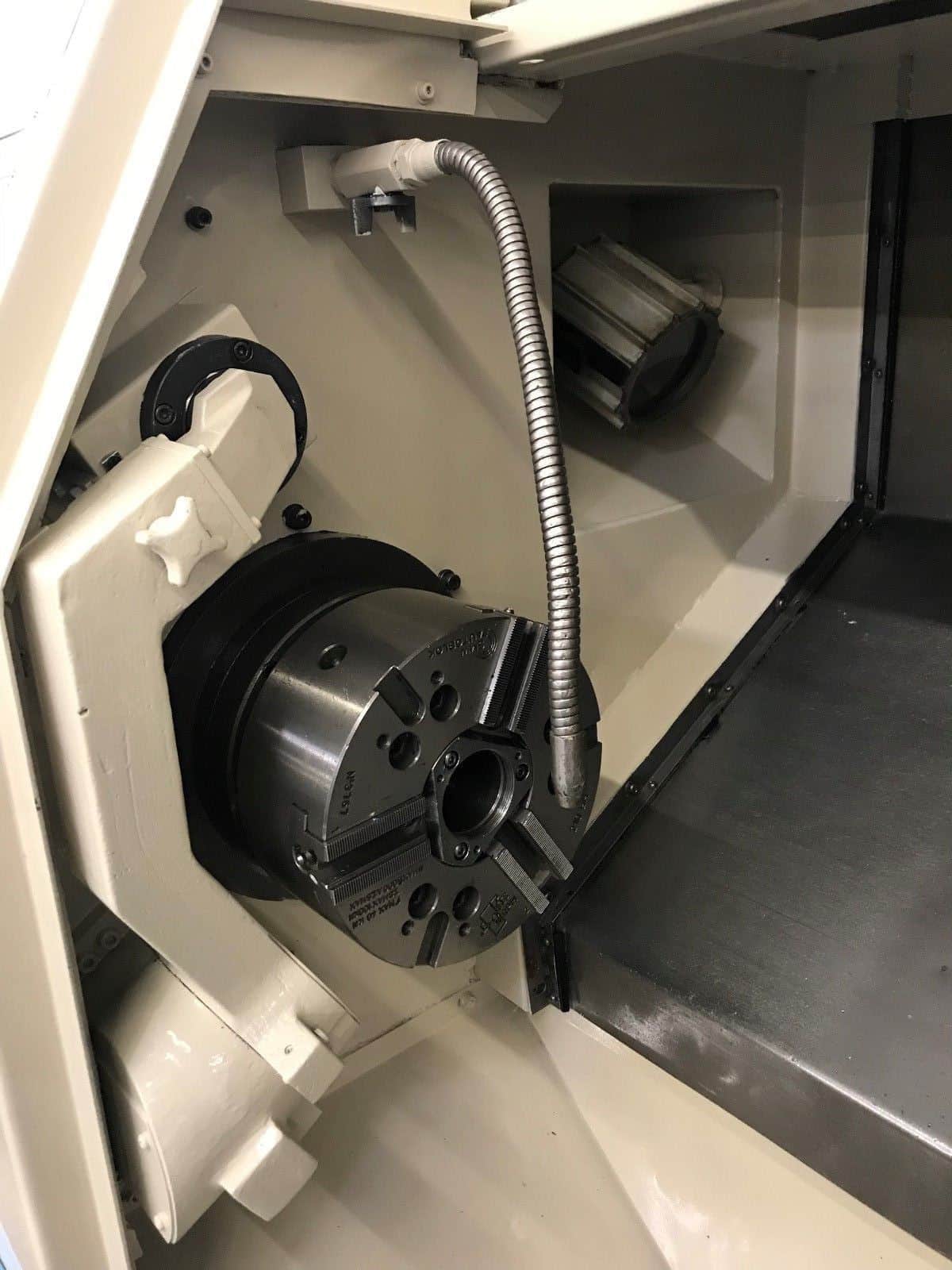

  • 8″ 3 Jaw Chuck
  • A2-6 Spindle
  • Hydraulic Tailstock Quill
  • RS-232 Port
  • Barfeed Interface

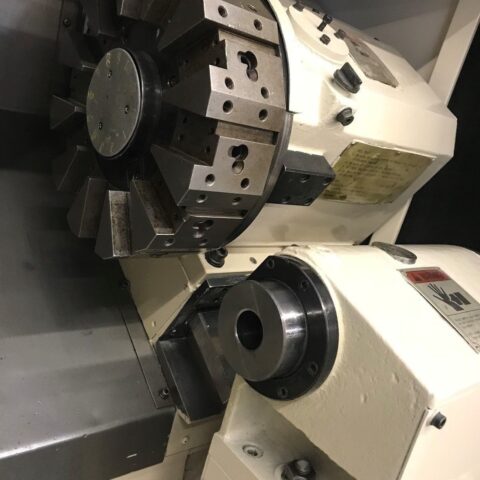

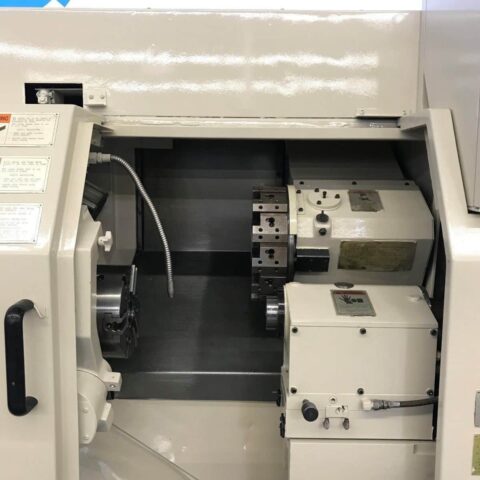

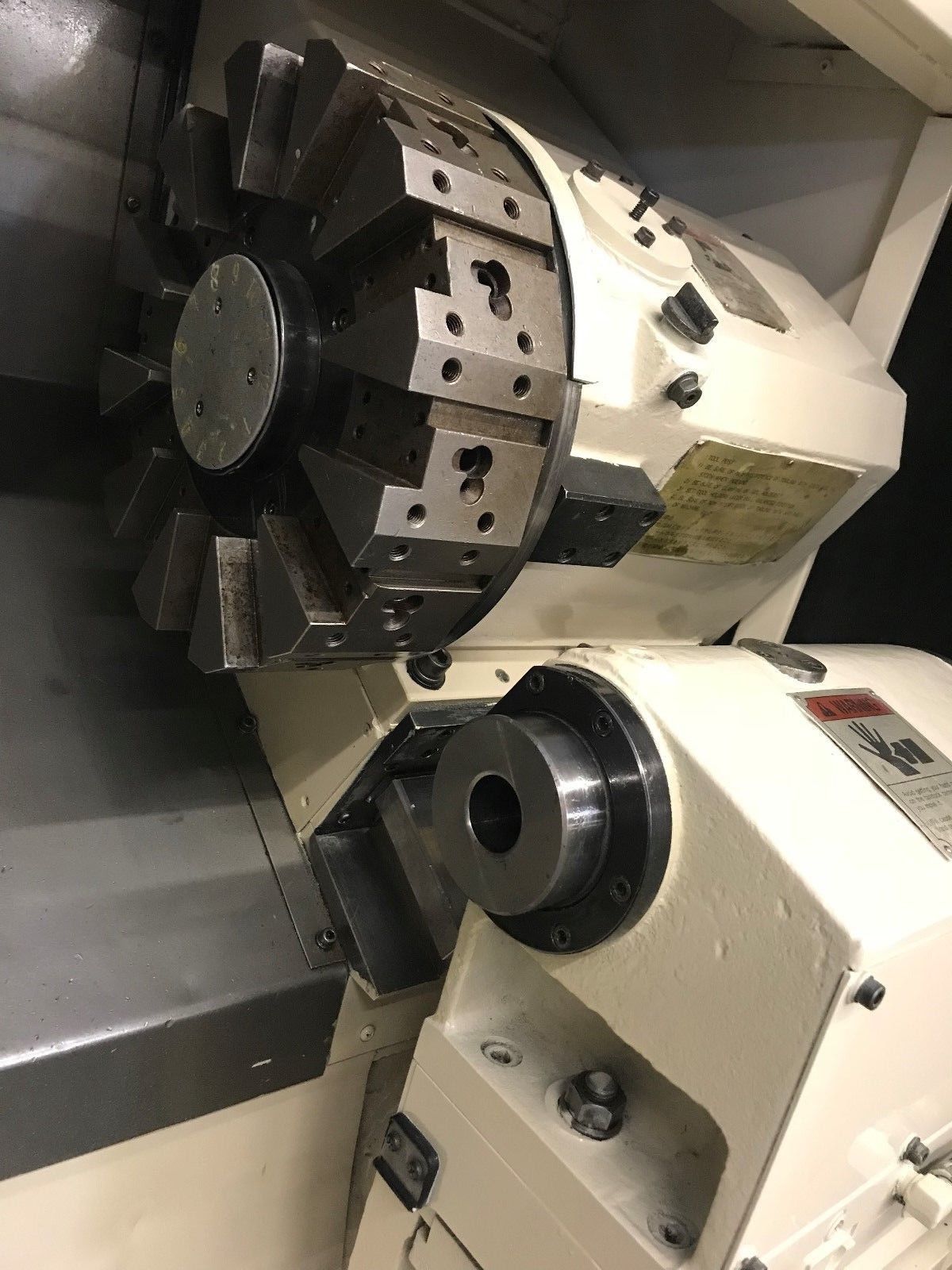

  • 12 Station Automatic Turret
  • Foot Switch
  • General:
  • Power: 35kw, 220v / 3-Phase
  • Overall Dimensions: 85 x 70″ x 70″ High with Chip Conveyor
  • Weight: 7500 lbs
  • DAINICHI F-20 Specifications:
  • Capacity:
  • Max Turning Diameter: 9.84″
  • Max Turning Length: 23.62″
  • Max Bar Capacity: 2.04″
  • Swing Over Bed: 17.72″
  • Distance Between Centers: 24.41″
  • X Axis Travel: 5.9″
  • Z Axis Travel: 26.4″
  • Rapid Traverse X Axis: 472 IPM
  • Rapid Traverse Z Axis: 590 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.44″
  • Spindle Speed: 45 – 4500 RPM
  • Spindle Motor: 15kw
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.15 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 2.97″
  • Tailstock Quill Travel: 3.95″

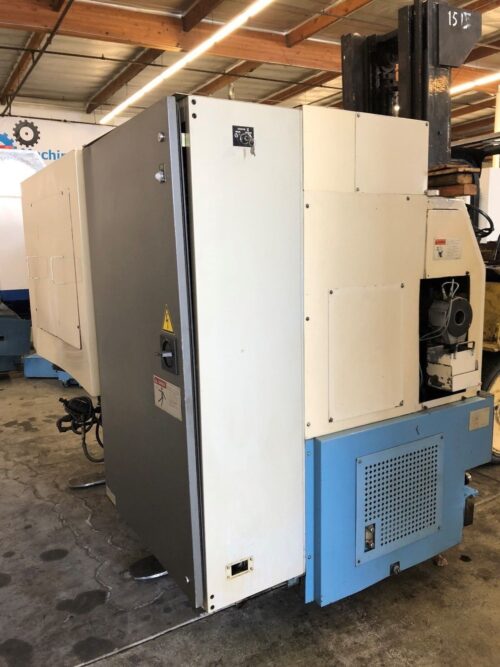

DAINICHI F-20 Comes as shown in pictures..
