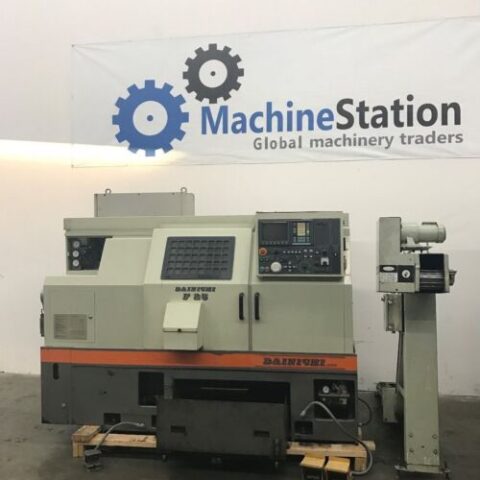

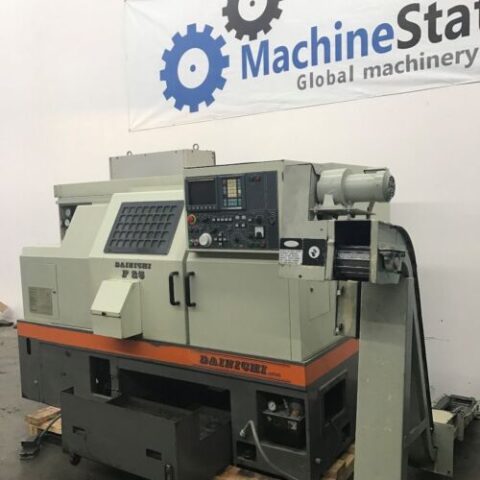

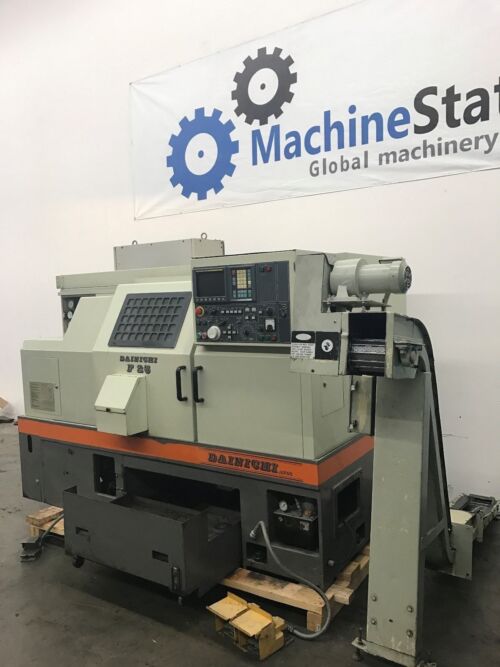

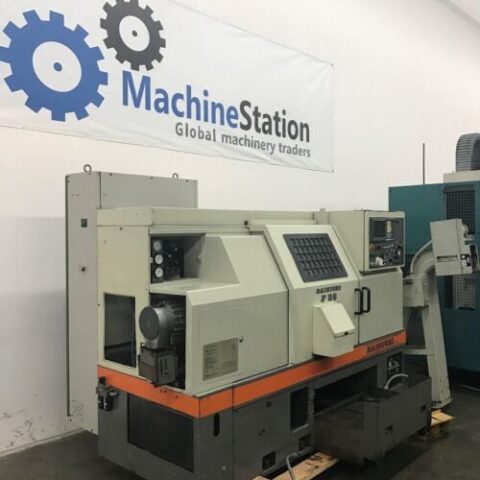

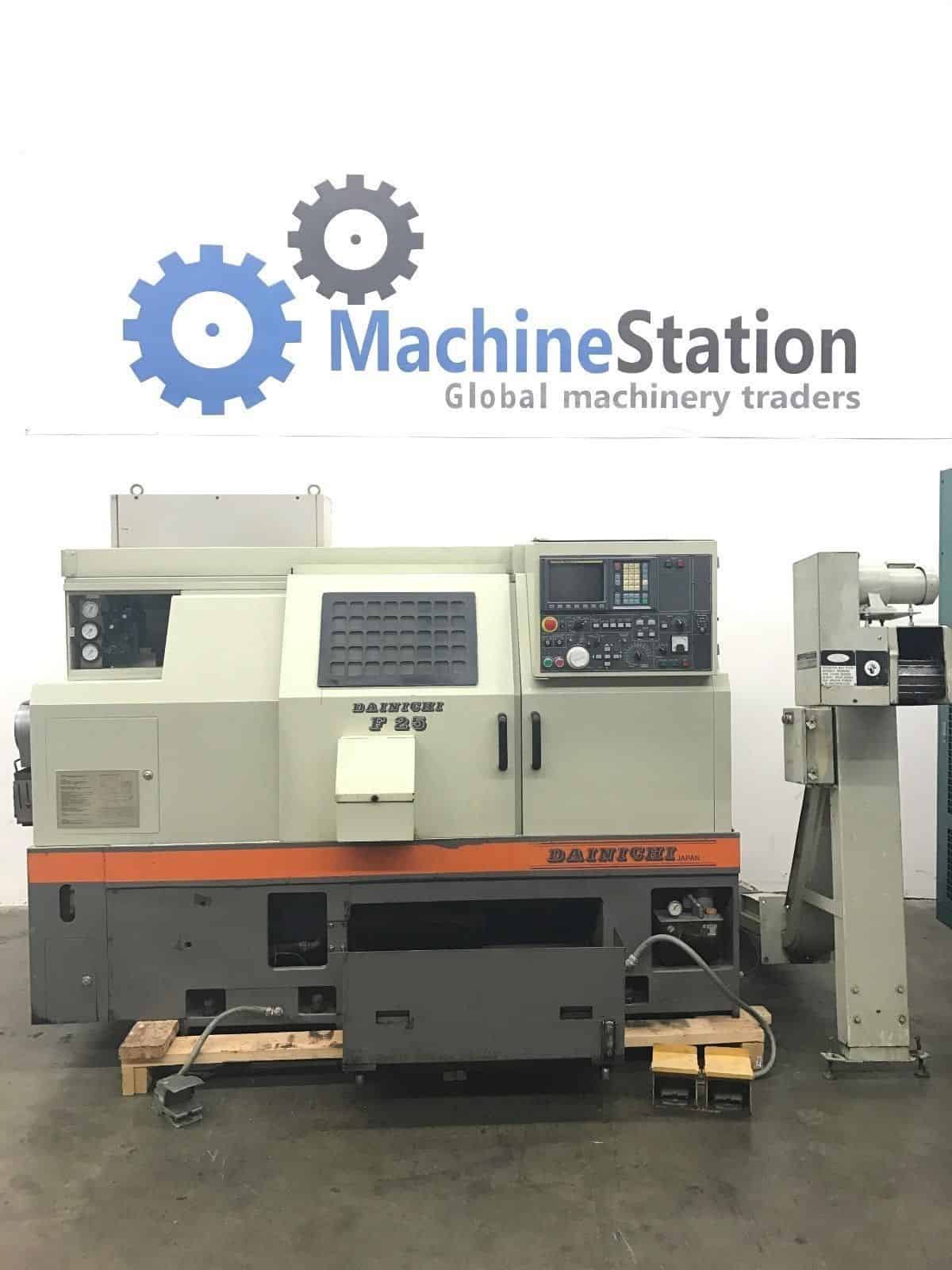

Dainichi F 25 CNC Turning Center Lathe

Out of stock

“Made in Japan, Heavy Duty machine with 10” Chuck, Tool Holders, Leveling Pads and Chip Conveyor, Hydraulic Tailstock & Fanuc control. On Our Floor now, Fully powered / tested & is in Great working condition. check *VIDEO.

SKU: 1380
Make/Model: Dainichi F-25×600
Video: [fusion_button link=”https://www.youtube.com/watch?v=58witEdM-v4″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1380

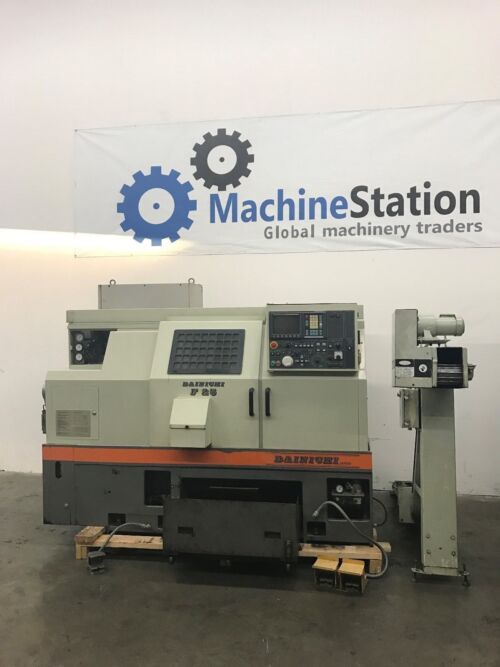

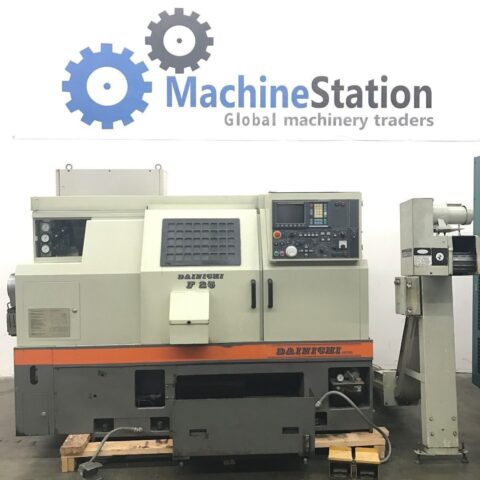

DAINICHI F 25 CNC TURNING CENTER

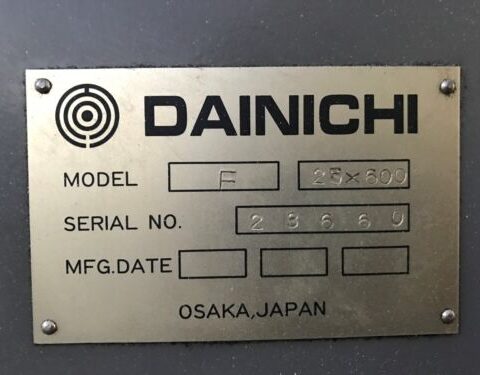

Make Dainichi
Model No. F-25×600
Serial # 23660
Condition Very Good

Comments: Made in Japan, Heavy Duty machine with 10″ Chuck, Hydraulic Tailstock & Fanuc control. On Our Floor now, Fully powered / tested & is in Great working condition. check *VIDEO.

Comes with 10″ Chuck, Tool Holders, Leveling Pads and Chip Conveyor.

  • DAINICHI F 25 Equipped With:

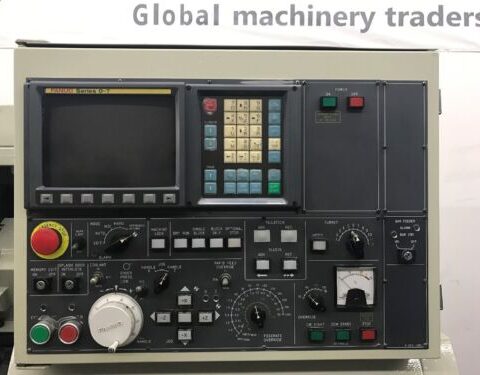

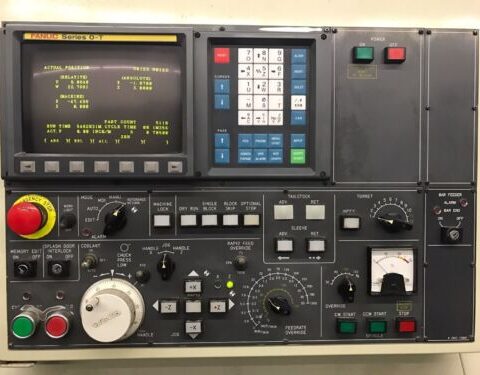

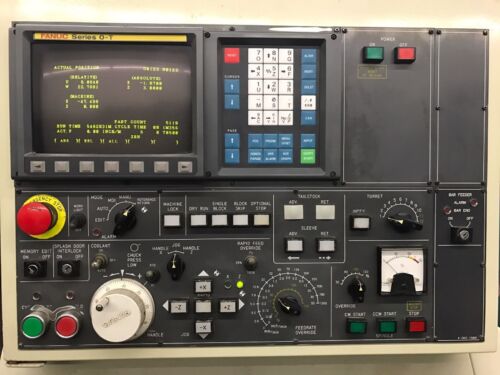

  • Fanuc OT CNC Control

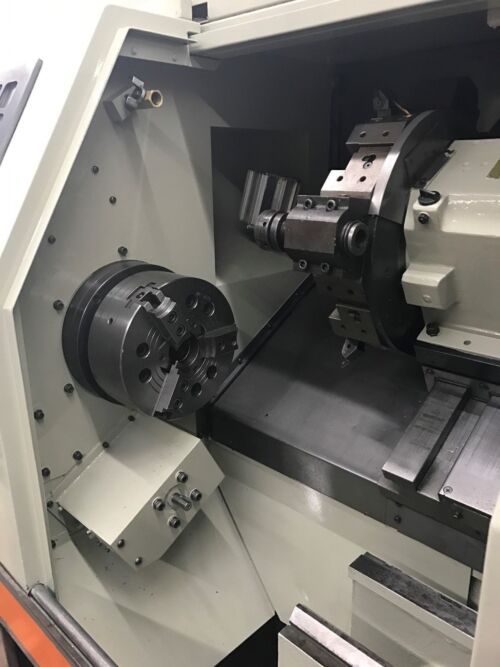

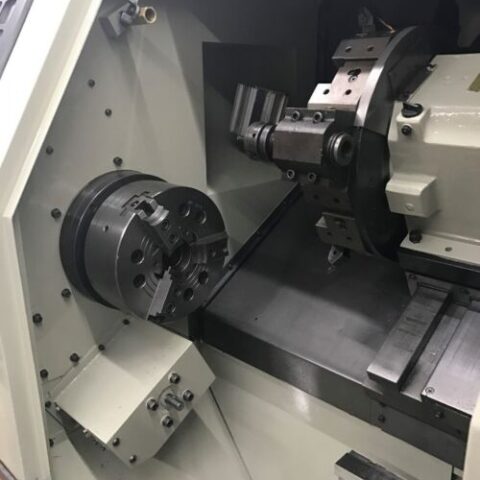

  • 10″ 3 Jaw Kitagawa Hydraulic Chuck

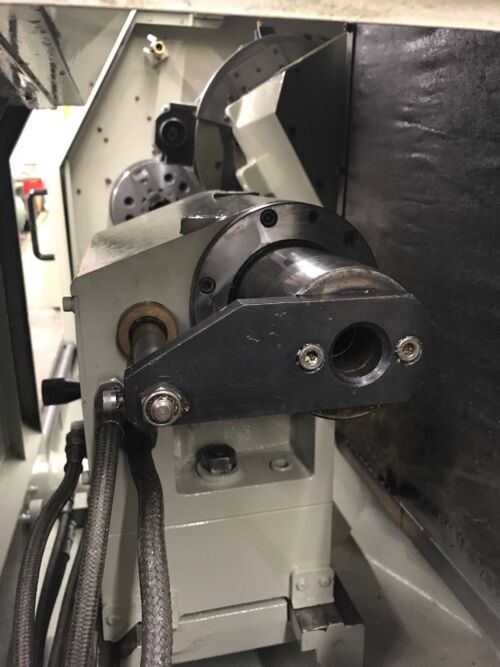

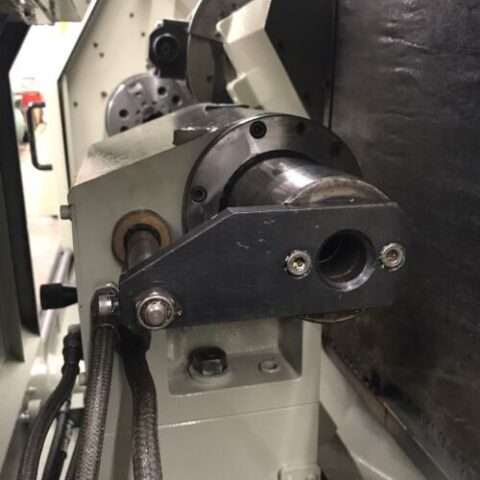

  • Hydraulic Tailstock
  • Coolant System
  • Barfeed Interface
  • RS-232 port

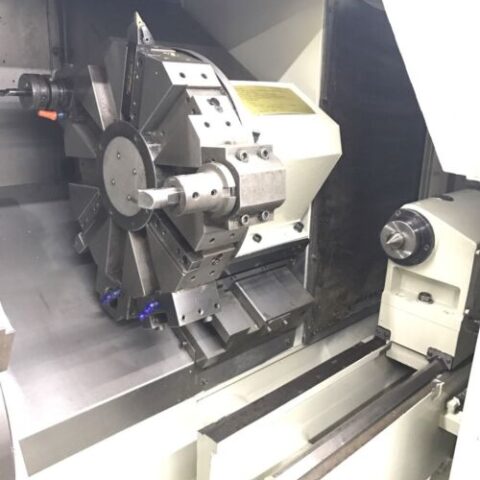

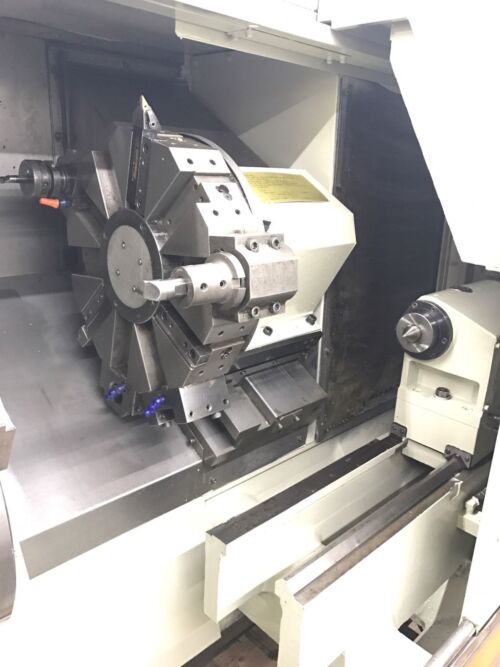

  • 10 Station Automatic Turret
  • Chip Conveyor
  • Coolant Tank
  • General:
  • Power: 220v / 3-Phase
  • Overall Dimensions: 103” x 64″ x 78″ High
  • Overall Dimensions: 136” x 64″ x 78″ High with Chip Conveyor
  • Weight: 9000 lbs
  • DAINICHI F 25 Specifications:
  • Capacity:
  • Max Turning Diameter: 11.81″
  • Max Turning Length: 23.6″
  • Max Bar Capacity: 2.5″
  • Swing Over Bed: 19.6″
  • Swing Over Carriage: 14.1″
  • Distance between Centers: 24.4″
  • X Axis Travel: 9.6″
  • Z Axis Travel: 24.3″
  • Rapid Traverse X Axis: 710 IPM
  • Rapid Traverse Z Axis: 710 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 2.74″
  • Spindle Speed: 35 – 3500 RPM
  • Spindle Motor: 15/18.5 Hp
  • Turret Capacity: 10 Stations
  • Turret Index Time: 0.1 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 2.95″
  • Tailstock Quill Travel: 3.9″

DAINICHI F 25 Comes as shown in pictures..
