All specifications are approximations and are subject to verification.
“On our Floor fully working, Feel free to contact us for more Pictures & Video.”

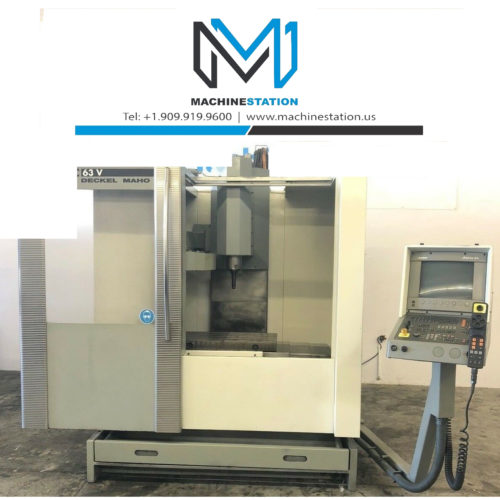

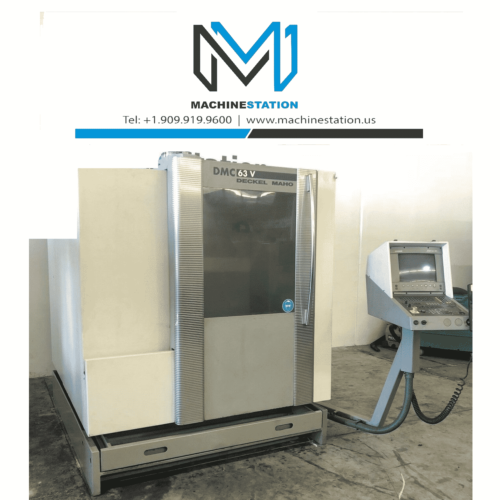

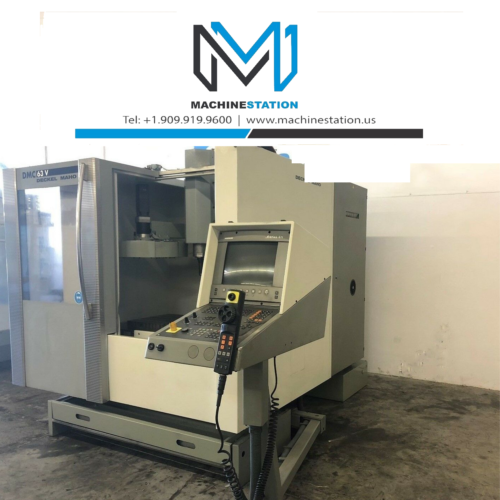

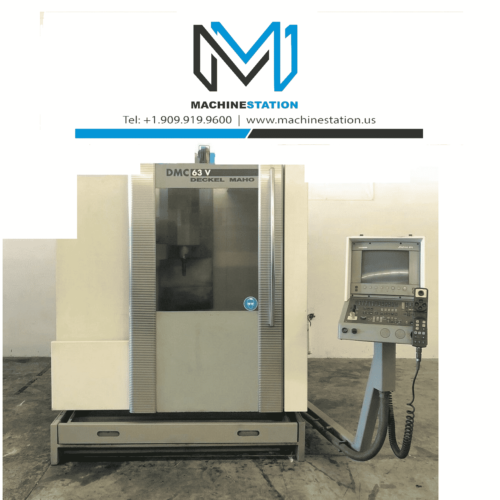

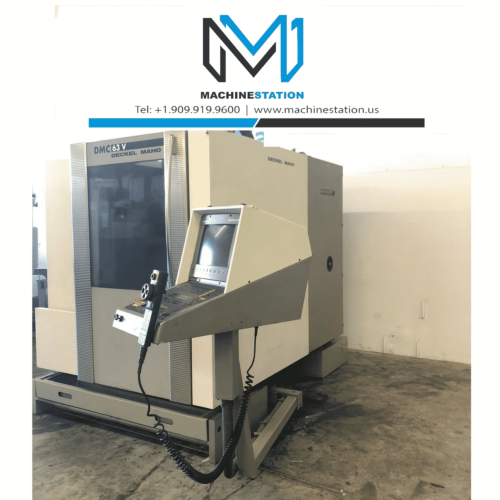

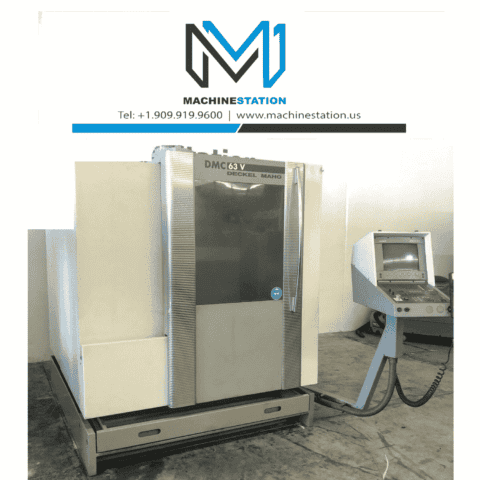

| Make | DECKEL MAHO |
| Model No. | DMC 63V |
| Year | 09/2000 |
| Serial # | 28850014952 |
| Condition | Very Good |
-
Deckel Maho DMC-63V Features:

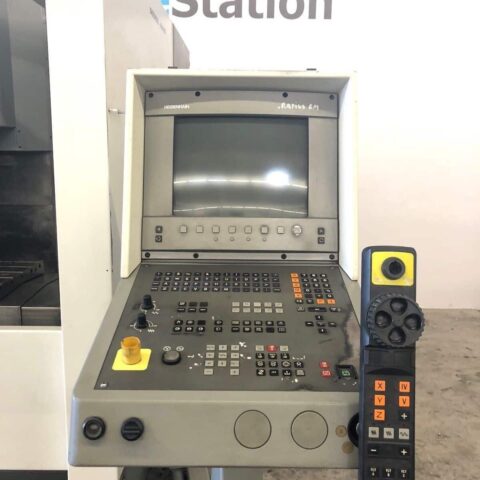

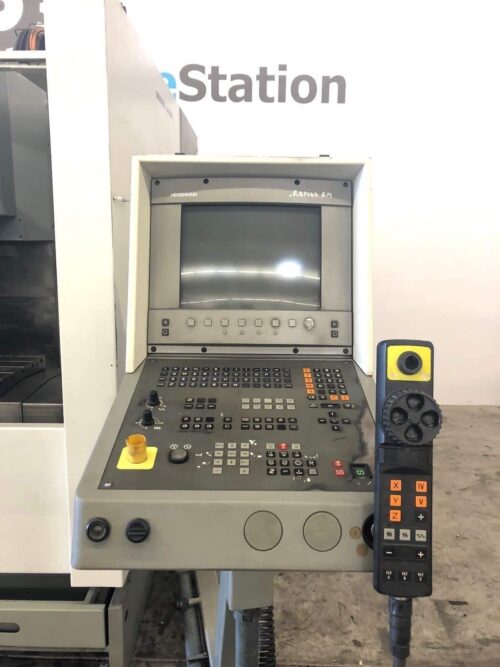

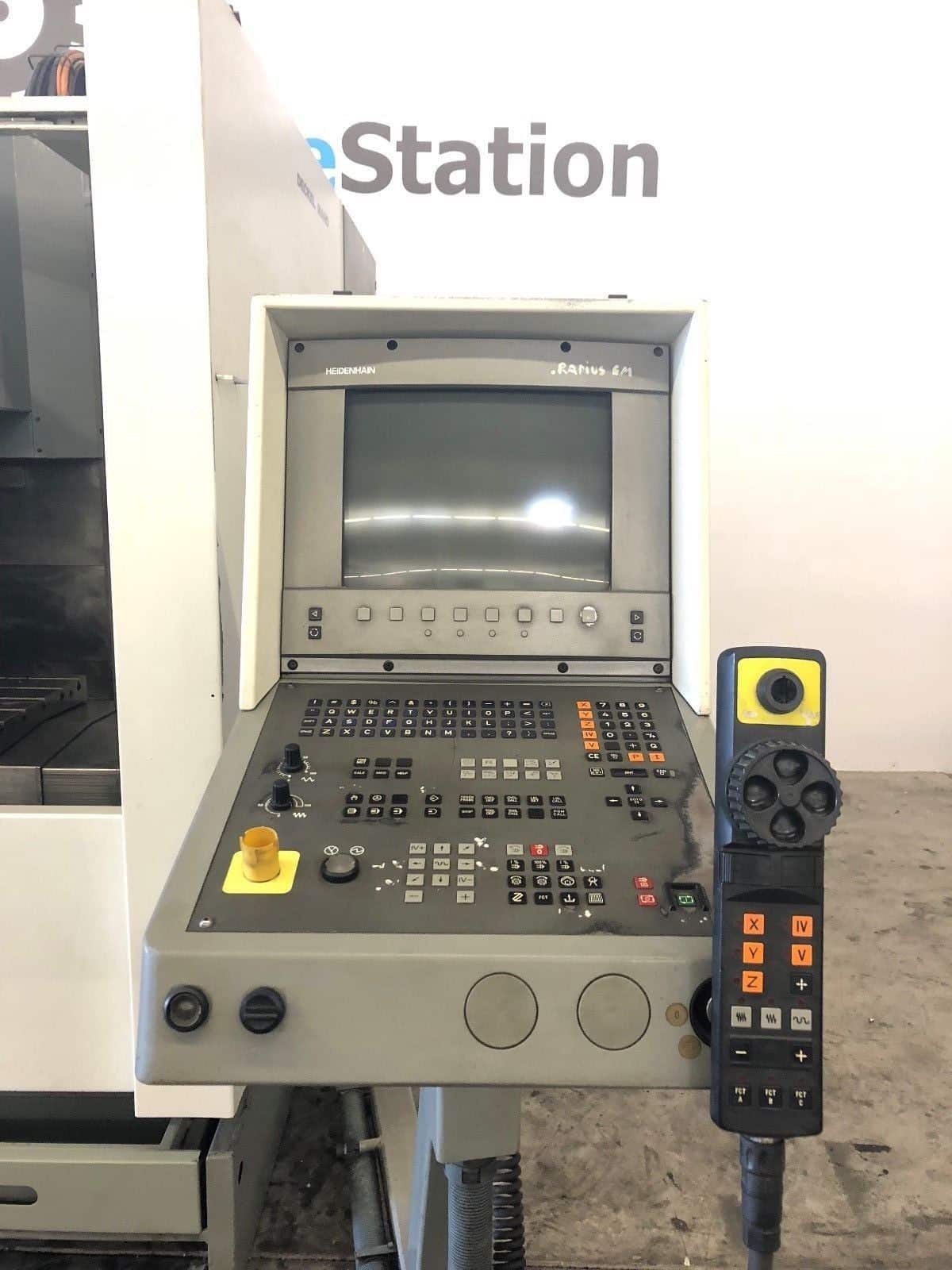

- HeidenHain TNC 426M CNC Control
- High Precision 8,000 RPM Spindle
- MPG Control

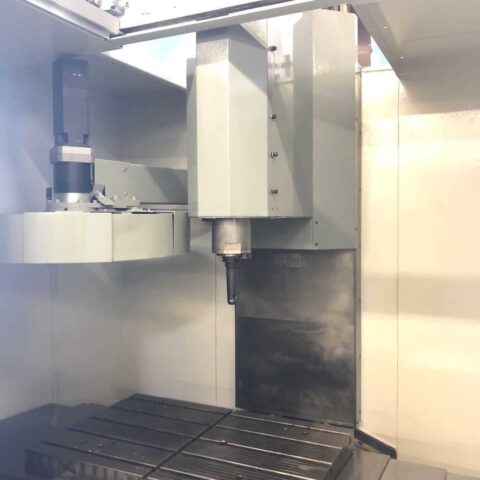

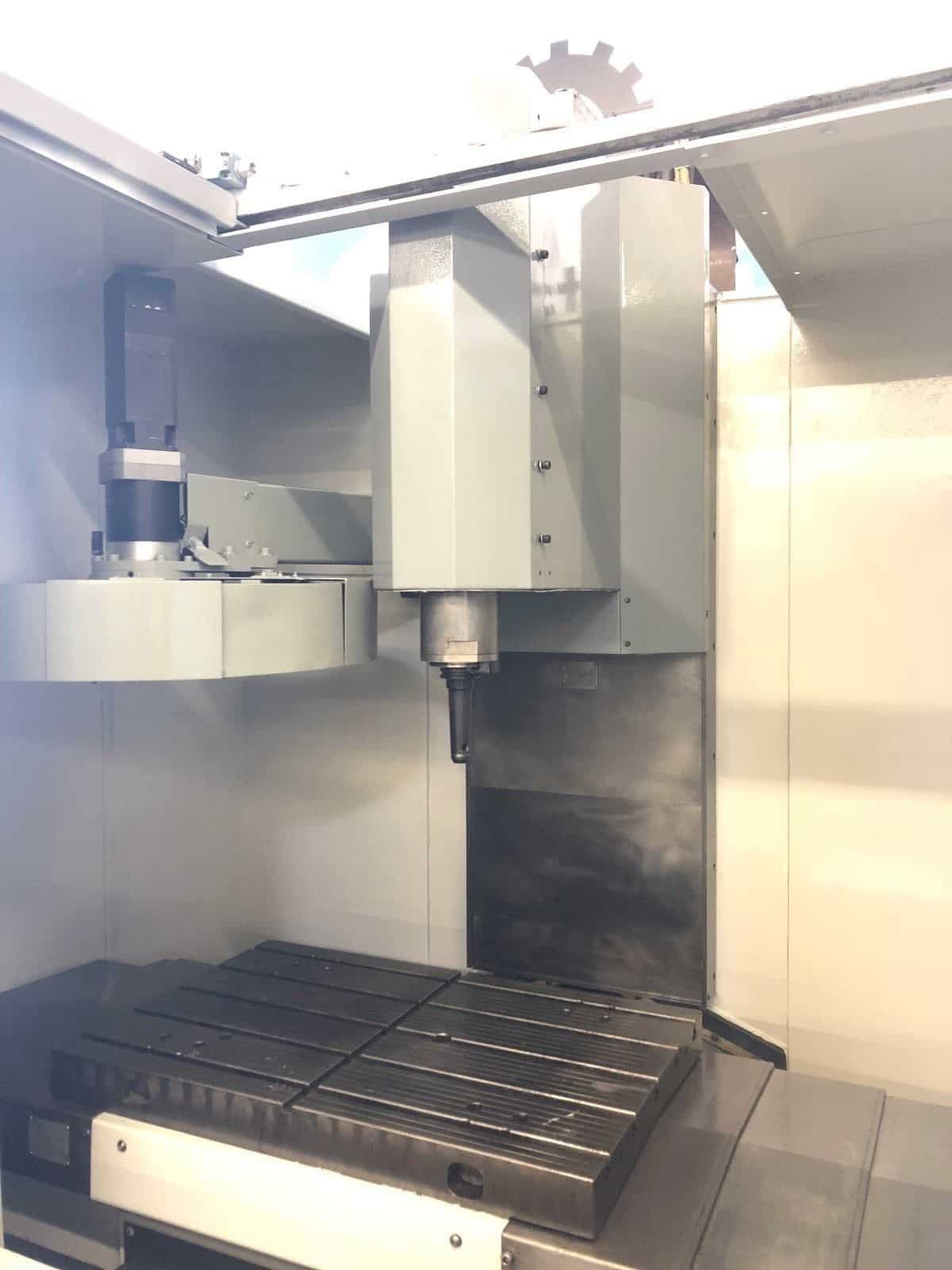

- 24 Tools Automatic Changer
- Powerful 20 hp high torque spindle motor
- Spindle Orientation
- Synchronized Tapping
- Helical Cutting
- Flood coolant with large separate coolant tank
- Work light
-
Deckel Maho DMC-63V Specifications:
- Travels:
- X-Axis: 24.8″
- Y-Axis: 19.7″
- Z-Axis: 19.7″
- Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″
-

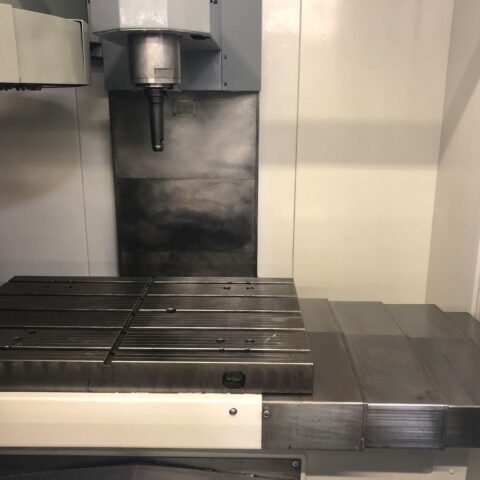

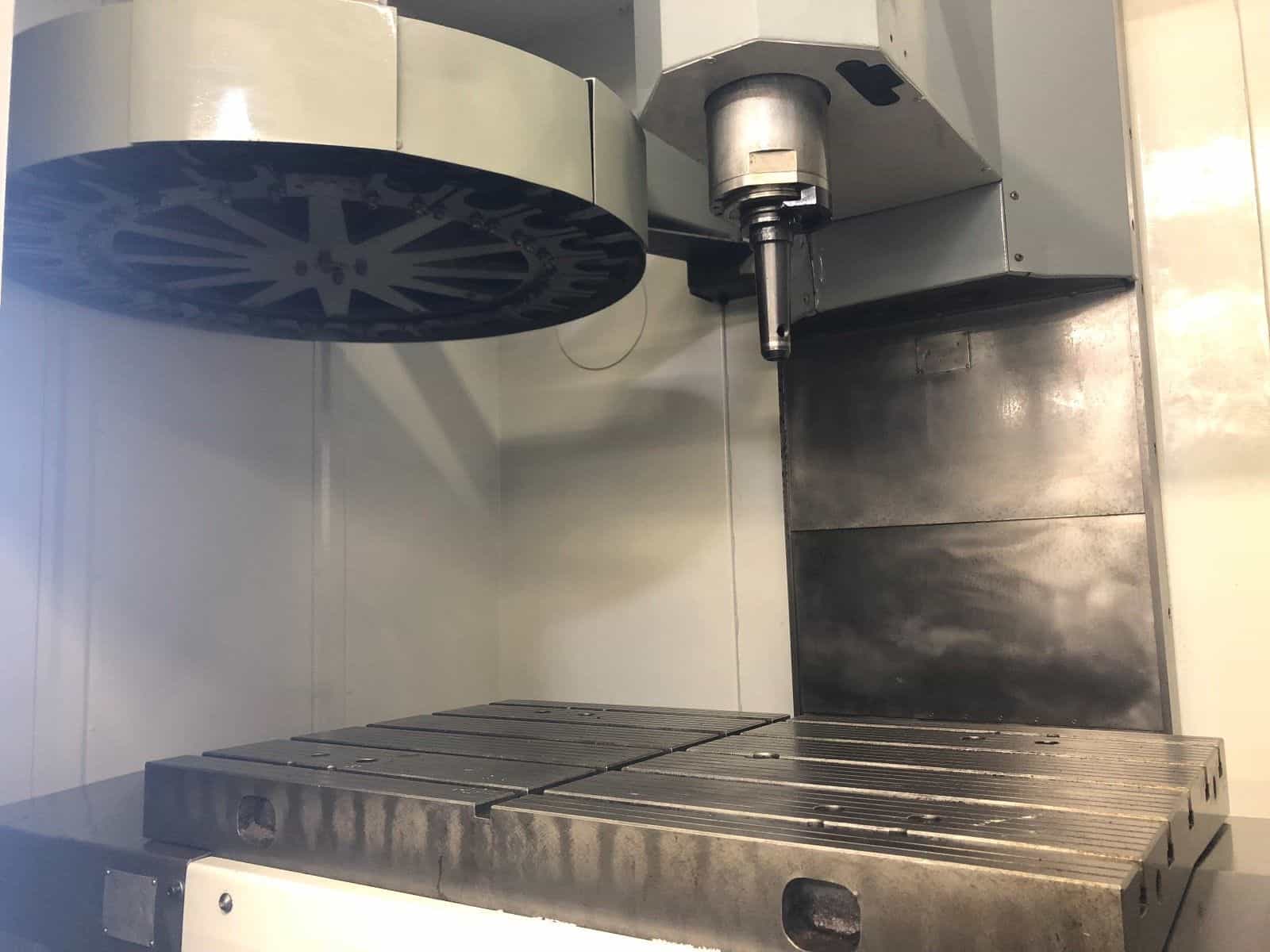

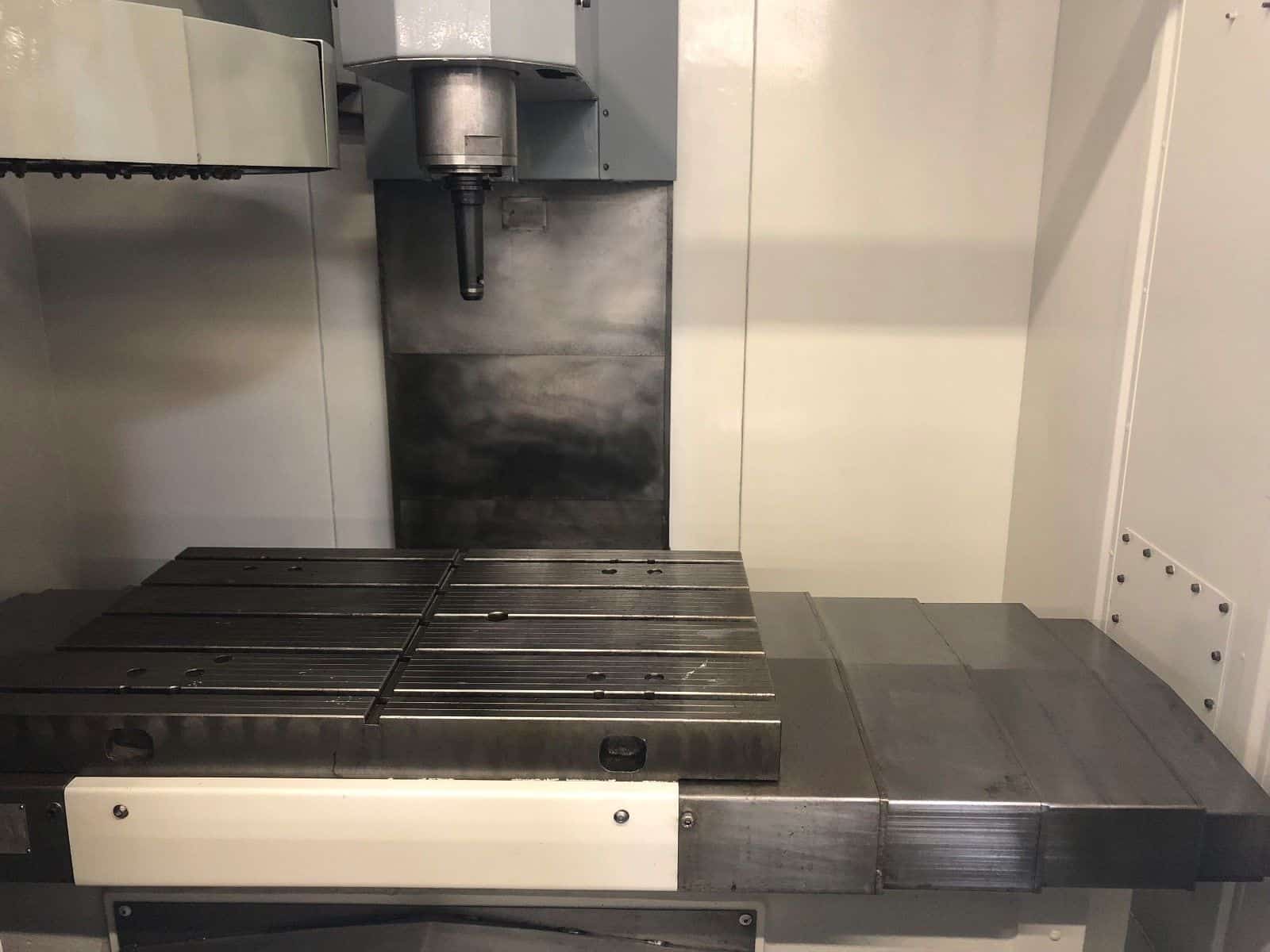

Table:
- Length: 31.5″
- Width: 19.7″
- Max Weight on Table: 800 lbs
- T-Slot no. & Width: 5 X 0.7″
-
Spindle:
- Taper Size: 40
- Speed Range: 60 – 8,000 RPM
- Spindle Power: 20 HP
-
Feed rates:
- Rapid X,Y & Z: 941 inch/Per Minute
- Cutting Feedrate: 475″ inch/ Per Minute
-

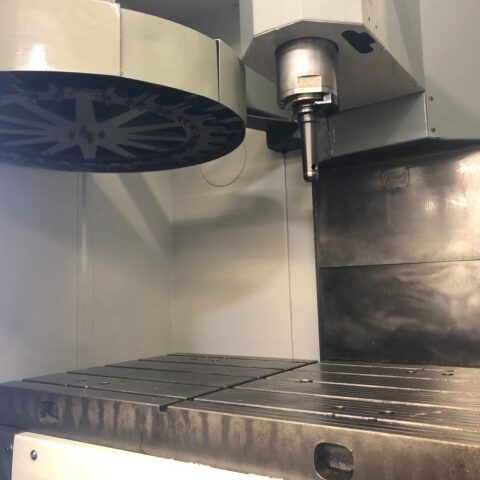

Automatic Tool Changer:
- ISO-40 Taper
- Capacity: 24
- Max Tool Weight: 13.2 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 3.9″
- Tool Change Time: 3.6 second
-
General:
- Air Required: 90 psi, 4 scfm

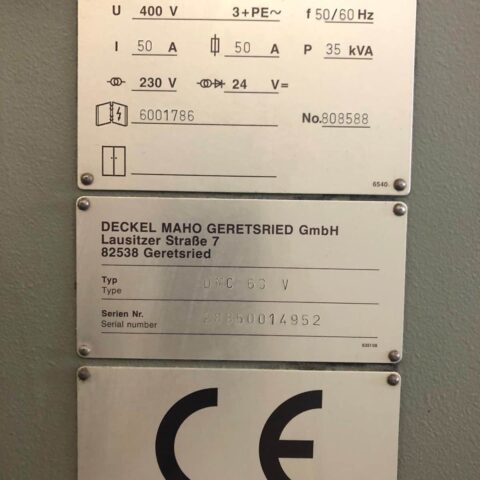

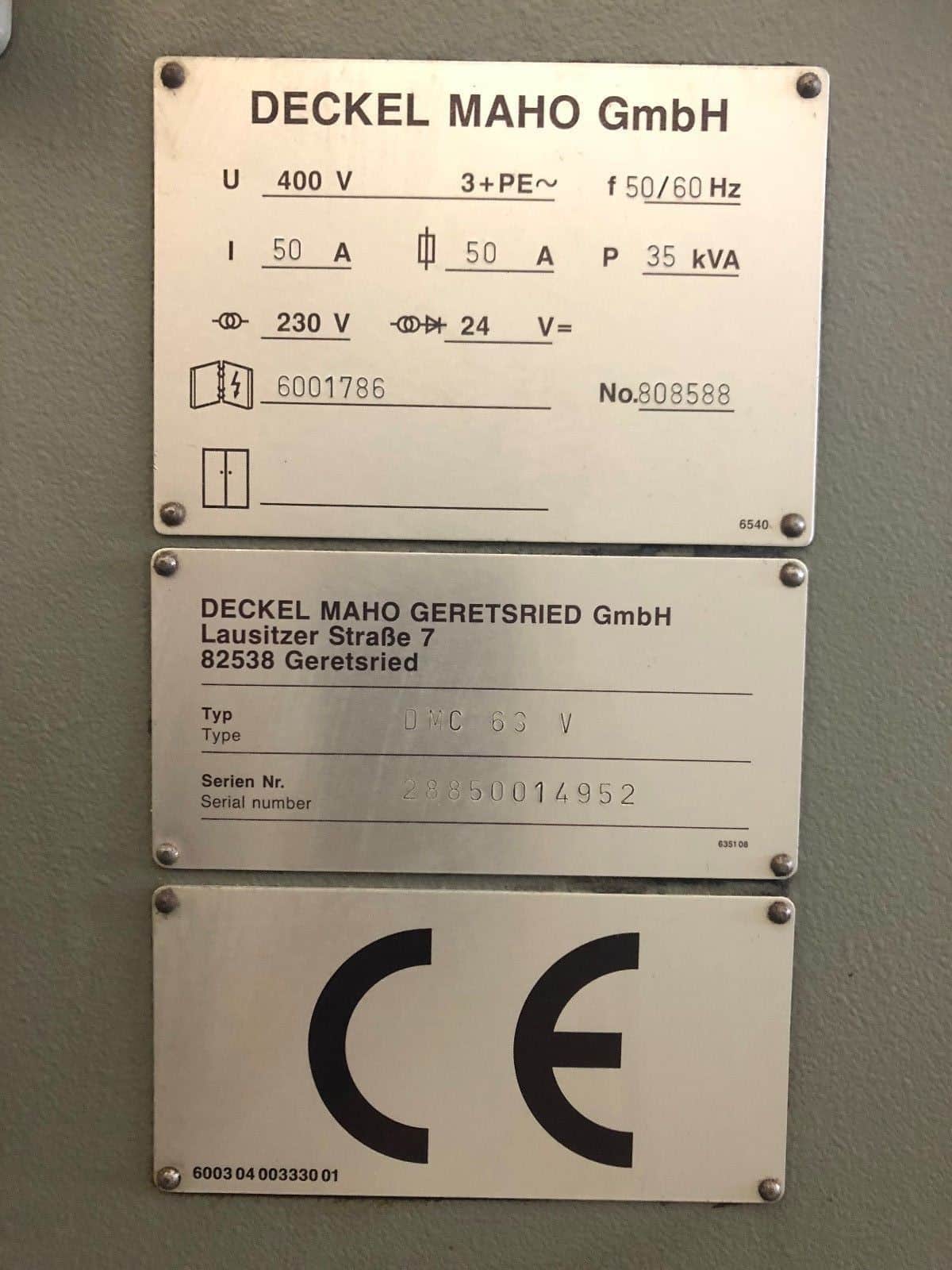

- Power: 400v / 35kva / 3-Phase
- Overall Dimensions: 100″ x 92″ x 100″ High
- Weight: 9,000 lbs
