SOLD OUT!

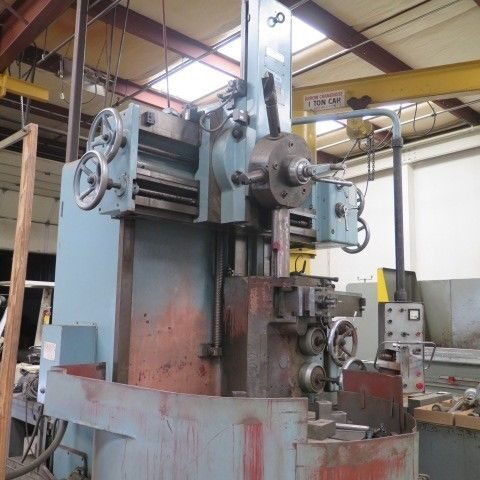

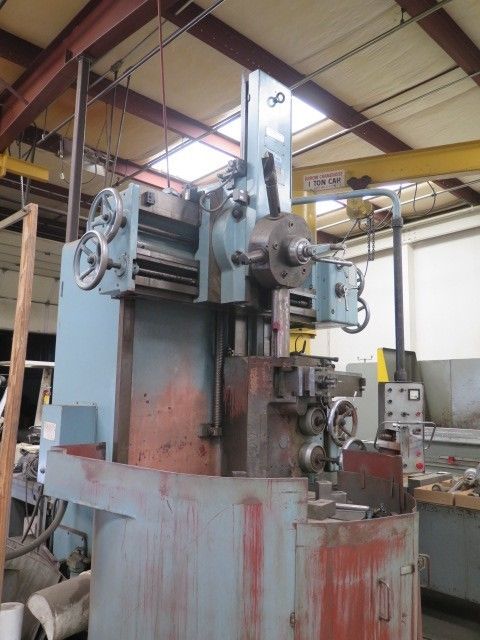

Defum 55″ Vertical Boring Turret Lathe

Good Working Condition Machine used in a Tool Room Occasionally. Equipped with 4 Jaw 43″ Chuck with Controller, Tool Holders. Machine is in all Original Paint. Special Pre-Removal Price.”

Share

Description

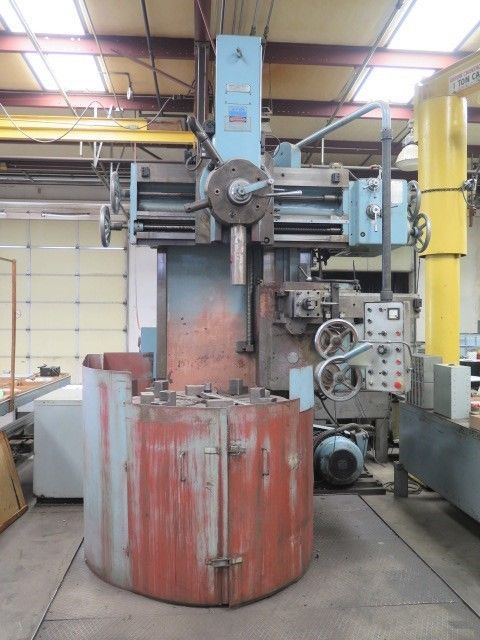

DEFUM 55″ VERTICAL BORING TURRET LATHE

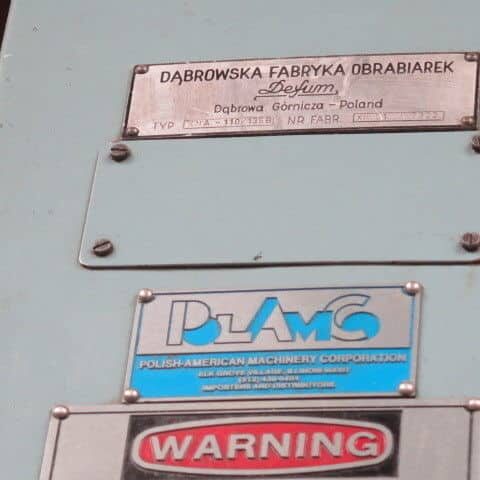

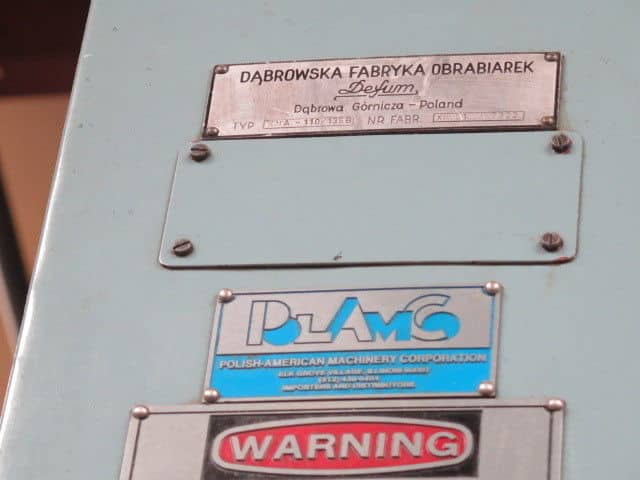

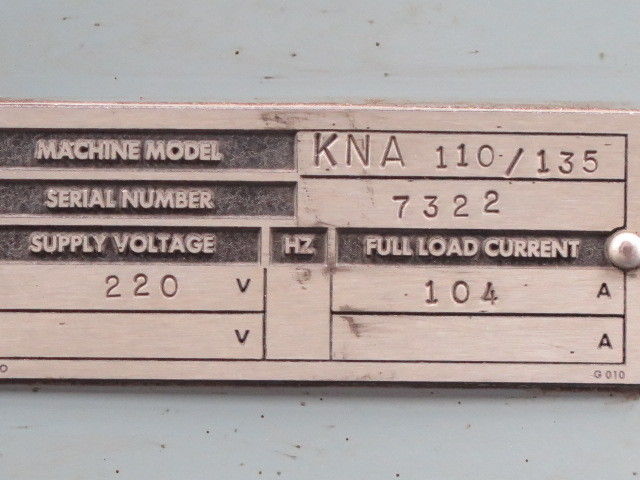

Make Defum

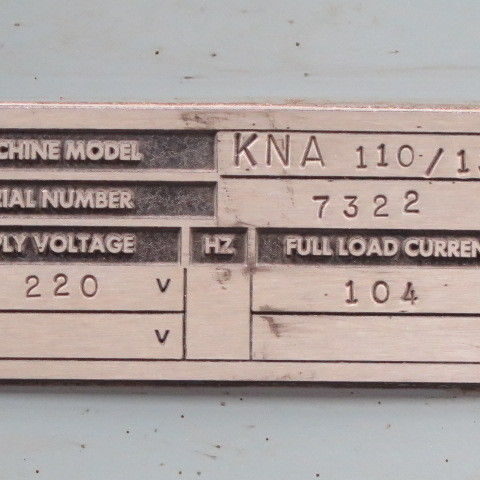

Model No. KNA110/135
Origin:  Poland
Serial # 7322
Condition Very Good

“Good Working Condition Machine used in a Tool Room Occasionally. Equipped with 4 Jaw 43″ Chuck with Controller, Tool Holders. Machine is in all Original Paint. Special Pre-Removal Price.”

  • DEFUM 55″ VERTICAL BORING Features:

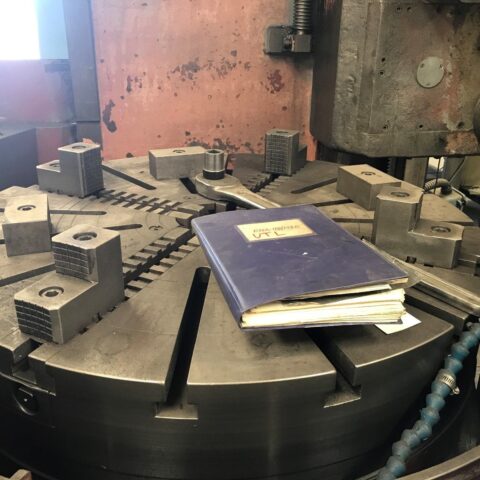

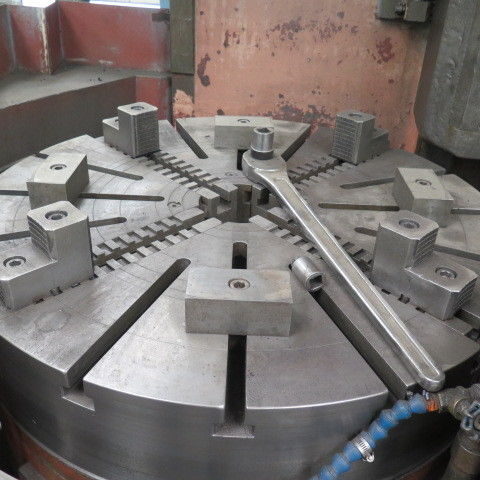

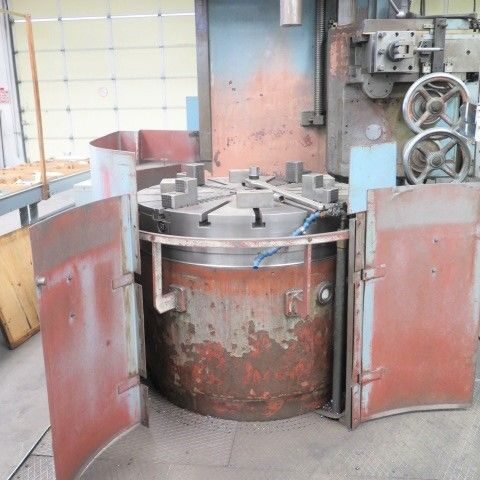

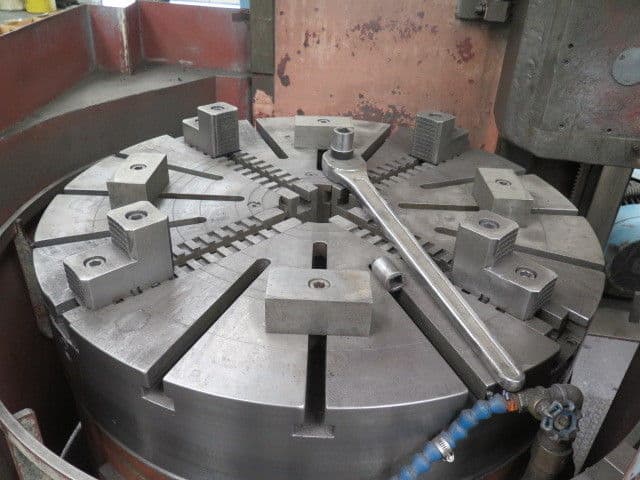

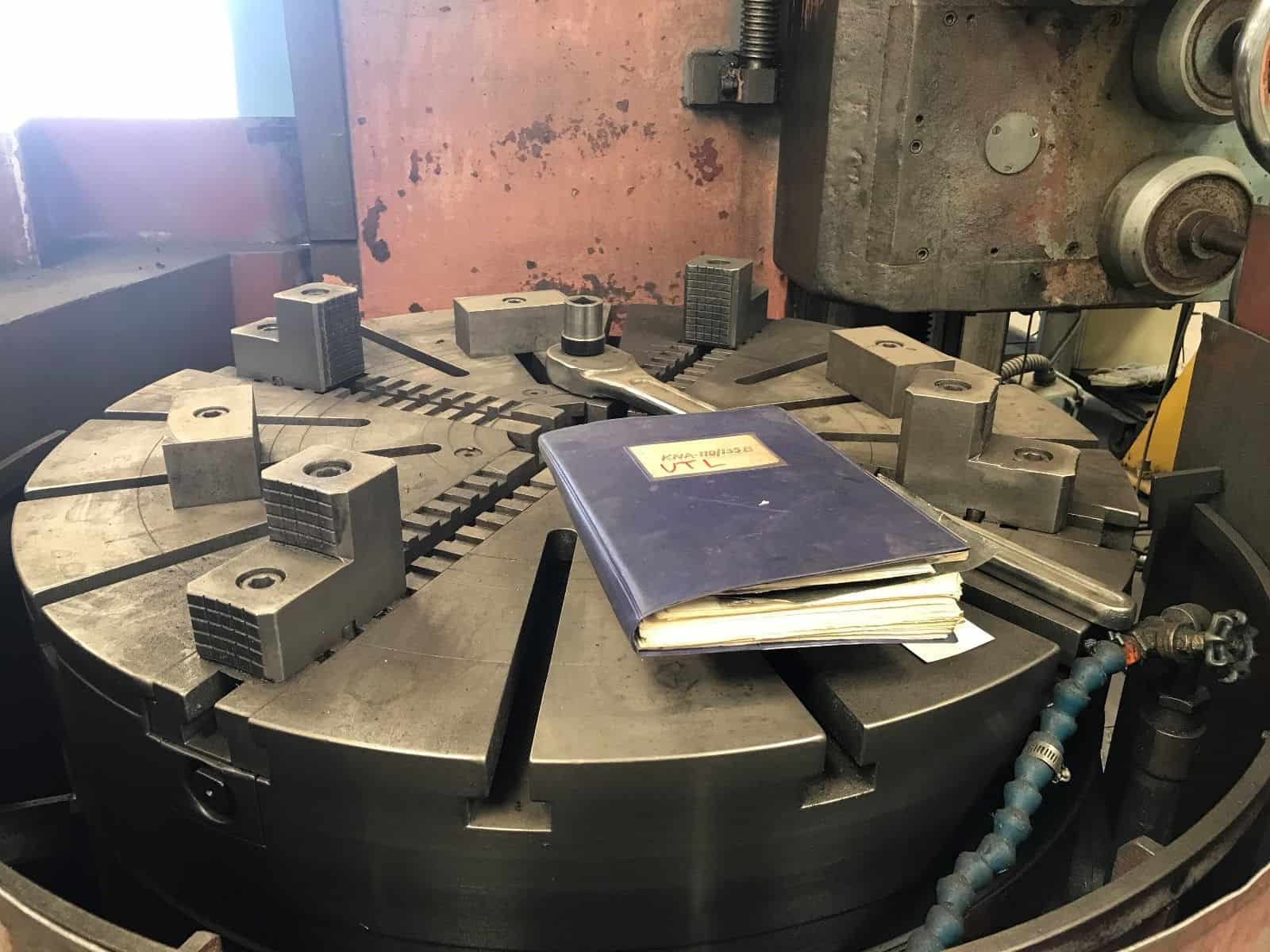

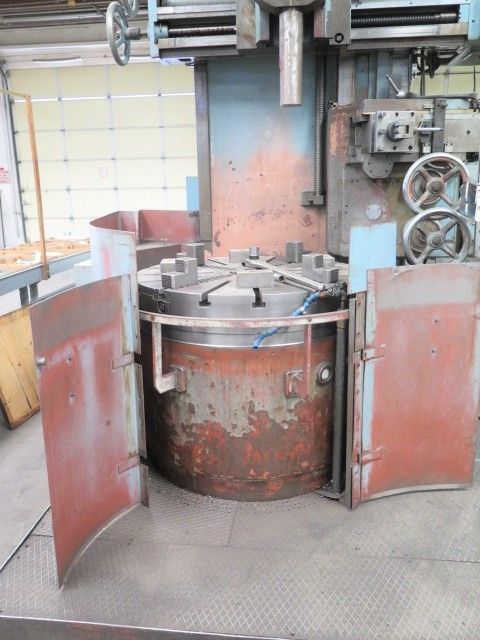

  • 43″ 4 Jaw Chuck
  • 5 Position Top Turret

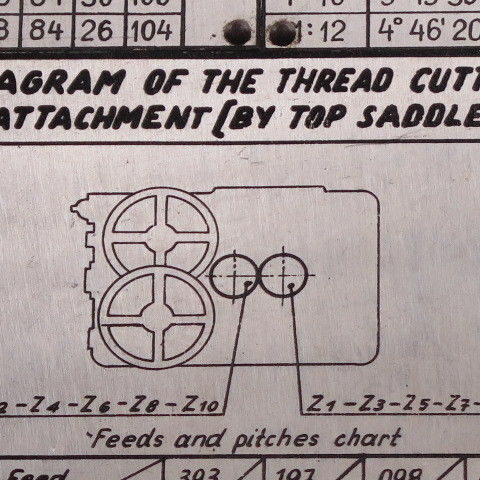

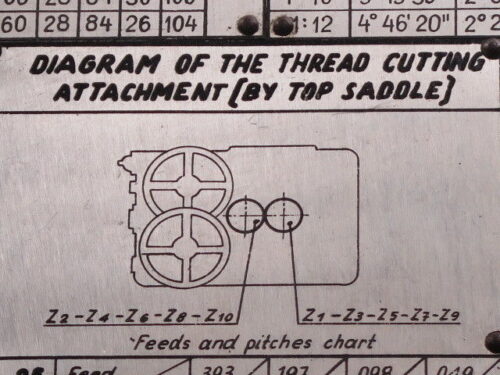

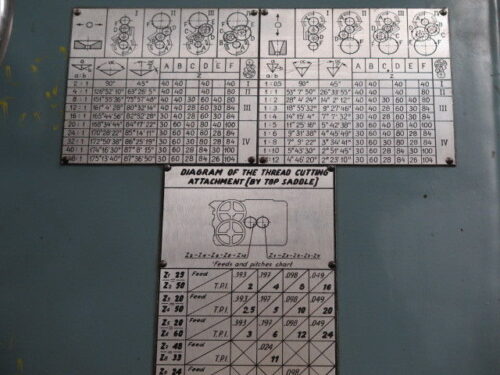

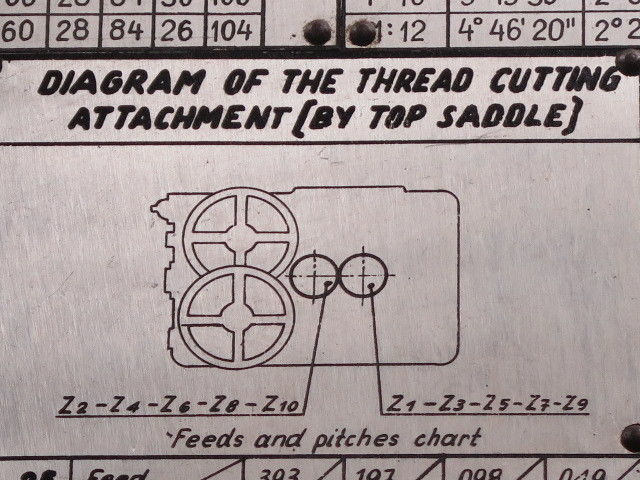

  • Threading
  • 4 Position Side Head
  • Hardened & Ground Cross Rail Ways
  • Hardened & Ground Gearing

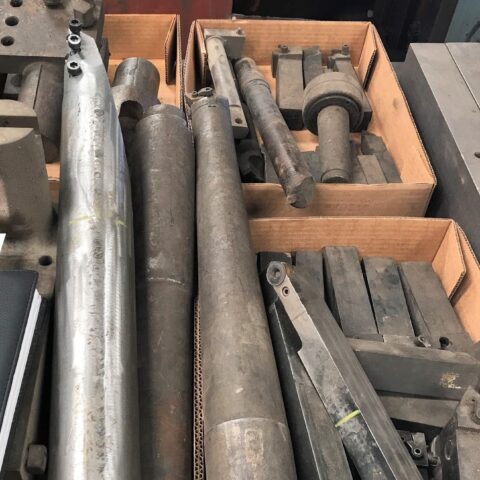

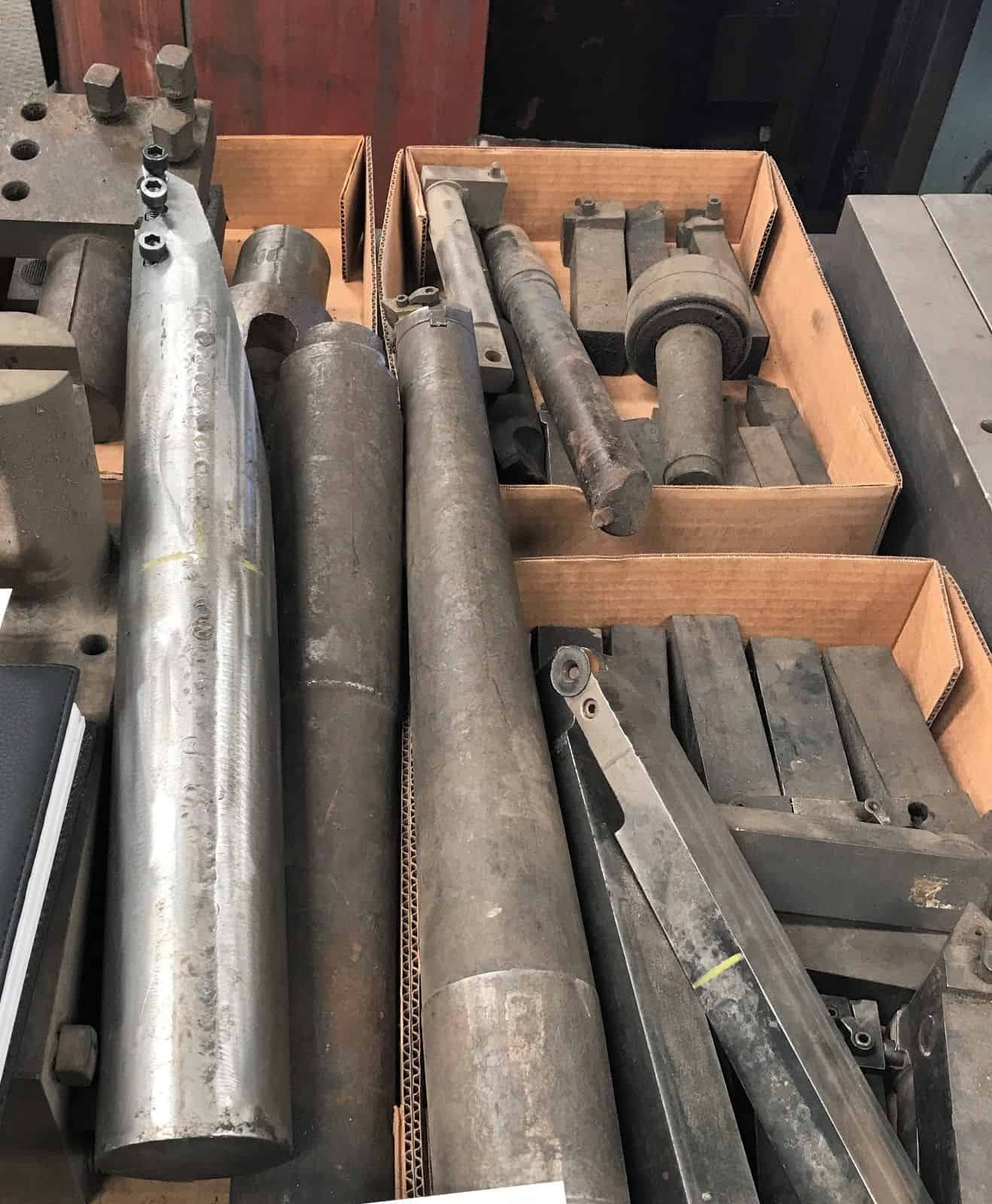

  • Comes with Lot of Tool Holders
  • DEFUM 55″ VERTICAL BORING Specifications:
  • Max. Swing Diameter: 53″
  • Max Machining Height: 40″
  • Max Weight On Table: 13000lbs
  • Vertical Travel of Turret Head: 30″
  • Vertical Travel of Side Head: 35.5″
  • Horizontal Travel of Side Head 25.5″
  • Cross Rail Vertical Travel 31.5″
  • Turret Head Swivel +/- 35 Degrees
  • Table Speeds 2.5 – 250 RPM
  • Table Speed Ranges 3
  • Feeds (16) .002 – 200 IPR
  • Rapid Feed 118 IPM
  • Rapid Traverse Motor 4 HP
  • Cross Rail Elevating Motor 5.5 HP
  • Main Drive Motor 50 HP DC
  • Weight : 36000lbs Approx
  • Overall Dimensions: 112″ x 94″ x 152″ H

This VERTICAL BORING Comes as shown in pictures. Selling As-is
