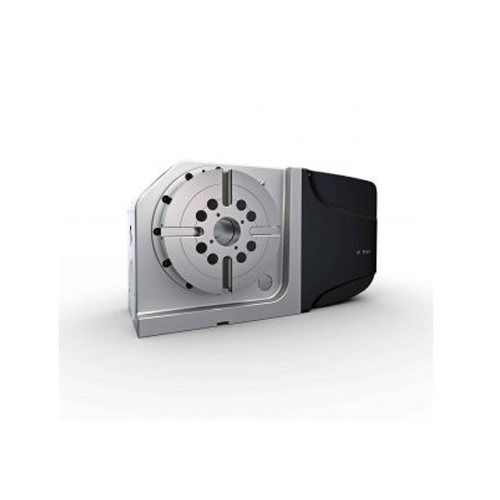

Detron DFO- GXA170S -Fanuc CNC Rotary Table

Share

Description

DFO- GXA170S -Fanuc High Power Pneumatic Clamp CNC Rotary Table
Make DETRON
Model No. GXA170S
  • DFO- GXA170S Features:
  • Worktable diameter Ø125, Ø170, Ø210, Ø255.
  • Exclusive patented dual pneumatic piston braking system.
  • Higher rotation speed.
  • Equipped with high precision cross roller.
  • Full gear depth transmitted by dual lead worm drive, resulting in higher efficiency and lower backlash.
  • Specification:
  • Worktable Diameter: 6.69″
  • Center Bore Diameter: 1.57H7
  • Through-Bore Diameter: 1.57H7
  • Pitch of Rotary Axis: N/A
  • Height of Table (Horizontal): 6.89″
  • Height of Table (Vertical): 5.31″
  • Width of T-Slot: 0.47H7
  • Width of Guide Block: 0.55″
  • Clamping Method/Pressure: Pneumatic/79.8psi-101.5psi
  • Clamping Torque: 300 ft.lbs.
  • Transmission Ratio: 1/60
  • Maximum Table Speed: 53.3 min-1
  • Standard Loading Inertia: 0.72 Kg.m2
  • Maximum Loading Inertia: 3 Kg.m2
  • Resolution: 0.001 Degree
  • Indexing Accuracy: 20 sec
  • Repeatability: 6 sec
  • Net Weight (Servo Motor Excluded): 114.4 lbs
  • Allowable Loading Capacity
  • Vertical: 220 lb
  • Horizontal: 440 lb
  • Tailstock Applied: 440 lb
  • Allowable Cutting Torque: 147.41 ft. lbs.
  • Allowable Maximum Rotary Joint Quantity: 4
