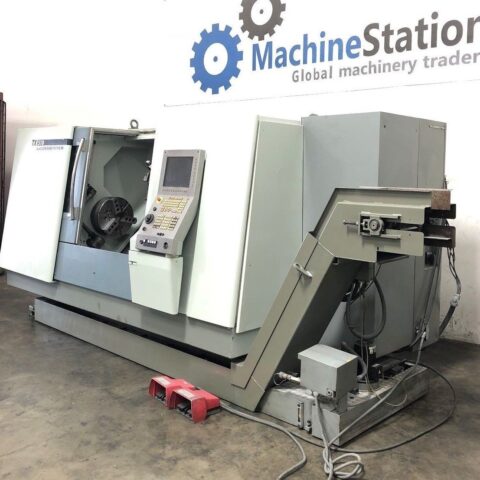

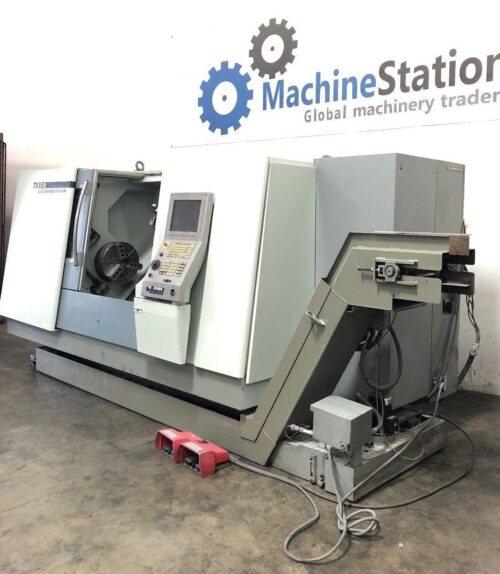

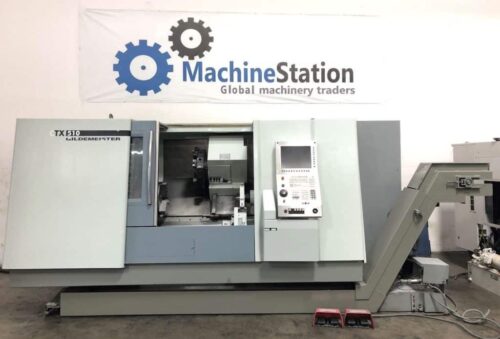

| DMG GILDEMEISTER CTX-510 CNC TURNING CENTER | |
|---|---|
| Make | DMG GILDEMEISTER |
| Model No. | CTX-510 |
| Year | 2005 |

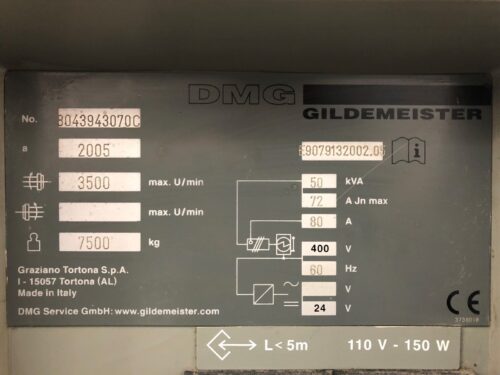

| Serial # | 943070 |
| Condition | Very Good |
Comes with 15″ Chuck, Steady Rest, Tailstock, Books & Chip Conveyor
All specifications are approximations and are subject to verification.
- DMG GILDEMEISTER CTX-510 Equipped With:

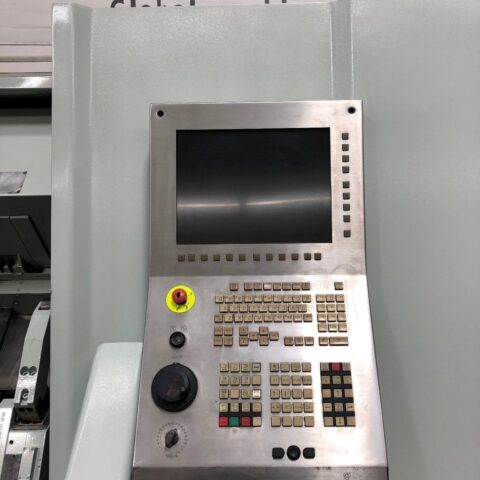

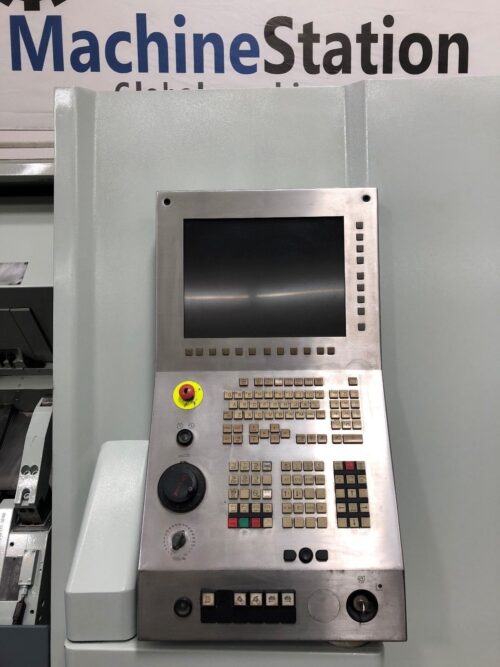

- Fanuc 32i series CNC Control
- Hydraulic Steady Rest

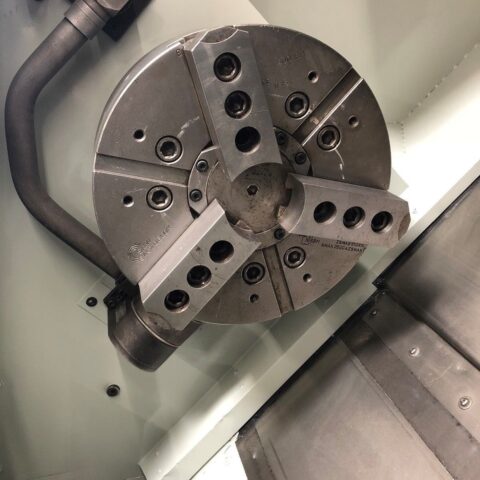

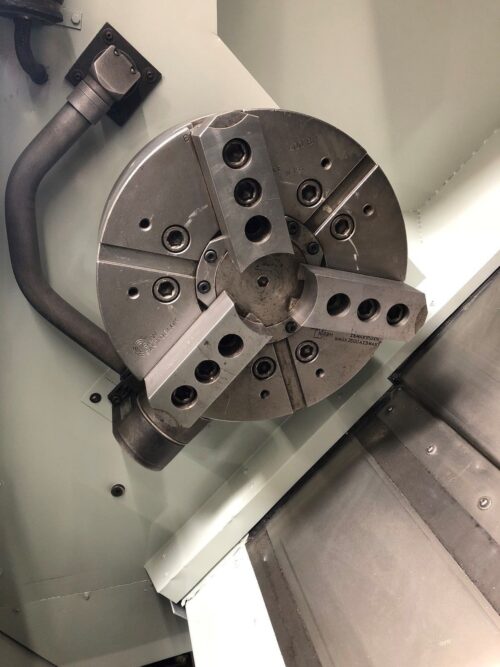

- 15″ 3 Jaw Hydraulic Chuck
- Auto Tool Presetter

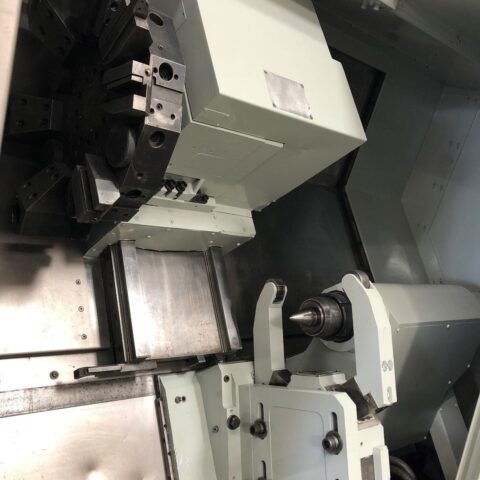

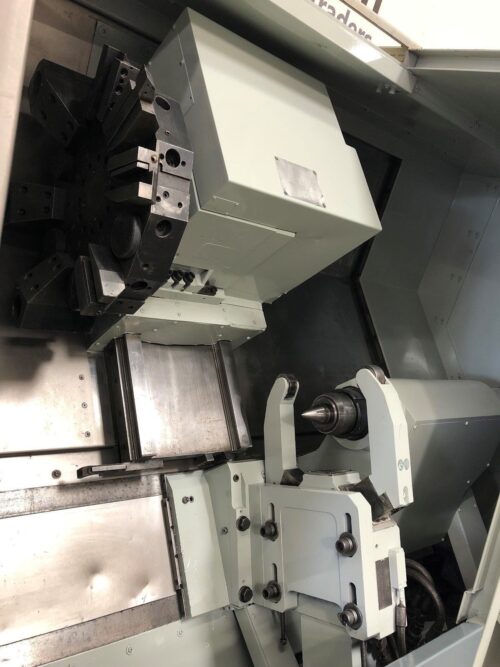

- Hydraulic Programmable Tailstock and Quill
- USB Drive Slot
- Coolant System
- Barfeed Interface

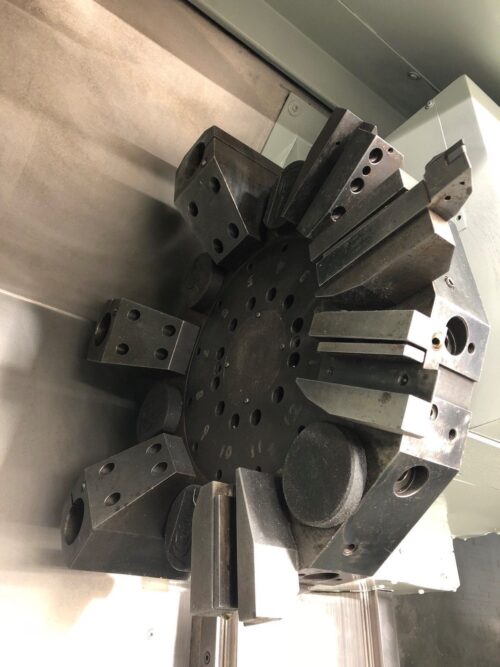

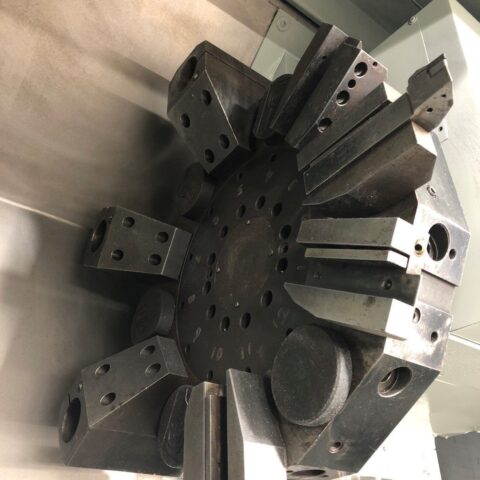

- 12 Station Automatic Turret
- Foot Switch
- Chip Conveyor
- General:

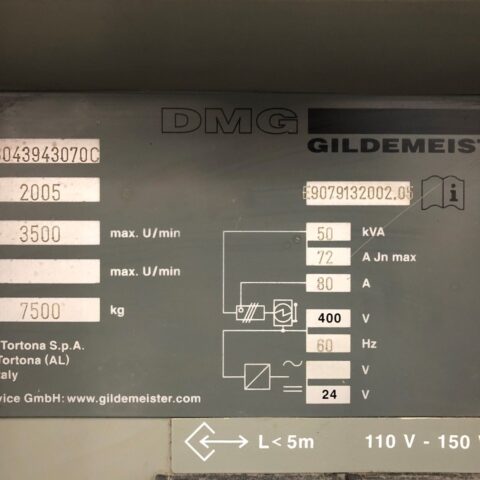

- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions:
- Overall Dimensions: High with Chip Conveyor
- Weight: 16500 lbs
- DMG GILDEMEISTER CTX-510 Specifications:
- Capacity:
- Max Turning Diameter: 18.3″
- Max Turning Length: 41.4″
- Max Bar Capacity: 3.05″
- Swing Over Bed: 26.77″
- Distance Between Centers: 45.27″
- X Axis Travel: 11.81″
- Z Axis Travel: 41.33″
- Rapid Traverse X Axis: 1181 IPM
- Rapid Traverse Z Axis: 1181 IPM
- Spindle Bore: 3.54″
- Spindle Speed: 0 – 3500 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.97″
- Tailstock Quill Travel: 4.7″
- Tailstock Body Travel: 33.46″

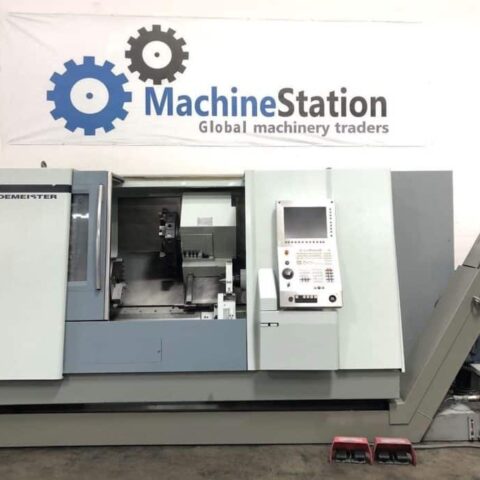

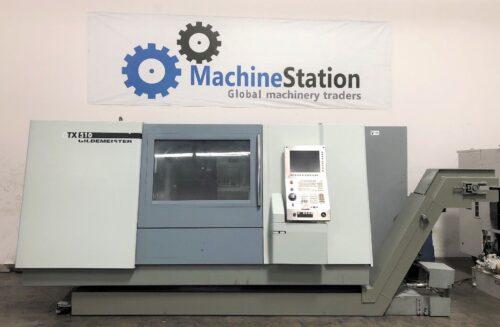

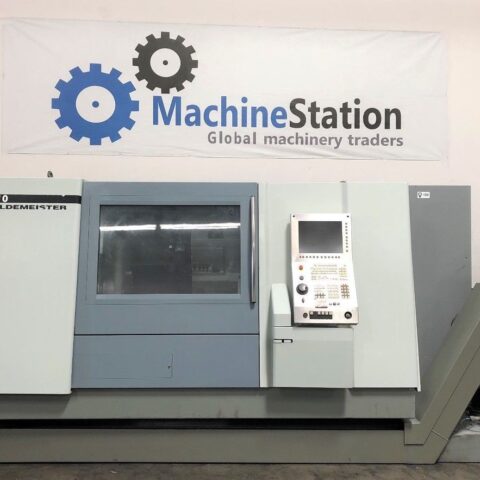

DMG CTX-510 Comes as shown in pictures..
