*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

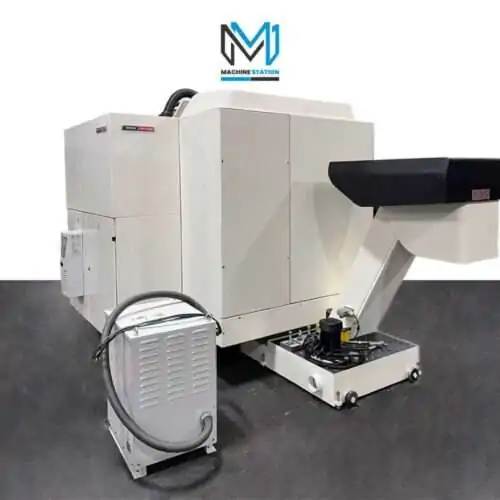

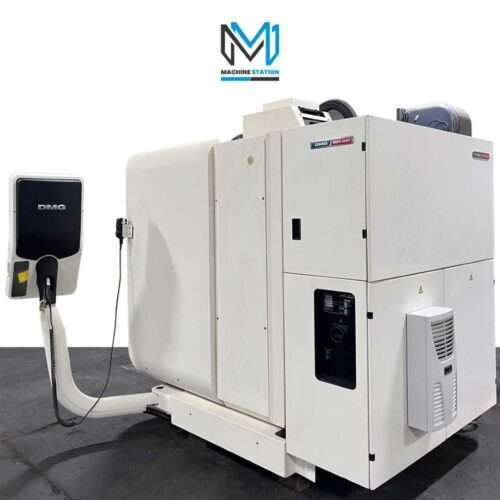

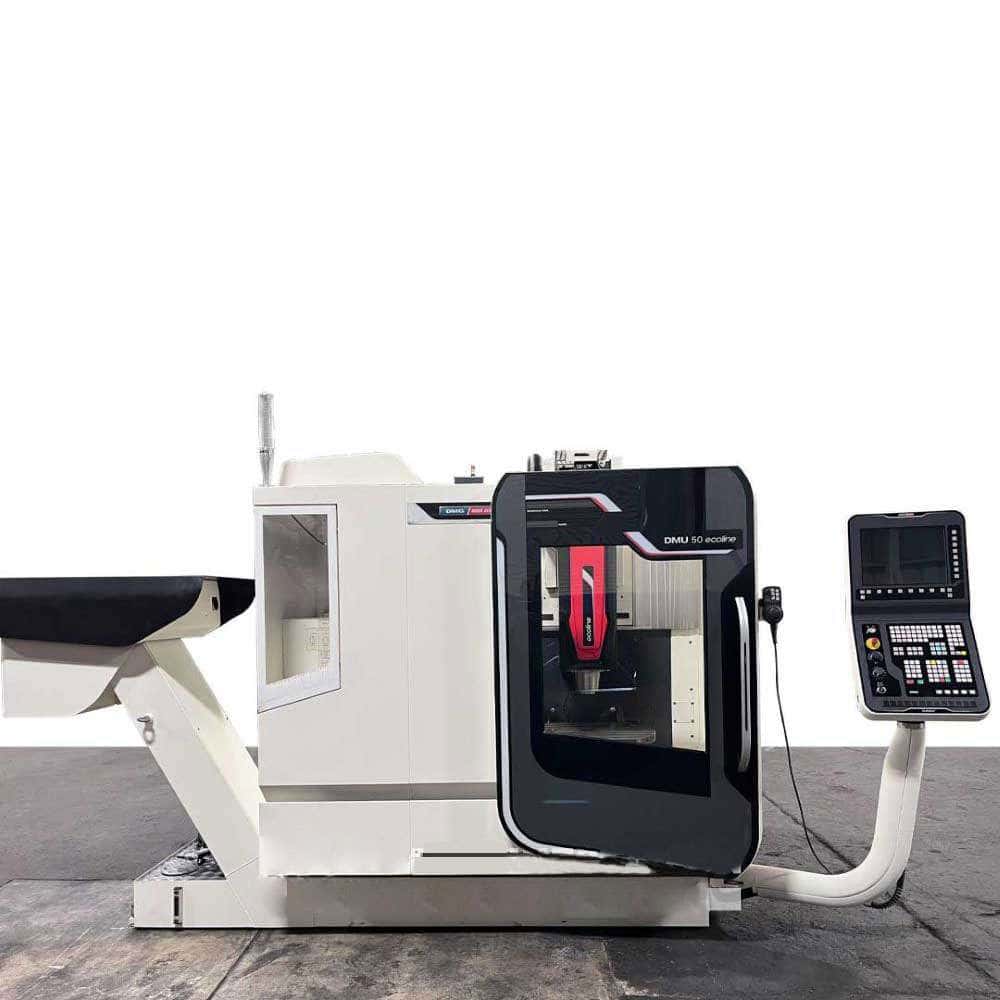

| Make: | DMG MORI SEIKI |

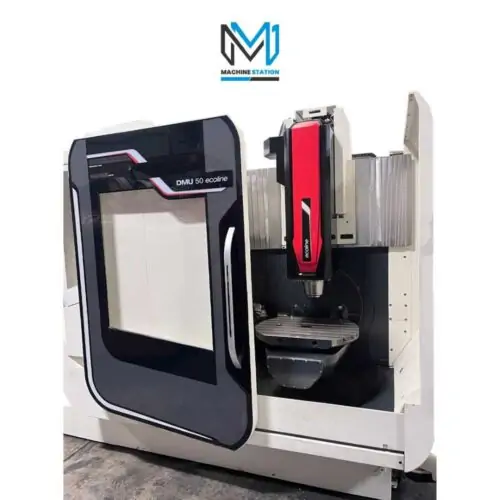

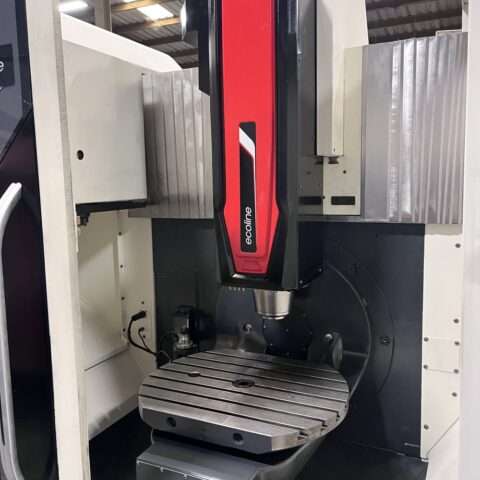

| Model: | DMU 50 ecoline |
| Year: | 2013 |
| Features: |
|---|

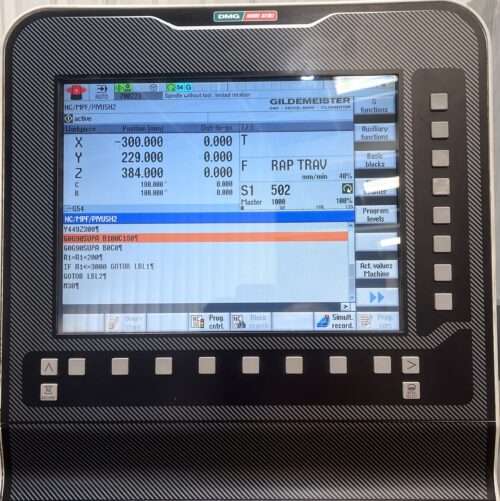

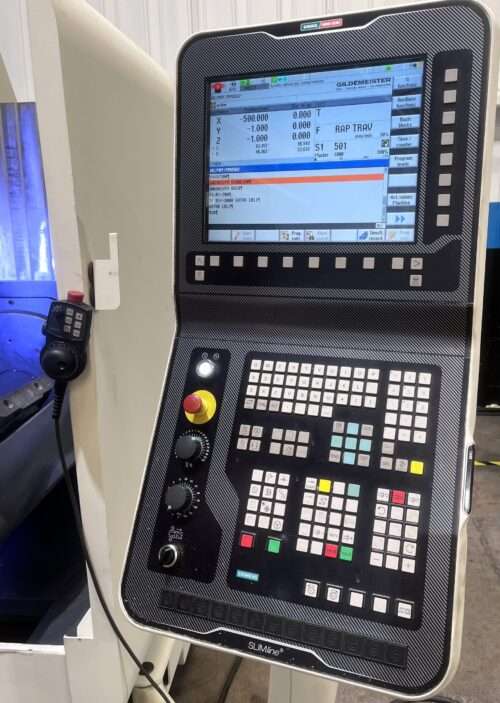

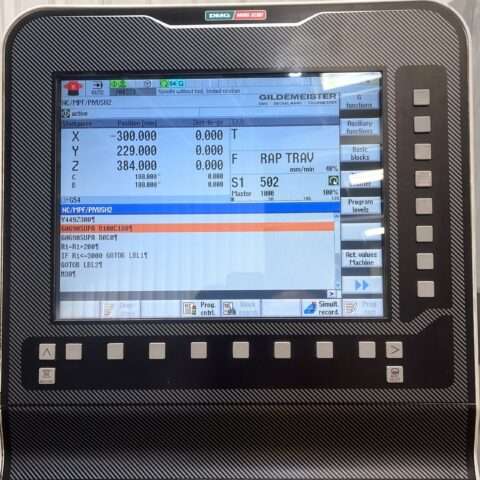

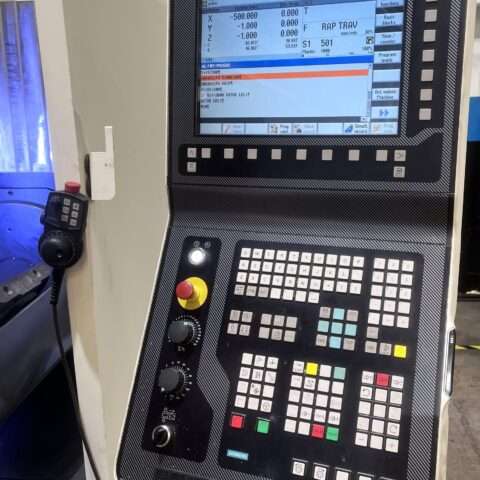

| Siemens 840D-SL CNC Control |

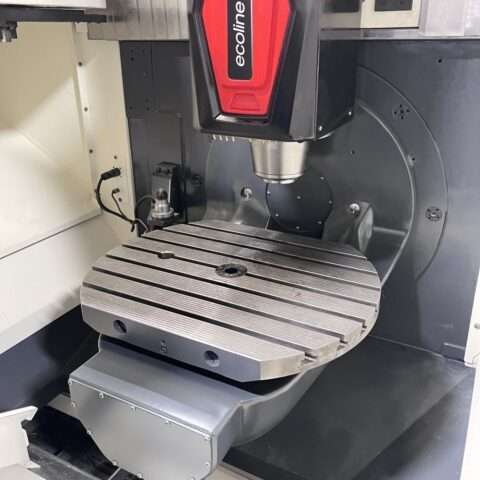

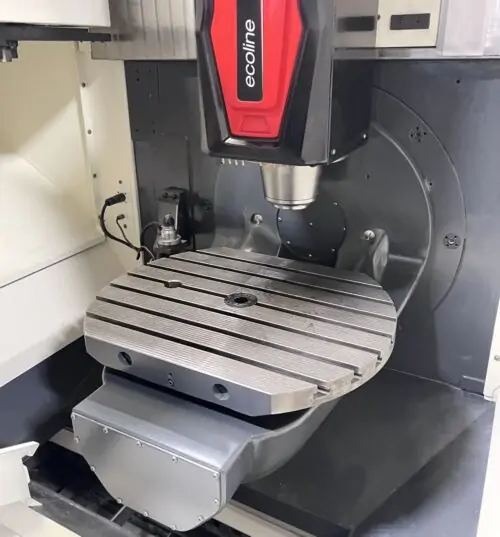

| ø 24.8″ × 19.7″ Trunnion Table |
| 8,000 RPM High Precision Spindle |
| Coolant through Spindle |

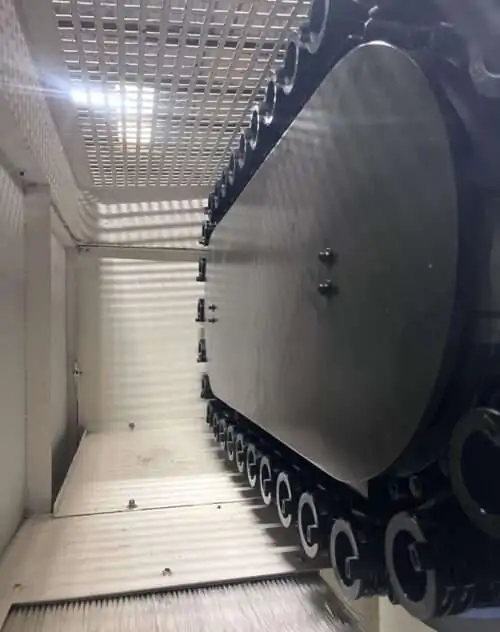

| 30 Station Automatic Tool Changer |
| Probe |
| Tool Presetter |
| Direct Scale Feedback |
| PCMCIA Card Slot |
| Thermal Compensation |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Coolant System |

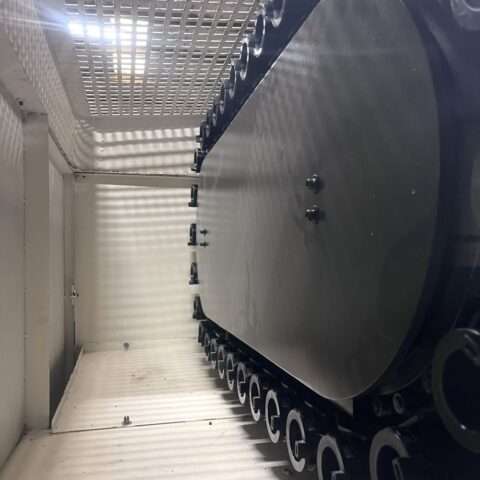

| Chip Removal Package |
| Chip Conveyor |
| Work light |
| Books and Manuals |
| Table: |
|---|

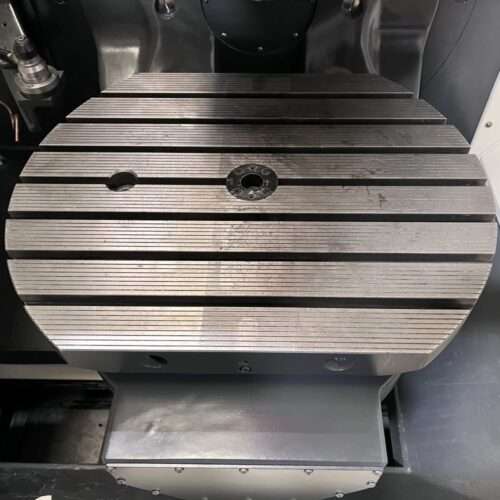

| Table size: ø 24.8″ × 19.7″ |
| Max. Height: 31.1″ |
| Max Weight on Table: 440.9 lbs |
| Travel: |
|---|
| X Axis: 19.7″ |
| Y Axis: 17.7″ |
| Z Axis: 15.7″ |
| B Axis: -5° +110° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Spindle: |
|---|

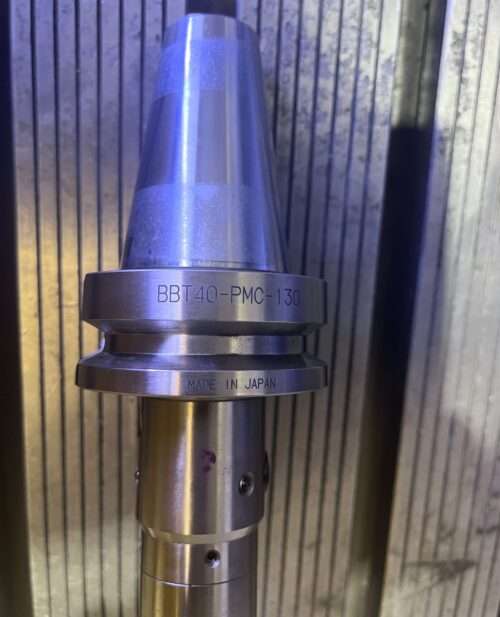

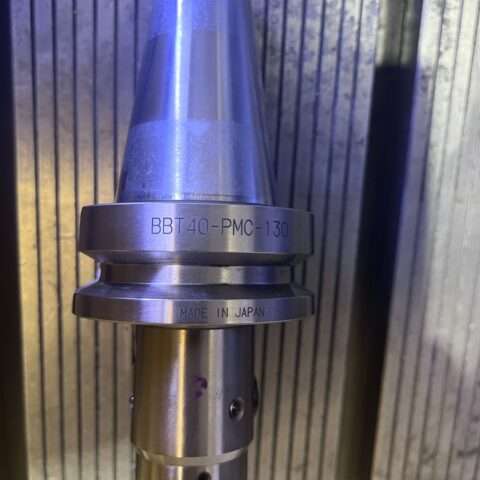

| Taper Size: BBT-40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 20 HP |
| Feed Rates: |
|---|
| Rapid X Y & Z: 945 Inch Per Minute |
| Feed Rate : 945 Inch Per Minute |
| Tool Changer: |
|---|
| Capacity: 30 Tools |
| Taper: BBT-40 |
| Max Tool Size: 3.1″ X 11.08″ |
| Max Tool Weight: 13.2 lbs. |
| Tool Change Time: 1.6 Second |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

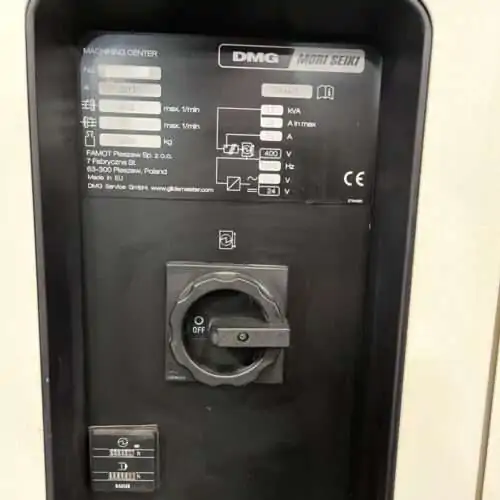

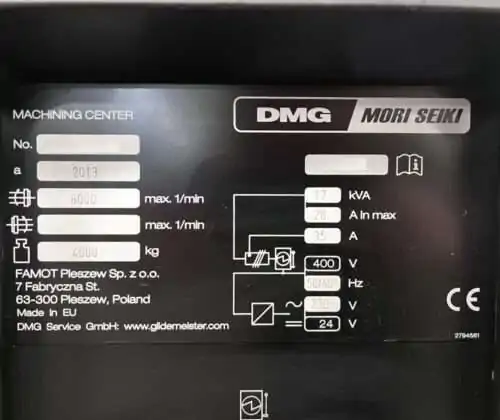

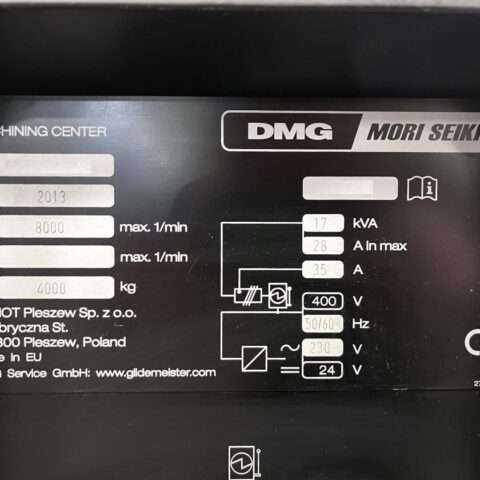

| Power: 17 kva / 220v / 3-Phase |
| Overall Dimensions: 216.5″ x 194.3″ x 99.6″ High |
| Weight: 8818 lbs |
