*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | MORI SEIKI |
| Model: | NL 2500/700 |
| Year: | 2008 |
| Condition: | Used – Good |
Specifications:

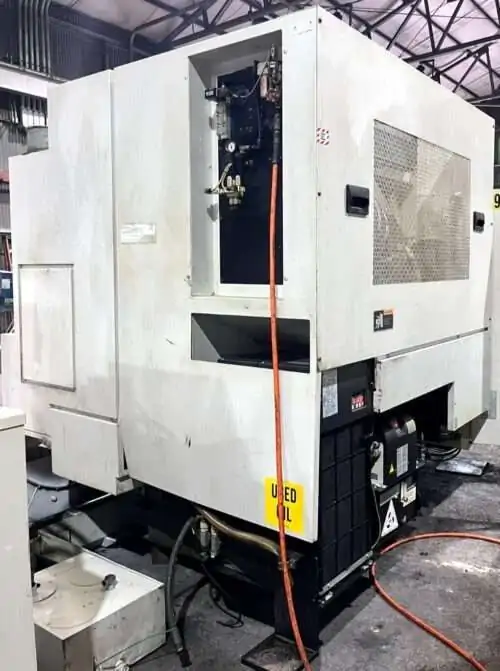

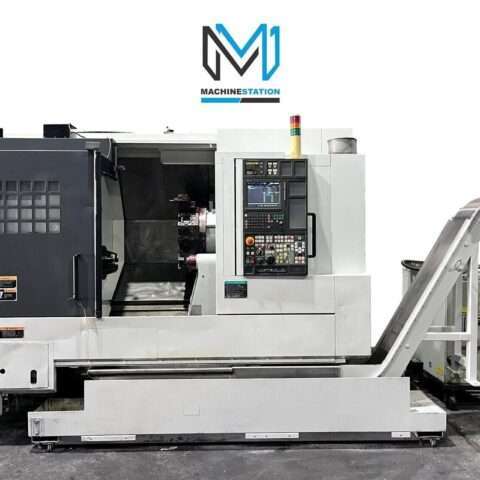

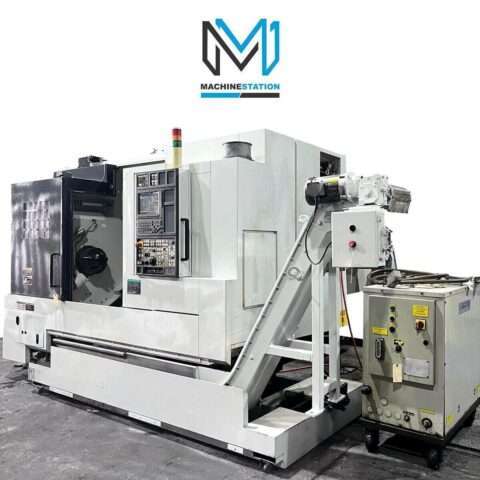

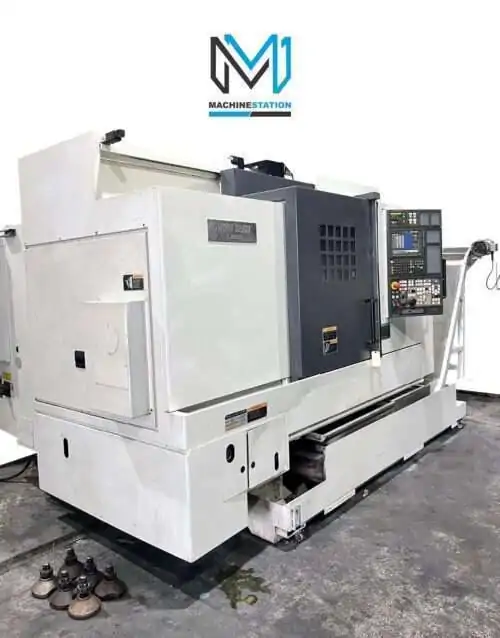

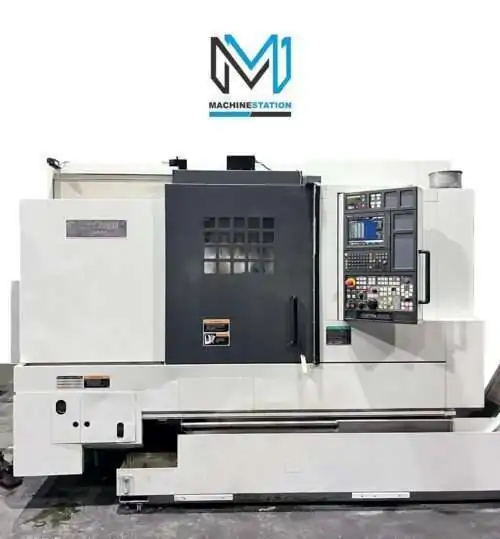

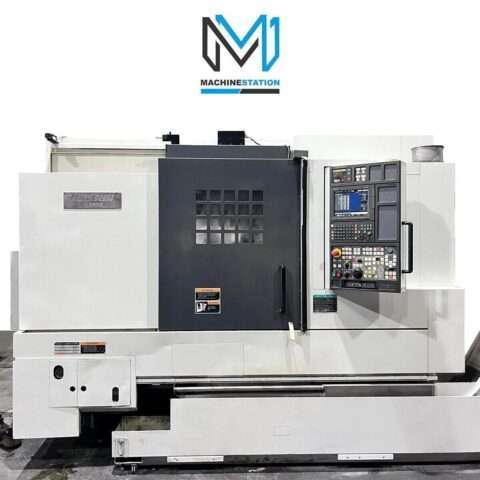

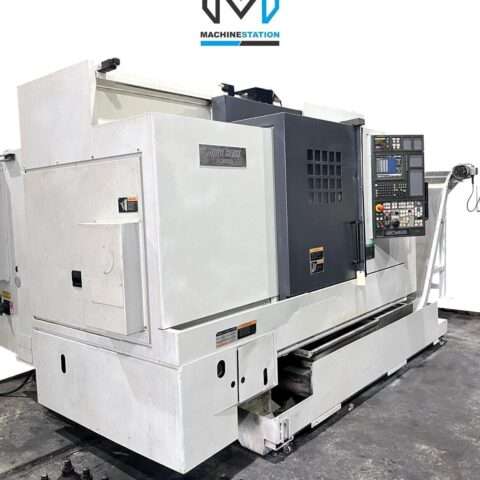

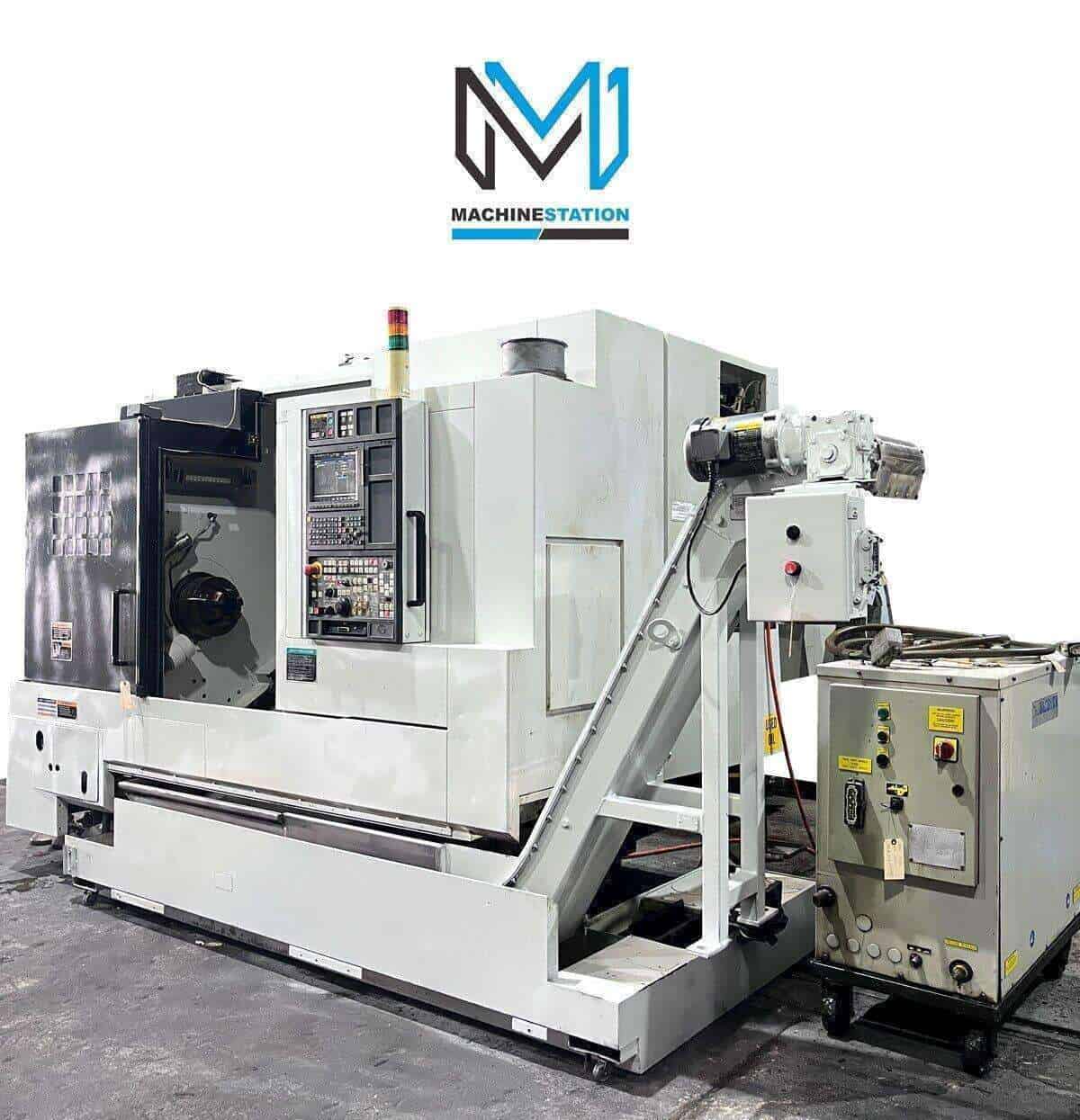

DMG Mori Seiki NL 2500/700 CNC Turning Center Equipped With:

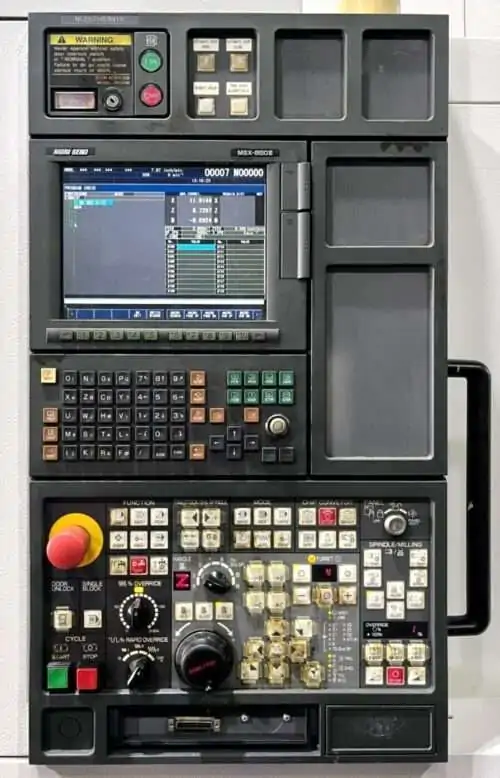

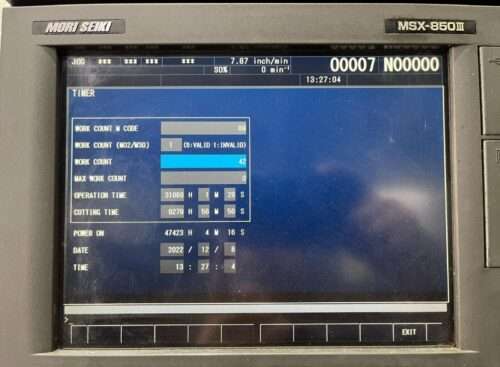

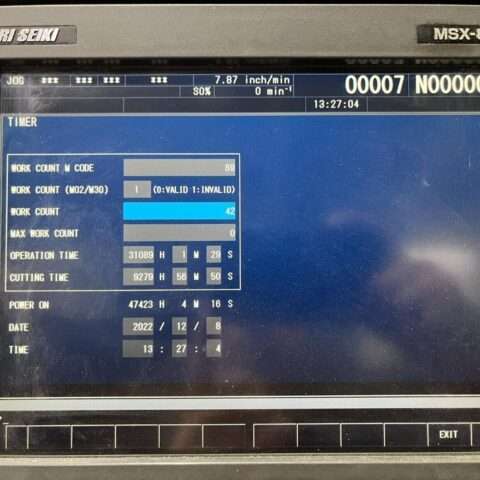

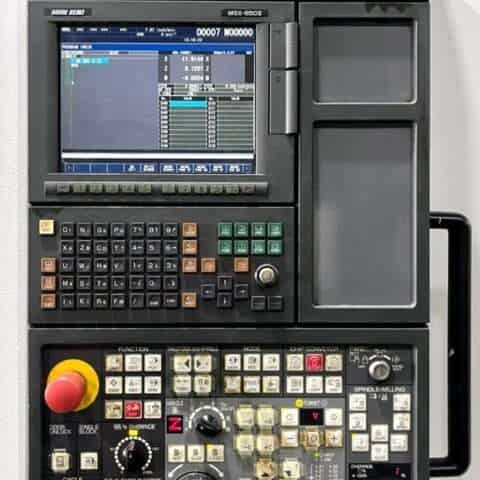

Mori Seiki MSX-850III CNC Control

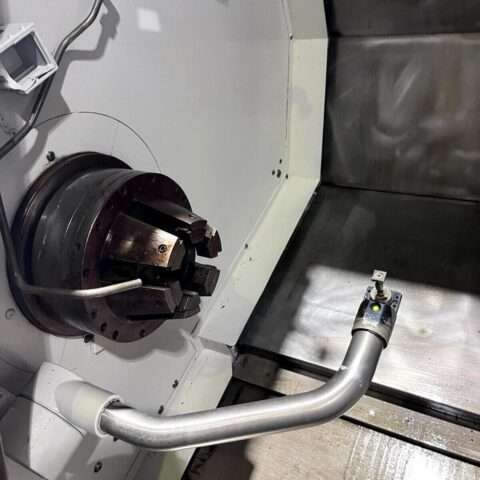

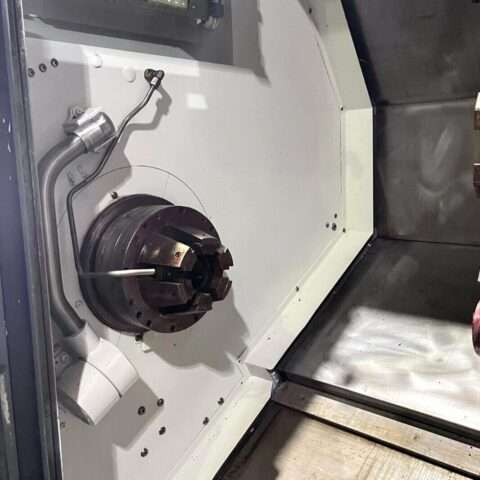

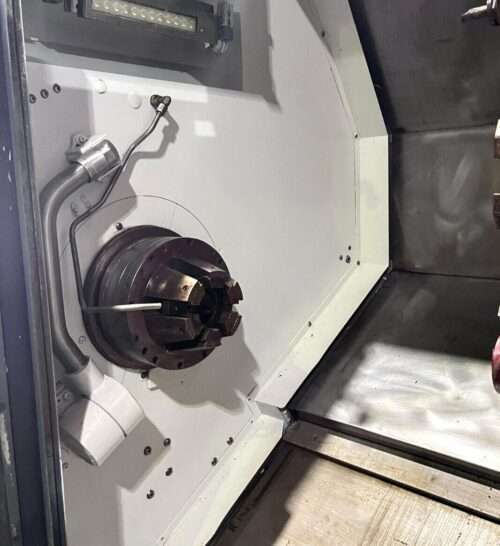

Hydraulic Collet Chuck (Capable 10″ Chuck)

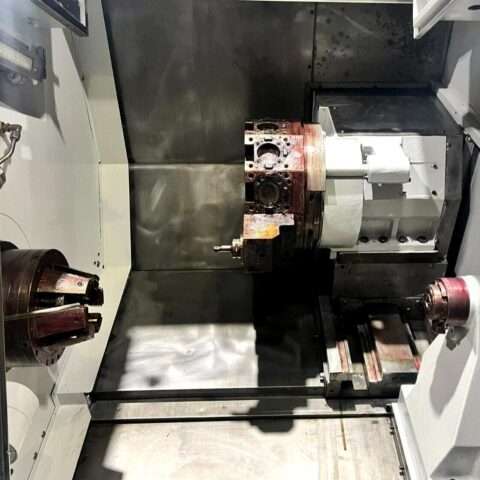

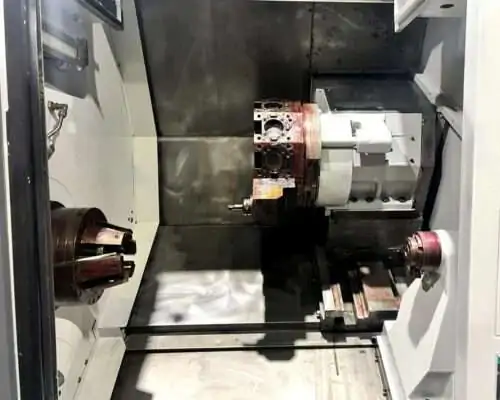

12 Station high speed Turret

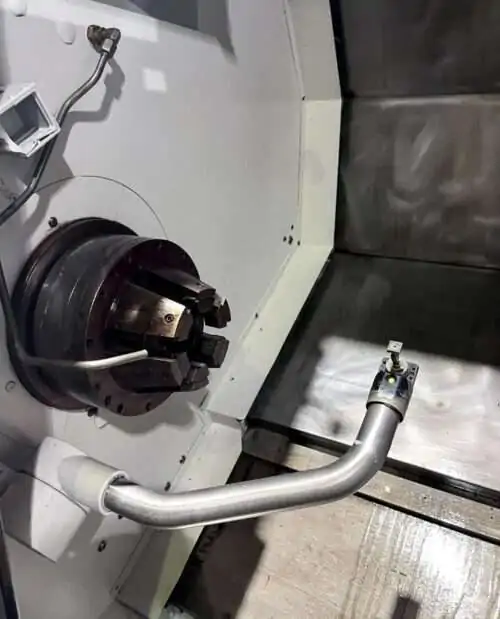

Tool Presetter
25 HP Spindle Power
PCMCIA Card Slot
RS-232

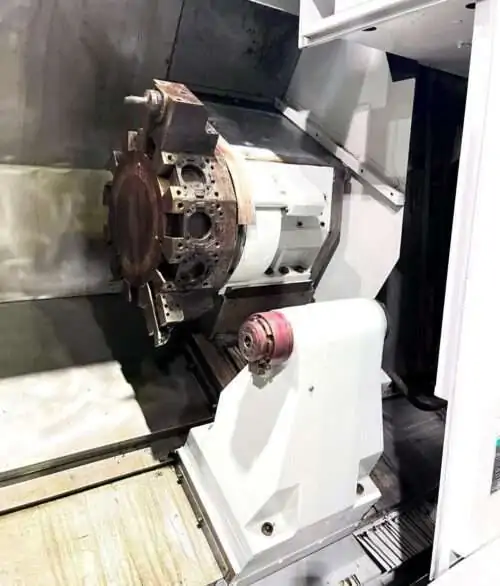

Programmable Tailstock

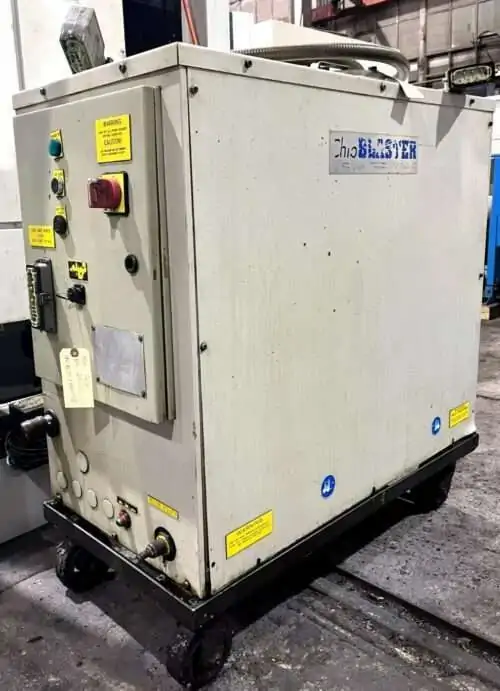

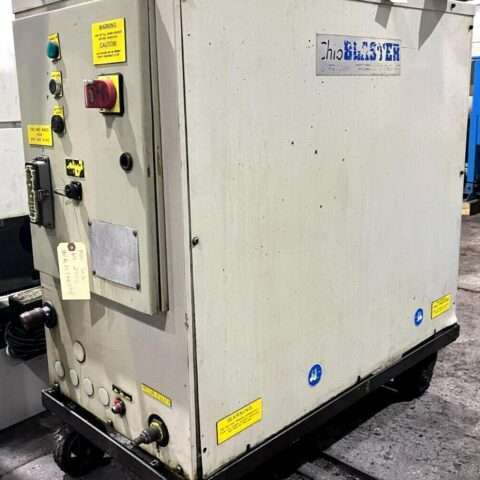

Chip Blaster
Rigid Tapping
Coolant System
Foot Switch

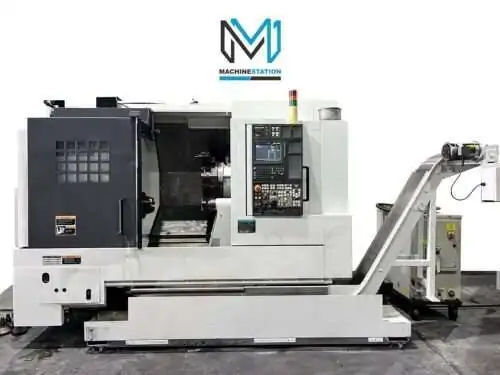

Chip Conveyor
DMG Mori Seiki NL 2500/700 CNC Turning Center Specifications:
Capacity:
Max Turning Diameter: 14.4″
Max Turning Length: 27.7″
Max Bar Capacity: 3.1″
Swing Over Bed: 23.2″
Distance Between Centers: 31.5″
Travel:
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP

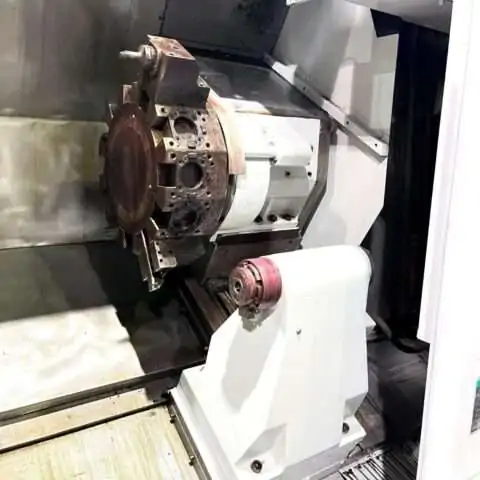

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tailstock:
Tailstock Body Travel: 28.8″
Tailstock Quill Dia.: 3.34″
Tailstock Quill Stroke: 3.1″
Tailstock Taper: MT-4
General:

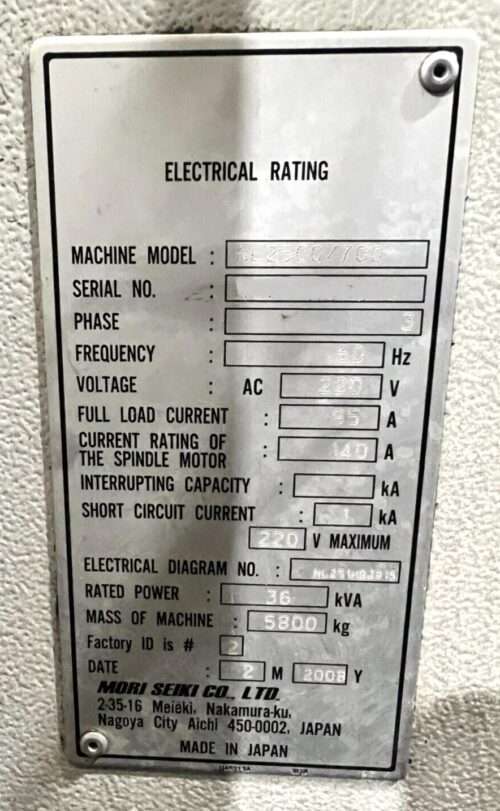

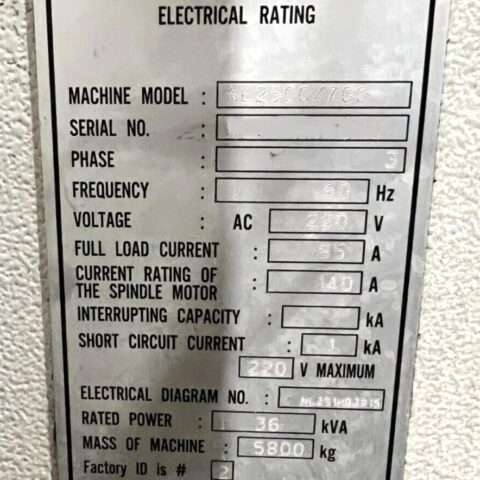

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 36 kva
Overall Dimensions: 156.7″ x82.9 ″ x 86.6″ High With Chip Conveyor
Weight : 12,786 lbs Approx.
“No Charges for loading at list Price”
