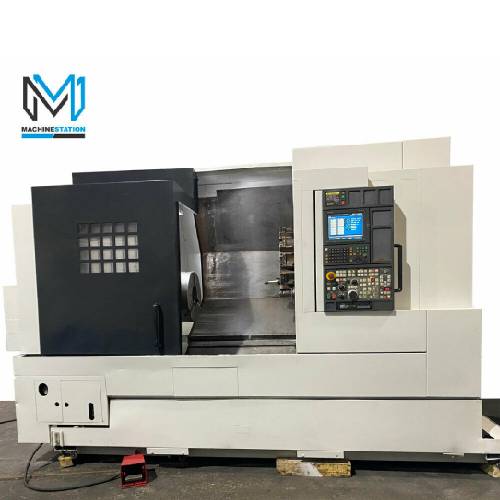

DMG Mori Seiki NL-3000/700 CNC Turning Center

$59,400.00

Share

Description

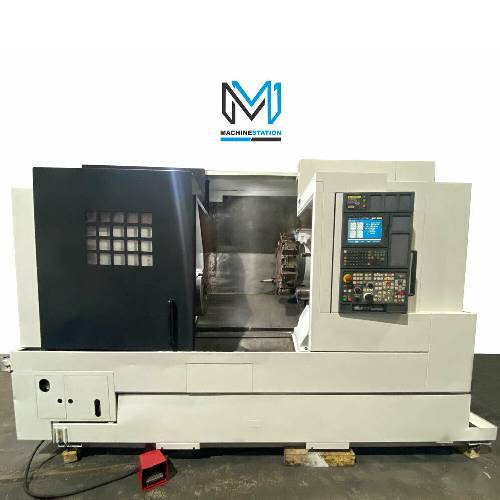

DMG MORI SEIKI NL-3000/700 CNC TURNING CENTER 15″ CHUCK LATHE
SKU 2202
Make Mori Seiki
Model No. NL-3000/700
Serial # NL301FE0505
Year 2006/2008
Cutting Time: 2795 Only
Condition: Very Good
  • Equipped With:

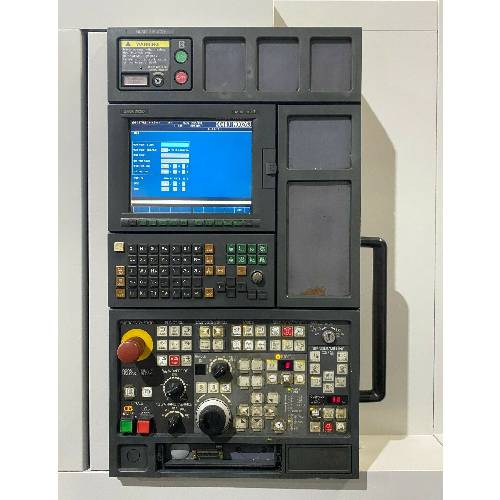

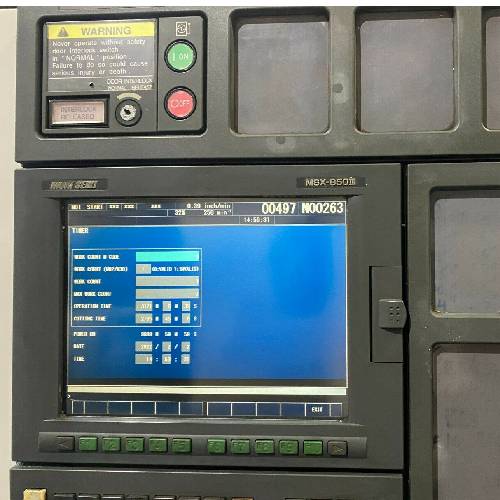

  • Mori Seiki MSX-850III CNC Control
  • 3.5″ Big Bore

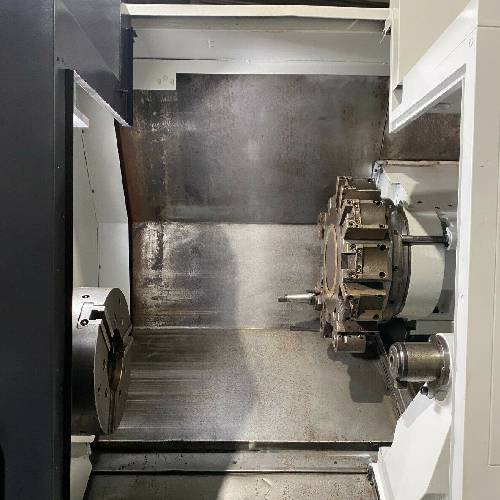

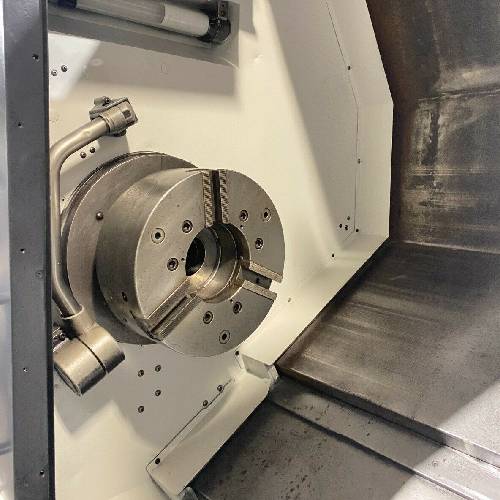

  • 15″ Hydraulic Chuck with 7″ Bore

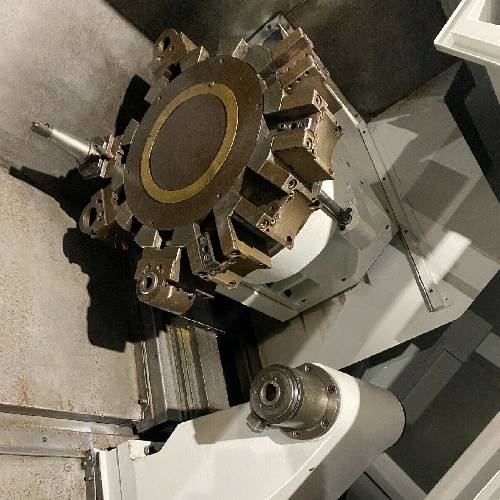

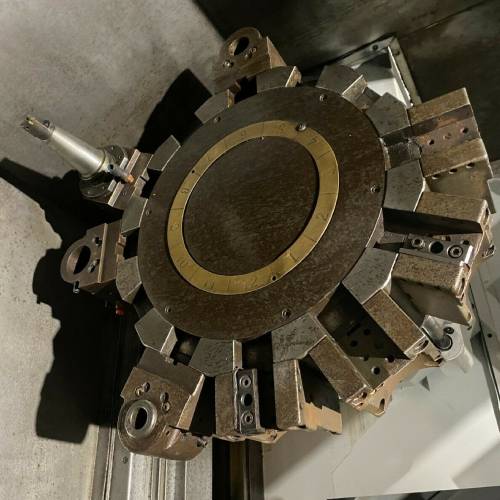

  • 12 Station high speed Turret
  • Tool Presetter
  • 50 HP Gearbox Spindle
  • PCMCIA Card Slot
  • RS-232
  • Programmable Tailstock
  • Rigid Tapping
  • Coolant System
  • Foot Switch
  • Chip Conveyor
  • Specifications:
  • Max Turning Diameter: 24.4″
  • Max Turning Length: 34.10″
  • Max Bar Capacity: 7.28″
  • Swing Over Bed: 28.8″
  • Distance Between Centers: 43.5″
  • Travel:
  • X Axis Travel: 13.58″
  • Z Axis Travel: 39.2 ”
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 944 IPM
  • Spindle:
  • Spindle Nose: A2-15
  • Spindle Bore:7.99″
  • Spindle Speed: 1500 RPM
  • Spindle Motor: 50/40 HP
  • Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 1 Second
  • Tailstock:
  • Tailstock Body Travel: 33.46″
  • Tailstock Quill Dia.: 4.33″
  • Tailstock Quill Stroke: 5.90″
  • Tailstock Taper: MT-5
  • General:

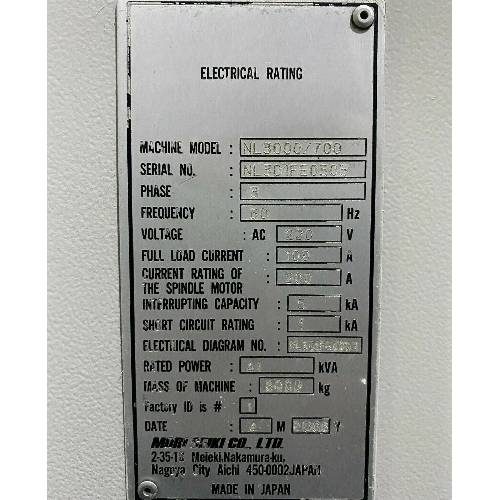

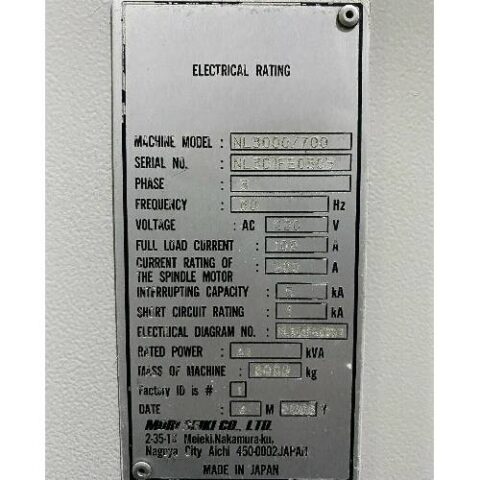

  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 45 kva
  • Overall Dimensions: 136″ x 74″ x 98″ High
  • Overall Dimensions: 180″ x 74″ x 98″ High with Conveyor
  • Weight : 14000 lbs Approx.

“No Charges for loading at list Price”
