*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 105160 |

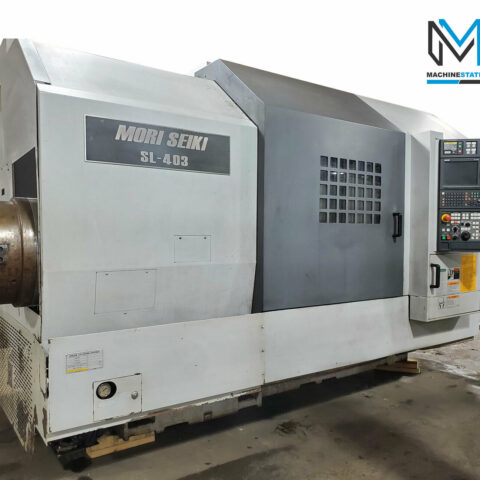

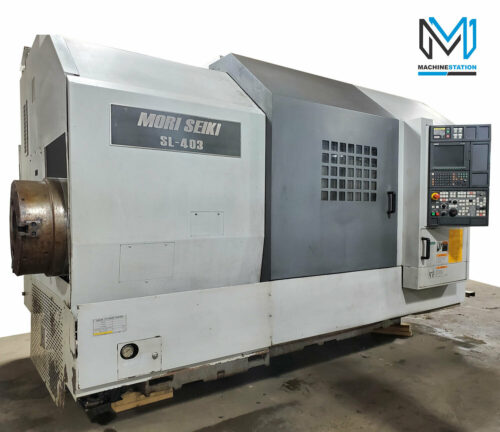

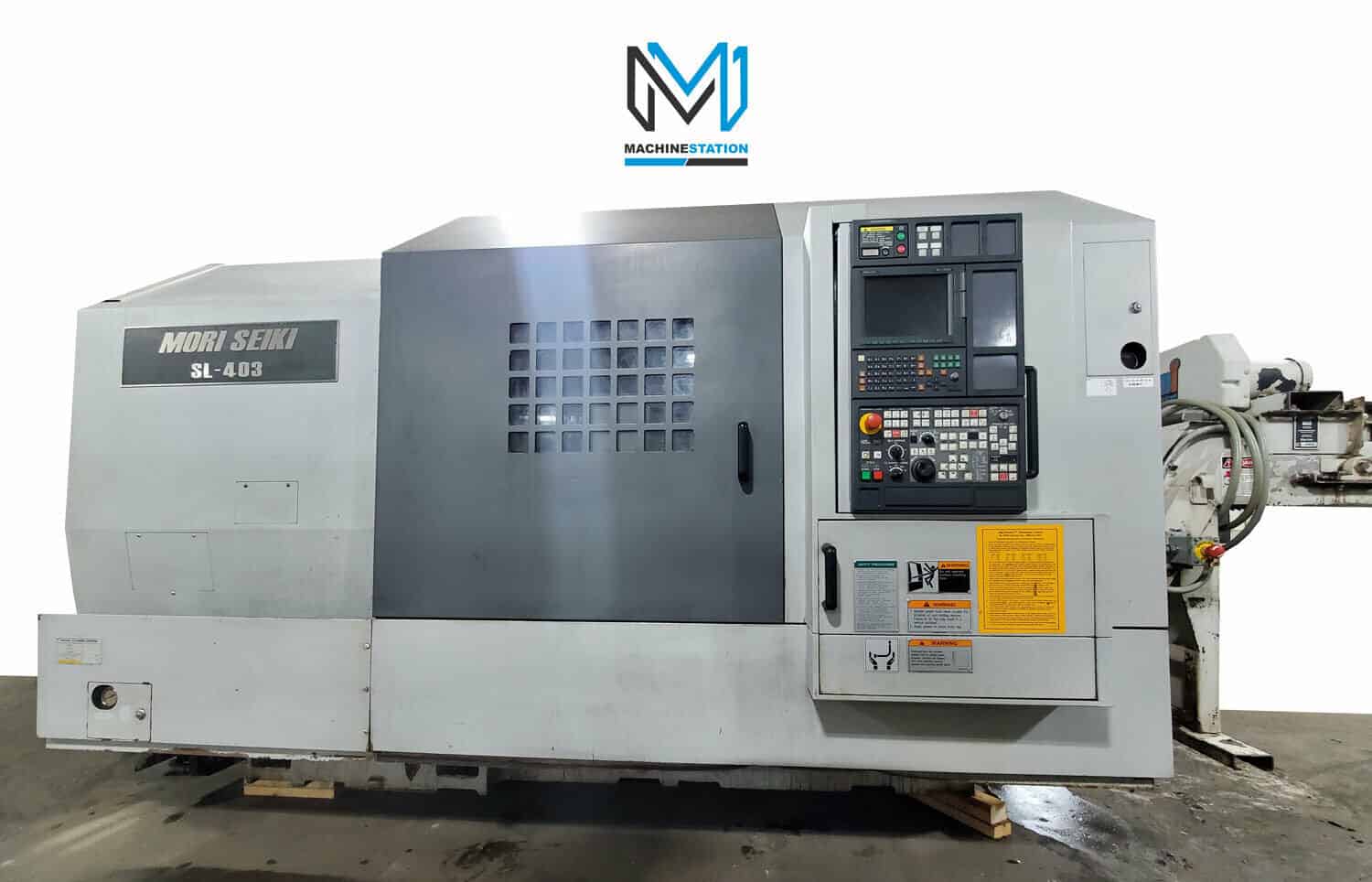

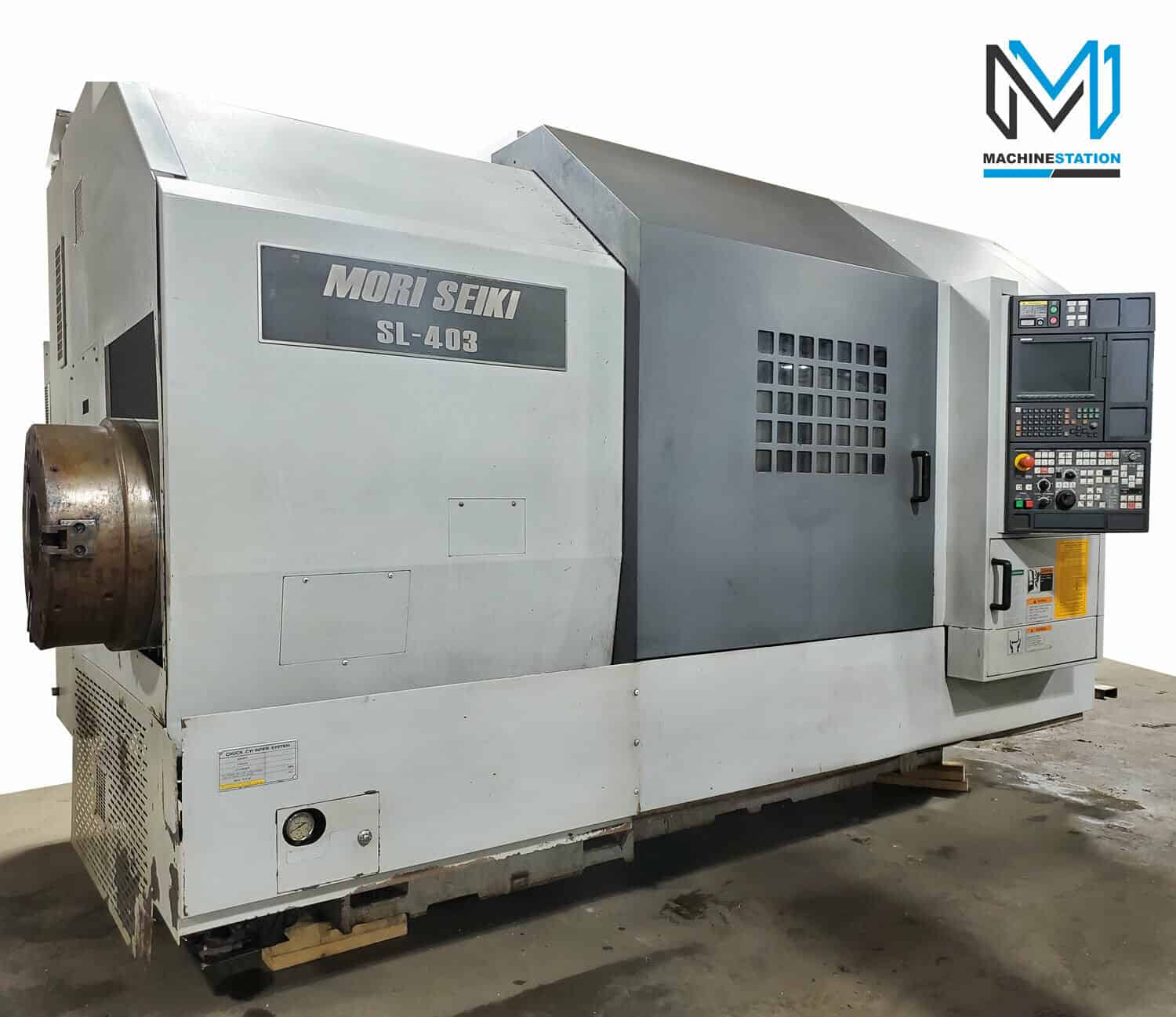

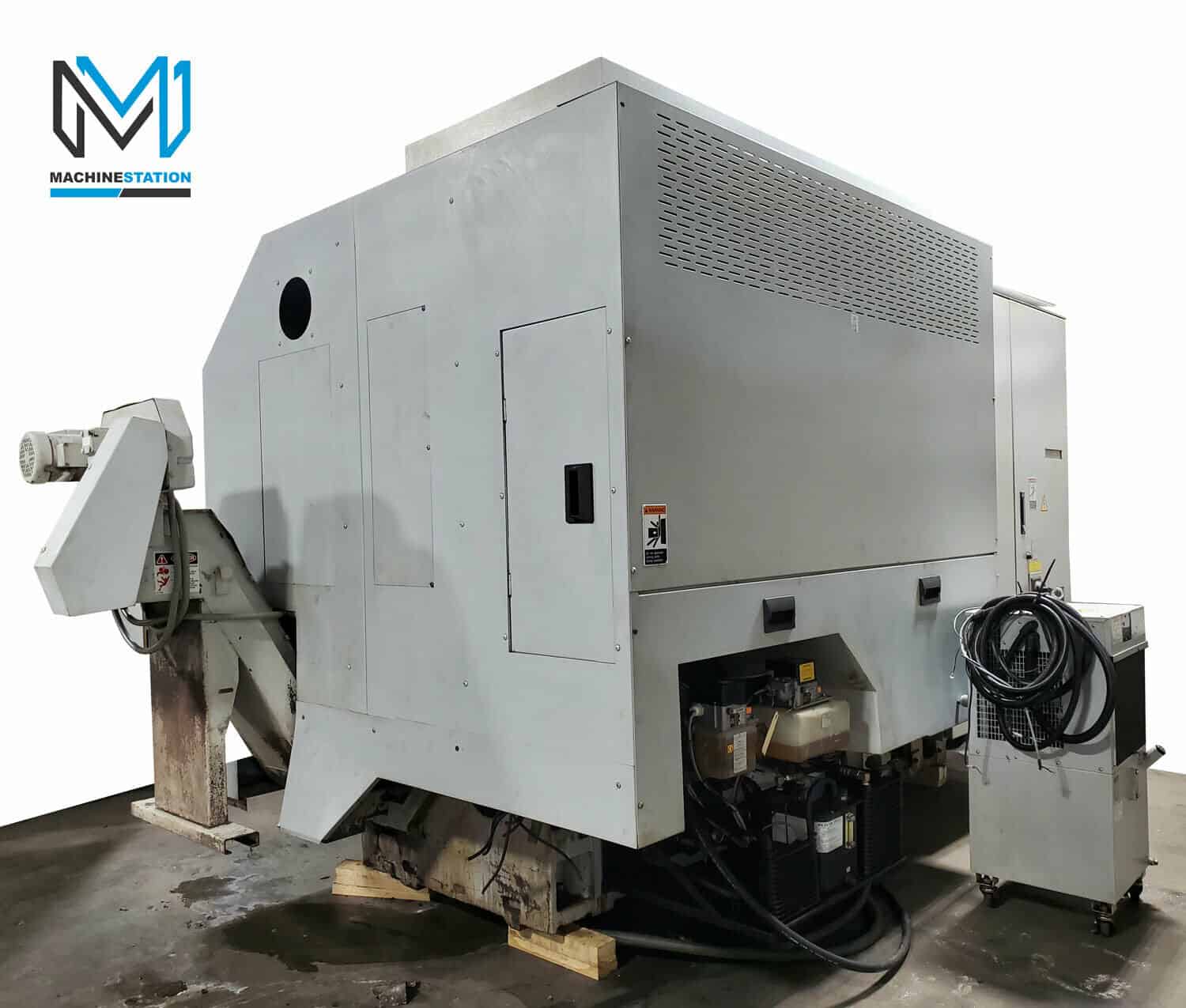

| Make: | DMG Mori Seiki |
| Model: | SL-403C/800 |
| Condition: | Used-Good |
| Equipped With: |
|---|

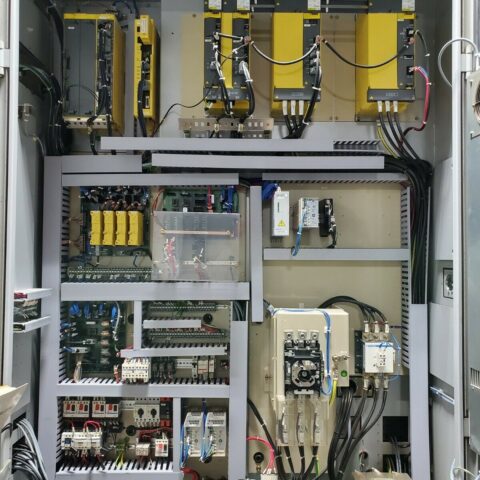

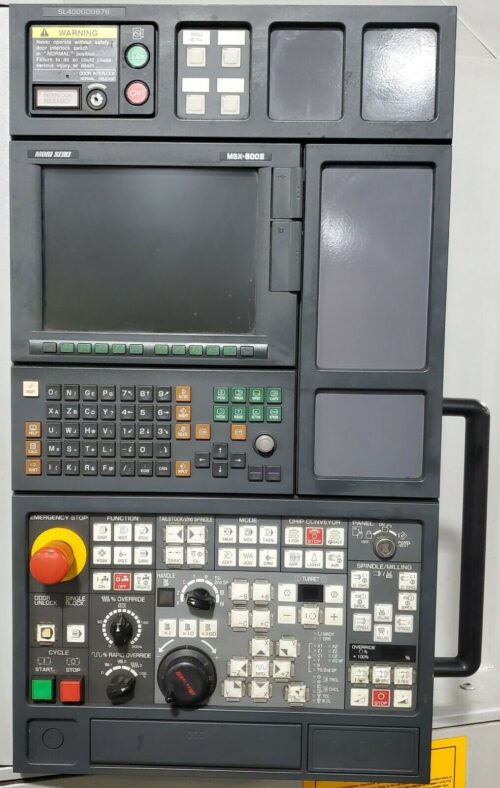

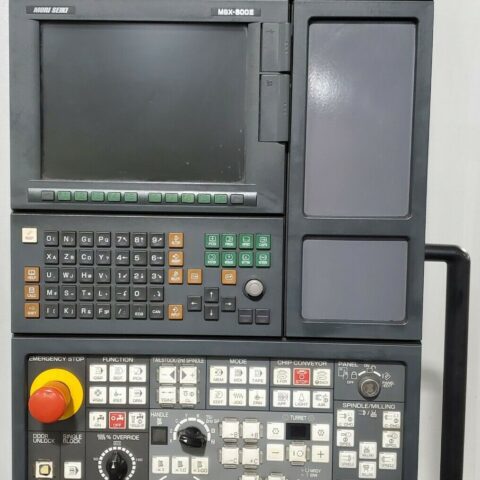

| Mori Seiki MSG-501 CNC Control |
| A2-15 Spindle with 7.3″ Bore |

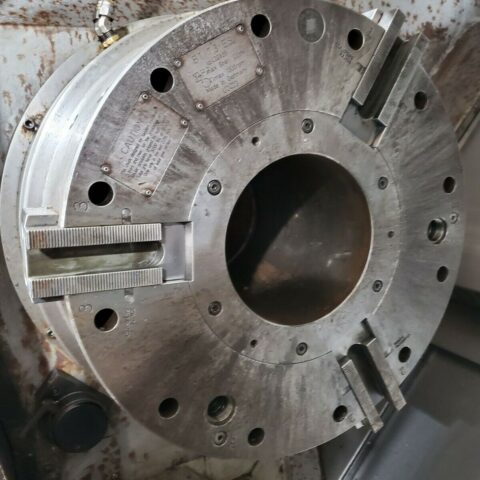

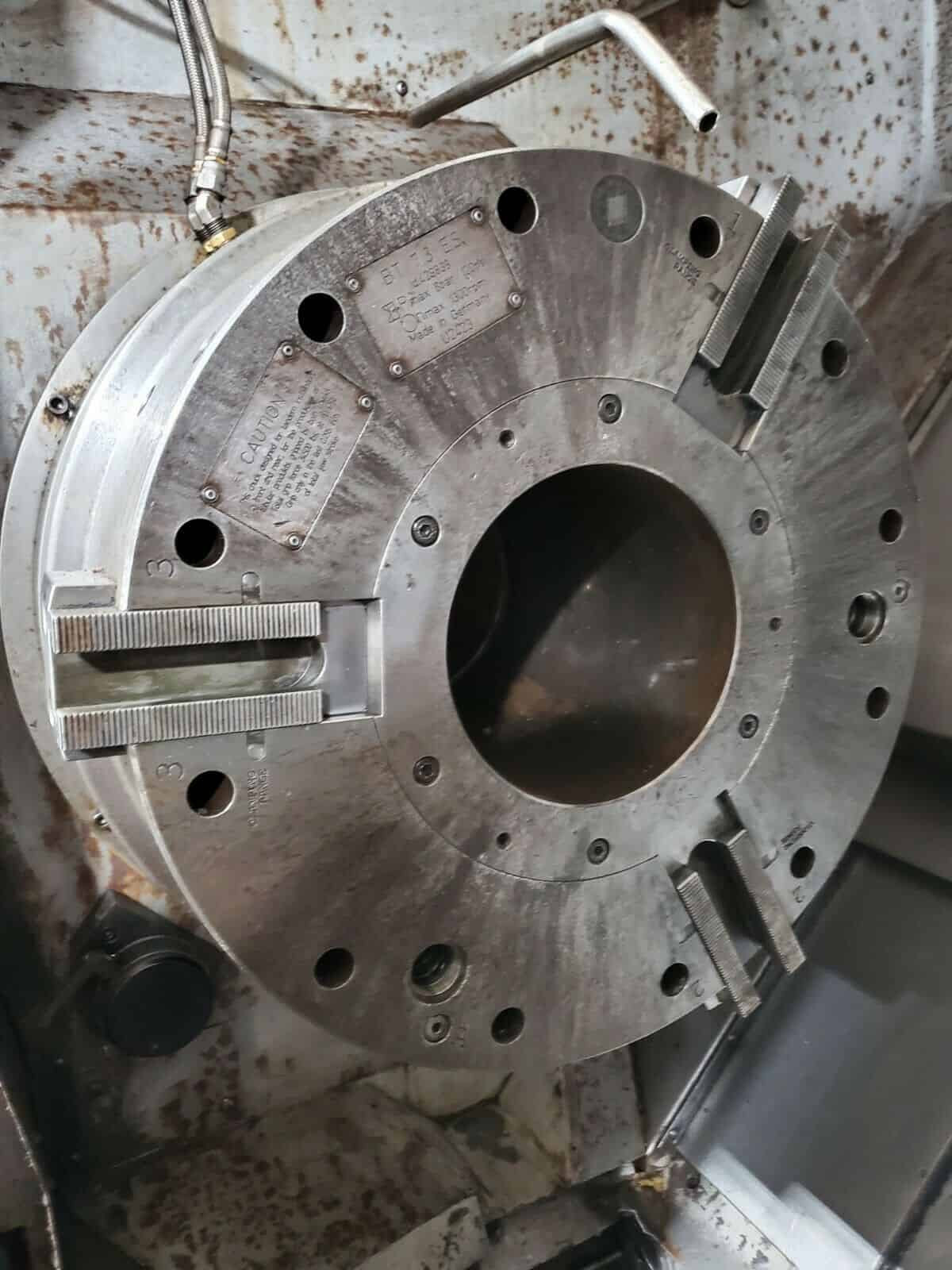

| Front 24″ Big Bore German Chuck |
| Rear 24″ Big Bore German Chuck |

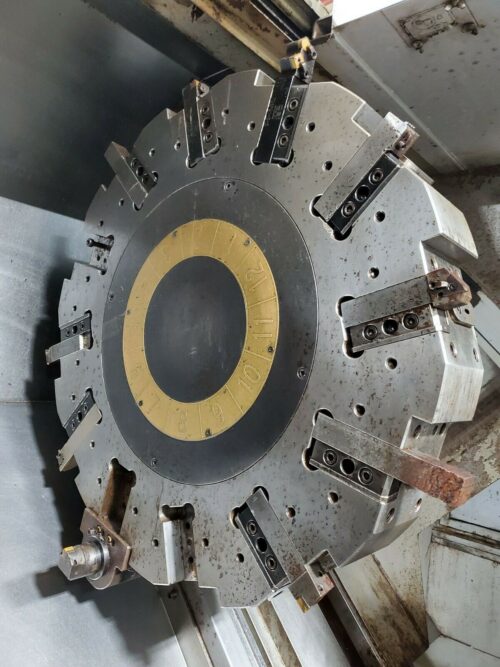

| 12 Station high speed Turret |

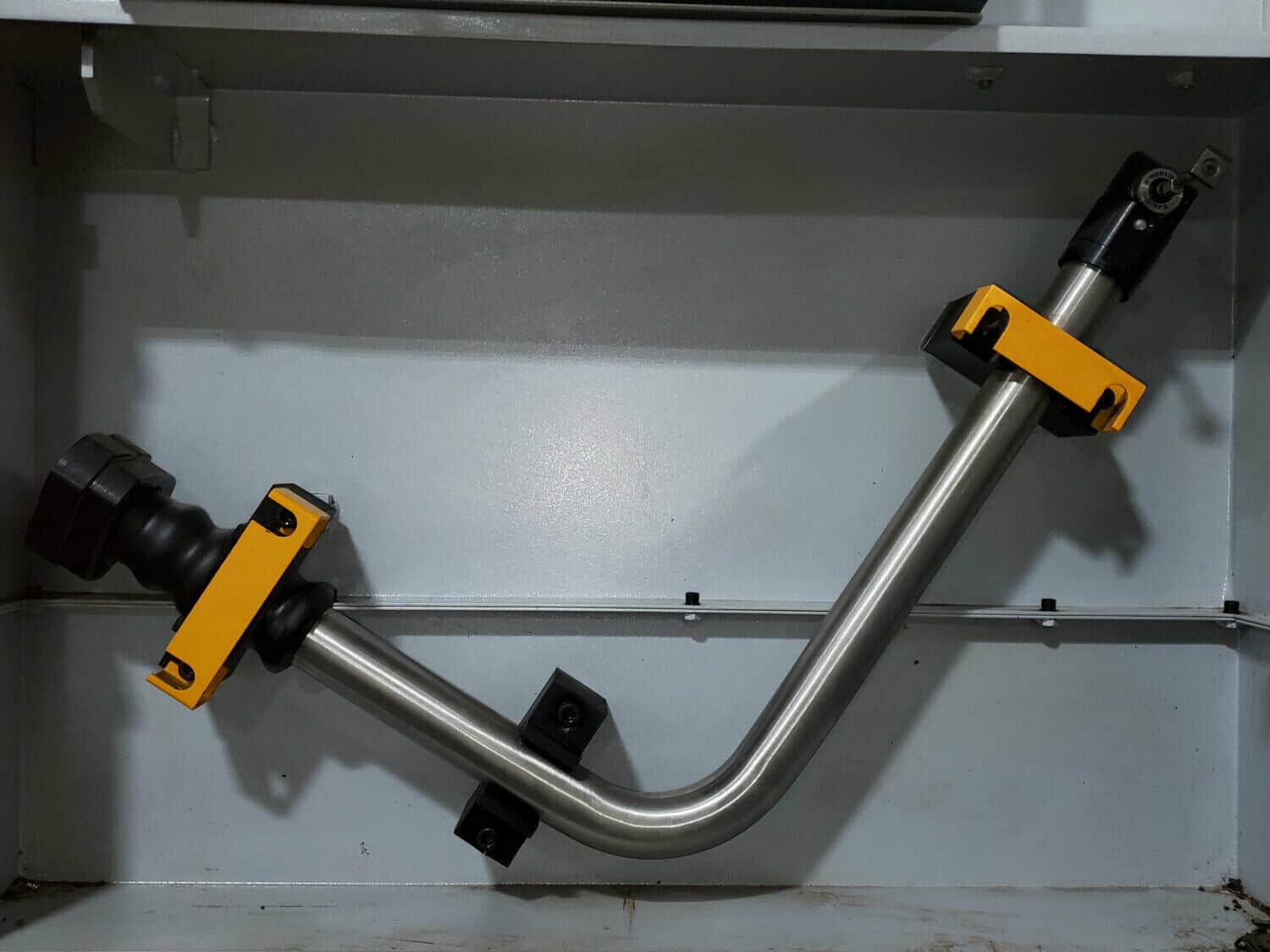

| Tool Presetter |
| 60/50 HP Gearbox Spindle |
| PCMCIA Card Slot |
| USB Drive |
| Programmable Tailstock |
| Rigid Tapping |
| Coolant System |
| Foot Switch |

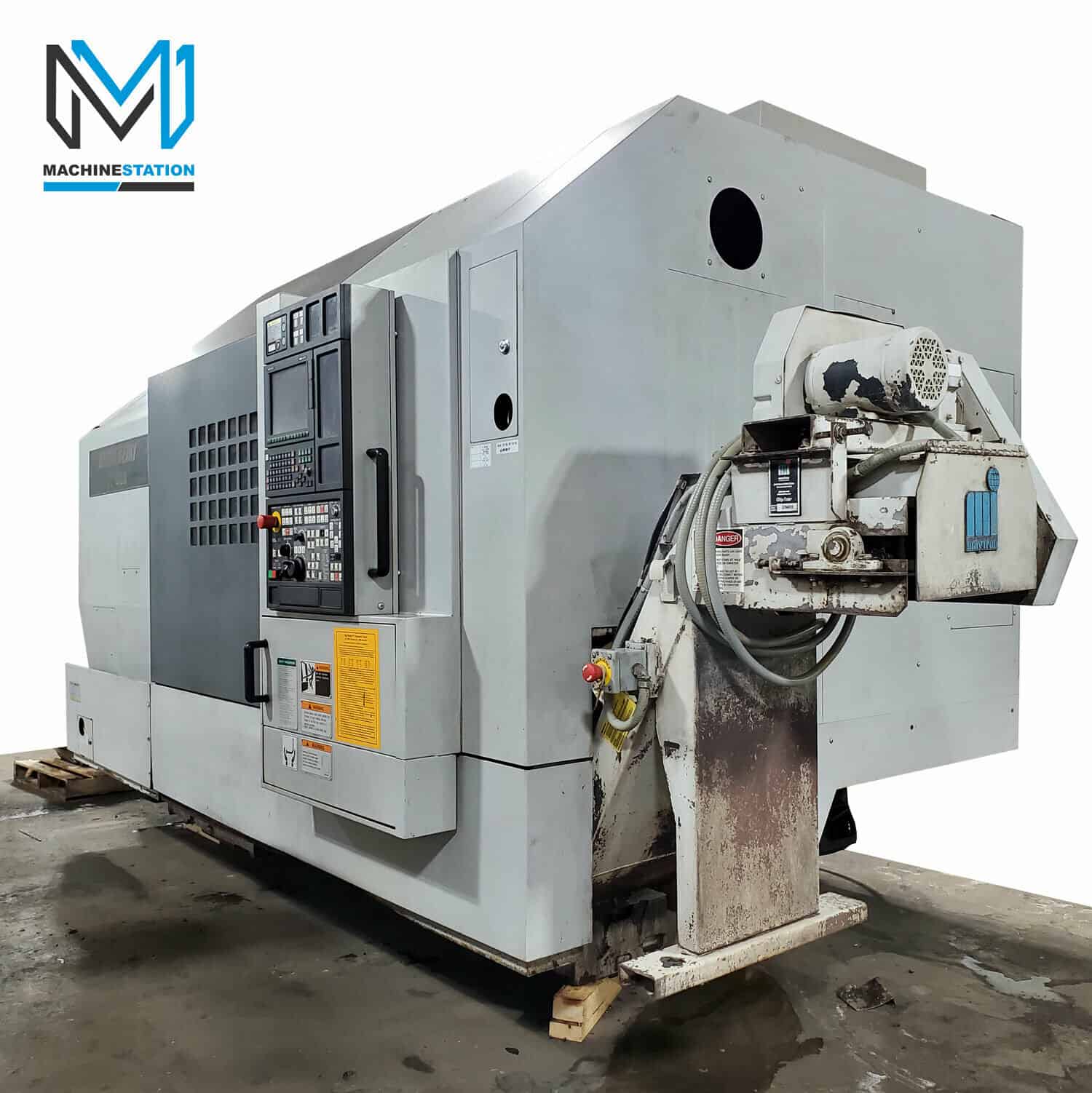

| Chip Conveyor |
| Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 24.4″ |
| Max Turning Length: 34.10″ |
| Max Bar Capacity: 7.28″ |
| Swing Over Bed: 28.8″ |
| Distance Between Centers: 43.5″ |
| Travel: |
|---|
| X Axis Travel: 13.58″ |
| Z Axis Travel: 39.2 ” |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 944 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Bore:7.99″ |
| Spindle Speed: 1500 RPM |
| Spindle Motor: 50/40 HP |

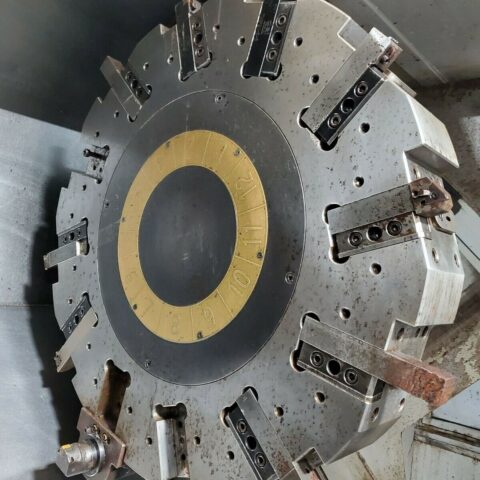

| Turret: |
|---|

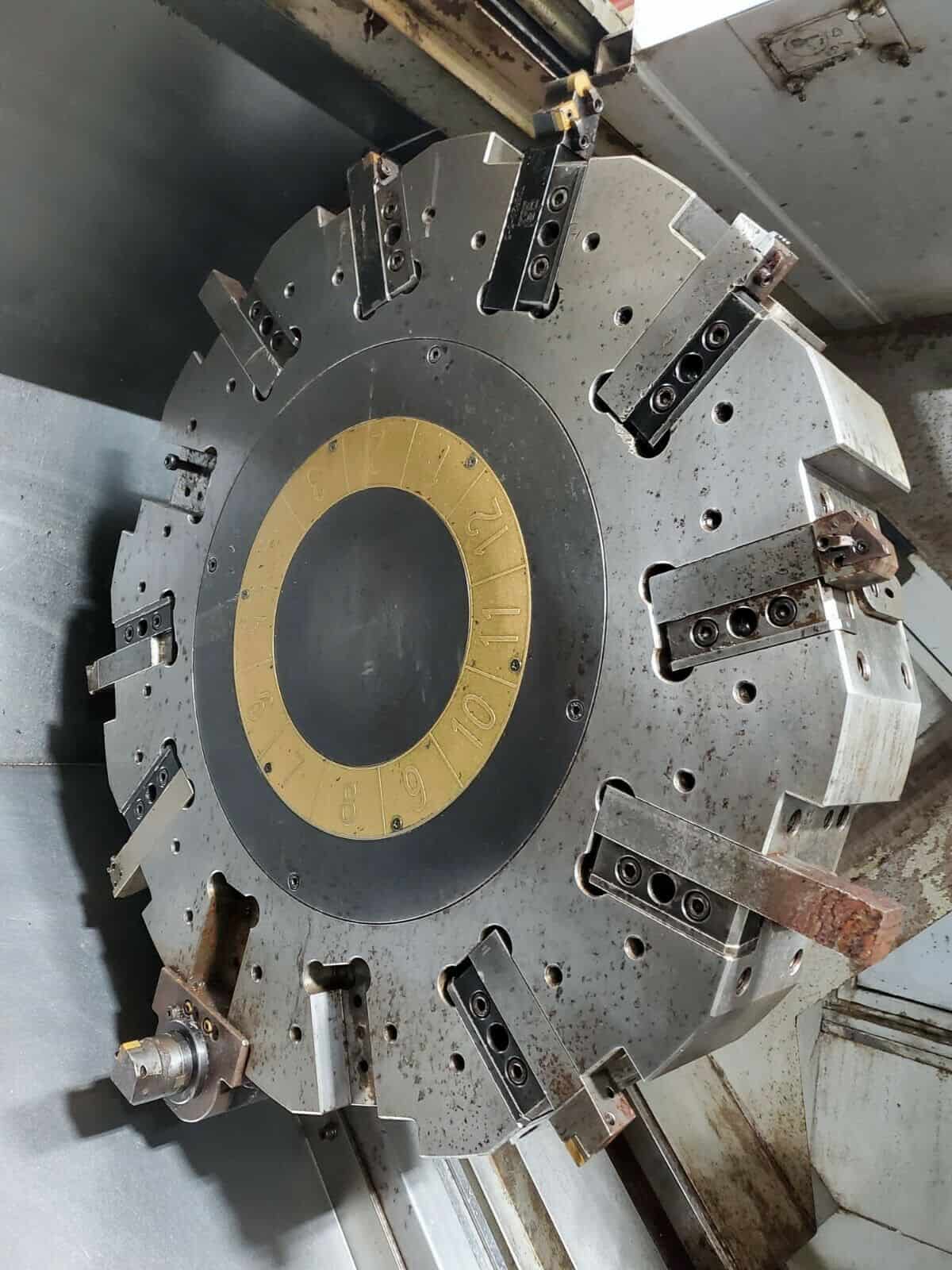

| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 33.46″ |
| Tailstock Quill Dia.: 4.33″ |
| Tailstock Quill Stroke: 5.90″ |
| Tailstock Taper: MT-5 |
| General: |
|---|

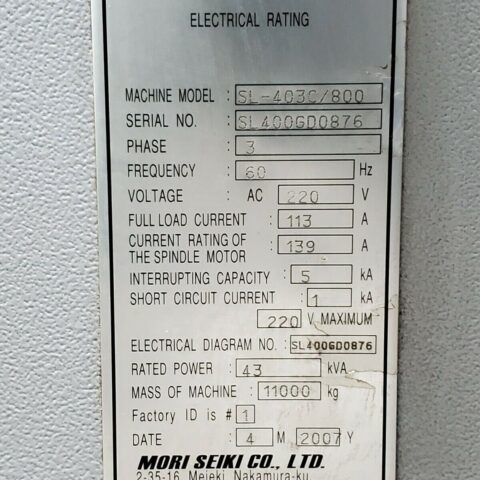

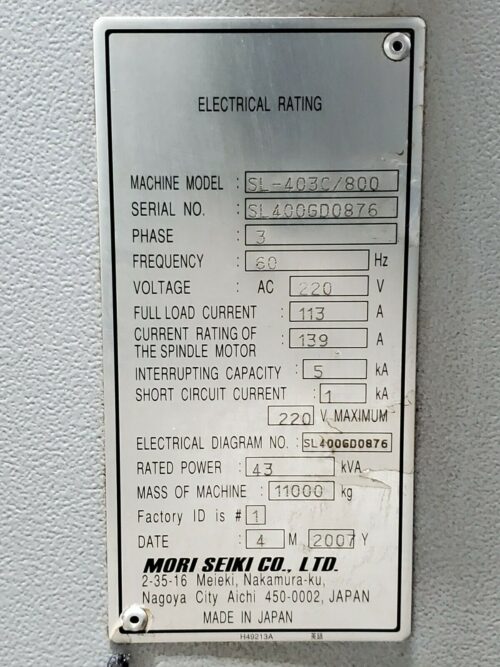

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 43 kva |
| Overall Dimensions: 195″ x 114″ x 95.6″ High |
| Weight : 24,200 lbs Approx. |
