Doosan Daewoo DMV 3016L VMC

Out of stock
SKU: 1284
Make/Model: Doosan DMV 3016L
Video: [fusion_button link=”https://www.youtube.com/watch?v=R4ISaMf1iv4″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



Compare
SKU: 1284
DOOSAN DAEWOO DMV 3016L VMC
Make Doosan
Model No. DMV 3016L
Year of Manufacture: 2006/02
Serial # NM4100369
Condition Very Good
Cutting Hours: 5668 Cutting Hours Only
  • DOOSAN DAEWOO DMV 3016L EQUIPPED WITH:
  • Fanuc Oi-MB CNC Control
  • 10.4″ Color LCD
  • Flash Card Slot PCMCIA
  • CAT – 40 Spindle
  • High precision 8,000 RPM Spindle
  • 24 Tools Side Mount Tool Changer
  • Portable Manual Pulse Generator
  • Powerful 15hp high torque spindle motor
  • Spindle Orientation
  • Rigid Tapping
  • Custom Micro B (User Definable)
  • Fast 1,181 IPM Rapid Traverse Rate
  • Base Flush Chip Disposal
  • Flood coolant with large separate coolant tank
  • Work light
  • Flood Coolant System
  • All Books and Manuals
  • DOOSAN DAEWOO DMV 3016L Specifications:
  • Travels:
  • X-Axis: 30.0″
  • Y-Axis: 16.1″
  • Z-Axis: 20.1″
  • Spindle Nose to Table (Min.- Max.): 5.9″ – 26″
  • Spindle Center to Column: 17.7″
  • Table:
  • Length: 36.22″
  • Width: 17.7″
  • Max Weight on Table: 1320 lbs
  • Spindle:
  • CAT Taper Size: 40
  • Speed Range: 60 – 8000 RPM
  • Spindle Power: 7.5/11 kw
  • Feed rates:
  • Rapid X & Y: 1417 inch/Per Min.
  • Rapid Z: 1260 inch/Per Min.
  • Cutting Feedrate: .04″ – 315″ inch/ Per Min.
  • Automatic Tool Changer:
  • CAT 40 Taper
  • Capacity: 24
  • Tool Changing Time: 1.5 seconds
  • Max Tool Weight: 18 lbs
  • Max Tool Length: 11.81″
  • Max Tool Dia.: 3.5″/5.90″
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 205-235v / 66FLA / 3-Phase, 36 Kva
  • Overall Dimensions: 130″ x 105″ x 110″ High
  • Weight: 12,000 lbs Approx.

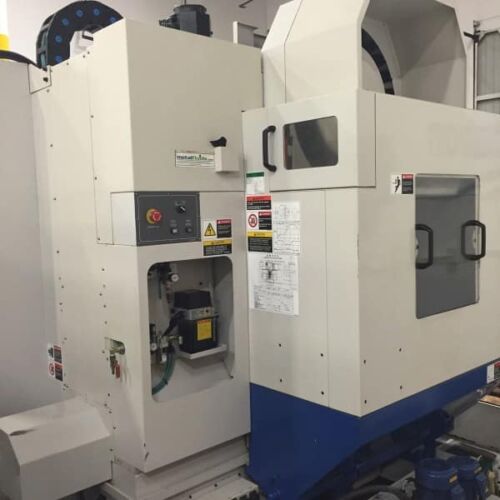

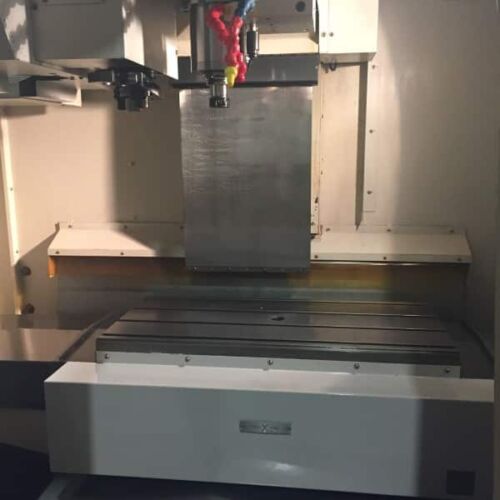

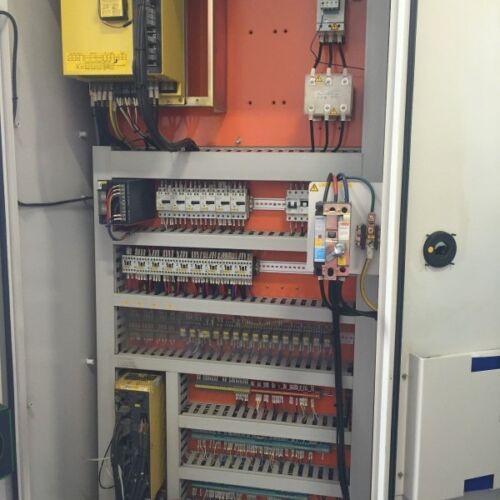

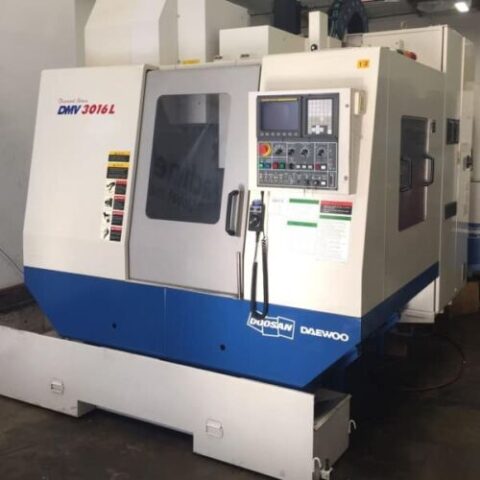

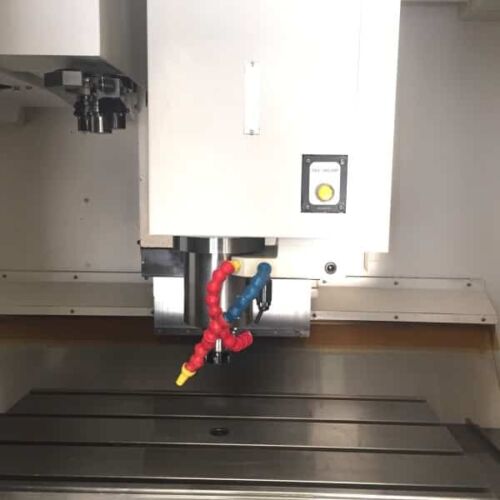

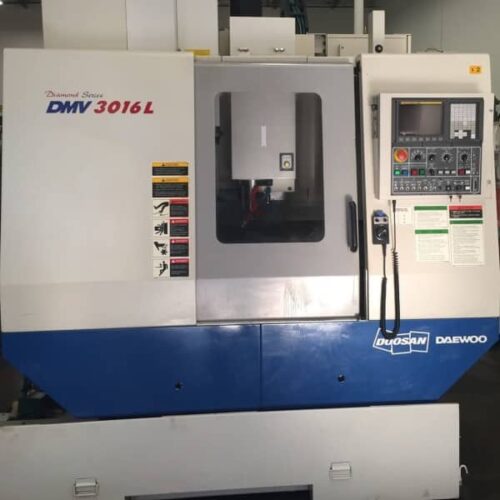

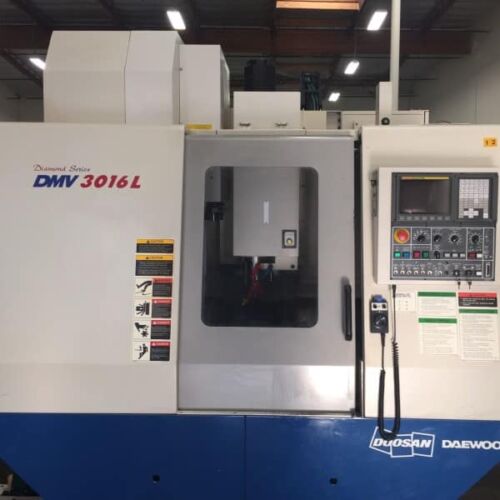

DOOSAN DAEWOO DMV 3016L Comes as shown in pictures.
