*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2067 |

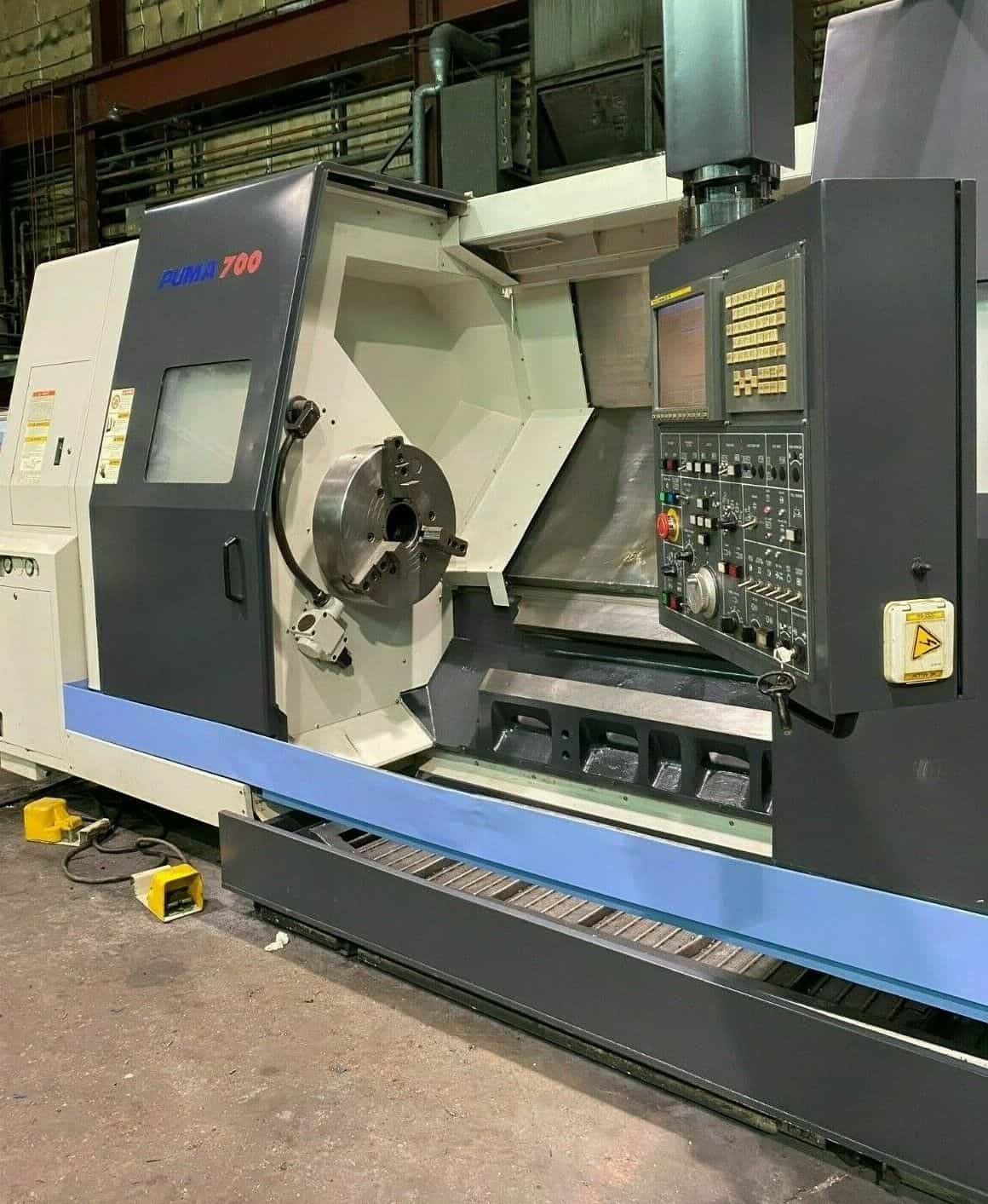

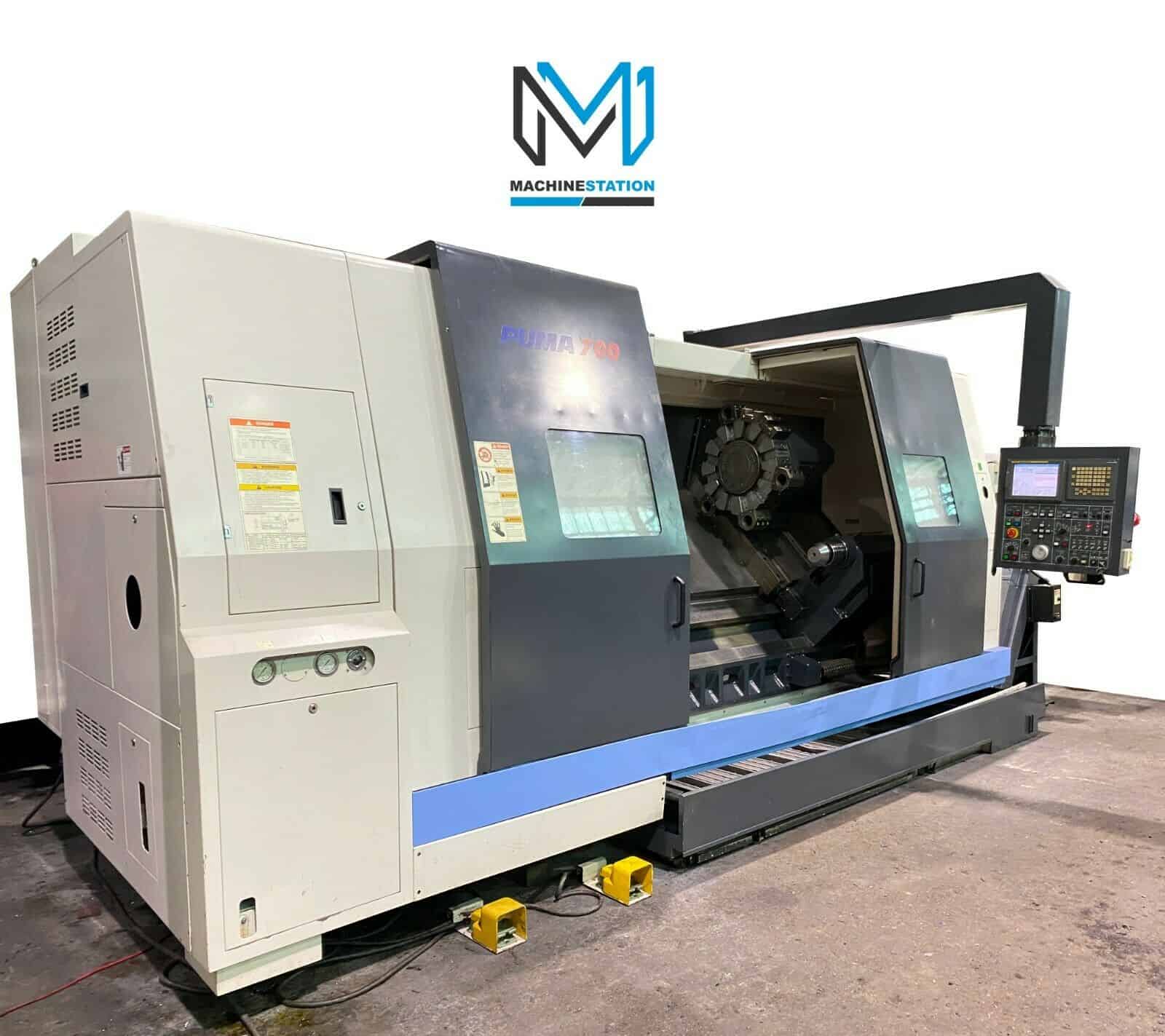

| Make: | Doosan |

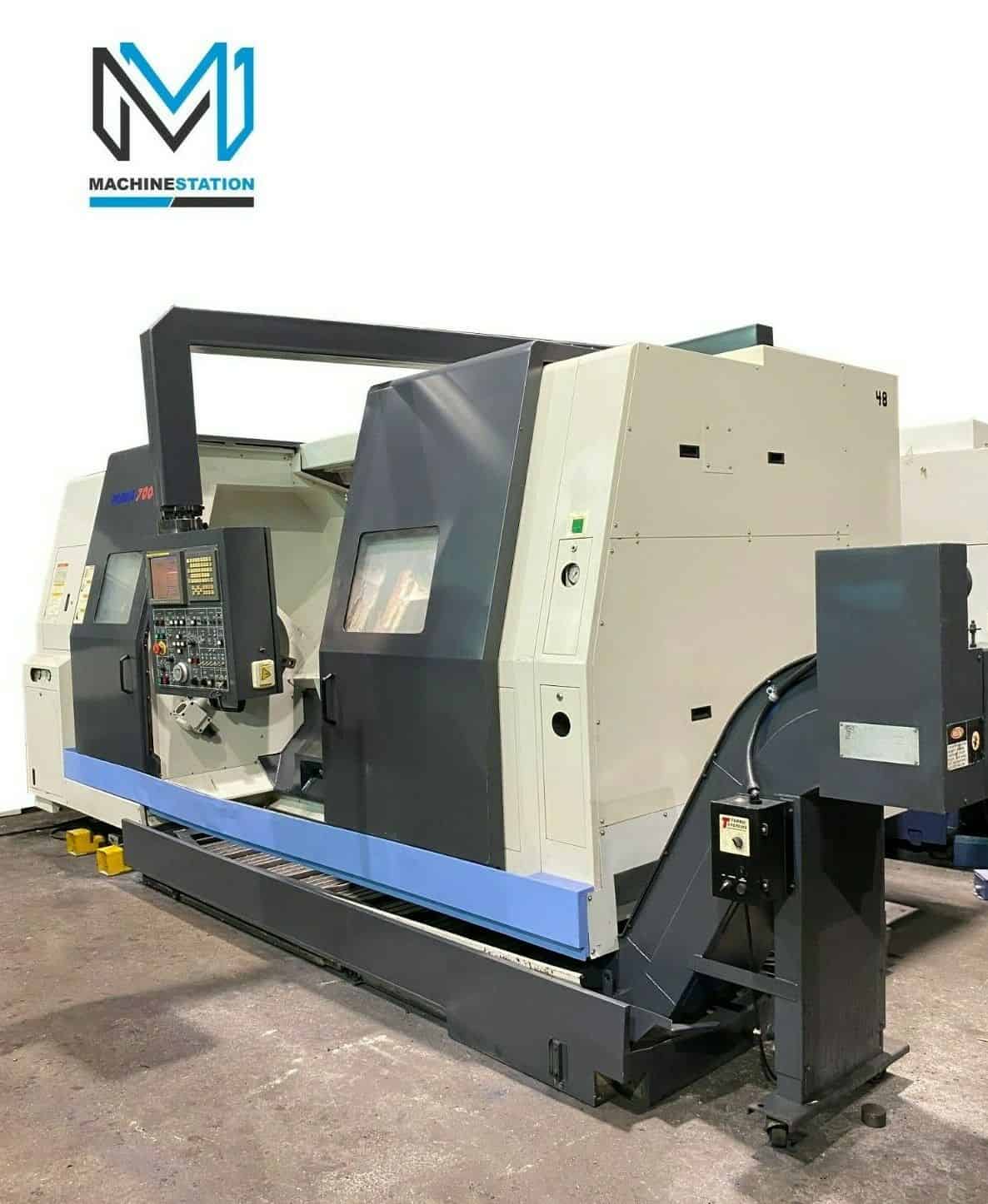

| Model: | Puma 700 |
| Serial: | 600281 |
| Condition: | Very Good |
| Cutting Hours: | 5490 |
| Equipped With: |
|---|

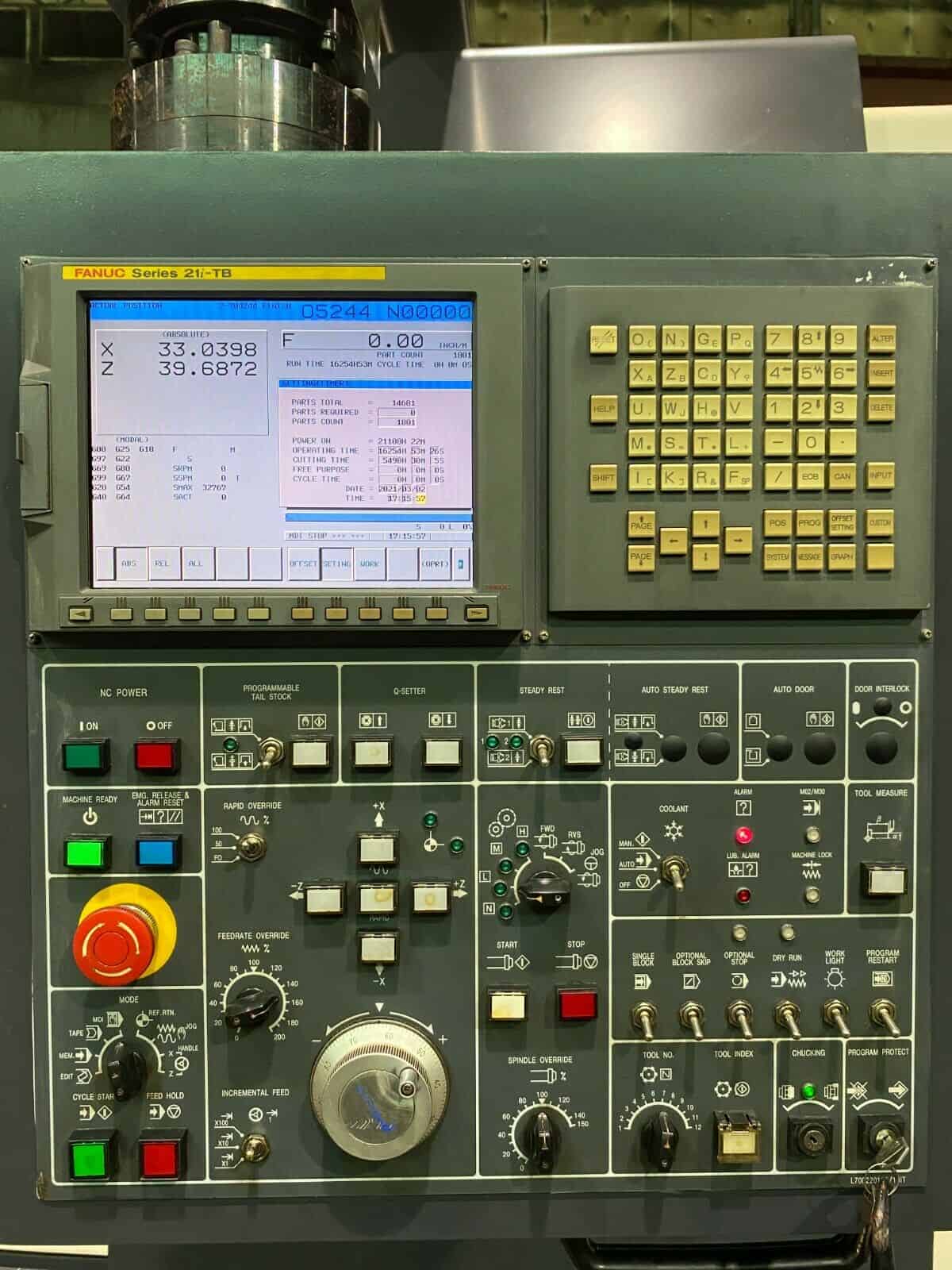

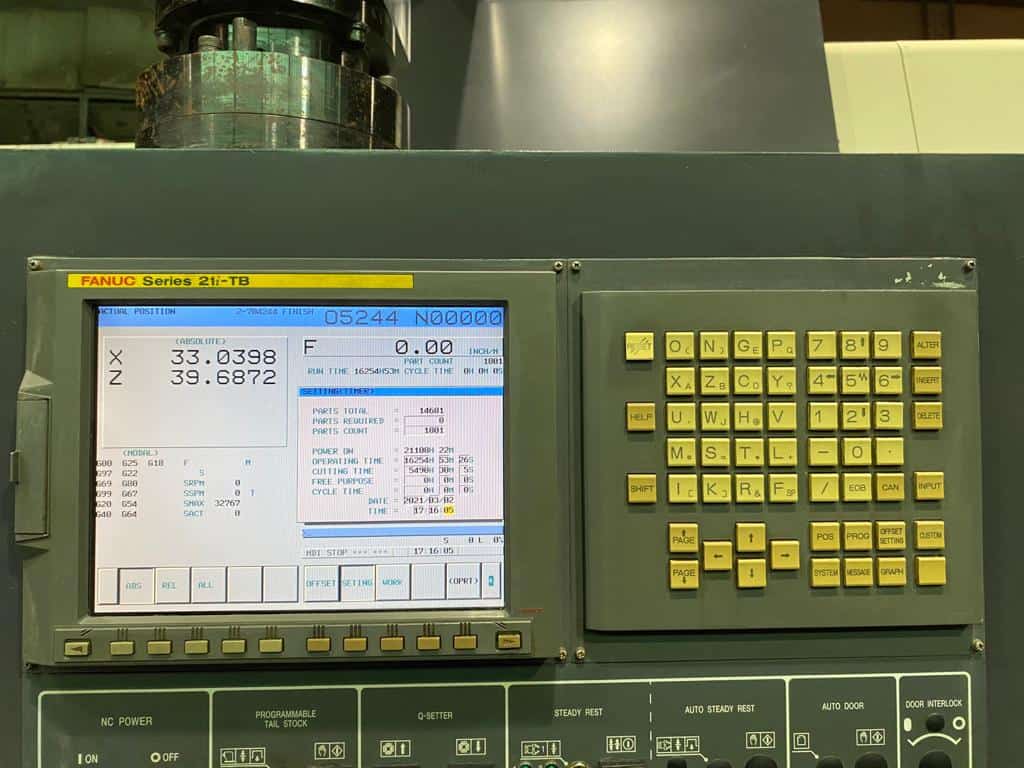

| Fanuc 21i-TB CNC Control |

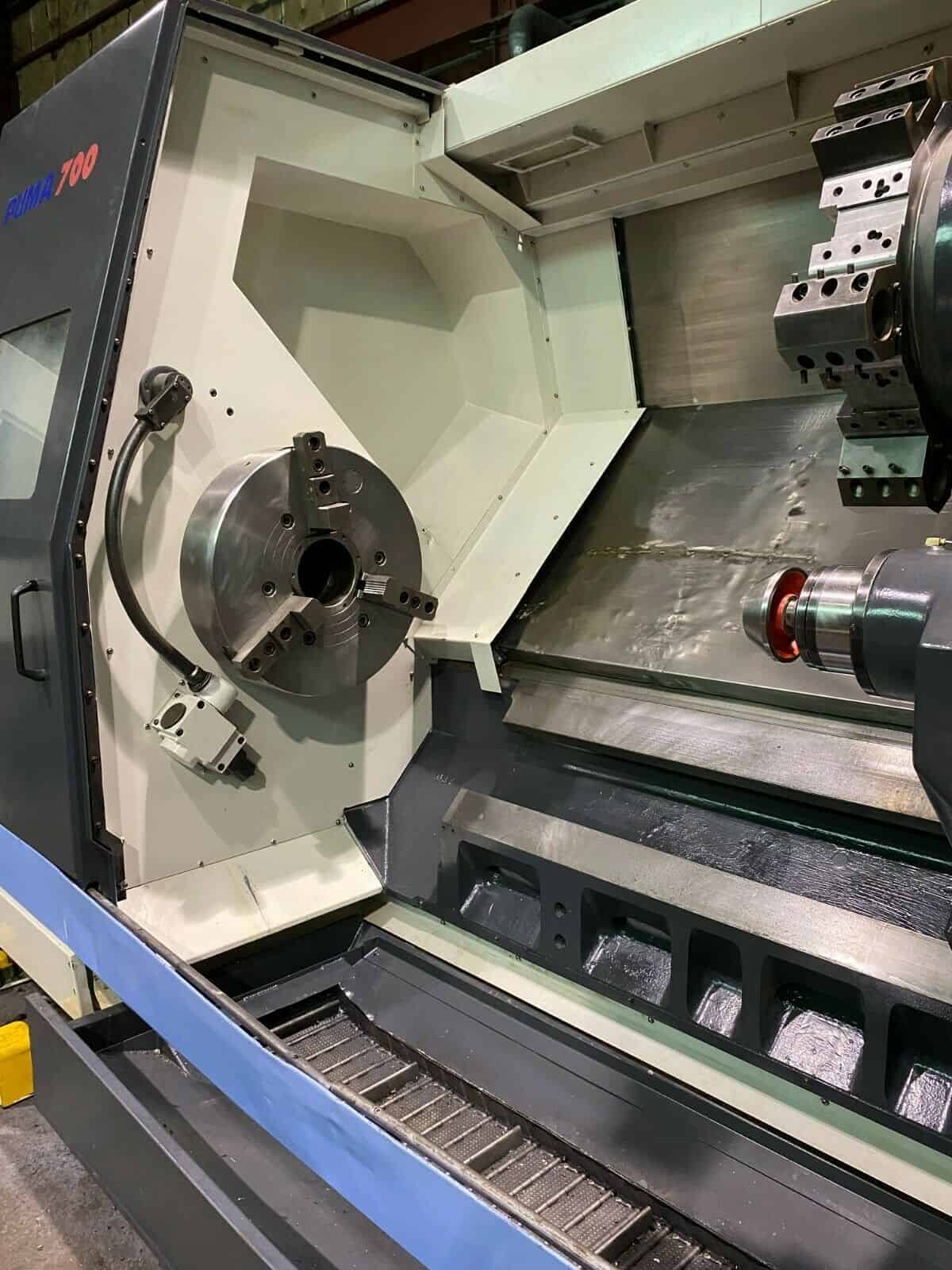

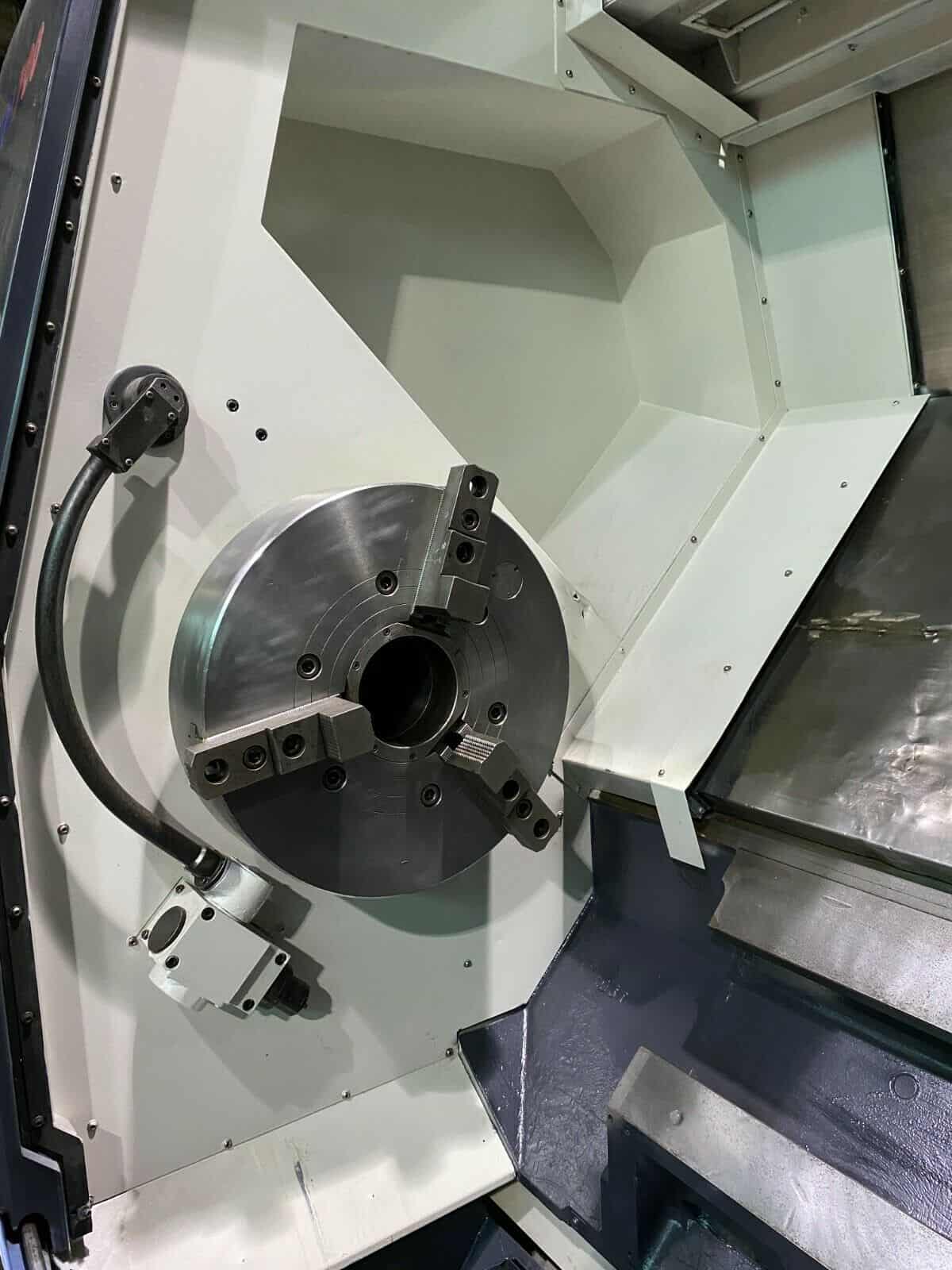

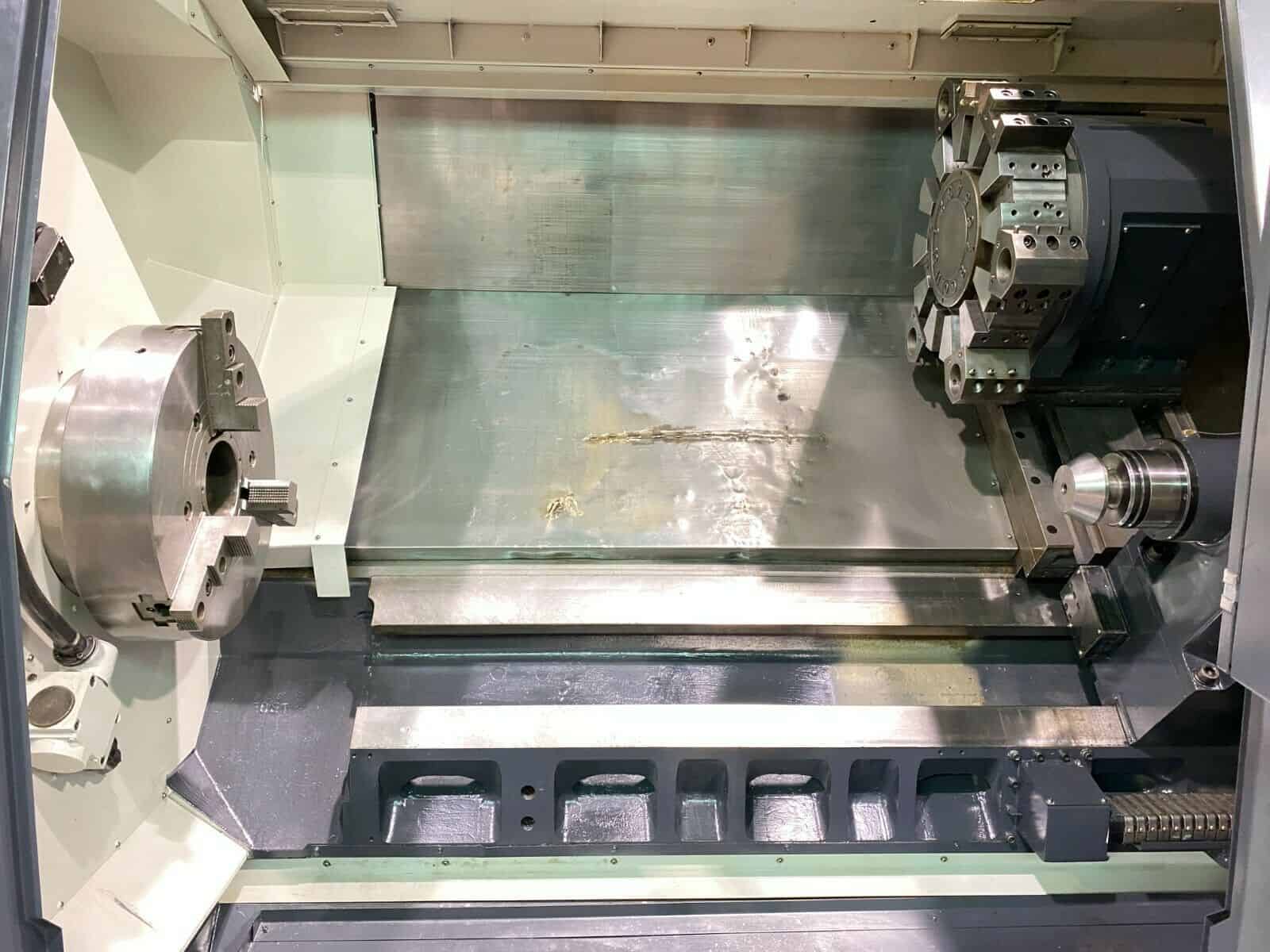

| 24″ Big Bore Kitagawa Hydraulic Chuck ( $12,600 Value ) |

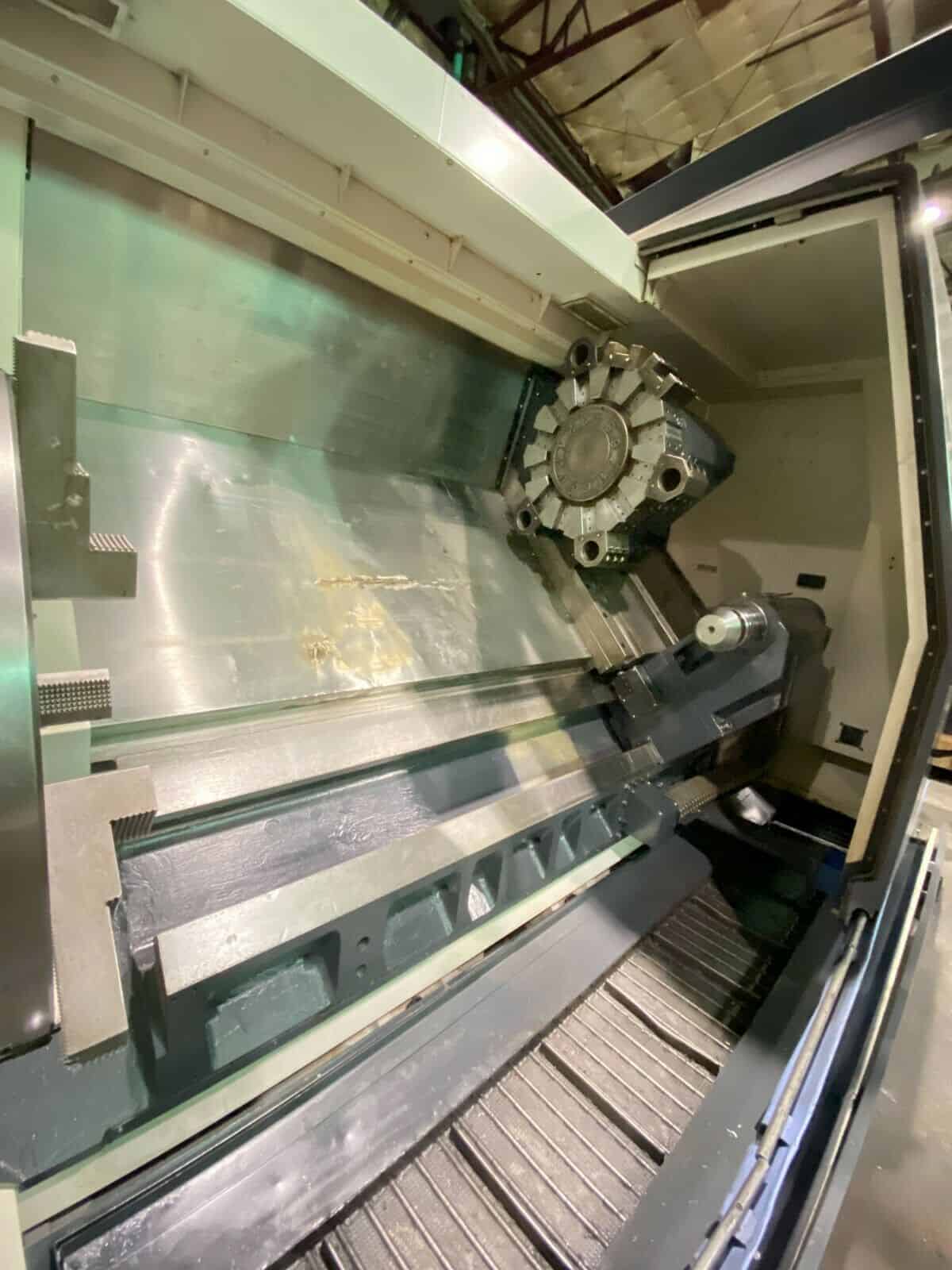

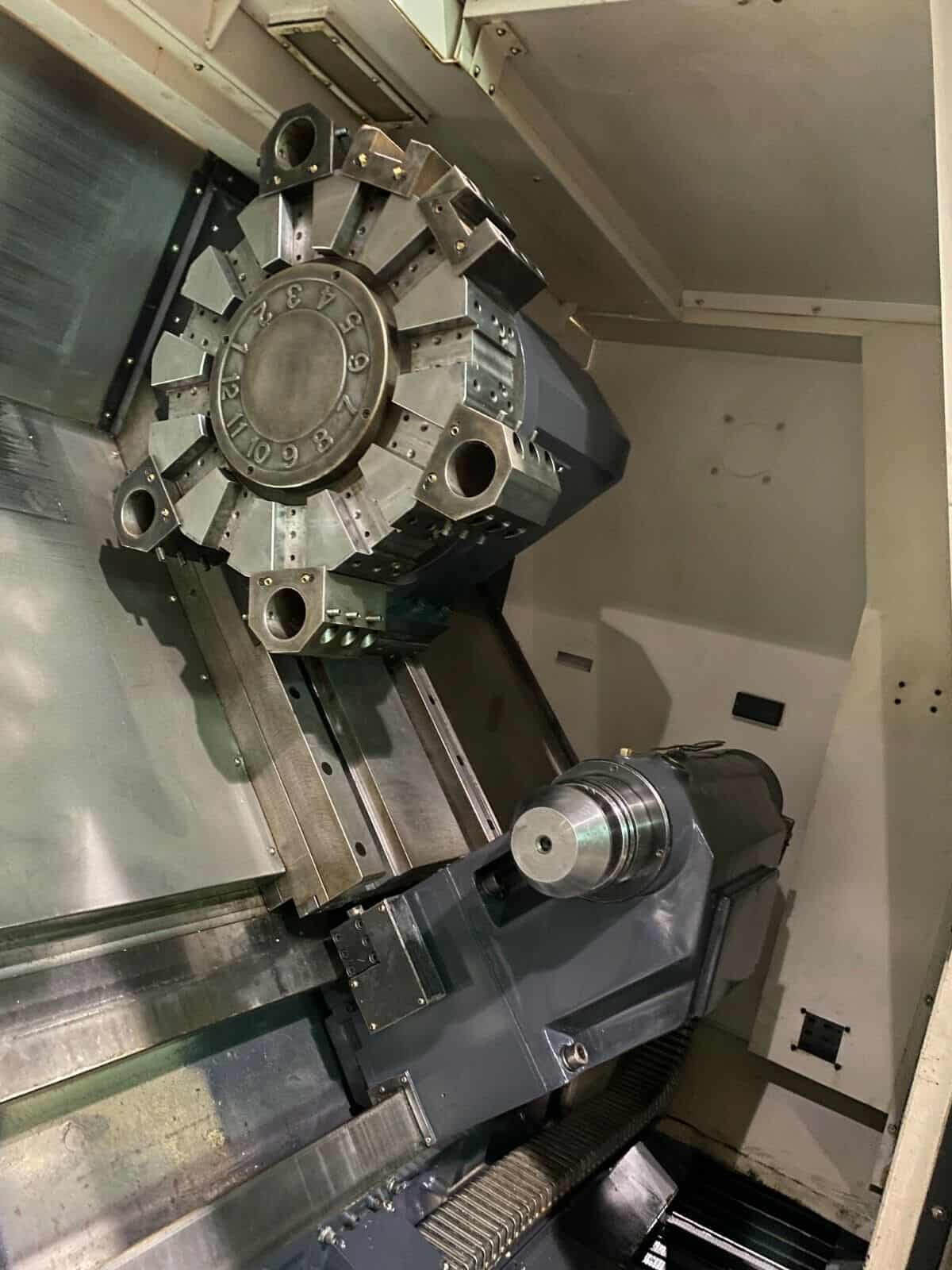

| 12 Station Tool Turret |
| 7.1″ Bore A1-15 Spindle |
| Tool Presetter |
| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |
| Foot Switch |
| Coolant System |
| Chip Conveyor ( $ 14,000 value ) |
| Comes with 3 sq. Tool holders, 4 x Boring Bar ( $8,500 Value ) |
| Capacity: |
|---|
| Max Turning Diameter: 35.4″ |
| Max Turning Length: 70.86″ |
| Max Bar Capacity: 6.5″ |
| Swing Over Bed: 40.8″ |
| Swing Over Carriage: ″ |
| Distance Between Centers: 76.4” |
| Travel: |
|---|
| X Axis Travel: 18.5″ |
| Z Axis Travel: 65.0″ |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 790 IPM |
| Spindle: |
|---|
| Spindle Nose: A1-15 |
| Spindle Bore: 7.1″ |
| Spindle Speed: 15 – 1500 RPM |
| Spindle Motor: 50hp |
| Turret: |
|---|
| Turret Capacity: 12 Live Stations |
| Turret Index Time: 0.15 Second |
| Tool Size: 2.4″ |

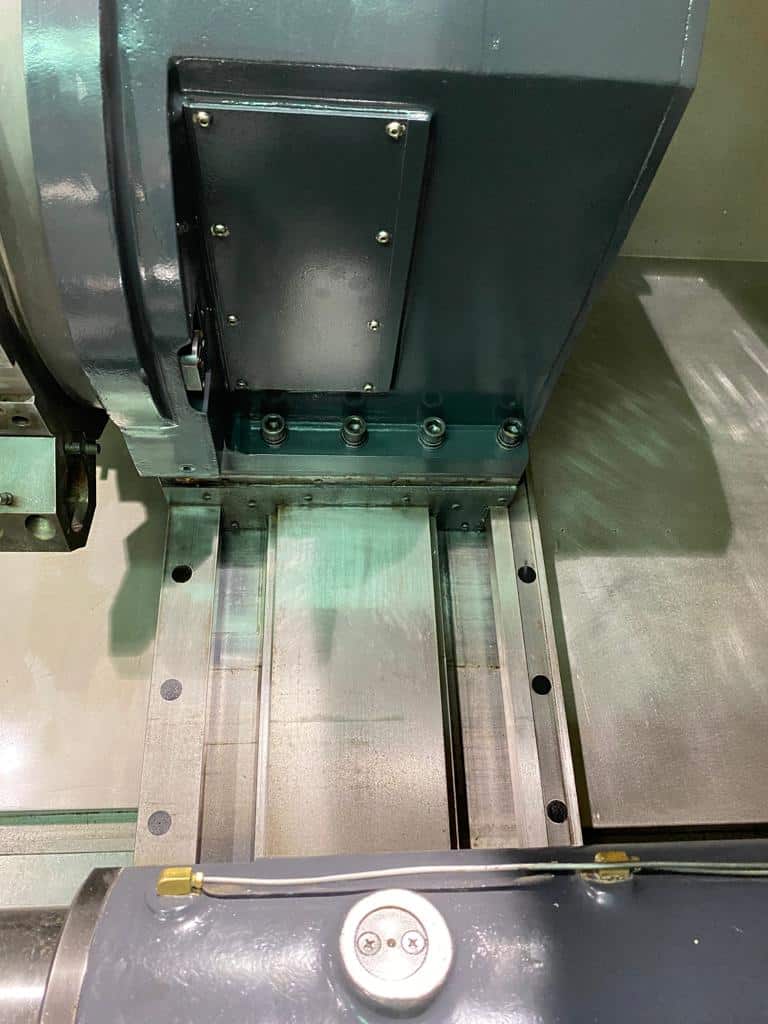

| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 60.5″ ? |
| Tailstock Quill Dia.: 4.7″ |
| Tailstock Quill Travel: 4.7″ |
| General: |
|---|
| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: 200″ x 87″ x 90″ High |
| Weight: 31,000 lbs |
