DOOSAN DMV-4020D CNC VERTICAL MACHINING CENTER | |
---|---|
Make | DOOSAN |
Model No. | DMV-4020D |
Year | 2007.01 |

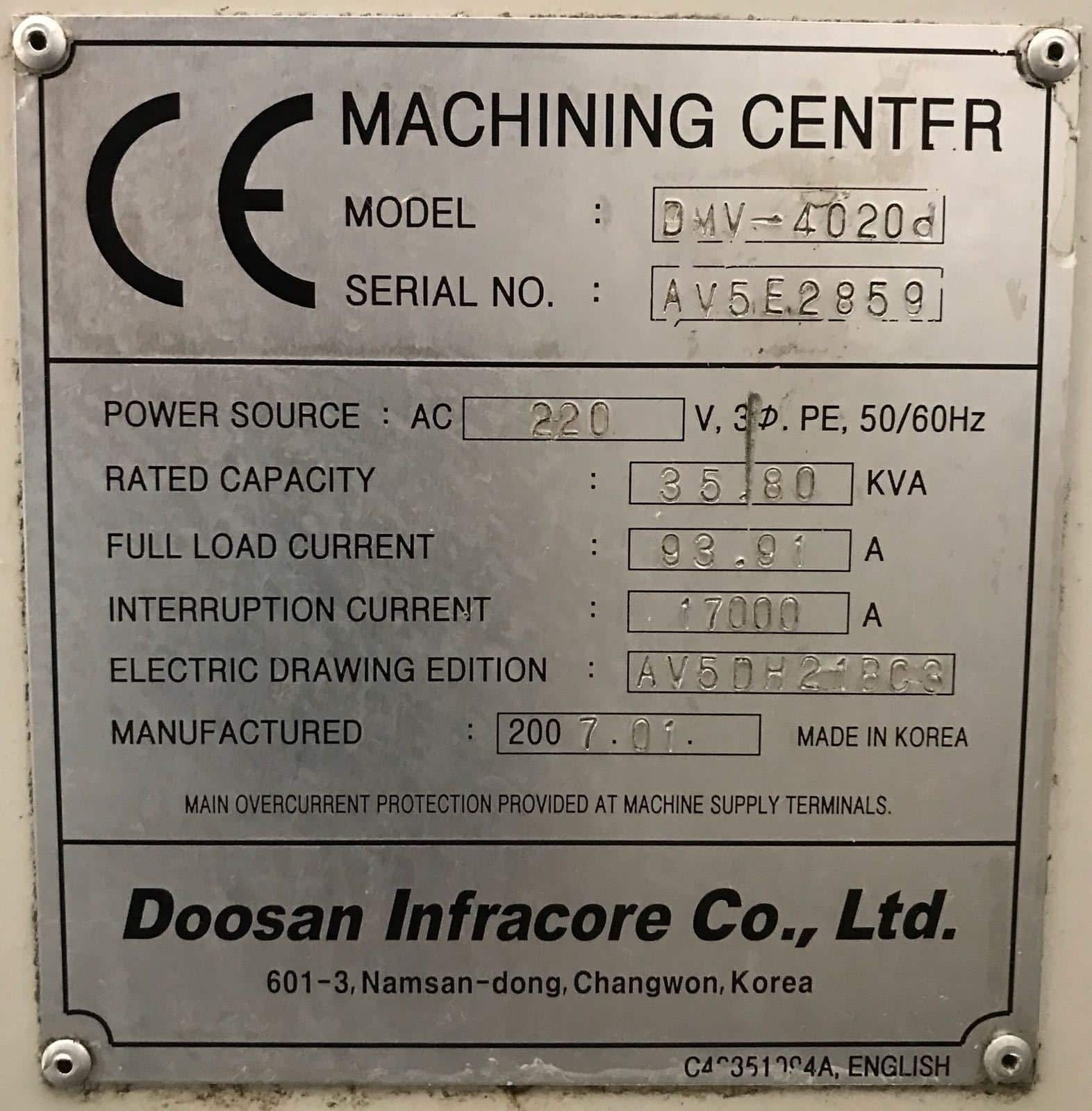

Serial # | AV5E2859 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has only Cutting Hours, Thru Spindle Coolant, 10,000RPM, 24 Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- DOOSAN DMV-4020D Features:

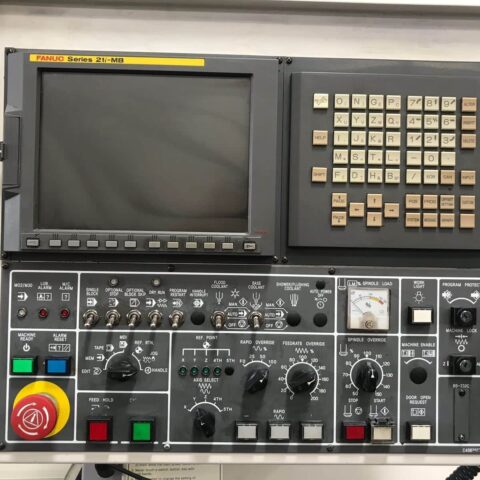

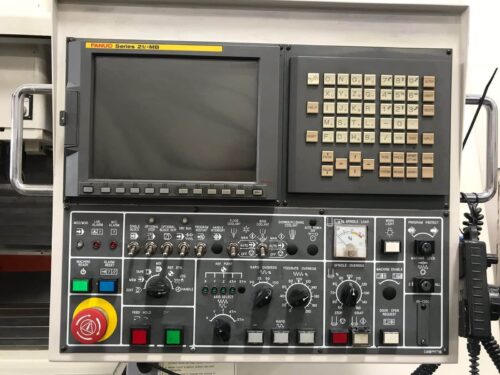

- Fanuc 21i-MB CNC Control
- Through Spindle Coolant
- 40 Taper Geared Head Spindle

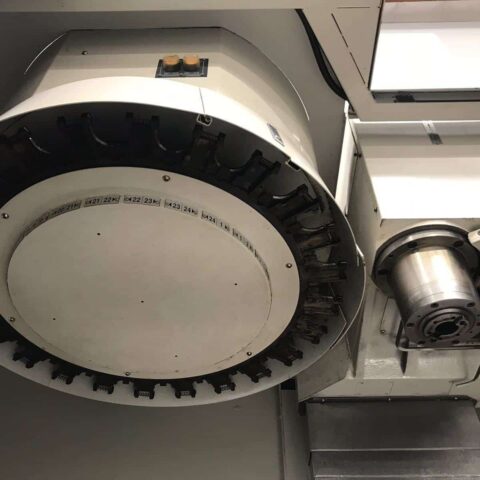

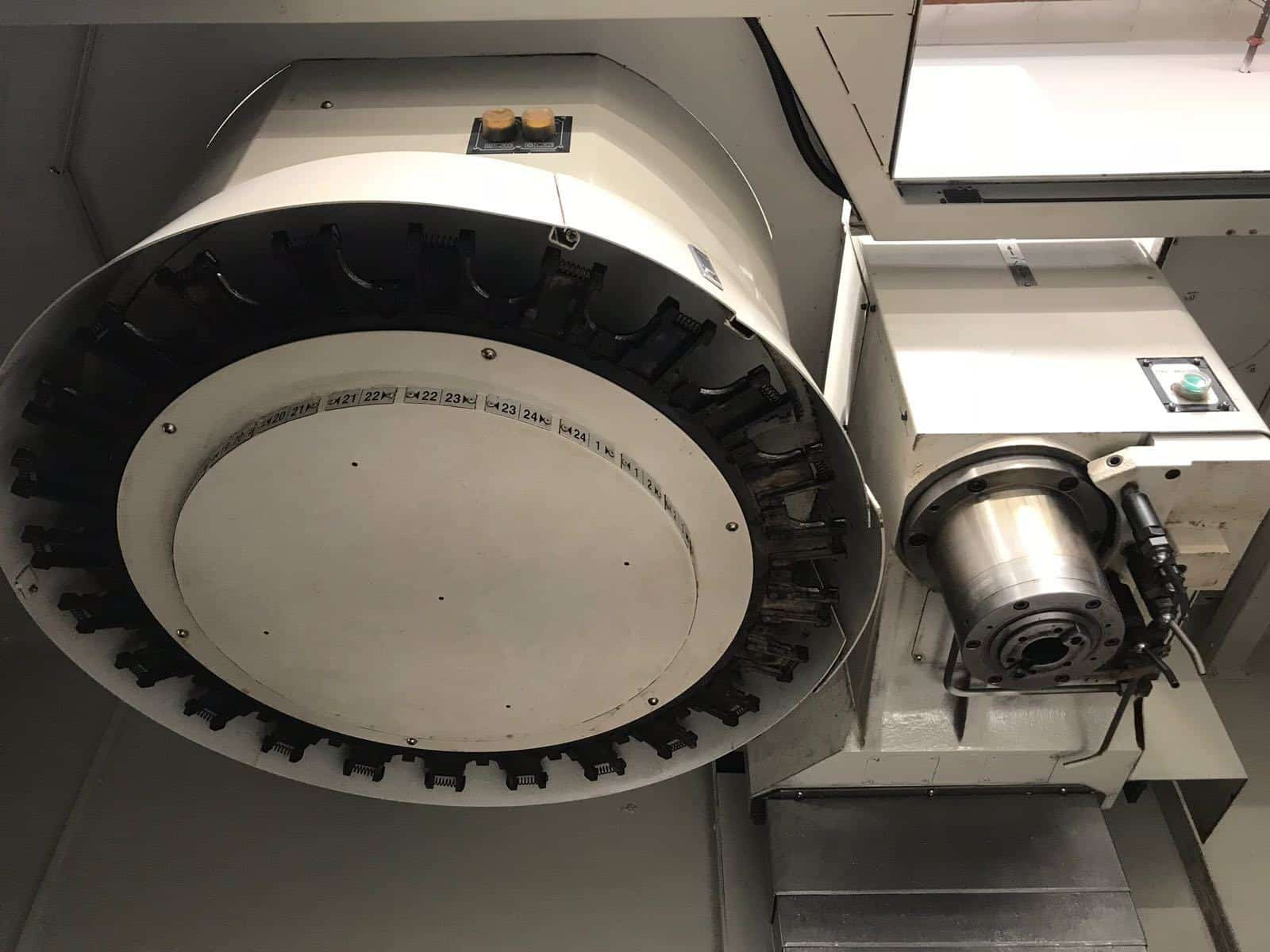

- 24 Tools Bidirectional Tool Changer
- PCMCIA Card Slot
- Box Way Construction All Axis
- Powerful 20 hp high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Work light
- Books and Manuals
- DOOSAN DMV-4020D Specifications:
- Travels:
- X-Axis: 40.2″
- Y-Axis: 20.5″
- Z-Axis: 24.6″
- Spindle Nose to Table (Min.- Max.): 5.87″ – 26.3″
- Spindle Nose to Column: ”

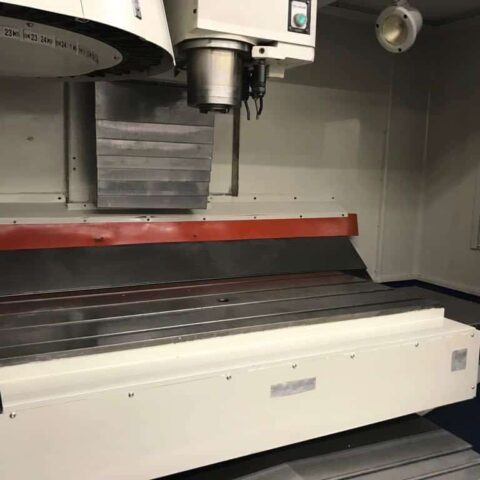

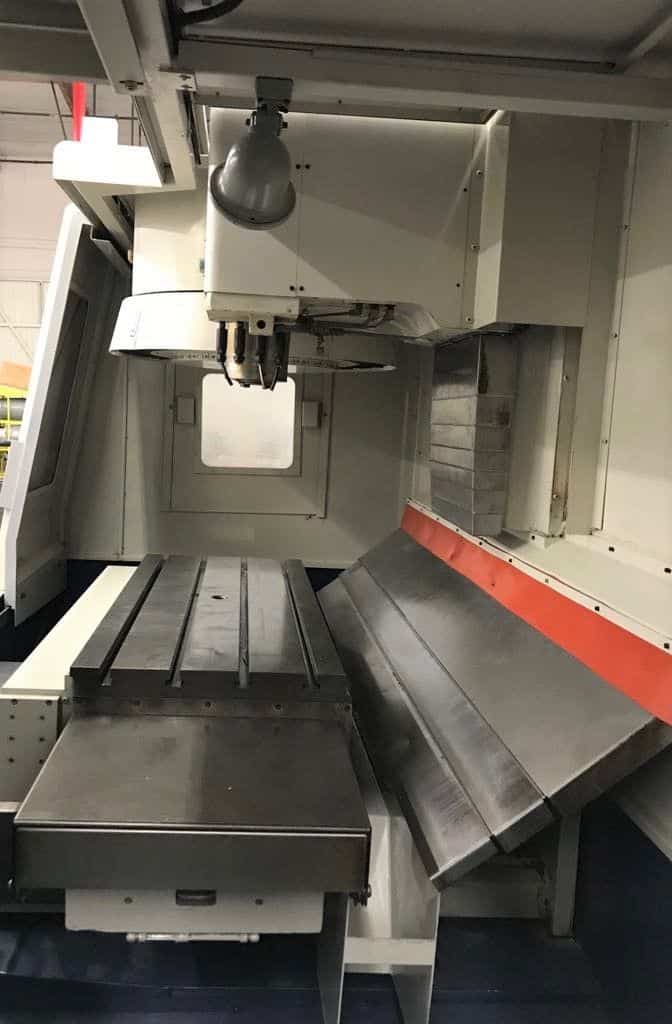

- Table:
- Length: 47.2″
- Width: 19.7″
- Max Weight on Table: 1800 lbs
- T-Slot no. & Width: 4 X 0.7″
- Gear Head Spindle:
- Taper Size: 40
- Speed Range: 60 – 8,000 RPM
- Spindle Power: 20 HP
- Feed rates:
- Rapid X,Y & Z: 1181 inch/Per Minute
- Cutting Feedrate: 787″ inch/ Per Minute
- Automatic Tool Changer:
- 40 Taper
- Capacity: 24
- Max Tool Weight: 17.6 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 5.9″
- Tool Change Time: 1.5 second
- General:
- Air Required: 90 psi, 4 scfm
- Power: 205-220v / 50kva / 3-Phase
- Overall Dimensions: 132″ x 116″ x 110″ High
- Weight: 16500 lbs

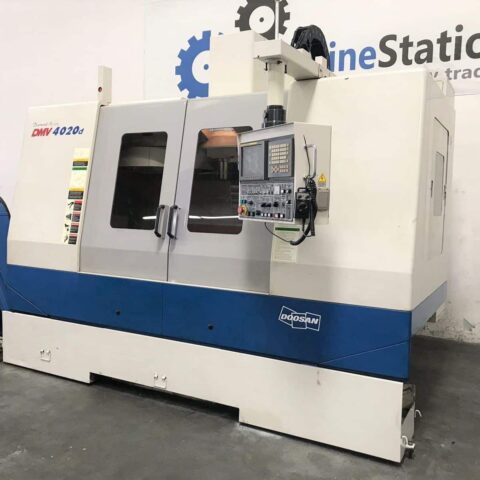

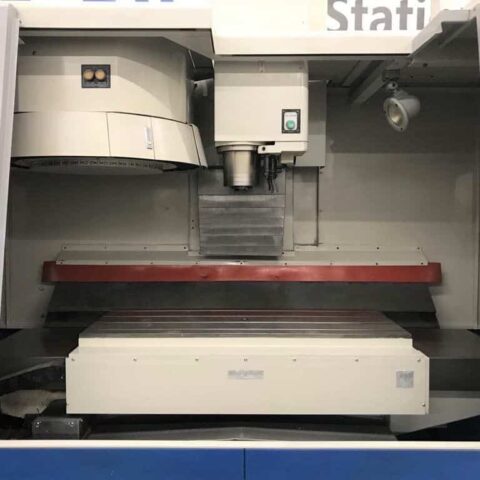

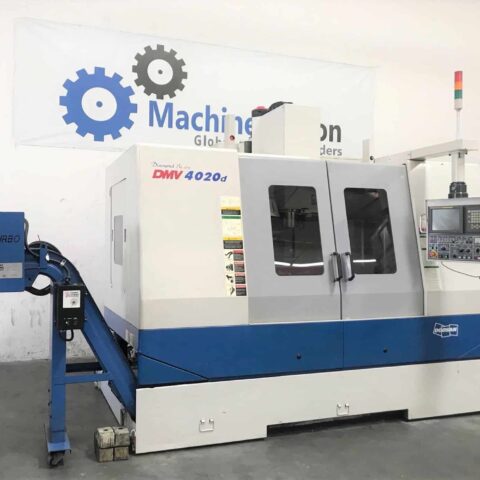

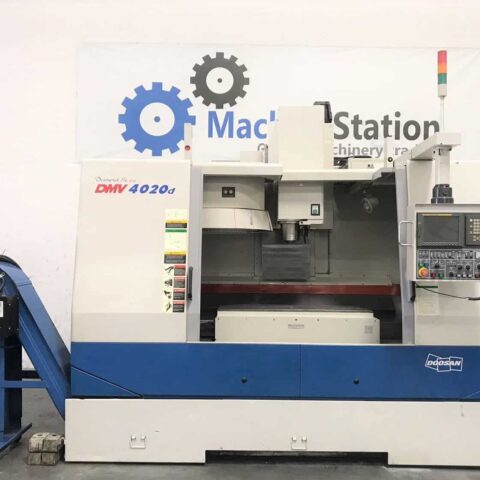

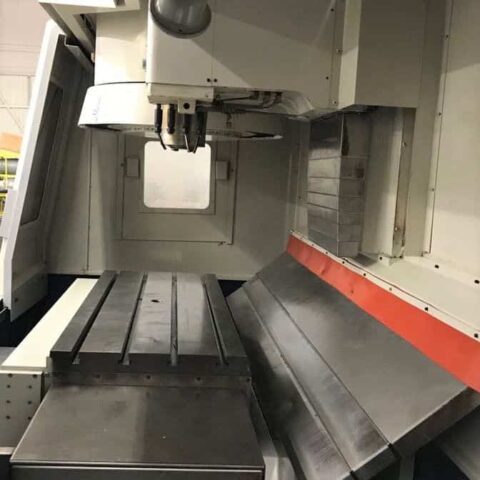

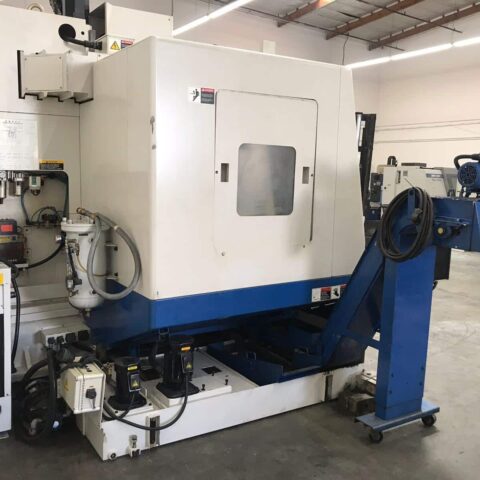

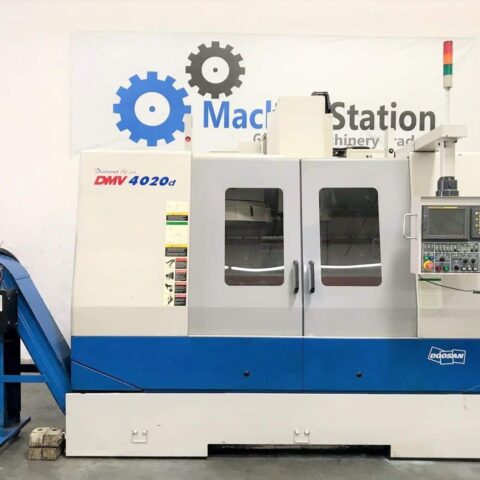

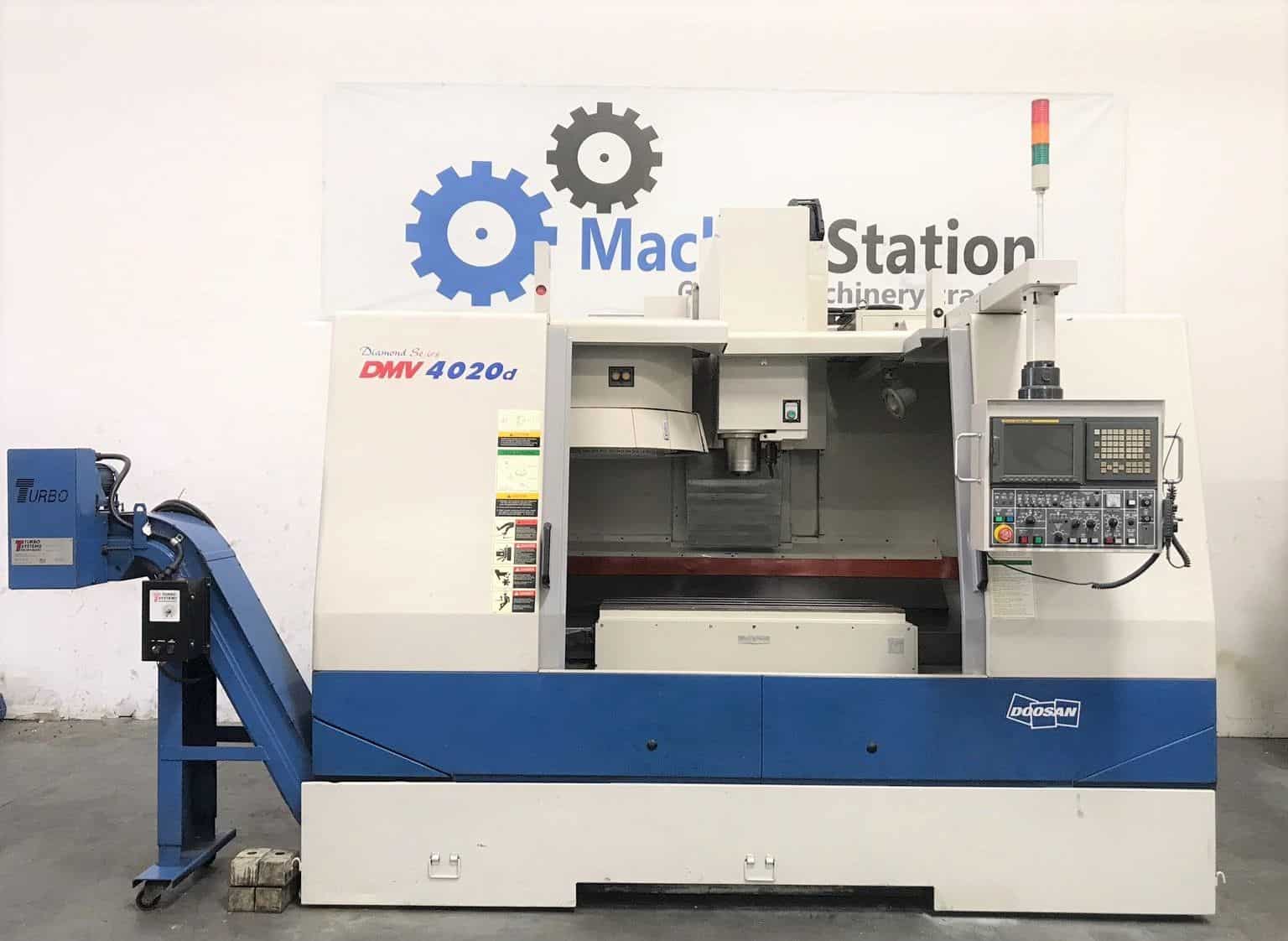

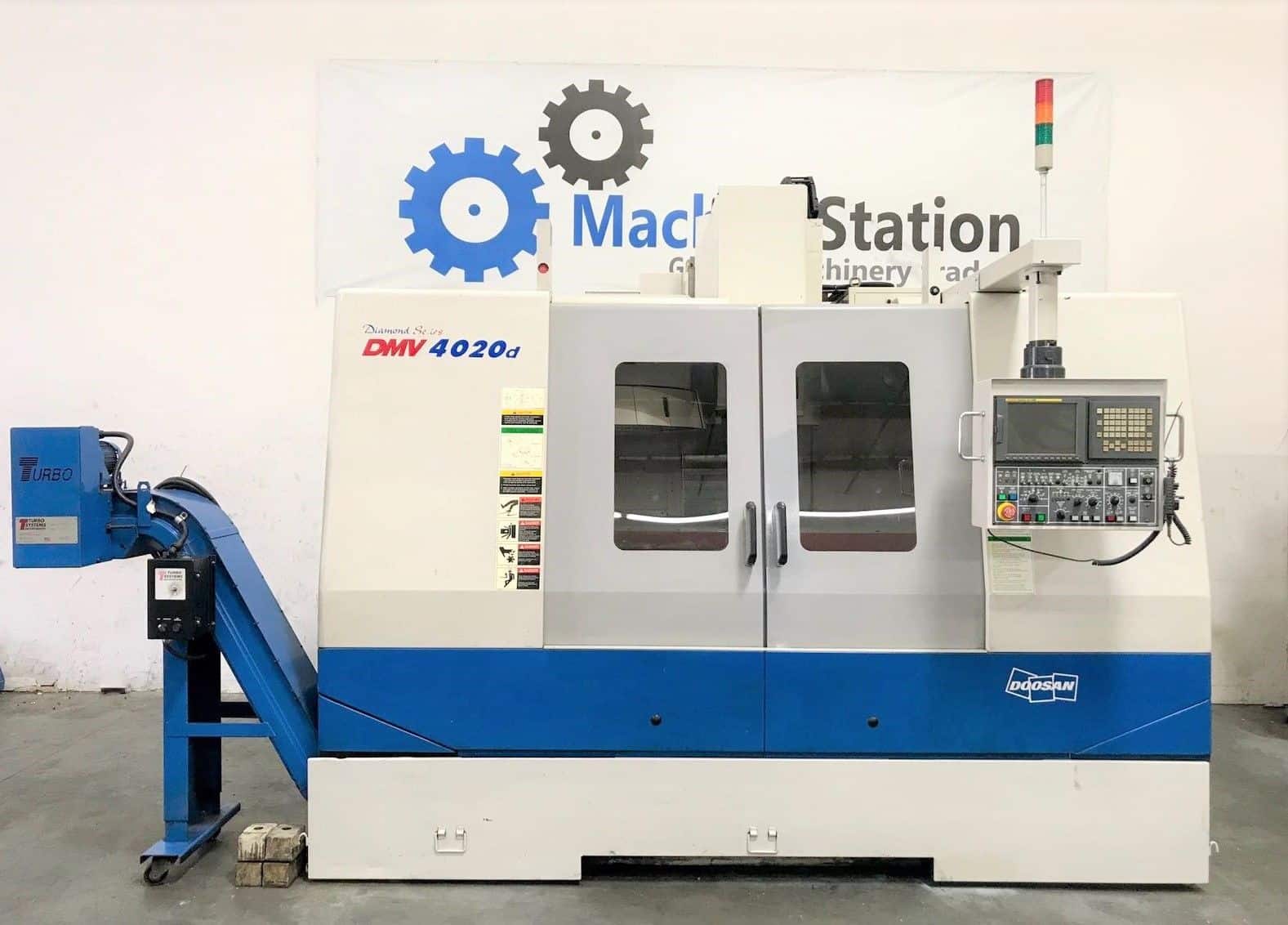

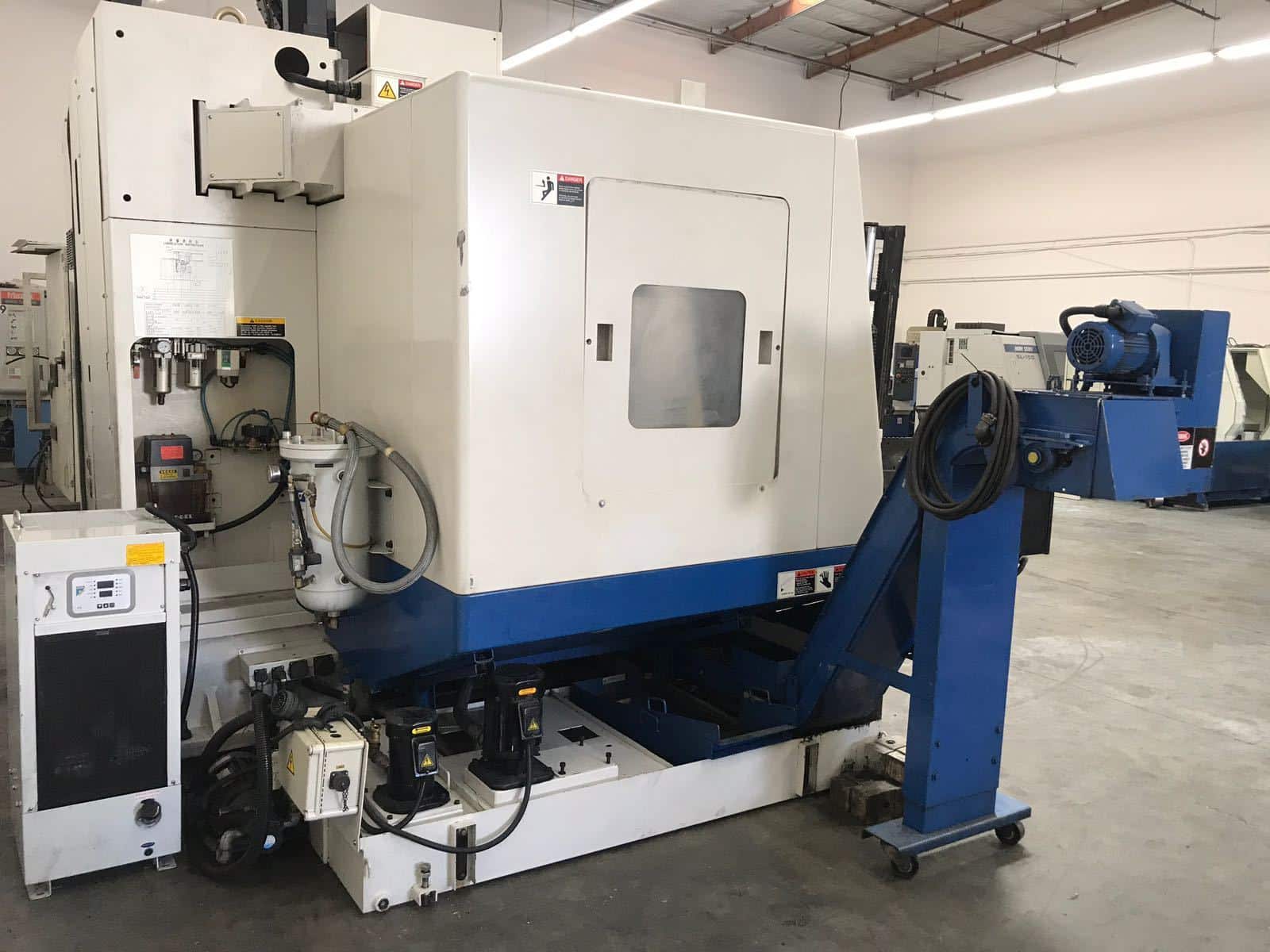

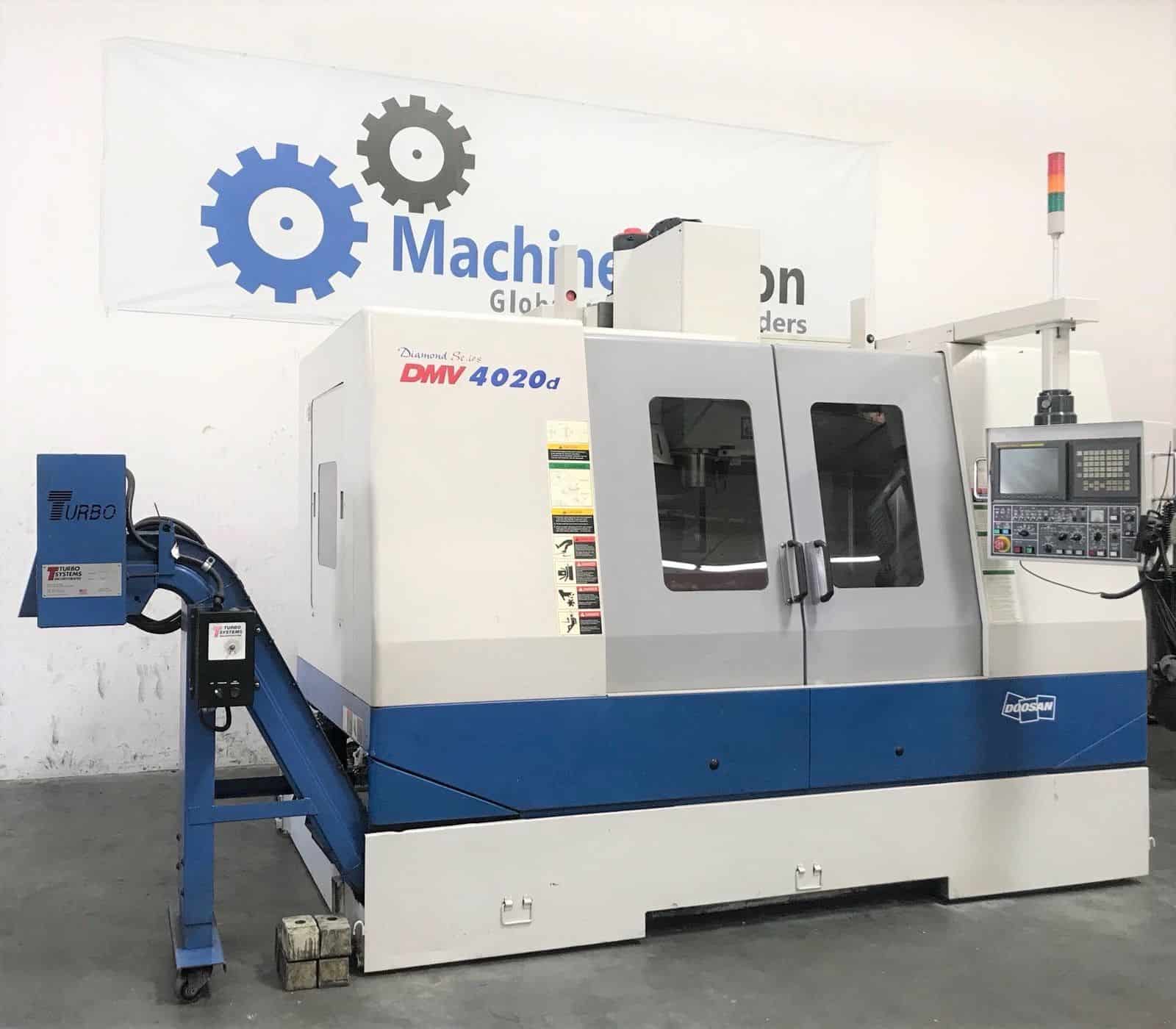

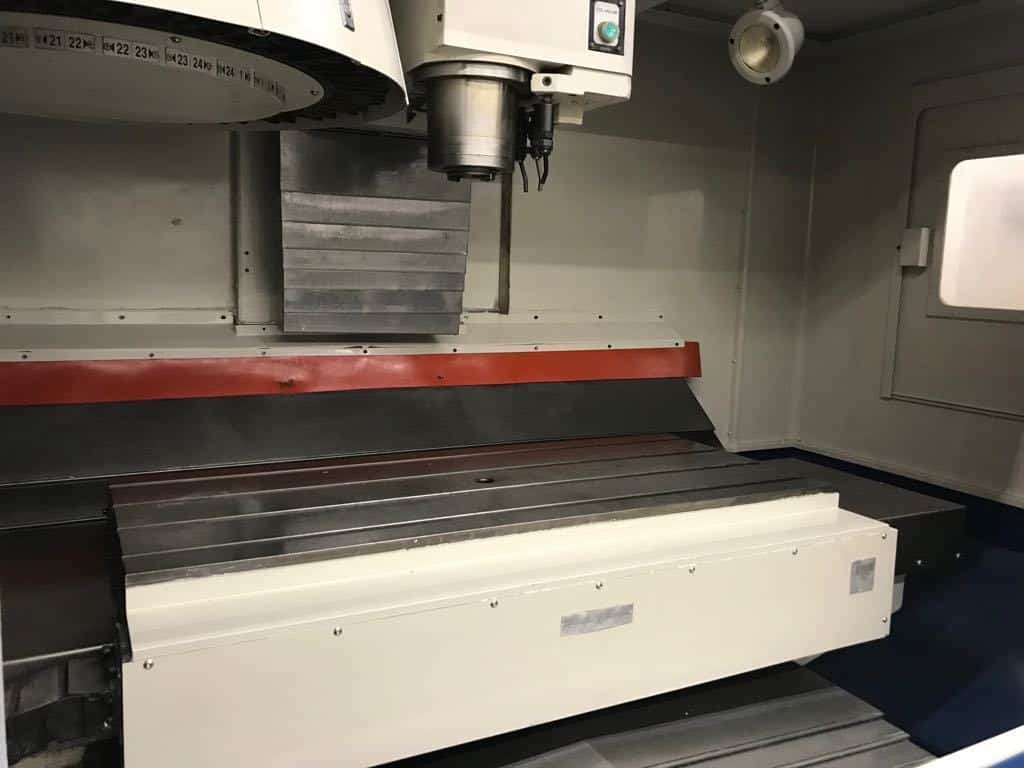

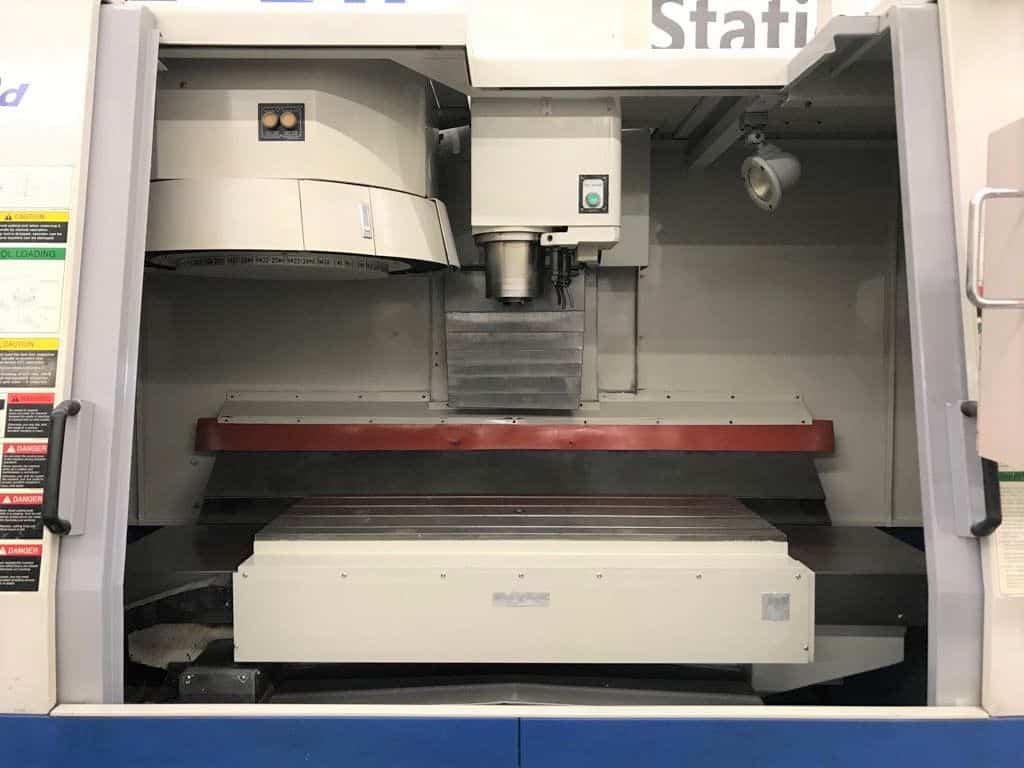

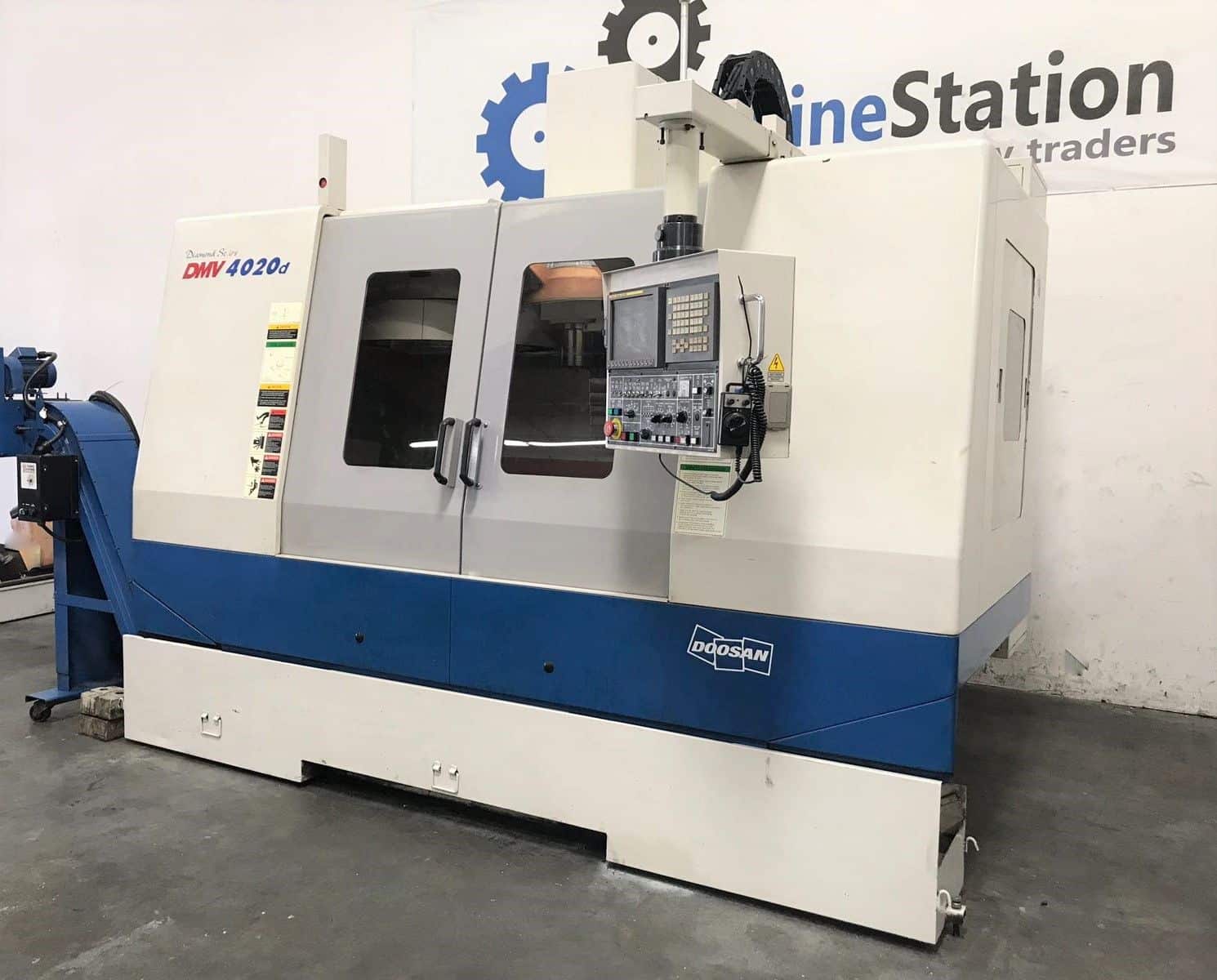

DOOSAN DMV-4020D Comes as shown in pictures.
