Doosan DNM-400 CNC Vertical Machining Center

Out of stock
SKU: 1732
Make/Model: DOOSAN DNM-400
Video: [fusion_button link=”https://www.youtube.com/watch?v=cS4nXhBSxnU” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1732
DOOSAN DNM-400 CNC VERTICAL MACHINING CENTER

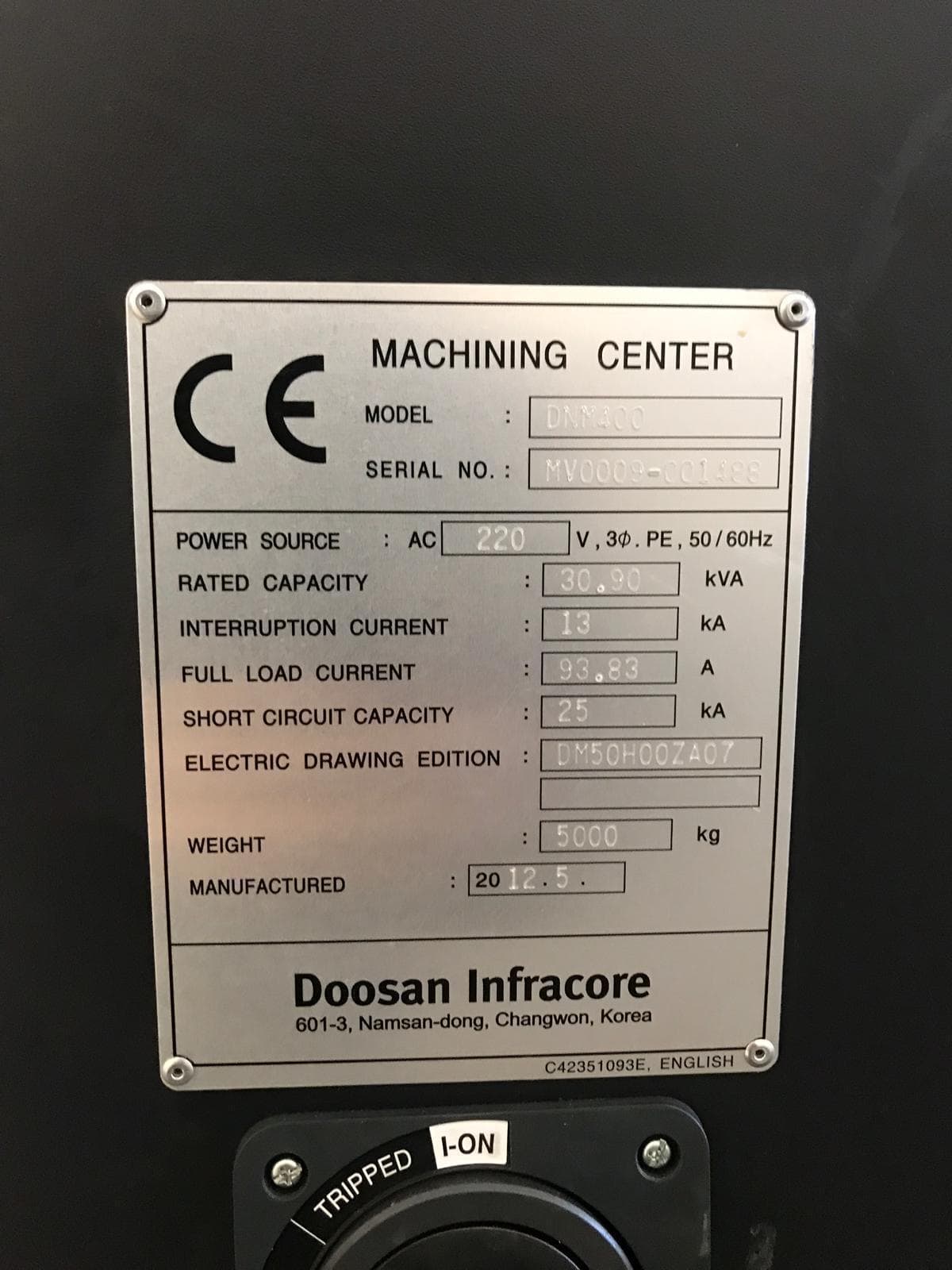

Make DOOSAN
Model No. DNM-400

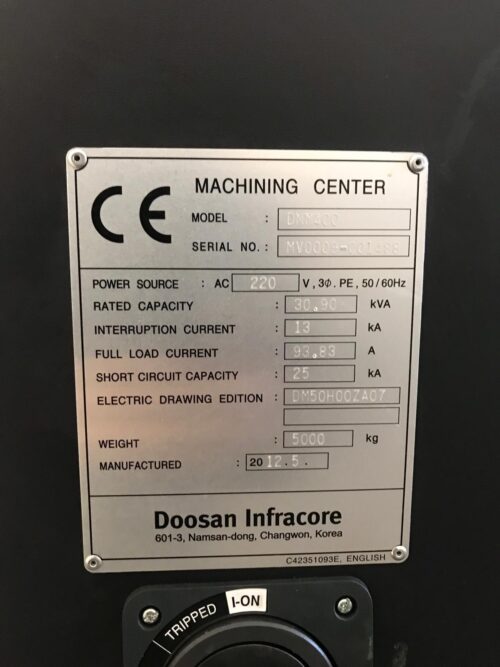

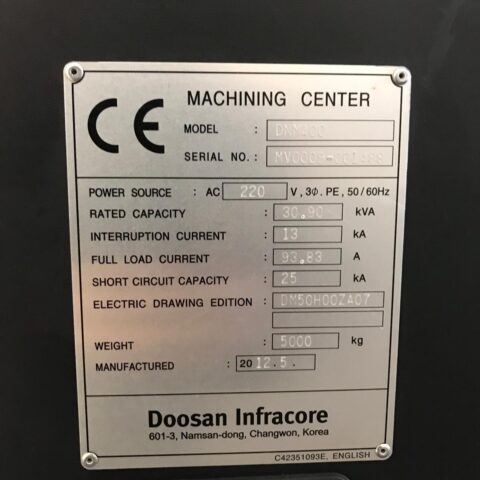

Year 2012.05
Serial # MV-001488
Condition Excellent

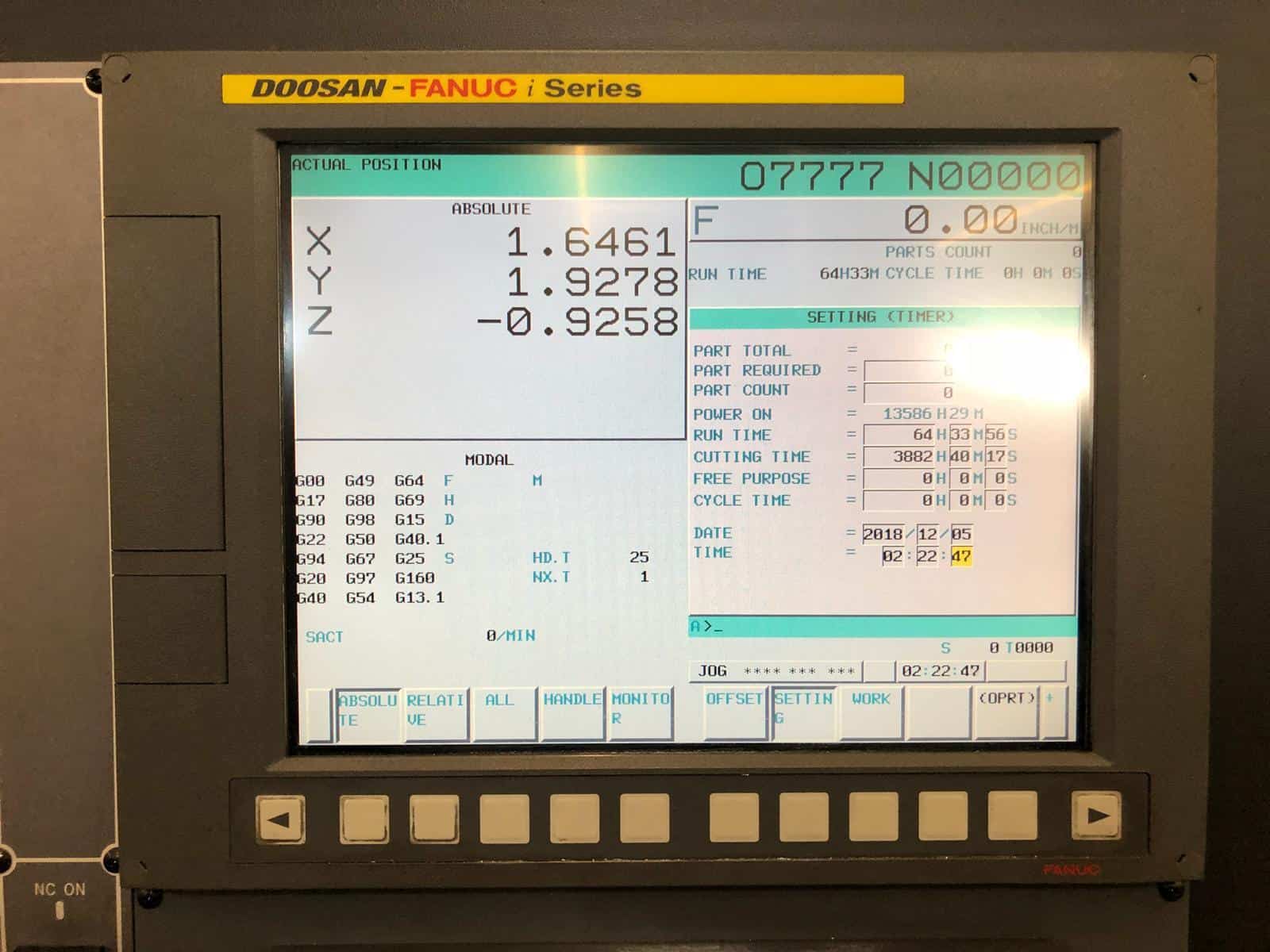

“This One Owner Machine has only 3882 Cutting Hours, Thru Spindle Coolant, 8,000 RPM, 30 Tool changer, expanded Memory and many more features. All Original Paint, On our Floor now fully powered / tested & is in Great working condition.”

  • Doosan DNM-400 Features:

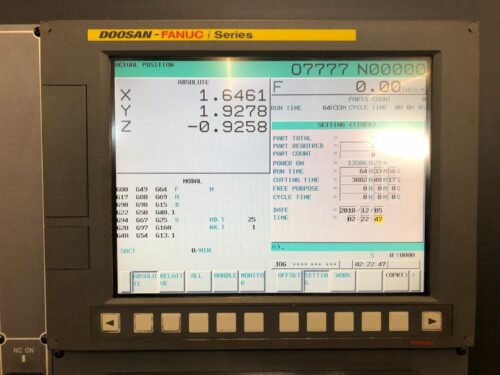

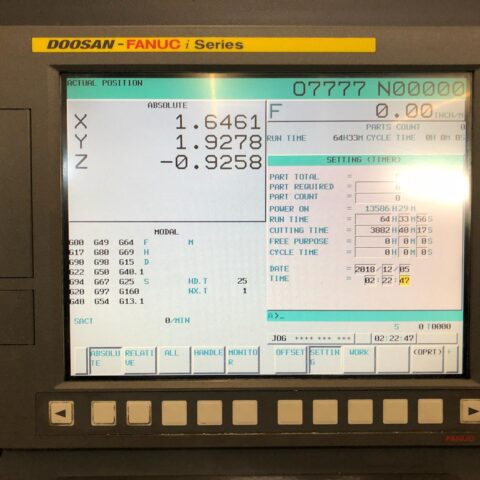

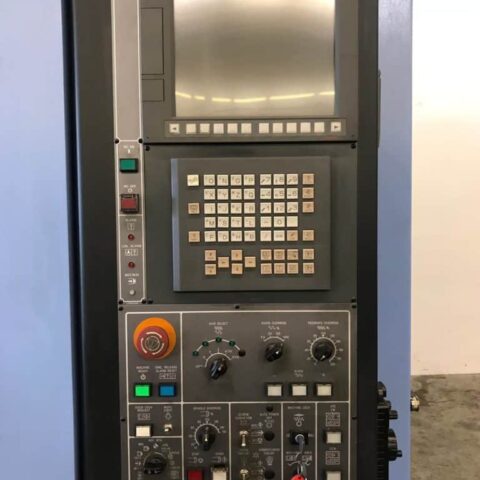

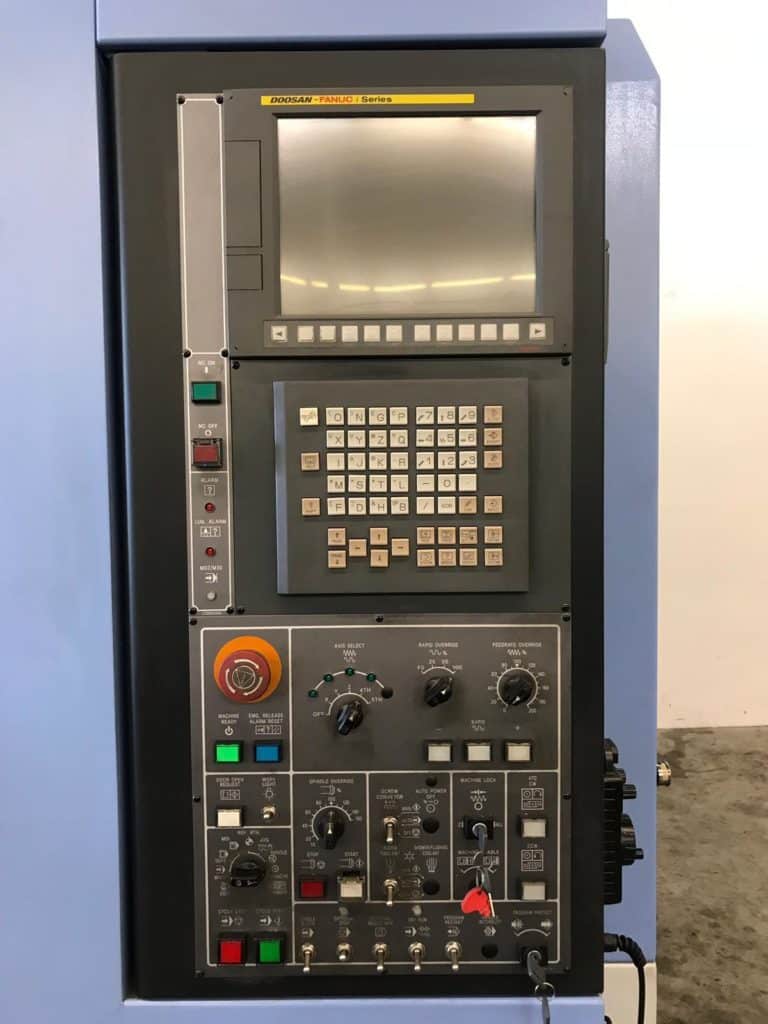

  • Fanuc i series CNC Control
  • Through Spindle Coolant
  • CAT-40 Big Plus Spindle
  • 30 Tools Bidirectional Tool Changer
  • PCMCIA Card Slot
  • USB, RS-232 & Ethernet Connectivity
  • Wide Spaced Linear Guides Way Construction
  • Powerful 15 kw high torque spindle motor
  • Spindle Orientation
  • Rigid Tapping
  • Helical Interpolation
  • Fast Rapid Traverse Rate
  • Flood coolant with large separate coolant tank
  • Work light
  • Original Books and Manuals
  • Doosan DNM-400 Specifications:

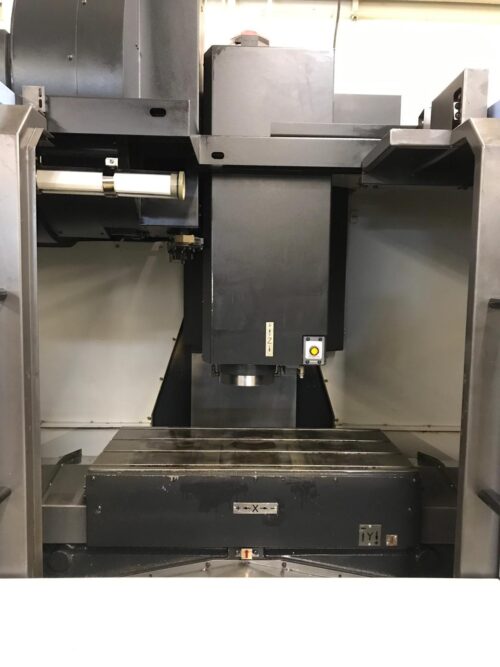

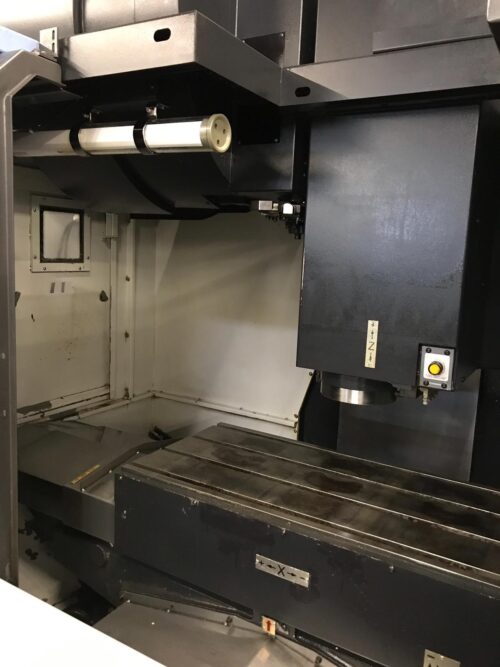

  • Travels:
  • X-Axis: 30.2″
  • Y-Axis: 17.1″
  • Z-Axis: 20.1″
  • Spindle Nose to Table (Min.- Max.): 5.91″ – 24.25
  • Table:
  • Length: 36.2″
  • Width: 17.1″
  • Max Weight on Table: 1320 lbs
  • T-Slot no. & Width: 4 X 0.7″
  • Spindle:
  • Taper Size: CAT-40 Big Plus
  • Speed Range: 60 – 8,000 RPM
  • Spindle Power: 15 kw
  • Feed rates:
  • Rapid X,Y & Z: 1417 inch/Per Minute
  • Cutting Feedrate: 595″ inch/ Per Minute
  • Automatic Tool Changer:
  • 40 Taper
  • Capacity: 30
  • Max Tool Weight: 17.6 lbs
  • Max Tool Length: 11.8″
  • Max Tool Dia.: 5.9″
  • Tool Change Time: 1.5 second
  • General:
  • Air Required: 90 psi, 4 scfm
  • Power: 205-220v / 50kva / 3-Phase
  • Overall Dimensions: 132″ x 101″ x 110″ High
  • Weight: 12500 lbs

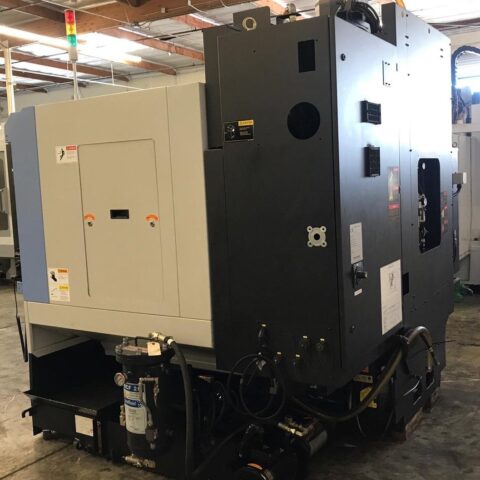

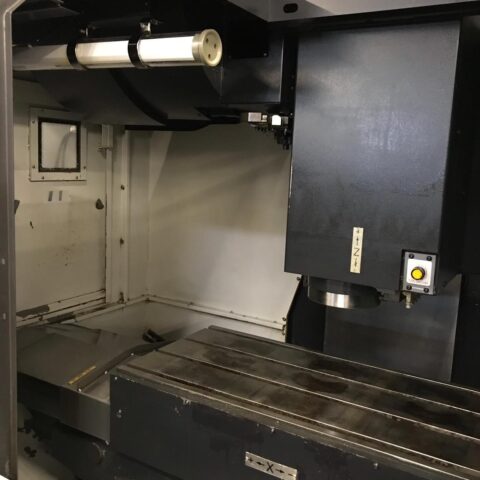

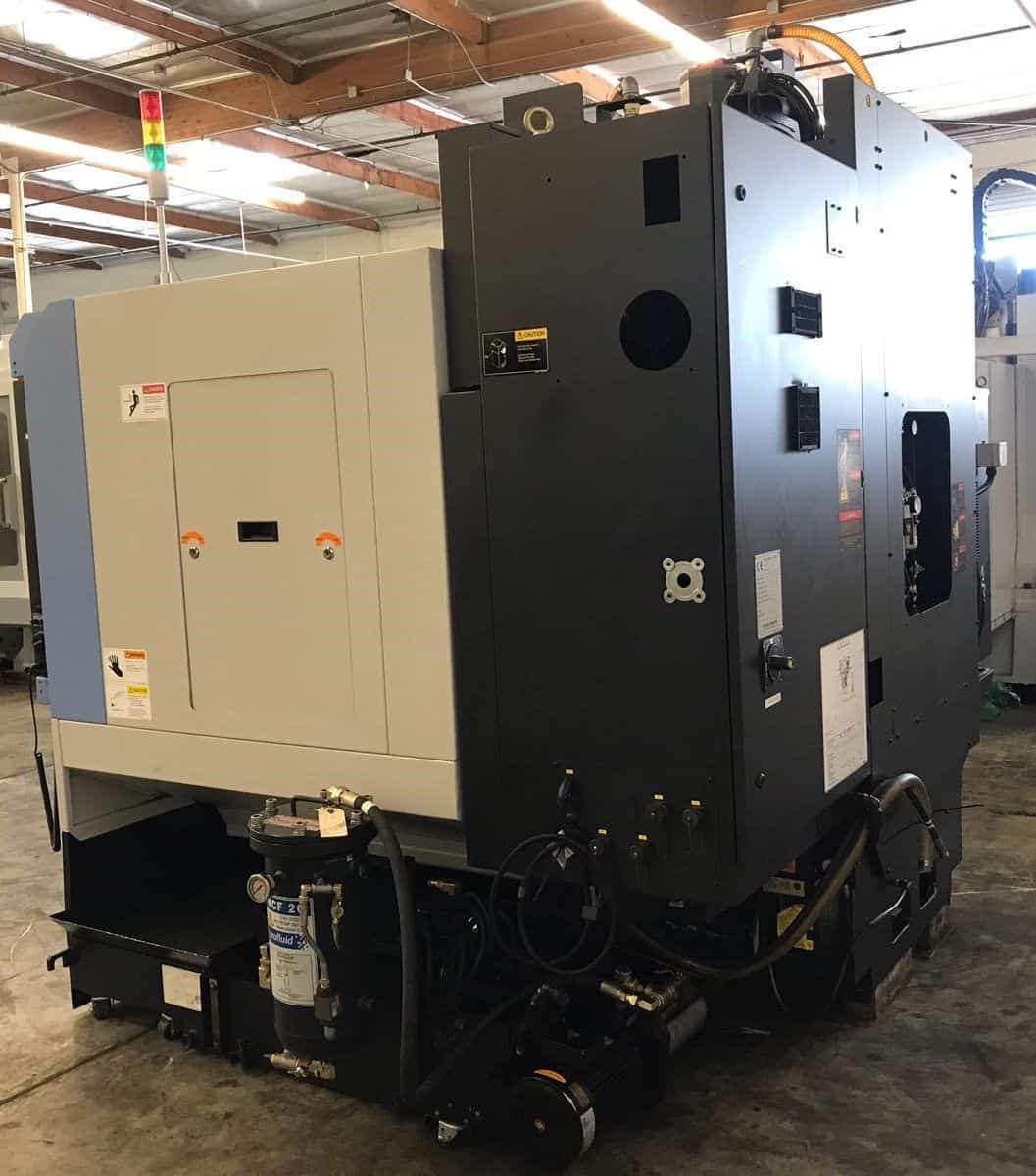

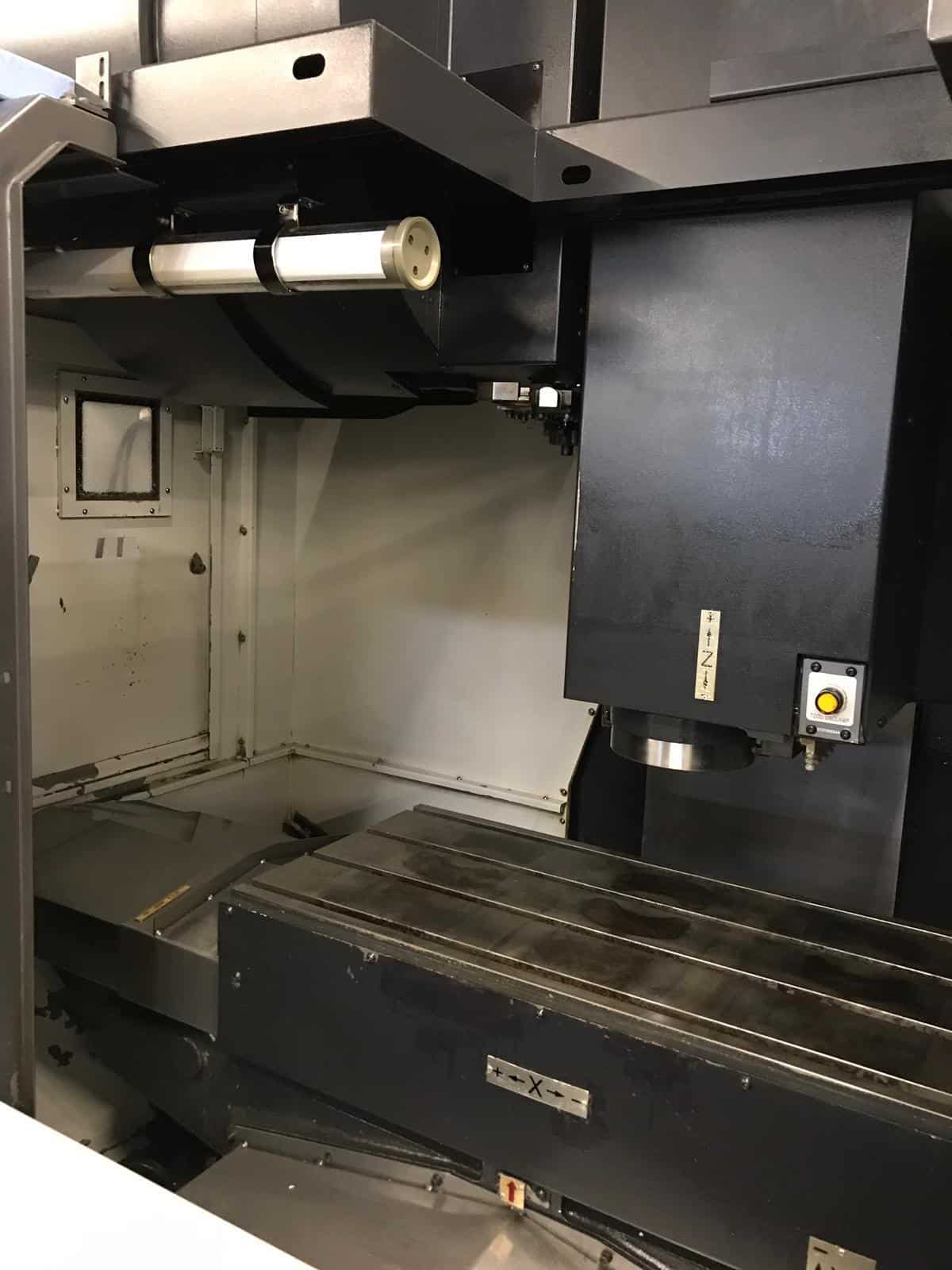

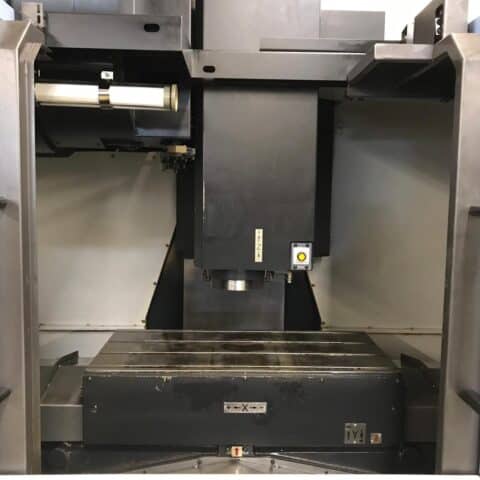

Doosan DNM-400 Comes as shown in pictures.
