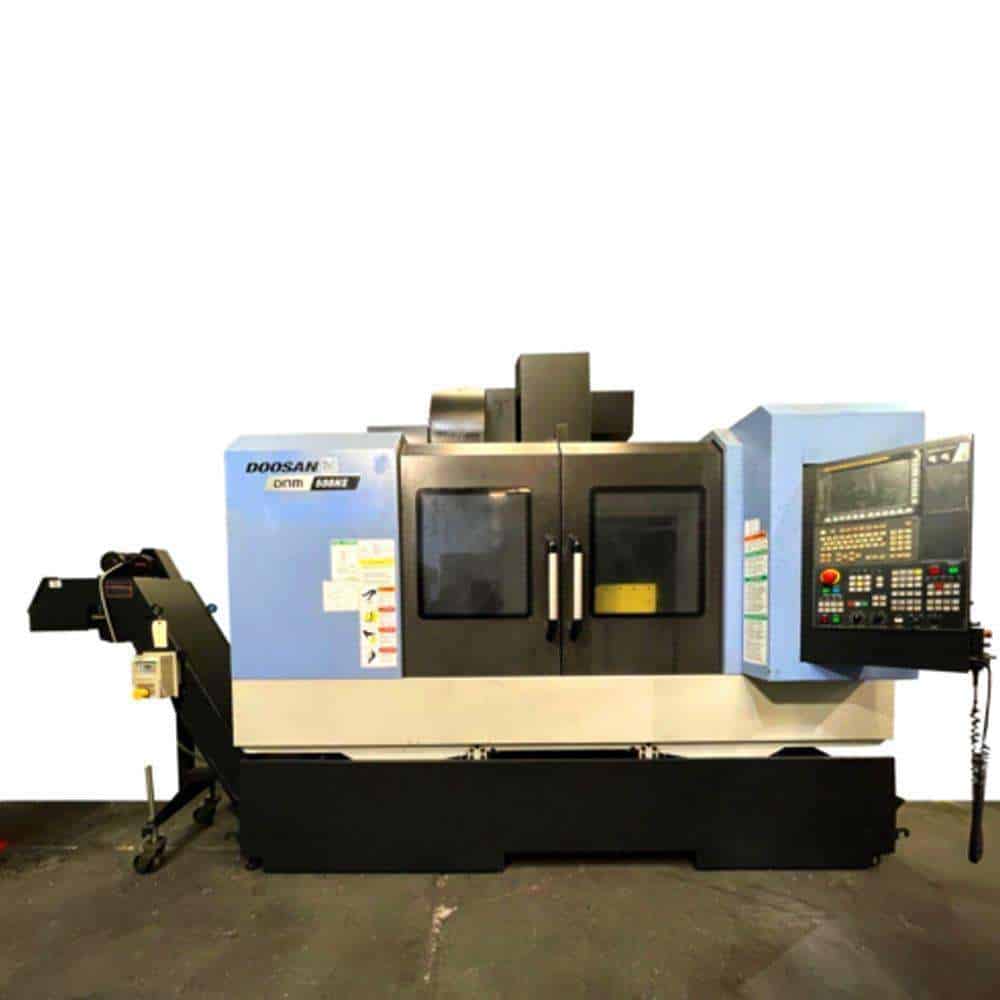

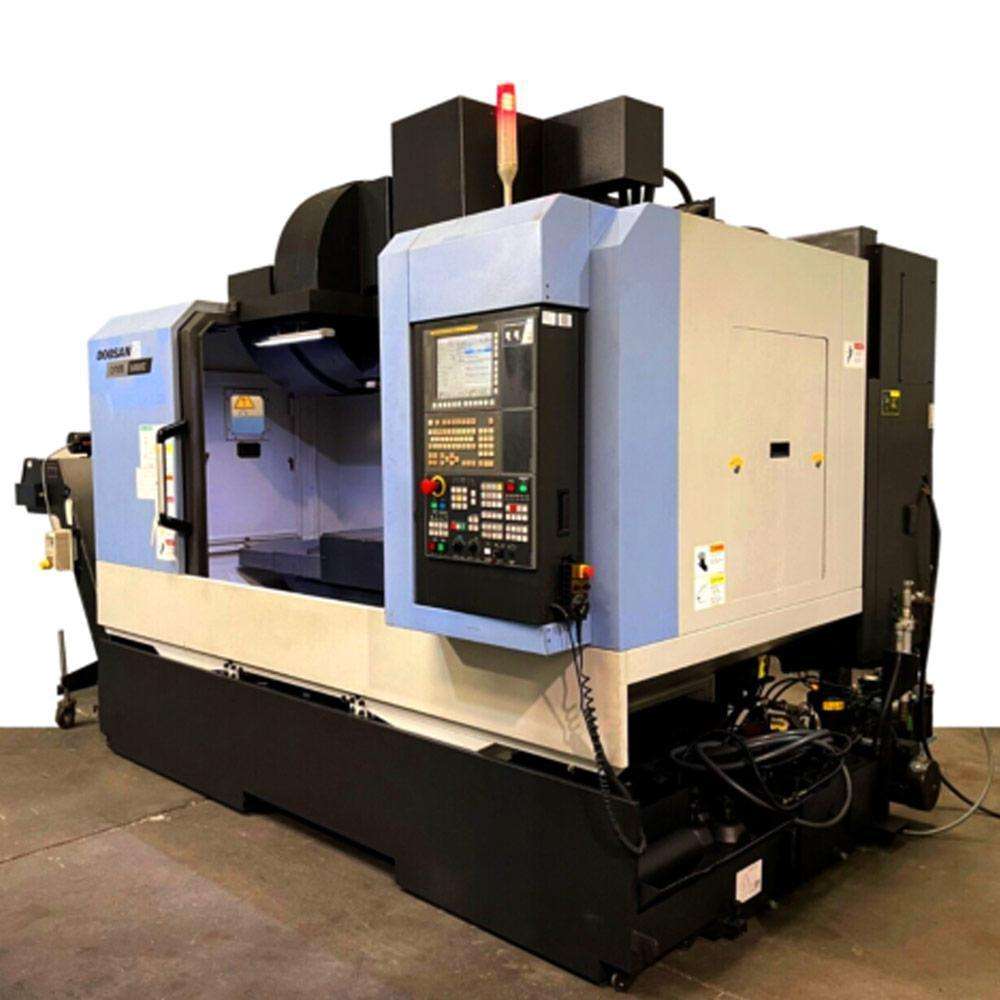

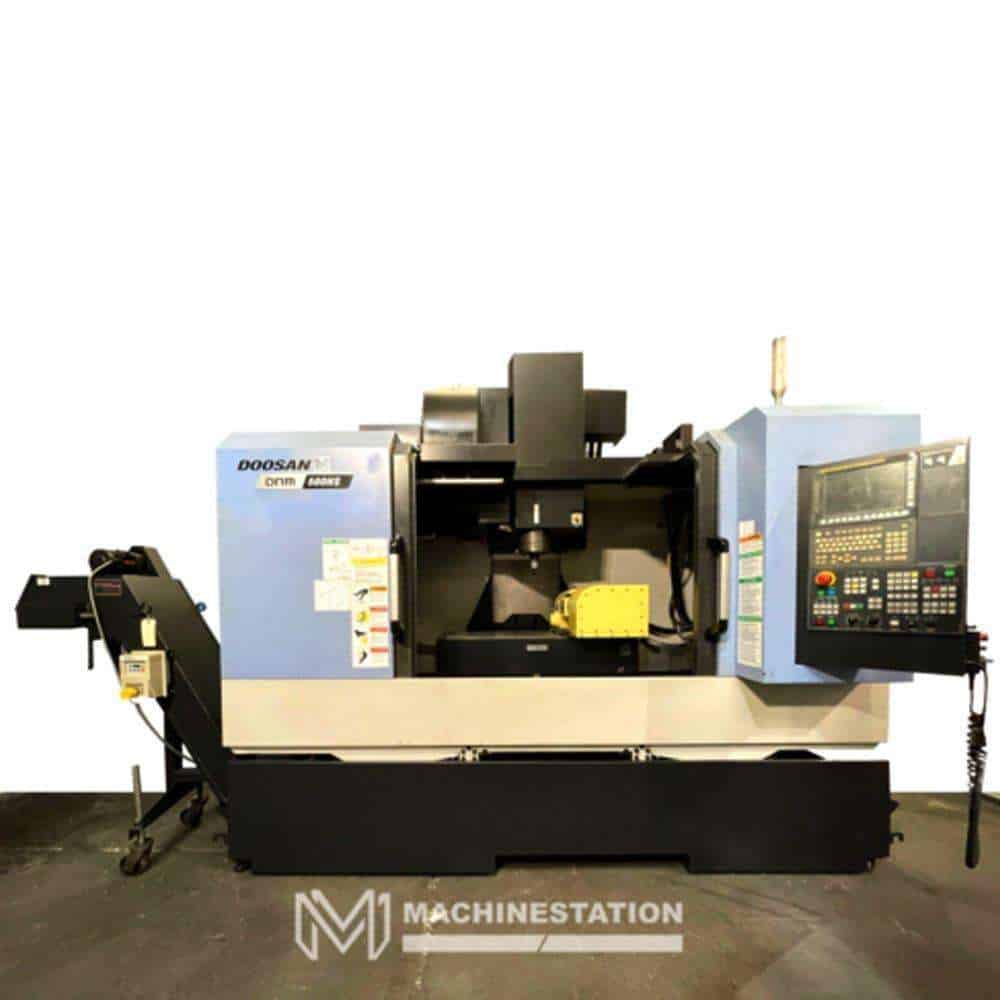

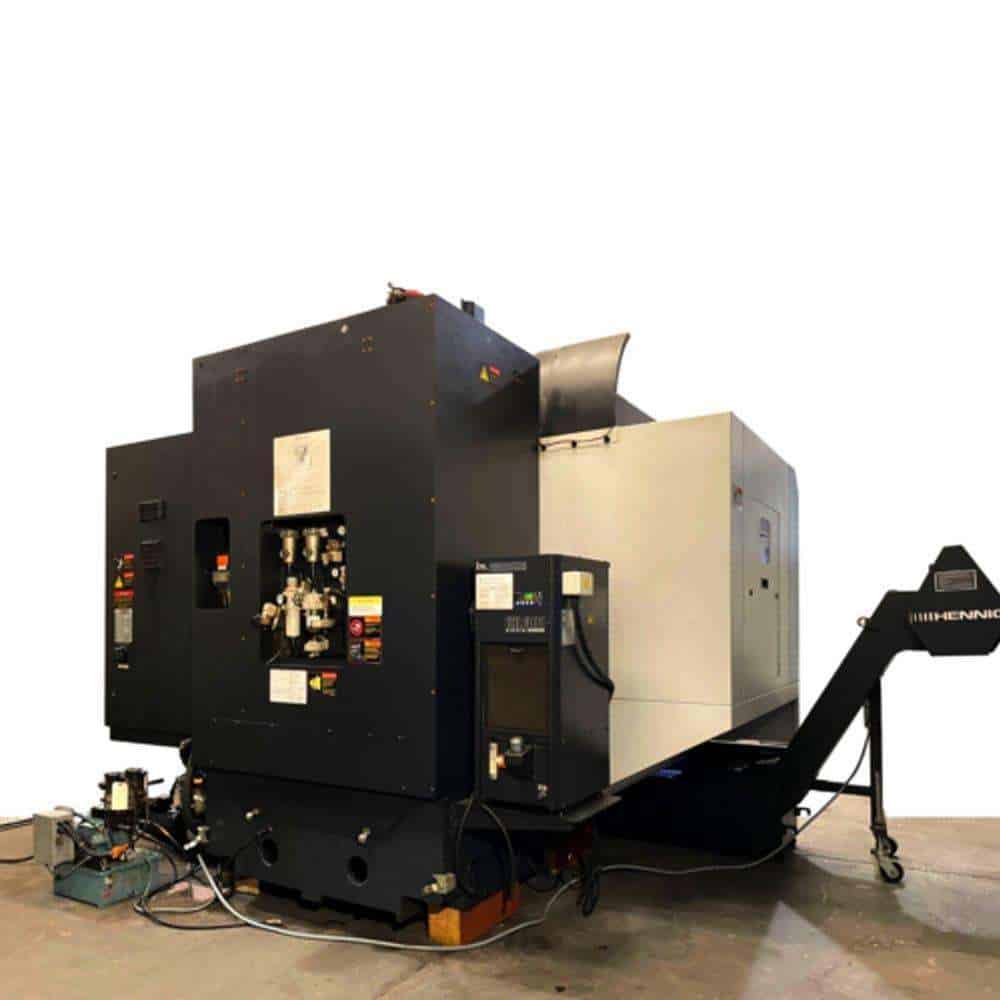

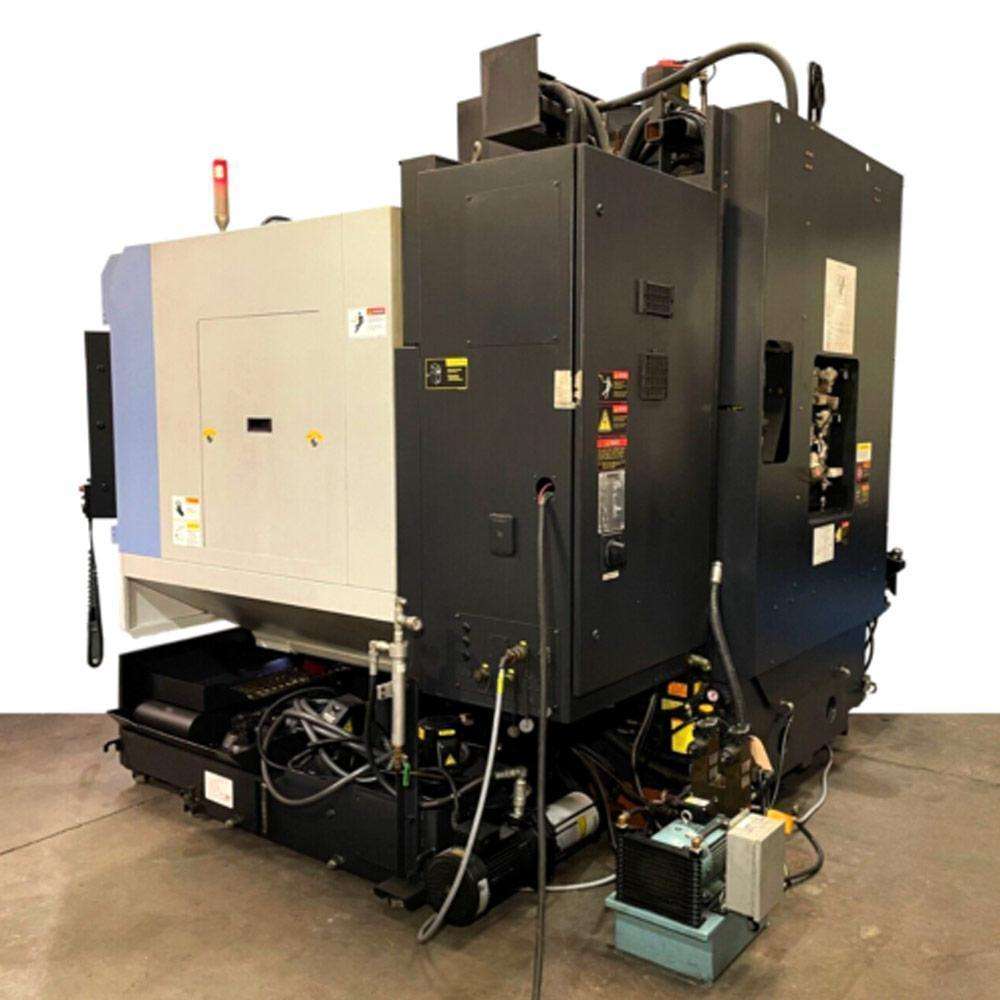

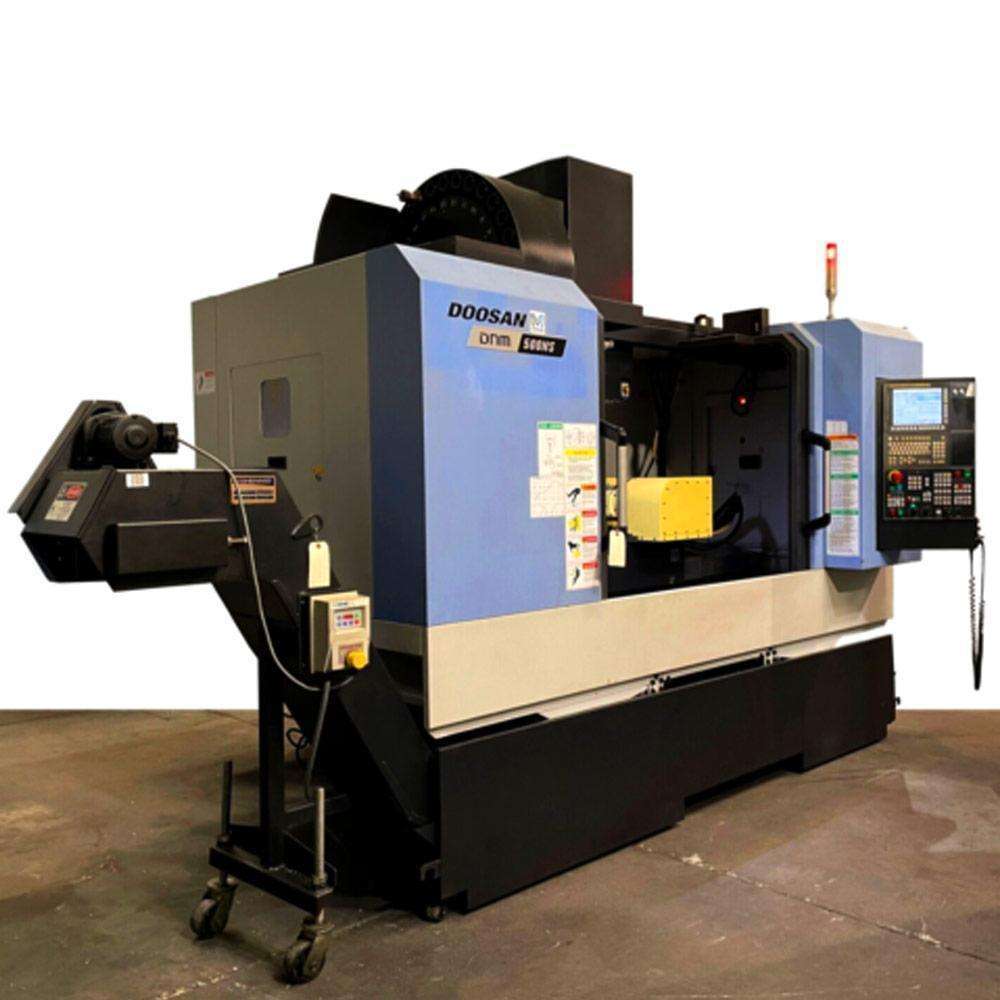

Doosan DNM-500HS 5 Axis CNC Vertical Machining Center

Doosan DNM-500HS 5 Axis CNC Vertical Machining Center

Out of stock

SKU: 2411
Make/Model: DOOSAN DNM-500HS
Video:



SKU: 2411 Category: Tag:

Description

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:DOOSAN
Model:DNM-500HS
Year:2015
Condition:Used – Excellent



Features:

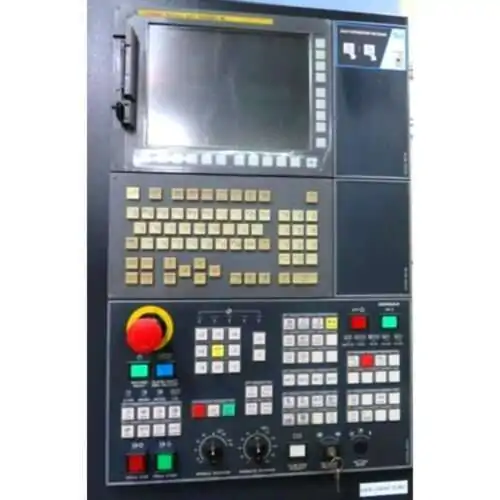

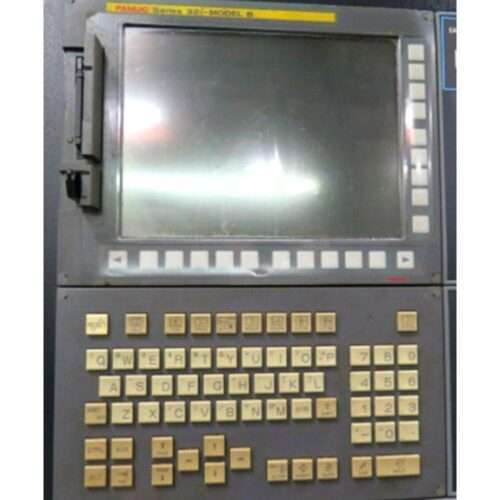

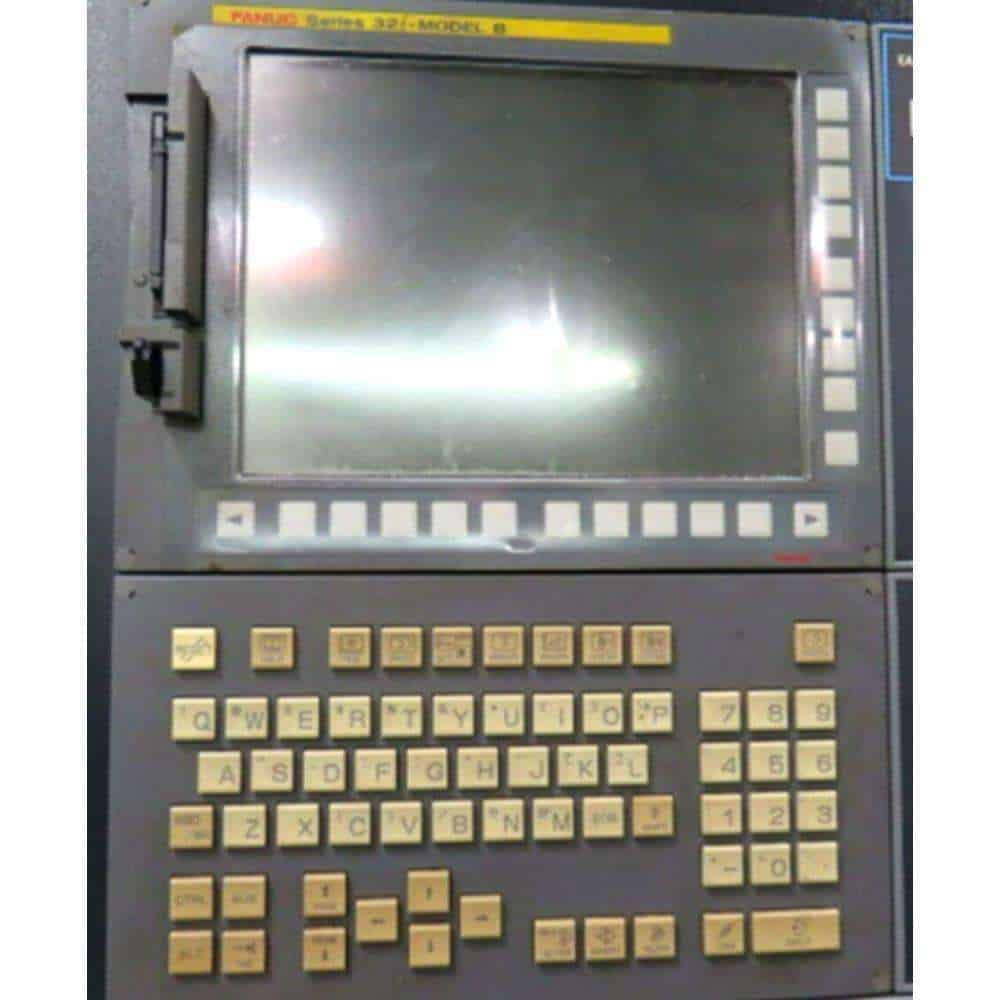

Fanuc 32i-MB Series CNC Control

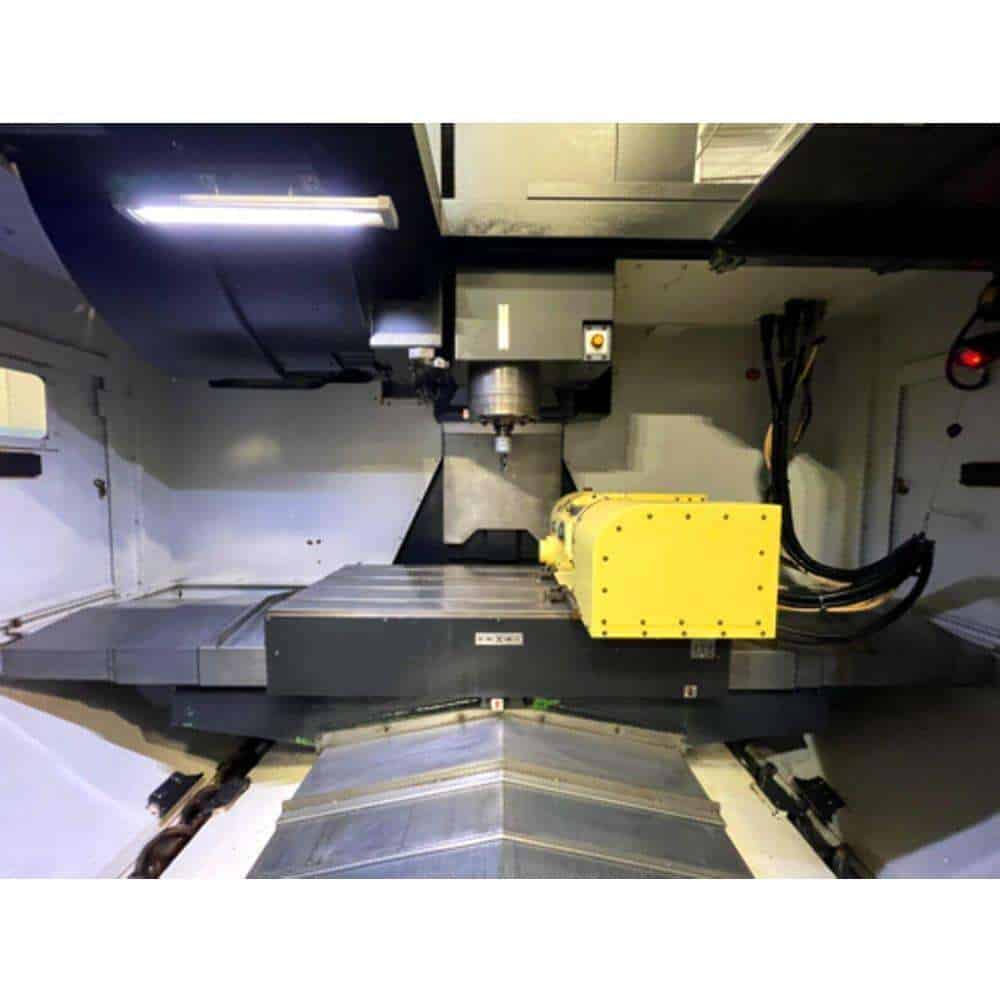

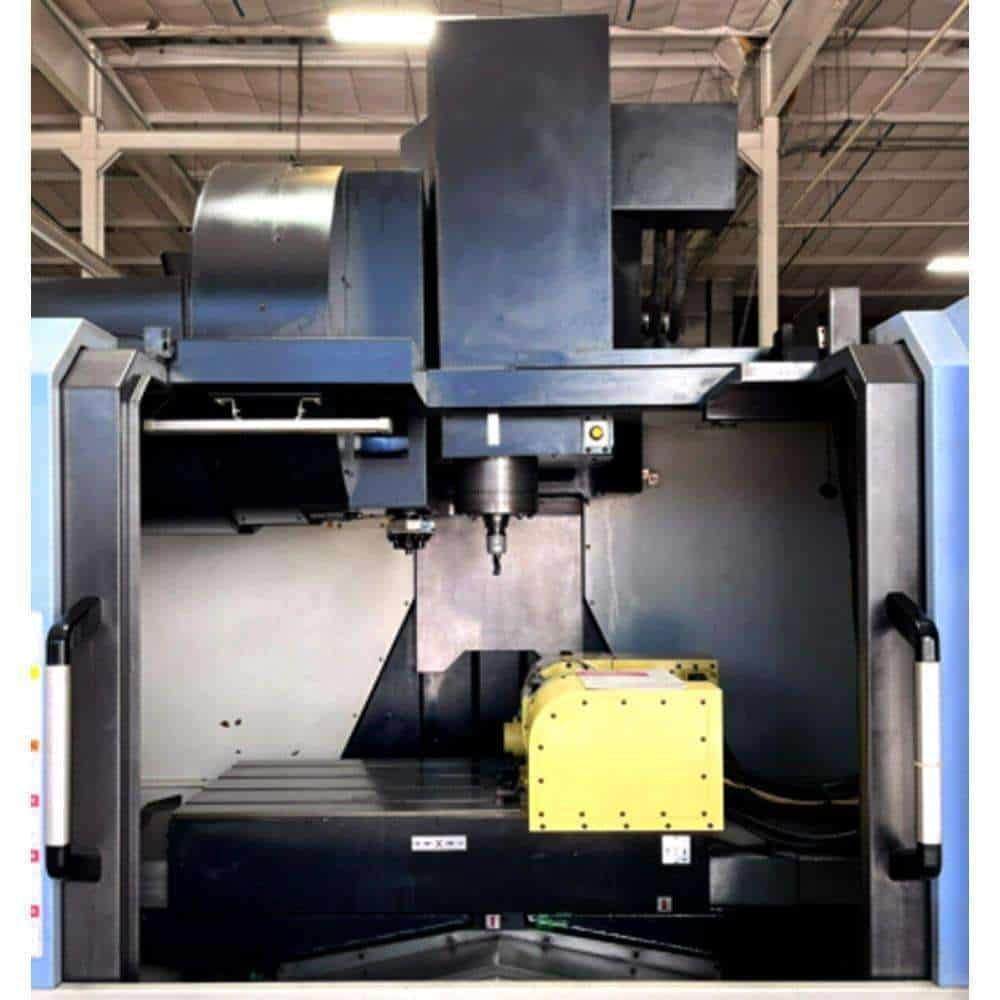

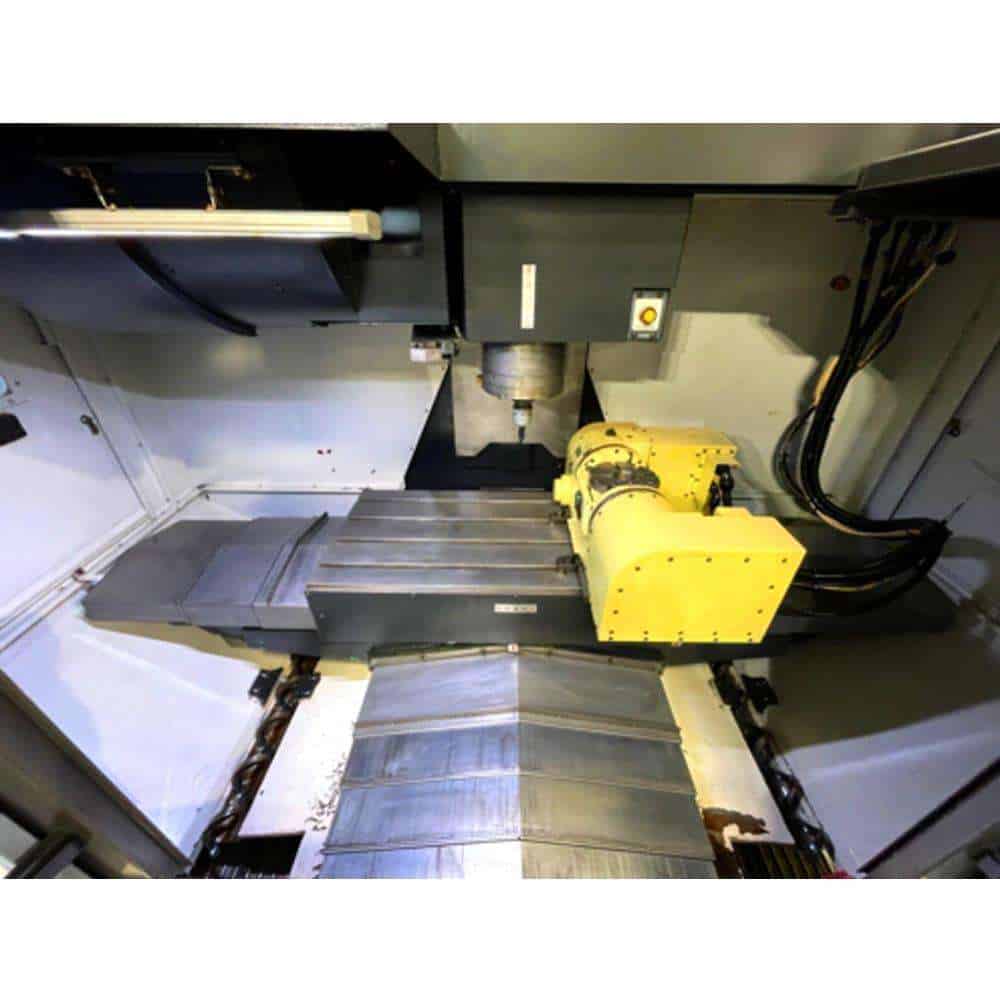

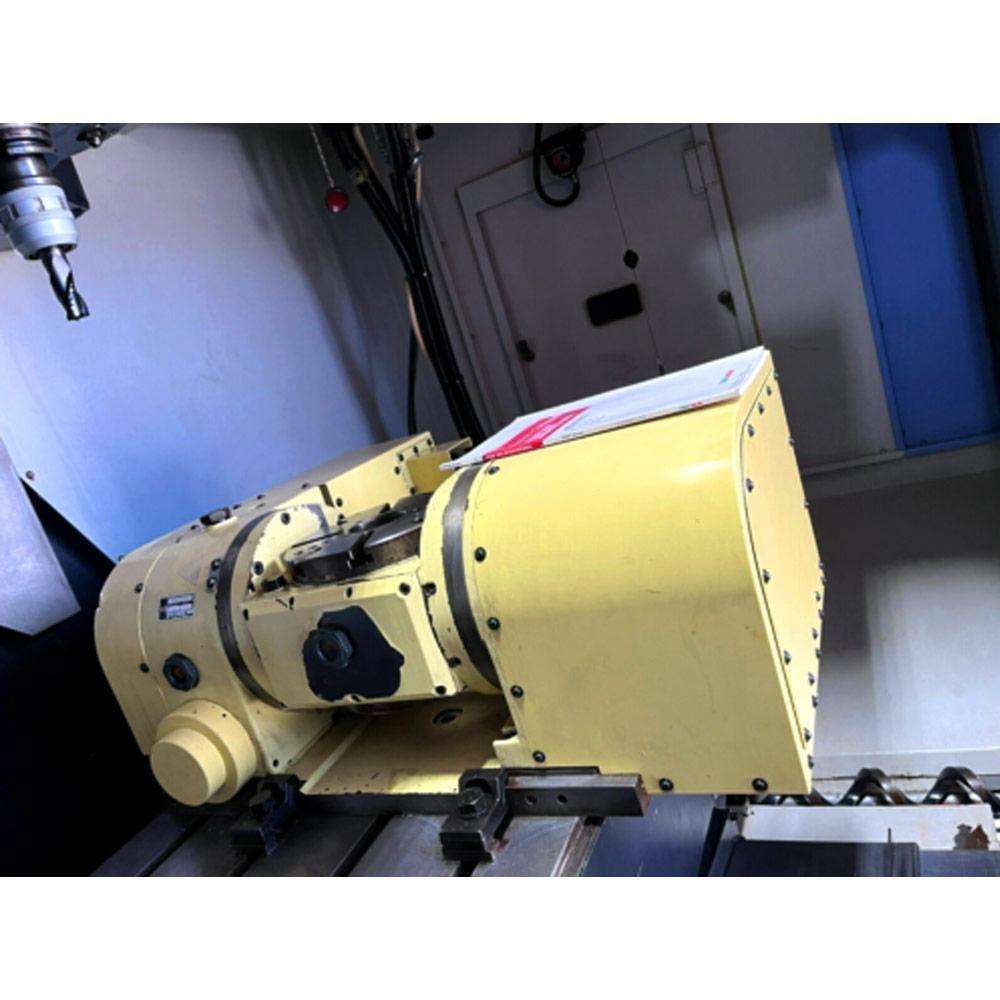

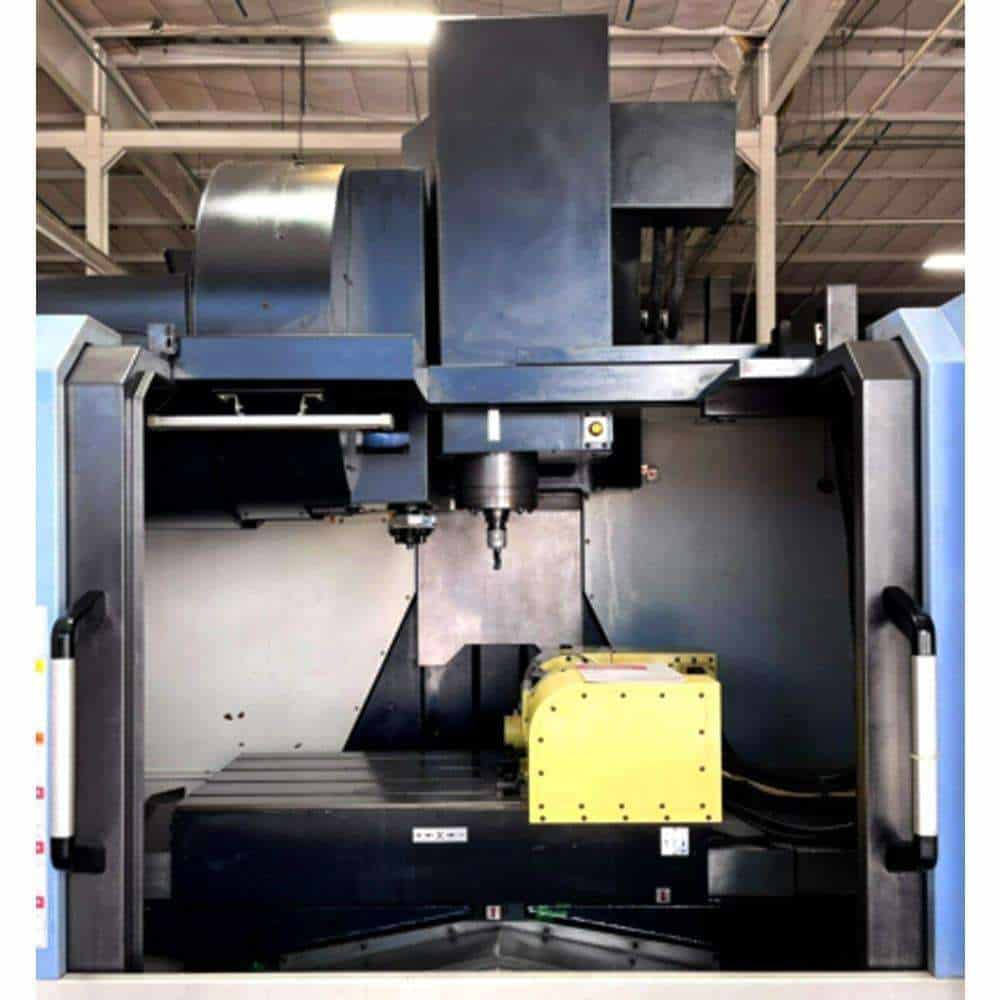

5th Axis Nikken Rotary Table

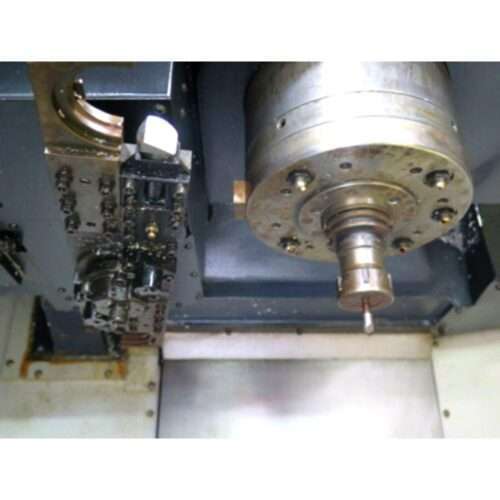

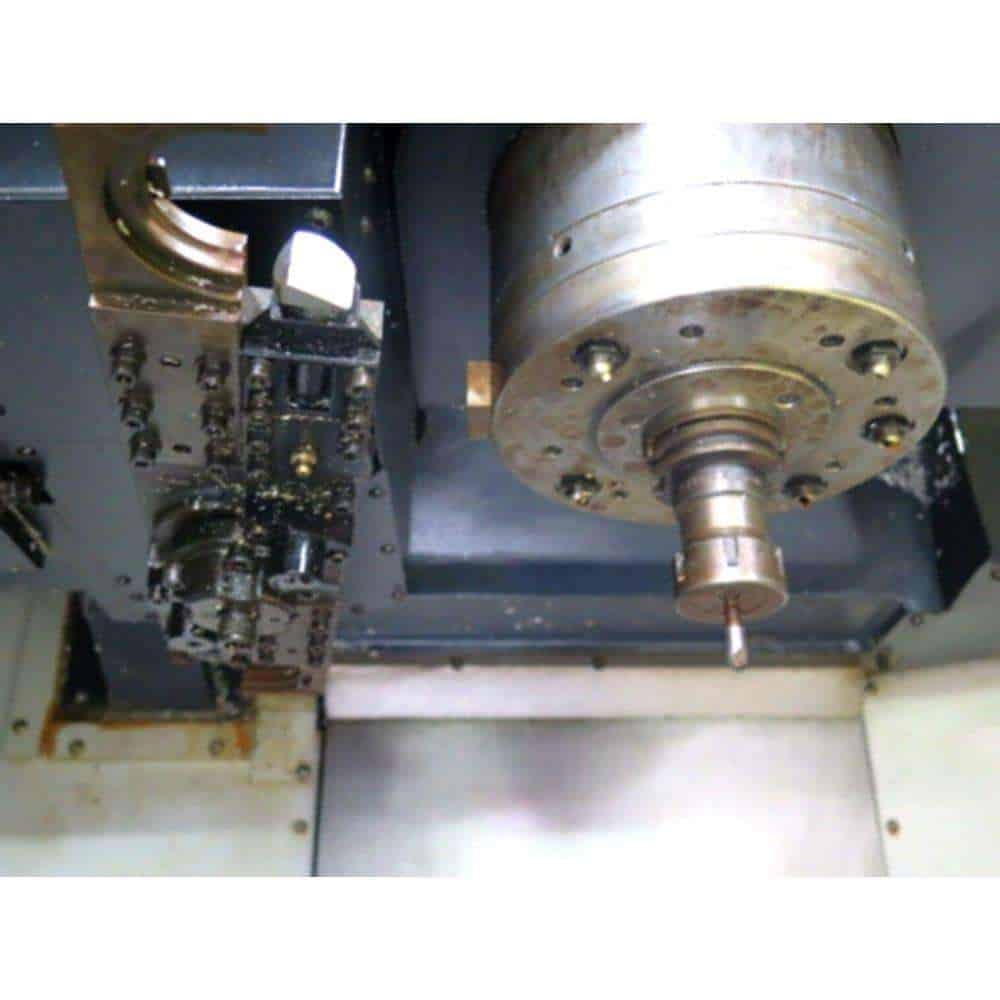

15000 RPM Precision Spindle
1890 IPM Fast Rapids Traverse Rate
945 IPM Fast Cutting Feed Rate
High Speed Machining
Roller Guide way Construction
Through Spindle Coolant
30 Station High speed Automatic tool changer
40 Taper Big Plus Spindle
Renishaw Wireless Touch System
USB Drive
PCMCIA Card Slot
MPG Control
Rigid Tapping
Spindle Orientation
High Pressure Coolant System
Telescopic way covers
Oil Cooler
Chip Blaster Unit
Chip Augers
Chip Conveyor



Travels:
X-Axis: 40.2″
Y-Axis: 21.3″
Z-Axis: 20.1″
Rapid Traverse Rates Axis: 1890 IPM
Cutting Feed Rates: 945 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 30.5″



Table:
Length: 51.2″
Width: 22.4″
Number of Std T-Slots: 4
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 1764 lbs



Spindle:
Taper Size: 40
Speed Range: 15000 RPM
Spindle Power: 25 HP

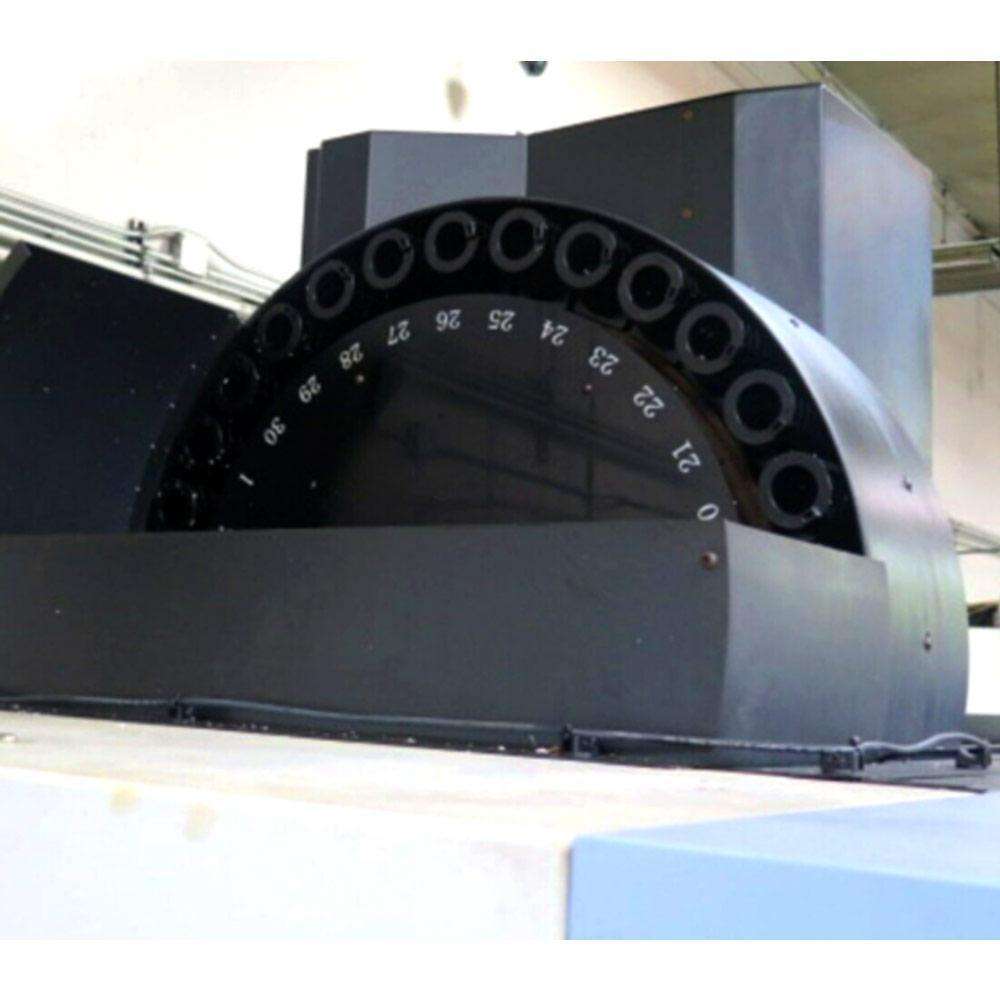

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.2 Seconds

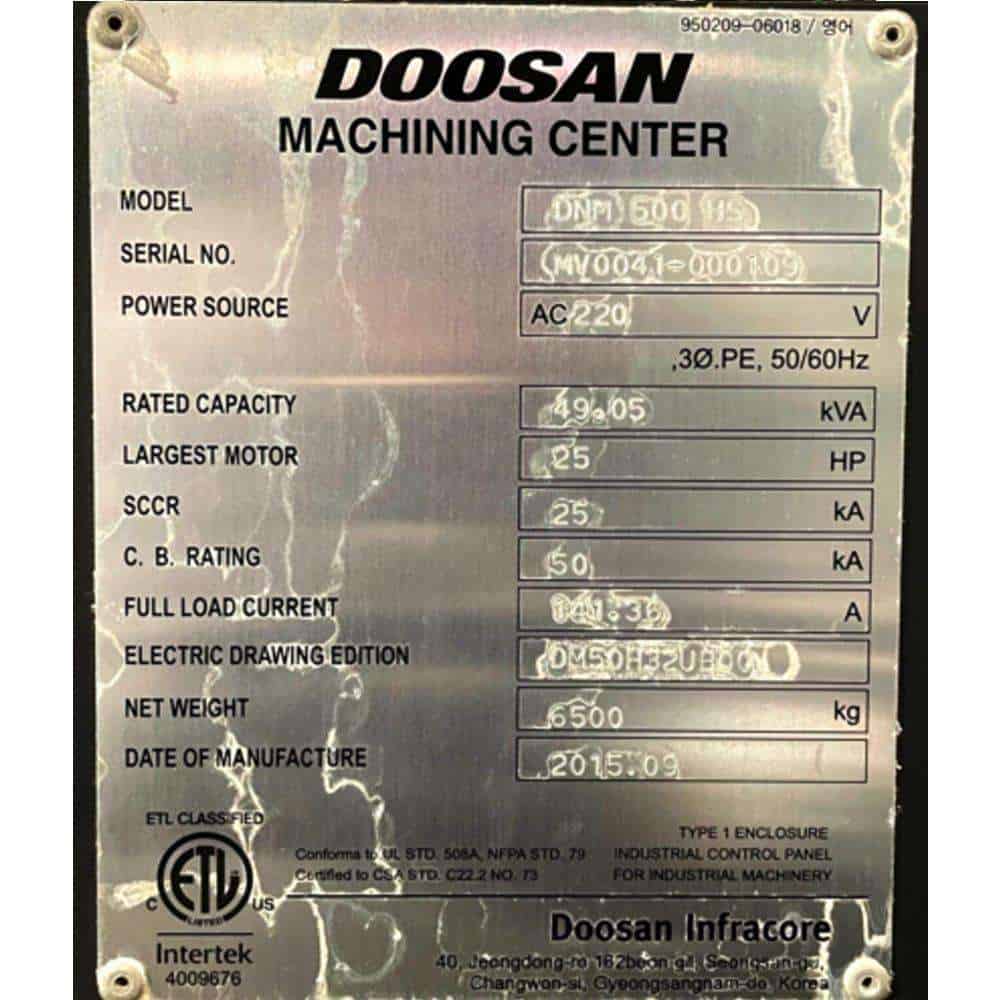

General:
Air Required: 80 psi 4 scfm
Power: 220v / 49.05 kva / 3-Phase
Overall Dimensions: 132″ x 90″ x 107″ High
Weight: 14330 lbs



“No Charges for loading at list Price”
