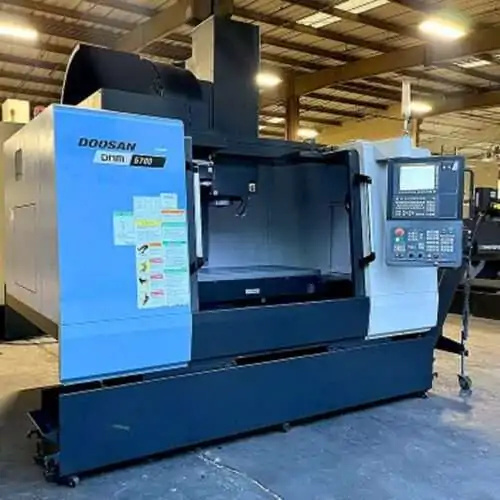

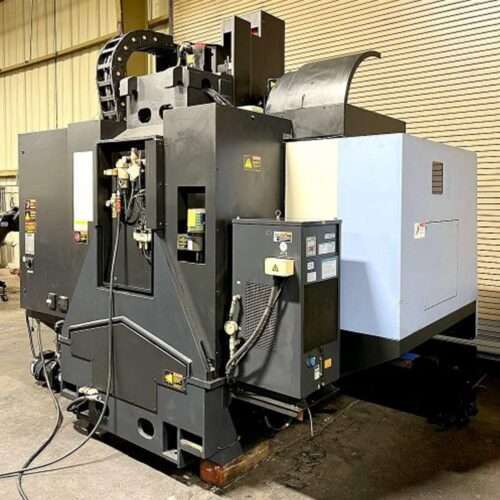

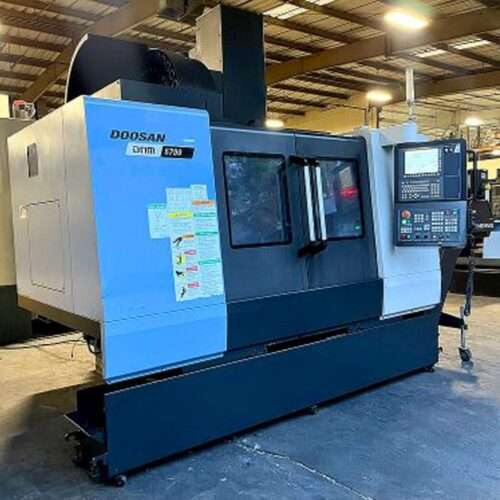

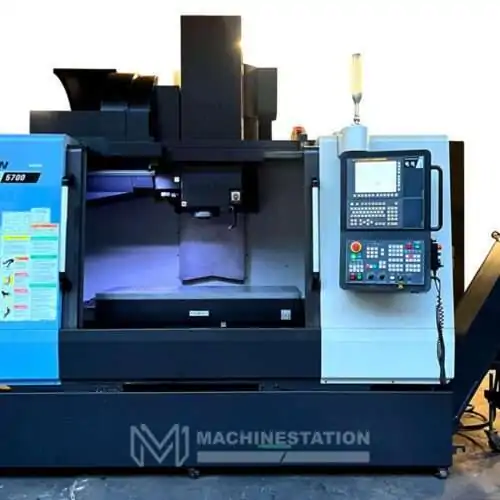

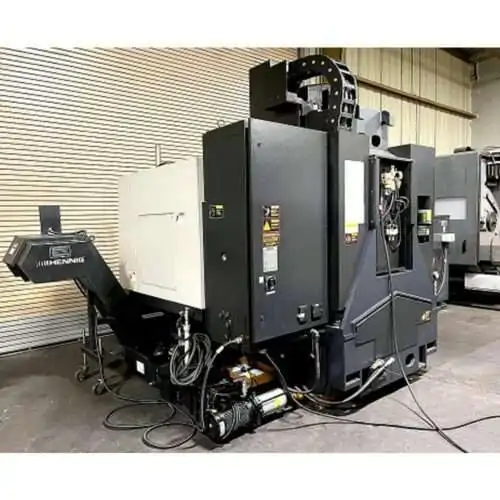

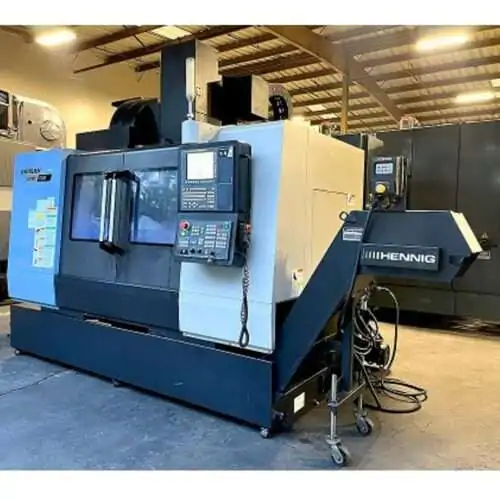

Used Doosan DNM-5700 CNC Vertical Machining Center for Sale. This Doosan DNM-5700 has minimal cutting hours and is in good condition.
| Location: | Lake Elsinore, CA |
| SKU: | 2412 |
| Make/Model: | Doosan DNM-5700 |
| Video: | No Video |
Doosan DNM-5700 CNC Vertical Machining Center
Out of stock
Description
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | DNM-5700 |
| Year: | 2016/2017 |
| Condition: | Excellent |
| Cutting Hours: | 3492 |
| Equipped With: |
|---|
| Doosan-Fanuc i Series CNC Control |
| Roller Guide way Construction |
| Through Spindle Coolant |
| 8,000 RPM Precision Spindle |
| 30 Station High Speed Automatic Tool Changer |
| 40 Taper Big Plus Spindle |
| Renishaw Wireless Touch System |
| 1417 IPM Fast Rapids Traverse |
| Doosan Easy Operation Package |
| USB Drive |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| High Pressure Coolant System |
| Telescopic Way Covers |
| Oil Cooler |
| Chip Augers |
| Travels: |
|---|
| X-Axis: 41.3″ |
| Y-Axis: 22.4″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates X & Y Axis: 1417 IPM |
| Rapid Traverse Rates Z Axis: 1181 IPM |
| Cutting Feed Rates: 590 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26″ |
| Table: |
|---|
| Length: 51.2″ |
| Width: 22.4″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 4.9″ x 0.7″ |
| Max Weight on Table: 2204 lbs |
| Spindle: |
|---|
| Taper Size: 40 Big Plus |
| Speed Range: 8000 RPM |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.1″ -4.9″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 1.2 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 30 kva / 3-Phase |
| Overall Dimensions: 131″ x 95″ x 117″ High |
| Weight: 15,4320 lbs |
