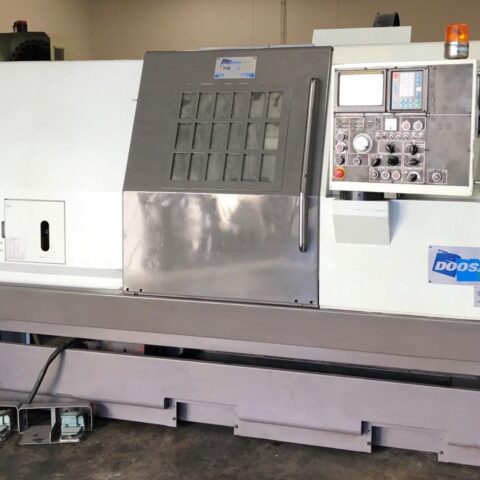

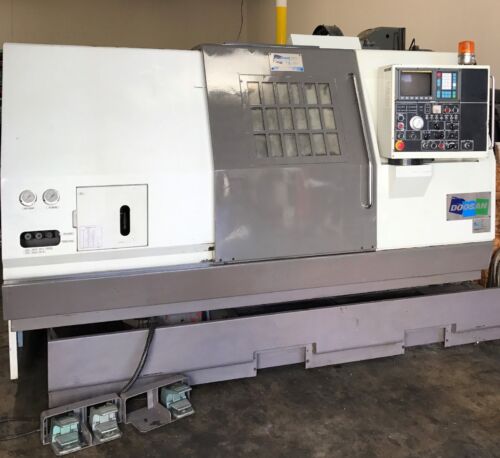

Doosan DooTurn 4 CNC Turning Center

Share

Description

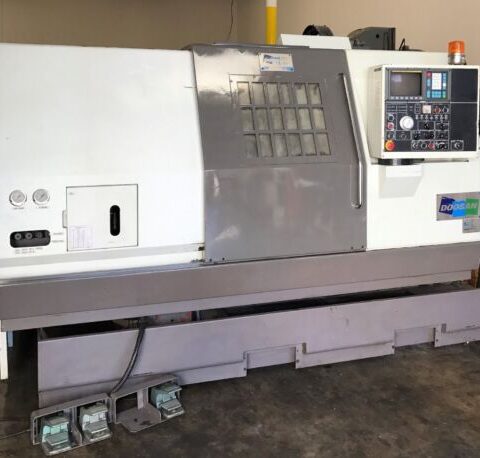

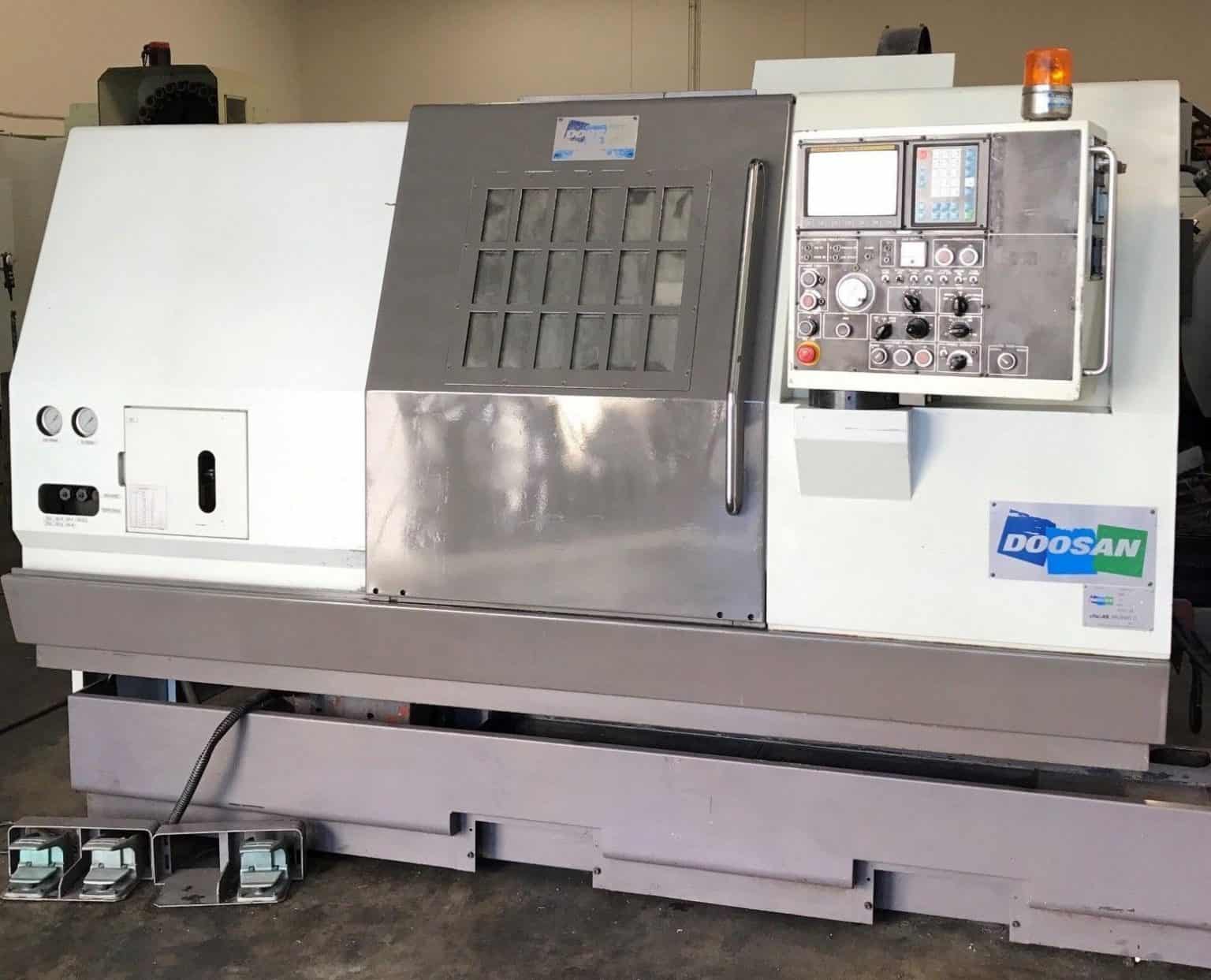

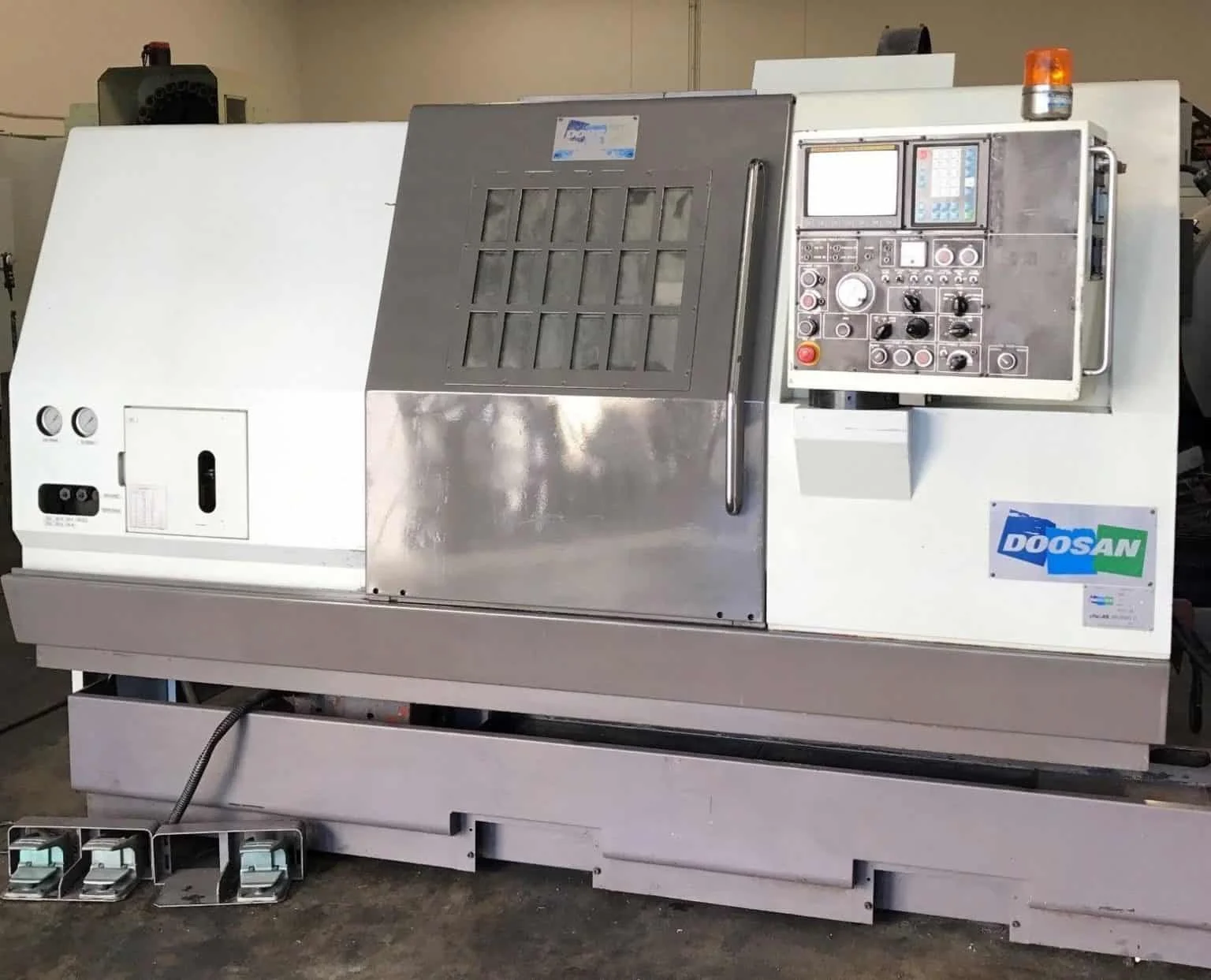

DOOSAN DOOTURN 4 CNC Turning
Make DOOSAN
Model No. DOOTURN 4
Year of Manufacture: 1997

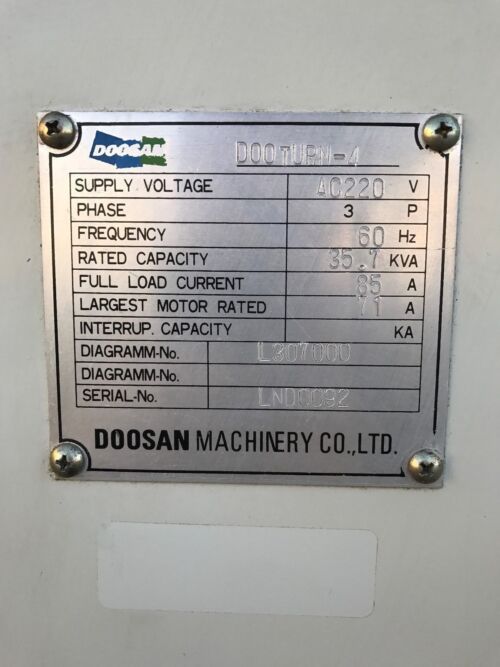

Serial # LND0092
Condition Very Good

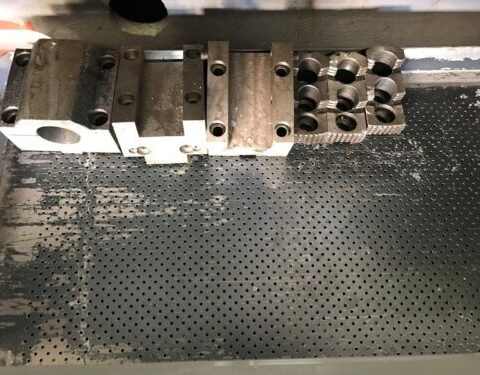

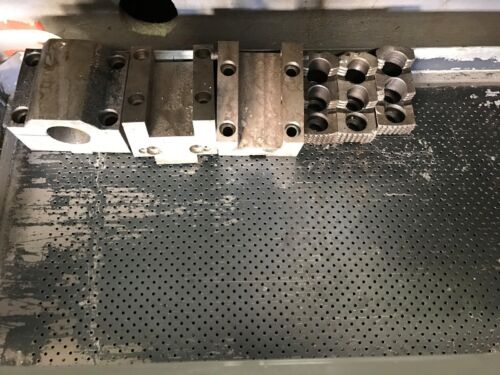

Comes with 15″ Chuck, Chip Conveyor, Tool Holders.

  • DOOSAN DOOTURN 4 Equipped With:

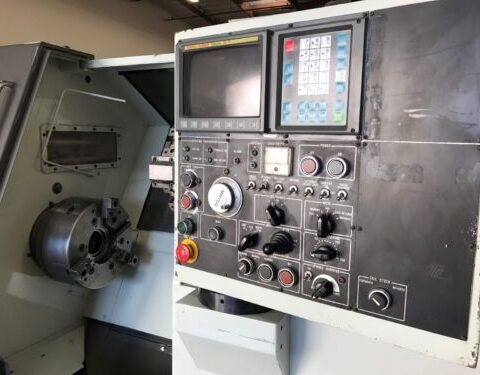

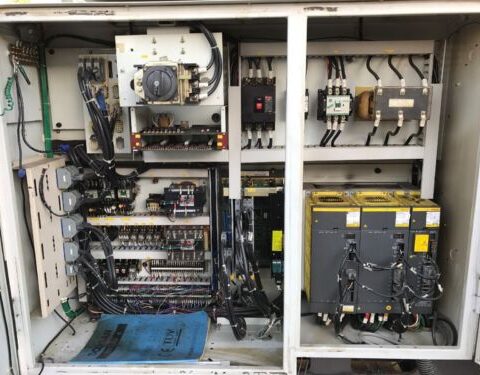

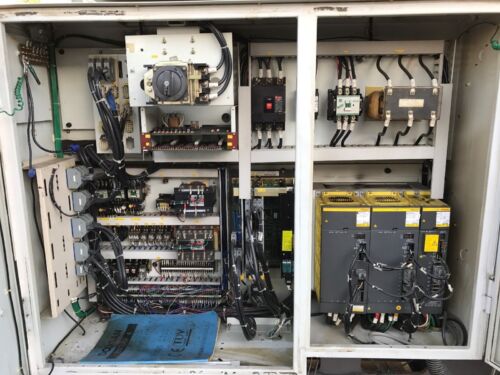

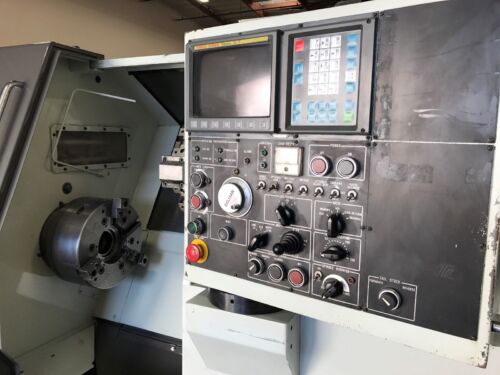

  • Fanuc 0T-C CNC Control

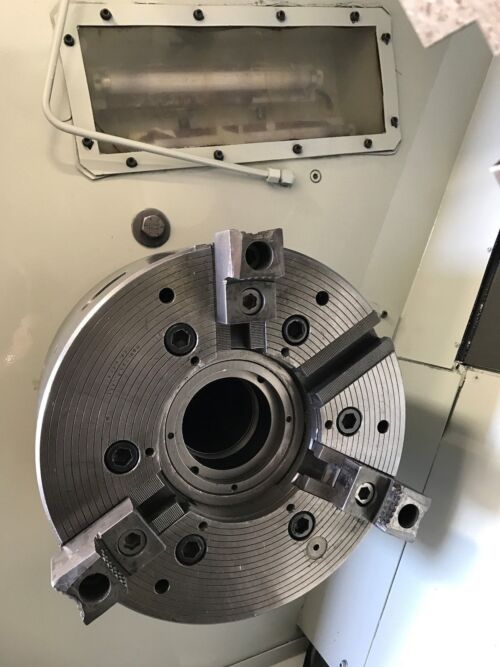

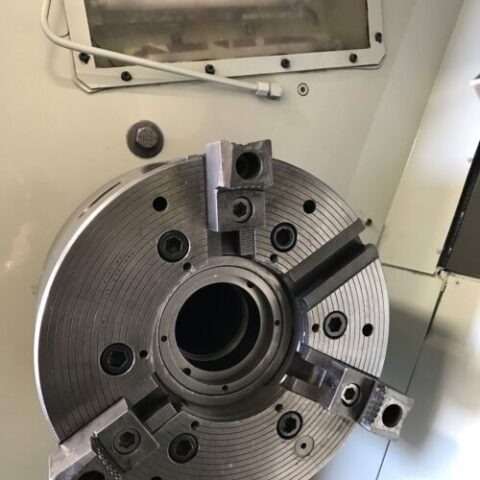

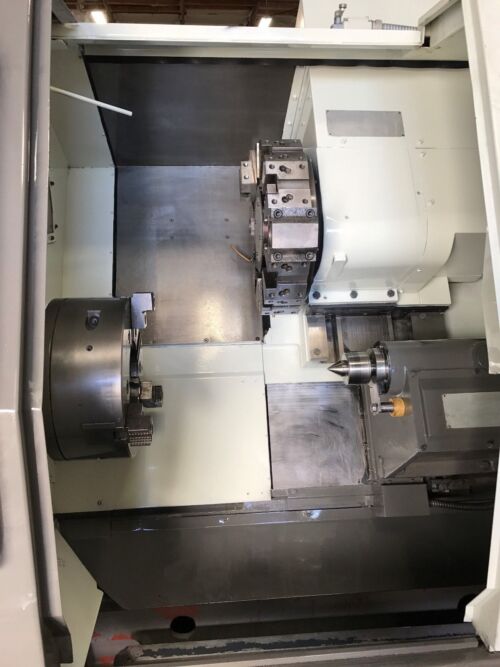

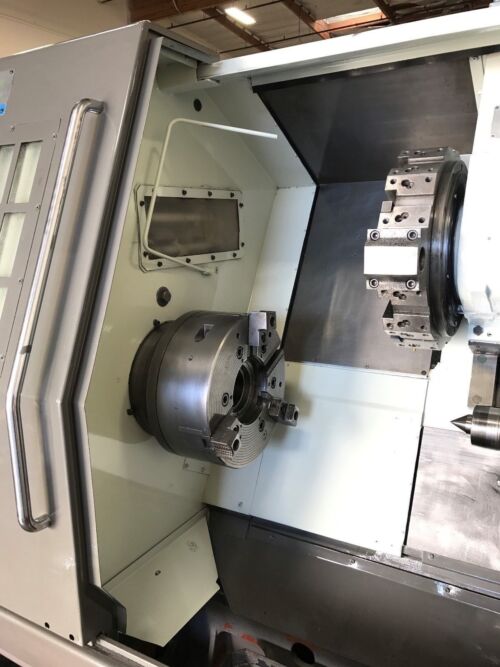

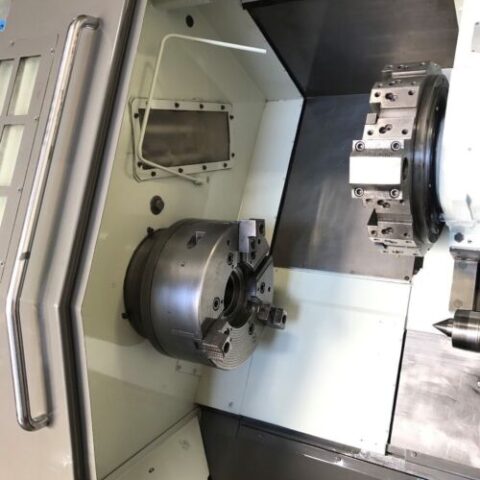

  • 15″ 3 Jaw Power-Hold Hydraulic Chuck
  • Coolant System
  • Barfeed Interface
  • RS-232 ports

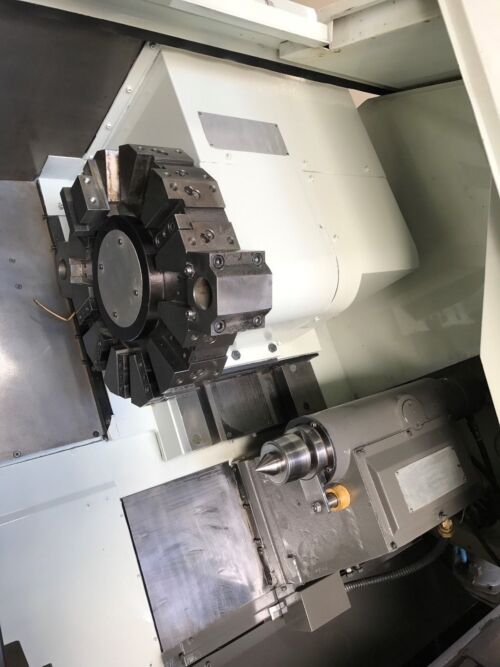

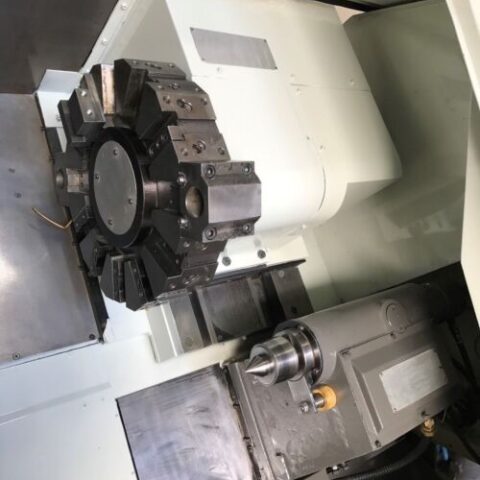

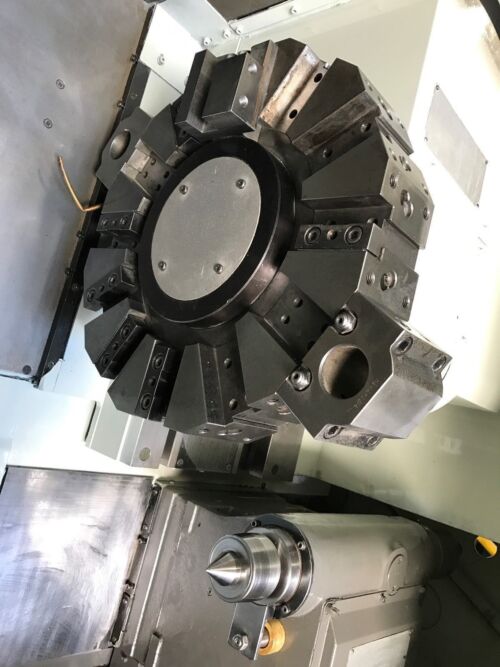

  • 12 Station Automatic Turret
  • Chip Conveyor
  • General:

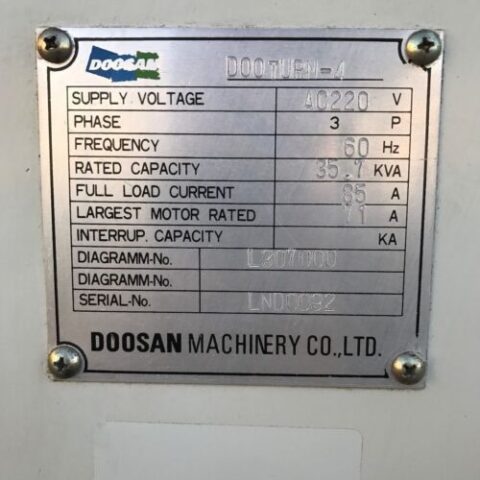

  • Power: 220v / 3-Phase
  • Overall Dimensions: 114″ x 74″ x 80″ High
  • Overall Dimensions: 144″ x 74″ x 80″ High (With Chip Conveyor)
  • Weight: 11500 lbs
  • DOOSAN DOOTURN 4 Specifications:
  • Capacity:
  • Max Turning Diameter: 15.35″
  • Max Turning Length: 28.74″
  • Max Bar Capacity: 3.75″
  • Swing Over Bed: 22.83″
  • X Axis Travel: 9.65″
  • Z Axis Travel: 29.53″
  • Rapid Traverse X Axis:
  •  630 IPM
  • Rapid Traverse Z Axis: 787 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 4.00″
  • Spindle Speed: 40 – 3500 RPM
  • Spindle Motor: 30 HP

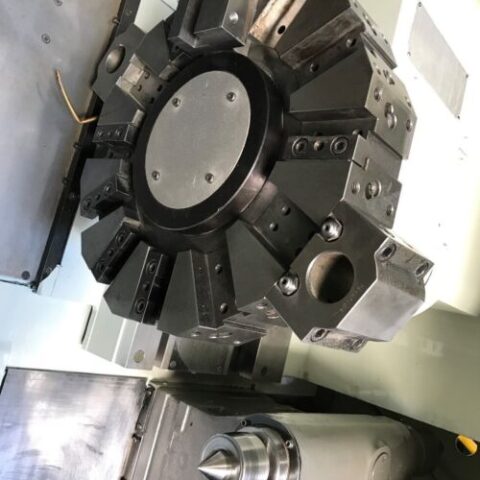

  • Turret Capacity: 12 Stations
  • Turret Index Time: 1.5 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 4.0″
  • Tailstock Quill Travel: 4.0″

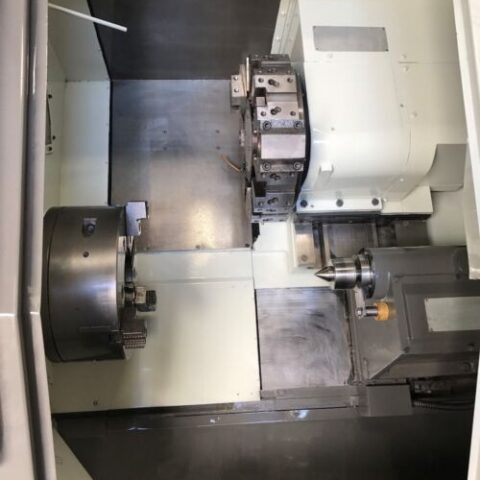

DOOSAN DOOTURN 4 Comes as shown in pictures.

1 review for Doosan DooTurn 4 CNC Turning Center

  1. Adnan

    Make: DOOSAN
    Model No.: DOOTURN 4
    Serial No.: LND0092
    Year of Manufacture: 1997

    I need this machine maintenance manual and electrical manual
    Please help me
    adnanyousafmgi@gmail.com

    • Sanjeev Suri

      “Hello! Thank you for reaching out. Unfortunately, we do not stock these items individually. We recommend trying your local Doosan dealer.”
