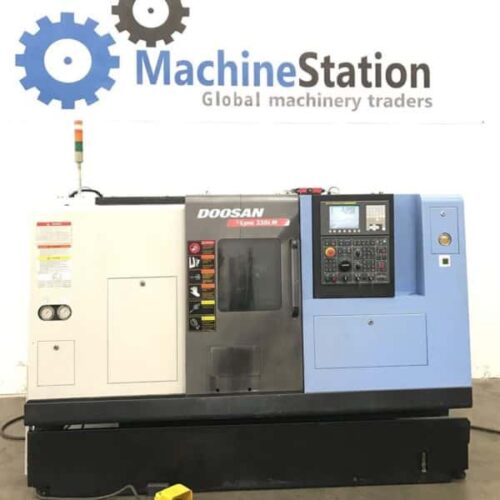

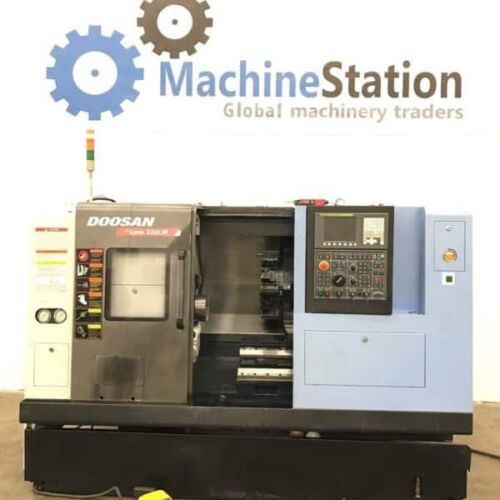

Doosan Lynx 220 LMA CNC Turn Mill Center

Out of stock

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Only 8539 Cutting Hours. Equipped with 6.5″ Chuck, 3J Collet Chuck, Full C Axis, Milling. Comes with Live tool holders, all books, manuals. Check *VIDEO”

SKU:	1414
Make/Model:	Doosan Lynx 220 LMA
Video:	[fusion_button link=”https://www.youtube.com/watch?v=VYeWI69yMDI” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1414

DOOSAN LYNX 220 LMA CNC TURN MILL CENTER C AXIS
Make	Doosan
Model No.	Lynx 220 LMA

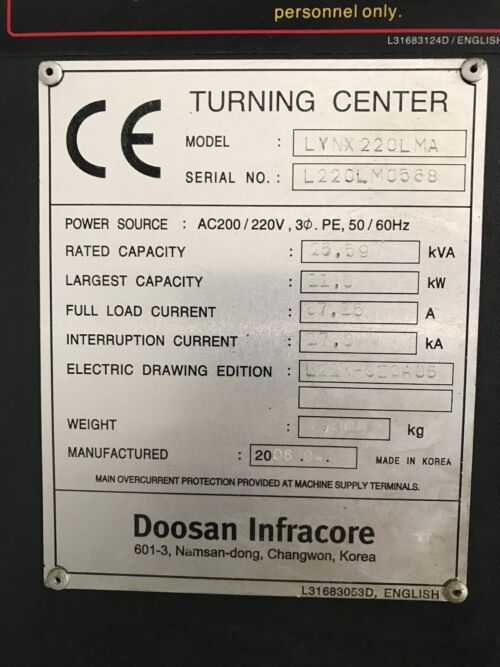

Year Of Manufacture:	2008.04

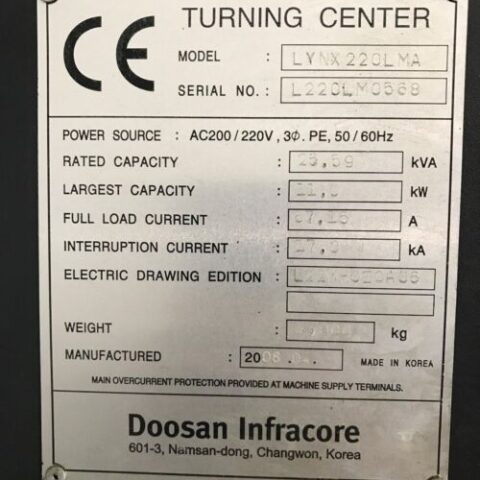

Serial #	L220LM0568
Condition	Very Good
Country of Origin:	Korea

All specifications are approximations and are subject to verification.

DOOSAN LYNX 220 LMA Equipped With:

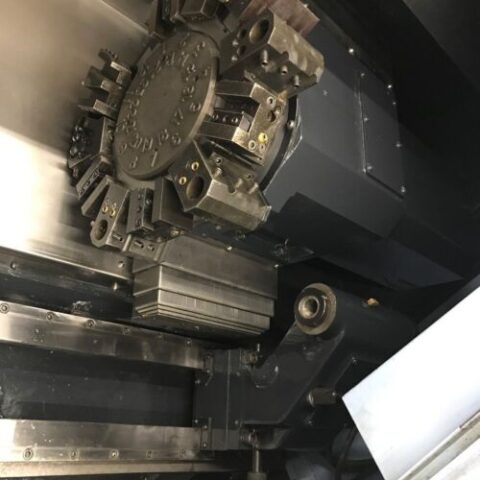

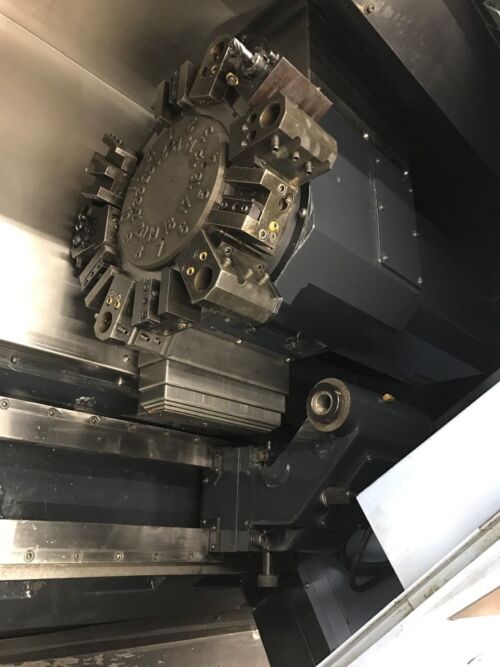

24-Station Turret with Live Tools/ Milling
Tool Presetter

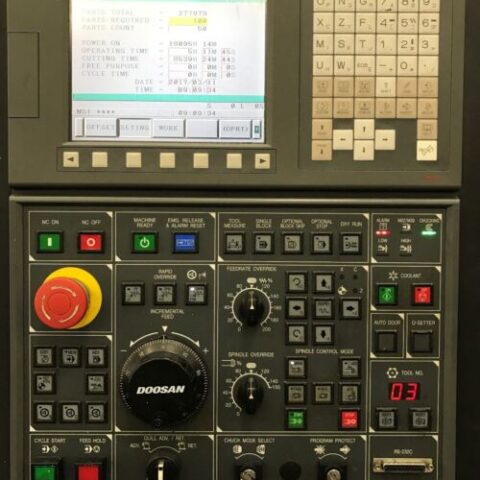

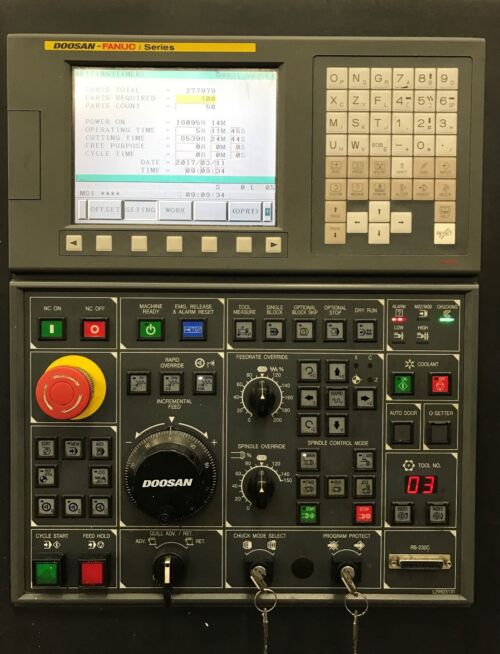

Fanuc i series CNC Control with Color LCD

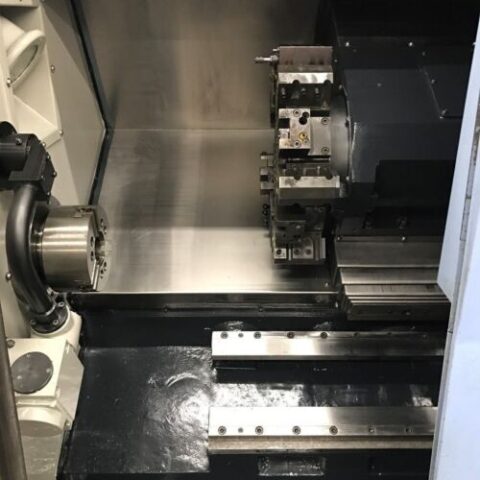

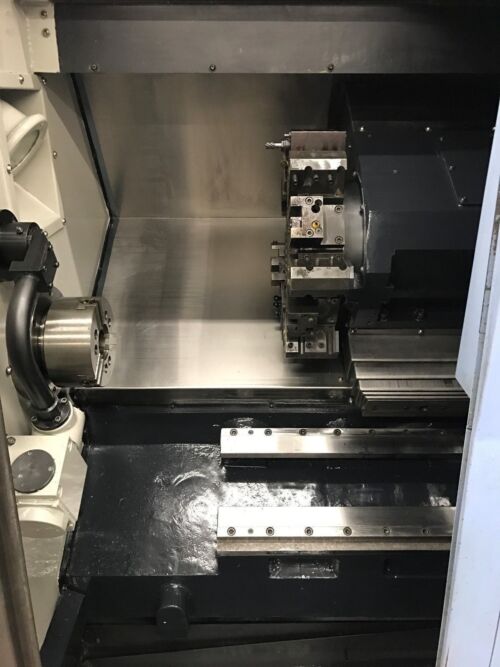

6.5″ 3-Jaw Kitagawa Hydraulic Chuck
3J Collet Chuck
2 Step gear spindle for powerful torque
Hydraulic Tailstock with Programmable Quill
PCMCIA Card Slot
Chip Pan and Skimmer
Coolant System.
Automatic Lubrication system
Foot Operated Control for Chuck
Coolant Tank
Comes with Jaw Chuck and Collet Chuck, Tool Holders, 2 Live Tools and Manuals.

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 68 Amps
Overall Dimensions: 105″ x 65″ x 65″ High
Weight : 7500 lbs Approx.

DOOSAN LYNX 220 LMA Specifications:
Max Turning Diameter: 9.84″
Max Turning Length: 20.1″
Max Bar Capacity: 2.0″
Swing Over Carriage: 11.4″
Swing Over Bed: 20.1″
X Axis Travel: 17.7″
Z Axis Travel: 13.0″
C Axis: 0.001°
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM
Spindle Nose: A2-6
Spindle Bore: 2.4″
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
Live Tooling Motor: 5 HP
Live Tool Speed: 6,000 RPM
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Quill Dia.: 3.93″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-4

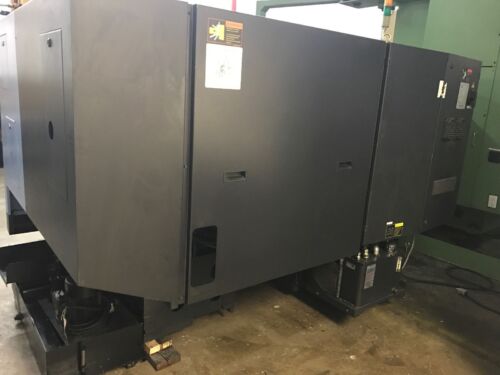

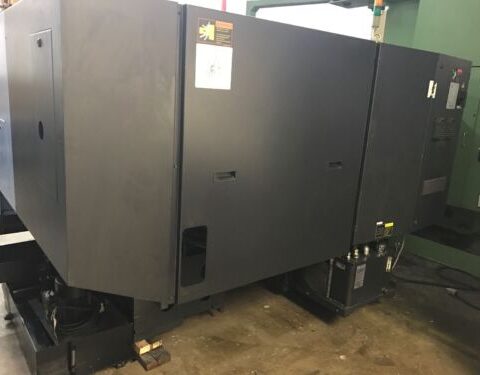

DOOSAN LYNX 220 LMA Comes as shown in pictures.
