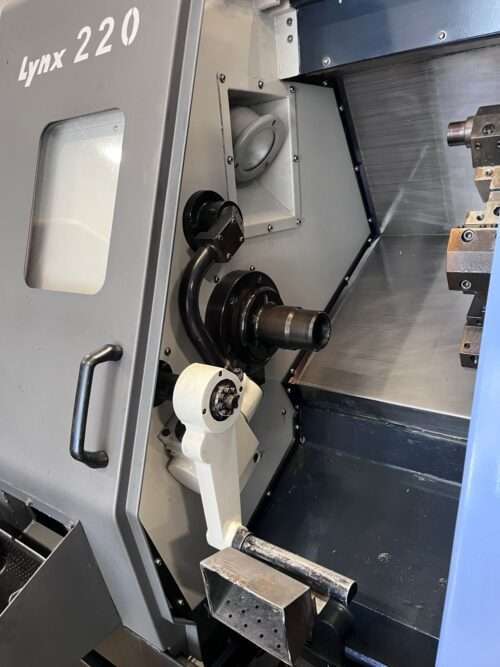

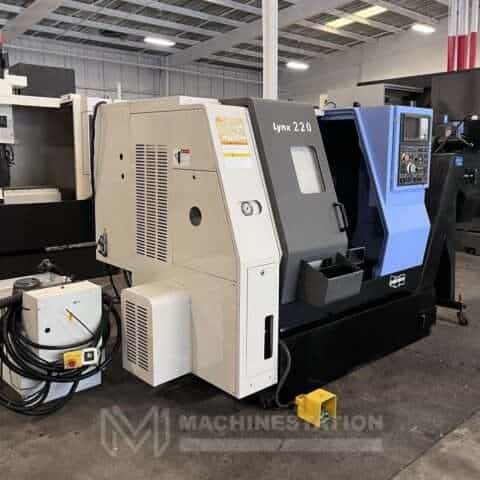

Doosan Lynx 220A CNC Turning Center

$414.00

1 in stock

Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.

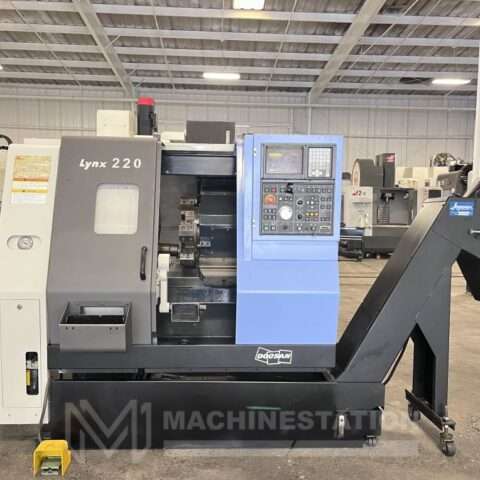

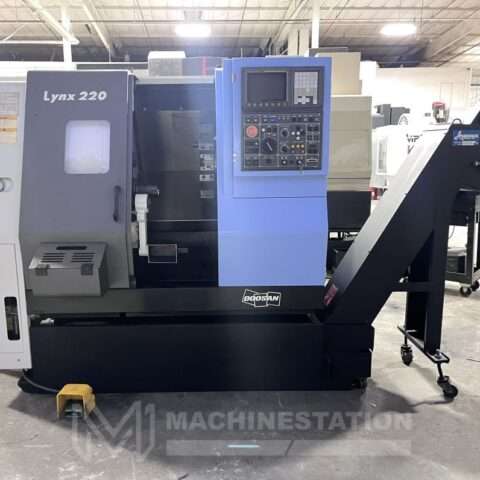

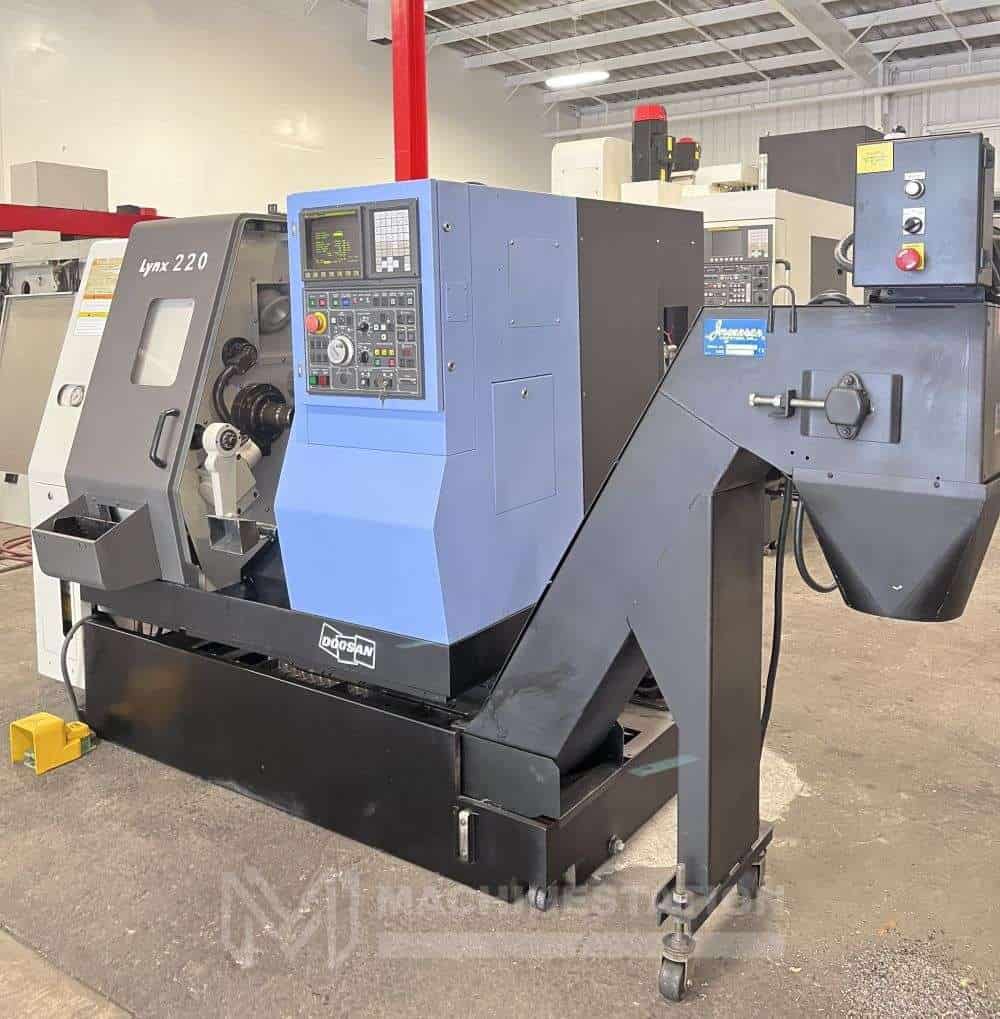

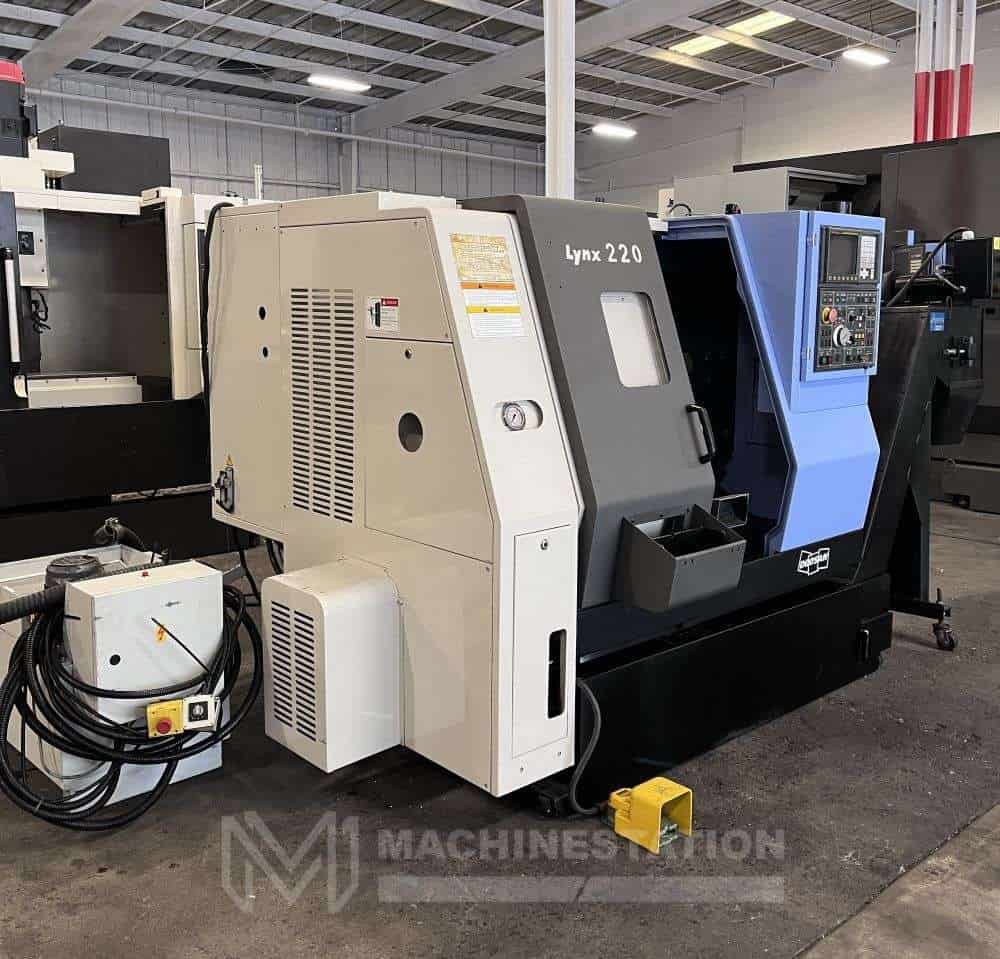

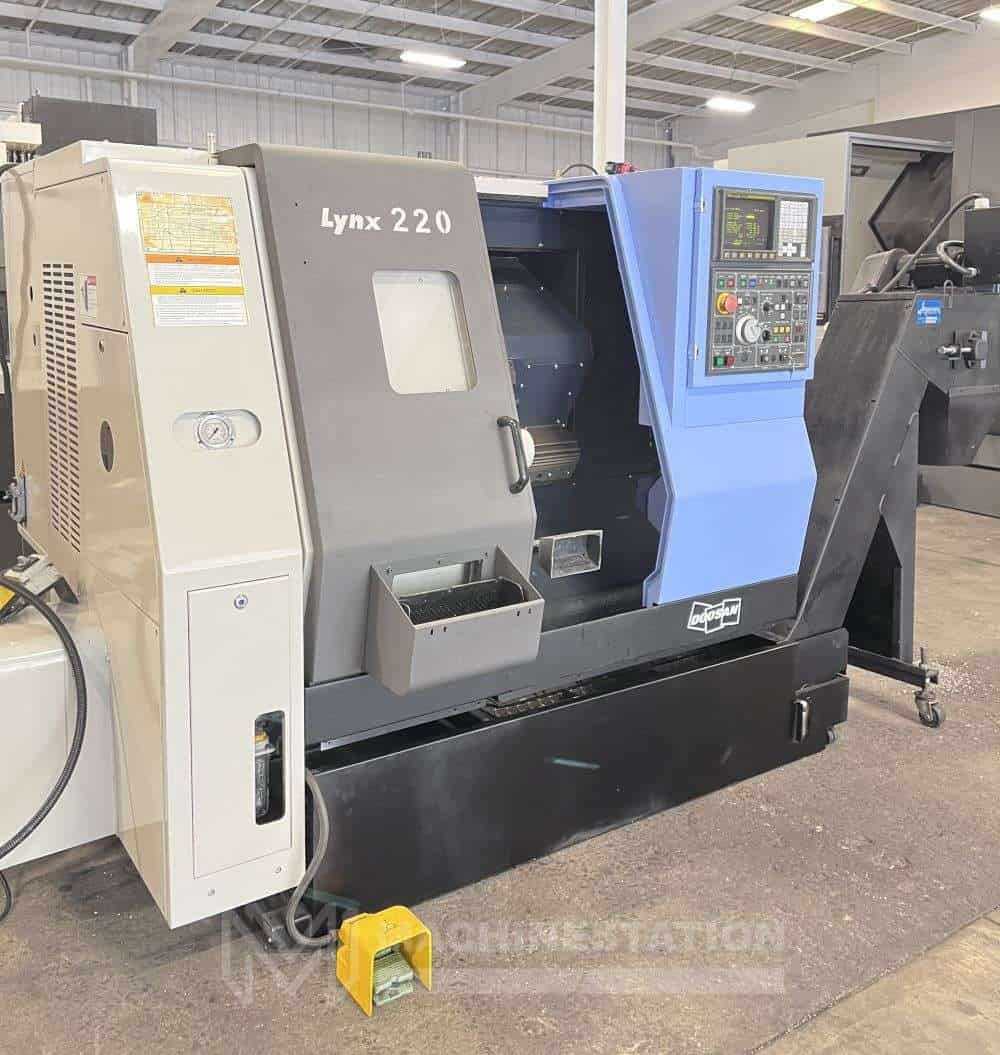

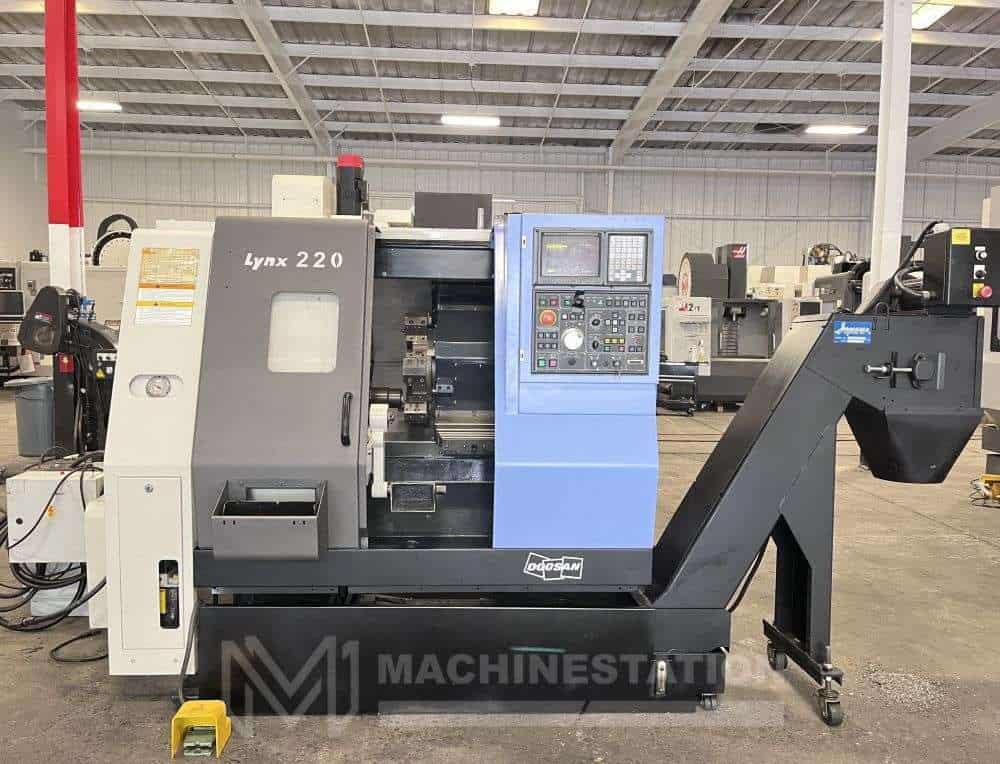

Used Doosan Lynx 220A CNC Turning Center For Sale

Location: Lake Elsinore, CA
SKU: 2605
Make/Model: Doosan Lynx 220A
Year: 2006
Cutting Time: 24,632 Hours
Video: On Request



SKU: 2605

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Doosan
Model: Lynx 220A
Year: 2006
Condition: Used – Good



Equipped With:

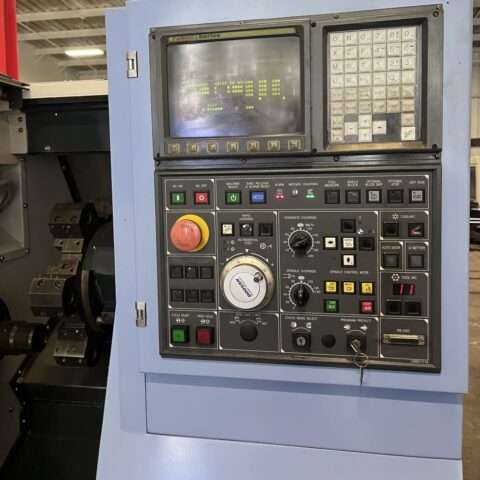

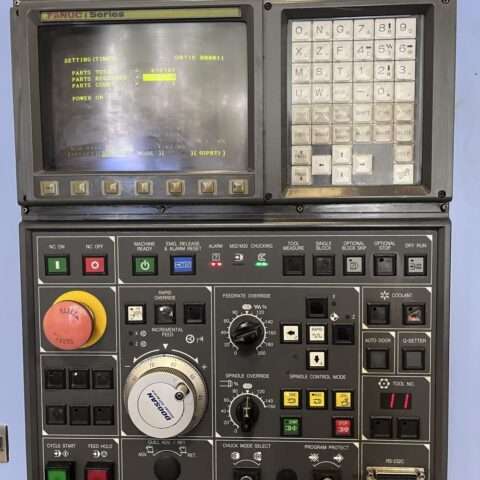

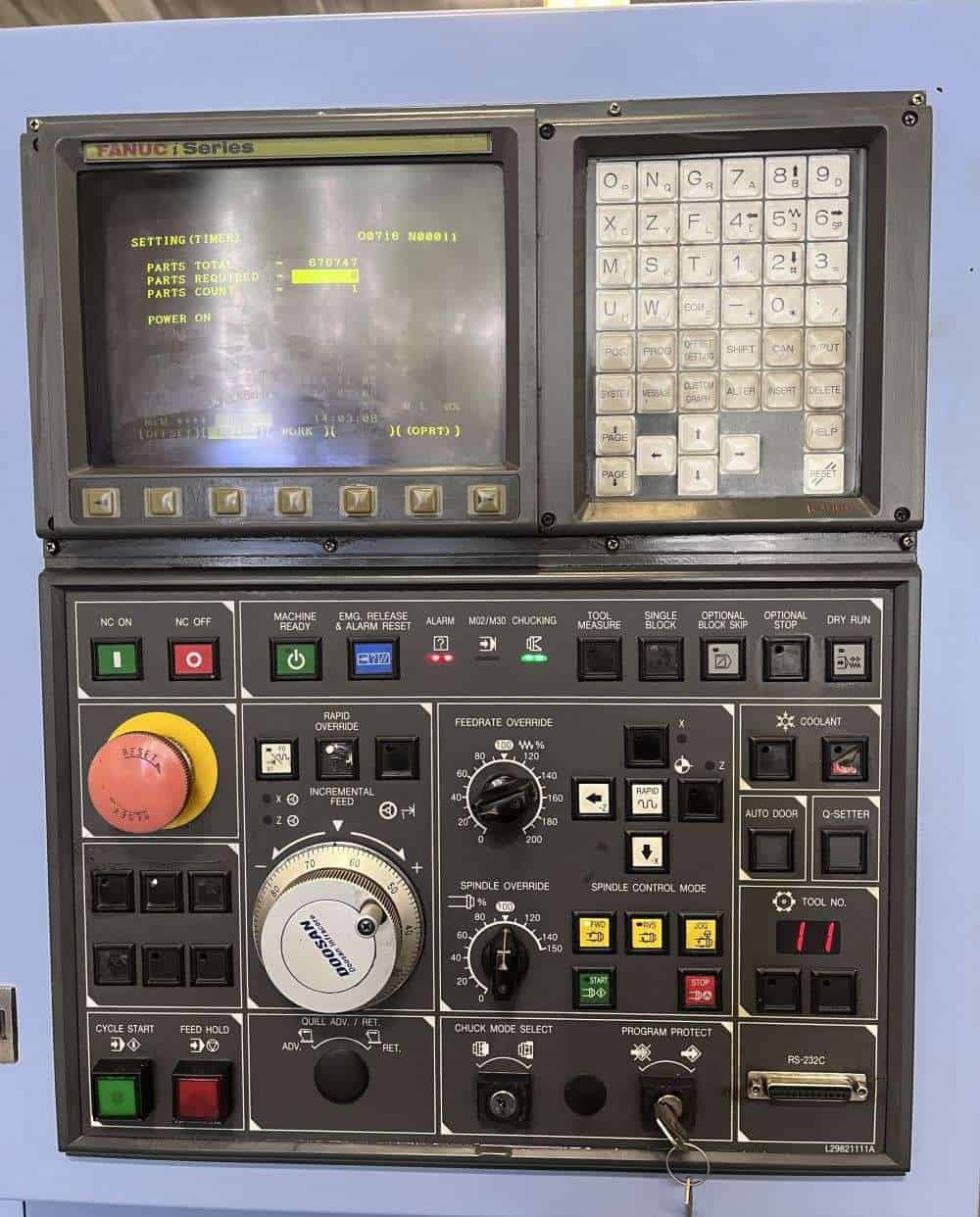

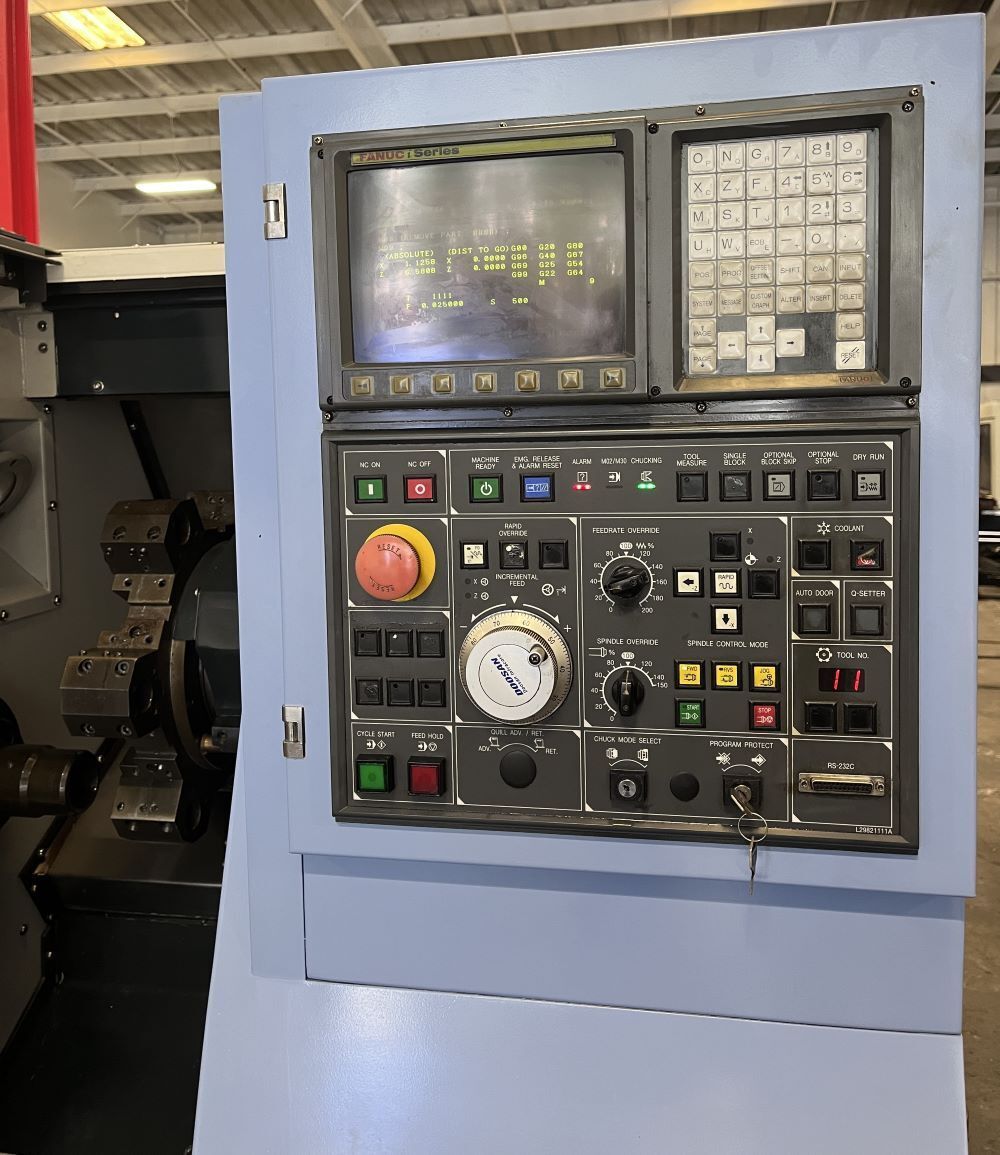

  • Fanuc i series CNC Control

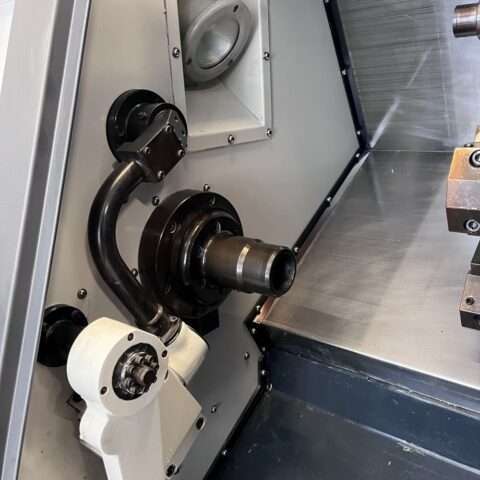

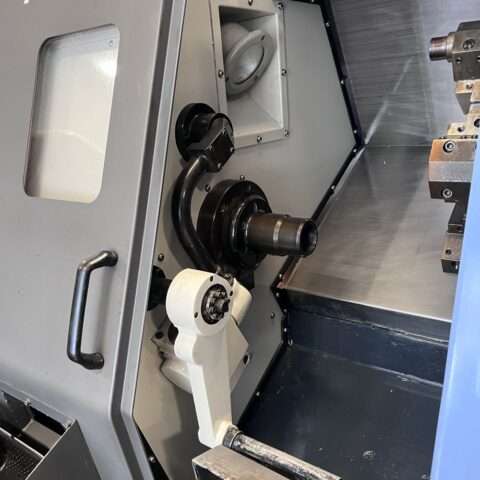

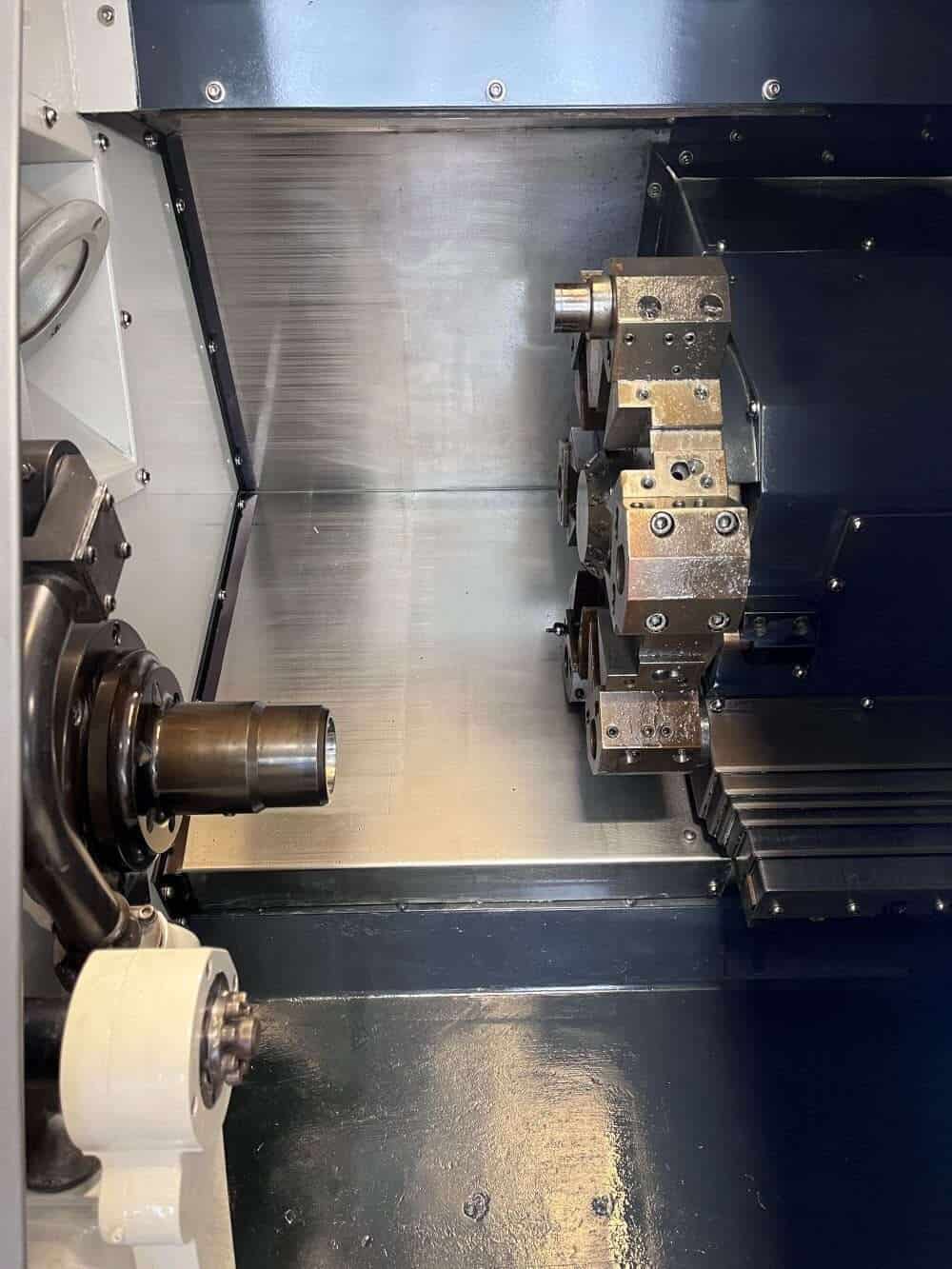

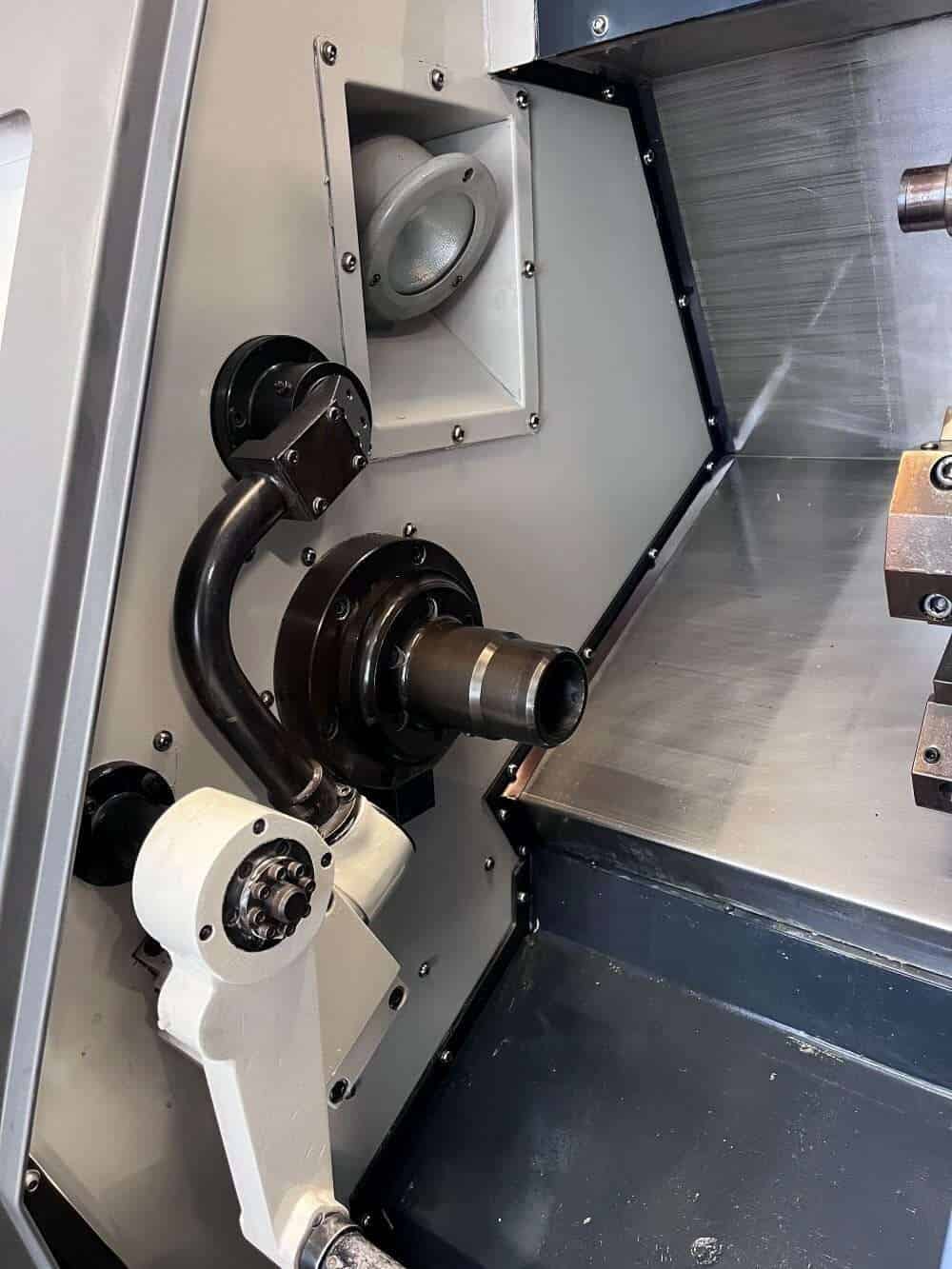

  • Collet Nose (Capable 6″ Chuck)

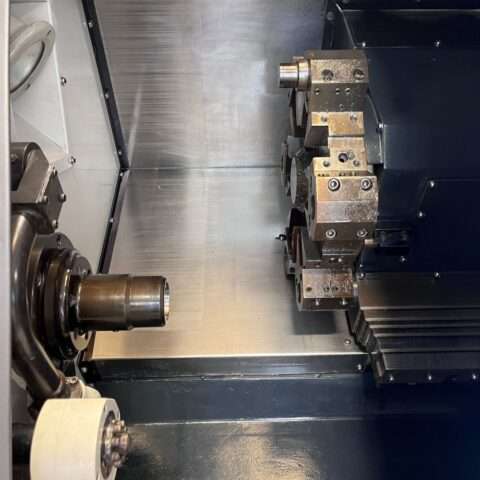

  • 12 Station Automatic Turret

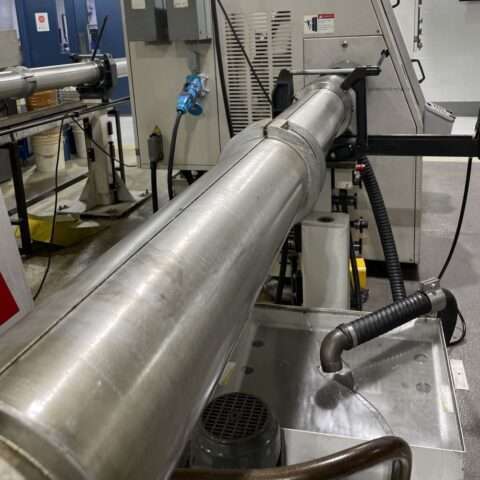

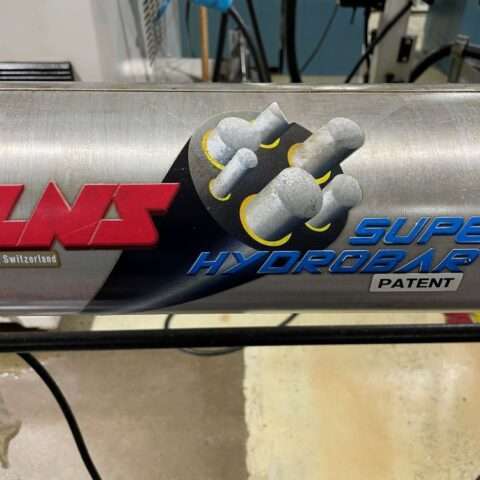

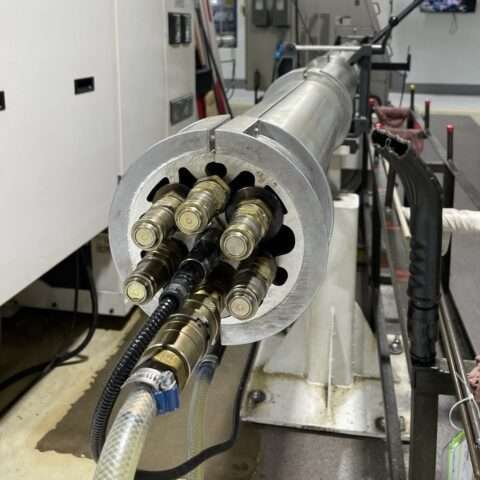

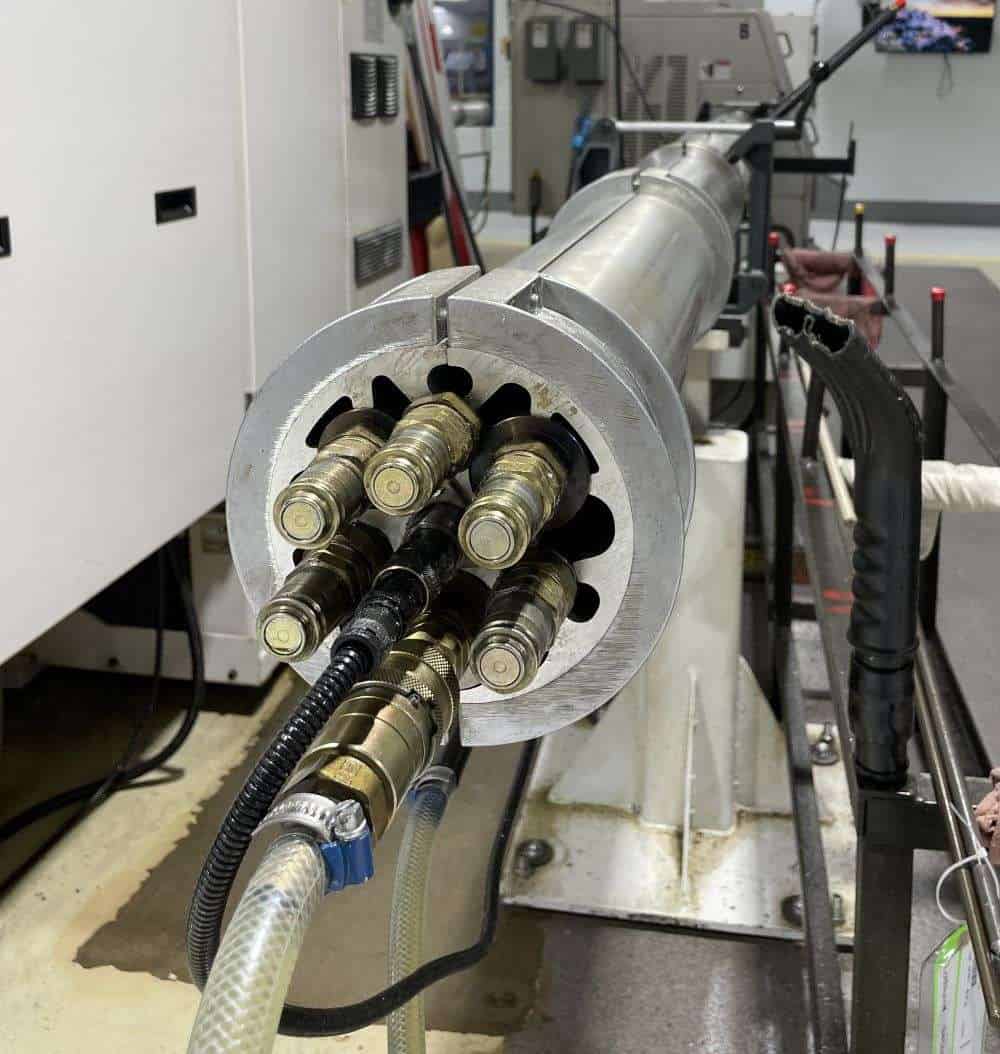

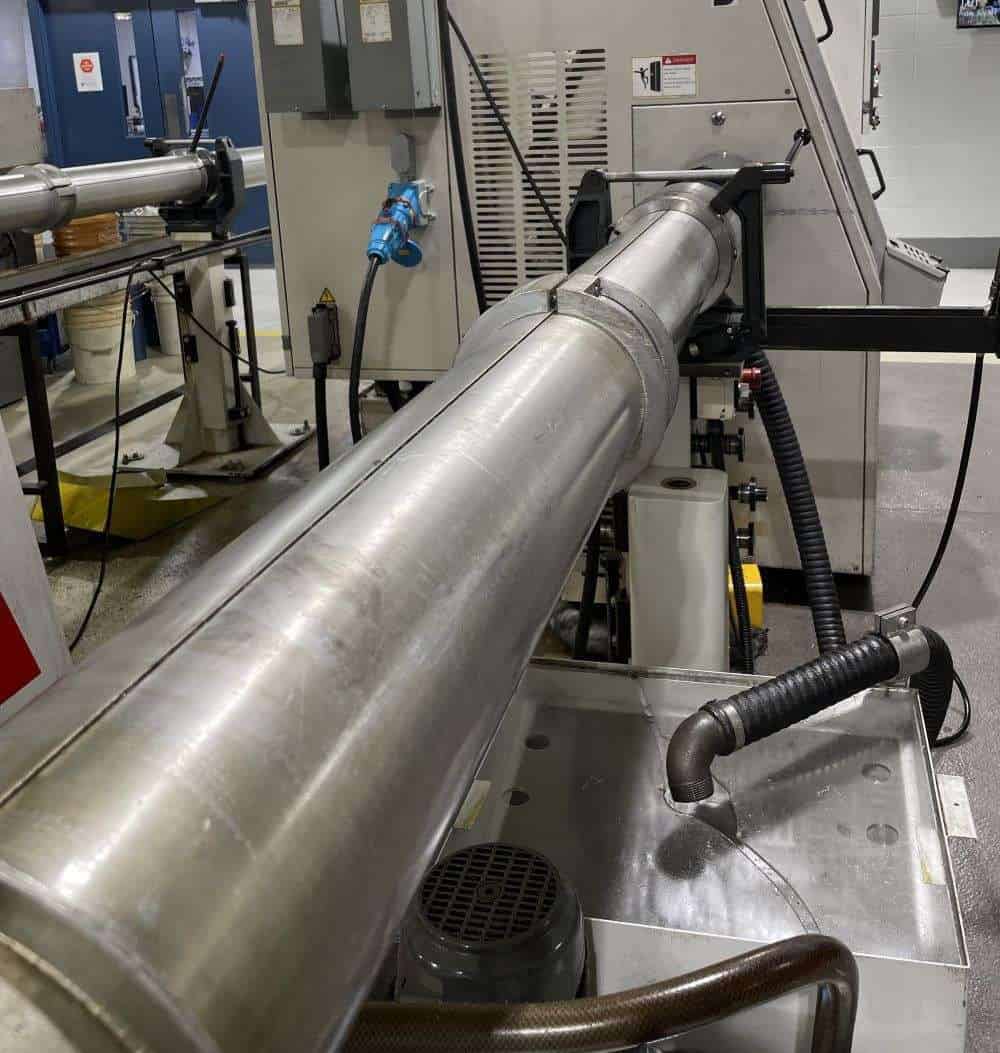

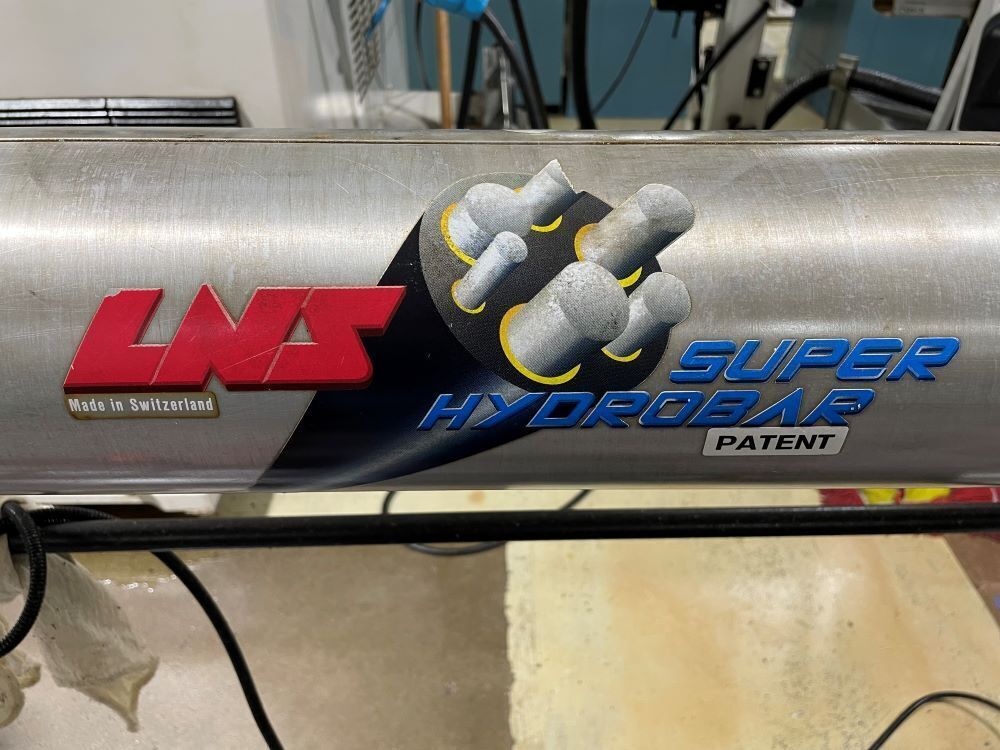

  • LNS Super Hydrobar Feeder
  • Tool Presetter

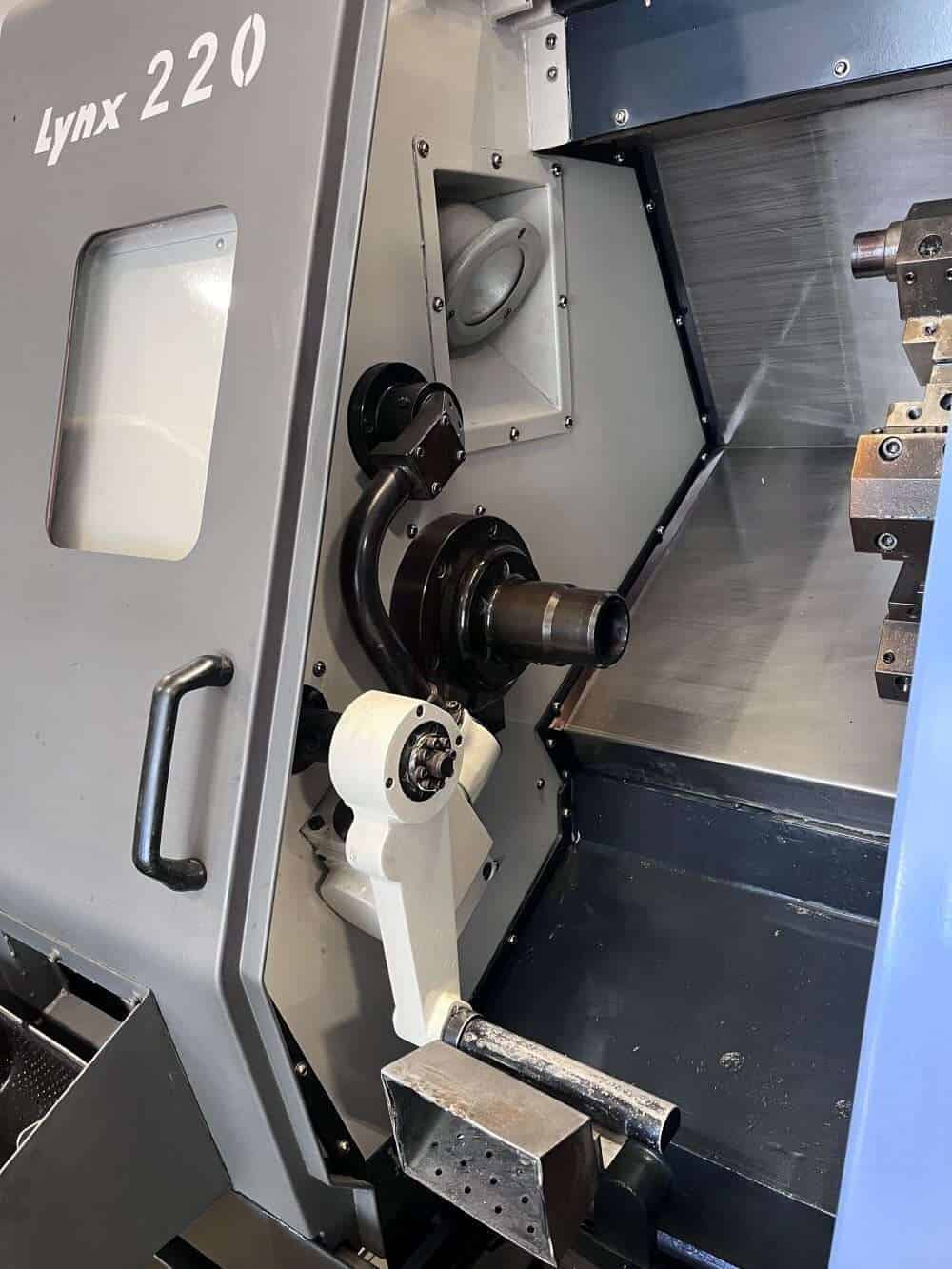

  • Part Catcher
  • RS-232 Port
  • Foot Switch

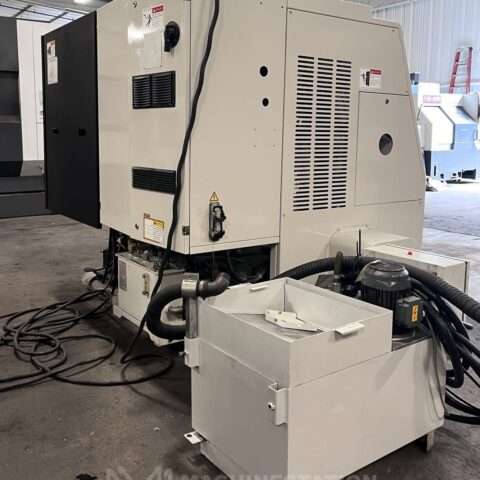

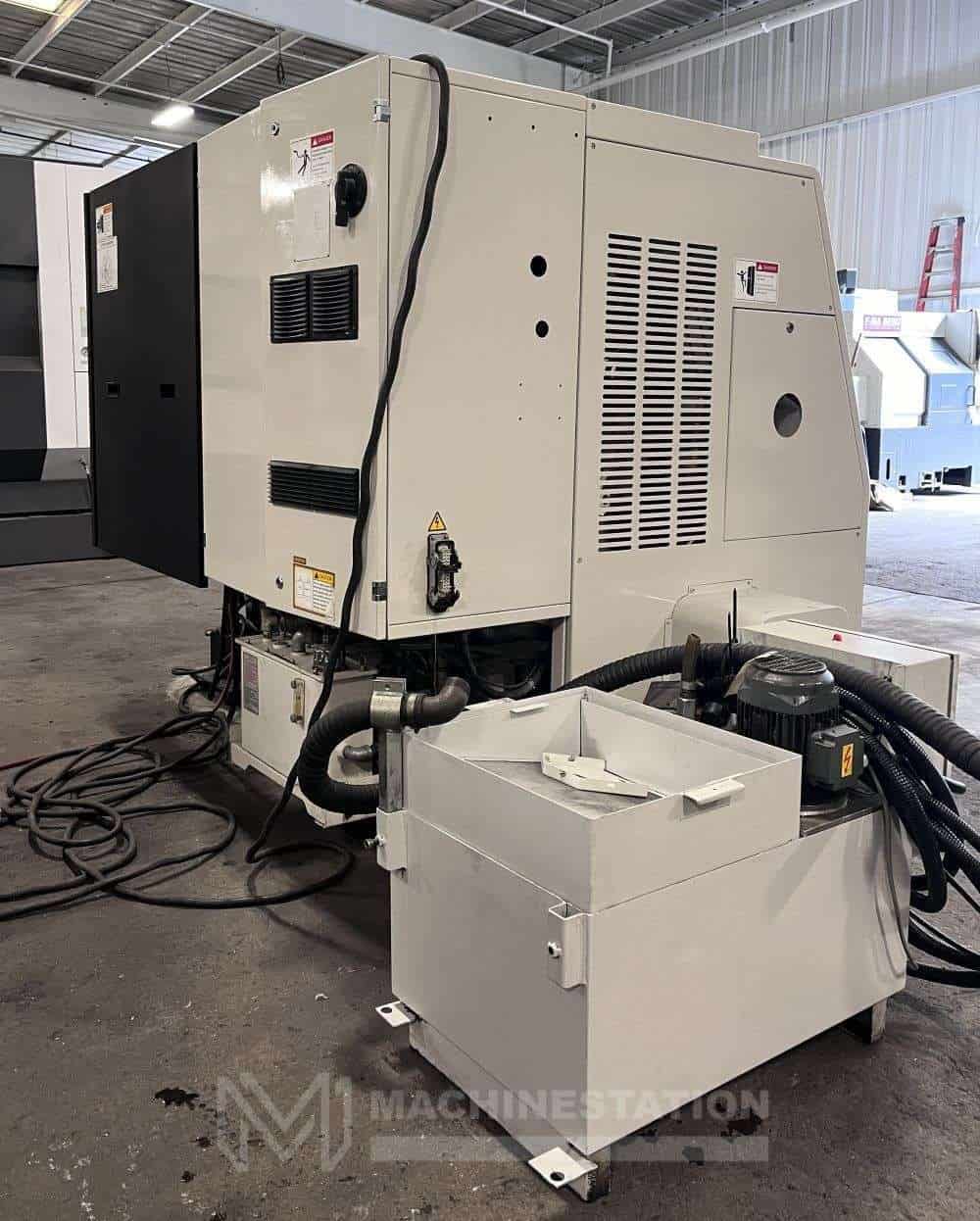

  • Coolant System
  • Chip conveyor
  • (6) Boring Tool Holders



Capacity:
  • Max Turning Diameter: 12.6″
  • Max Turning Length: 12.7″
  • Max Bar Capacity: 1.8″
  • Swing Over Bed: 20.1″
  • Swing Over saddle: 11.4″



Travels:
  • X Axis Travel: 6.9″
  • Z Axis Travel: 13.5″
  • Rapid Traverse X Axis: 1181 IPM
  • Rapid Traverse Z Axis: 1417 IPM



Spindle:
  • Spindle Nose: A2-5
  • Spindle Bore: 2.1″
  • Spindle Speed: 6000 RPM
  • Spindle Motor: 15 HP

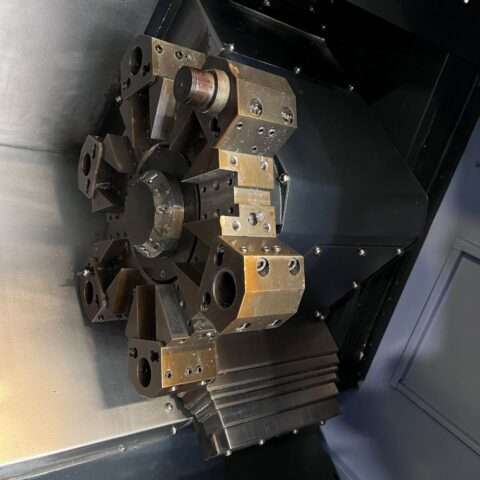

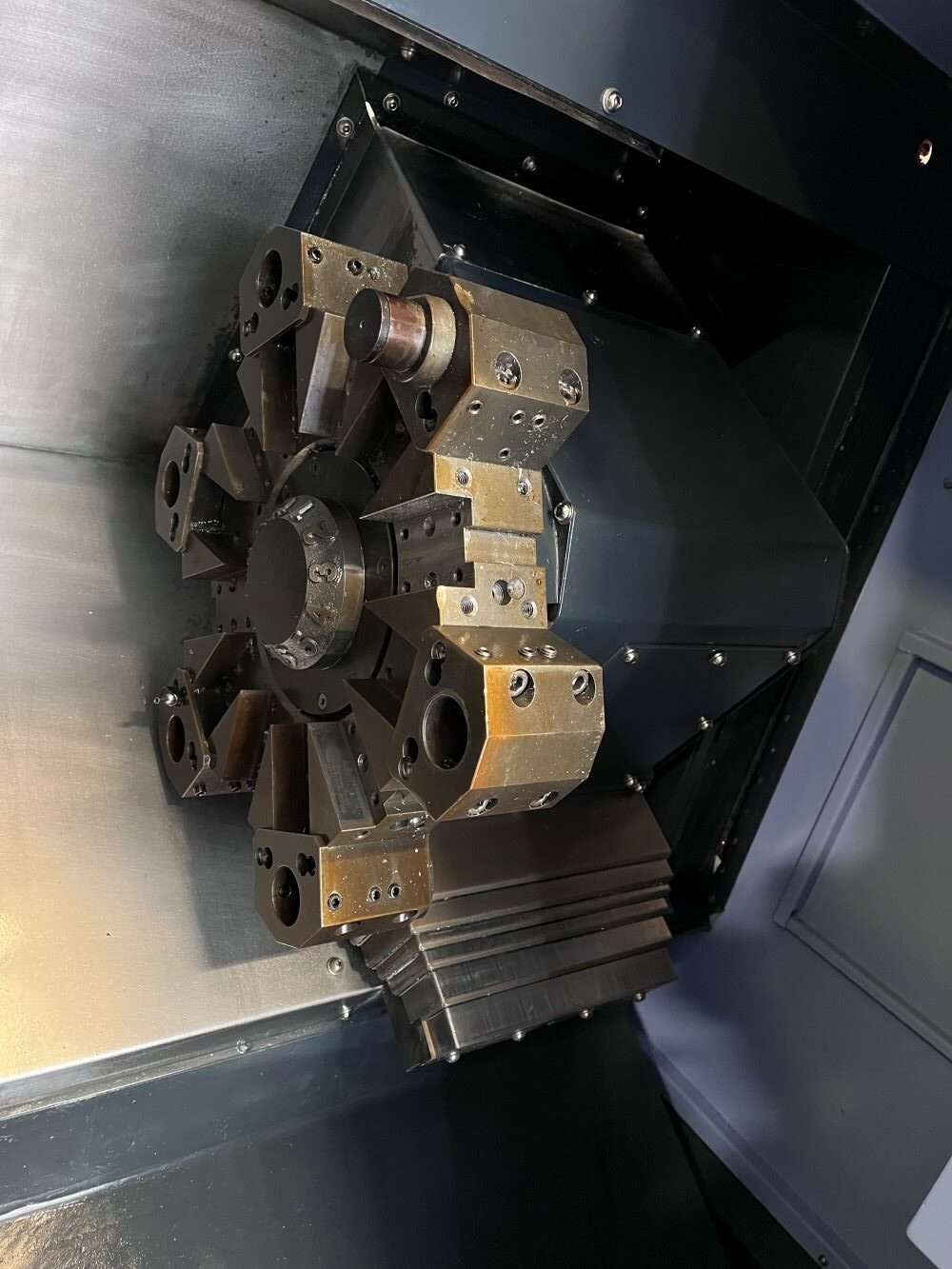

Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.15 Second
  • Tool Size: 1″



General:

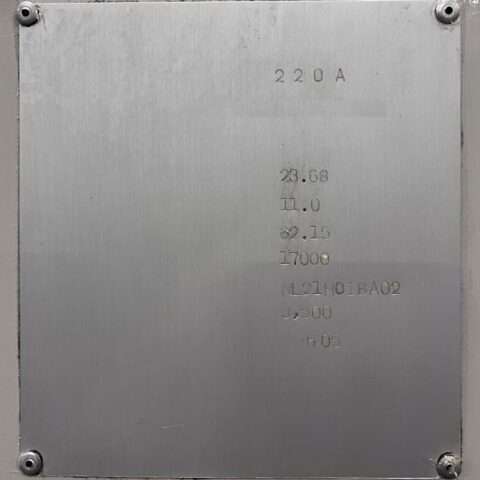

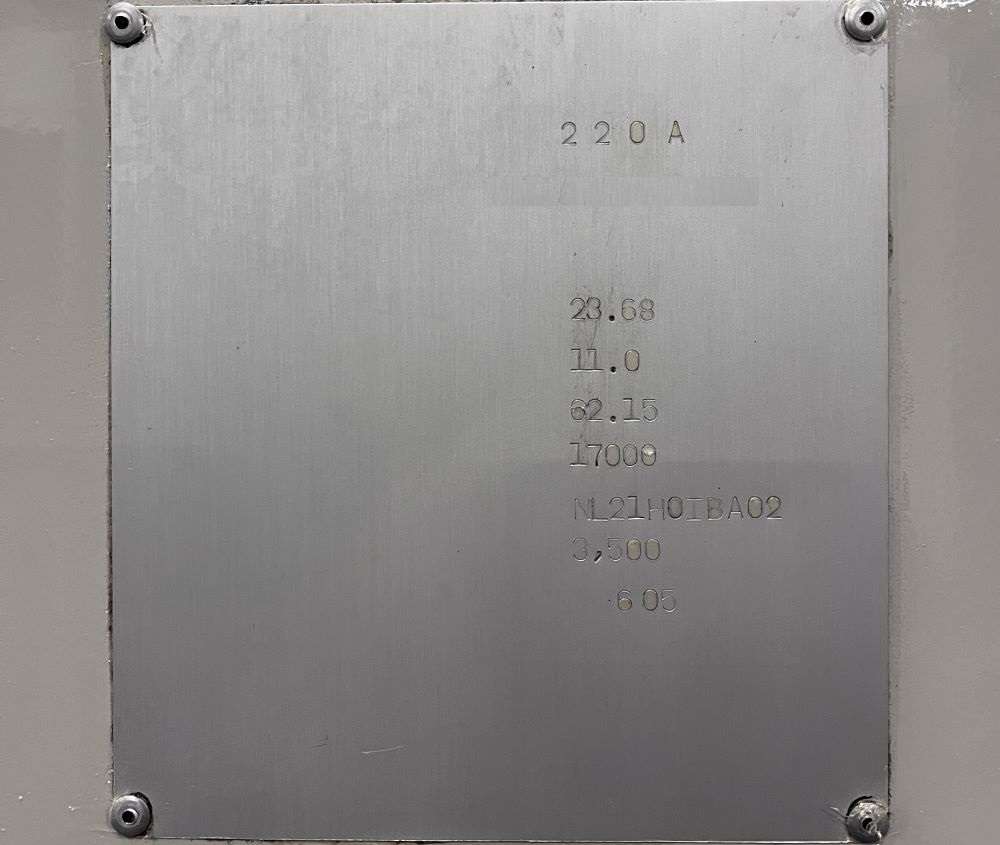

  • Power: 23.68 kva, 220v / 3-Phase
  • Overall Dimensions: 90″ x 63″ x 65″ High
  • Weight: 7716 lbs
Make

Model

GLS-1500

Categories

CNC Lathes & Turning Centers
