*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

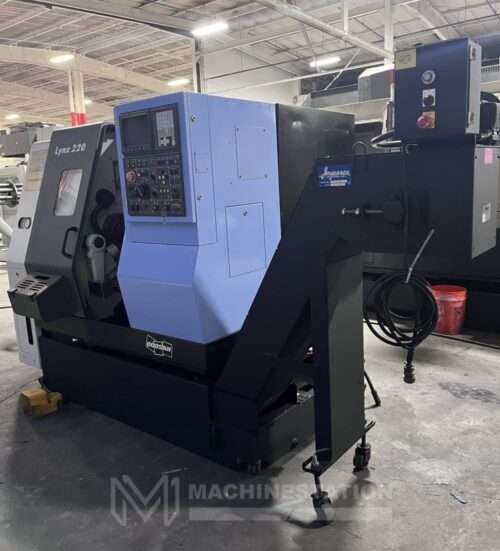

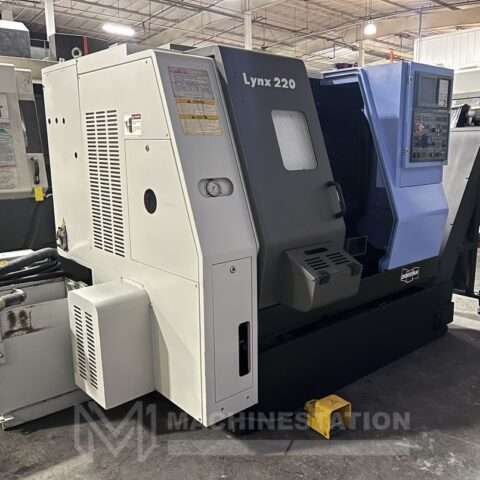

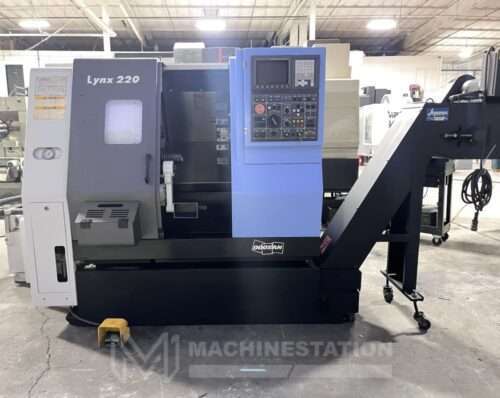

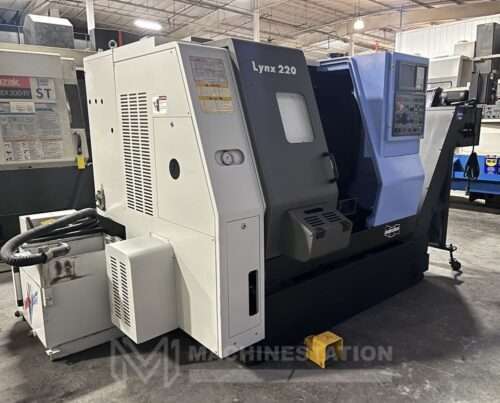

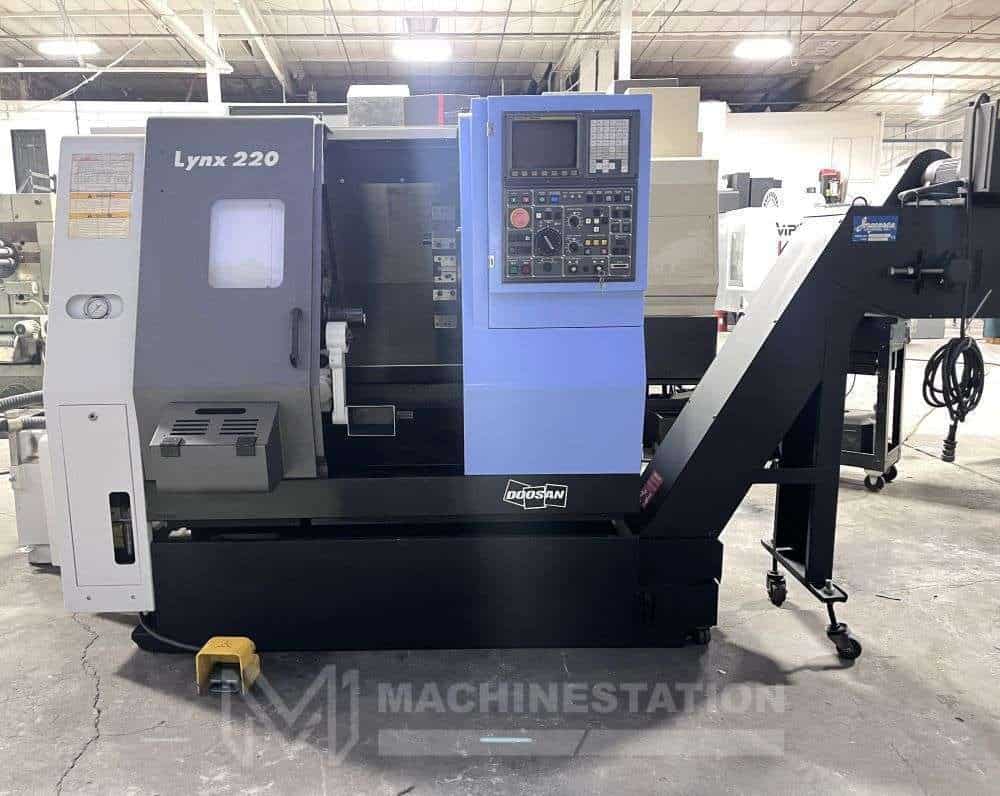

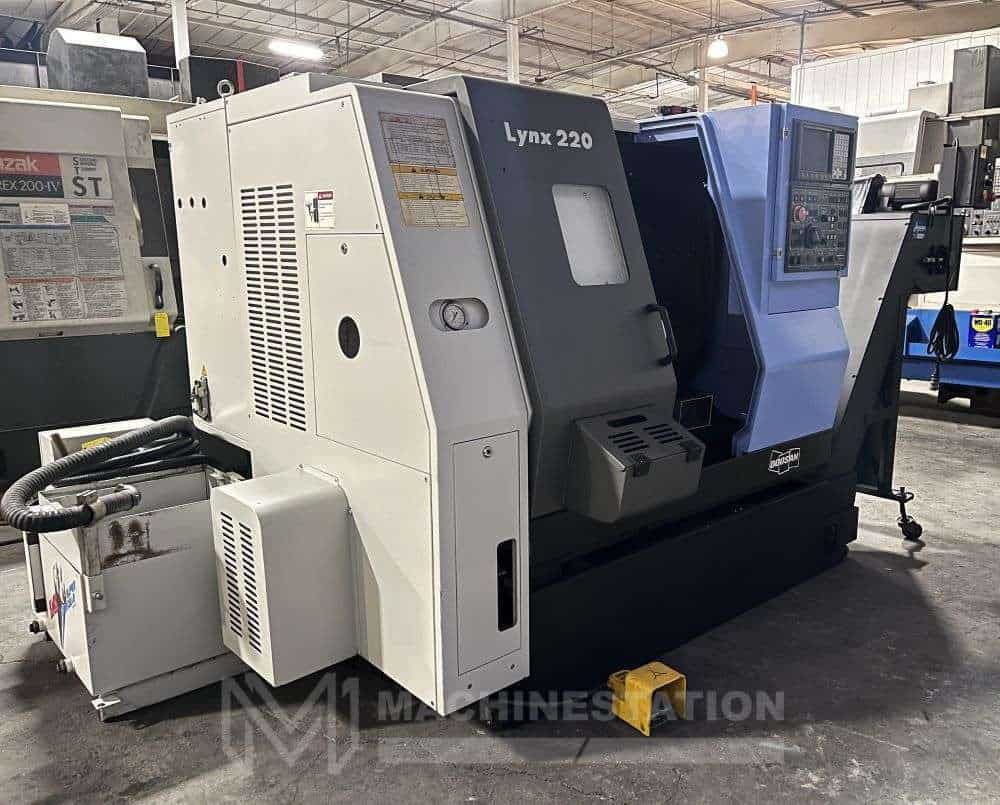

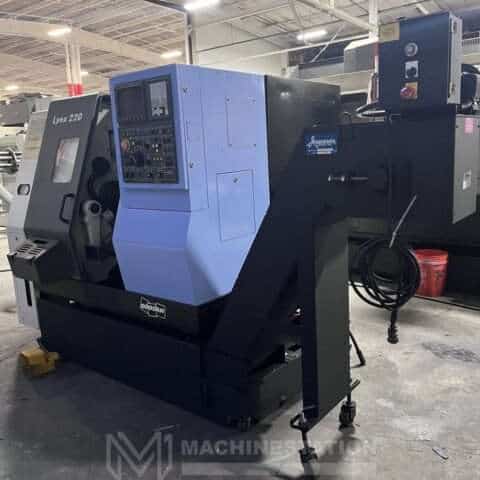

Make: |
Doosan |
Model: |
Lynx 220A |
Year: |
2005 |
Condition: |
Used – Good |
Equipped With: |

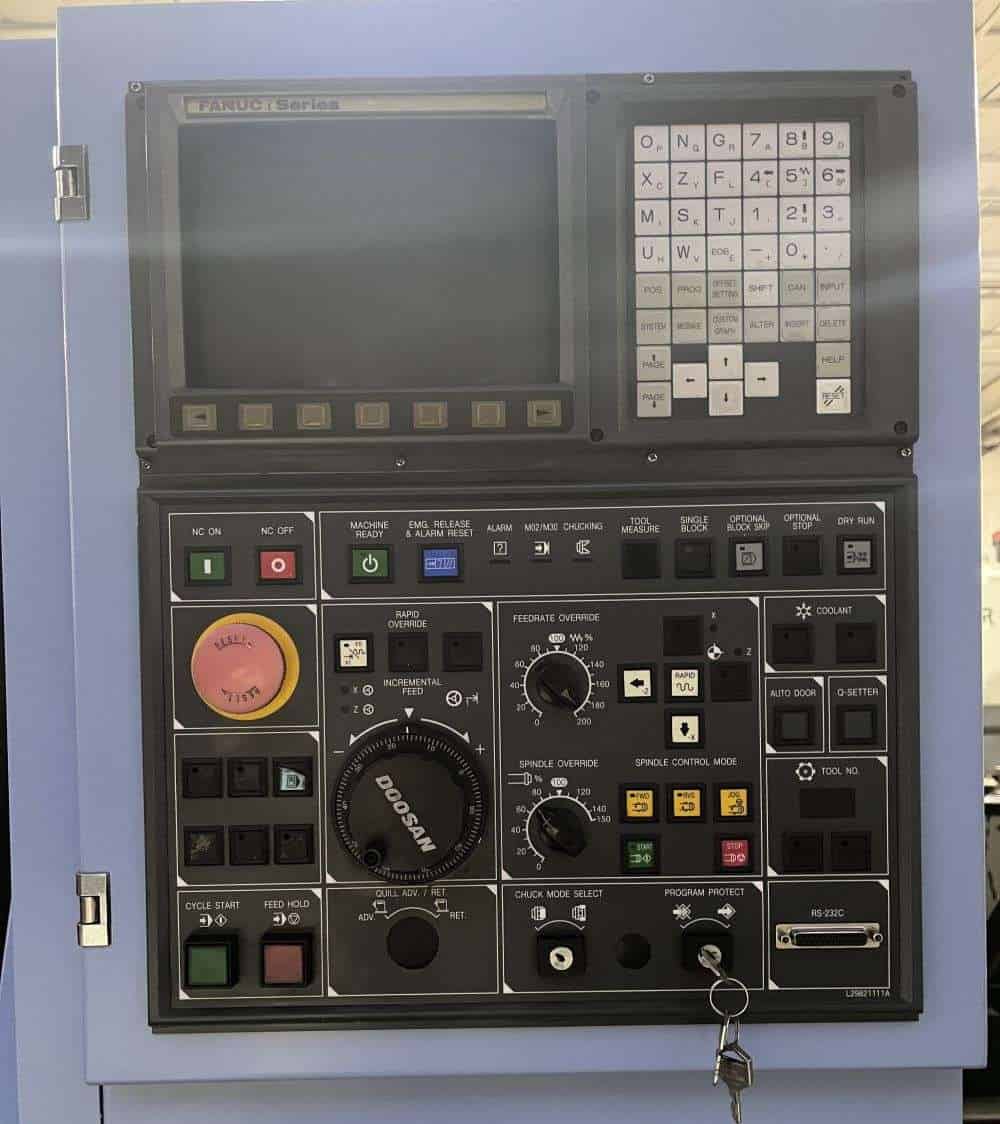

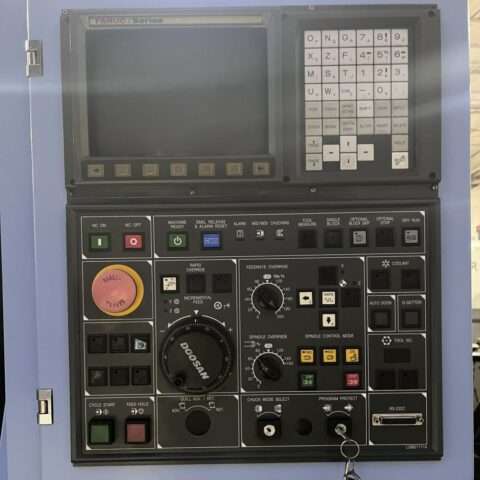

- Fanuc i series CNC Control

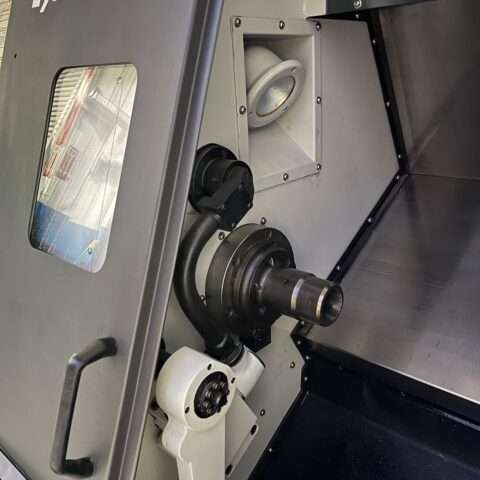

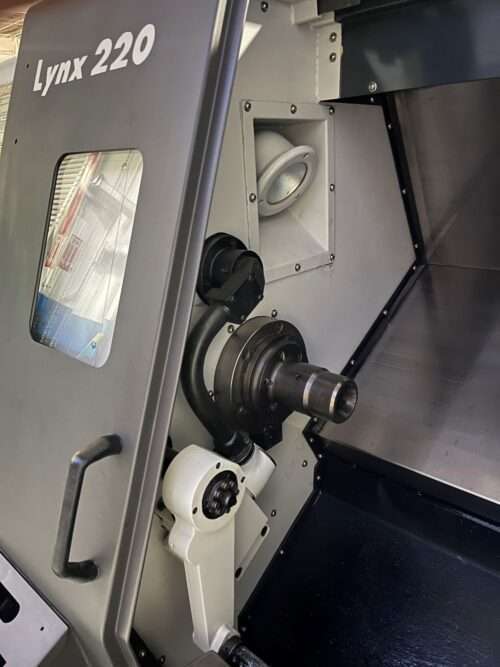

- Collet Nose (Capable 6″ Chuck)

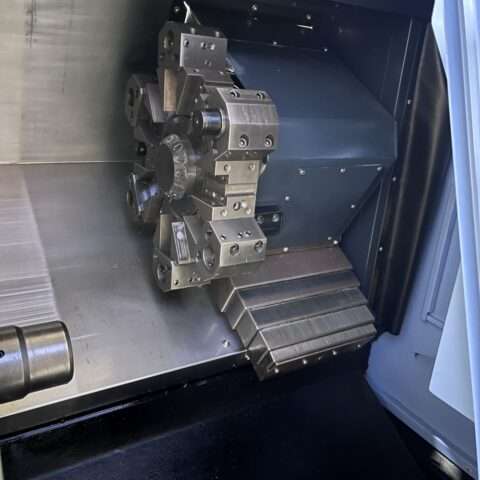

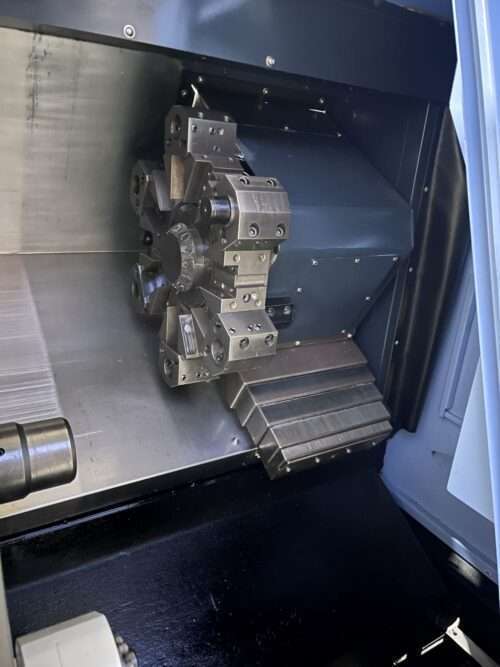

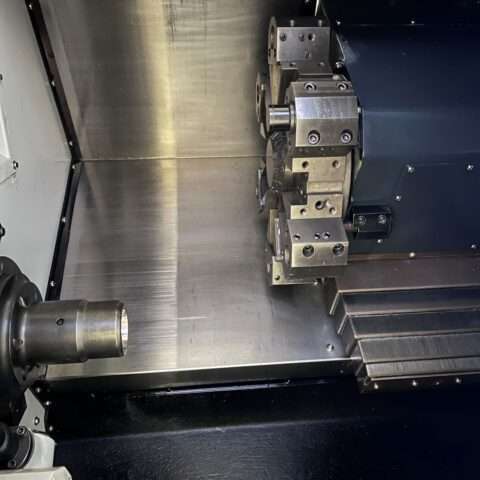

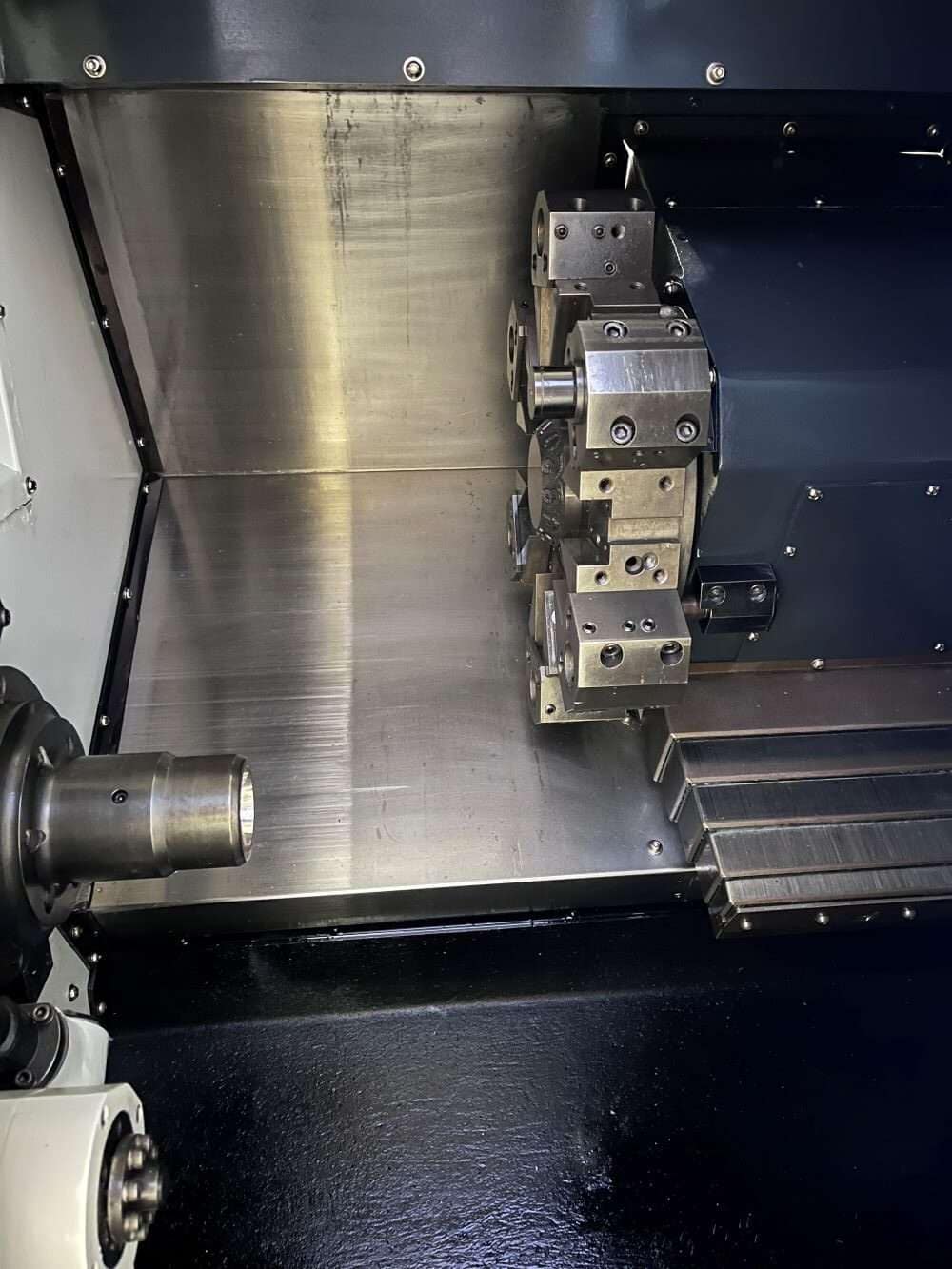

- 12 Station Automatic Turret

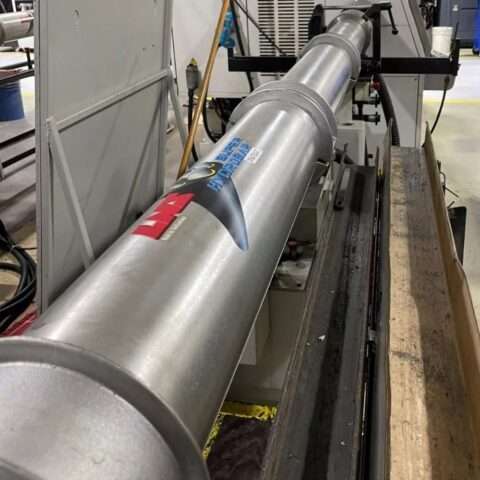

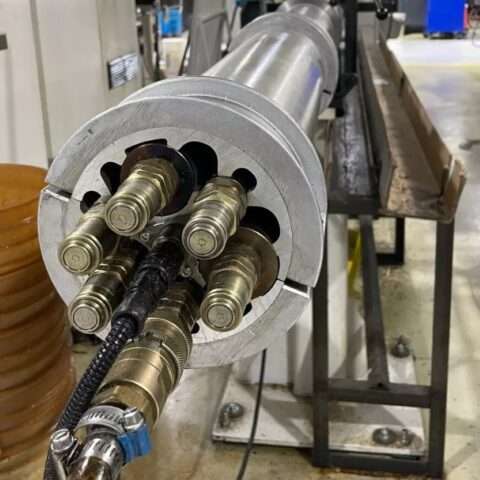

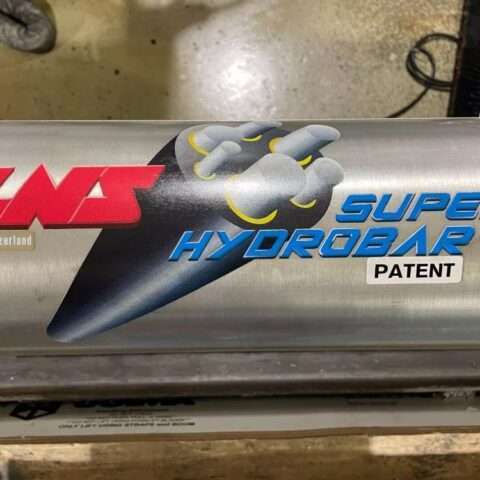

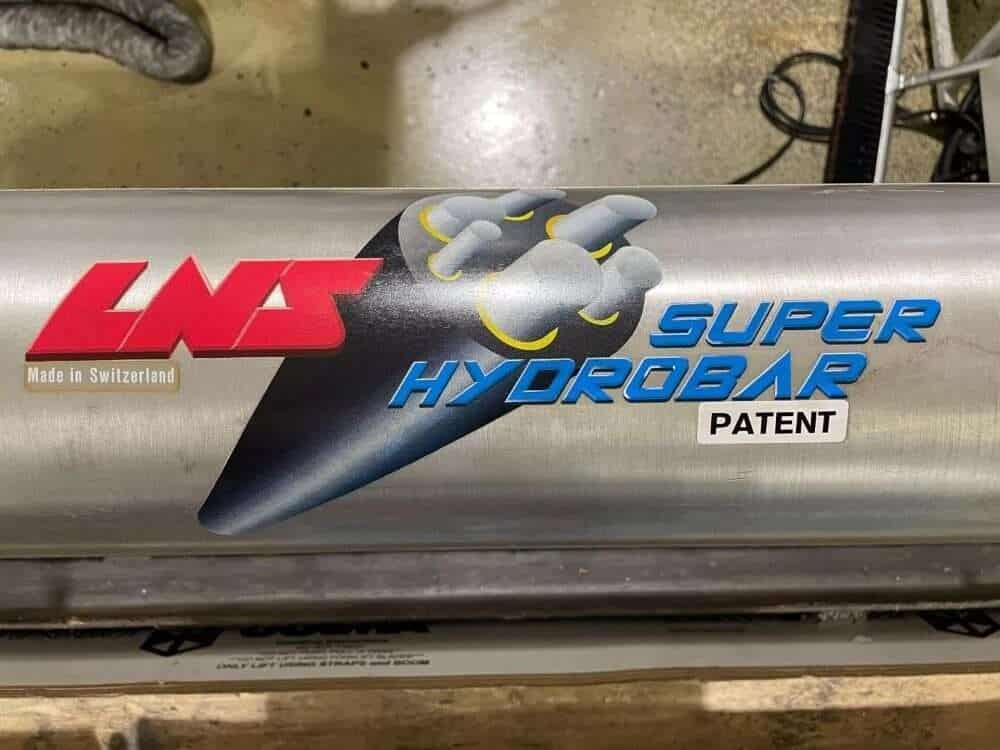

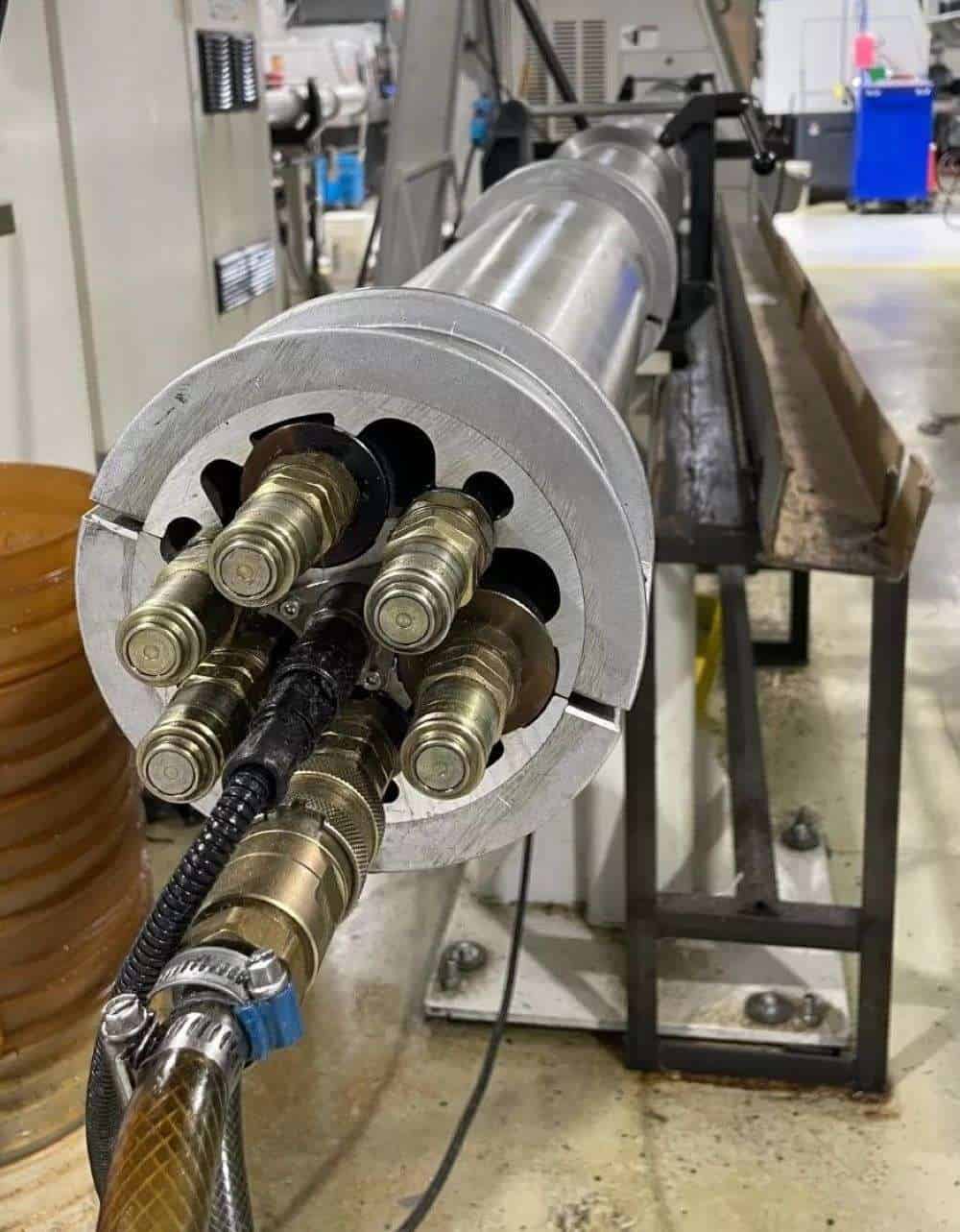

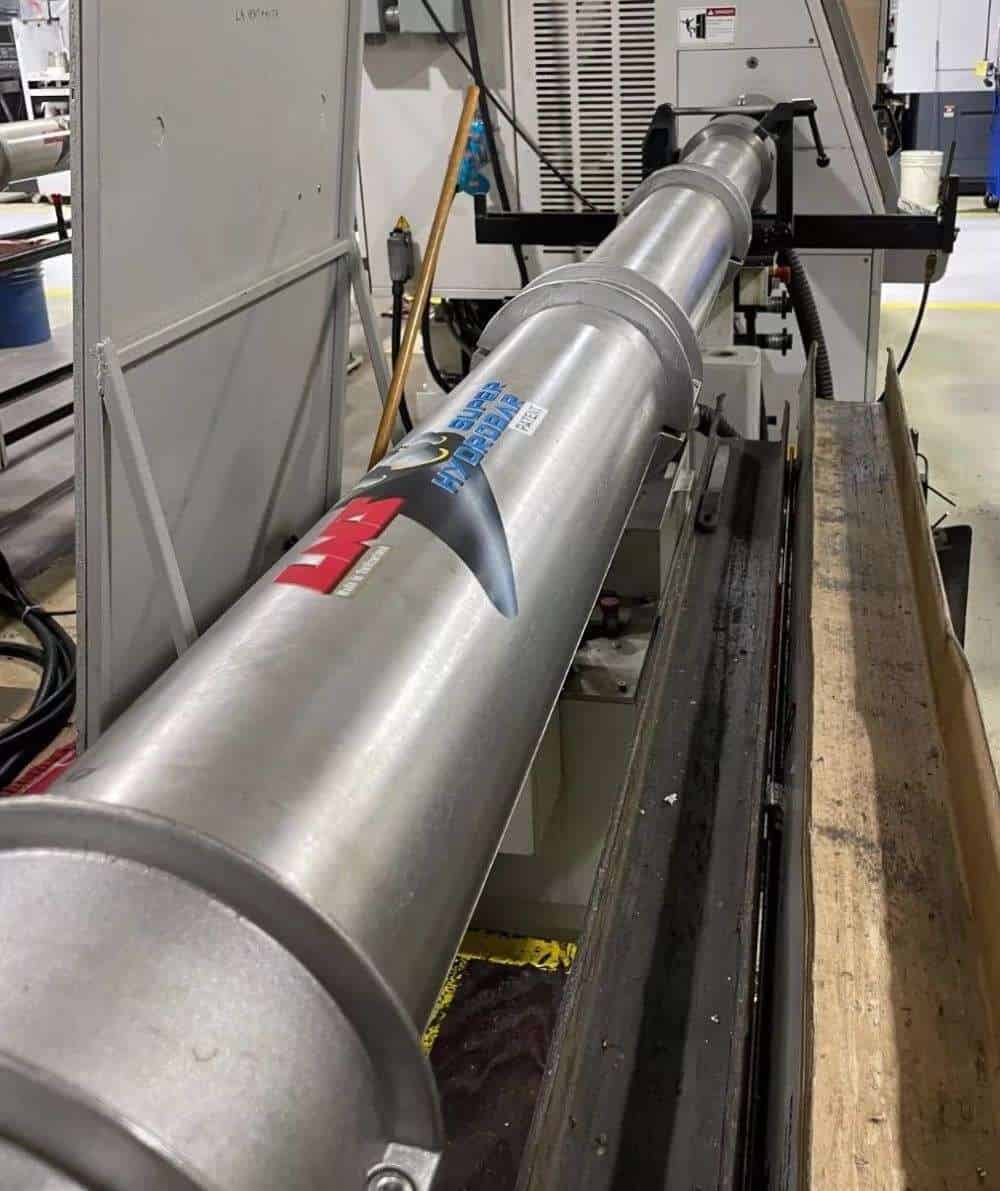

- LNS Super Hydrobar Feeder
- Tool Presetter

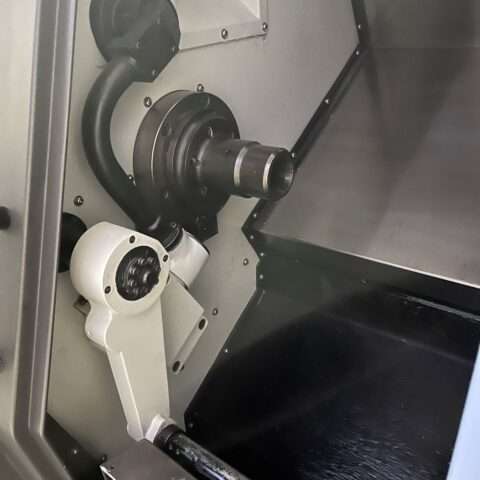

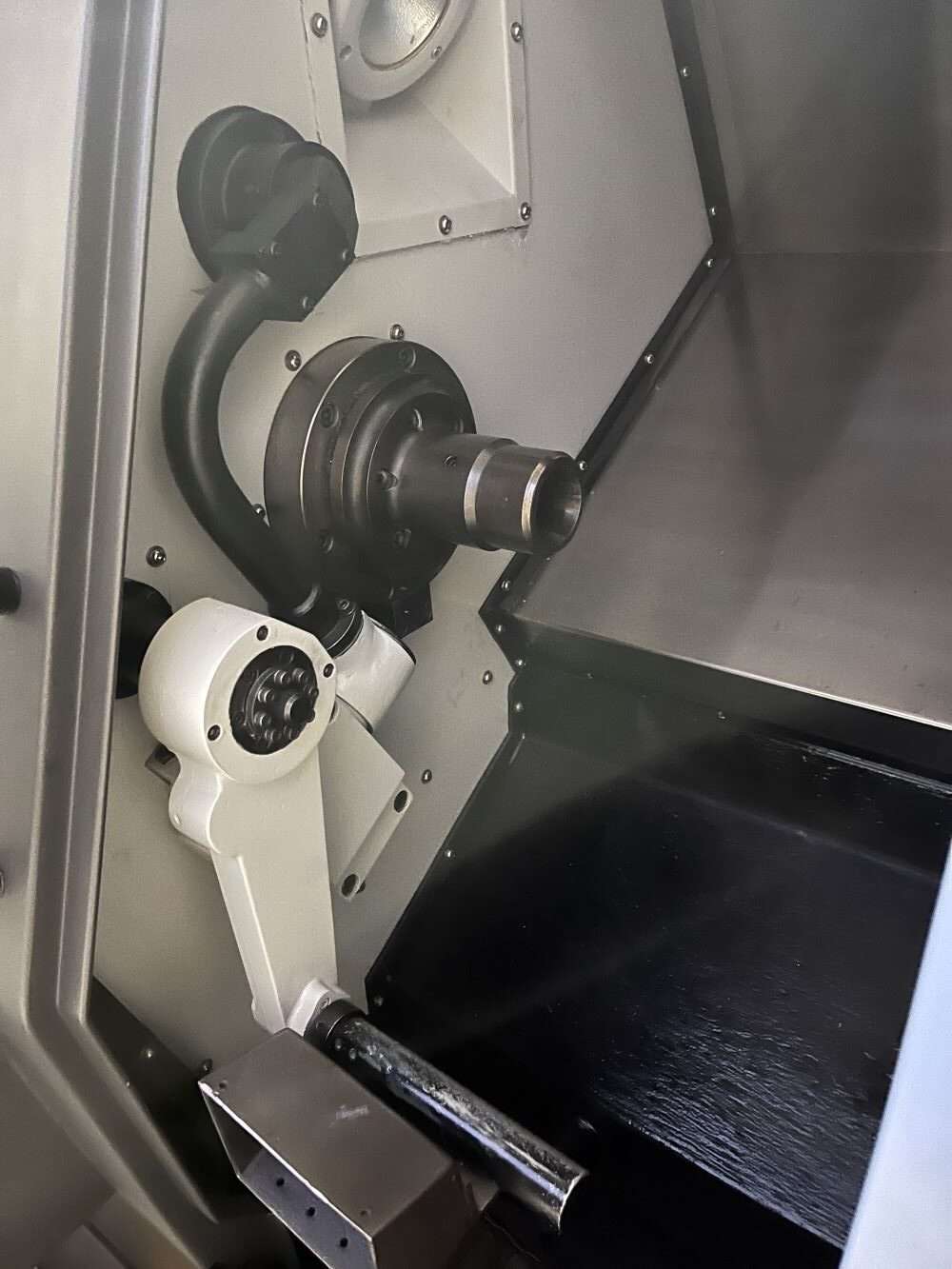

- Part Catcher
- RS-232 Port
- Foot Switch
- Coolant System
- Chip conveyor
- (6) Boring Tool Holders
|
Capacity: |
- Max Turning Diameter: 12.6″
- Max Turning Length: 12.7″
- Max Bar Capacity: 1.8″
- Swing Over Bed: 20.1″
- Swing Over saddle: 11.4″
|
Travels: |
- X Axis Travel: 6.9″
- Z Axis Travel: 13.5″
- Rapid Traverse X Axis: 1181 IPM
- Rapid Traverse Z Axis: 1417 IPM
|
Spindle: |
- Spindle Nose: A2-5
- Spindle Bore: 2.1″
- Spindle Speed: 6000 RPM
- Spindle Motor: 15 HP
|
Turret: |
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Tool Size: 1″
|
General: |

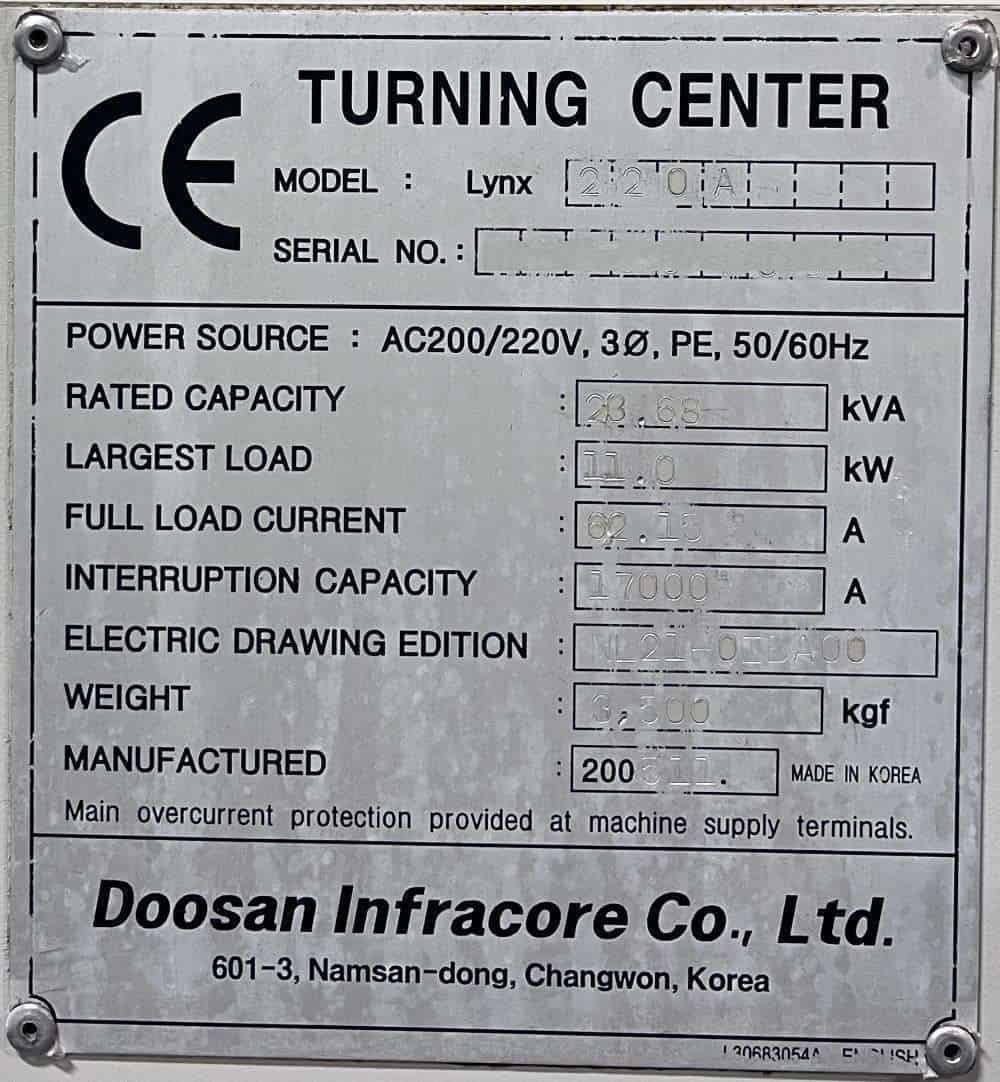

- Power: 23.68 kva, 220v / 3-Phase
- Overall Dimensions: 90″ x 63″ x 65″ High
- Weight: 7716 lbs
|
