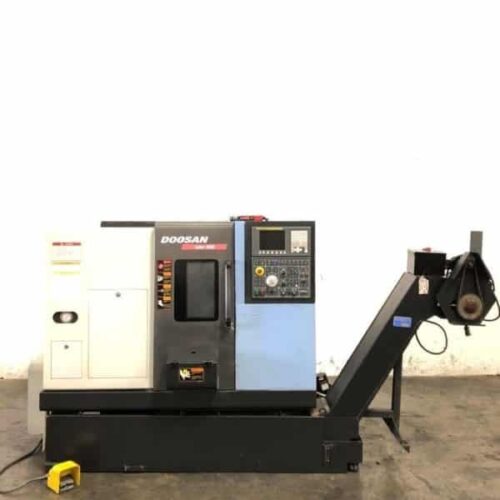

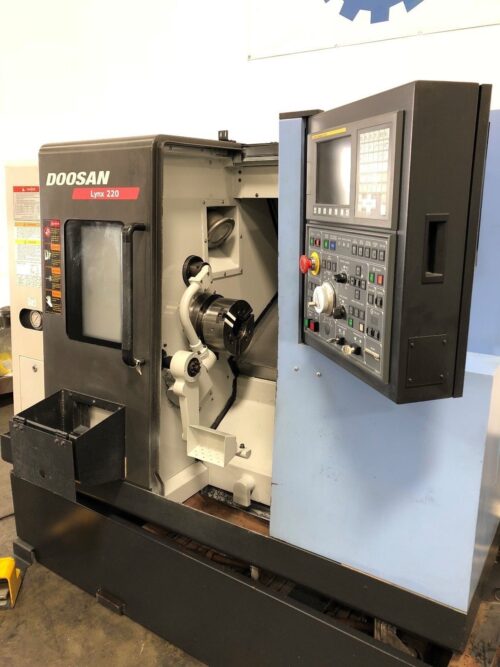

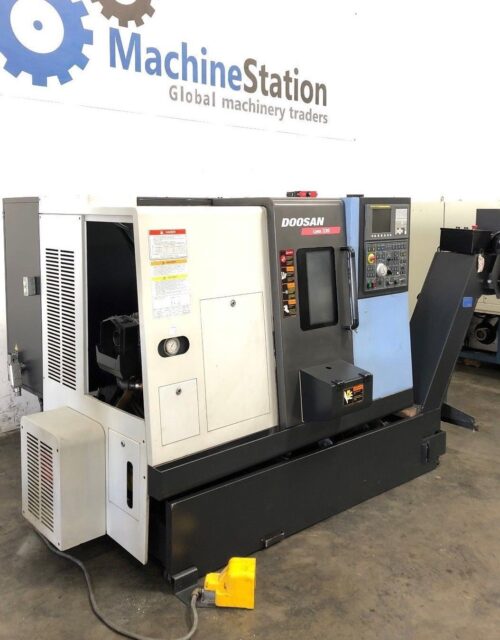

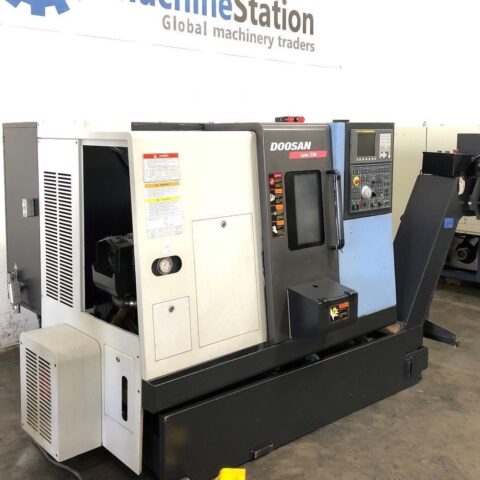

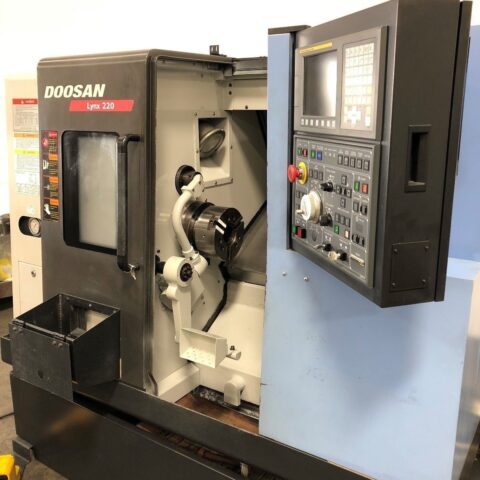

| DOOSAN LYNX 220C CNC TURNING CENTER | |
|---|---|
| Make | Doosan |
| Model No. | Lynx 220C |
| YOM: | 09/07 |

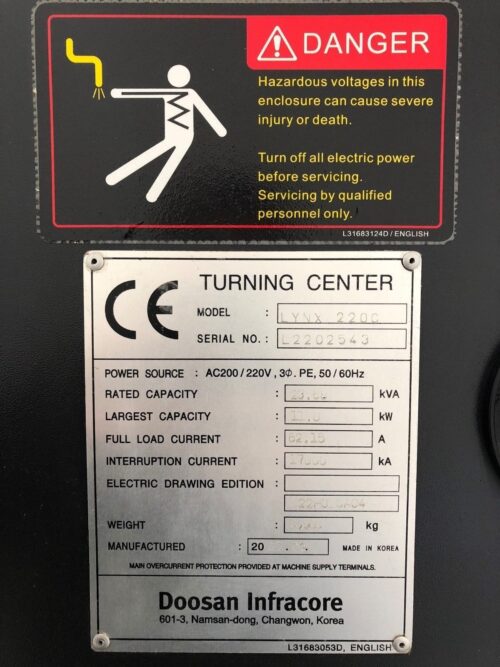

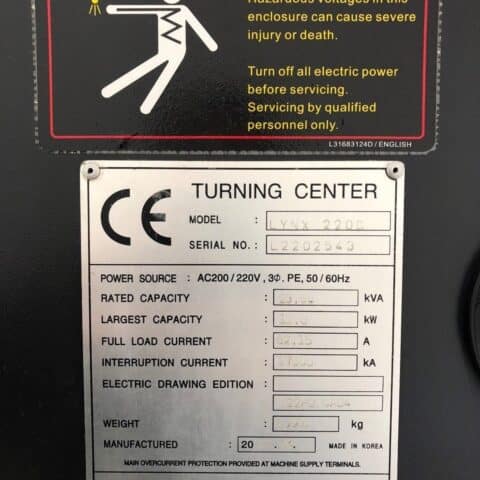

| Serial # | L2202543 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.

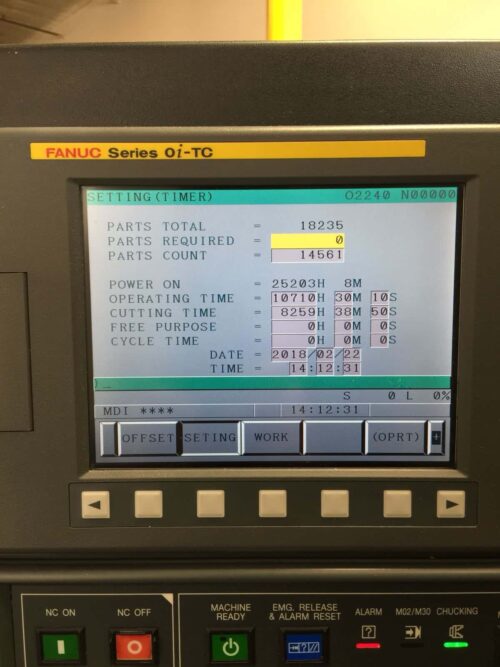

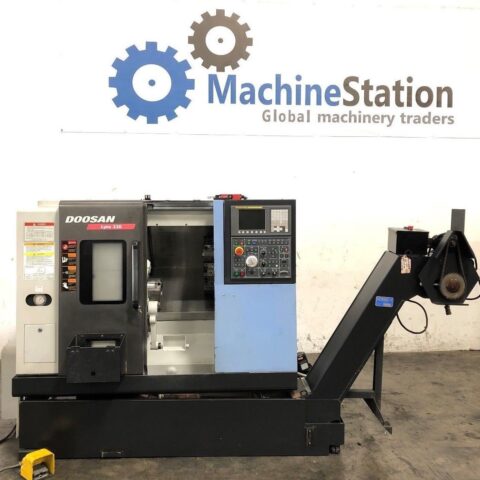

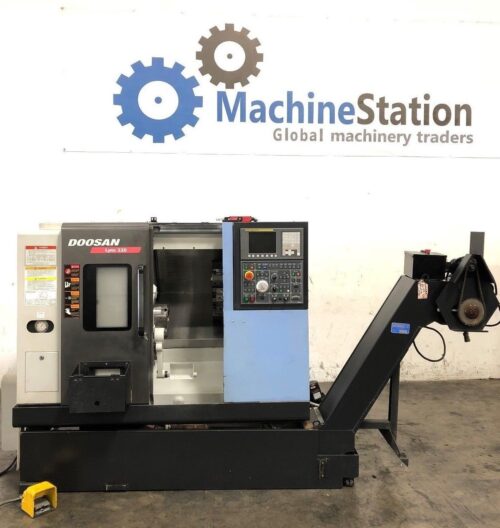

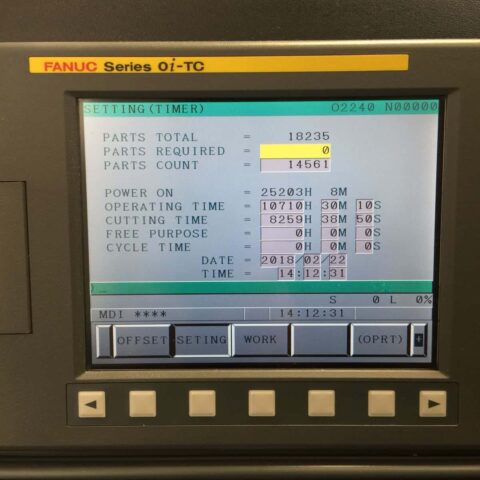

“One Owner machine in good running condition, equipped with 8″ Chuck, Tool Presetter and Parts Catcher. Cutting Hours 8259 Only. On Our Floor fully powered / tested & is in Great working condition.”
- Doosan Lynx 220C Equipped With:

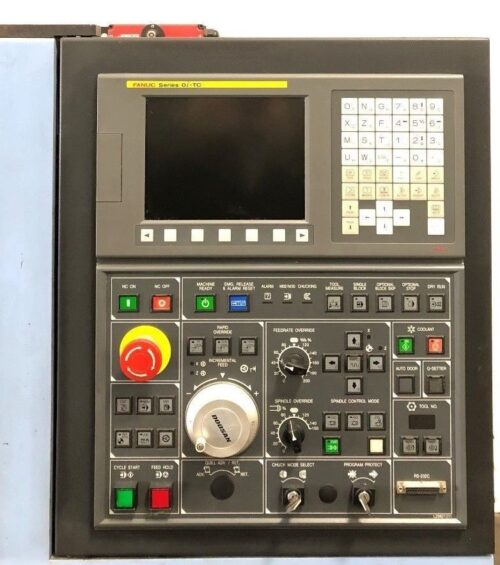

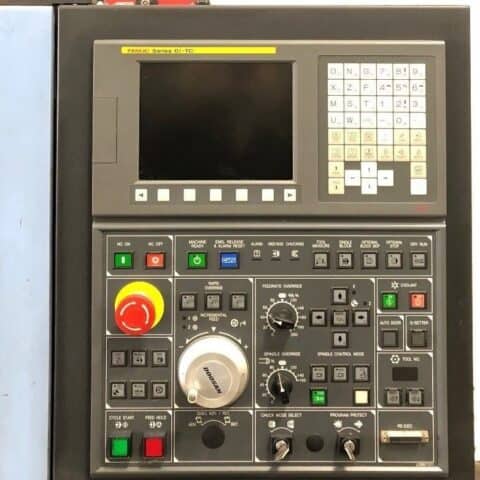

- Fanuc 0i-TC CNC Control

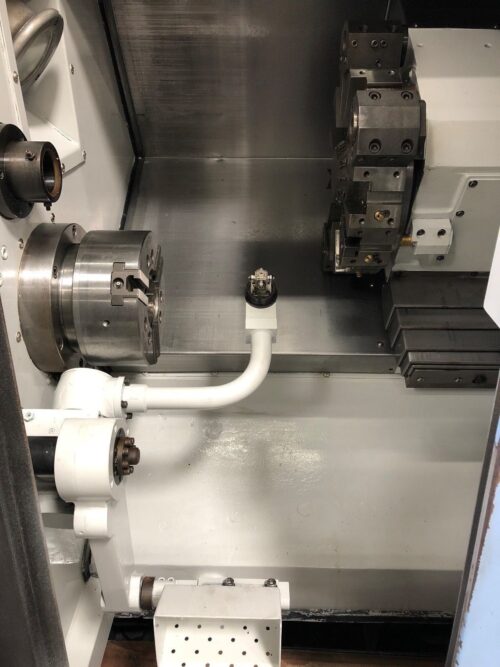

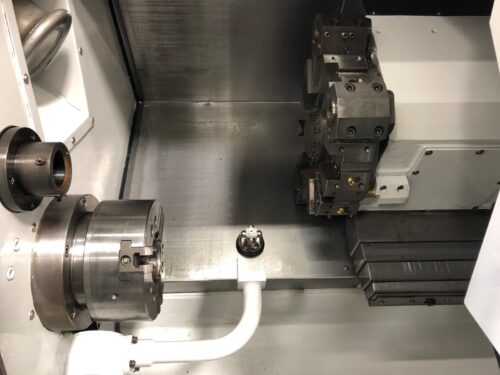

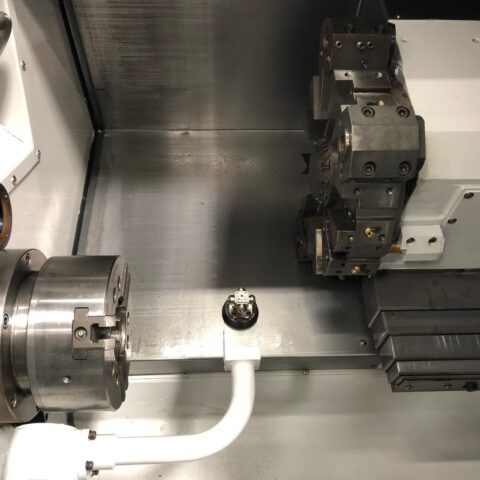

- 8″ 3 Jaw Hydraulic Chuck
- Parts Catcher
- A2-6 Spindle

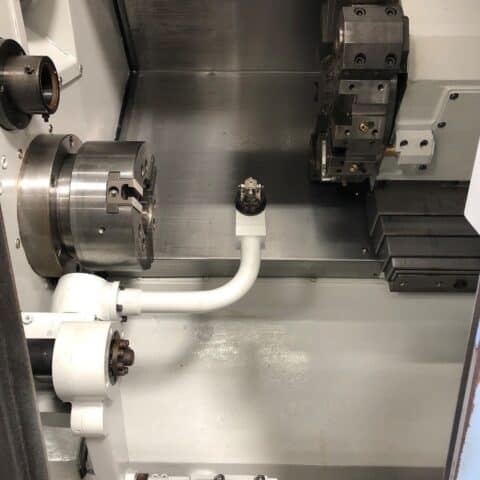

- Tool Presetter
- PCMCIA Card Slot
- Coolant System
- Barfeed Interface

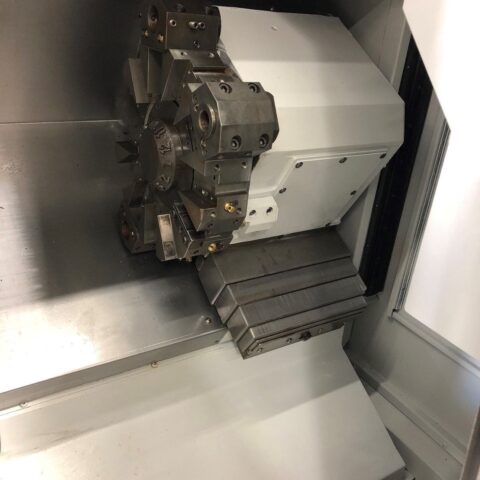

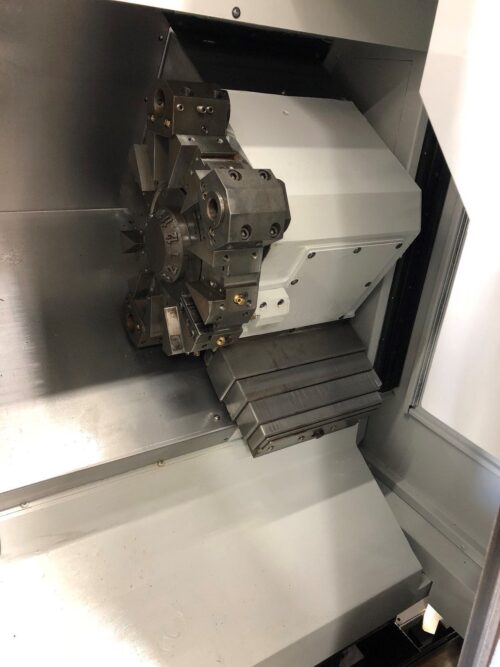

- 12 Station Automatic Turret
- Foot Switch
- Original Manuals
- Turret Tooling
- Chip Conveyor
- General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 74″ x 64″ x 62″ High
- Weight: 6500 lbs
- Doosan Lynx 220C Specifications:
- Capacity:
- Max Turning Diameter: 12.6″
- Max Turning Length: 12.7″
- Max Bar Capacity: 2.05″
- Swing Over Bed: 20.08″
- X Axis Travel: 6.9″
- Z Axis Travel: 13.0″
- Rapid Traverse X Axis: 1182 IPM
- Rapid Traverse Z Axis: 1417 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.44″
- Spindle Speed: 40 – 4000 RPM
- Spindle Motor: 7.5 Kw
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
Doosan Lynx 220C Comes as shown in pictures..
