*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

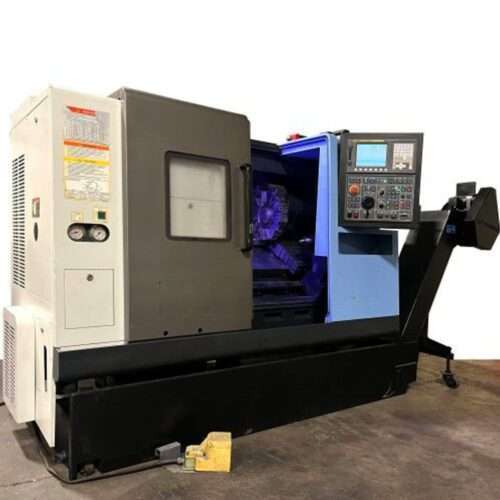

Make: | Doosan |

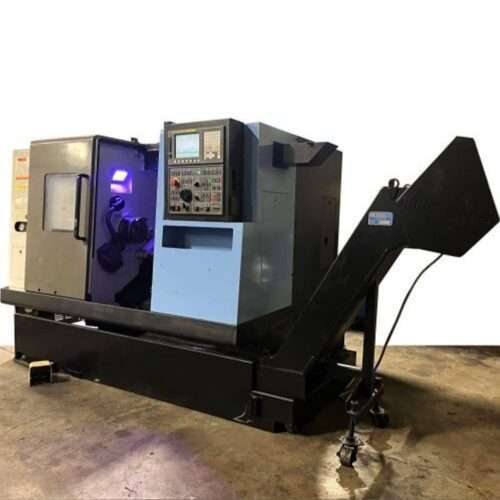

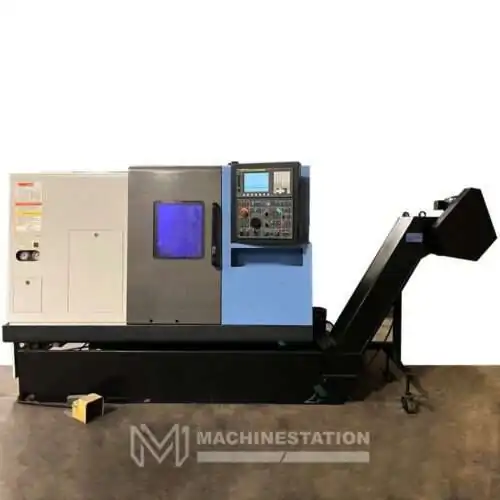

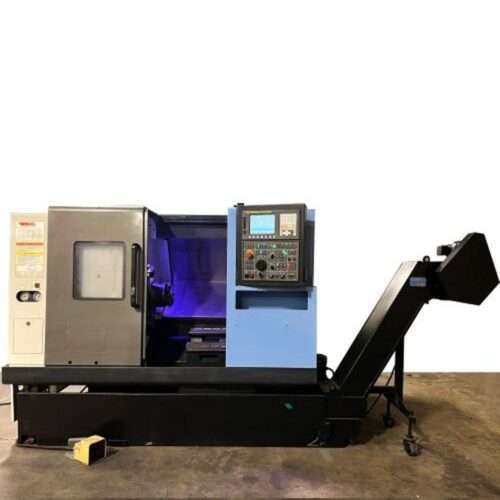

Model: | LYNX 220LC |
Year: | 2013/2014 |
Condition: | Excellent |

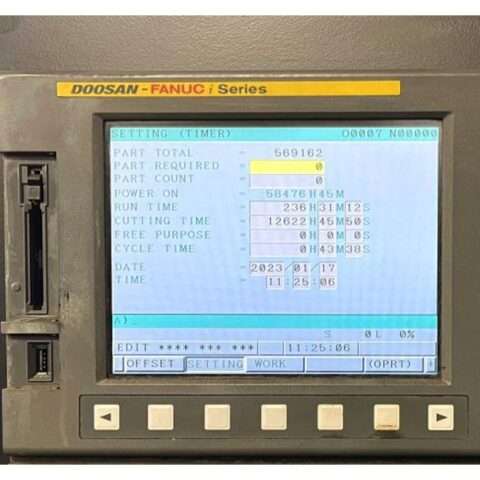

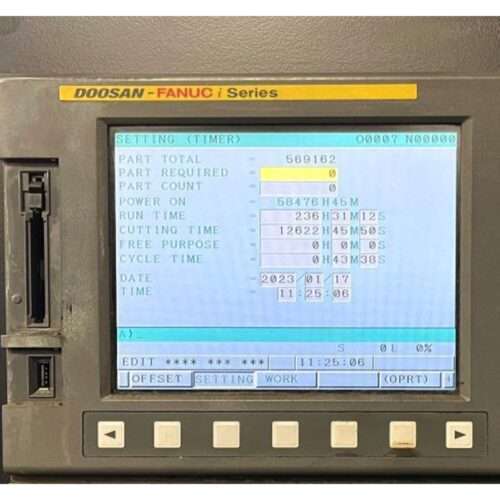

Cutting Time: | 12,622 Hours |
Equipped With: |
---|

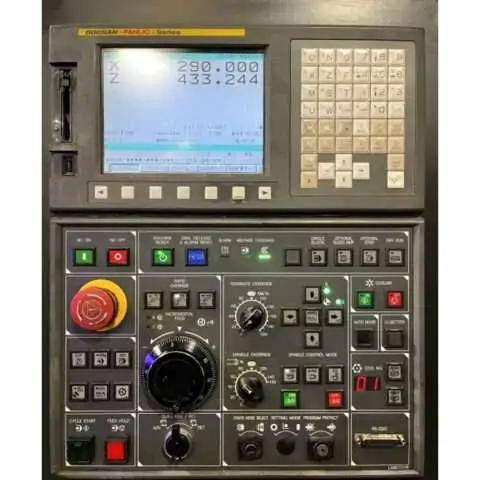

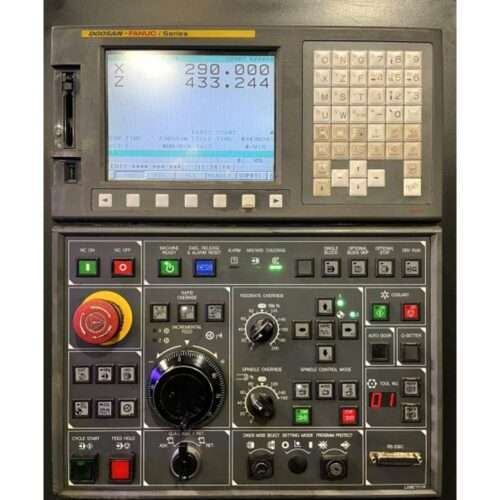

Doosan-Fanuc i Series CNC Control |
10.4 Color LCD Display |

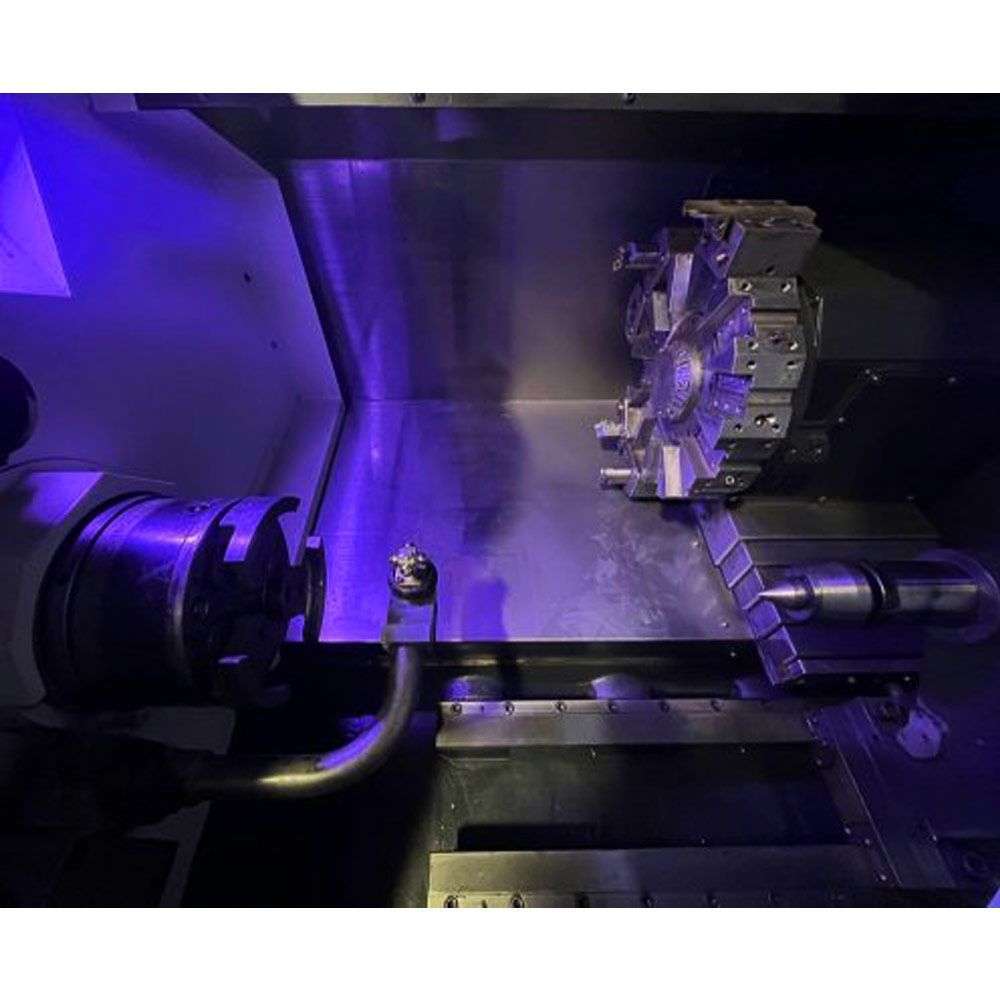

3.0″ Big Bore, Long Bed Lathe |

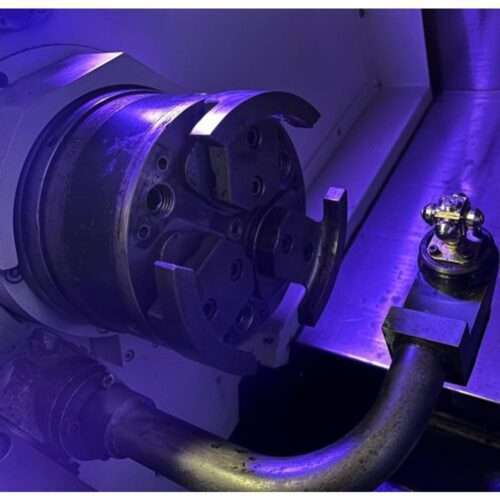

8″ 3 Jaw Big Bore Hydraulic Chuck |

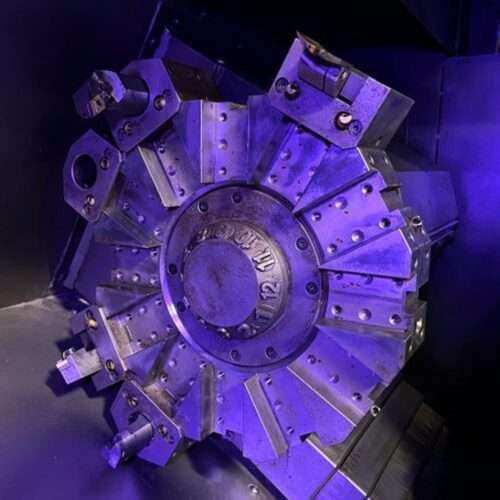

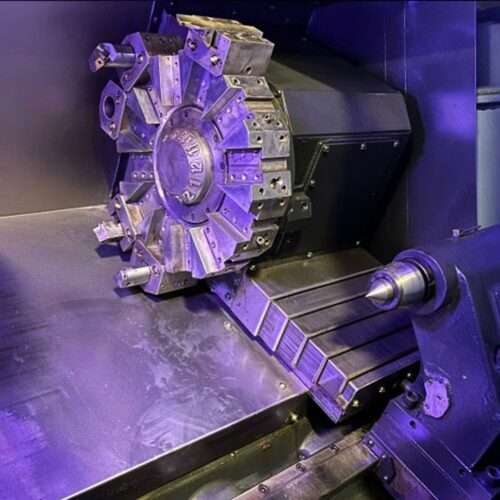

12 Station Turret |
Hydraulic Tailstock Quill |
Tool Presetter |
USB Drive |
PCMCIA Card Slot |
RS-232 & LAN connectivity |
Barfeed Interface |
Coolant System |

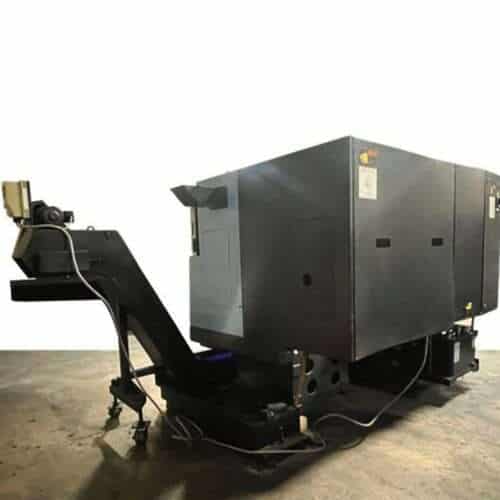

Henning Chip Conveyor |
Foot Switches |
Capacity: |
---|
Max Turning Diameter : 12.6″ |
Max Swing Over Bed : 20.1″ |
Max Swing Over Saddle : 11.4″ |
Max Turning Length: 20.7″ |
Max Bar Capacity : 2.6″ |
Distance Between Center: 24″ |
Travels: |
---|
X Axis Travel : 6.9″ |
Z1 Axis Travel : 21.7″ |
Rapid Traverse X Axis: 1181 IPM |
Rapid Traverse Z Axis: 1417 IPM |
Spindle: |
---|
Spindle Nose: A2-6 |
Spindle Bore: 3.0″ |
Spindle Speed: 4000 RPM |
Spindle Motor: 20 HP |
Turret: |
---|
Turret Capacity: 12 Stations |
Turret Index Time: 0.11 Second |
Tailstock: |
---|
Tailstock Body Travel: 13″ |
Tailstock Taper: MT-4 |
Tailstock Quill Dia.: 2.6″ |
Tailstock Quill Travel: 3.1″ |
General: |
---|

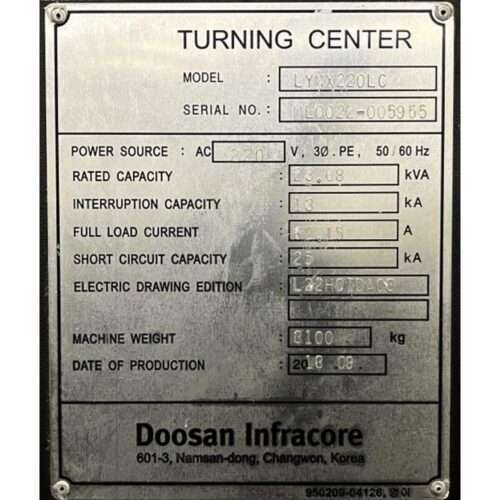

Power Source: AC 220v / 3-Phase / 60 Hz |
Power Requirement: 23.68 kva |
Machine Dimensions: 101″ x 63″ x 65″ High |
Machine Dimensions: 142″ x 63″ x 65″ High with Chip Conveyor |
Machine Weight: 7,000 lbs Approx. |
