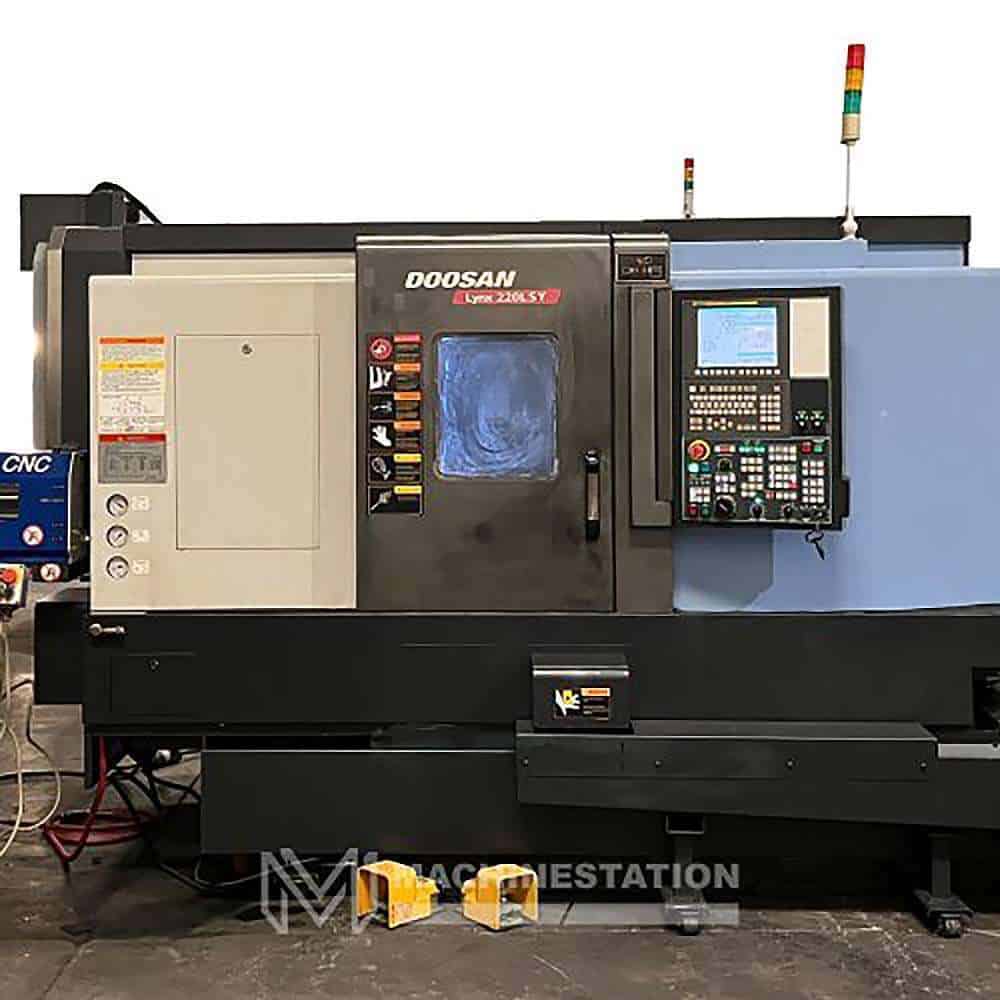

Doosan Lynx 220LYSA CNC Turn Mill Center

Out of stock

Used Doosan Lynx 220LYSA CNC Turn Mill Center for Sale. This Doosan Lynx 220LYSA has minimal cutting hours and is in excellent condition.

Location:	Lake Elsinore, CA
SKU:	2409
Make/Model:	Doosan Lynx 220LYSA
Video:	[fusion_button link=”https://youtu.be/rkwZH1b3zMQ?rel=0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_bottom_color=”” button_gradient_top_color_hover=”” button_gradient_bottom_color_hover=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_color=”” accent_hover_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_color=”” border_hover_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

Tags: Doosan

SKU: 2409

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Doosan
Model:	Lynx 220LYSA
Year:	2008/2009
Condition:	Excellent
Cutting Hours:	14976

Equipped With:

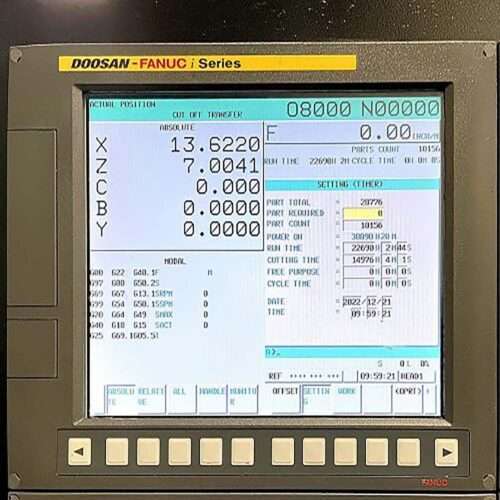

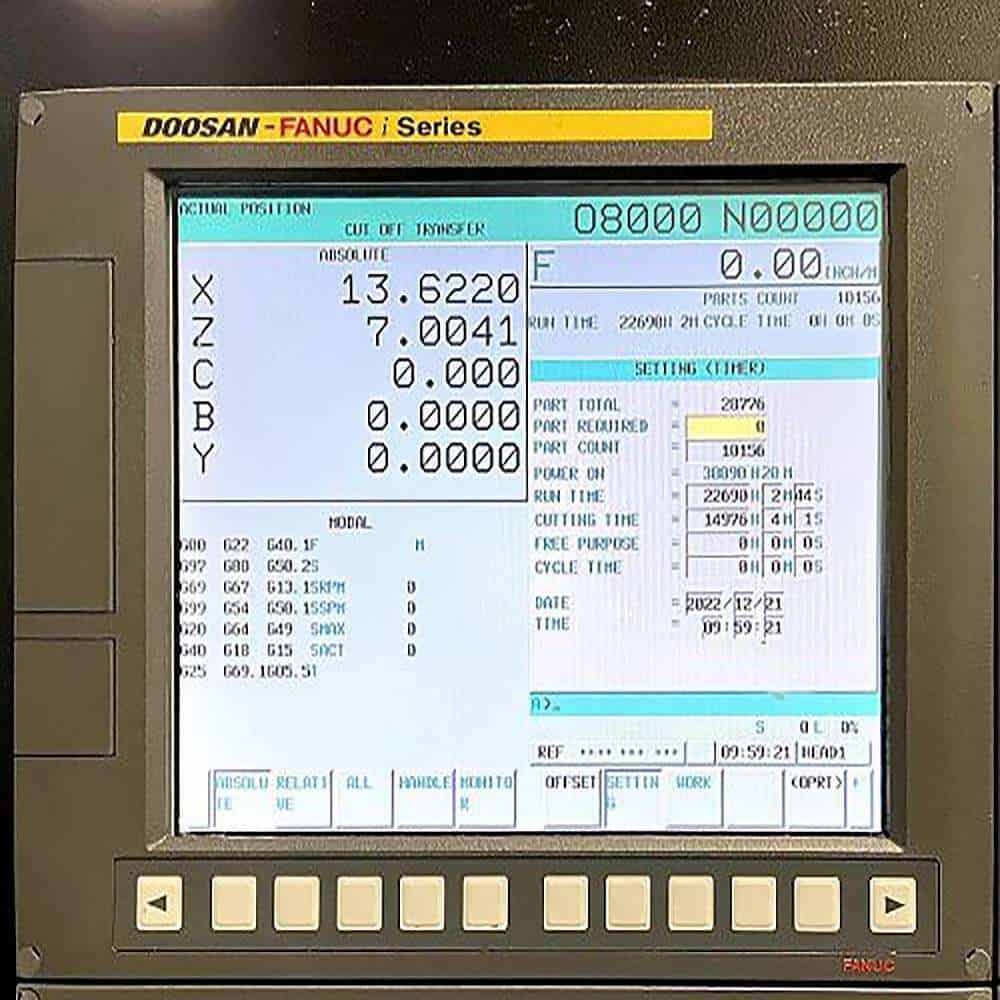

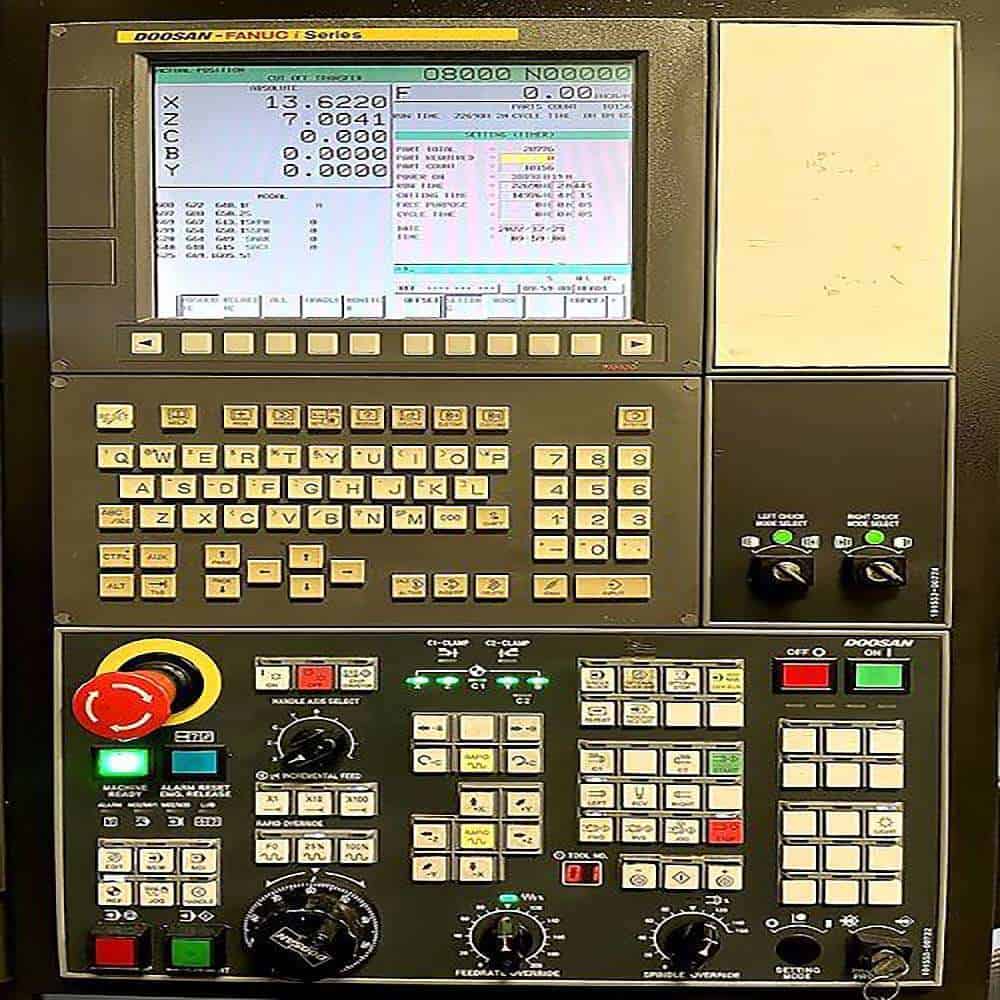

Doosan-Fanuc i Series CNC Control

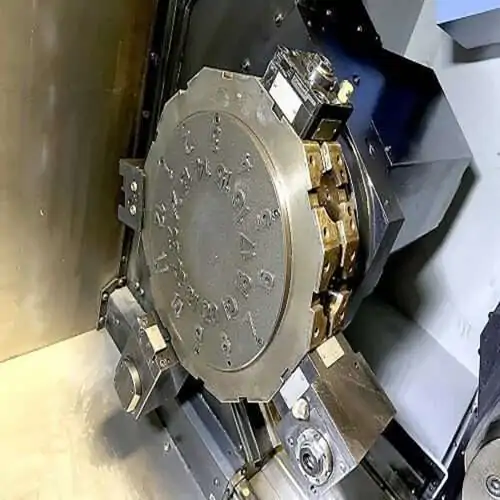

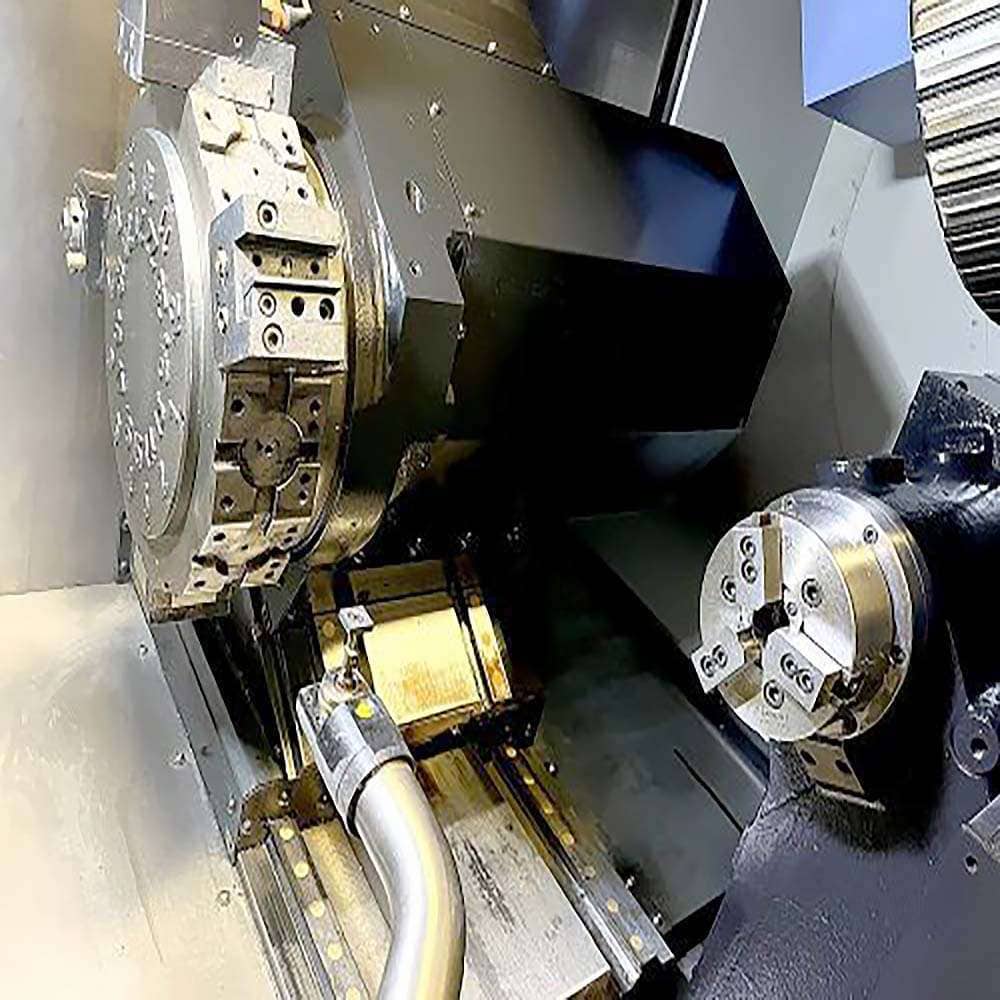

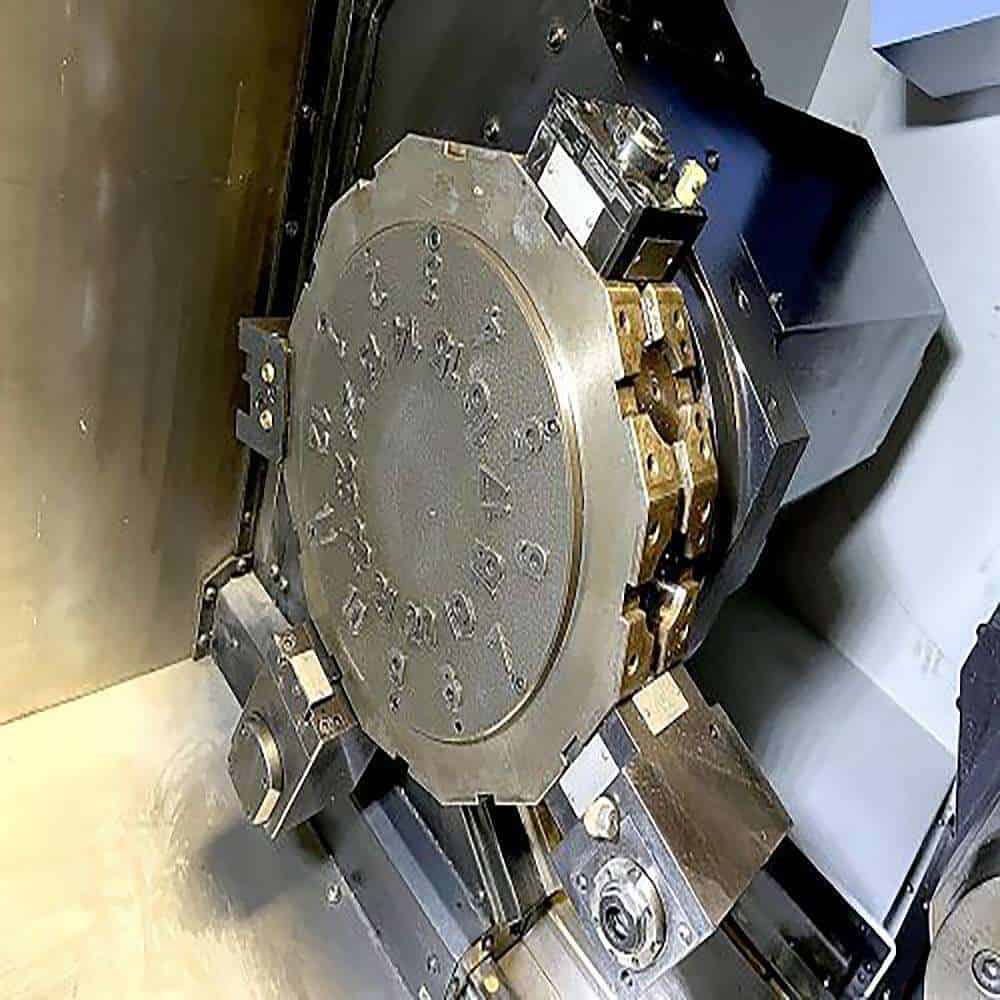

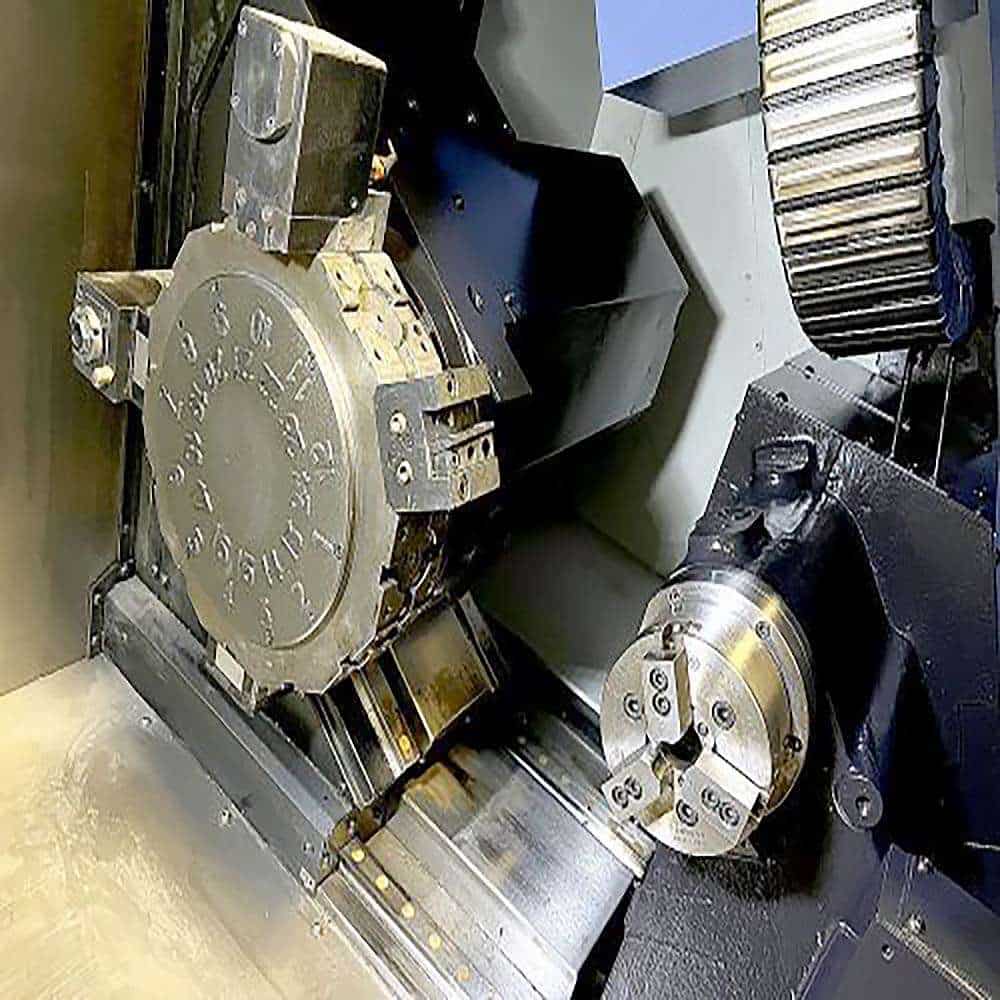

12 Station Live Tool Turret with Tool Holders
Y Axis Capability

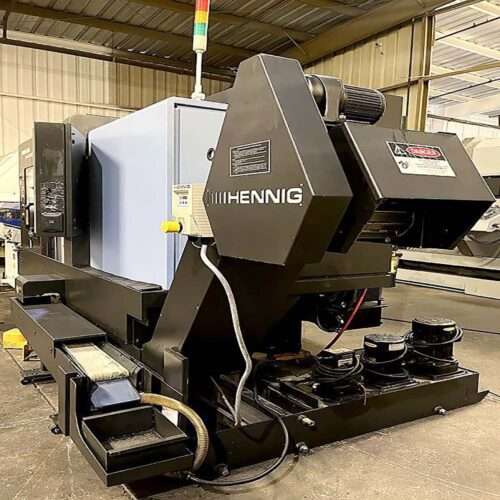

IEMCA Automatic Bar Feeder

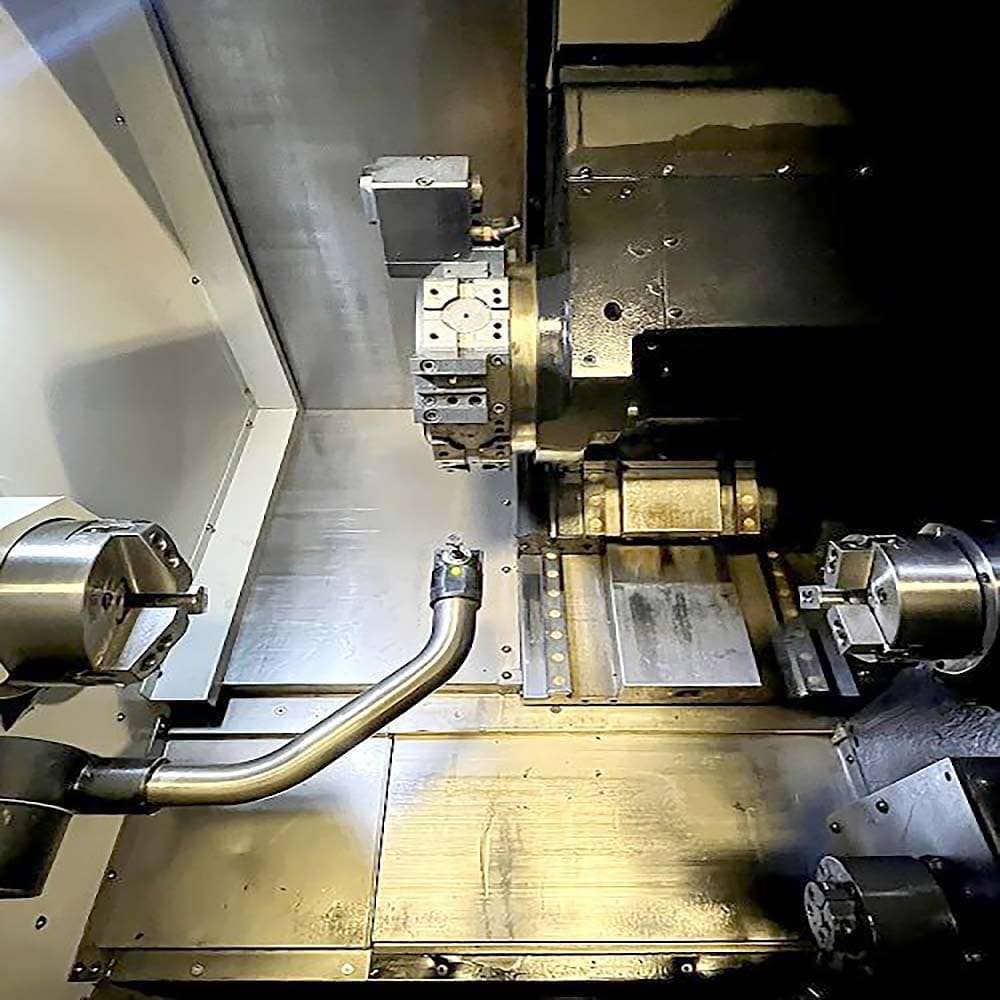

Sub Spindle

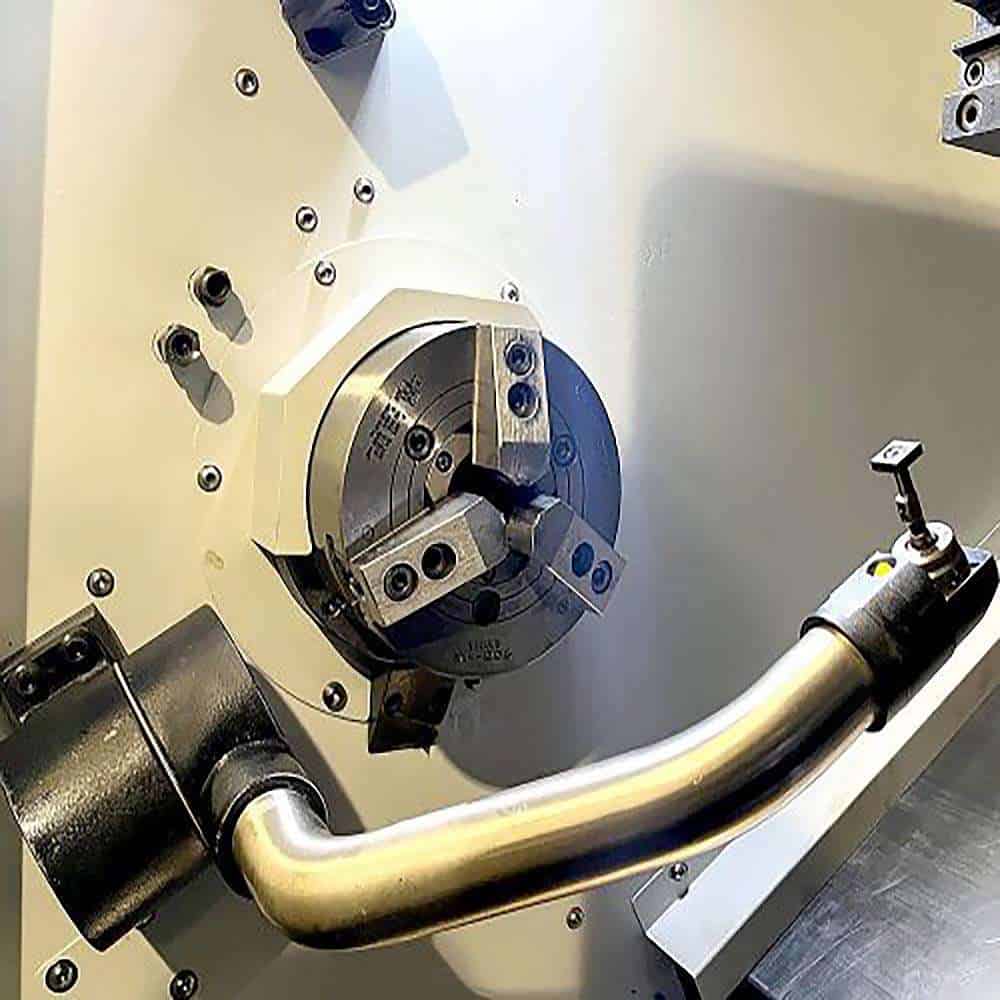

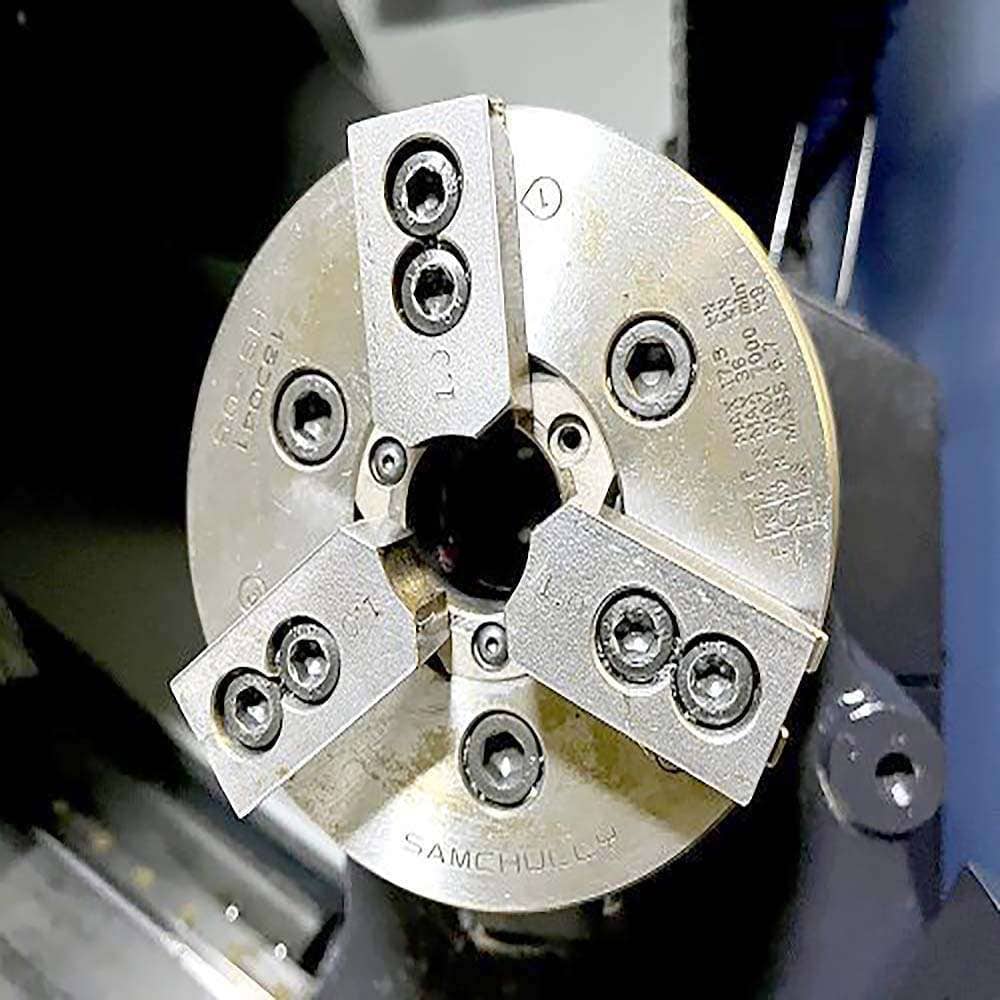

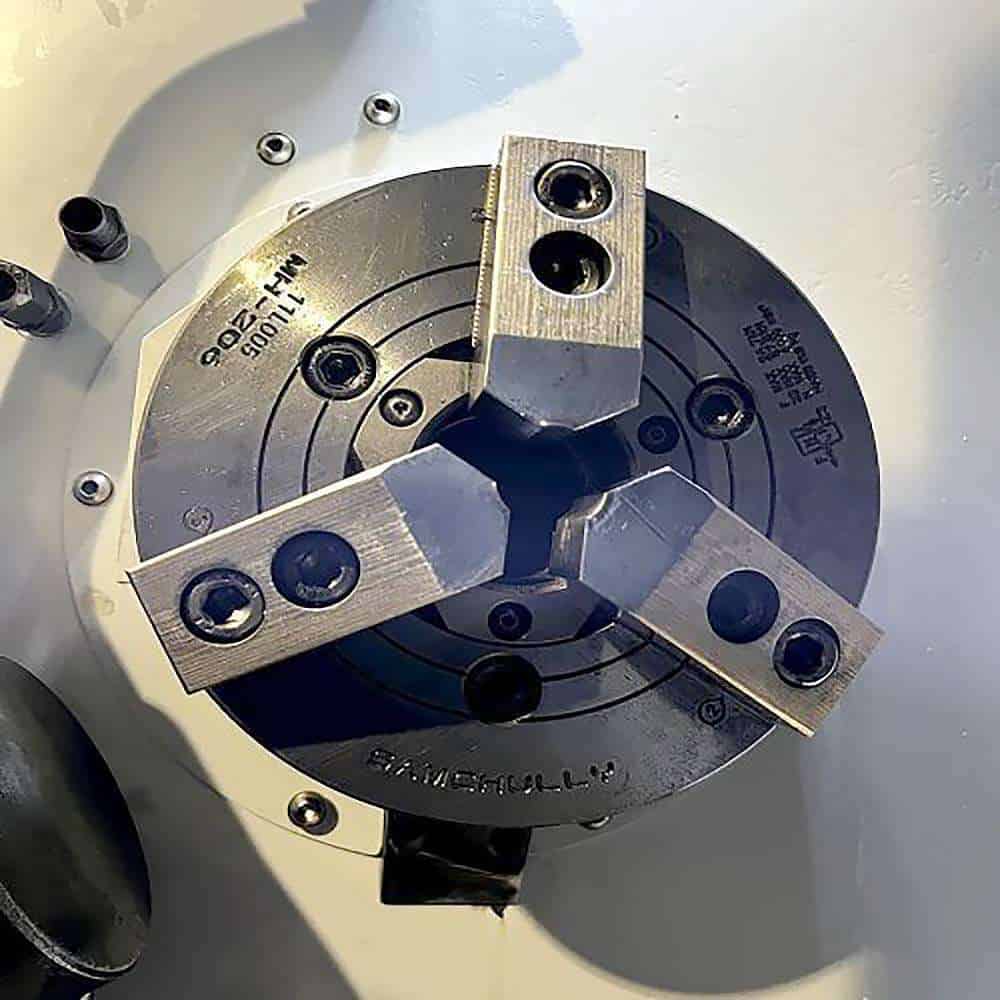

6″ 3-Jaw Chucks on Both Spindles
Servo Controlled Full C-Axis on Both Spindles
Both Spindle Synchronization

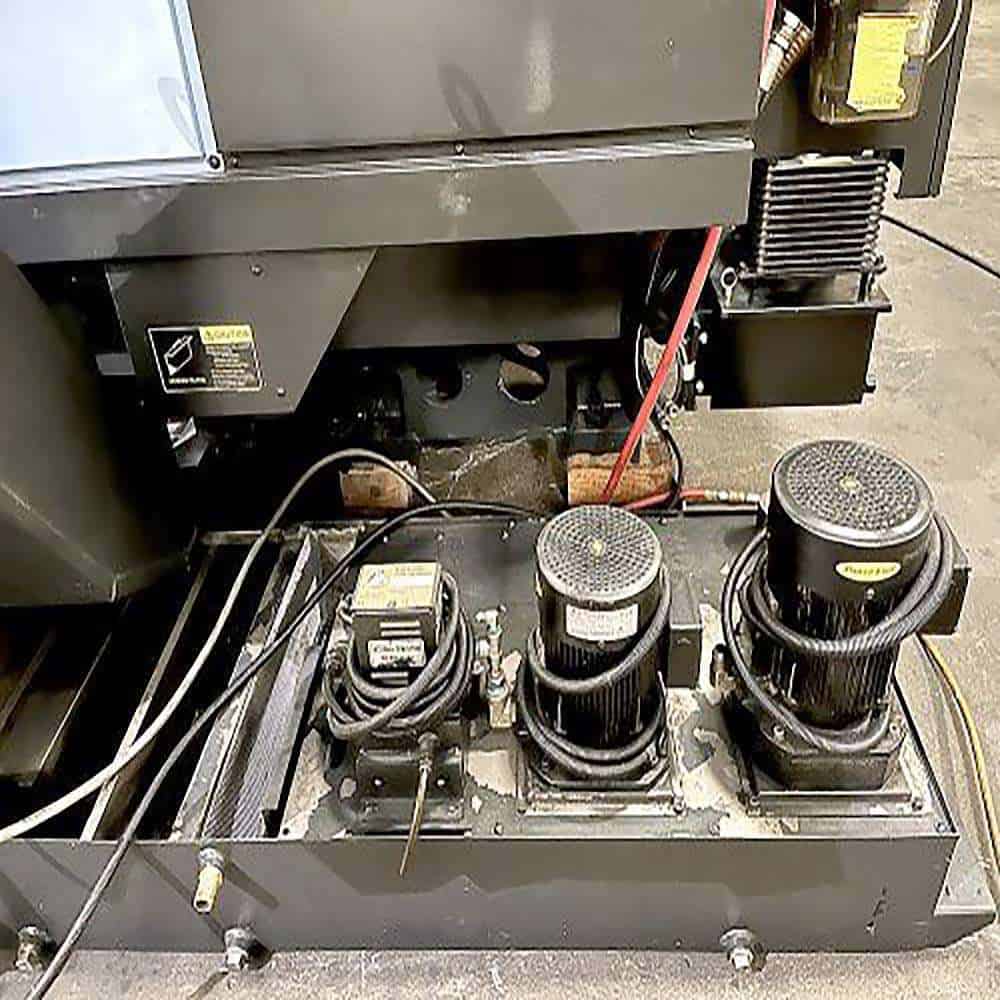

High Pressure Coolant System

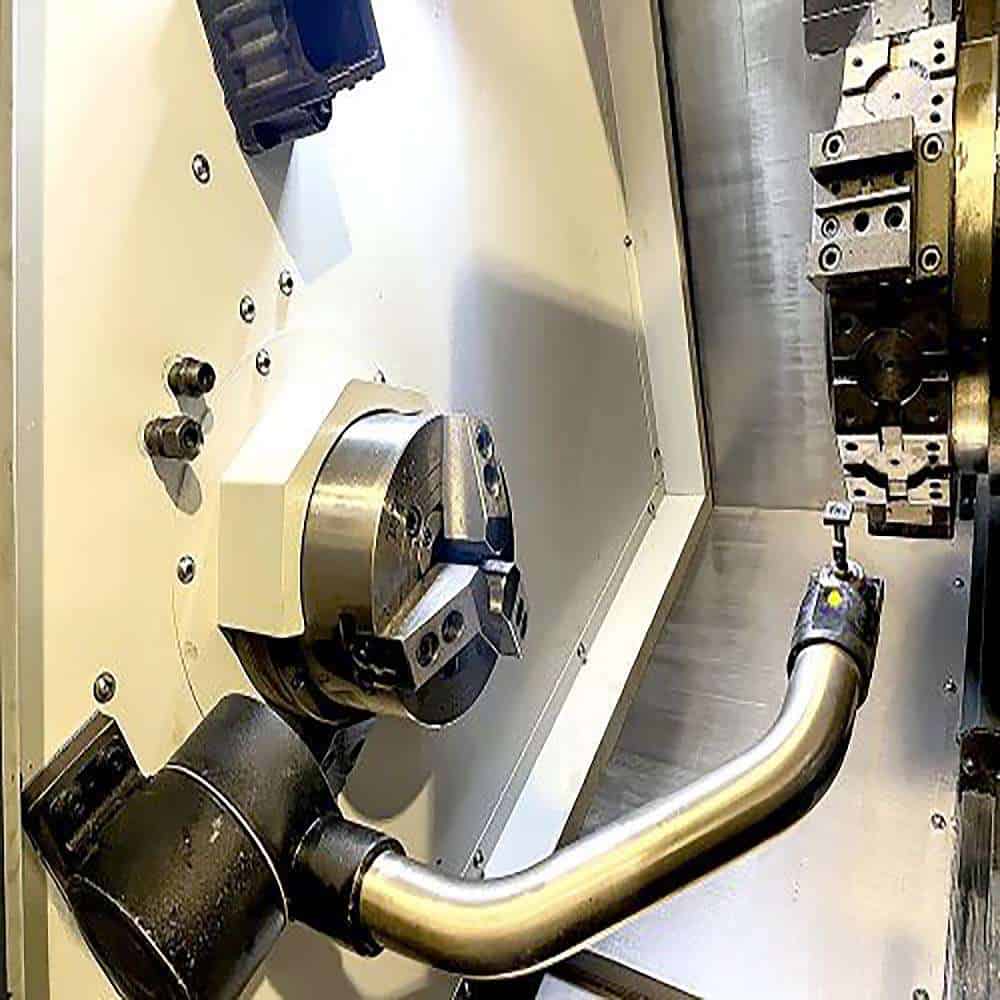

Tool Presetter
Foot Switches

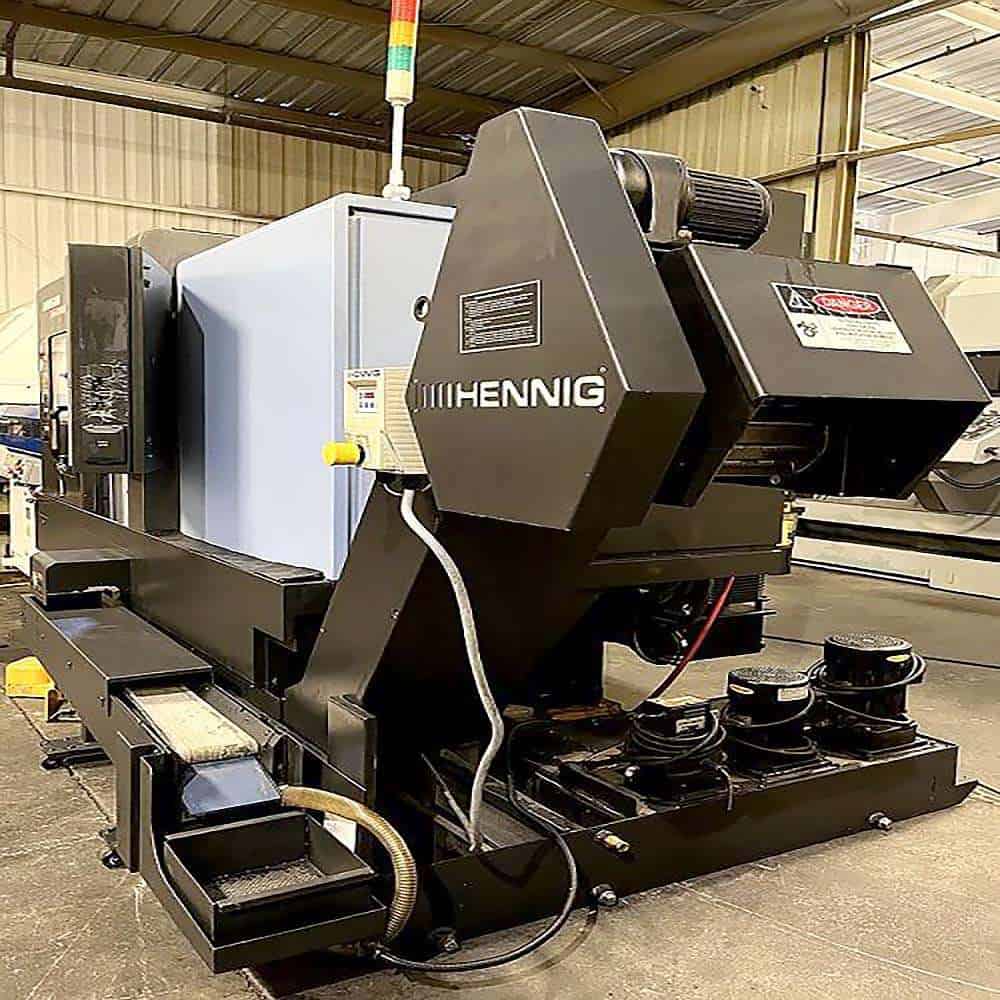

Chip Conveyor
Coolant Tank
Books and Manuals

Capacity:
Max Turning Diameter : 11.8″
Max Swing Over Bed : 23.6″
Max Swing Over Saddle : 15.7″
Max Turning Length: 20.1″
Max Bar Capacity : 2″
Distance Between Spindles: 22″

Travel:
X Axis Travel : 8.1″
Y Axis Travel : 4.1″ (+/-2.1″)
Z1 Axis Travel : 22″
B Axis Travel : 20″ (Sub Spindle)
C Axis: 360° (0.001°) Both Spindle
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Rapid Traverse Z Axis: 1417 IPM
Rapid Traverse B Axis: 787 IPM

Spindle:
Main Spindle Nose: A2-5
Sub Spindle Nose: A2-5
Main Spindle Bore: 2.4″
Sub Spindle Bore: 1.7″
Main Spindle Speed: 6000 RPM
Sub Spindle Speed: 6000 RPM
Main Spindle Motor: 20 HP
Sub Spindle Motor: 7.5 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.11 Second
Rotary Tools Speed: 6000 RPM
Rotary Tool Motor: 5 HP

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 33.66 kva
Machine Dimensions: 112″ x 68″ x 76″ High
Machine Weight: 8,600 lbs Approx.
