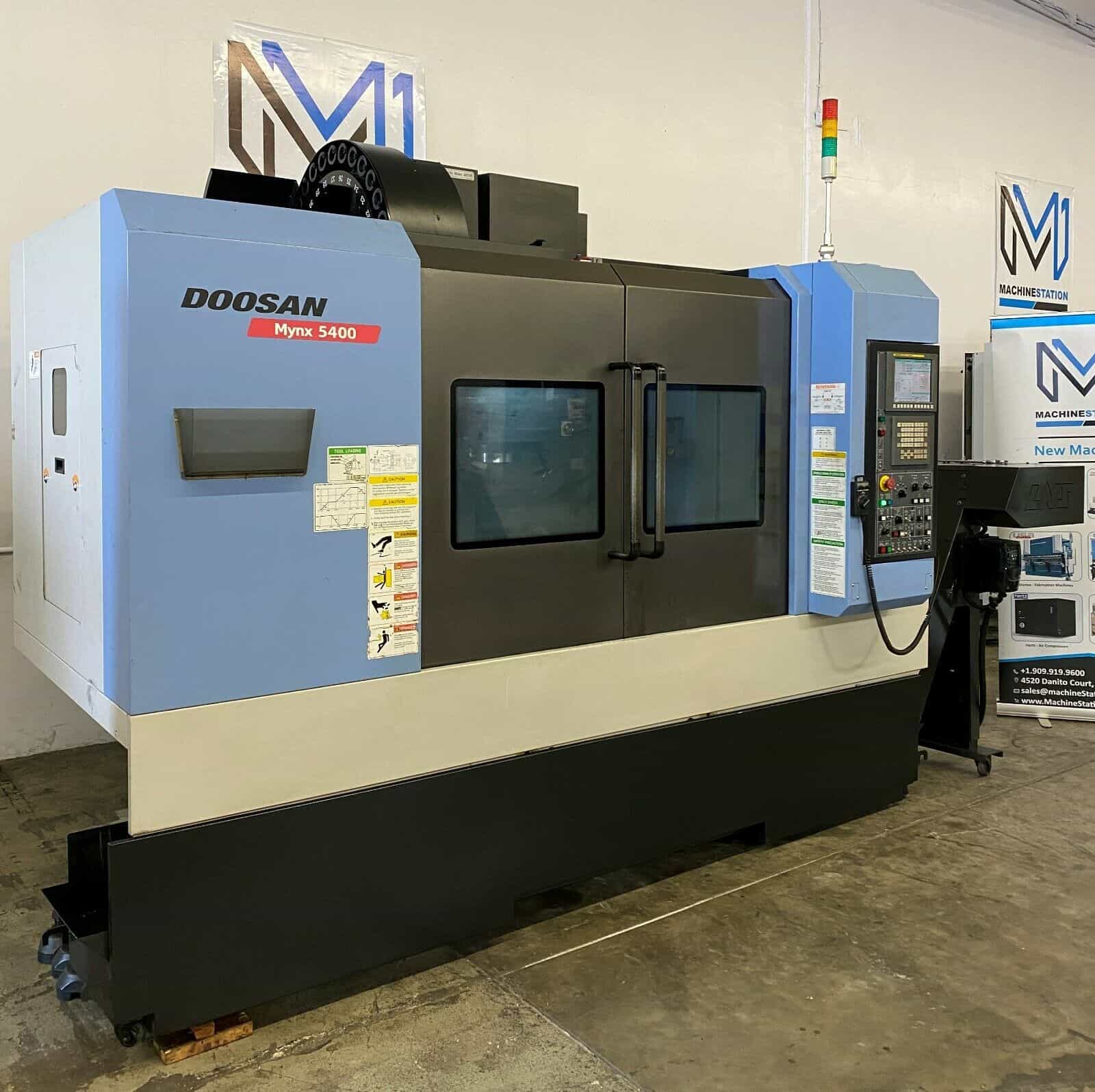

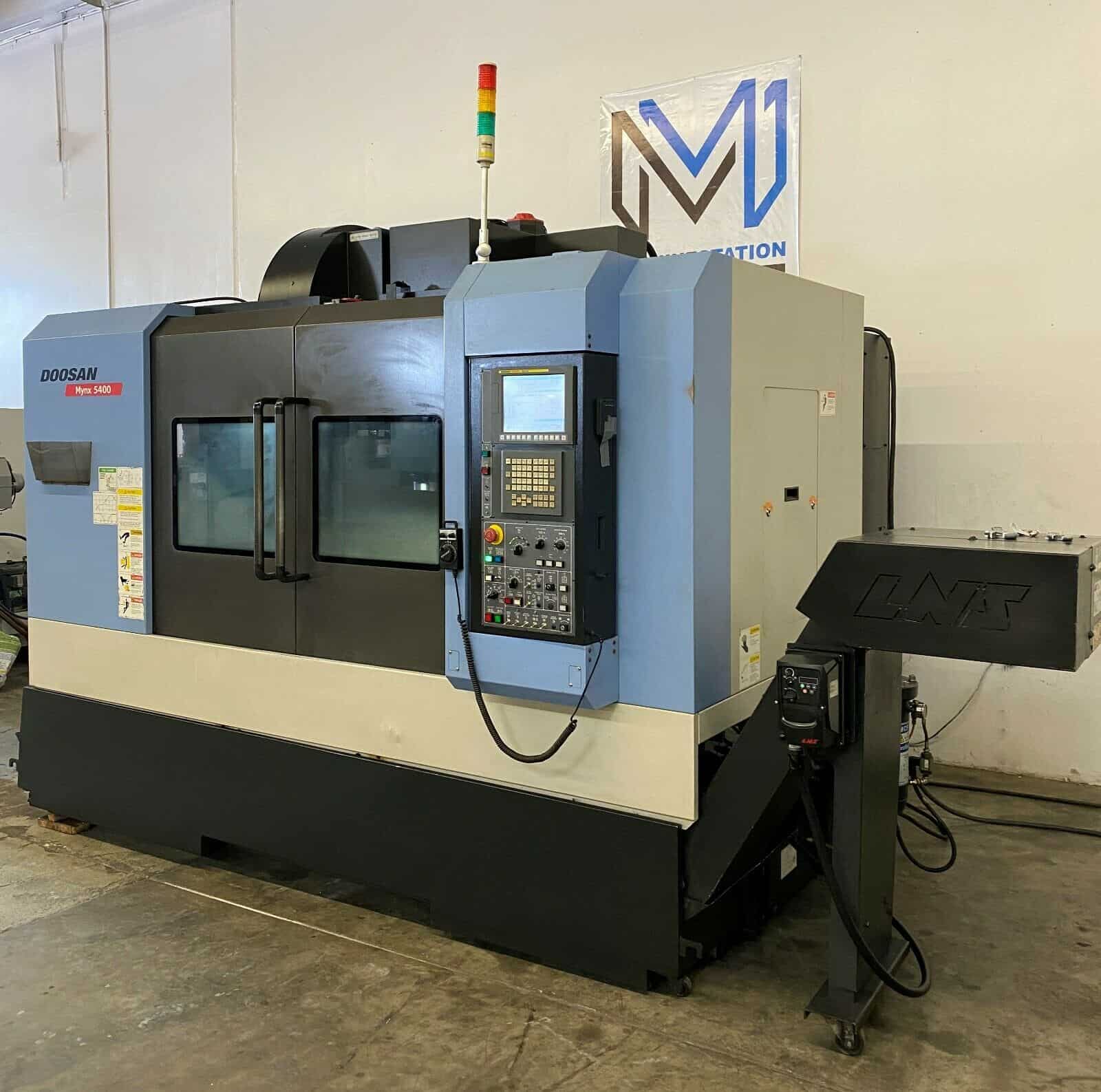

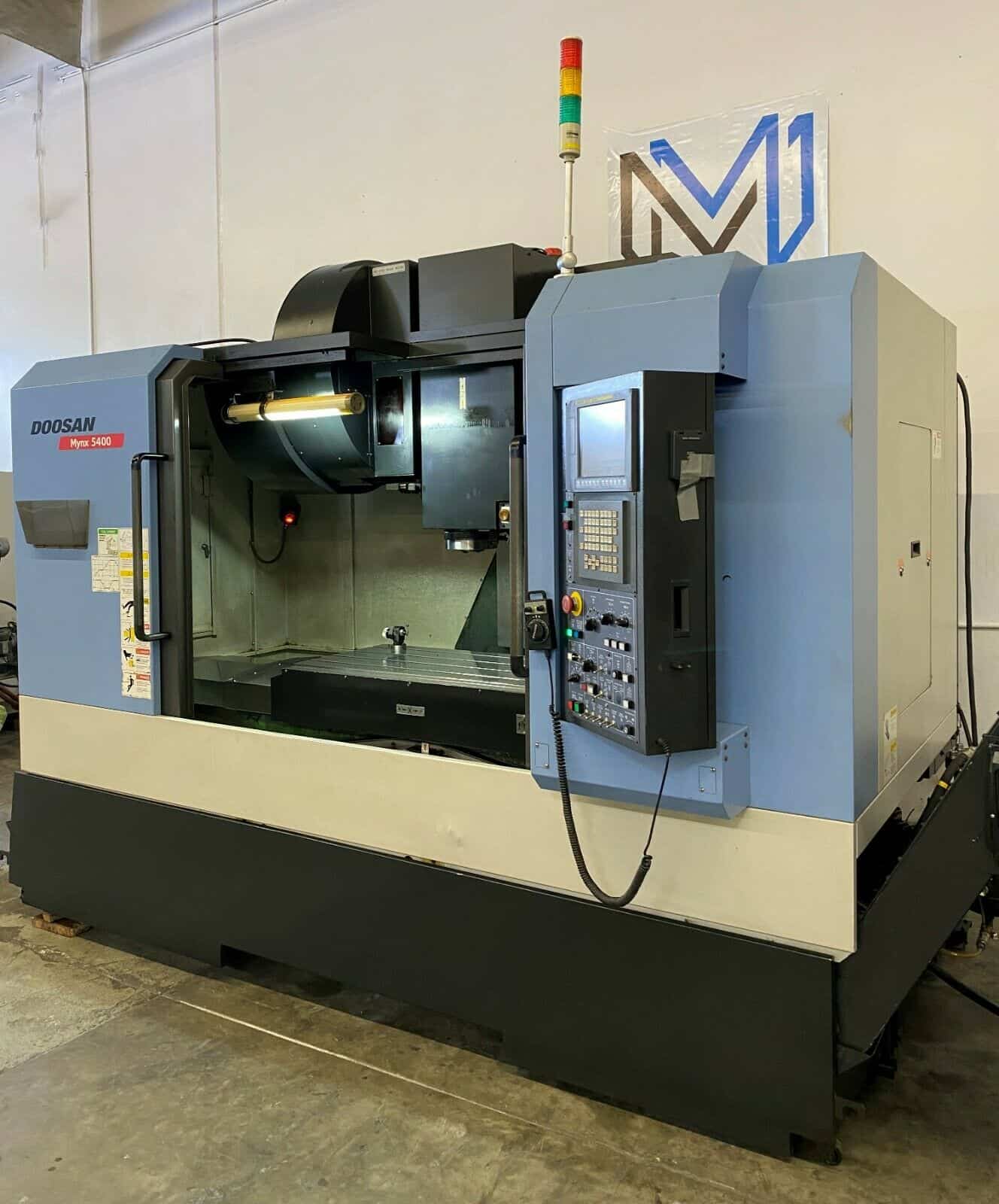

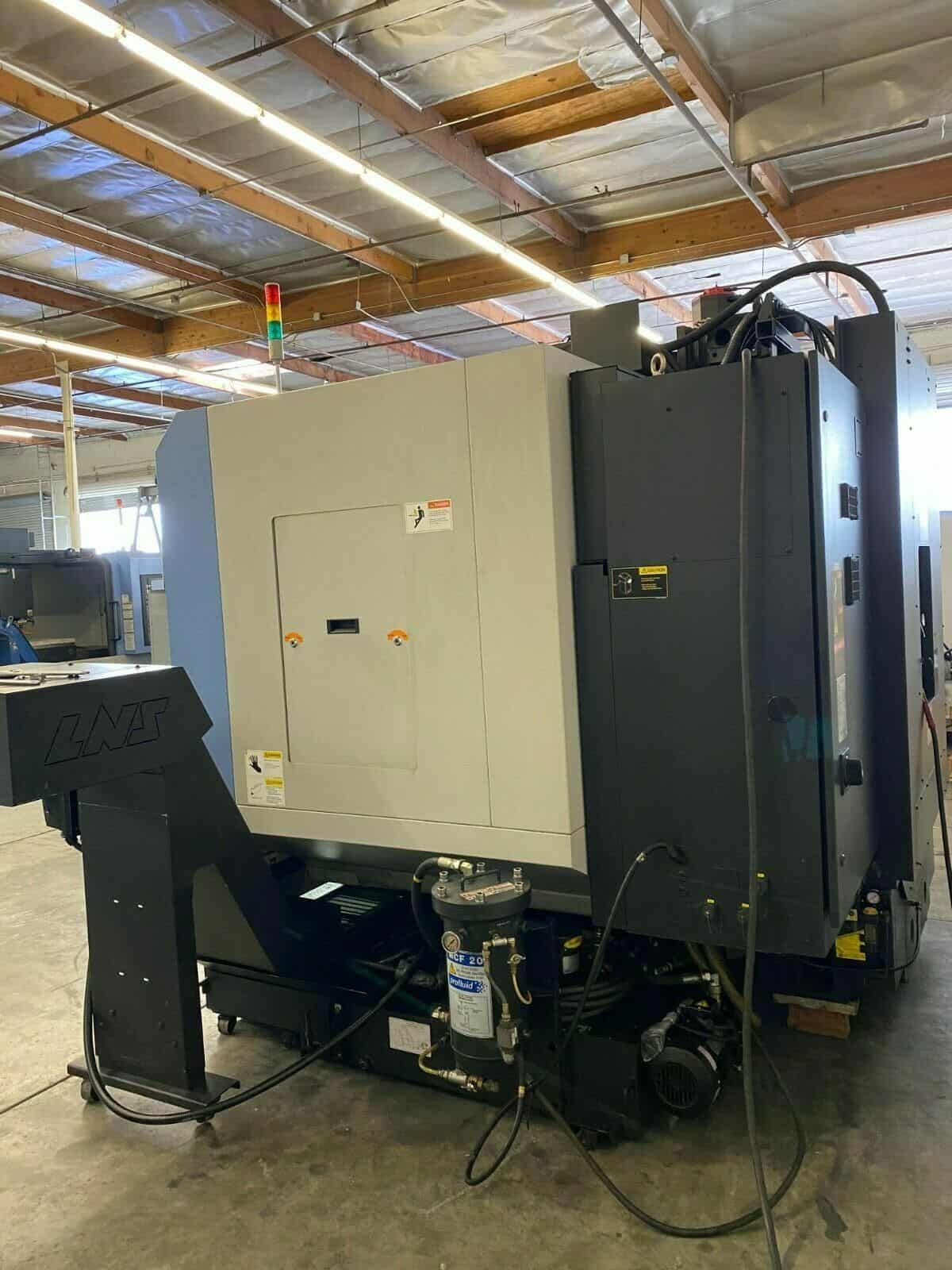

Doosan MYNX 5400 Vertical Machining Center

Share

Description

DOOSAN MYNX 5400 VERTICAL MACHINING CENTER

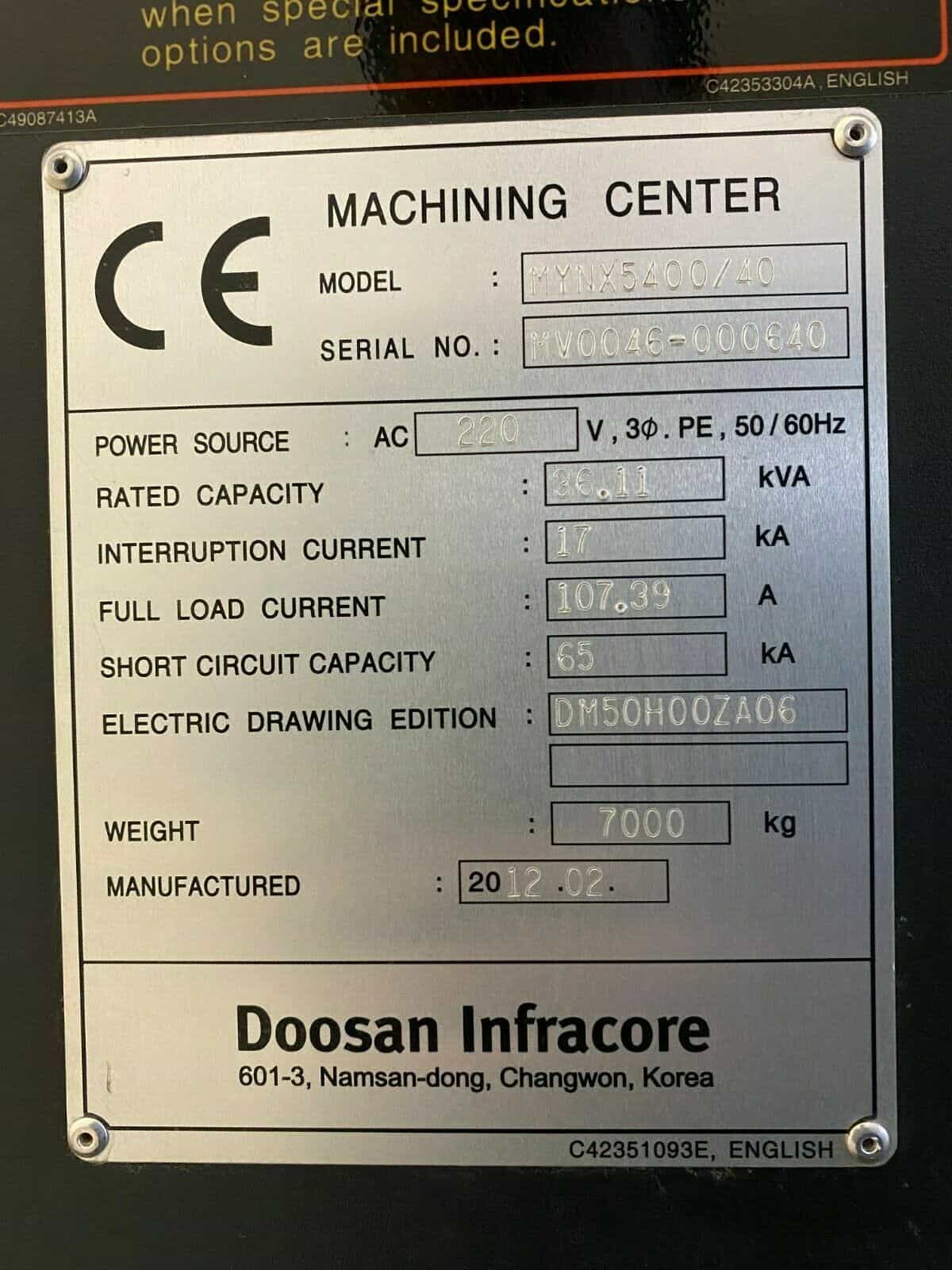

Make DOOSAN

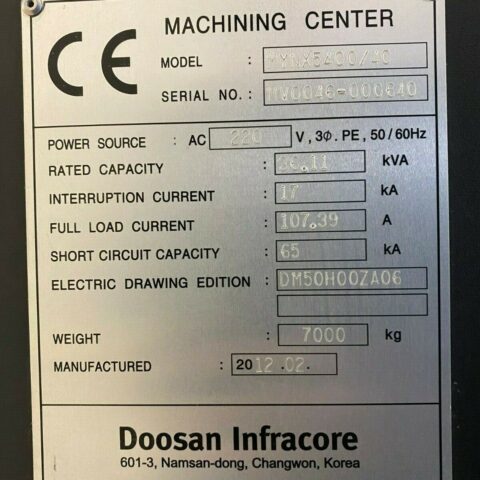

Model No. MYNX-5400/40
Year 2012
Serial # DM50H00ZA06
Condition Very Good
Cutting Hours: 3170
  • Doosan MYNX 5400 Vertical Machining Center Features:

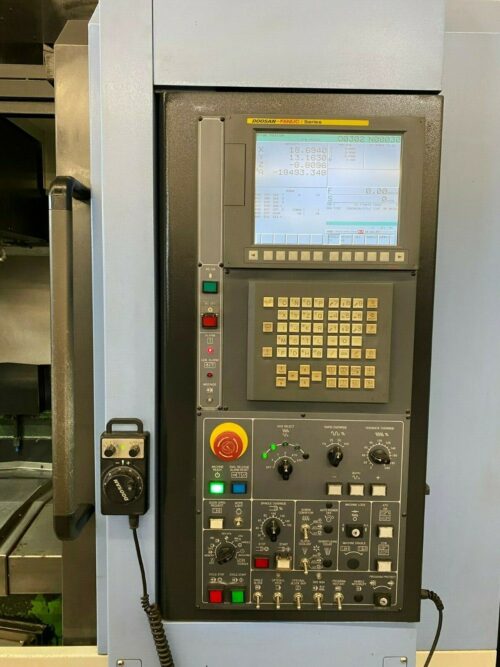

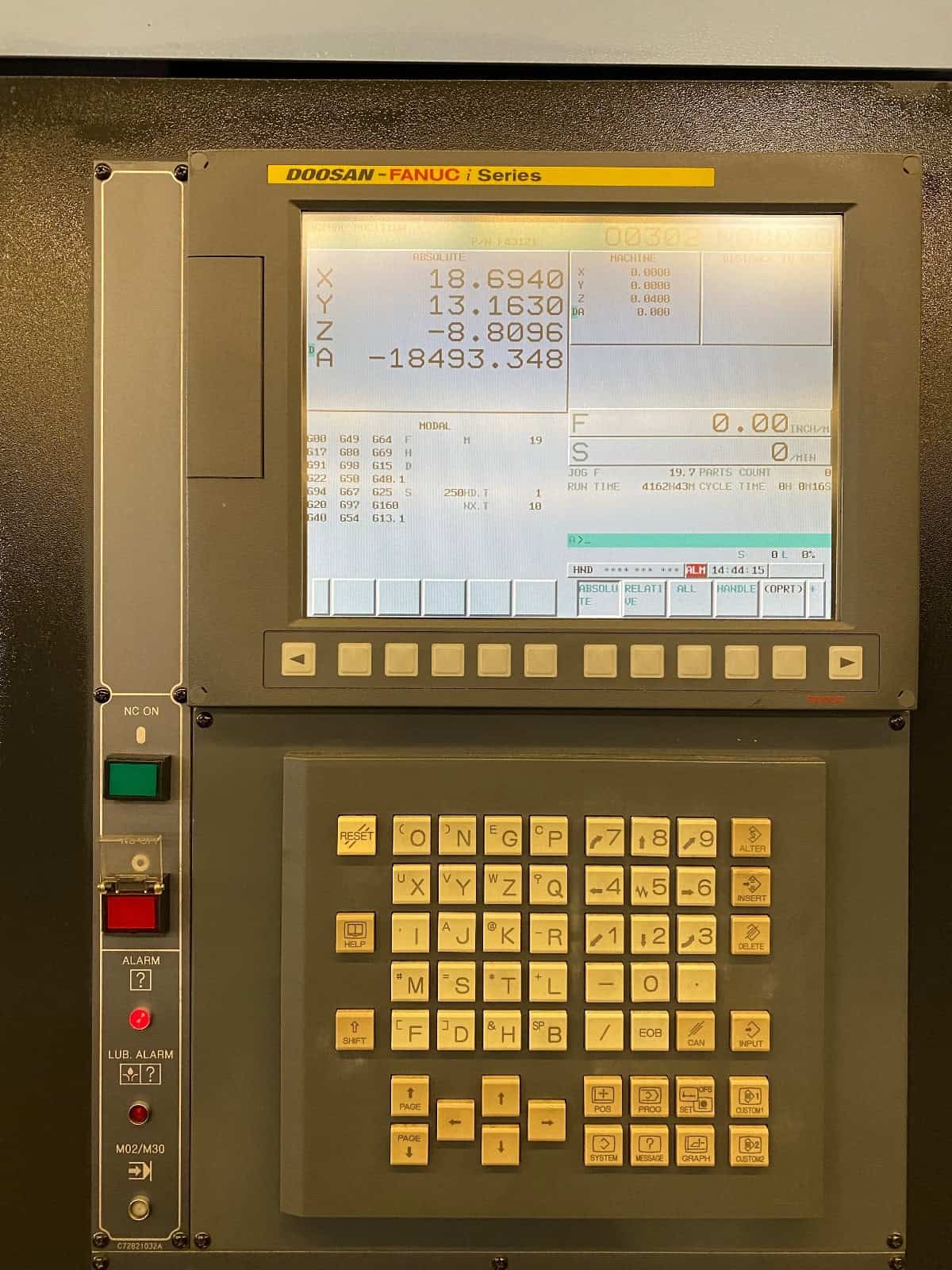

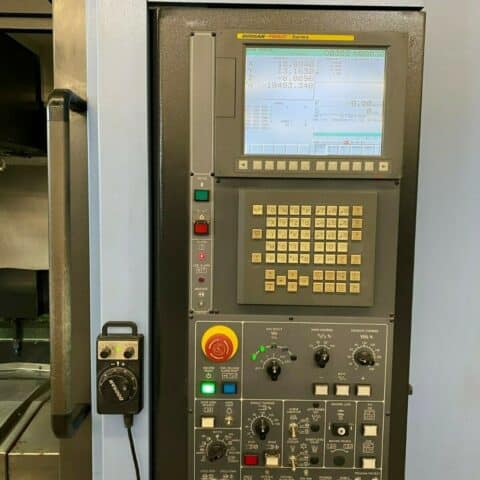

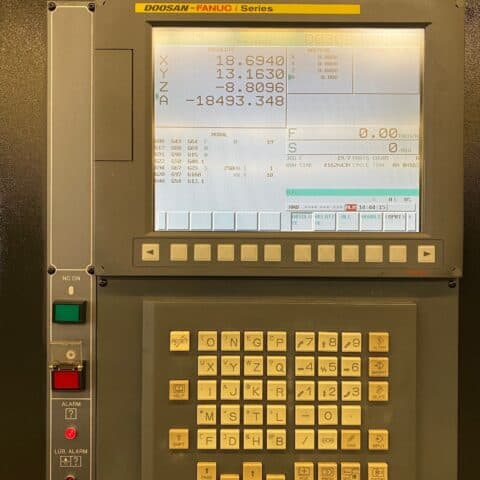

  • Doosan Fanuc Oi-series CNC Control
  • Box Way Construction
  • Through Spindle Coolant
  • 4TH Axis Control
  • Renishwaw Wireless Probing System
  • 8,000 RPM Precision Spindle
  • 1417 Inch Per Min Rapids
  • PCMCIA Card Slot
  • MPG Control
  • Rigid Tapping
  • Spindle Orientation
  • Brushless servo drive motors on all axis
  • 30 Automatic high speed tool changer
  • High Pressure Flood Coolant
  • Telescopic way covers
  • Spindle Chiller Unit
  • Flood Coolant system
  • Levelling Pads
  • Manuals & Books
  • Doosan MYNX 5400 Vertical Machining Center Specifications:
  • Travels:
  • X-Axis: 40.7″
  • Y-Axis: 21.1″
  • Z-Axis: 20.9″
  • Rapid Traverse Rates: 1181″ Per Minute
  • Cutting Feed Rates: 945″ Per Minute
  • Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″

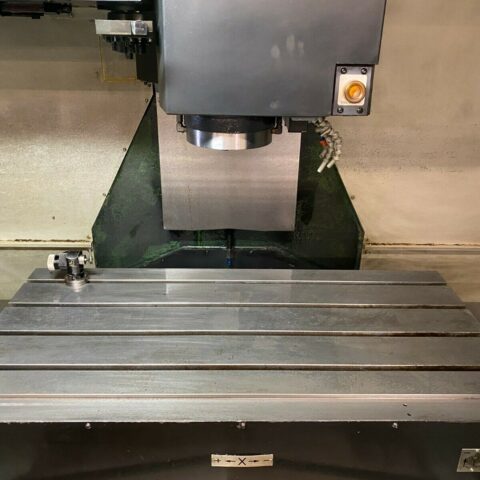

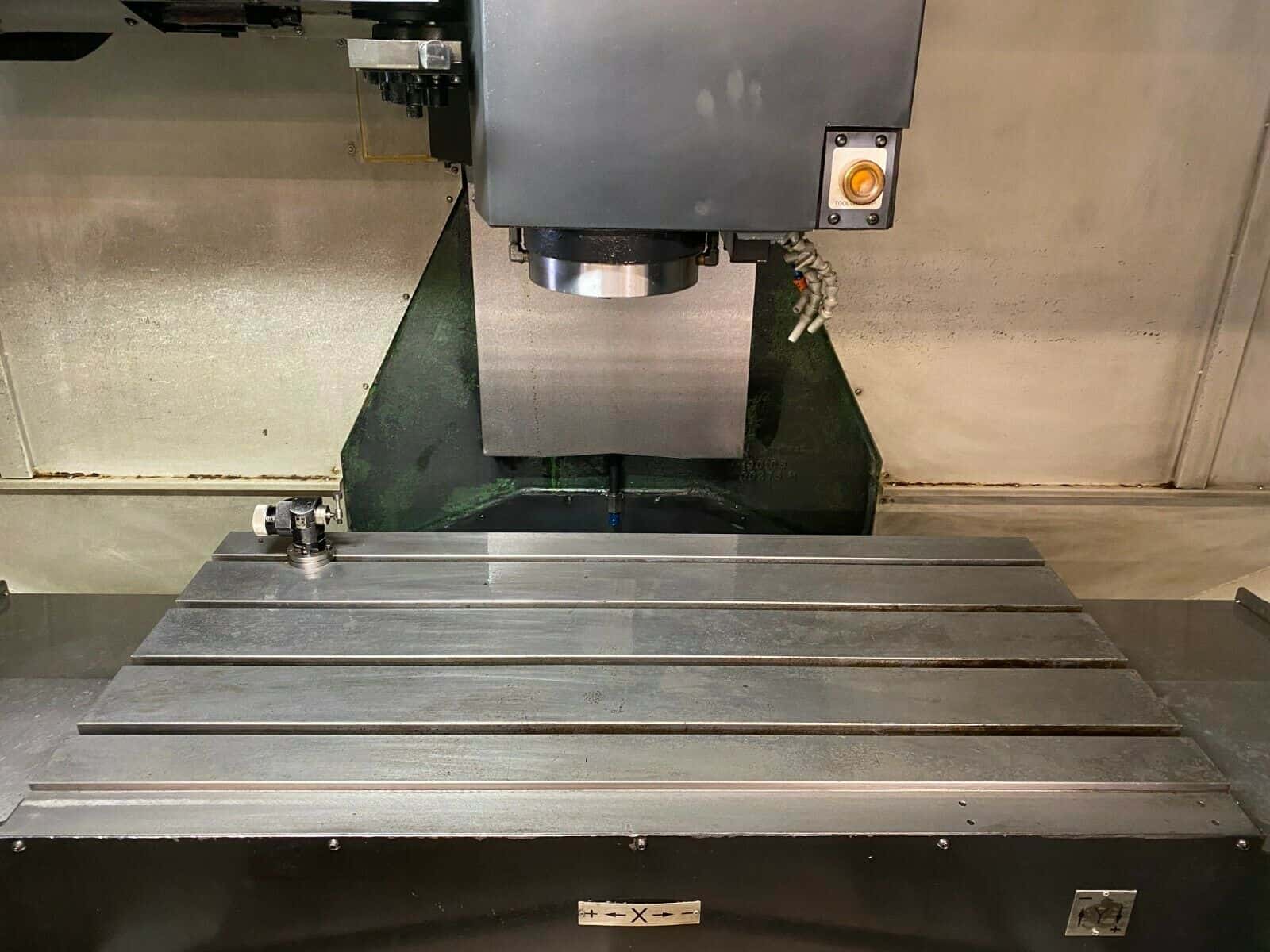

  • Table:
  • Length: 47.2″
  • Width: 21.2″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1760 lbs
  • Spindle:
  • Spindle: Taper Size: 40
  • Speed Range: 0 – 8,000 RPM
  • Spindle Type: Direct Drive
  • Spindle Power: 20 HP

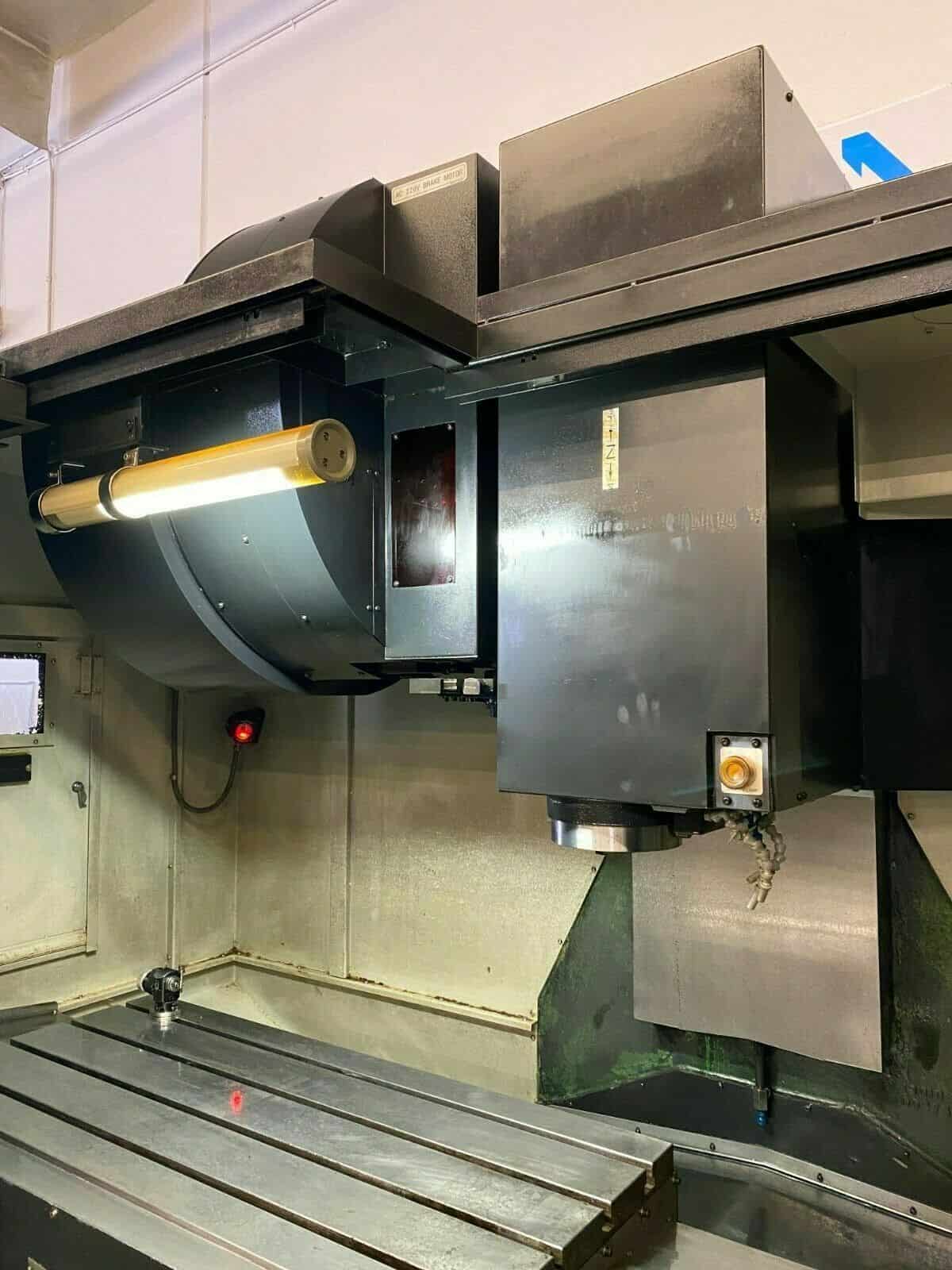

  • Automatic Tool Changer:
  • Capacity: 30
  • Tool Weight: 17.6 lbs
  • Max Tool Dia: 3.54″
  • Max Tool Length: 11.8″
  • Tool Changing Time: 1.3 Seconds
  • General:
  • Air Required: 80 psi, 4 scfm
  • Power: 220v / 35 kva / 3-Phase
  • Overall Dimensions: 140″ x 100″ x 110″ High
  • Weight: 16500 lbs

“No Charges for loading at list Price”

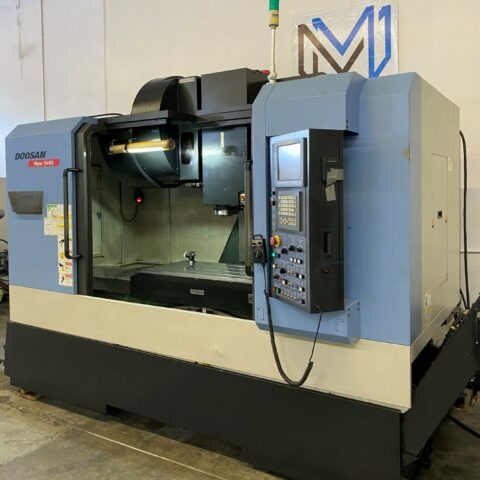

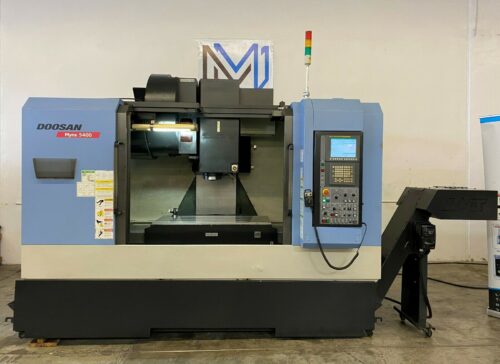

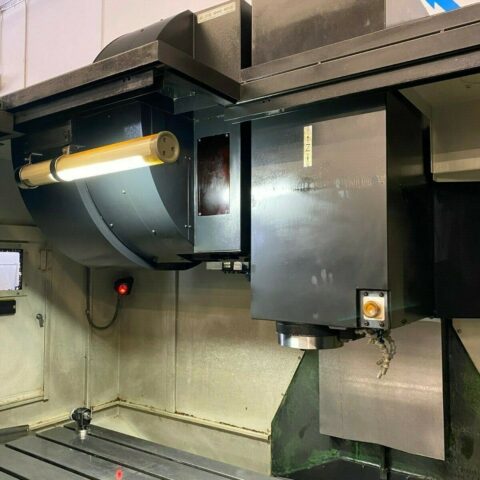

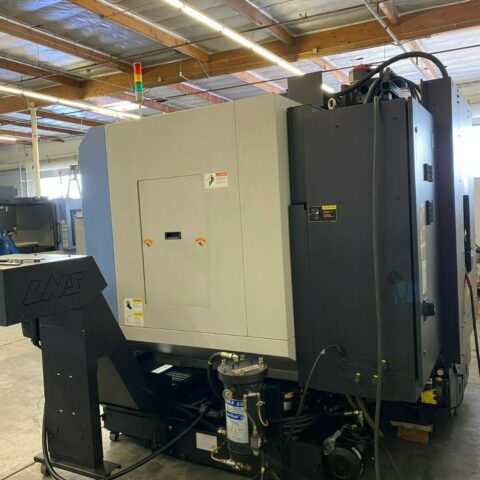

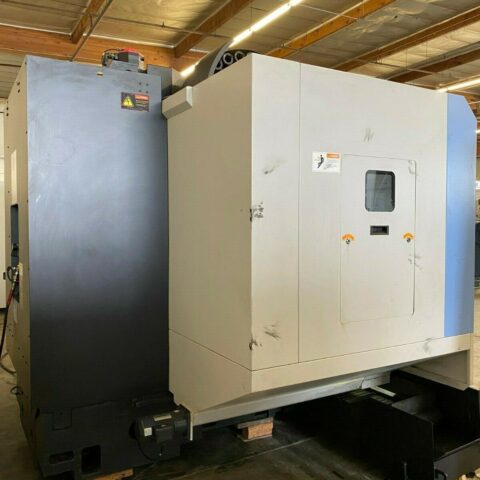

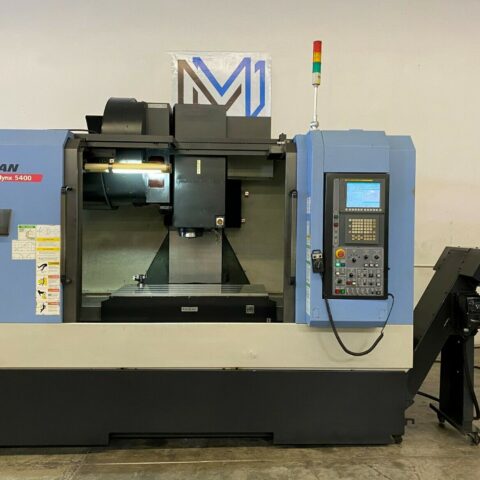

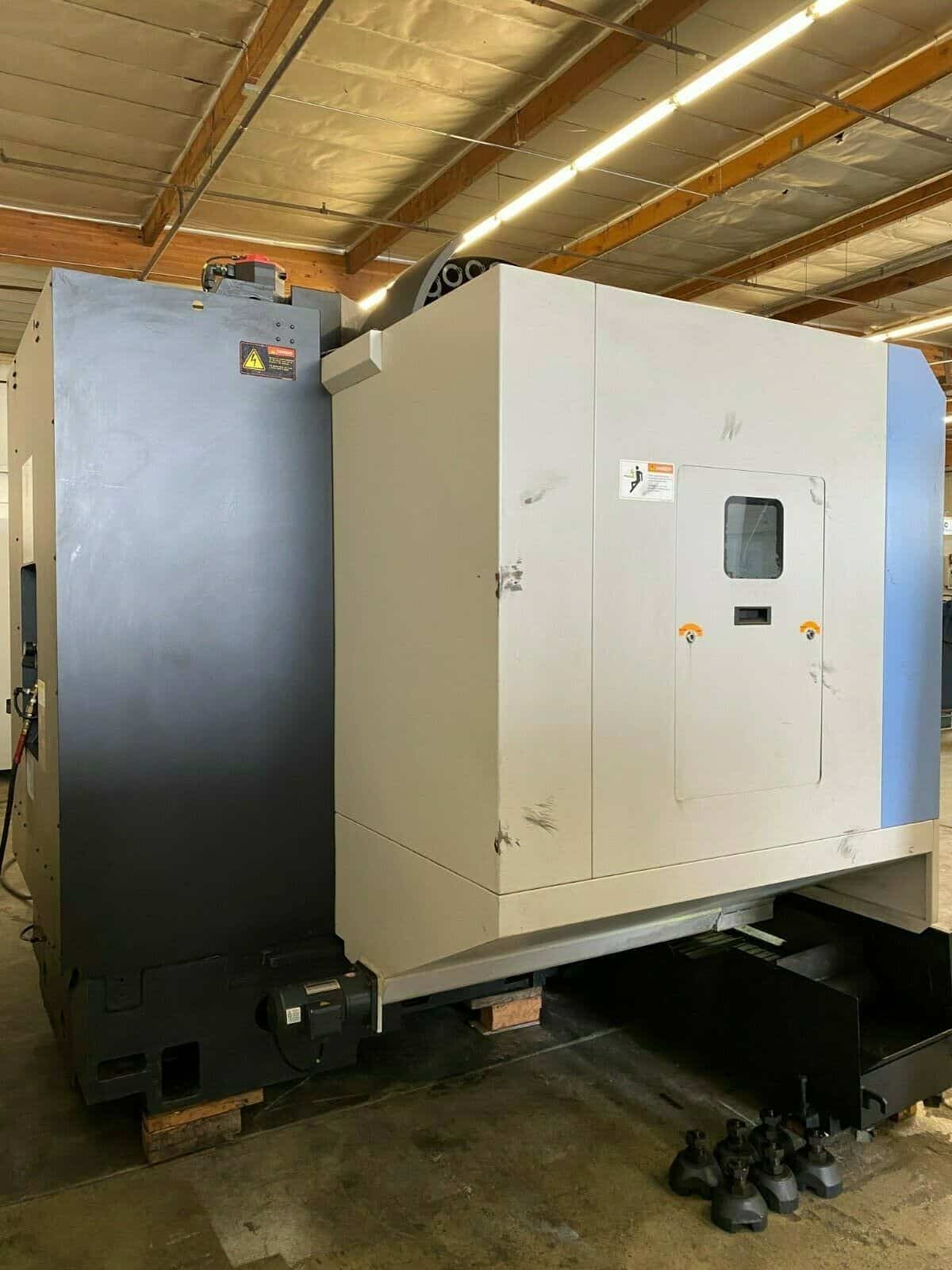

Doosan MYNX 5400 Vertical Machining Center Comes as shown in Pictures….
