*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Doosan |
| Model: |
Mynx 6500/50 |
| Year: |
2013 |
| Condition: |
Used – Good |

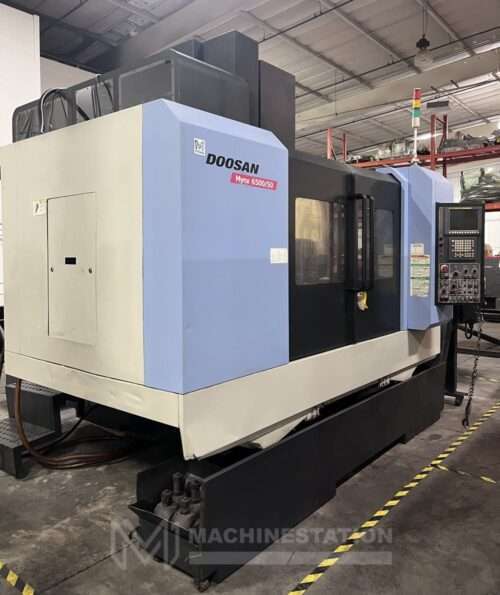

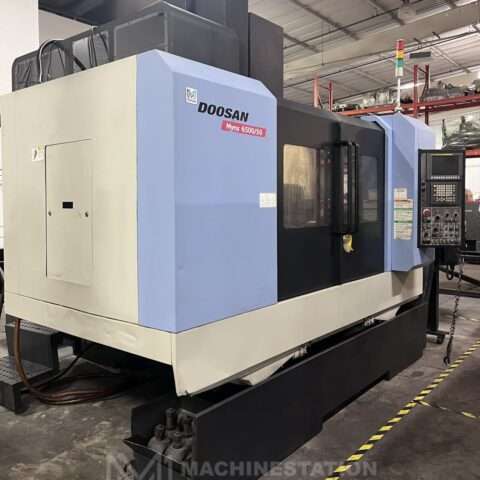

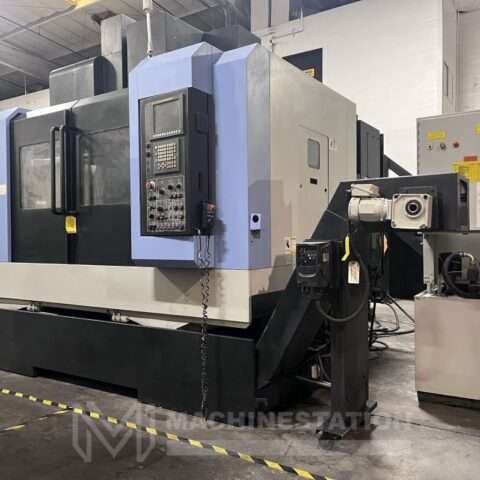

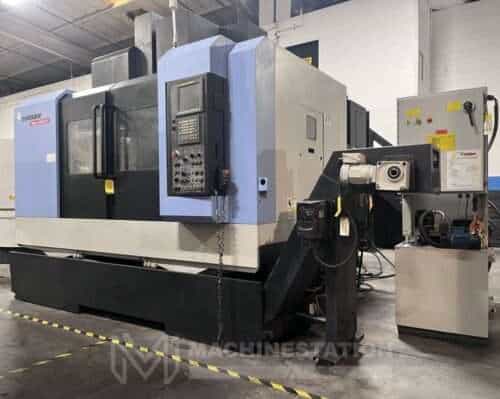

Key Features of the Doosan Mynx 6500/50:

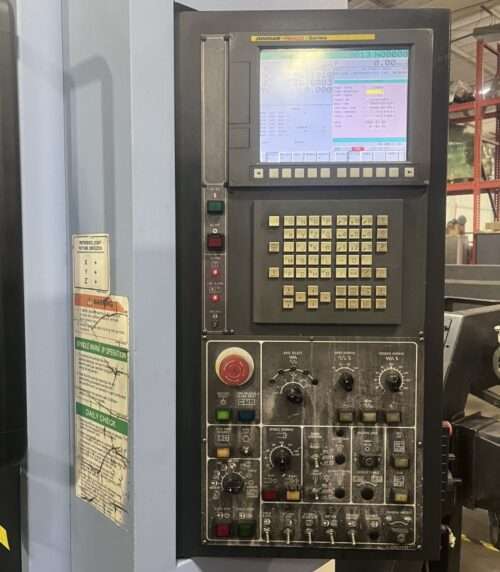

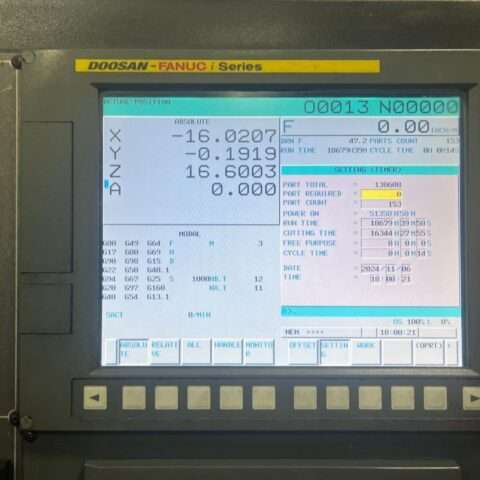

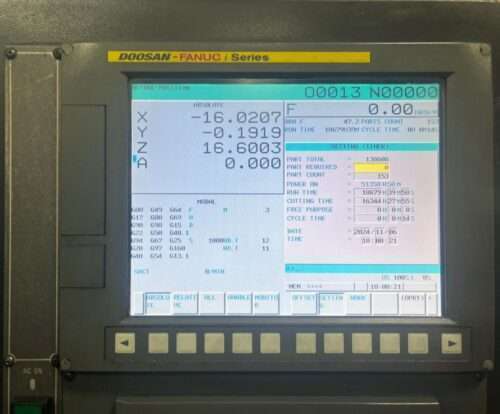

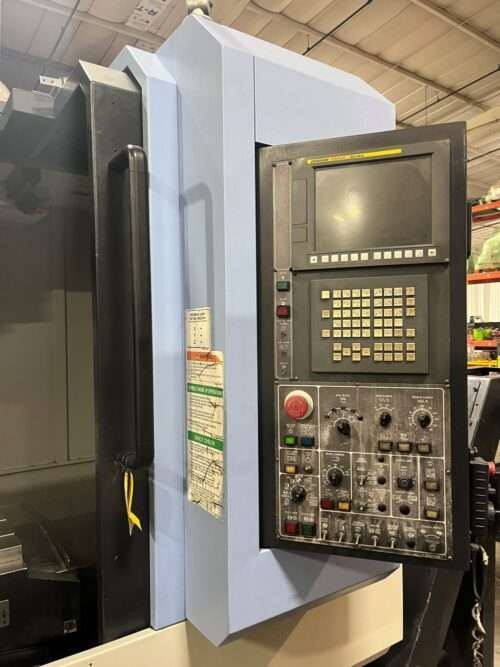

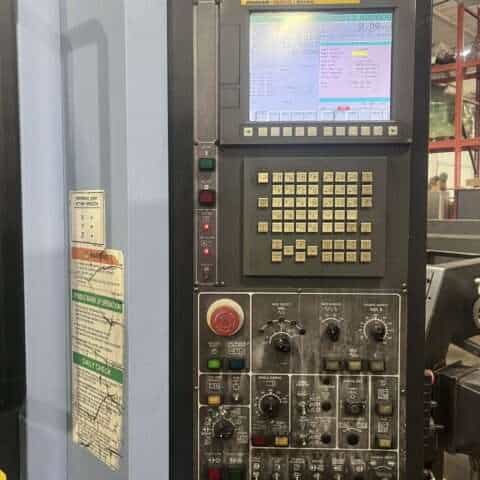

- Doosan Fanuc i-series CNC Control
- Box Way Construction
- 4th Axis Ready
- 8,000 RPM Precision Spindle
- 30 Automatic high speed tool changer
- 50 Taper Spindle
- Through Spindle Coolant
- 1417 Inch Per Min Rapids
- USB & PCMCIA Interface
- MPG Handwheel Control
- Rigid Tapping
- Spindle Orientation
- High Pressure Coolant System
- Spindle Chiller Unit

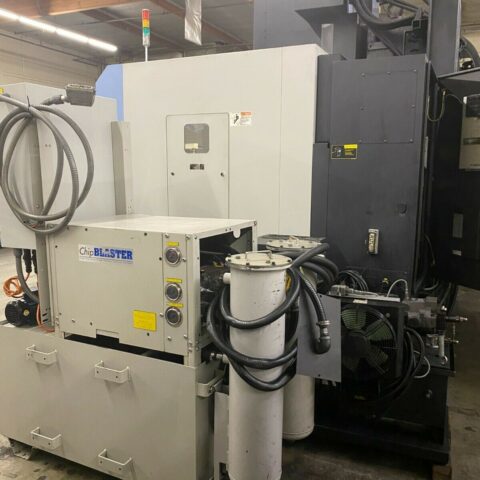

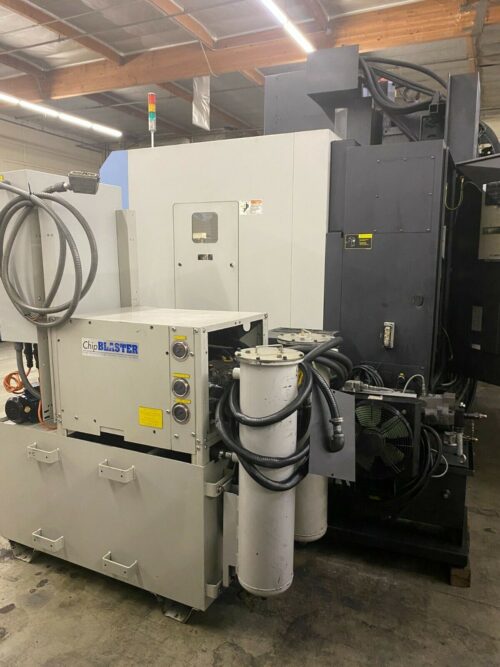

- Chip Blaster Unit
- Chip Conveyor

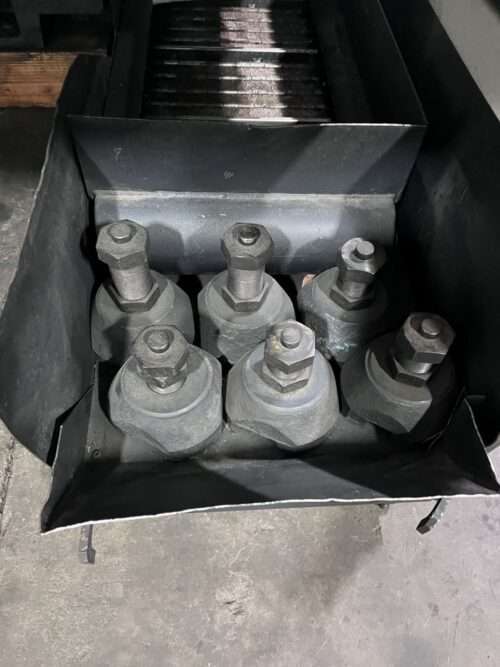

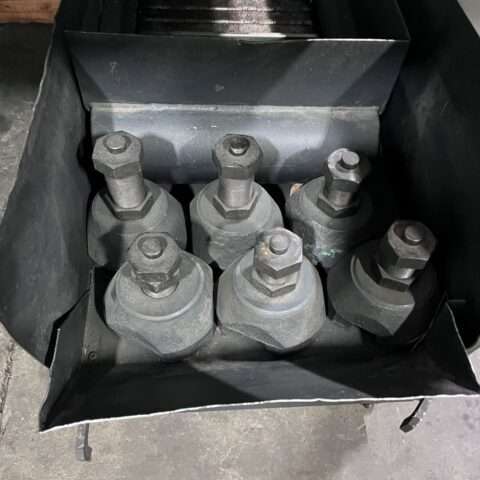

- Levelling Pads
|
Travel:
- X-Axis: 50.7″
- Y-Axis: 26.1″
- Z-Axis: 25″
- Rapid Traverse Rates: 1417 Inch Per Minute
- Cutting Feed Rates: 590 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″
|

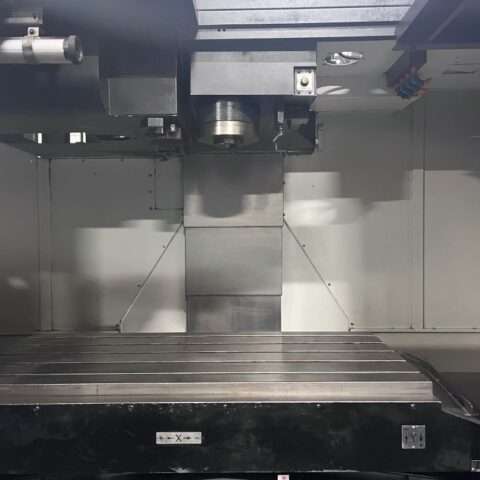

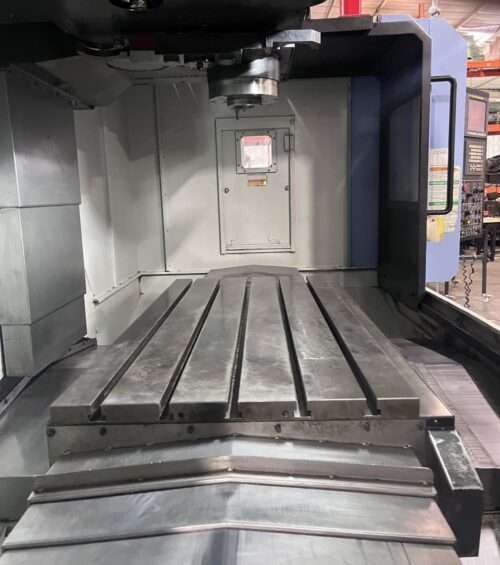

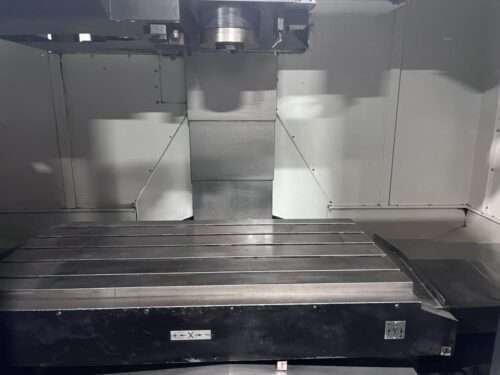

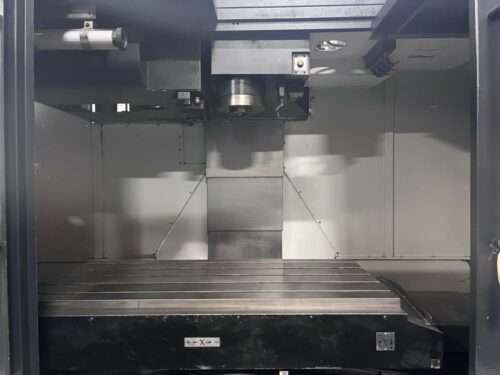

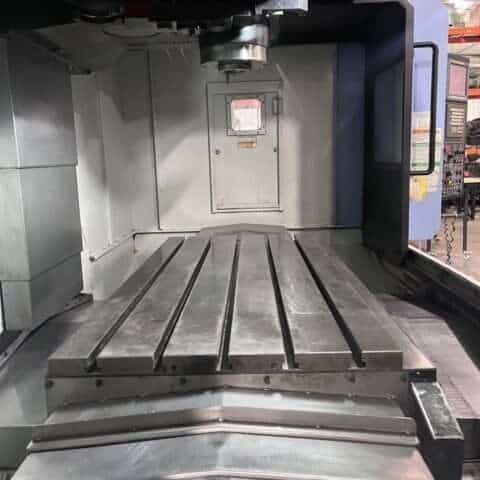

Table:
- Length: 51.2″
- Width: 26.37″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 2200 lbs
|

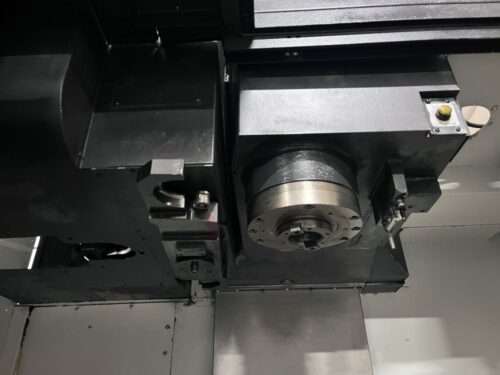

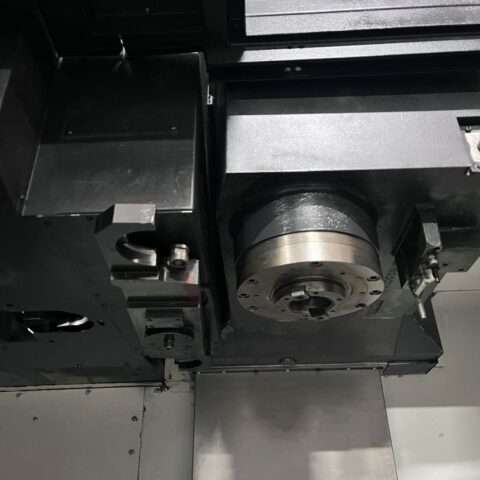

Spindle:
- Taper Size: 50
- Speed Range: 0 – 8,000 RPM
- Spindle Type: Gear Head
- Spindle Power: 35 HP
|

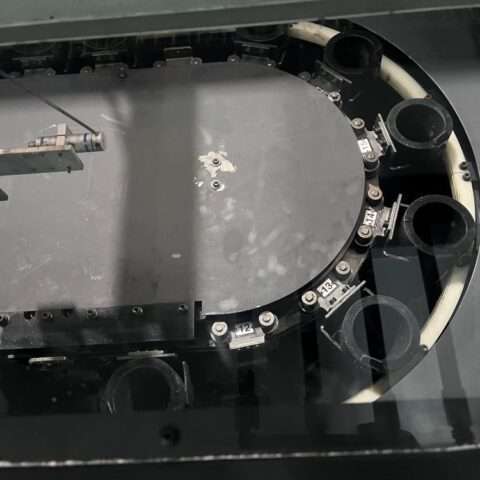

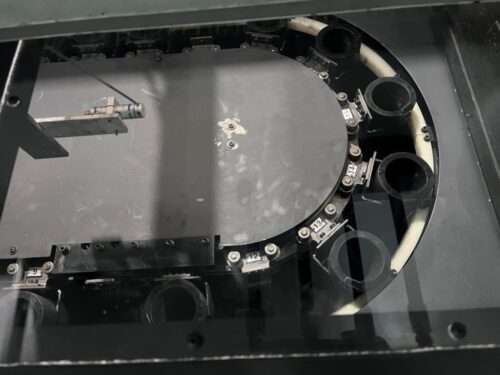

Automatic Tool Changer:
- Capacity: 30 Tools
- Max Tool Weight: 17.6 lbs
- Max Tool Dia: 3.54″
- Max Tool Length: 11.8″
- Tool Changing Time: 1.3 Seconds
|

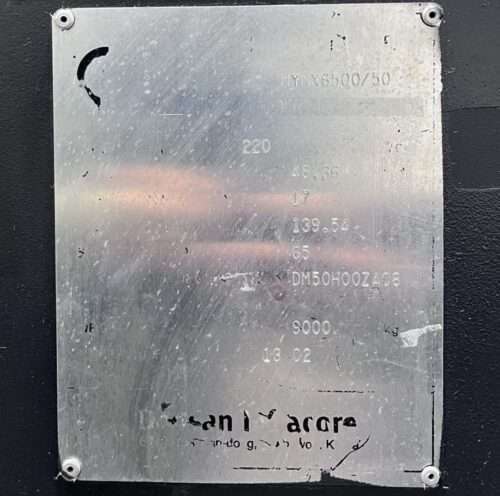

General:
- Air Required: 80 psi 4 scfm

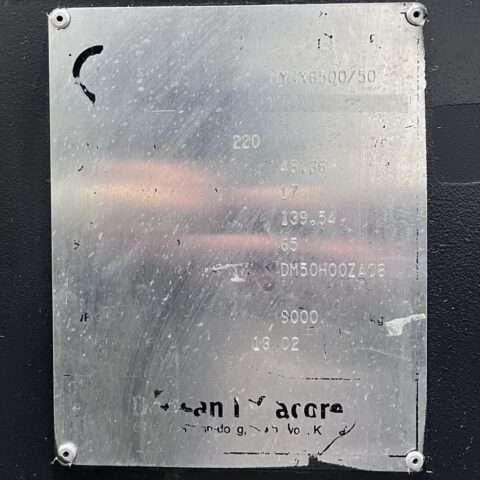

- Power: 220v / 48.36 kva / 3-Phase
- Overall Dimensions: 140″ x 100″ x 110″ High Approx.
- Weight: 19,840 lbs Approx.
|
