All specifications are approximations and are subject to verification.
| SKU | 105188 |

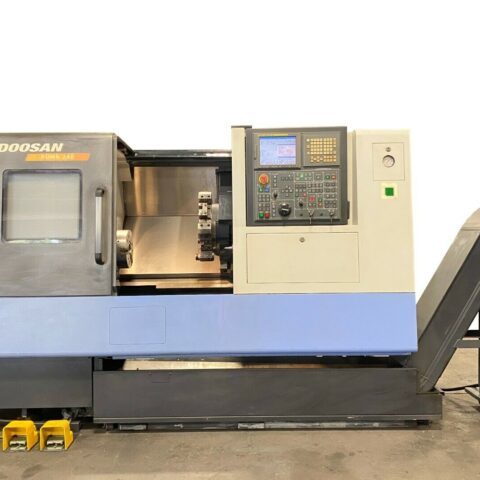

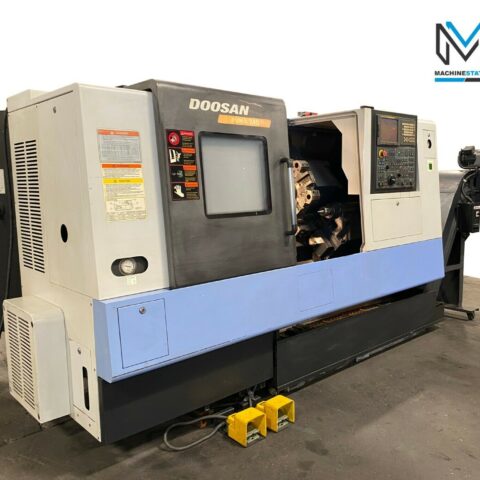

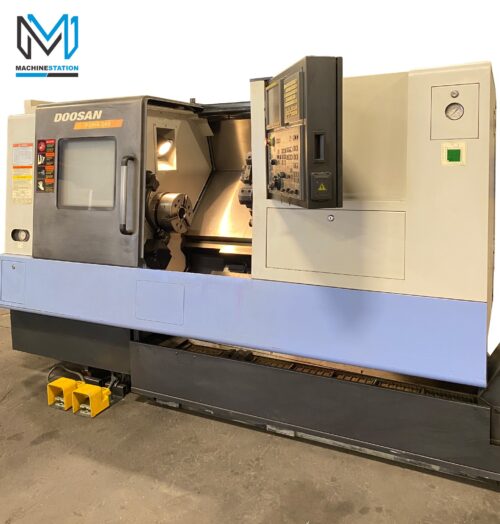

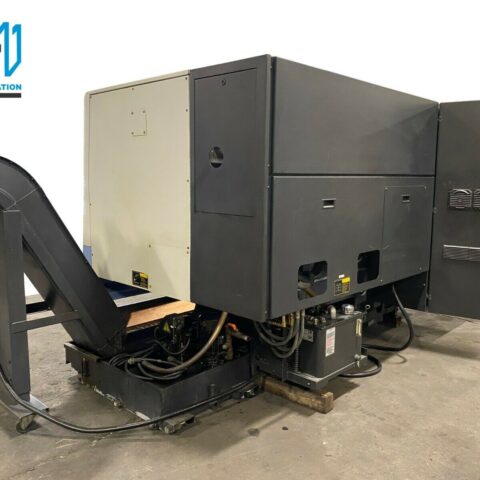

| Make | Doosan |

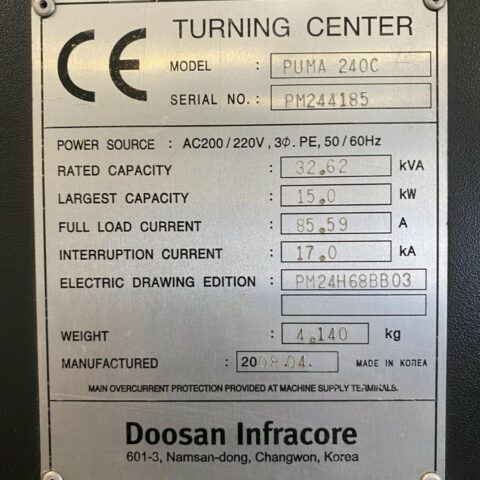

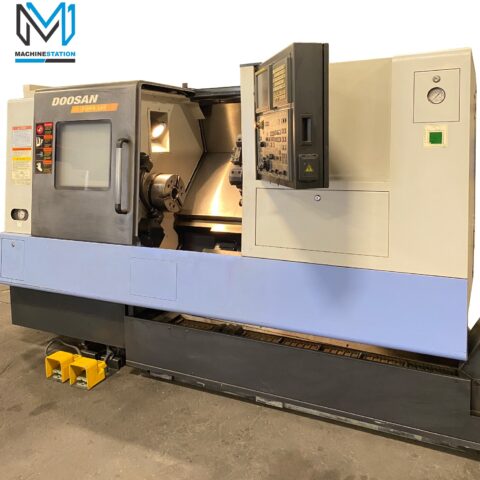

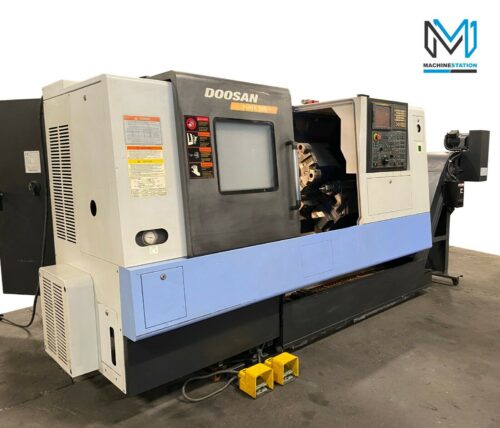

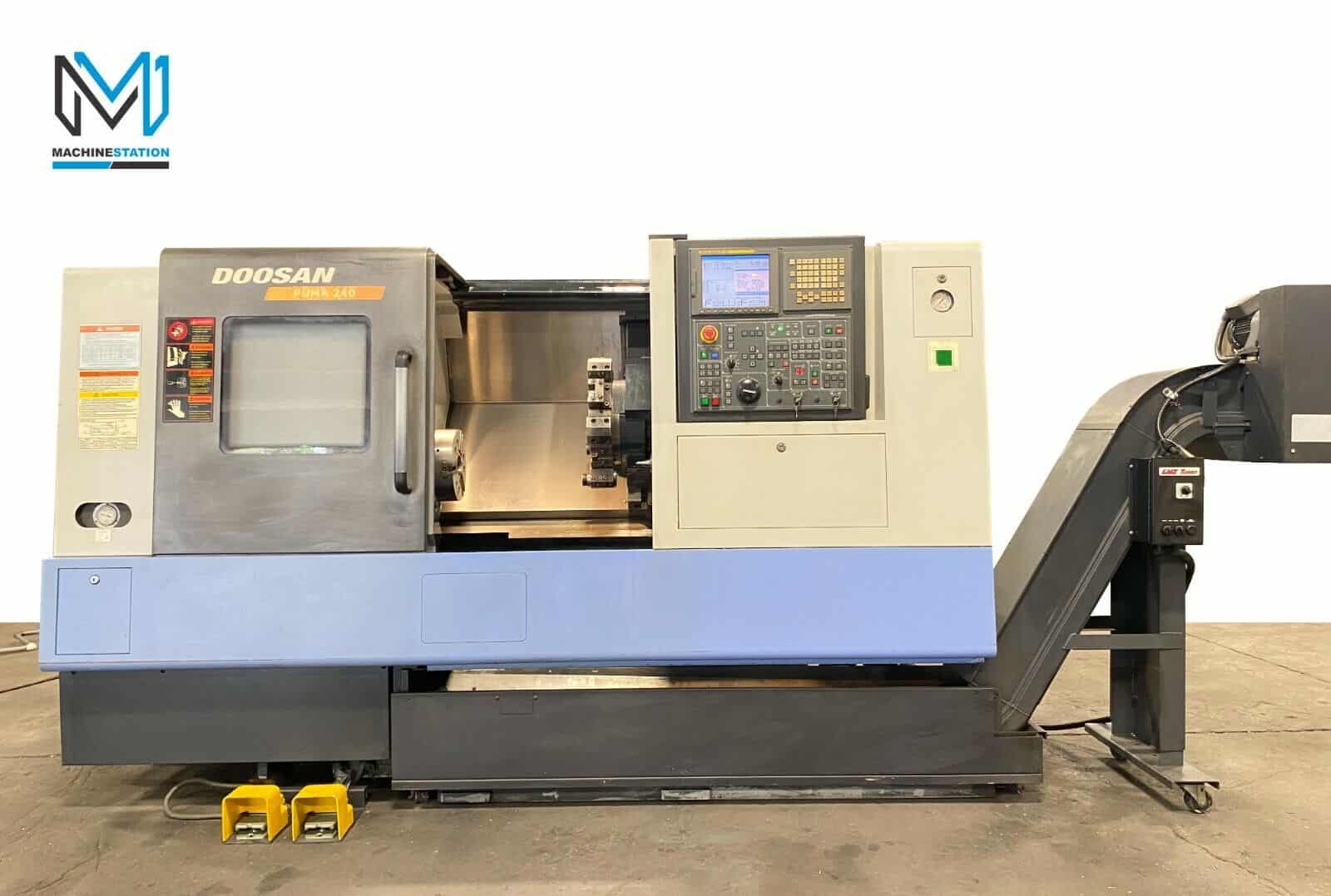

| Model No. | PUMA 240C |
| Year | 2008 |
| Condition | Used-Good |
| Cutting Hours: | 8983 Hours |
| Equipped With: |
|---|

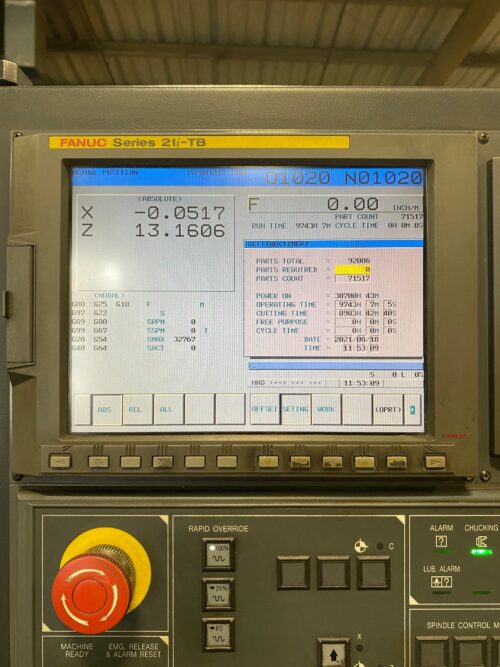

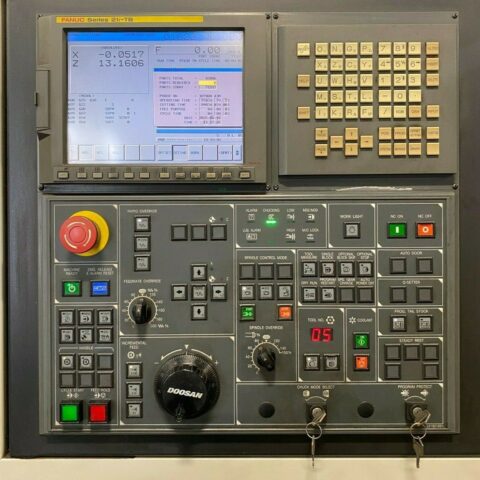

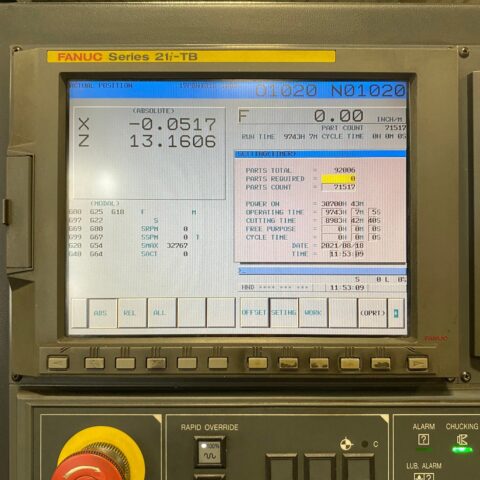

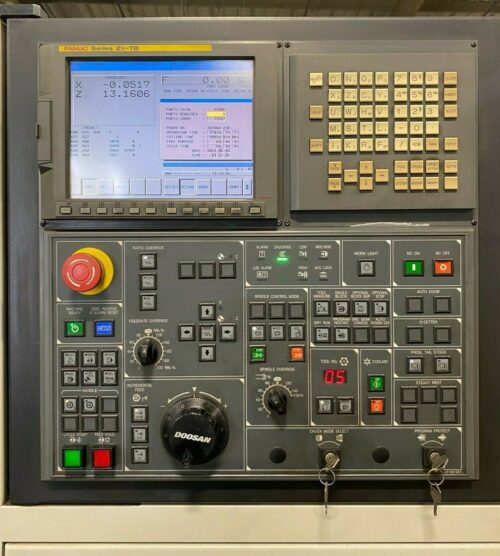

| Fanuc 21i-TB CNC Control |
| Box Way Construction |

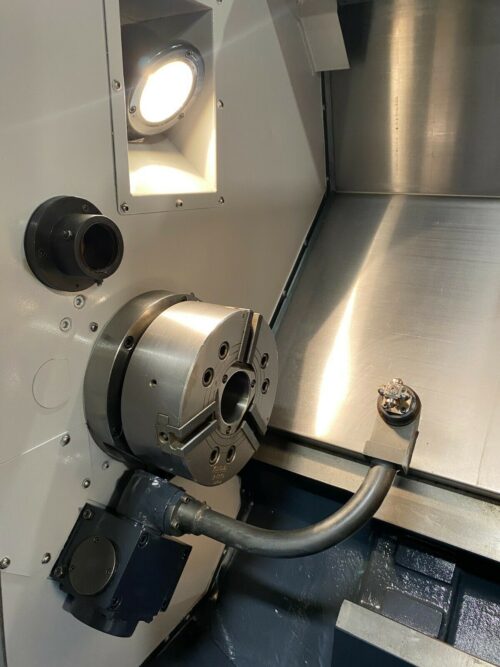

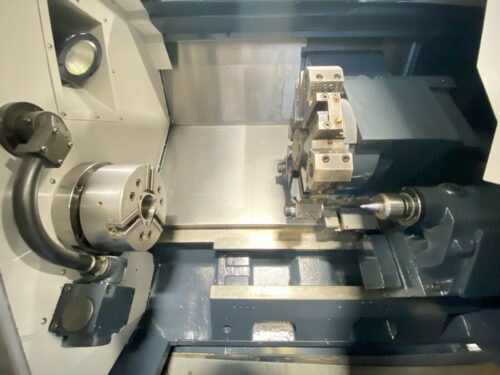

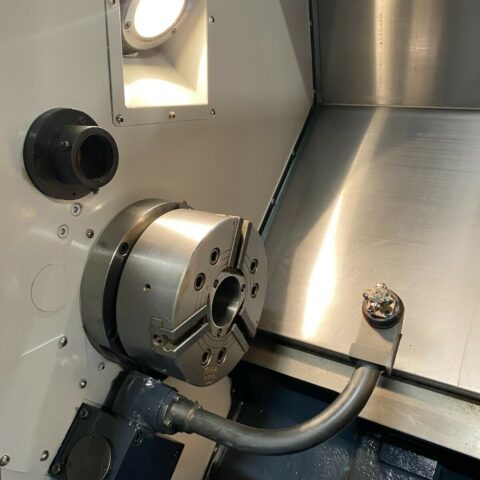

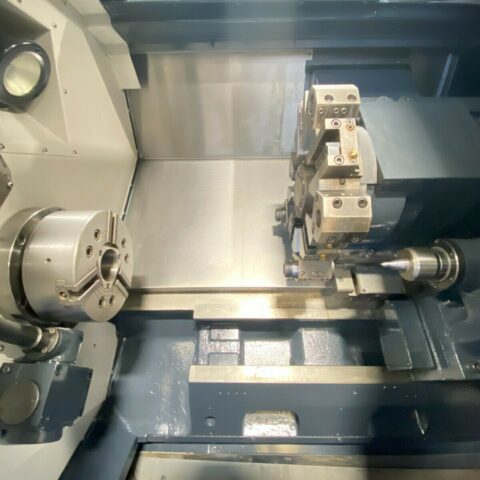

| Kitagawa 10″ Big Bore Chuck |
| A2-8, 3.5″ Bore Spindle |
| Tool Presetter |
| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |

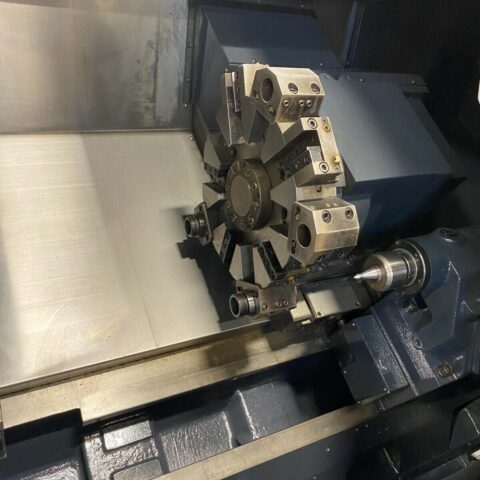

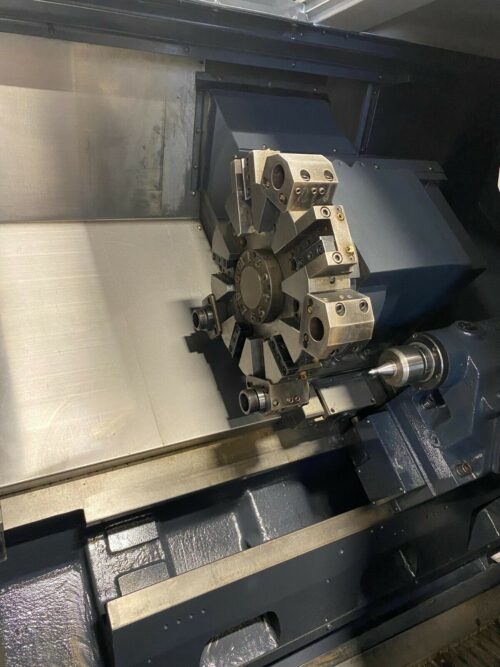

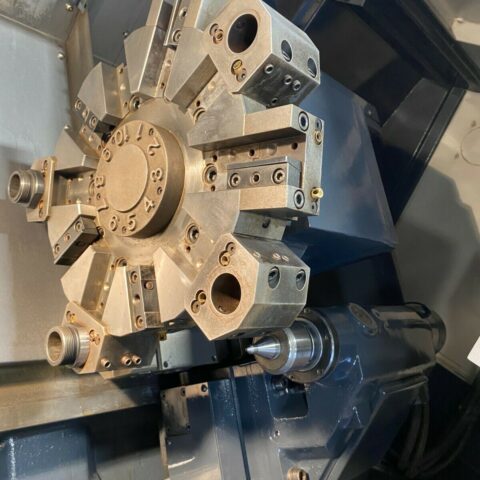

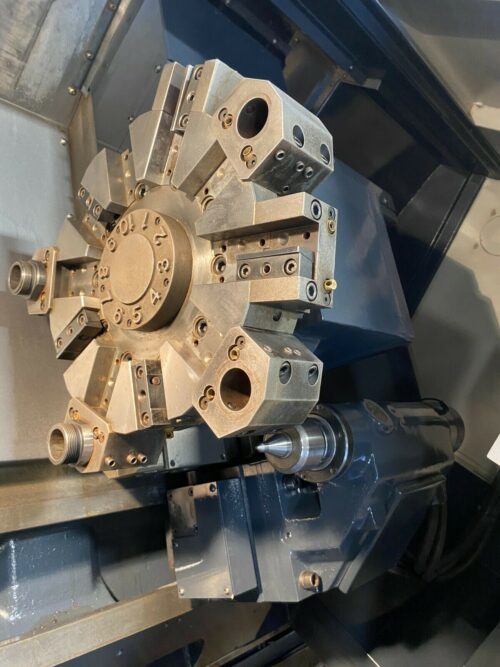

| 10 Station Automatic Turret |
| Foot Switch |
| Parts Catcher |
| Coolant System |

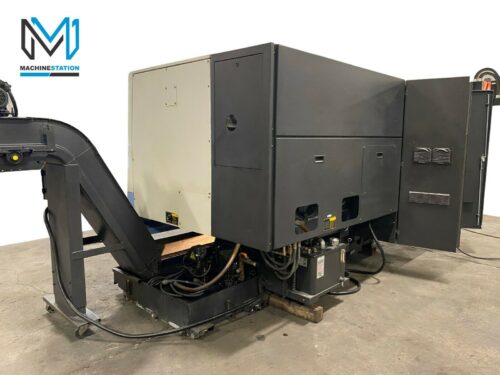

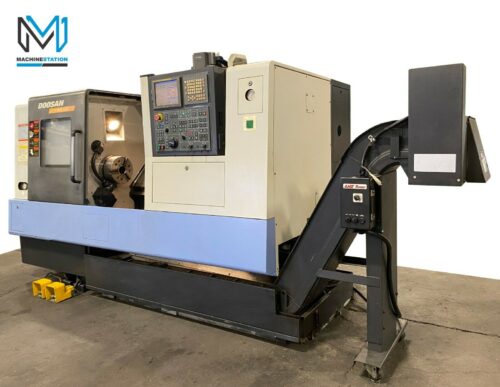

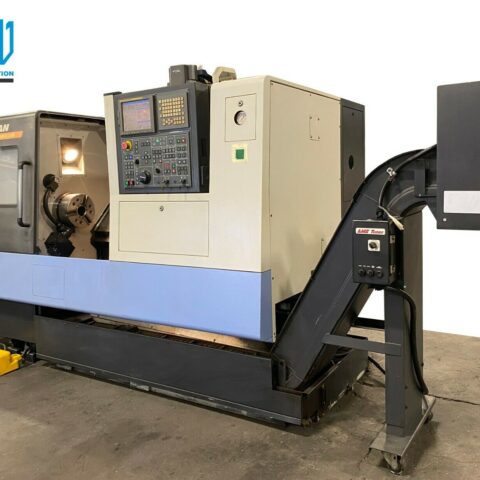

| Chip conveyor |
| Books |
| Specifications: |
|---|
| Capacity |
| Max Turning Diameter: 13.7″ |
| Max Turning Length: 22.2″ |
| Max Bar Capacity: 3.0″ |
| Swing Over Bed: 21.65″ |
| Swing Over Carriage: 15.7″ |
| Distance Between Centers: 28.0” |
| Travel: |
|---|
| X Axis Travel: 9.5″ |
| Z Axis Travel: 22.8″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Speed: 0-3500 RPM |
| Spindle Motor: 35 hp |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.15 Second |
| Tool Size: 2″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Body Travel: 20.5″ |
| Tailstock Quill Dia.: 3.7″ |
| Tailstock Quill Travel: 3.7″ |
| General: |
|---|

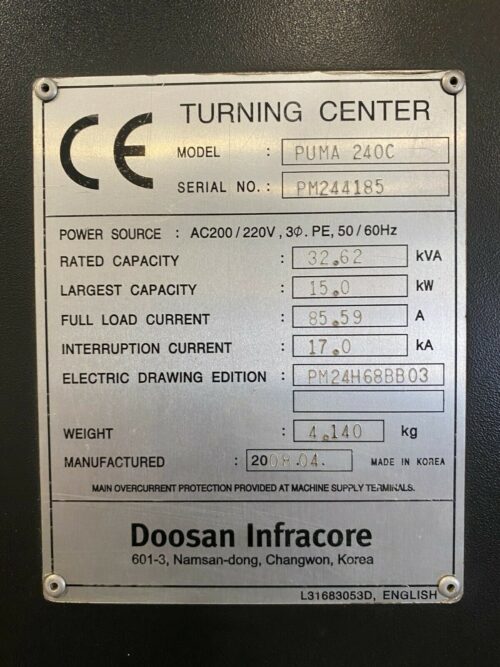

| Power: 45 kva, 220v / 3-Phase |
| Overall Dimensions: 128″ x 77″ x 80″ High |
| Weight: 10600 lbs |
