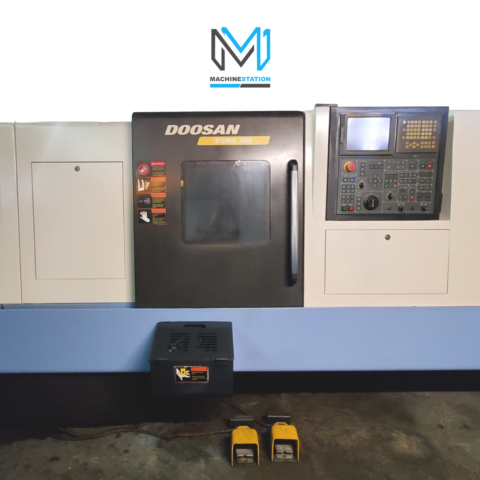

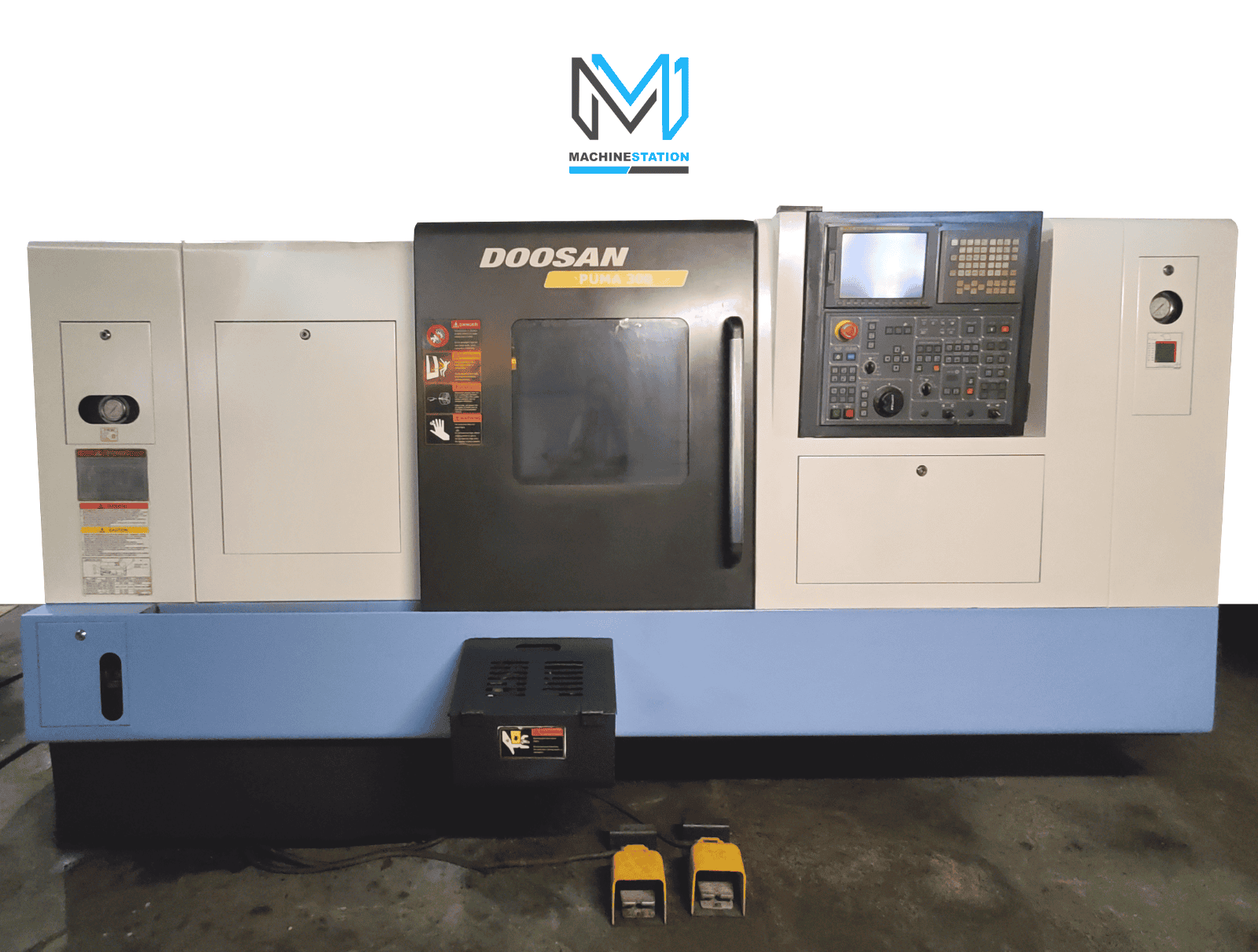

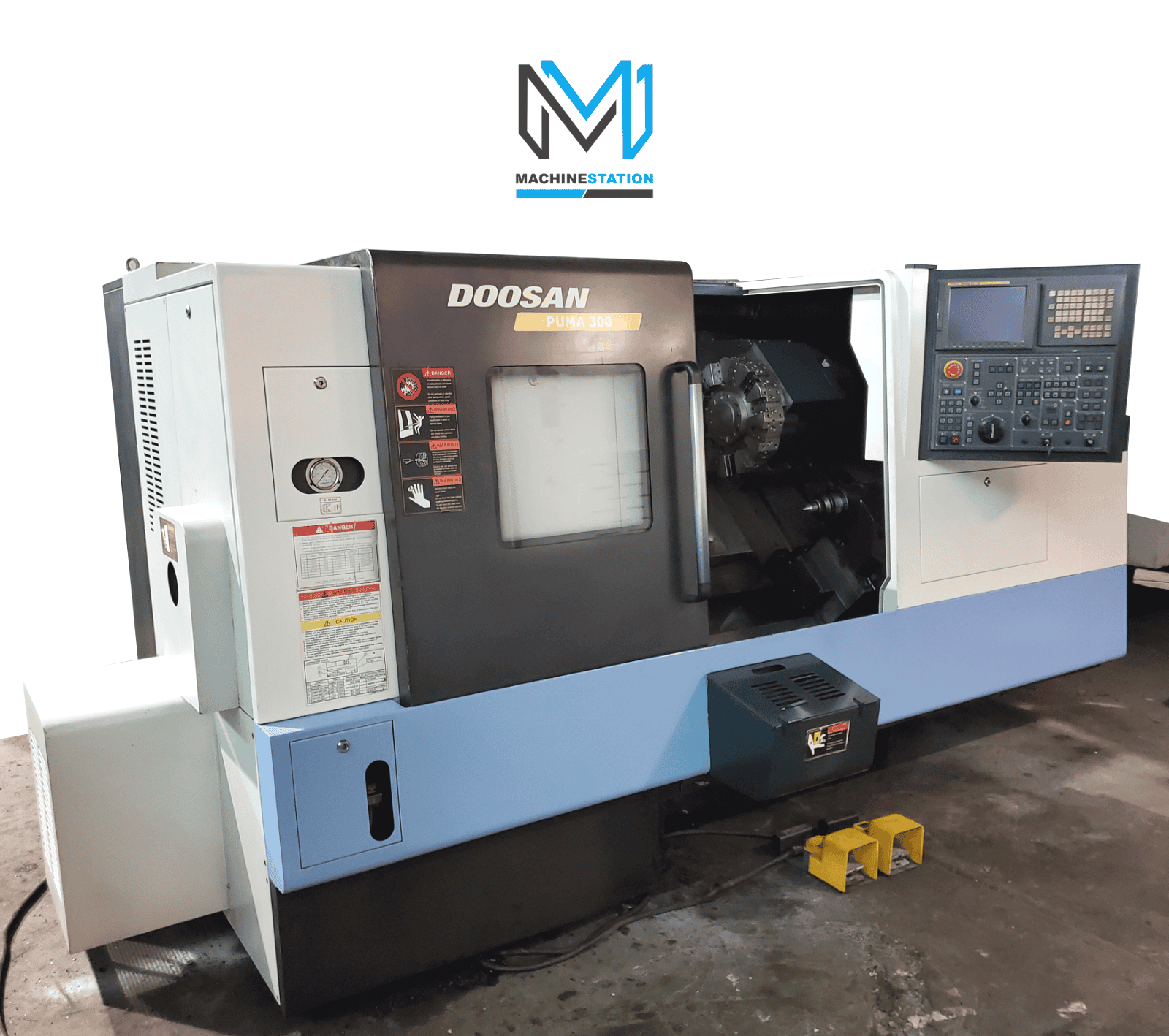

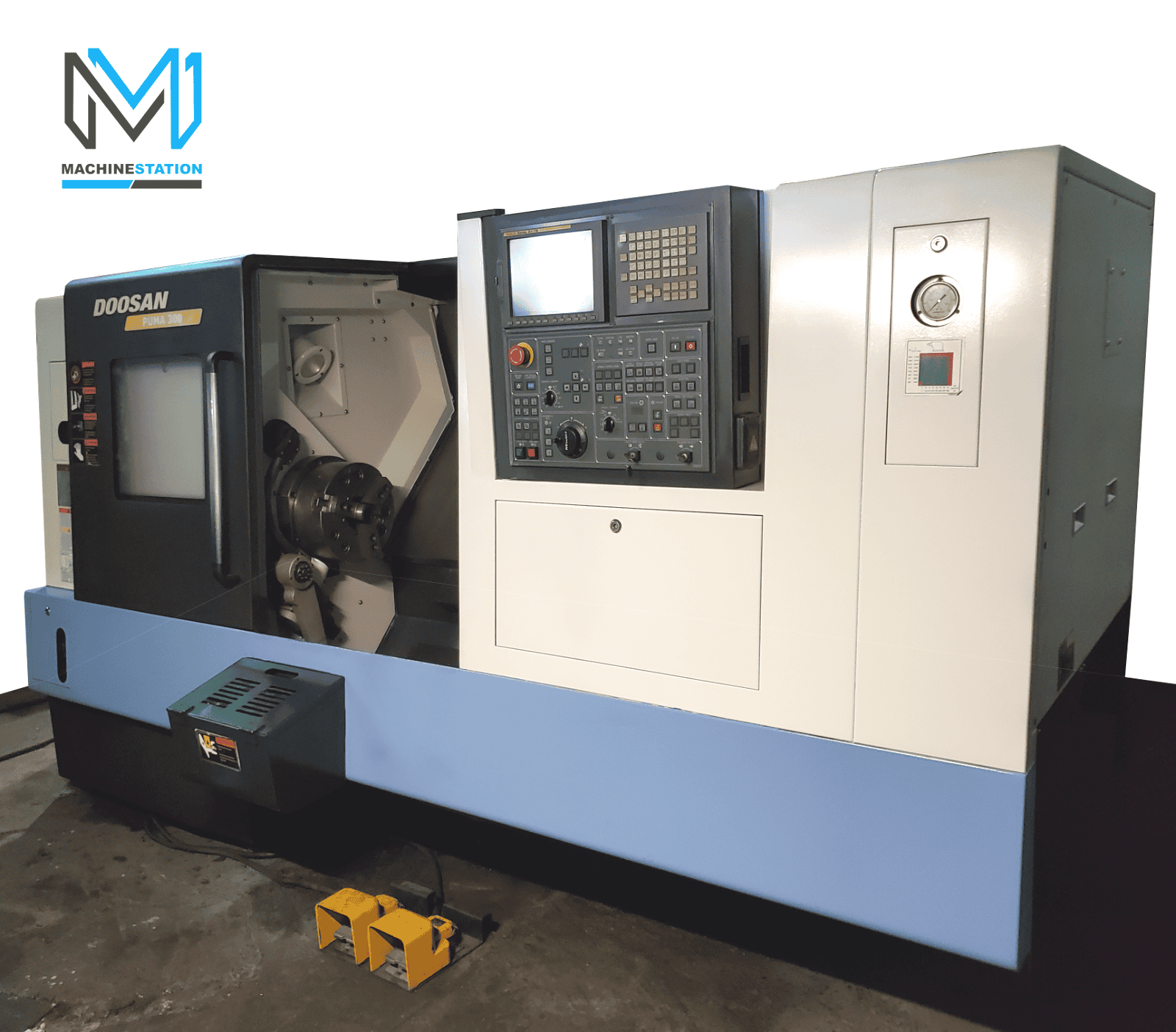

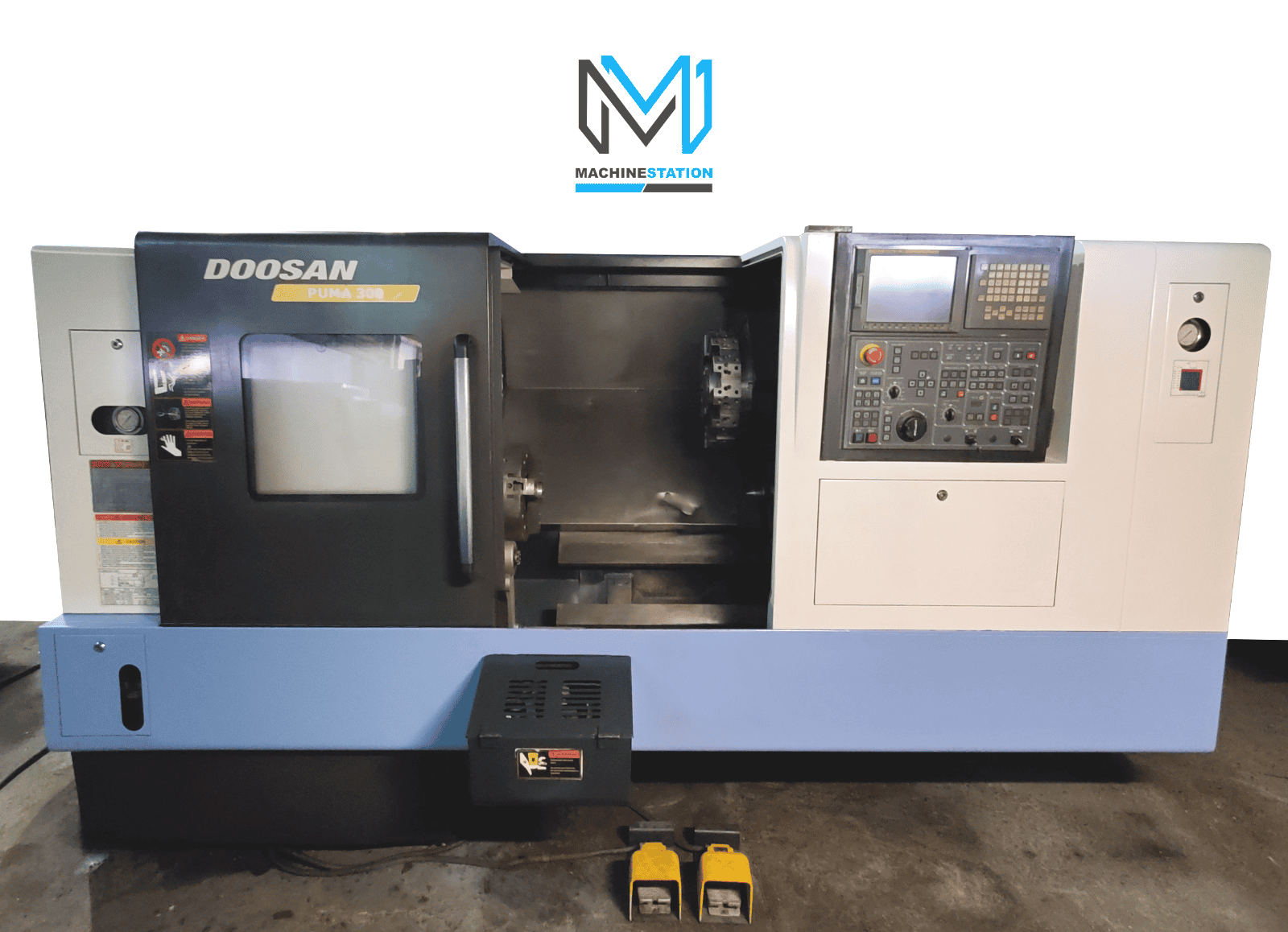

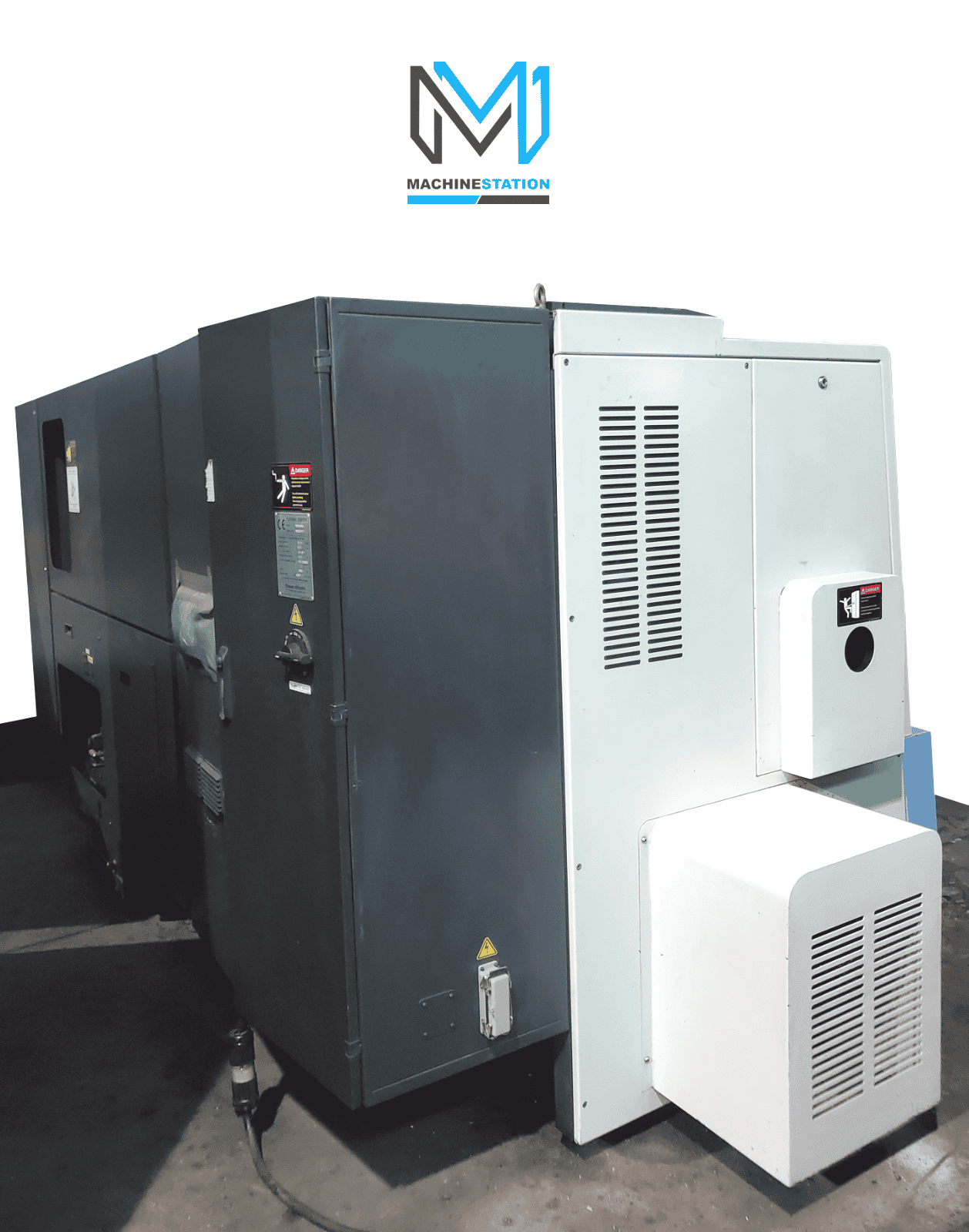

Doosan Puma 300C CNC Turning Center

Out of stock

SKU:	2109
Make/Model:	Doosan/PUMA 300C
Video:	[fusion_button link=”https://www.youtube.com/watch?v=E0MjzT5r_p0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 2109

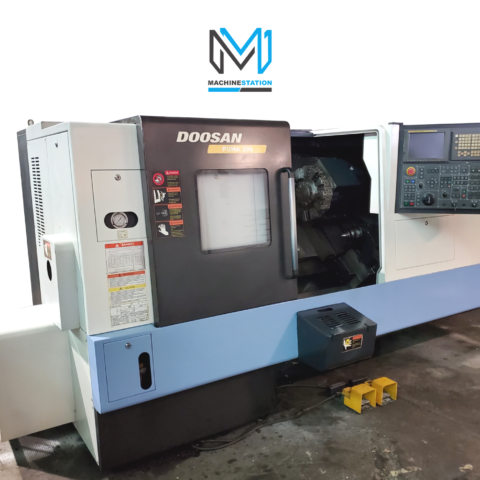

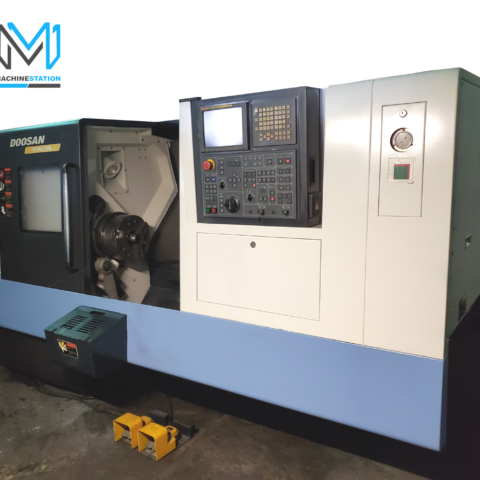

DOOSAN PUMA 300C CNC TURNING CENTER
SKU	2109
Make	Doosan
Model No.	PUMA 300C
Year	2009/2011

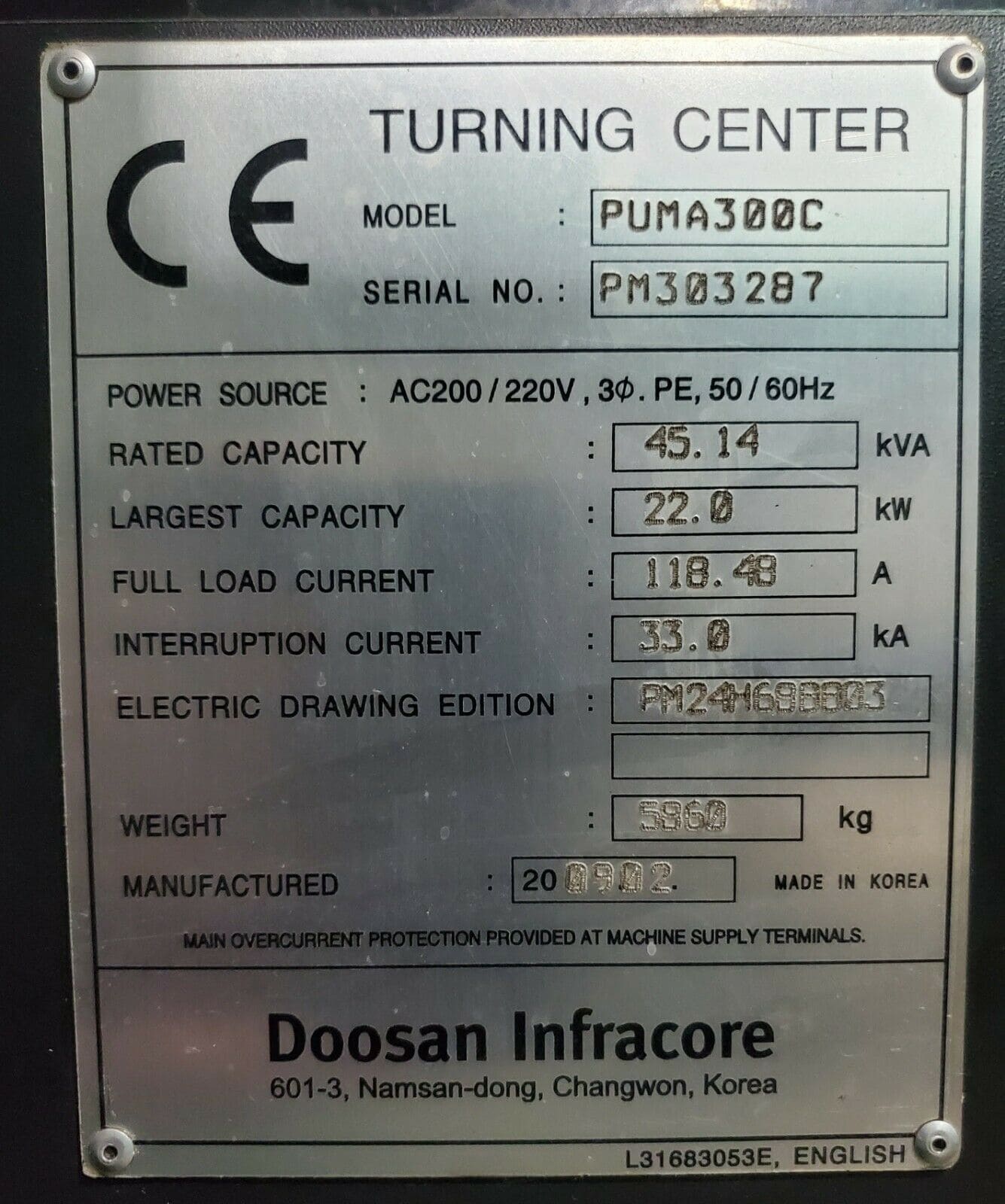

Serial #	PM303287
Condition	Very Good
Cutting Hours:	5490 Hours

All specifications are approximations and are subject to verification.

Equipped With:

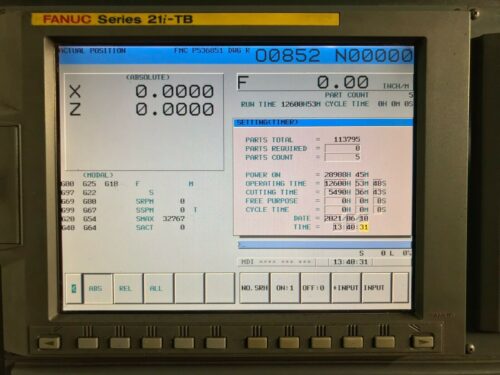

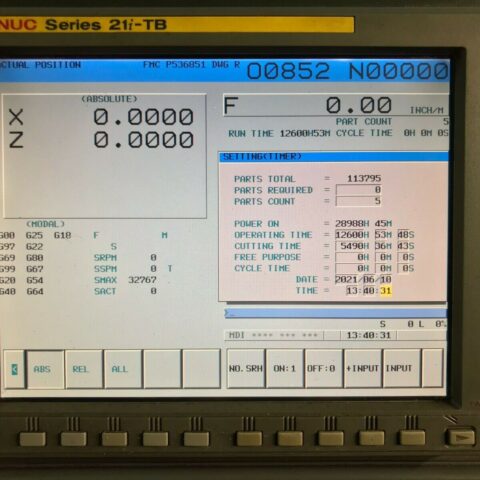

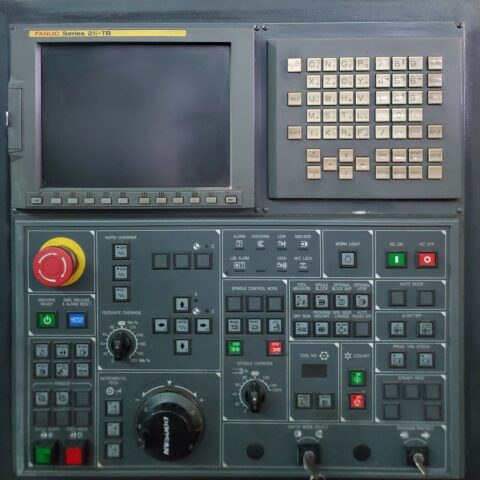

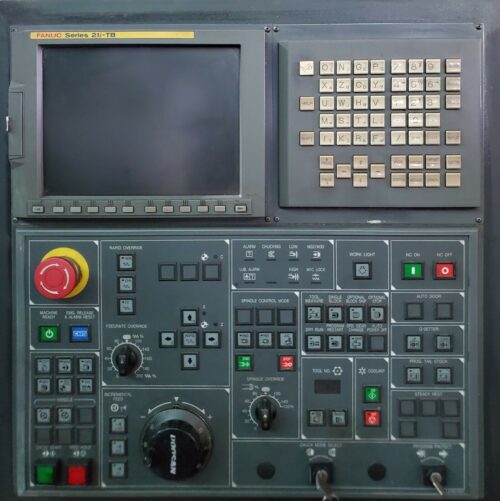

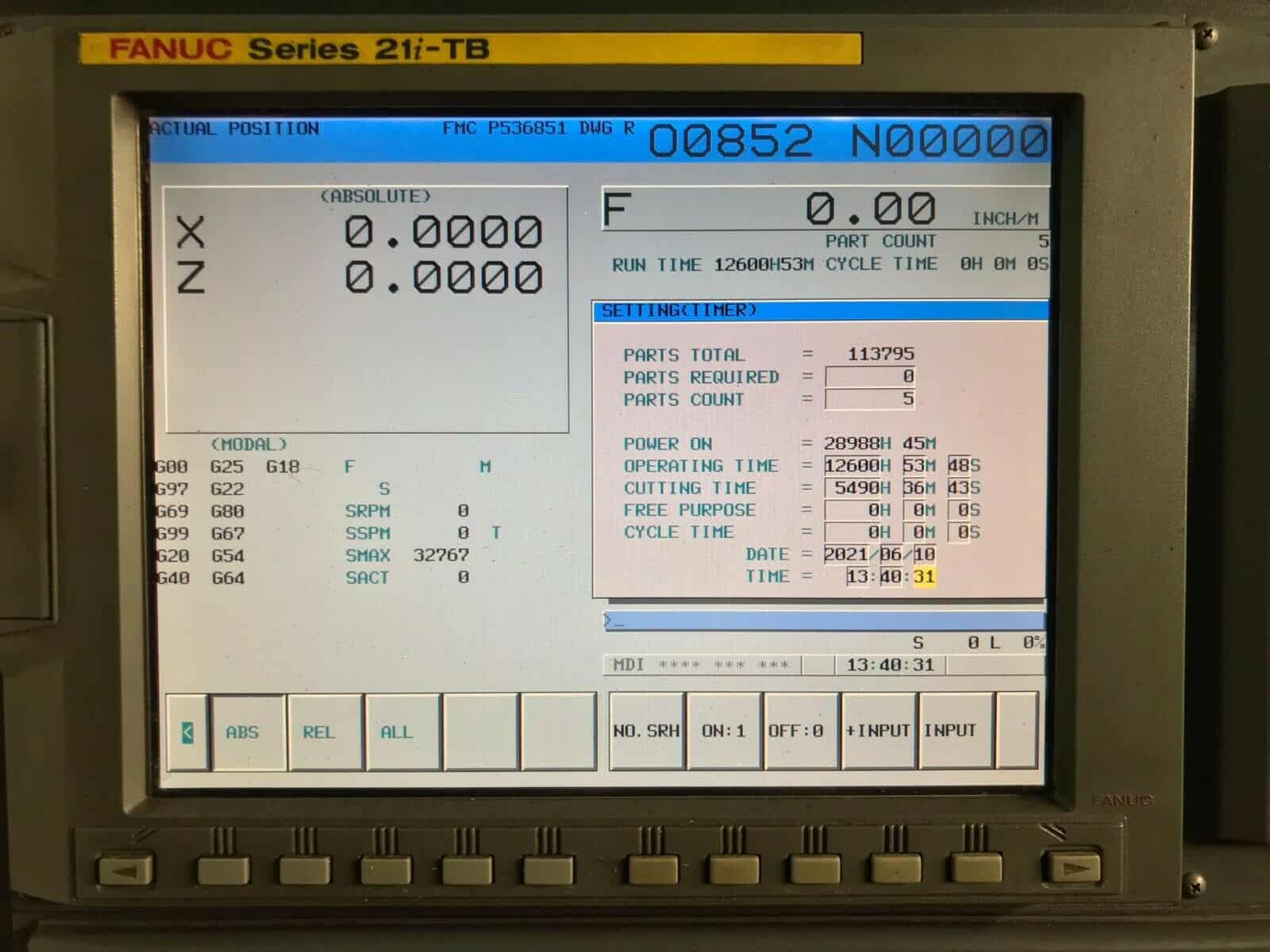

Fanuc 21i-TB CNC Control
Box Way Construction

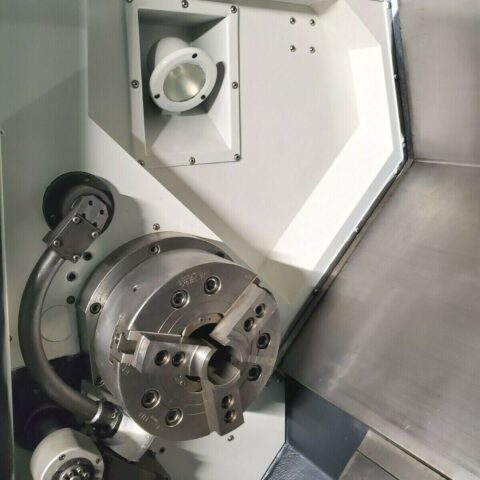

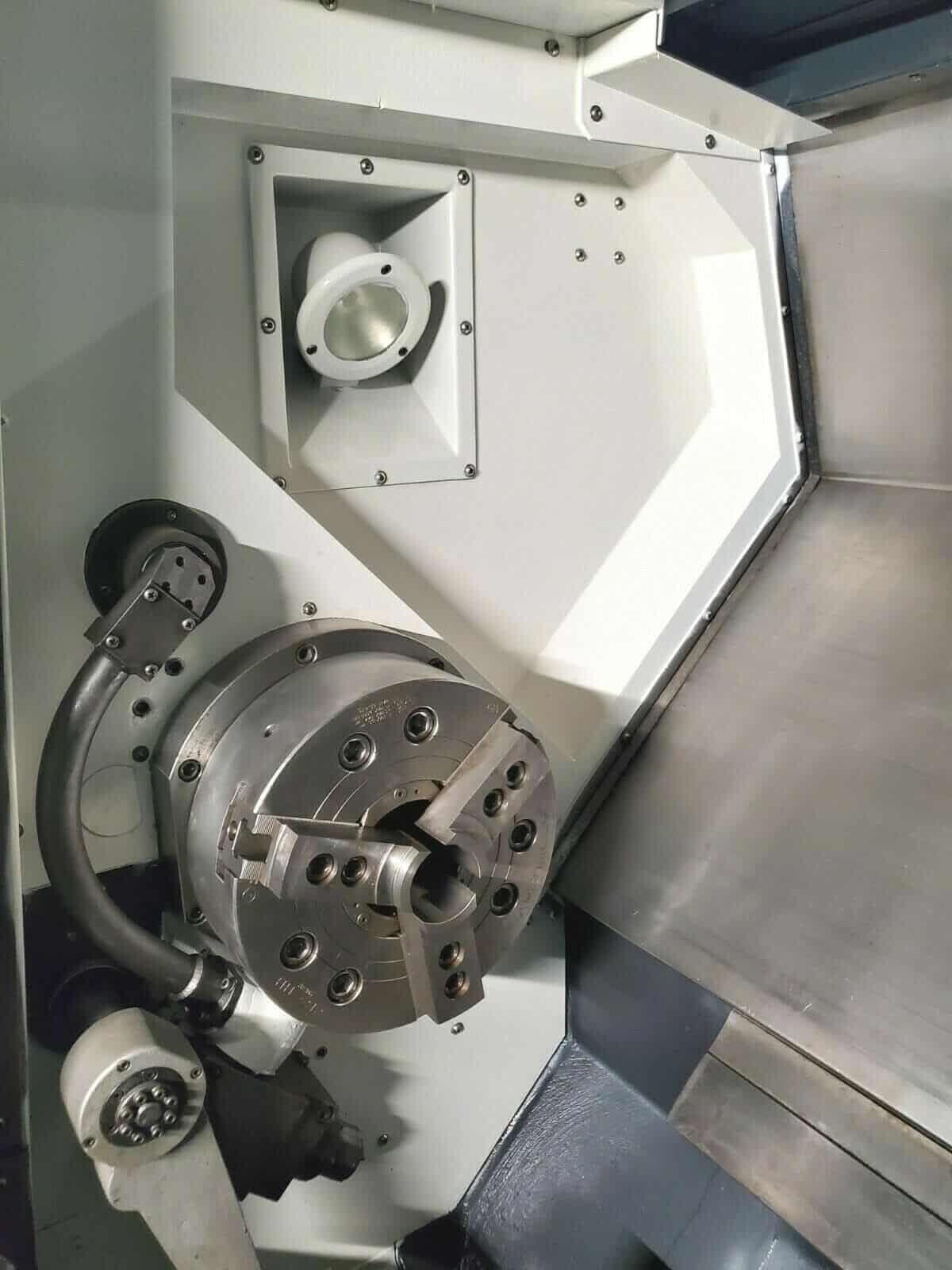

12″ Big Bore Chuck
A2-11, 4.5″ Bore Spindle
Tool Presetter

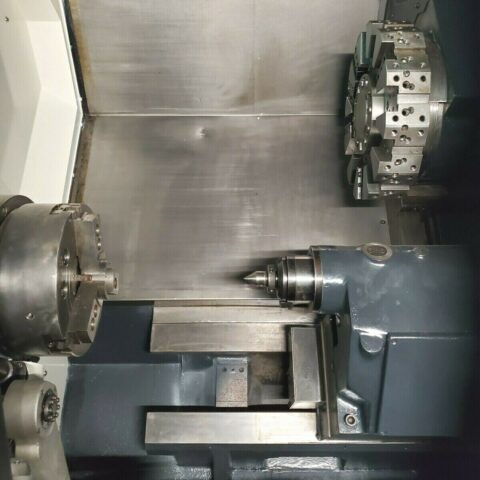

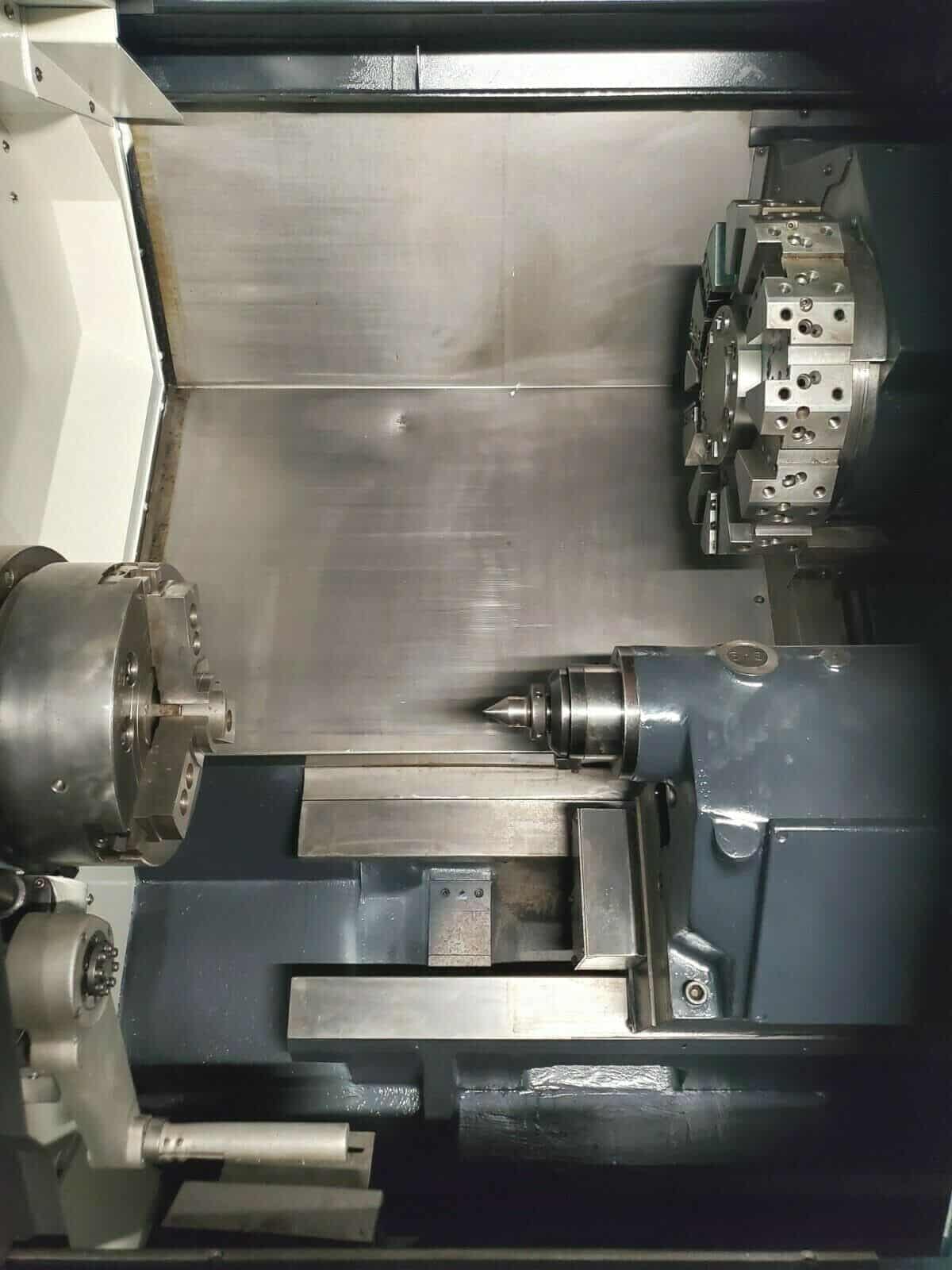

Hydraulic Tailstock and Quill
PCMCIA Card Interface

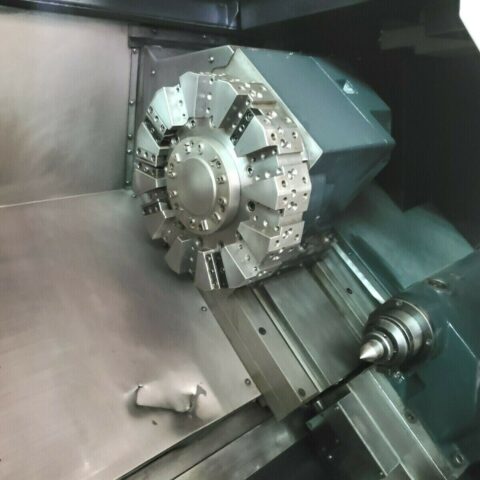

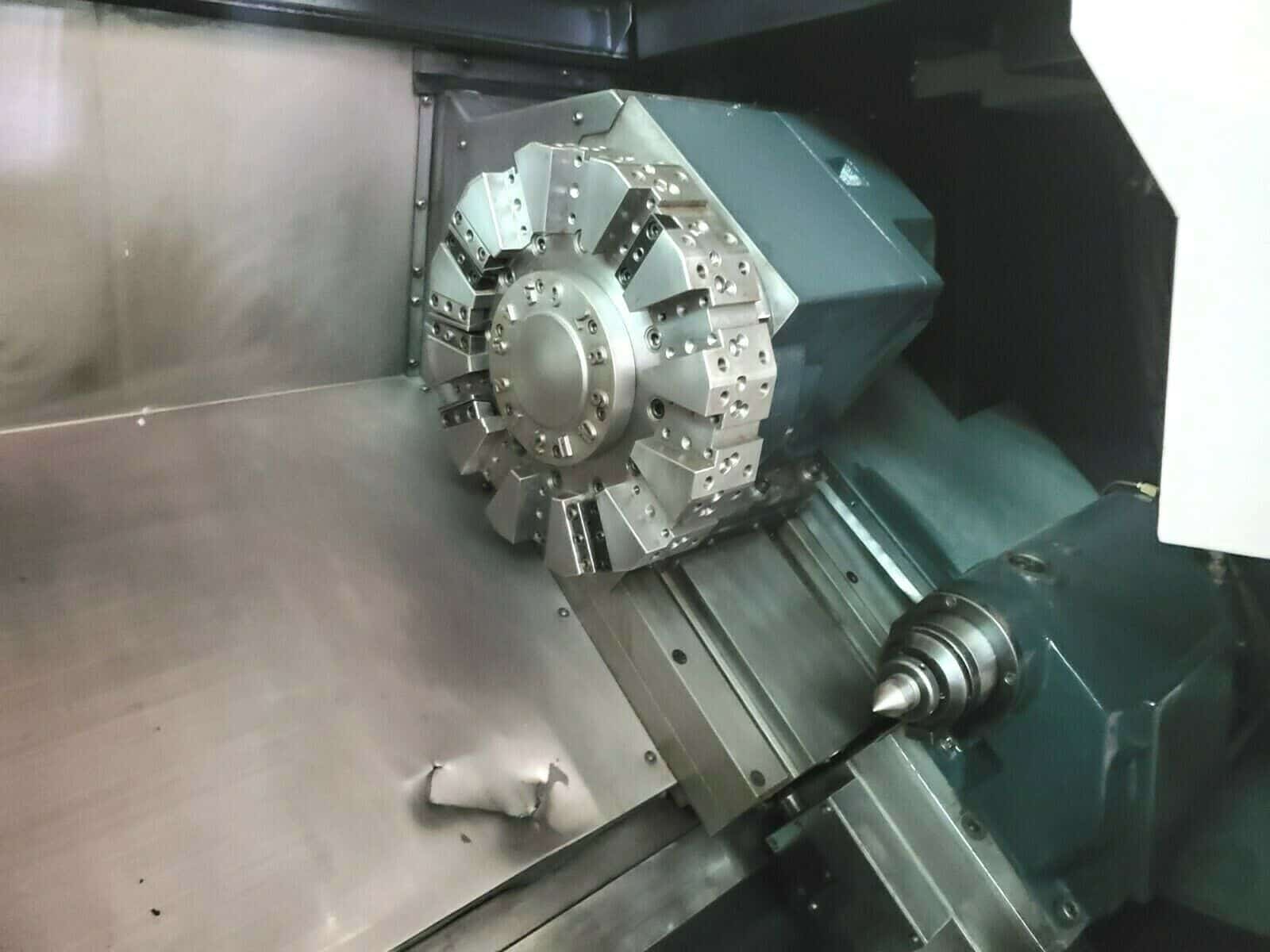

12 Station Automatic Turret
Foot Switch
Parts Catcher
Coolant System
Chip conveyor

Specifications:
Capacity:
Max Turning Diameter: 15.7″
Max Turning Length: 24.8″
Max Bar Capacity: 4.05″
Swing Over Bed: 22.4″
Swing Over Carriage: 17.7″
Distance Between Centers: 32.0”

Travel:
X Axis Travel: 11.1″
Z Axis Travel: 26.8″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.5″
Spindle Speed: 0-2800 RPM
Spindle Motor: 35 hp

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tool Size: 2″

Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 20.5″
Tailstock Quill Dia.: 3.7″
Tailstock Quill Travel: 3.7″

General:

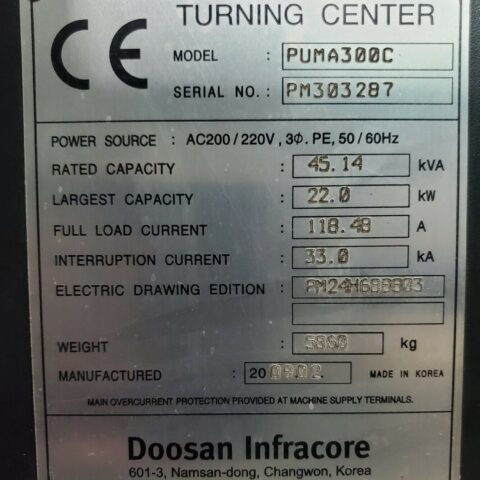

Power: 45 kva, 220v / 3-Phase
Overall Dimensions: 148″ x 77″ x 80″ High
Weight: 12600 lbs

“No Charges for loading at list Price”

Comes as shown in pictures….
