Comes with 12″ Chuck, Tailstock & Chip Conveyor Replacement Cost is approx. $165,000.00 with similar options.
All specifications are approximations and are subject to verification.

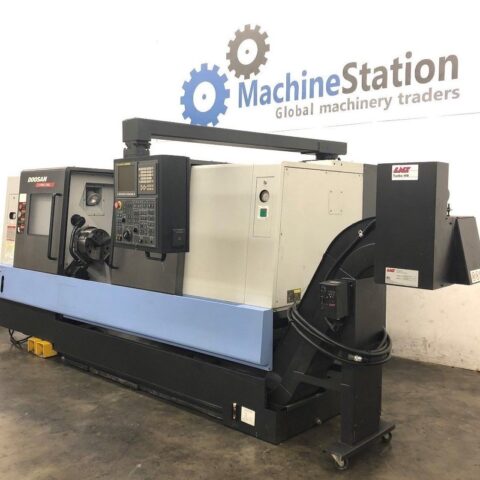

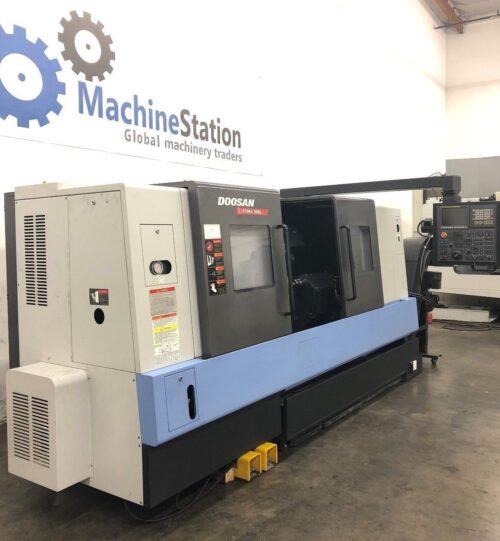

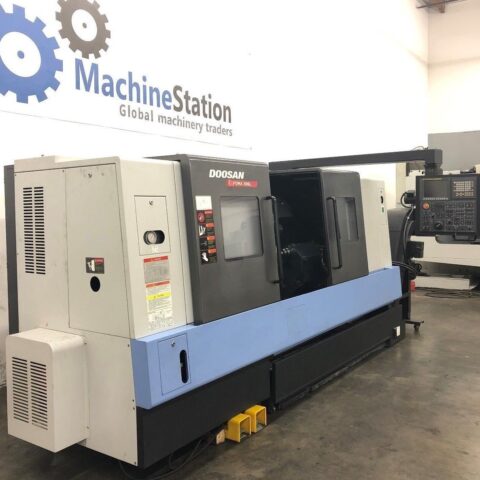

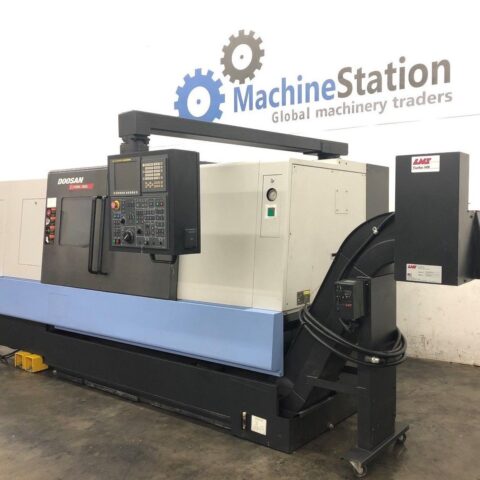

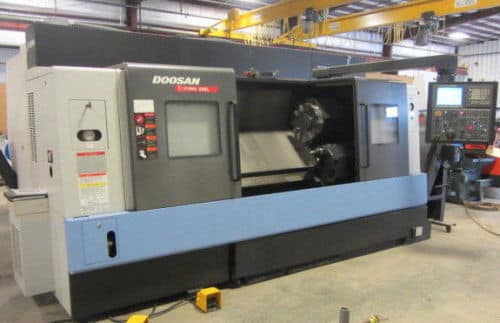

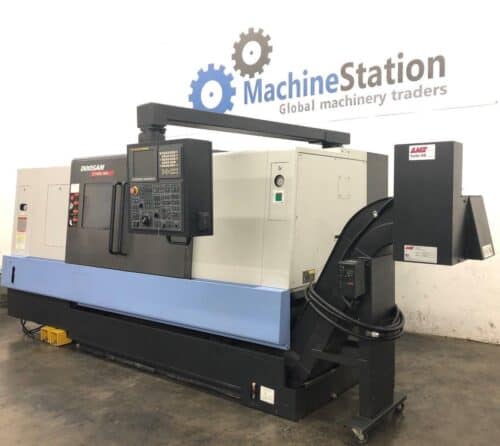

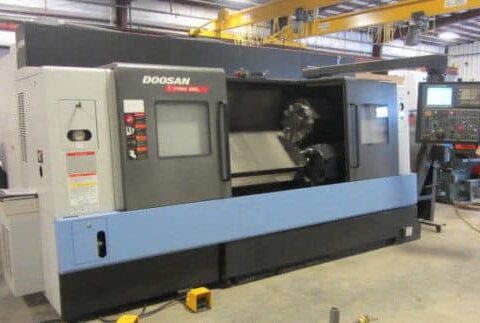

“This One Owner machine is in Mint running condition. Less than 300 hours, It is equipped with 12″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”
| Make | Doosan |
| Model No. | Puma 300LC |
| Year | 2011, installed 2012 |
| Condition | Used-Good |
-
Doosan Puma 300LC Equipped With:

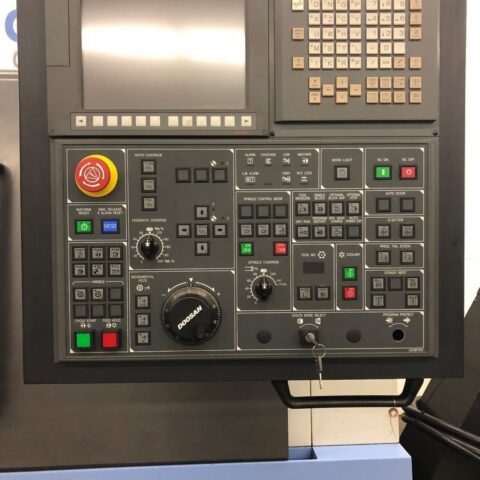

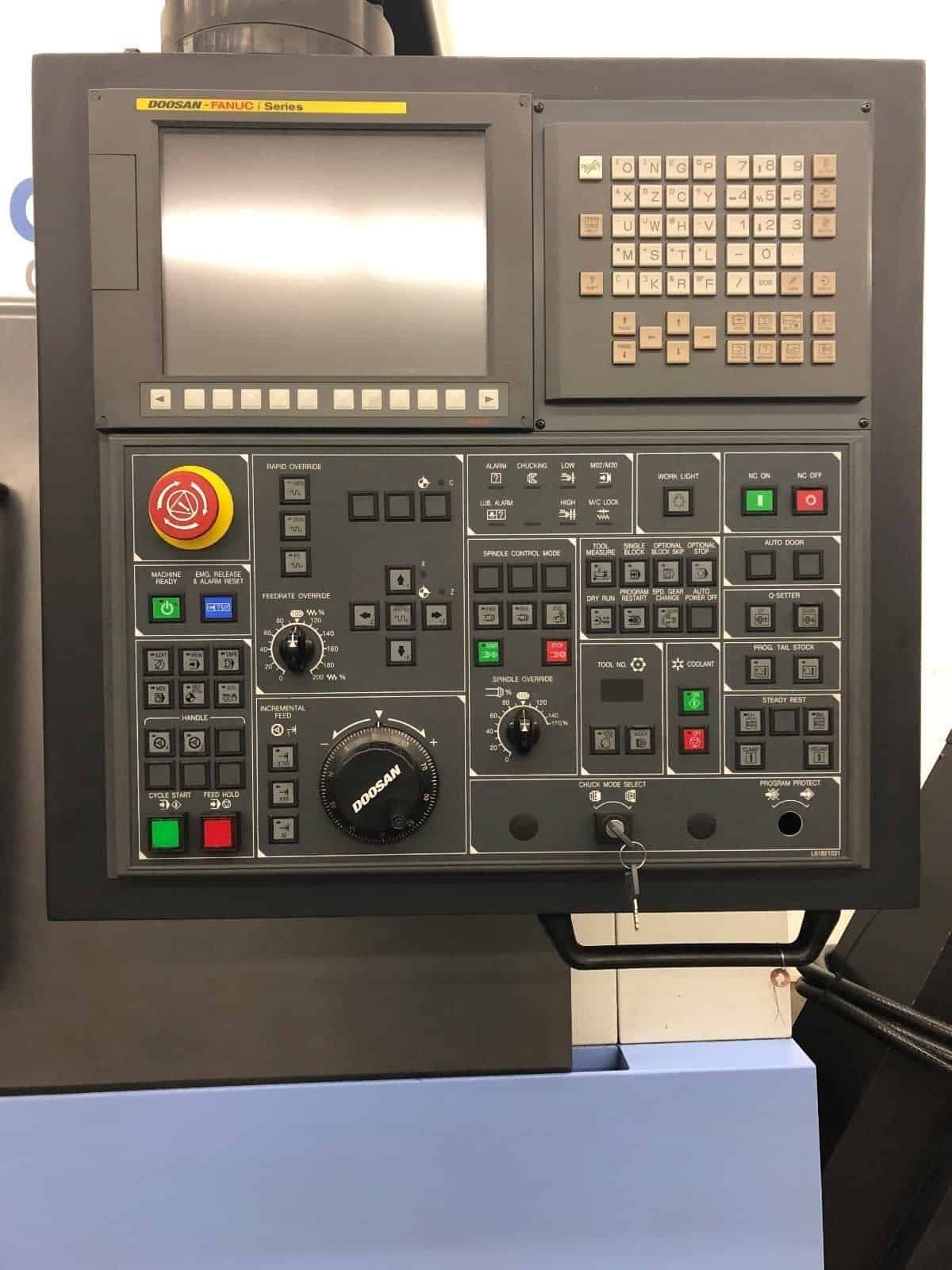

- Fanuc i series CNC Control
- Box way construction
- Rigid Tapping

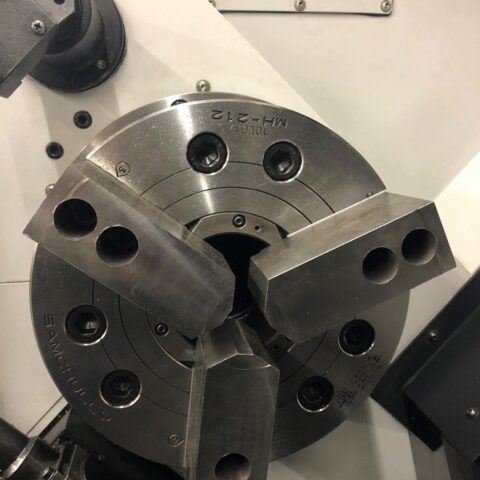

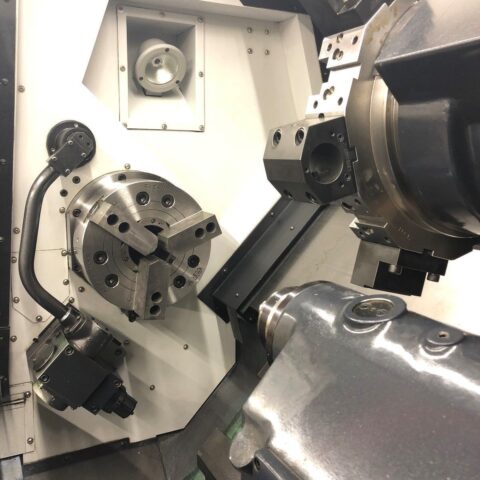

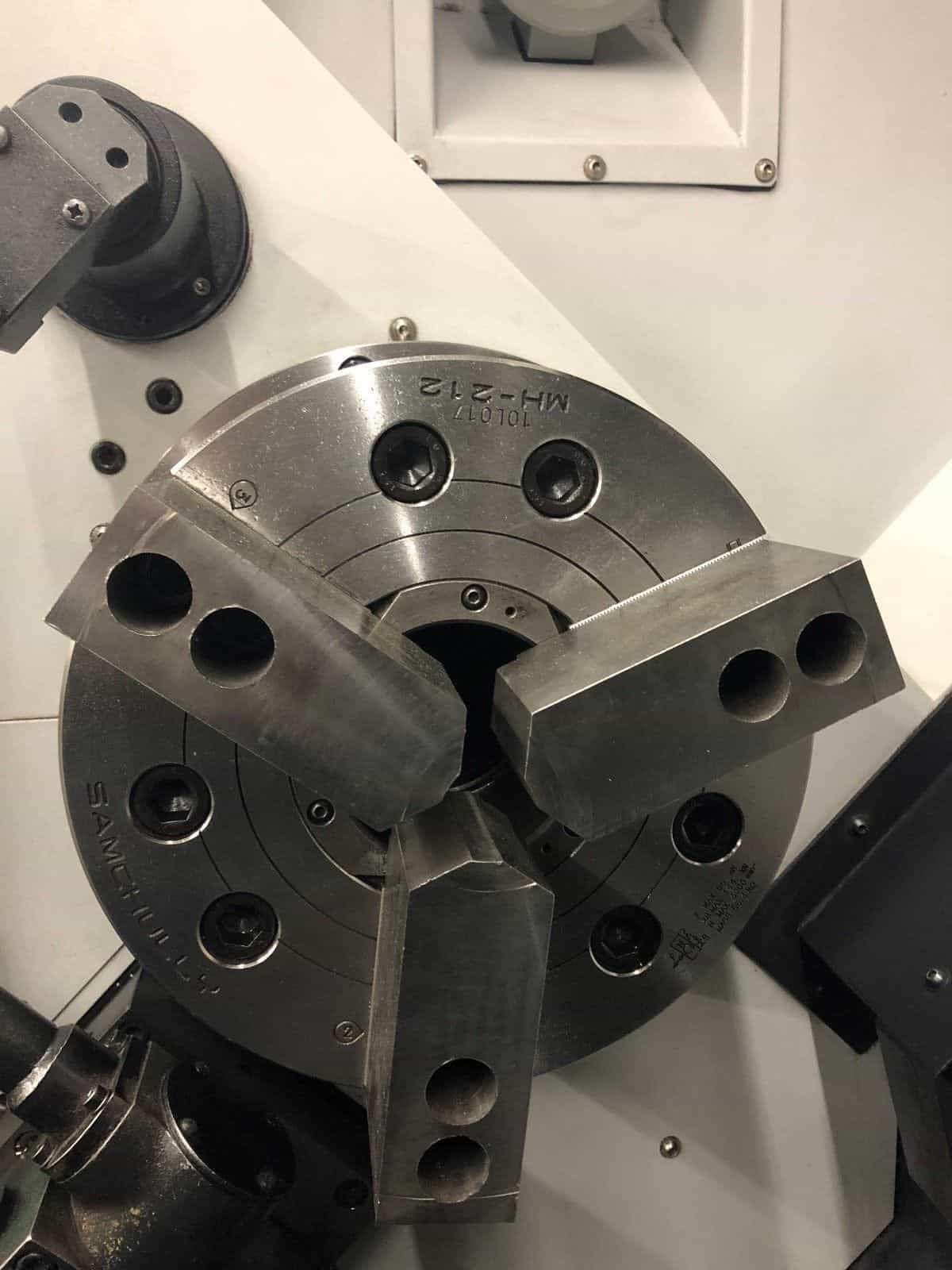

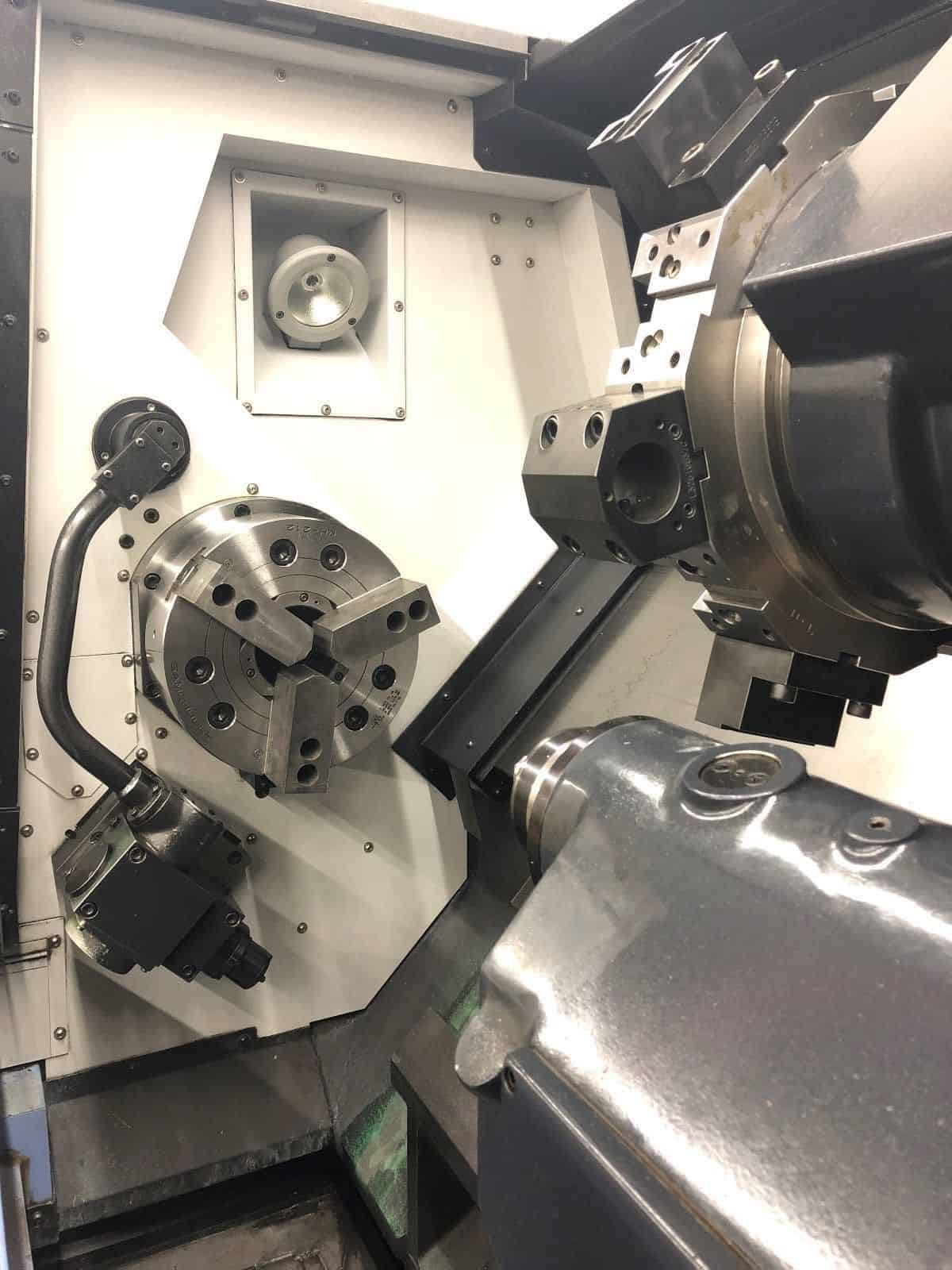

- 12″ 3 Jaw Hydraulic Chuck
- A2-11 Spindle
- Auto Tool Presetter

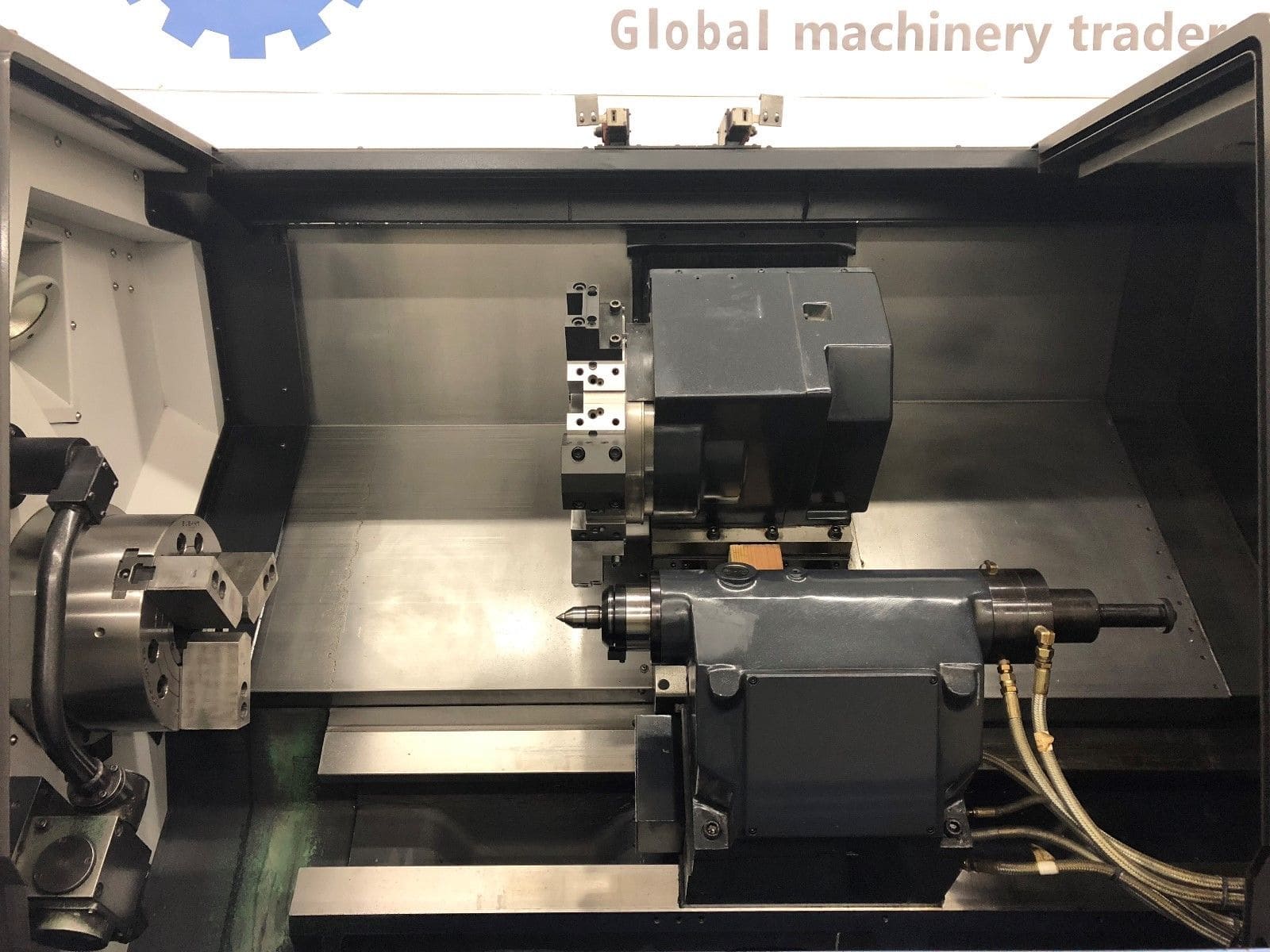

- Hydraulic Programmable Tailstock and Quill
- PCMCIA Card Slot
- Coolant System
- Barfeed Interface

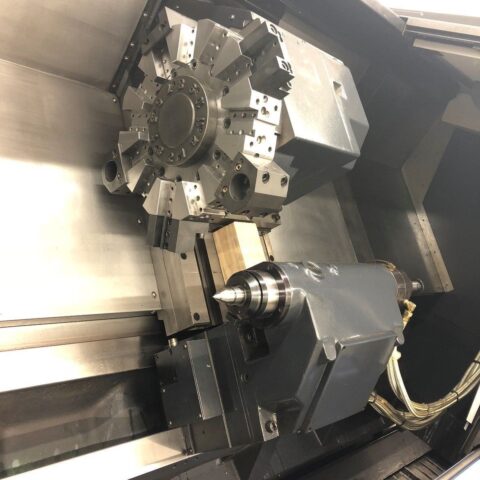

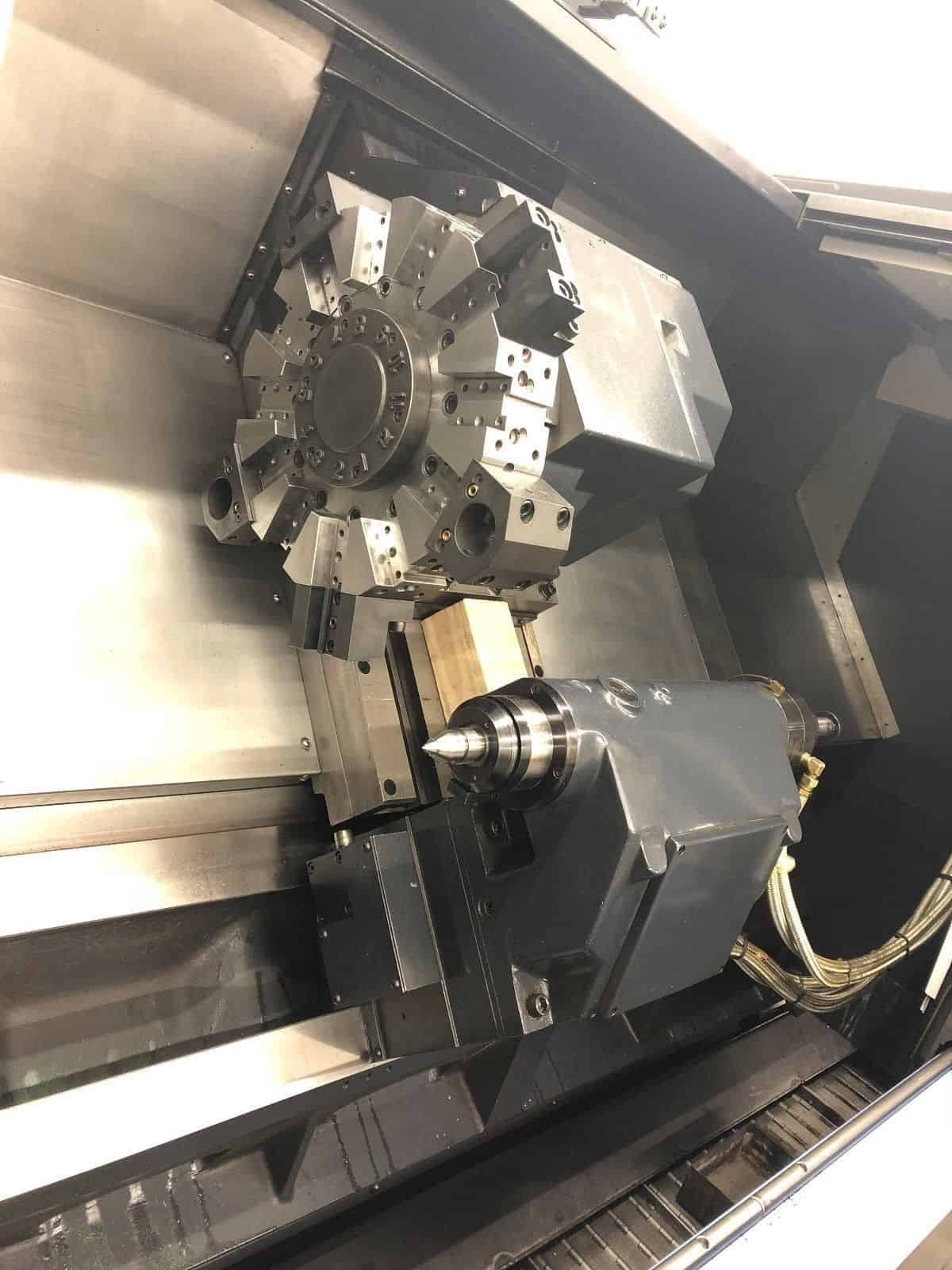

- 12 Station Automatic Turret
- Foot Switch

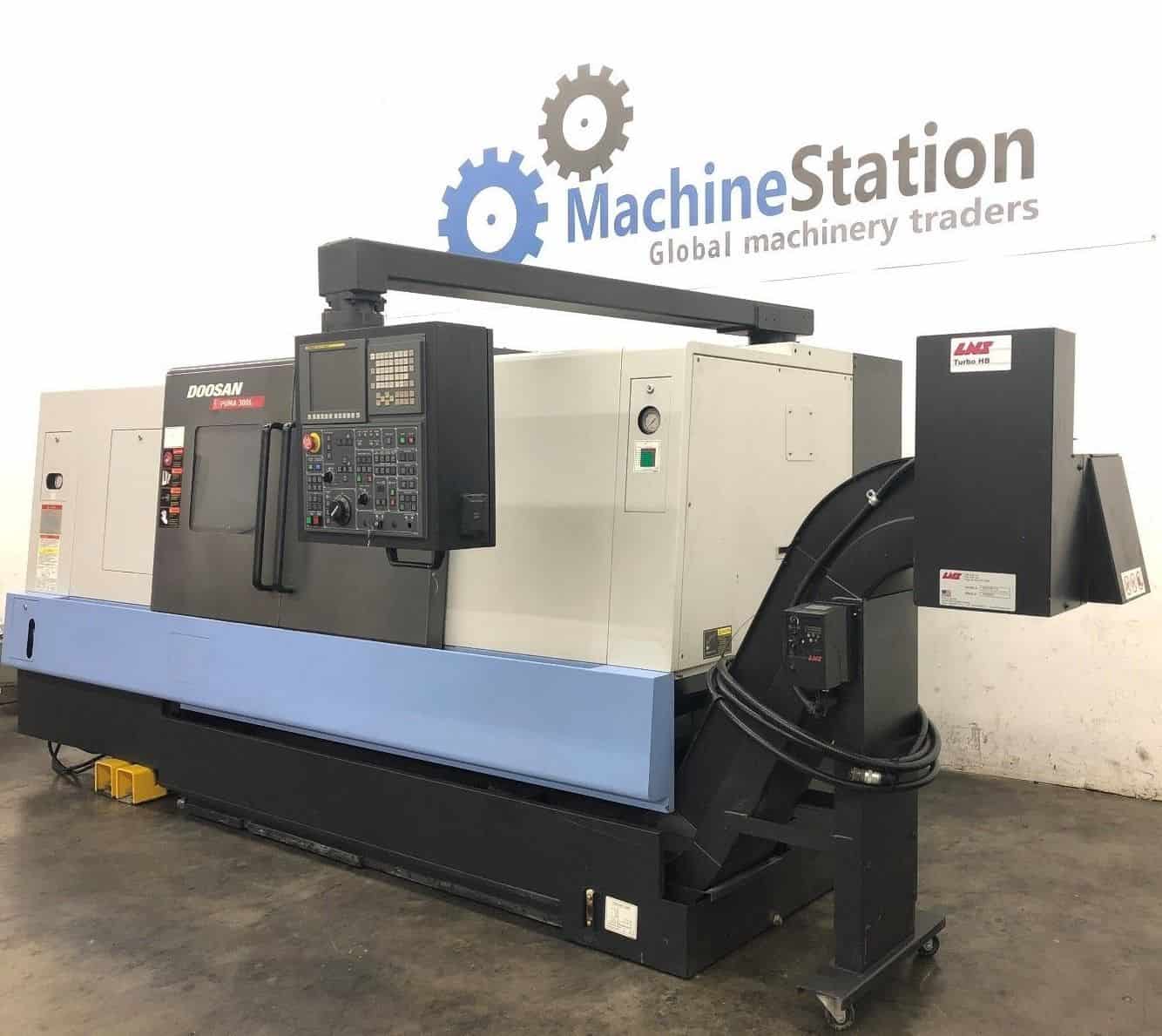

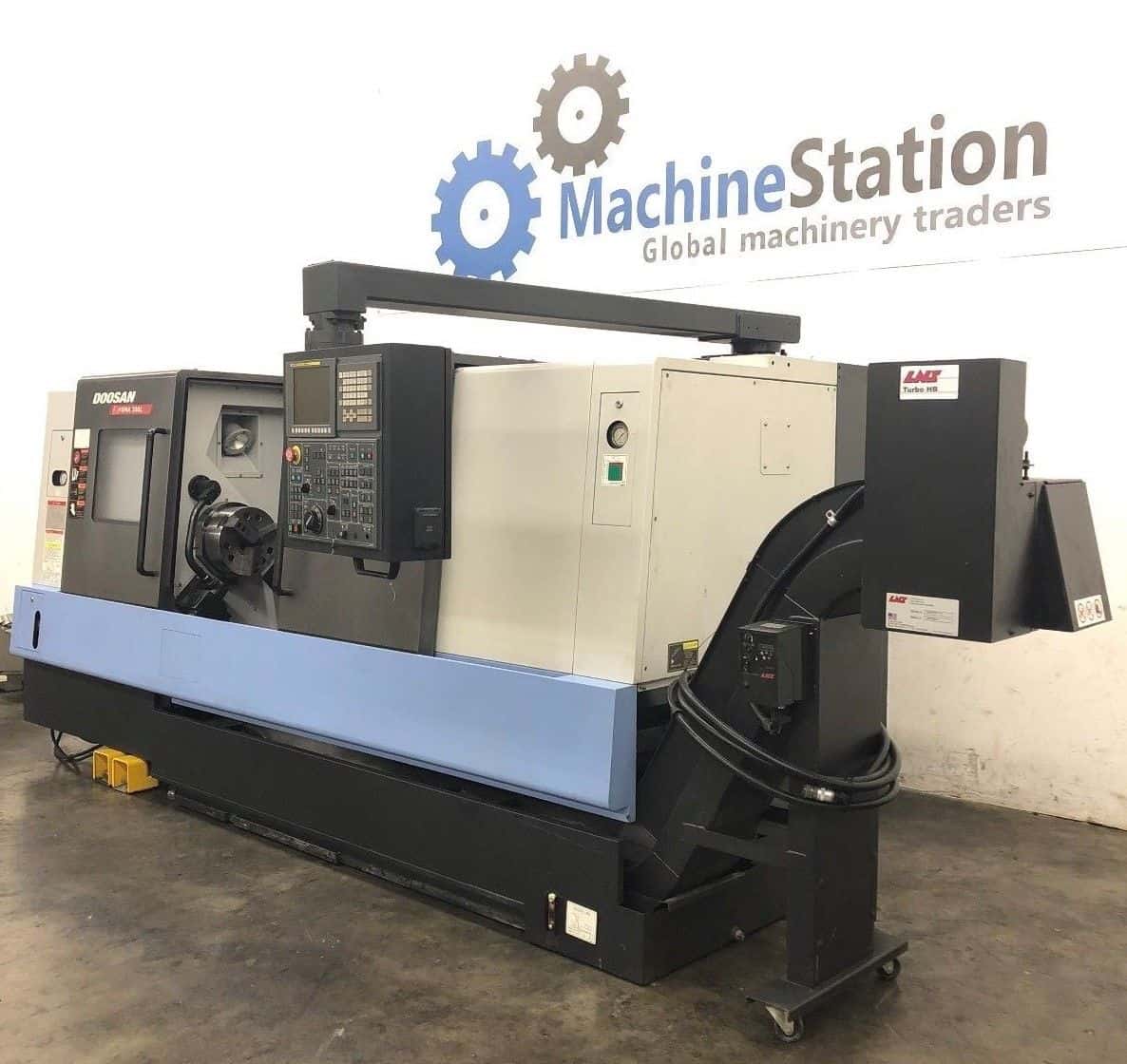

- Turbo Chip Conveyor
-
Doosan Puma 300LC Specifications:
- Capacity:
- Max Turning Diameter: 15.7″
- Max Turning Length: 50.4″
- Max Bar Capacity: 4.05″
- Swing Over Bed: 22.4″
- Distance Between Centers: 52.8″
- X Axis Travel: 11.1″
- Z Axis Travel: 52.4″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-11
- Spindle Bore: 4.5″
- Spindle Speed: 0 – 2800 RPM
- Spindle Motor: 35 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.97″
- Tailstock Quill Travel: 4.7″
-
General:
- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 150″ x 77″ x 80″ High
- Overall Dimensions: 168″ x 77″ x 80″ High with Chip Conveyor
- Weight: 15000 lbs
