*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 102137 |

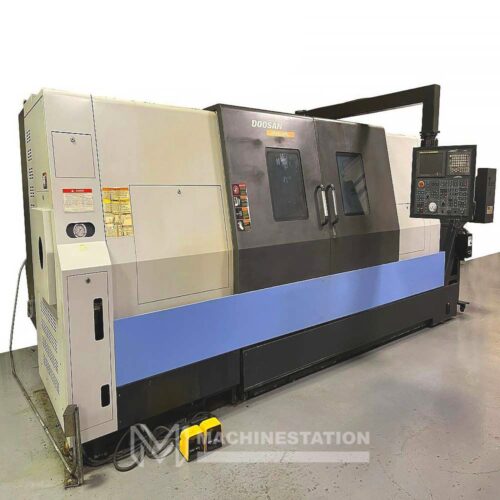

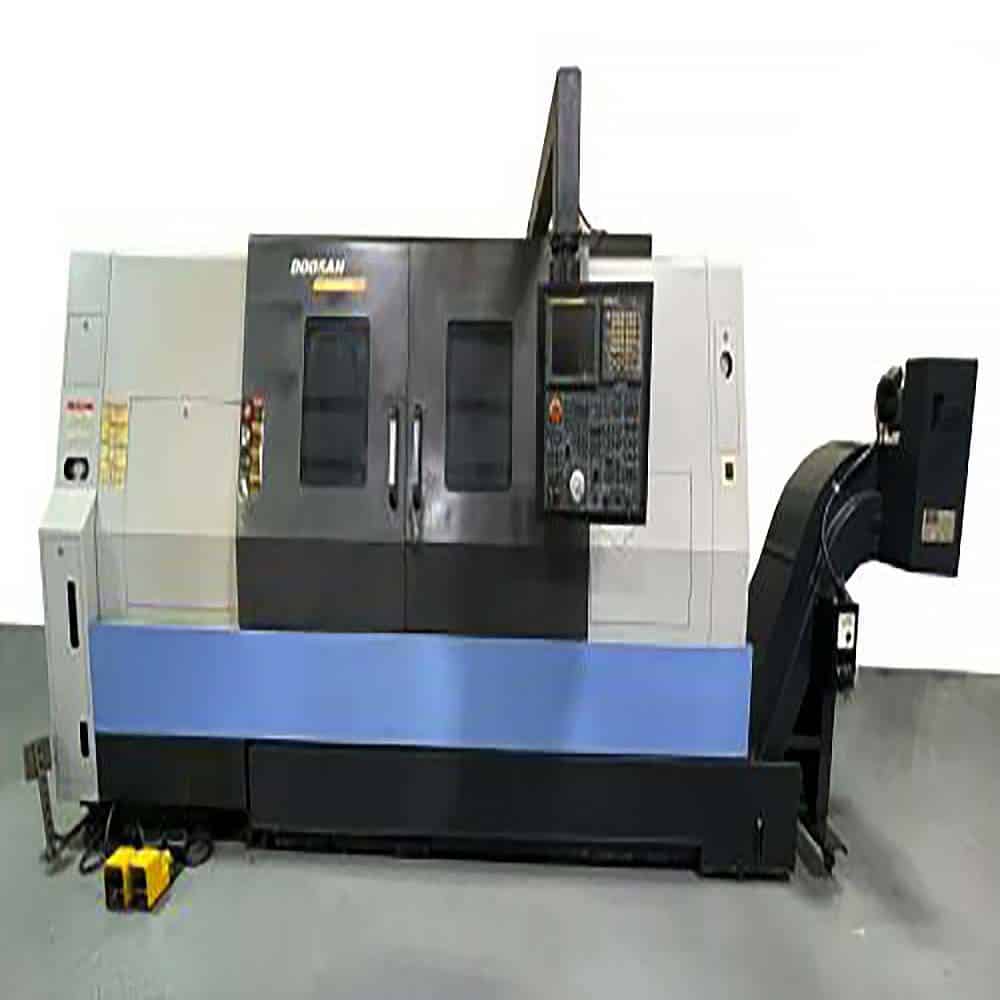

| Make: | Doosan |
| Model: | Puma 400LB |

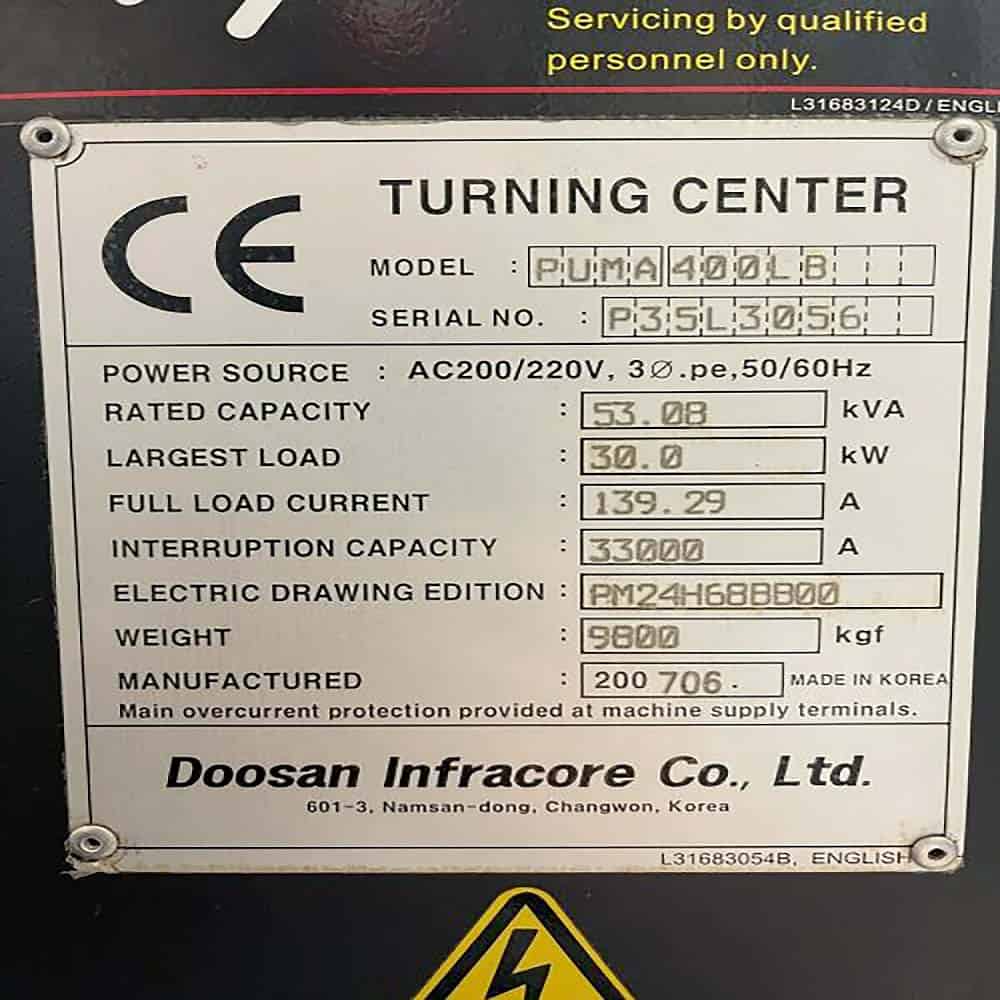

| Serial: | P35L3056 |
| Condition: | Very Good |
| Equipped With: |
|---|

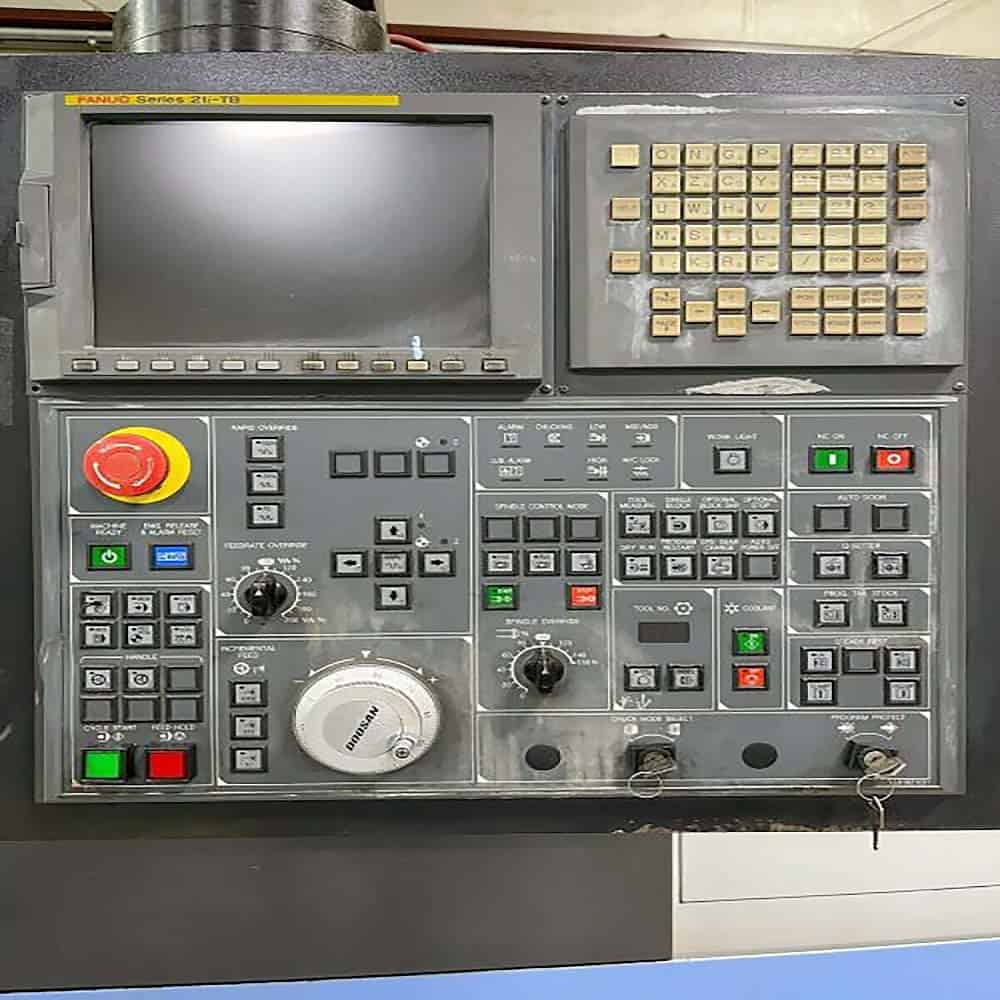

| Fanuc 21i-T CNC Control |
| 18″ Big Bore Chuck |
| 5.2″ Bore A2-11 Spindle |
| 3 Point Steady Rest |
| Tool Presetter |
| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |
| 10 Station Automatic Turret |
| Foot Switches |
| Coolant System |

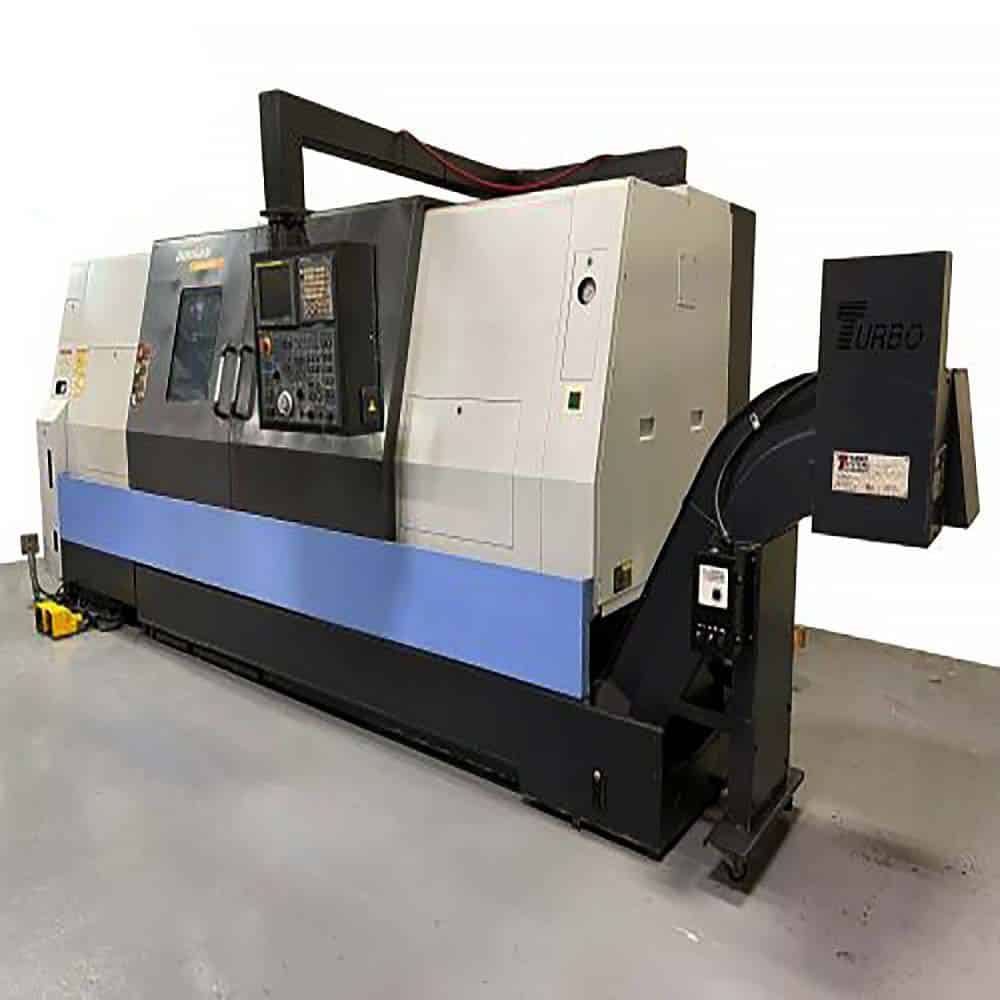

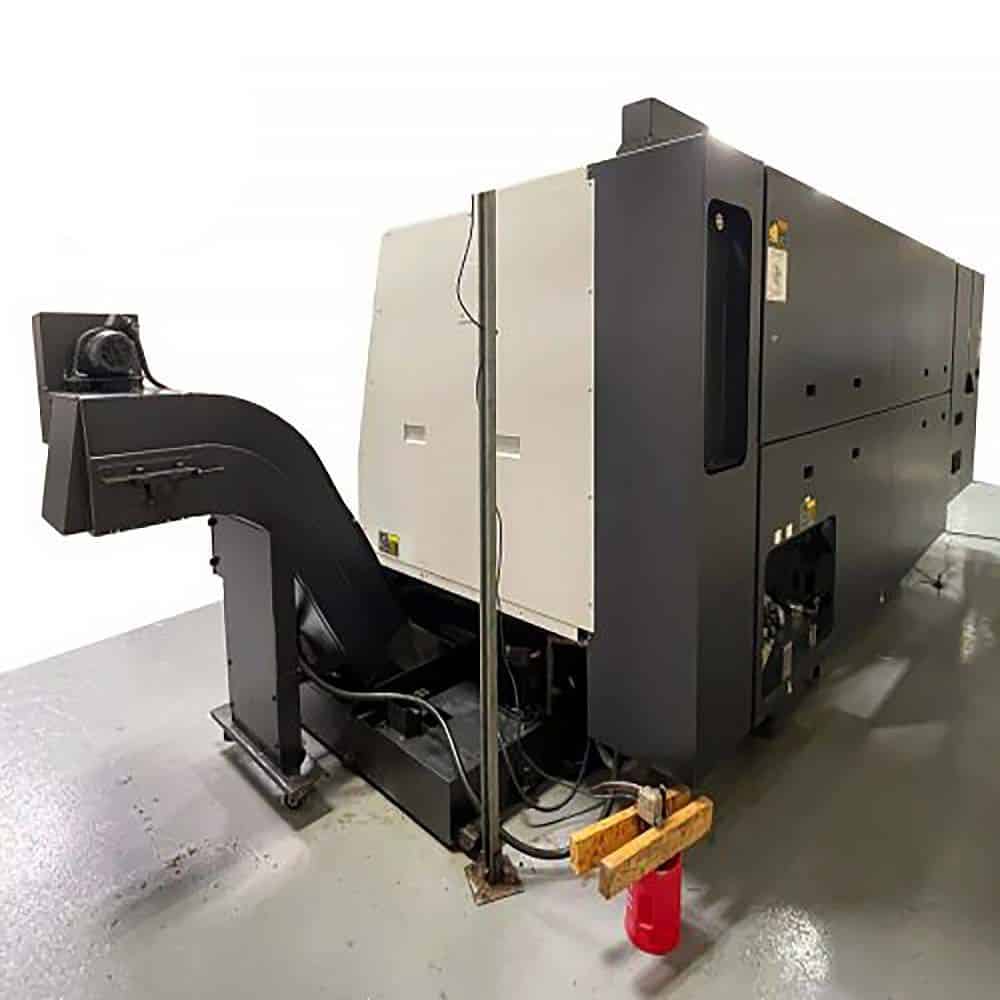

| Chip conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 21.7″ |
| Max Turning Length: 81.7″ |
| Max Bar Capacity: 4.62″ |
| Swing Over Bed: 30.3″ |
| Swing Over Carriage: 23.3″ |
| Distance Between Centers: 86.0” |
| Travel: |
|---|
| X Axis Travel: 14.2″ |
| Z Axis Travel: 84.8″ |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 790 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 5.2″ |
| Spindle Speed: 20 – 2000 RPM |
| Spindle Motor: 50hp |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tool Size: 2.4″ Tailstock: |
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 60.5″ ? |
| Tailstock Quill Dia.: 4.7″ |
| Tailstock Quill Travel: 4.7″ |
| General: |
|---|
| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: 200 ″ x 87″ x 90″ High |
| Weight: 22000 lbs |
