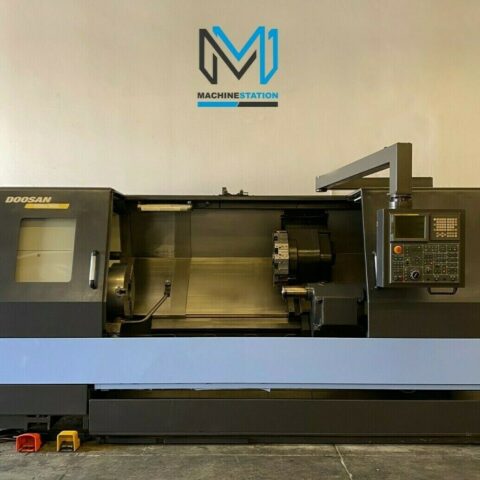

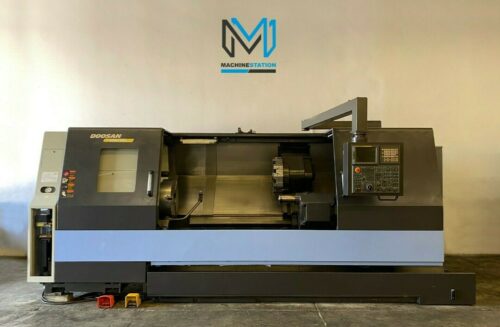

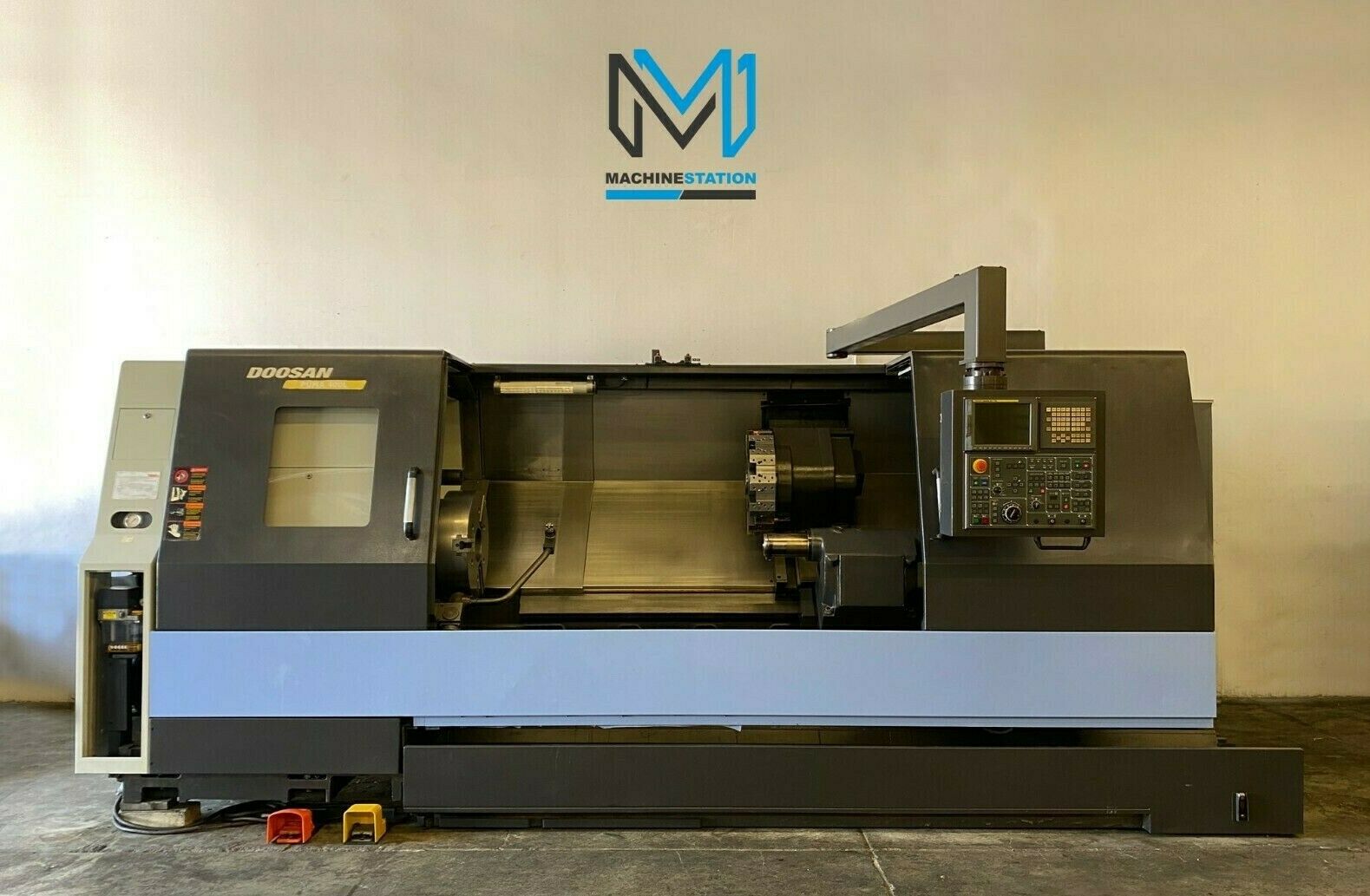

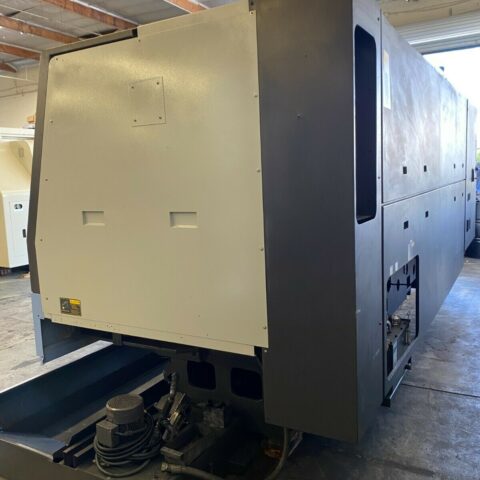

DOOSAN PUMA 400LC CNC Turning Center Lathe

Out of stock

SKU:	1992
Make/Model:	Doosan/PUMA 400LC
Video:	[fusion_button link=”https://www.youtube.com/watch?v=Rltd5sBVClY” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1992

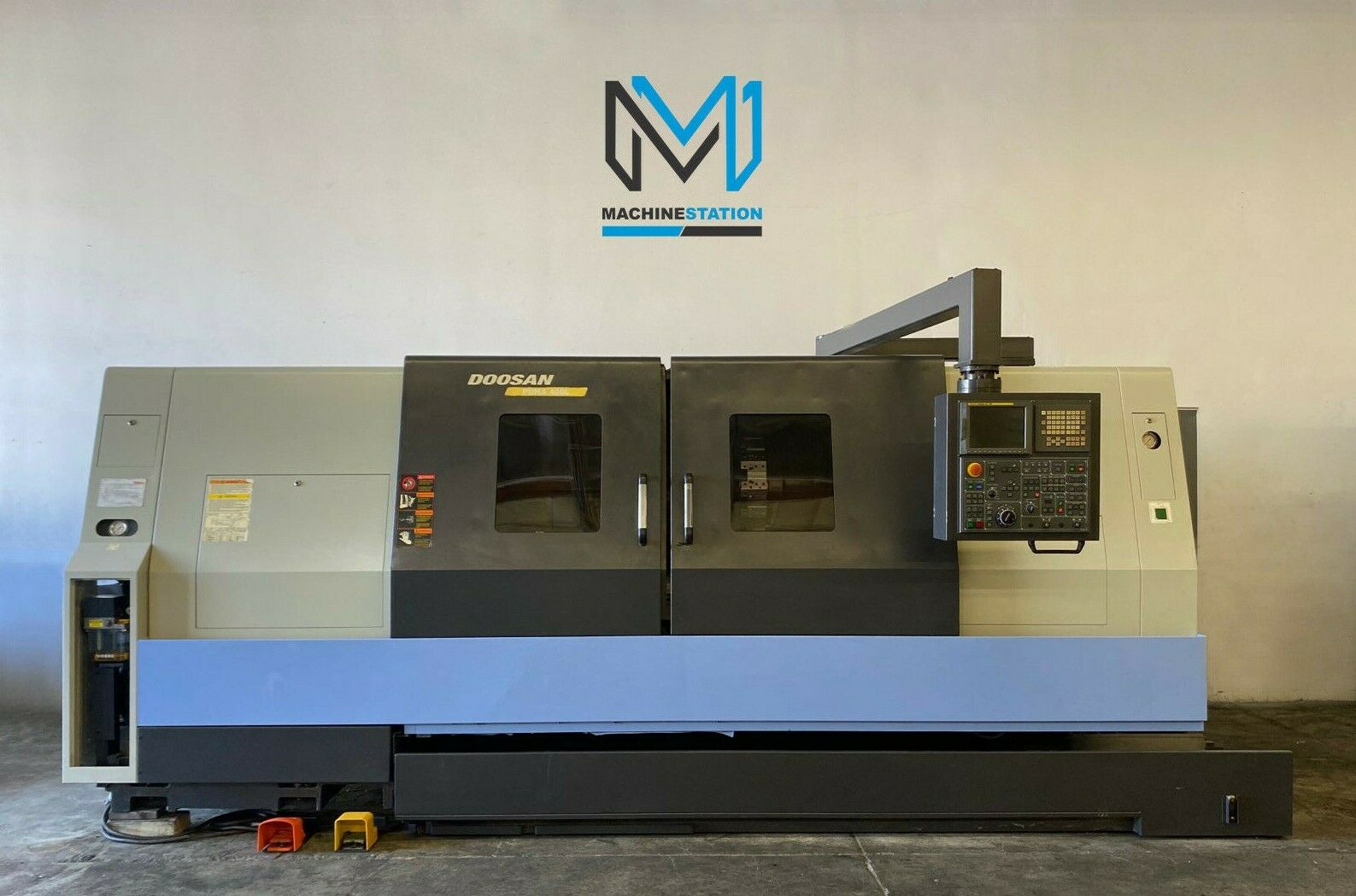

DOOSAN PUMA 400LC CNC TURNING CENTER LATHE
SKU	1992
Make	Doosan
Model No.	PUMA 400LC
Year	2007/2009

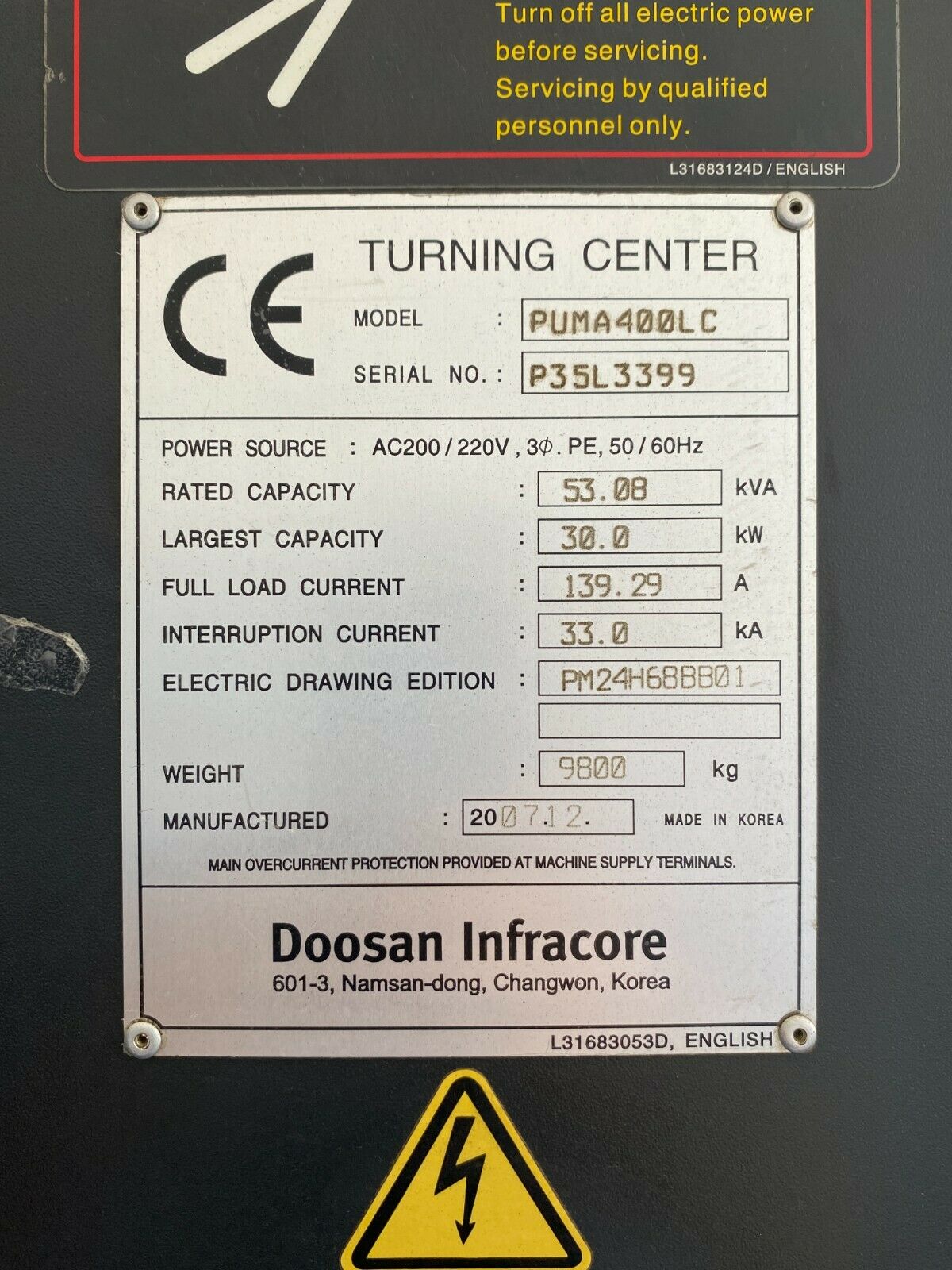

Serial #	P35L3399
Condition	Very Good
Cutting Time:	Hours

All specifications are approximations and are subject to verification.

DOOSAN PUMA 400LC Equipped With:

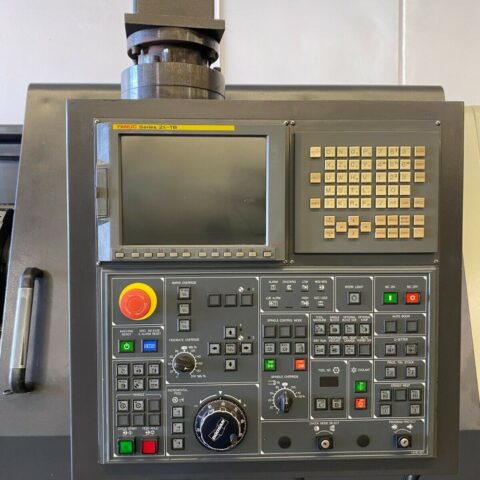

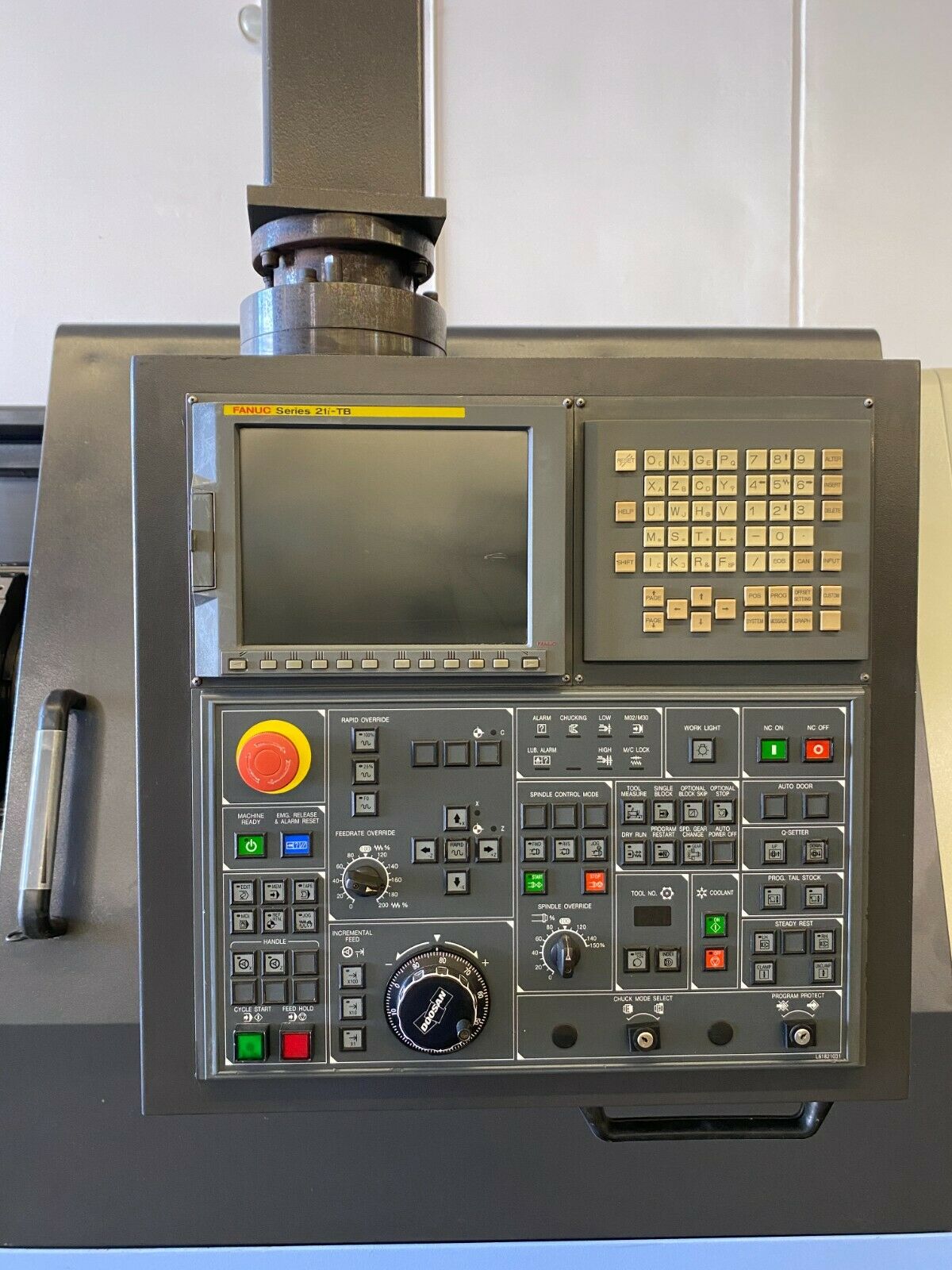

Fanuc 21i-TB CNC Control

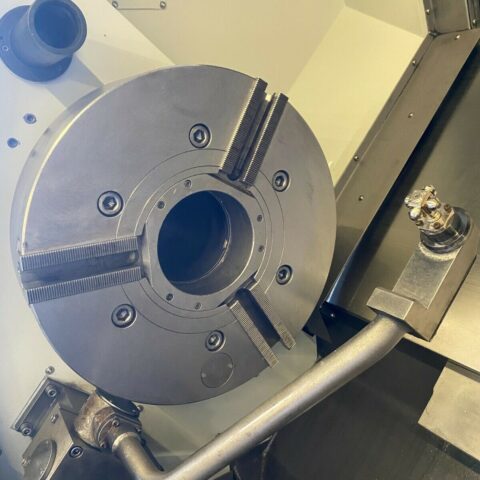

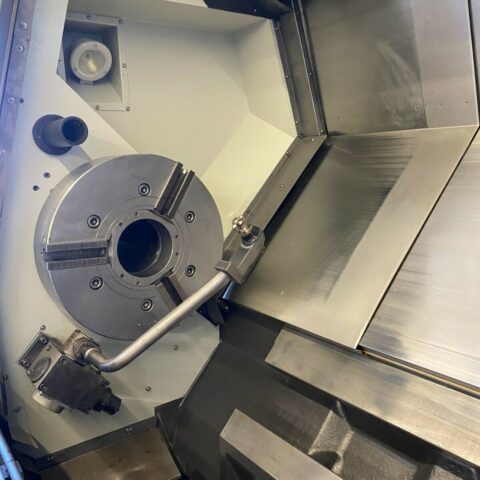

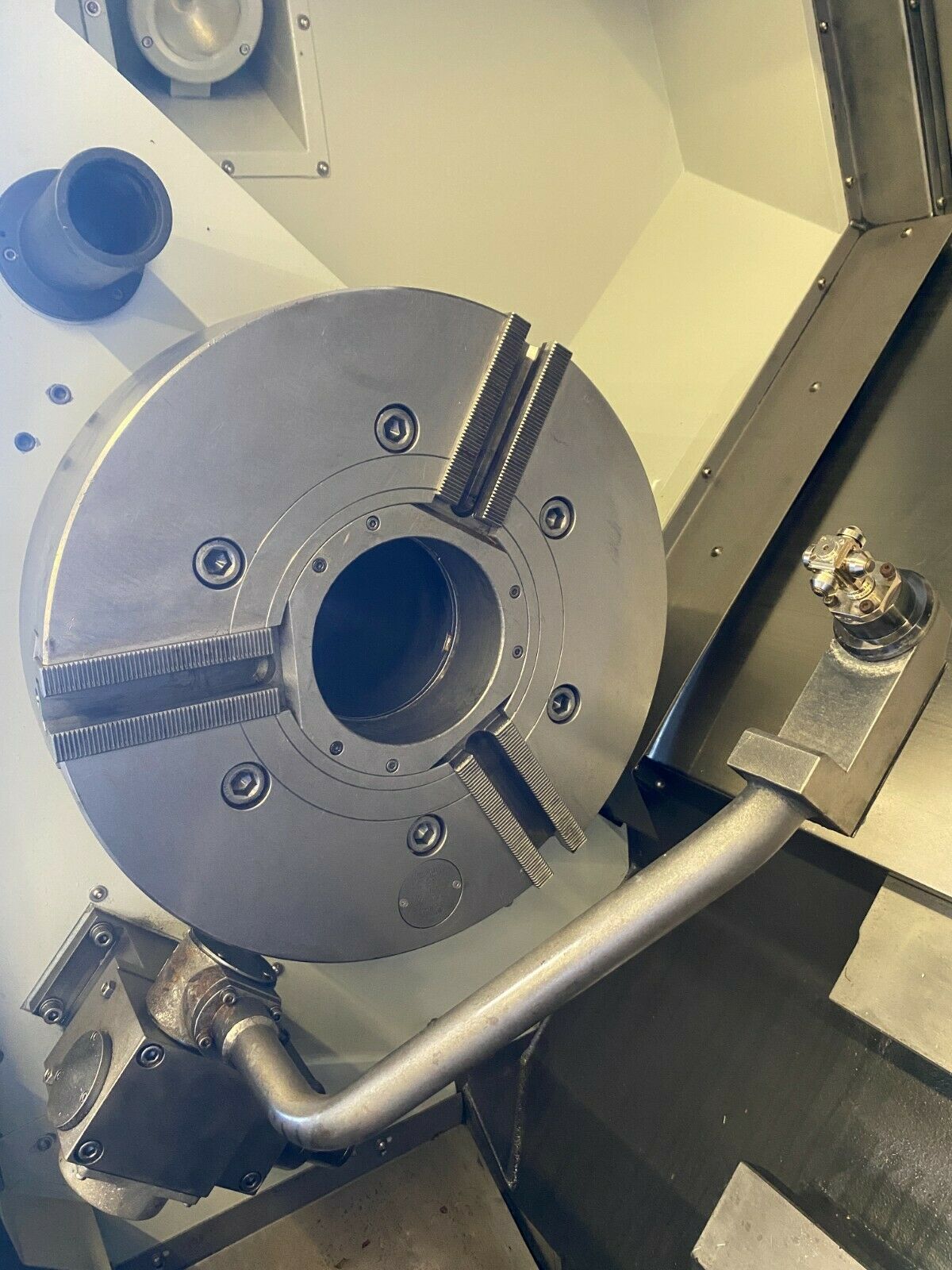

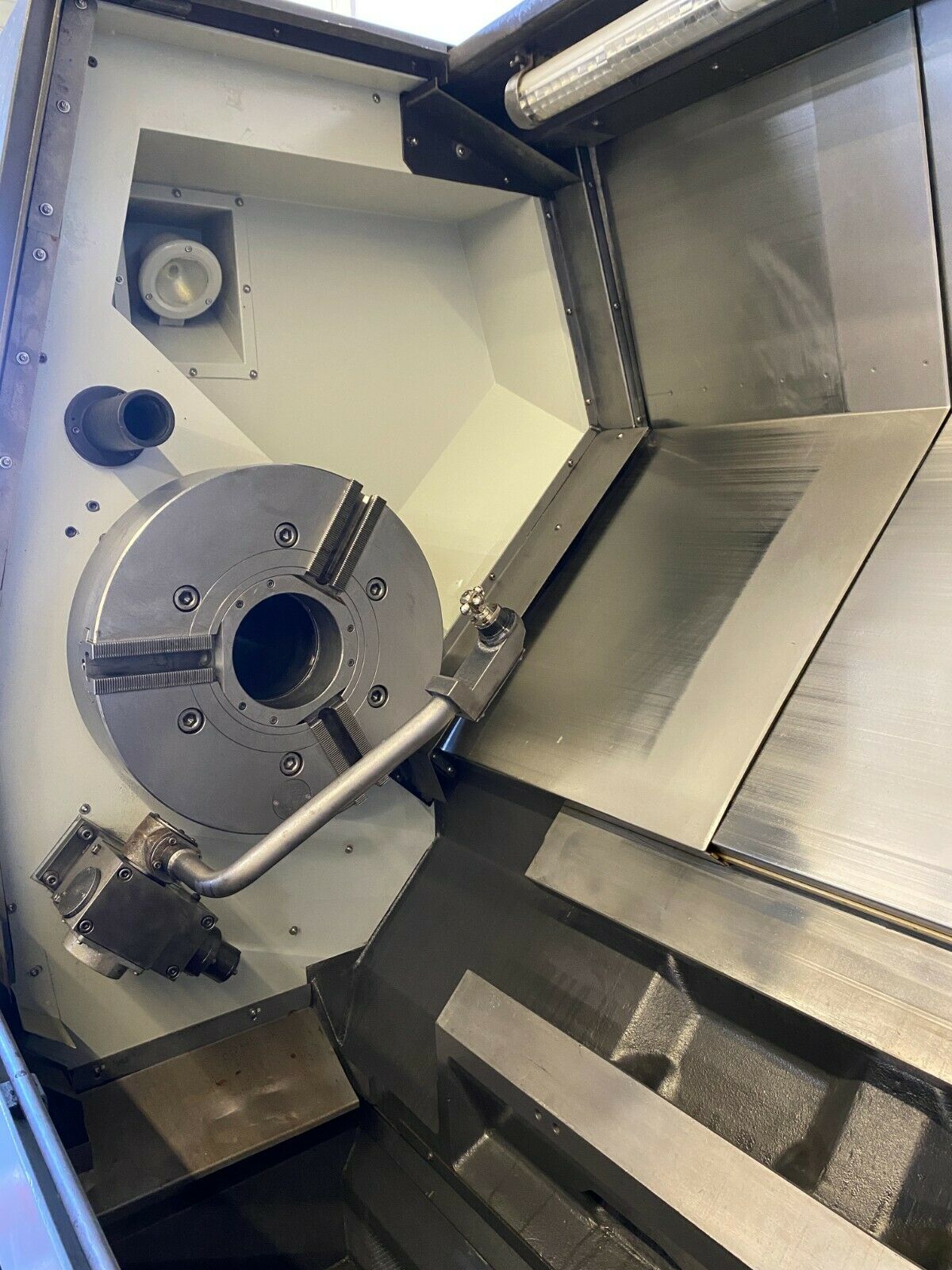

21″ 3 Jaw Big Bore Hydraulic Chuck
7.1″ Bore A1-15 Spindle
Tool Presetter
Hydraulic Tailstock and Quill
PCMCIA Card Interface

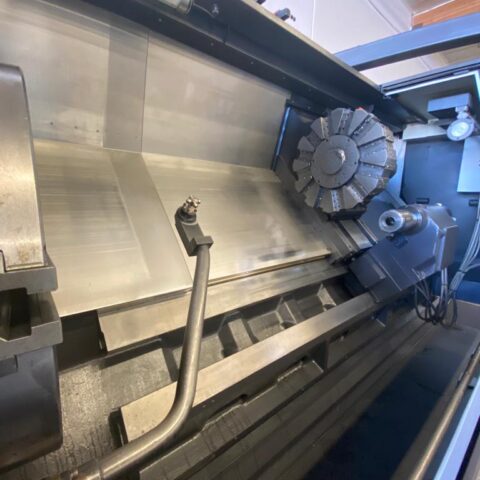

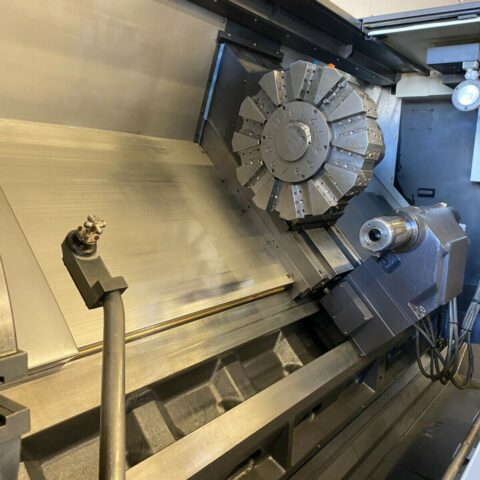

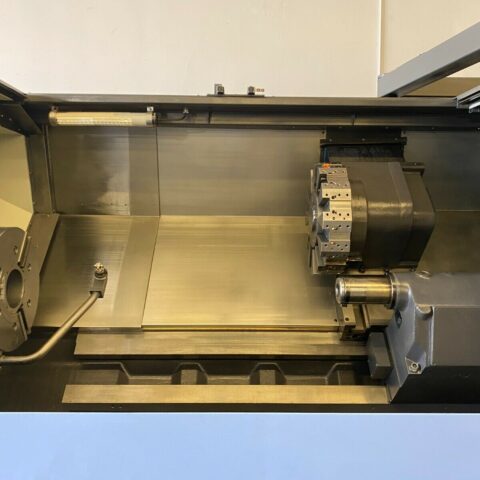

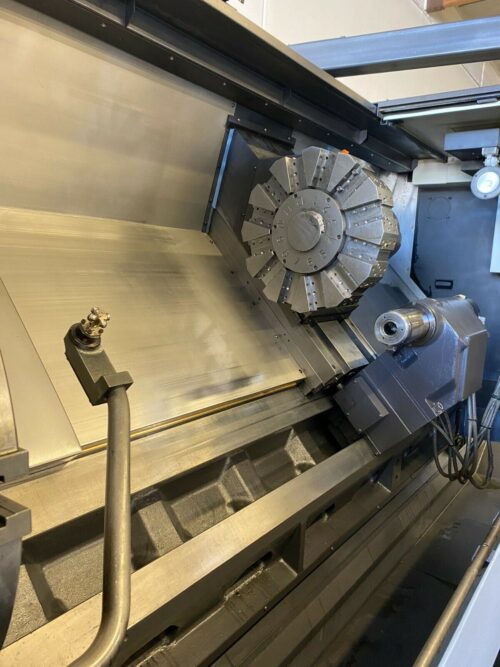

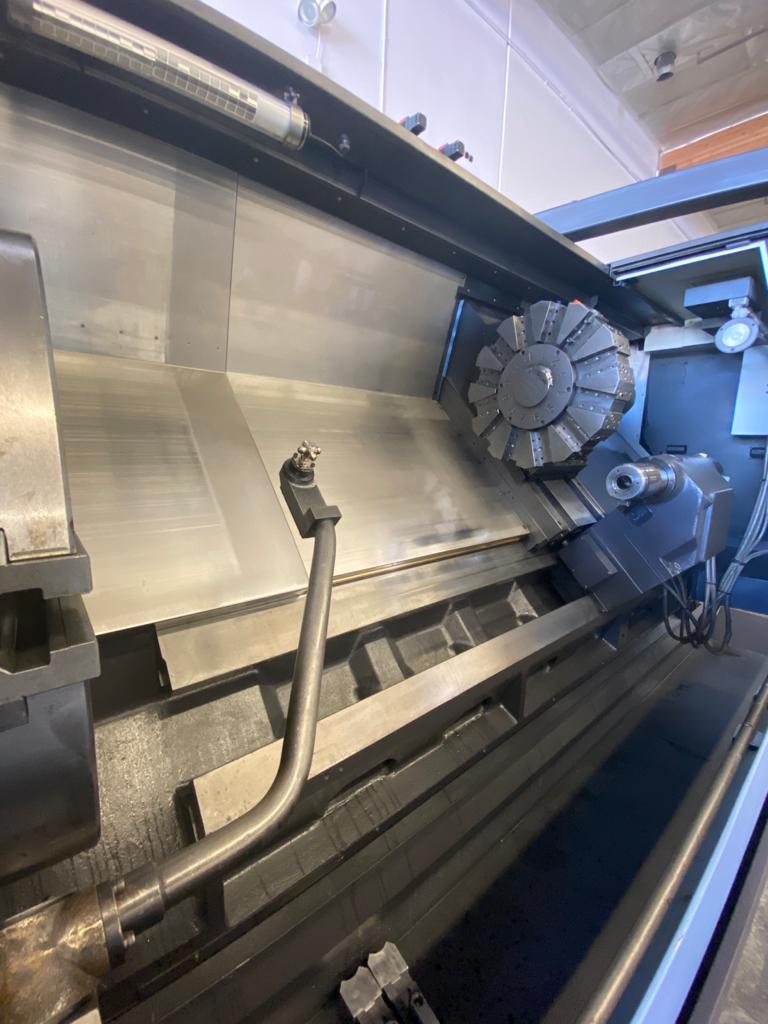

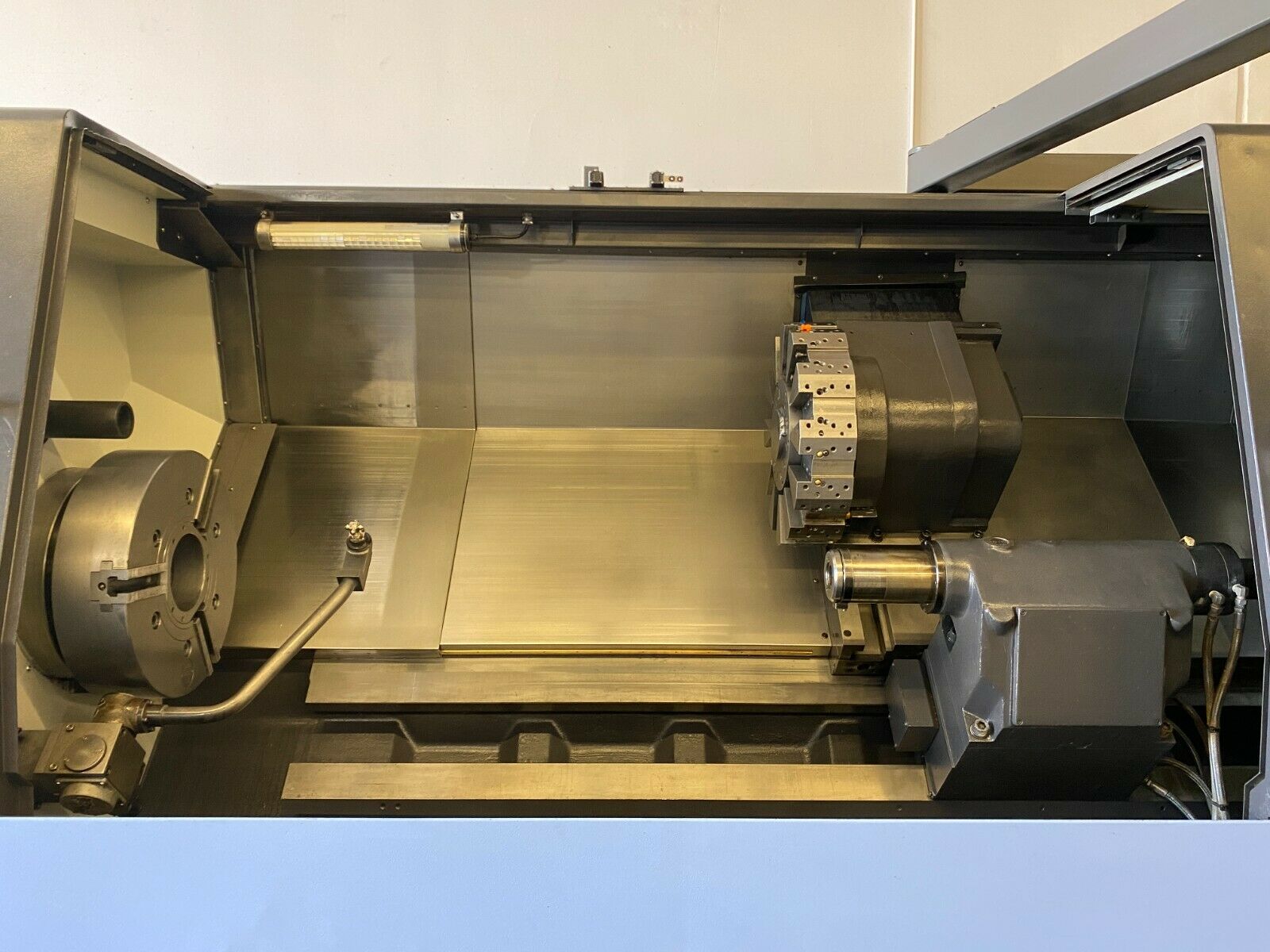

12 Station Automatic Turret
Foot Switch
Oil Skimmer
Coolant System
Barfeed Interface

DOOSAN PUMA 400LC Specifications:
Capacity:
Max Turning Diameter: 21.7″
Max Turning Length: 81.7″
Max Bar Capacity: 6.55″
Swing Over Bed: 30.3″
Swing Over Carriage: 23.3″
Distance Between Centers: 86.0”

Travel:
X Axis Travel: 14.2″
Z Axis Travel: 84.8″
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 790 IPM

Spindle:
Spindle Nose: A2-15
Spindle Bore: 7.1″
Spindle Speed: 15 – 1500 RPM
Spindle Motor: 55hp

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tool Size: 2.4″

Tailstock:
Tailstock Taper: MT-5
Tailstock Body Travel: 60.5″ ?
Tailstock Quill Dia.: 4.7″
Tailstock Quill Travel: 4.7″

General:

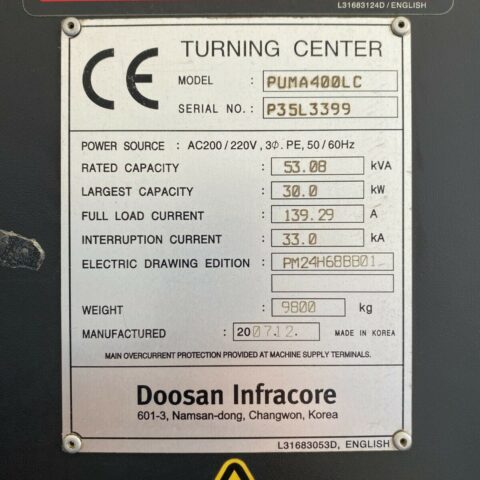

Power: 35 kva, 220v / 3-Phase
Overall Dimensions: ″ x 87″ x 90″ High
Weight: 22000 lbs

“No Charges for loading at list Price”

Comes as shown in pictures….
