*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2285 |

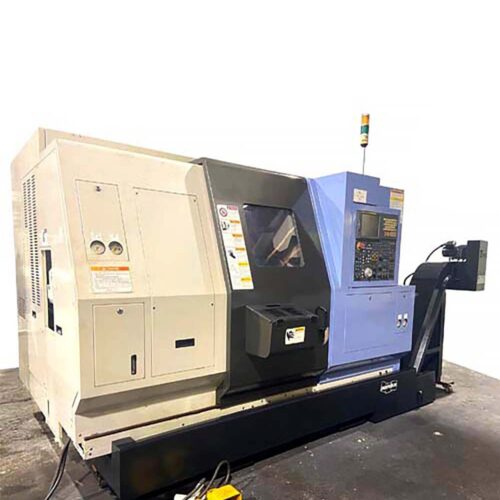

| Make: | Doosan Puma |

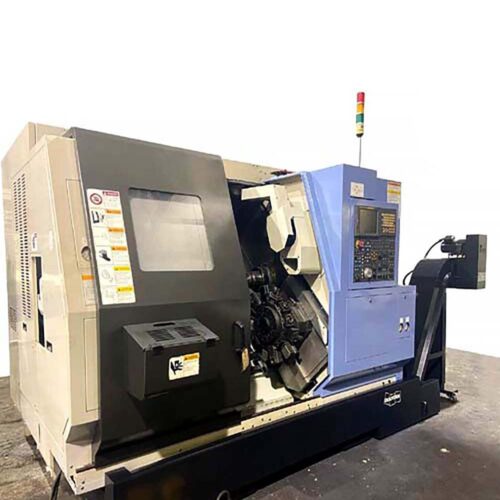

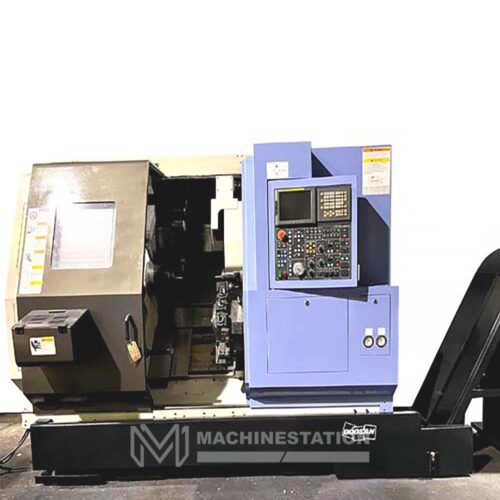

| Model: | TT1500SY |

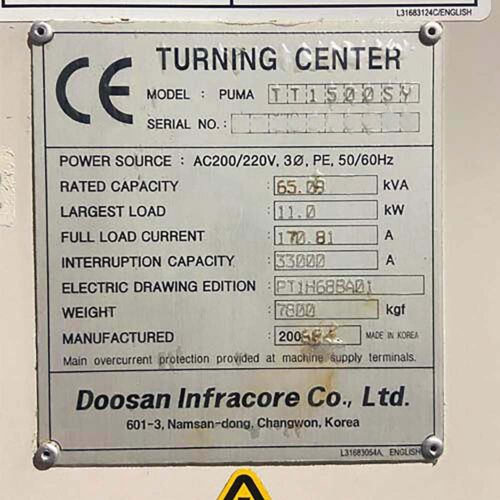

| Serial: | PT15SY0073 |
| Year: | 2008/06 |
| Condition: | Very Good |
| Equipped With: |
|---|

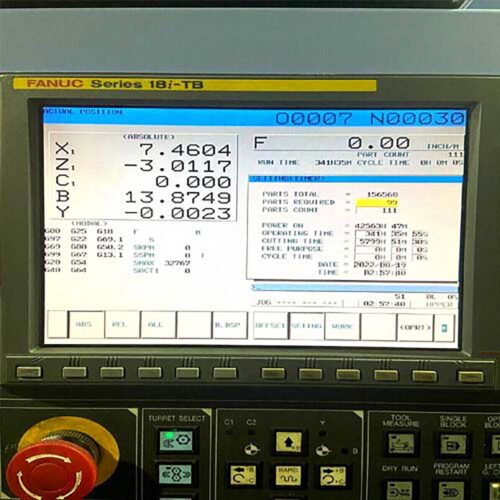

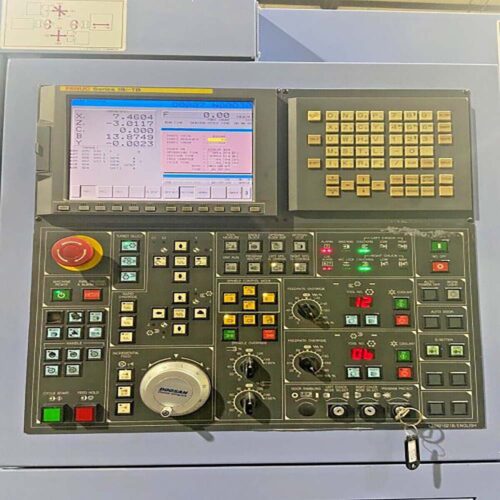

| Fanuc 18iT CNC Control |

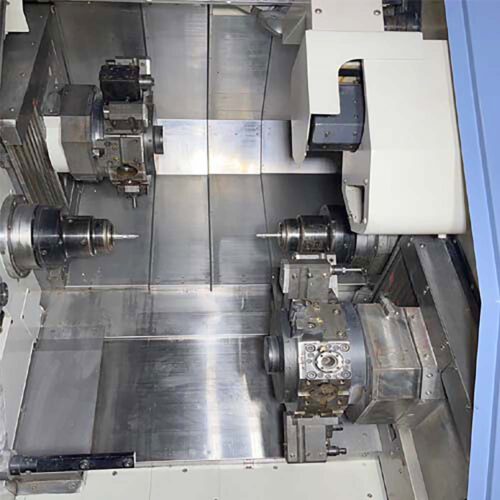

| 12 -Station Upper Turret – Live/Rotary Tools |
| 12 -Station Lower Turret – Live/Rotary Tools |
| Servo Controlled Full C-Axis on Both Spindles |
| Y Axis Capability on Upper Turret |
| PCMCIA Card Slot |
| Tool Presetter |
| Parts Catcher |
| Parts Conveyor |
| Collet Chuck on Main Spindle |
| Collet Chuck on Sub Spindle |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |
| Turbo Systems Chip Conveyor |
| Comes with 2 X Live Tools |
| Some Static Tool Holders |
| Books and Manuals |
| Spindle: |
|---|
| Main Spindle Bore: 2.0″ |
| Sub Spindle Bore: 1.77″ |
| Main Spindle Nose: A2-5 |
| Sub Spindle Nose: A2-5 |
| Main Spindle Speed: 60 – 6000 RPM |
| Sub Spindle Speed: 60 – 6000 RPM |
| Main Spindle Power: 20 hp |
| Sub Spindle Power: 20 hp |
| Capacity: |
|---|
| Max Turning Diameter: 9.05″ |
| Max Turning Length: 20.1″ |
| Max Bar Capacity: 2.0″ |
| Swing Over Bed: 23.62″ |
| Travels: |
|---|
| X1 Axis Travel: 6.5″ |
| Z1 Axis Travel: 18.5″ |
| X2 Axis Travel: 7.48″ |
| Z2 Axis Travel: 19.29″ |
| Y Axis Travel: 4″ (+/- 2.0″) |
| C Axis Travel: 360° (0.001°) |
| Feedrate: Rapid Traverse |
|---|
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Rapid Traverse Y Axis: 295 IPM |
| Turret: |
|---|
| Upper Turret Capacity: 12 Stations |
| Lower Turret Capacity: 12 Stations |
| Live Tool Speed: 50-5000 RPM |
| Live Tool Power: 5 HP |
| Turret Indexing Time: 1 Second |
| General: |
|---|
| Power: 53 kva, 220v / 3-Phase |
| Overall Dimensions: 120″ x 67″ x 72″ High |
| Overall Dimensions: 136″ x 67″ x 72″ High with Chip Conveyor |
| Weight: 11500 lbs |
