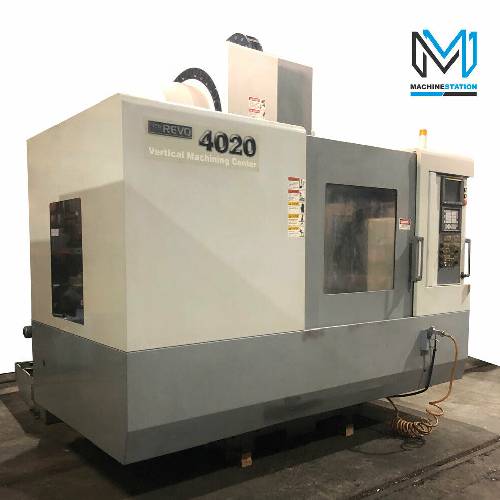

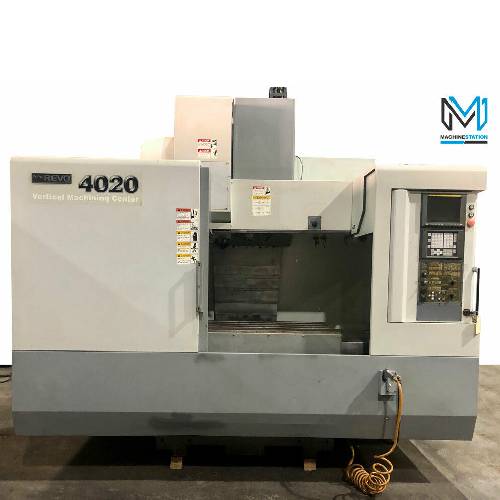

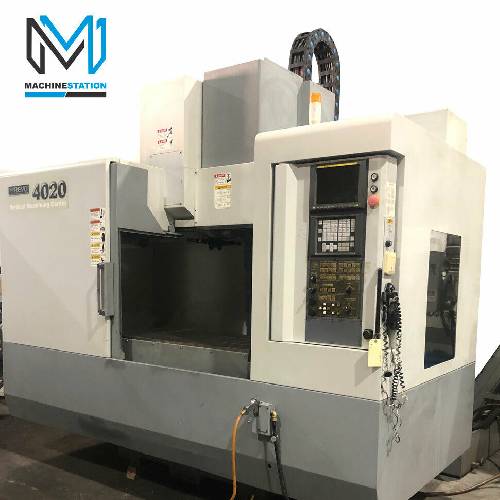

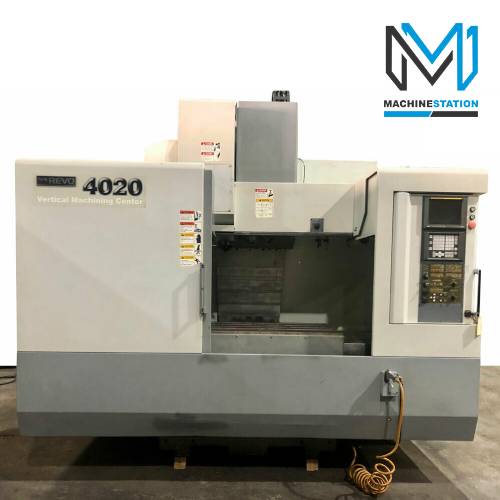

| DOOSAN REVO 4020CNC VERTICAL MACHINING CENTER MILL | |
|---|---|
| SKU | 2294 |

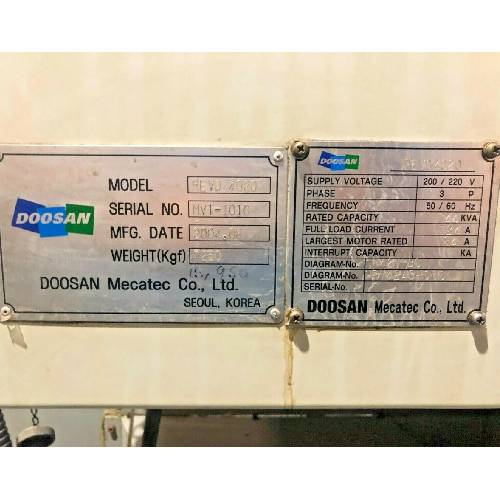

| Make | Doosan |
| Model No. | REVO 4020 |
| Serial No.: | 1010 |
| Year | 2004/2006 |
| Condition | Very Good |
| Cutting Hoursn | 4410 Only |
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
- Features:

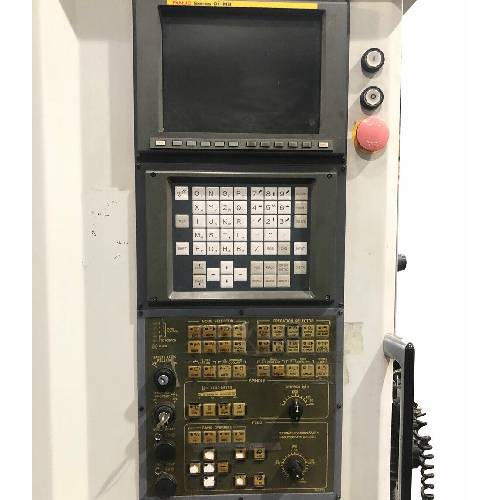

- Fanuc OiMB CNC Control
- 10,000 RPM Precision Spindle
- Through Spindle coolant
- 4th Axis Wired
- MPG Control
- 30 Automatic high speed tool changer
- Rigid Tapping
- Spindle Chiller
- Brushless servo drive motors on all axis
- Dual coolant Pumps
- Coolant system
- Specifications:
- Travels:
- X-Axis: 40.2″
- Y-Axis: 20.1″
- Z-Axis: 20.1″
- Rapid Traverse Rates: 1181″ Per Minute
- Feed Rates: 630″ Per Minute
- Spindle Nose to Table (Min.- Max.):

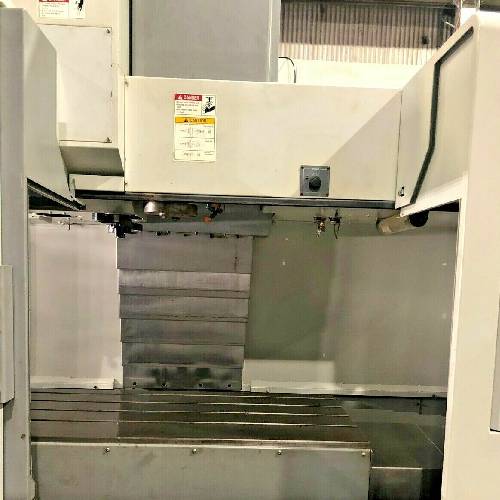

- Table:
- Length: 48″
- Width: 24″
- Max Weight on Table: 2200 lbs
- Spindle:
- Spindle: Taper Size: CAT-40
- Speed Range: 0 – 10,000 RPM
- Spindle Type:
- Spindle Power: 20 HP
- Automatic Tool Changer:
- Capacity: 30
- Tool Weight: 17.6 lbs
- Max Tool Dia: 5.9″
- Max Tool Length: 11.8″
- Tool Changing Time: 1.5 Seconds
- General:
- Air Required: 80 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 130″ x 100″ x 110″ High
- Weight: 16000 lbs
