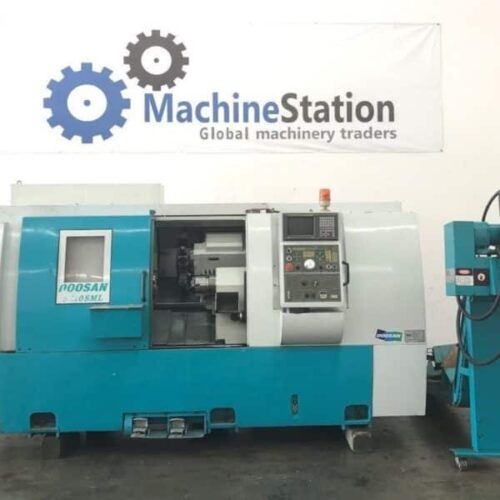

DOOSAN S-310 SML CNC TURN MILL CENTER | |
---|---|
Make | Doosan |
Model No. | S-310SML |
Year Of Manufacture: | 2002.12 |
Serial # | LNJ-1045 |
Condition | Very Good. |
Country of Origin: | Korea |
All specifications are approximations and are subject to verification.
“One Owner Machine, Fully powered / tested & in Great working condition. Equipped with 2 Chucks, Full C Axis, Milling, Sub Spindle. Comes with Chip conveyor, manuals, live tool holders.”
- Doosan S-310 SML Equipped With:

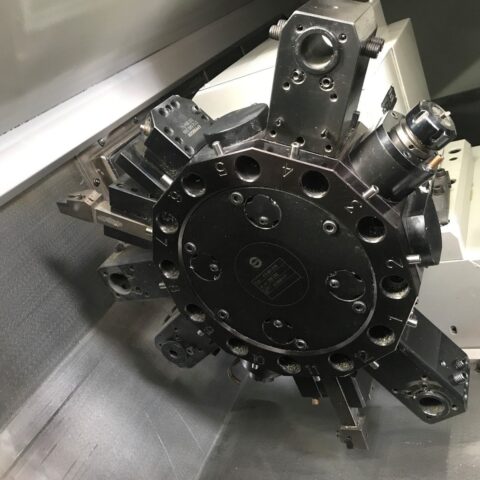

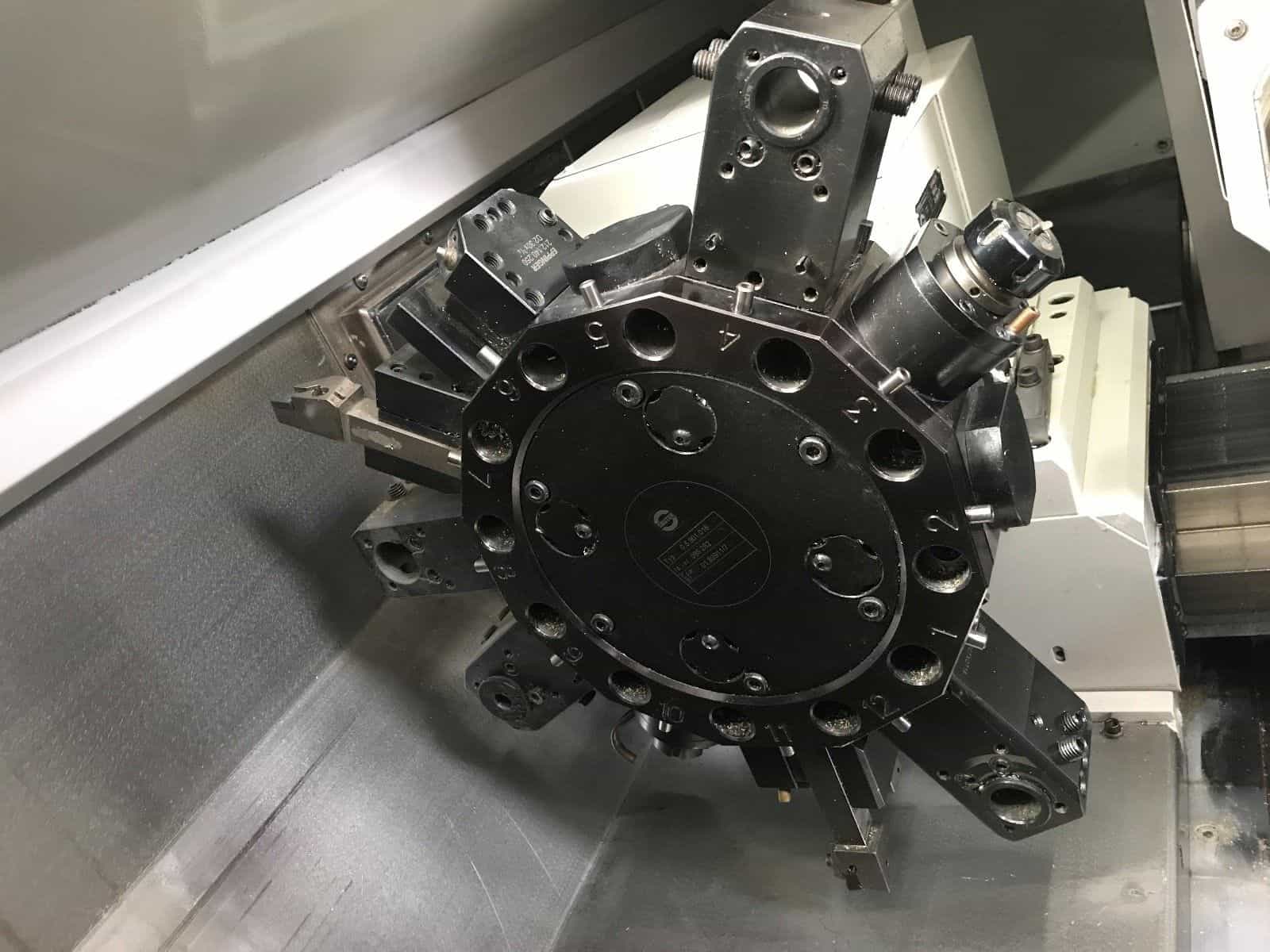

- 12-Station Turret – Live / Rotary Tools
- Servo Controlled Full C-Axis on Both Spindles

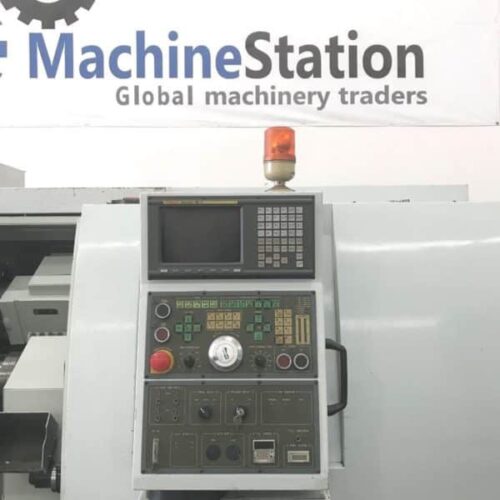

- Fanuc 18T CNC Control
- Tool Presetter
- Auto Parts Catcher

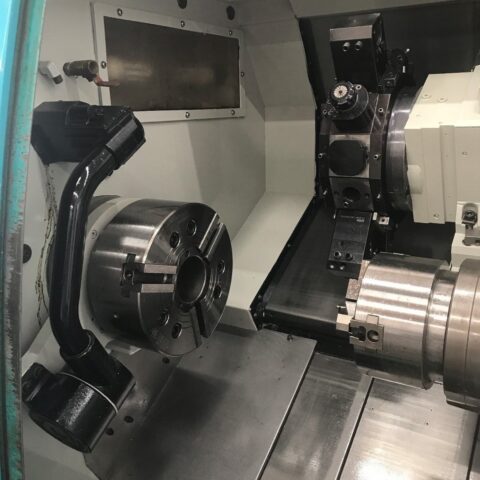

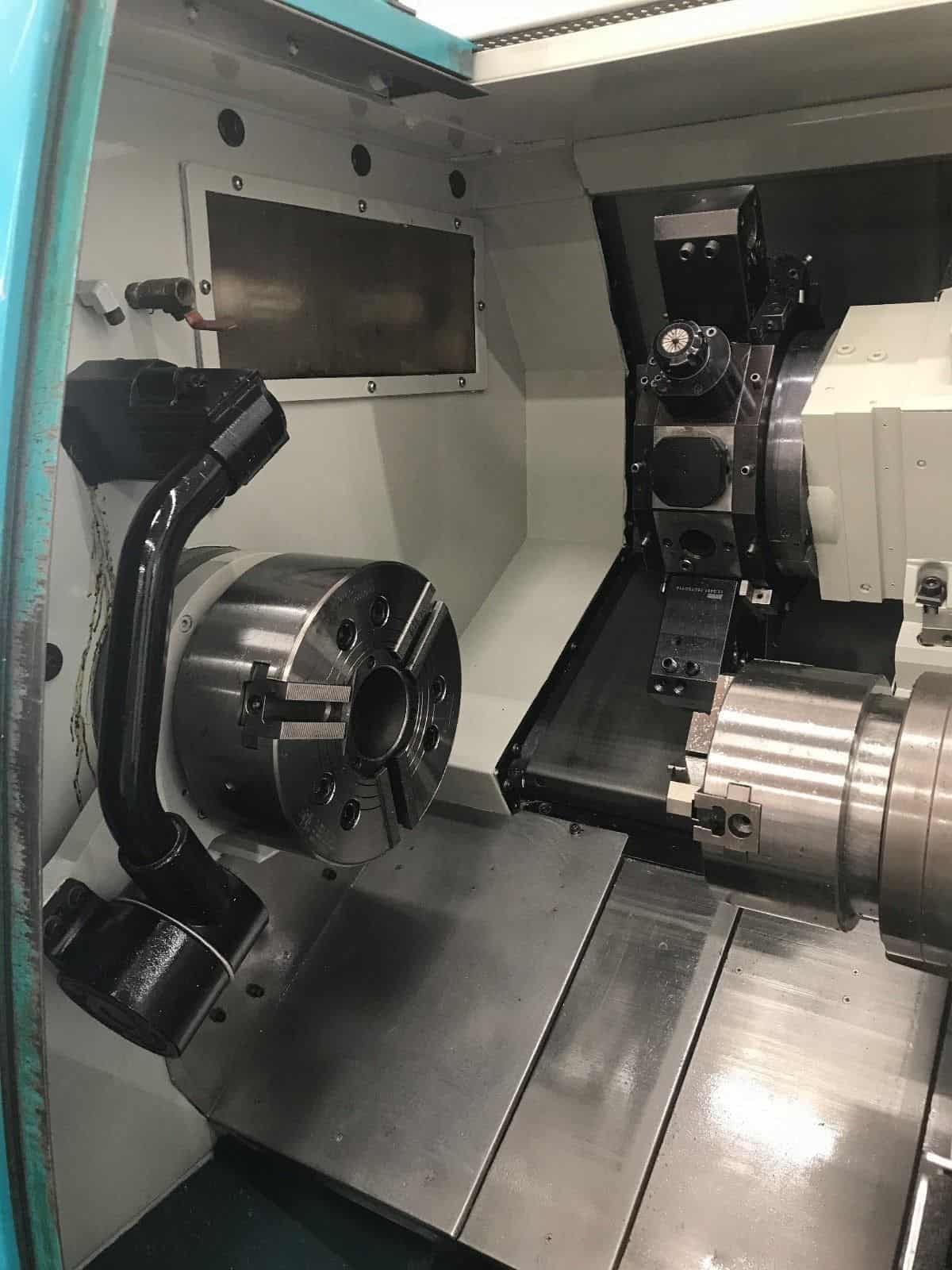

- 10″ Hydraulic Chuck on Main Spindle

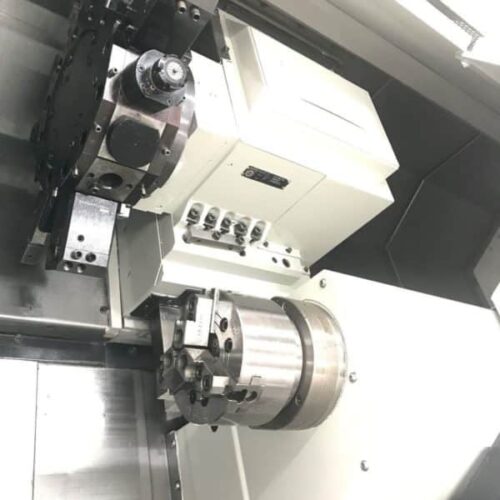

- 6″ Hydraulic Chuck on Sub Spindle
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck

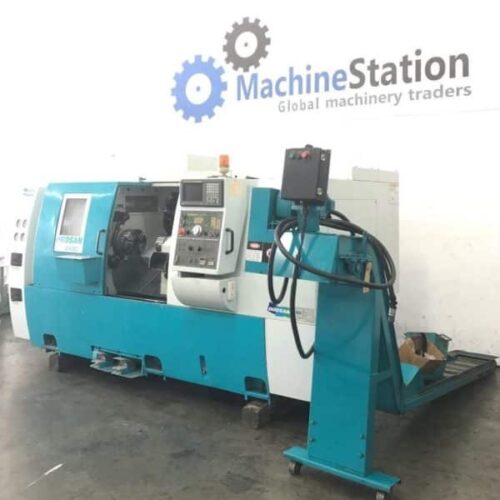

- Turbo Systems Chip Conveyor
- Comes with Live Tools & some Static Tool Holders.
- All Available Books, Tool Holders and Tooling.
- DOOSAN S-310 SML Specifications:
- Max. Turning Diameter: 15.2″
- Max. Swing over Bed: 19.7″
- Max. Turning Length: 30″
- Max. Bar Capacity: 2.54″
- X-Axis Travel: 7.87″
- Z-Axis Travel: 29.53″
- Sub Spindle Travels: 26.0″
- C-Axis: 360 Degree (0.001) on Both Spindle
- X Rapid Traverse Rate: 945 Inch Per Minute
- Z Rapid Traverse Rate: 1181 Inch Per Minute
- Spindle Bore: 3.03″
- Sub Spindle Bore: 1.89″
- Main Spindle Nose: A2-8
- Sub Spindle Nose: A2-5
- Main Spindle Speed: 45-4500 RPM
- Sub Spindle Speed: 45-4500 RPM
- Live Tool Speed: 3000 RPM
- Main Spindle Power: 20 HP
- Sub Spindle Power: 7.5 HP
- Power Source: AC 200/220 V, Three Phase, 50/60 Hz
- Power Requirement: 40kva
- Weight : 14000 lbs Approx.
- Overall Dimensions: 132″ x 73″ x 74″ High
- Overall Dimensions: 146″ x 67″ x 74″ High with Chip Conveyor

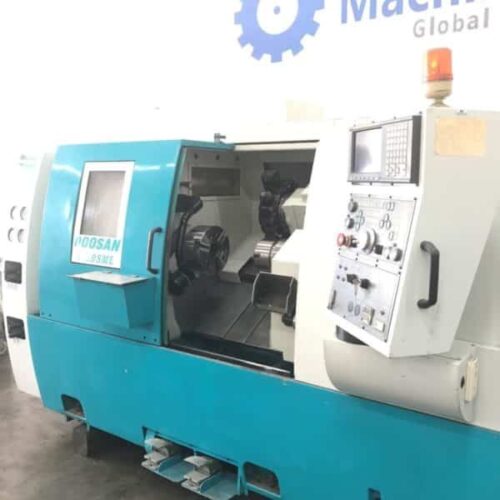

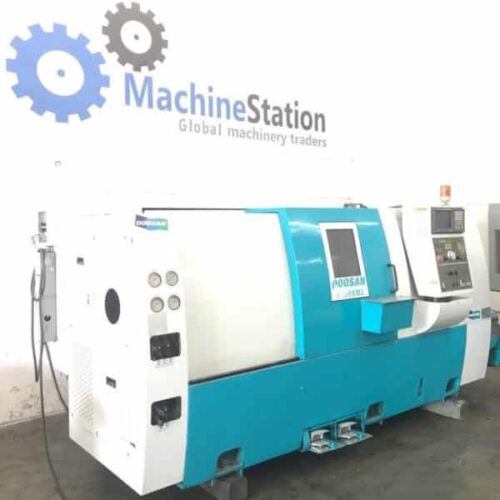

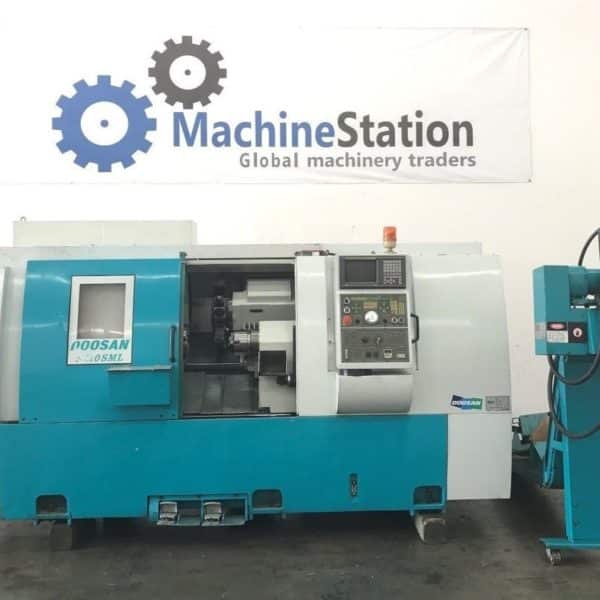

DOOSAN S-310 SML Comes as shown in pictures.
