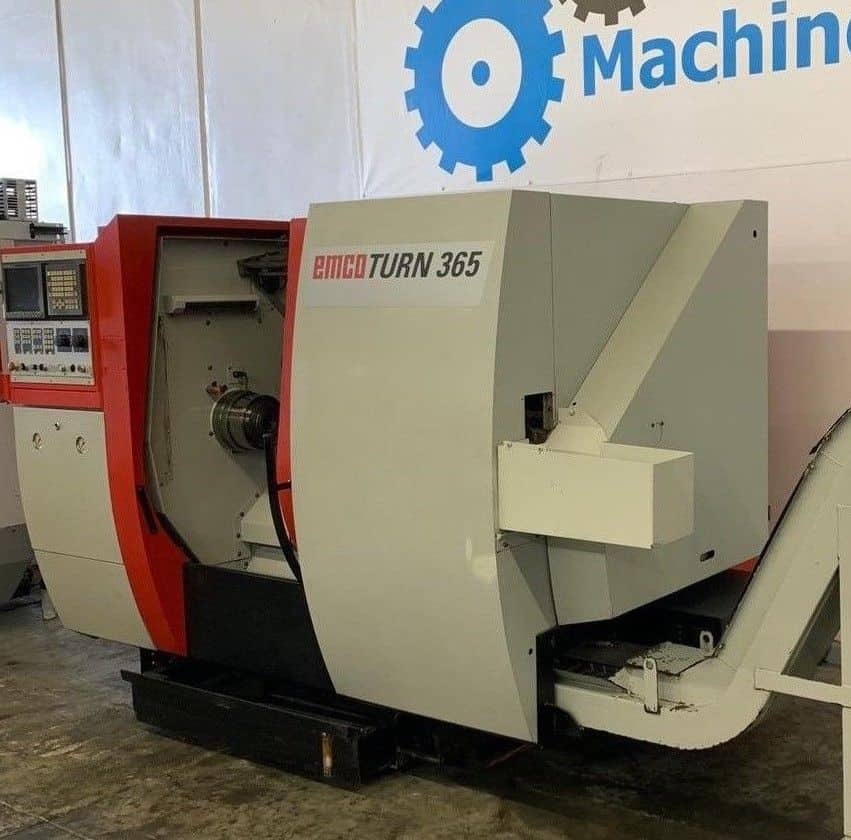

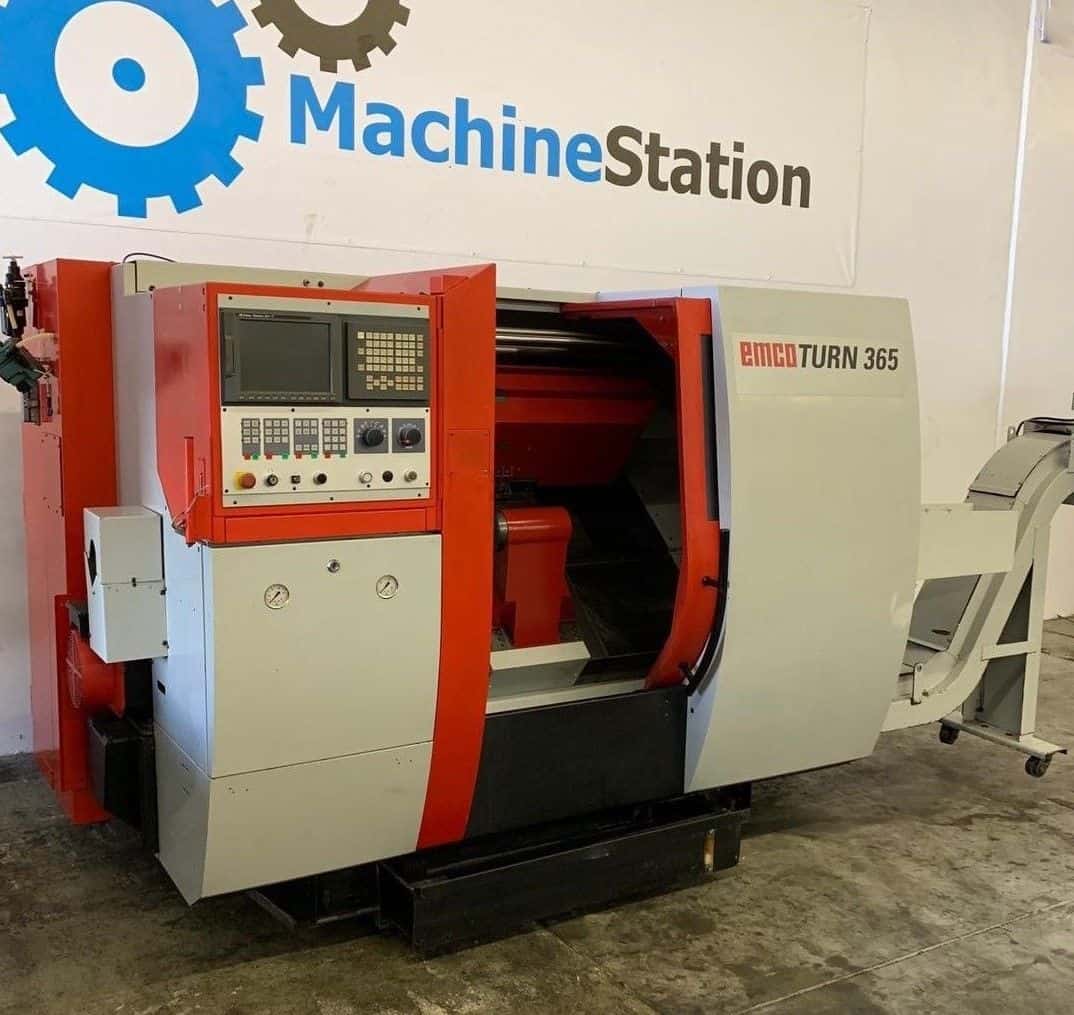

| EMCO TURN 365-65 TCM CNC TURN MILL | |
|---|---|
| Make | Emco Turn |
| Model No. | 365-65 TCM |
| Year | 2001 |
| Serial # | R6AN3851 |
| Condition | Very Good |
| Comes with Collet Chuck, Live Tool Holders, Tailstock, Manuals & Chip Conveyor Only 15637 cutting hours |
|
All specifications are approximations and are subject to verification.
“This machine is in very Good running condition. It is equipped with Collet Chuck, C Axis, Live Tools, Tailstock , Parts Conveyor & Chip Conveyor. Only 15637 cutting hours. On Our Floor fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.”
- Emco Turn 365-65 TCM Equipped With:

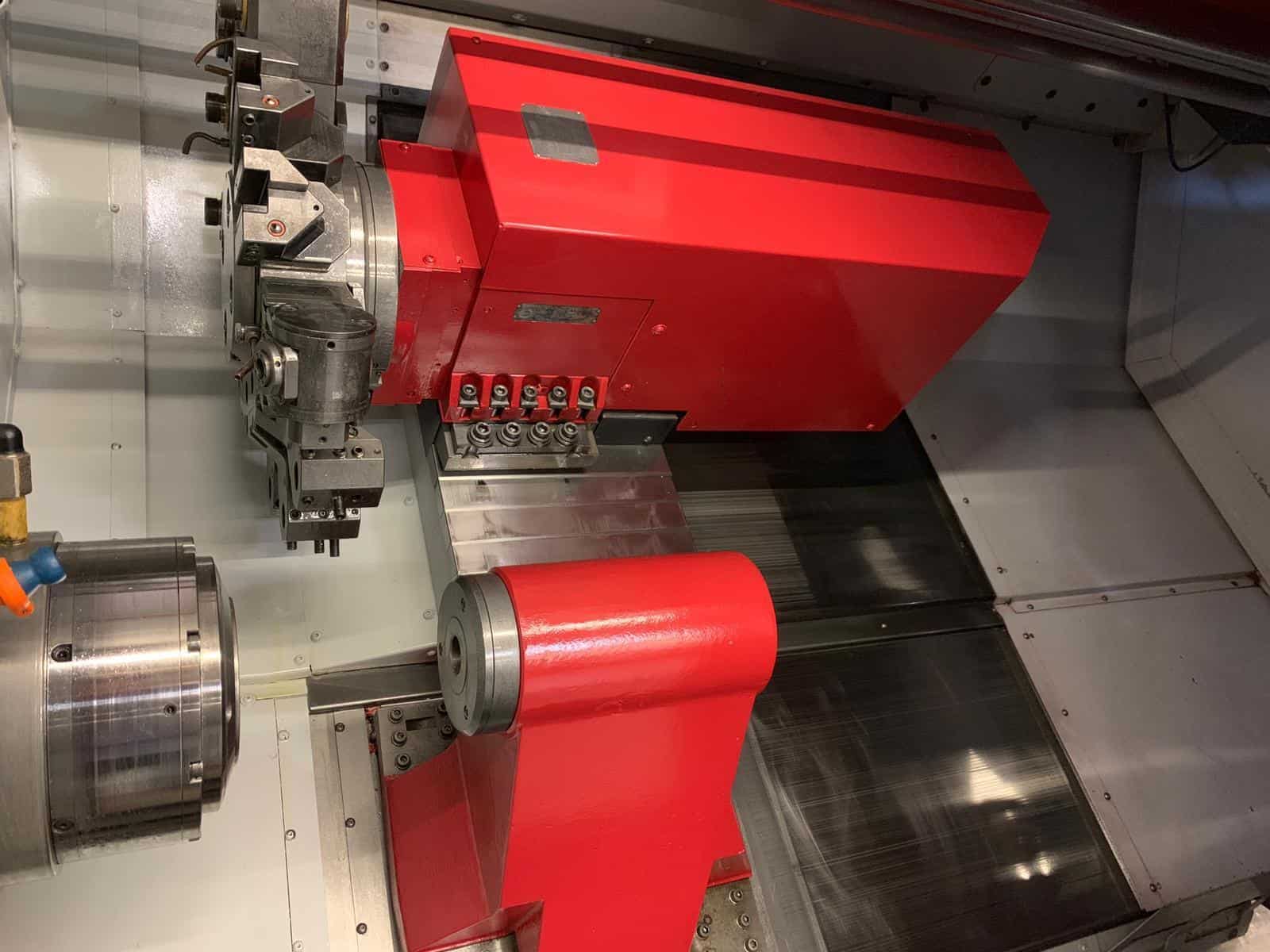

- 12 Station Live Tool Turret
- Full C Axis
- 65mm (2.56″) Big Bore Machine

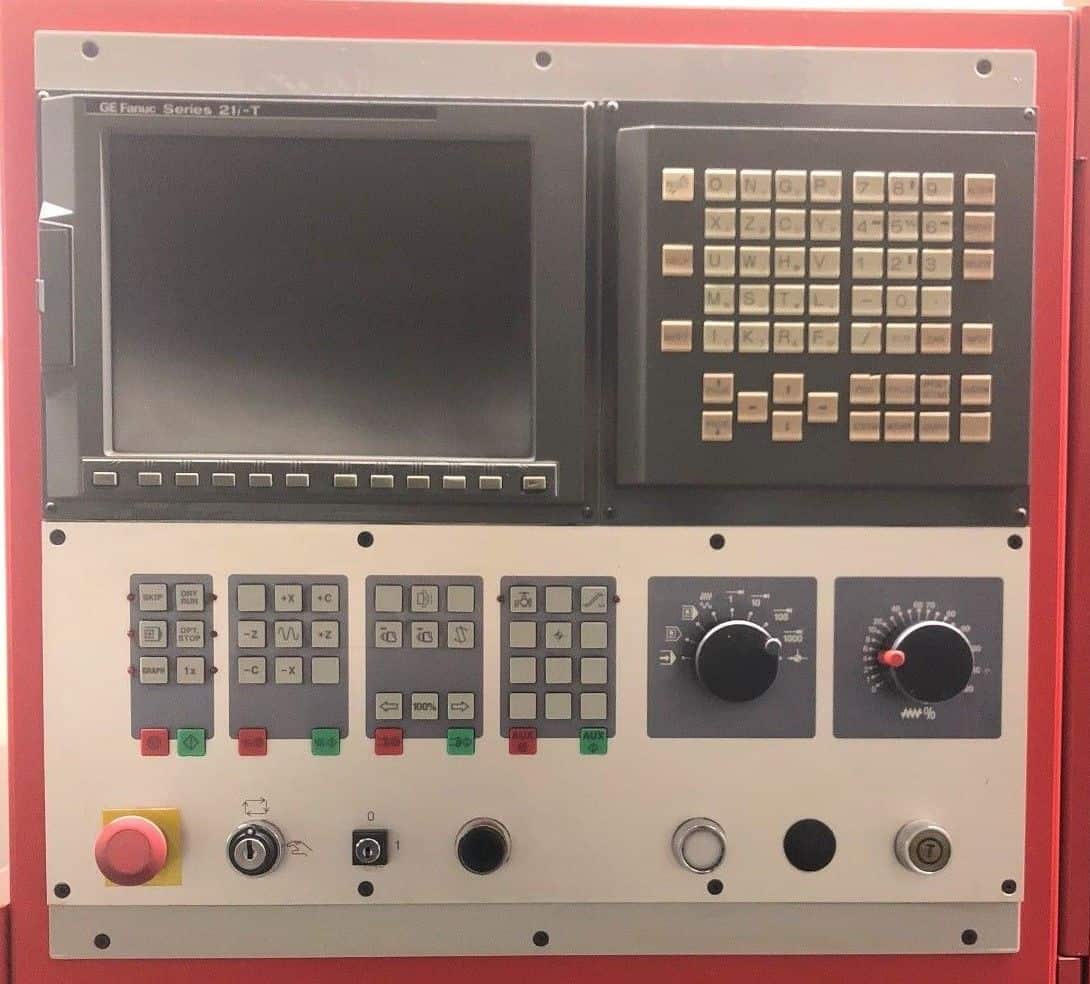

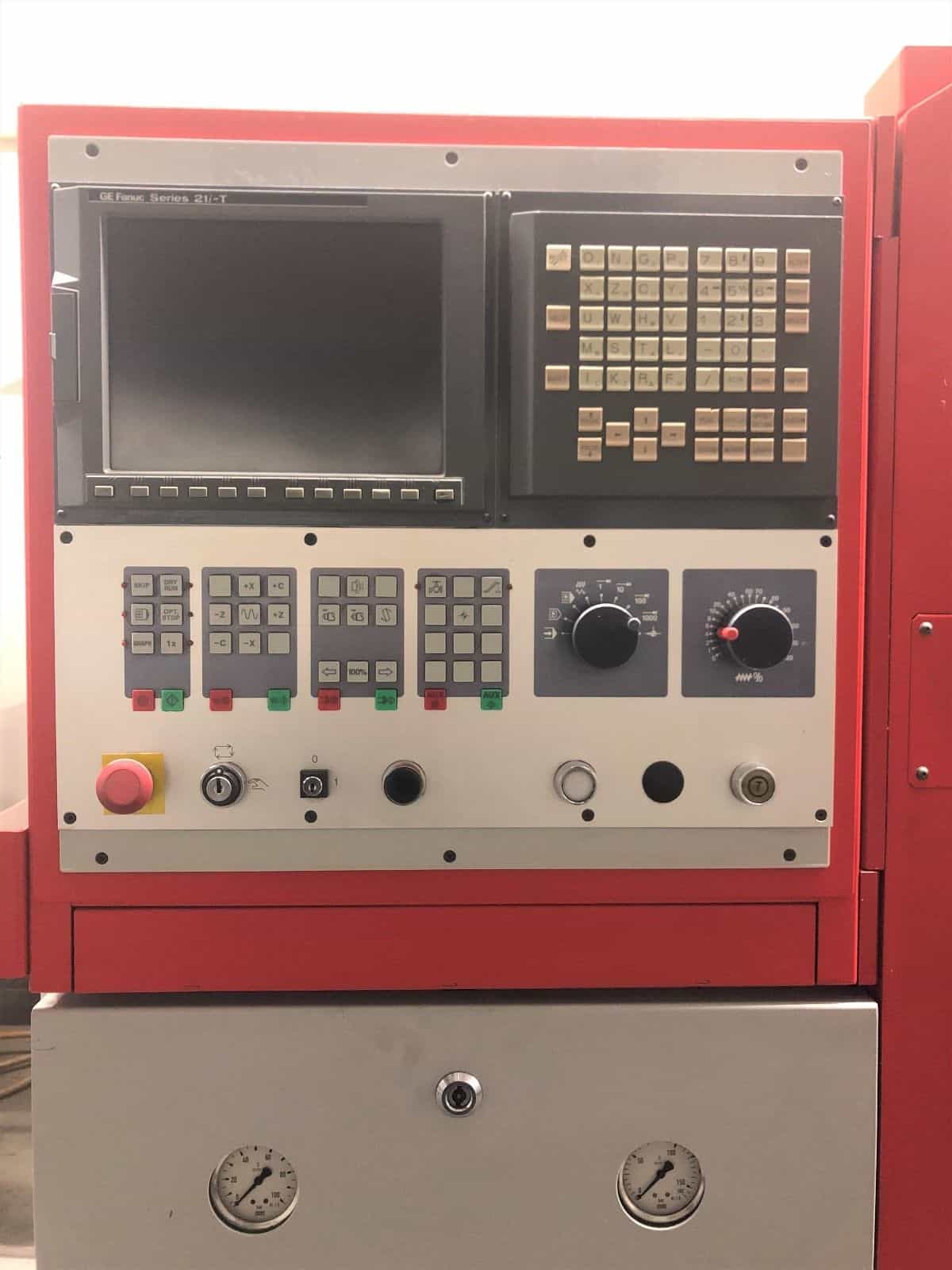

- Fanuc 21iT Control with PCMCIA Card Slot

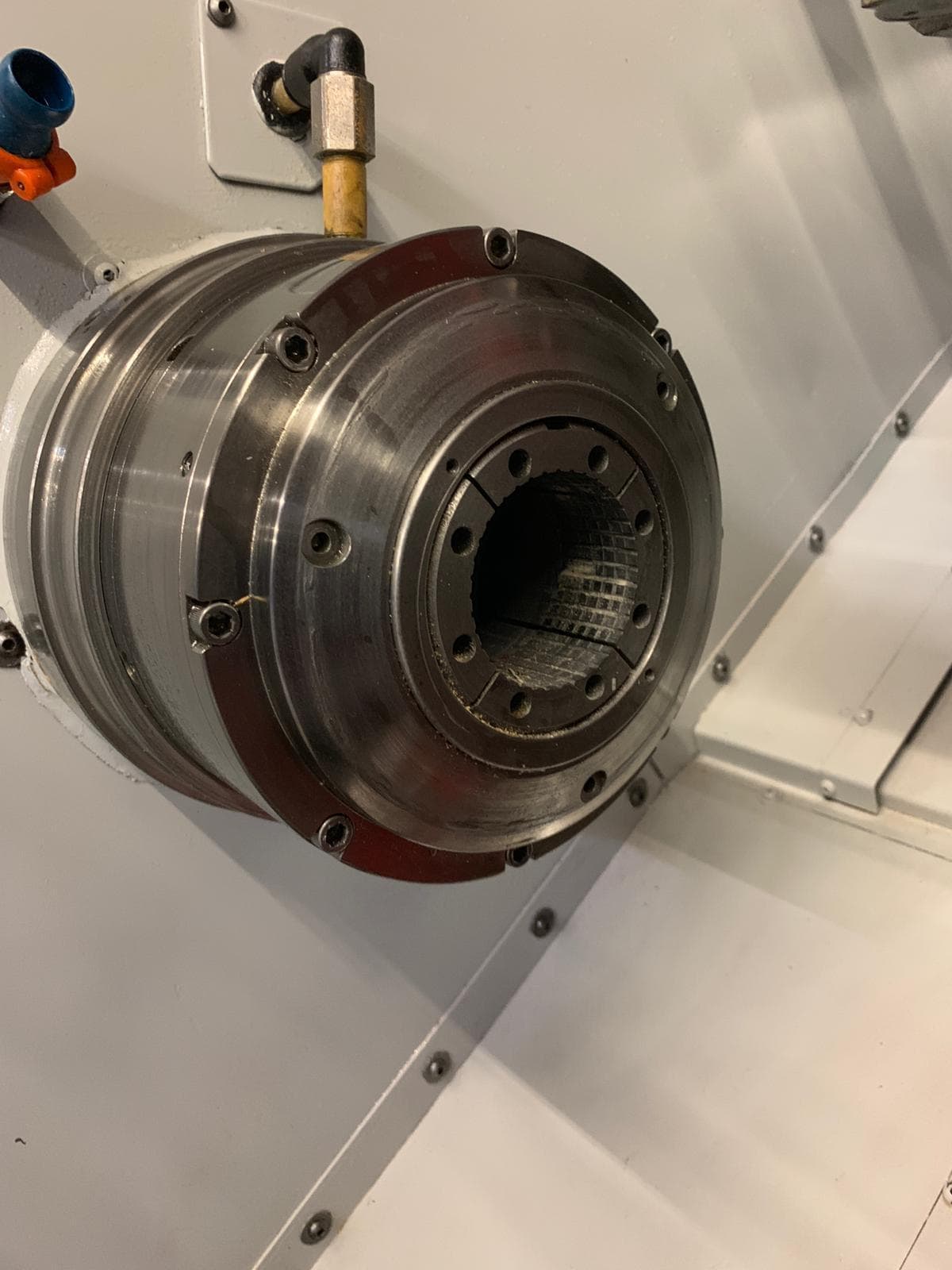

- Full Bore 2.75″ Collet Chuck ($8500 Value)
- A2-6 Spindle
- Parts Conveyor
- Hydraulic Programmable Tailstock
- Axial Drilling
- Radial Drilling
- Polygon Turning
- Rigid Tapping
- Cylinder Interpolation
- Coolant System
- Barfeed Interface
- Original Manuals & Disc
- Chip Conveyor
- Emco Turn 365-65 TCM Specifications:
- Capacity:
- Max Turning Diameter: 7.87″
- Max Turning Length: 20.47″
- Max Bar Capacity: 2.61″
- Swing Over Bed: 23.62″
- Distance Between Centers: 31.69″
- Travels:
- X Axis Travel: 8.26″
- Z Axis Travel: 24.01″
- C Axis : 0.001°
- Rapid Traverse X Axis: 1124 IPM
- Rapid Traverse Z Axis: 1574 IPM
- Spindle:
- Spindle Nose: A2-6
- Spindle Bore: 2.74″
- Spindle Speed: 0 – 4200 RPM
- Spindle Motor: 25 HP
- Turret:
- Turret Capacity: 12 Live Stations
- Turret Index Time: 0.15 Second
- Live Tool Speed: 0-4000 RPM
- Live Tool Motor: 9 HP
- Tailstock:
- Tailstock Taper: MT-4
- Tailstock Travel: 19.68″
- General:
- Power: 25 kva, 400v / 3-Phase
- Overall Dimensions: 120″ x 76″ x 80″ High
- Overall Dimensions: 138″ x 76″ x 80″ High with Chip Conveyor
- Weight: 8800 lbs
Emco Turn 365-65 TCM Comes as shown in pictures..
